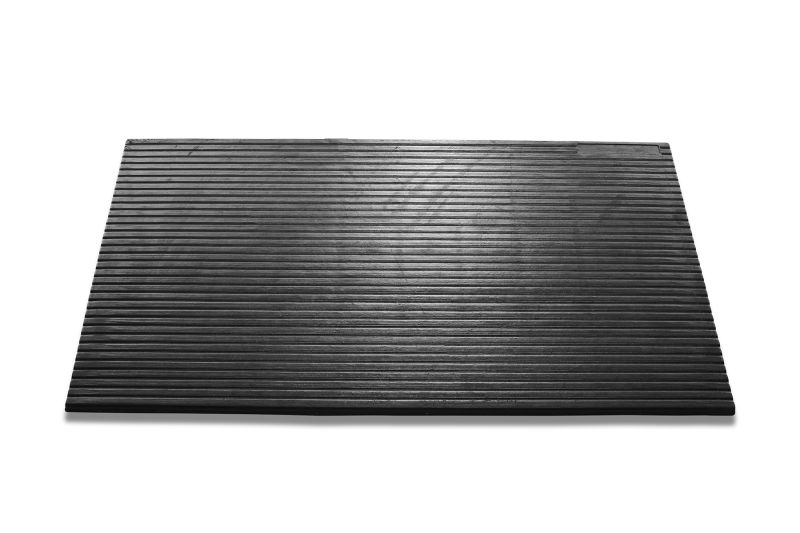

Rubber Threshold and Container Ramps up to 100mm high

SKU
TRP-RMP-C
From £42.00 £35.00
Over 300 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Built to a smooth gradient for ease of loading. Ramps up to 80mm are built to a 1:10 gradient, ramps from 85mm upwards are built to a 1:8 gradient. Made from 100% recycled rubber. These rubber threshold ramps/rubber strips are extremely high quality with a 500kg loading capacity. The rubber container ramps are durable, strong, non-slip and versatile. Available in the heights between 4mm/0.15" and 100mm/4".

Rubber Threshold Ramps FAQ's

Description

Multiple sizes can be used together to overcome tricky thresholds (as per the video).

The Rubber Threshold Ramps up to 70mm high feature:

  • The ramps from 4mm - 80mm are designed and built to a 1 in 10 gradient. Ramps from 85mm upwards are built to a 1:8 gradient
  • Ramps up to 70mm are sold as singles in 1m wide pieces. Ramps from 74mm and above are provided as 2 x 500mm ramps to create a total width of 1m
  • Can support a load of up to 1000kg
  • Manufactured from 100% recycled rubber compound
  • Rest & go - to fit just slide up to the threshold and start loading
  • Can be cut to size to fit space available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • These ramps are only suitable for use as mobility aids

4mm/0.15"

  • Length (mm): 40
  • Width (mm): 1000
  • Weight (kg): 0.2
  • Capacity (kg): 1000

8mm/0.31"

  • Length (mm): 80
  • Width (mm): 1000
  • Weight (kg): 0.7
  • Capacity (kg): 1000

10mm/0.39"

  • Length (mm): 100
  • Width (mm): 1000
  • Weight (kg): 1
  • Capacity (kg): 1000

12mm/0.47"

  • Length (mm): 120
  • Width (mm): 1000
  • Weight (kg): 1.60
  • Capacity (kg): 1000

16mm/0.62"

  • Length (mm): 160
  • Width (mm): 997
  • Weight (kg): 2.6
  • Capacity (kg): 1000

20mm/0.78"

  • Length (mm): 146
  • Width (mm): 1000
  • Weight (kg): 2.3
  • Capacity (kg): 1000

24mm/0.94"

  • Length (mm): 240
  • Width (mm): 994
  • Weight (kg): 3.9
  • Capacity (kg): 1000

28mm/1.1"

  • Length (mm): 280
  • Width (mm): 996
  • Weight (kg): 4.8
  • Capacity (kg): 1000

30mm/1.18"

  • Length (mm): 300
  • Width (mm): 1000
  • Weight (kg): 6.2
  • Capacity (kg): 1000

32mm/1.25"

  • Length (mm): 320
  • Width (mm): 900
  • Weight (kg): 6
  • Capacity (kg): 1000

36mm/1.142"

  • Length (mm): 360
  • Width (mm): 990
  • Weight (kg): 8.2
  • Capacity (kg): 1000

40mm/1.57"

  • Length (mm): 400
  • Width (mm): 1000
  • Weight (kg): 9.1
  • Capacity (kg): 1000

44mm/1.73"

  • Length (mm): 440
  • Width (mm): 1000
  • Weight (kg): 9.7
  • Capacity (kg): 1000

48mm/1.88"

  • Length (mm): 480
  • Width (mm): 1000
  • Weight (kg): 10.9
  • Capacity (kg): 1000

50mm/1.97"

  • Length (mm): 500
  • Width (mm): 1000
  • Weight (kg): 11.8
  • Capacity (kg): 1000

52mm/2.04"

  • Length (mm): 520
  • Width (mm): 1000
  • Weight (kg): 13.1
  • Capacity (kg): 1000

56mm/2.20"

  • Length (mm): 560
  • Width (mm): 1000
  • Weight (kg): 13.6
  • Capacity (kg): 1000

60mm/2.36"

  • Length (mm):600
  • Width (mm): 1000
  • Weight (kg): 16.3
  • Capacity (kg): 1000

65mm/2.55"

  • Length (mm):650
  • Width (mm): 1000
  • Weight (kg): 19.2
  • Capacity (kg): 1000

70mm/2.76"

  • Length (mm):700
  • Width (mm): 1000
  • Weight (kg): 19.9
  • Capacity (kg): 1000

74mm/2.91"

  • Length (mm):740
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 12.4kg per ramp
  • Capacity (kg): 1000

78mm/3.07"

  • Length (mm):780
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 12.65kg per ramp
  • Capacity (kg): 1000

80mm/3.14"

  • Length (mm):800
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 12.8kg per ramp
  • Capacity (kg): 1000

85mm/3.34"

  • Length (mm):680
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 14kg per ramp
  • Capacity (kg): 1000

90mm/3.54"

  • Length (mm):720
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 16.4kg per ramp
  • Capacity (kg): 1000

95mm/3.74"

  • Length (mm):760
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 18kg per ramp
  • Capacity (kg): 1000

100mm/4"

  • Length (mm):800
  • Number of ramps: 2
  • Width (mm): 500 per ramp
  • Weight (kg): 19.9kg per ramp
  • Capacity (kg): 1000

Video
Details
SKUTRP-RMP-C
Capacity (kg)1000
Height (mm)4-100
Height (inches)0.15" - 4"
Length (mm)40-800
Minimum Length40mm
Weight per Ramp (kg)0.2 - 19.9
Width (mm)500-1000
One Year WarrantyYes
Bulk Prices AvailableYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
