Aluminium Loading Ramps (5000x400)

SKU

TRP101/50L

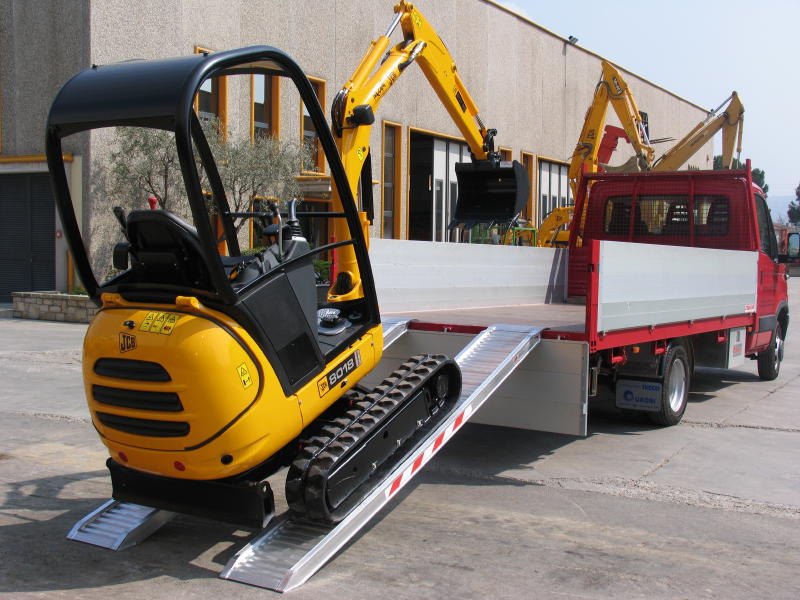

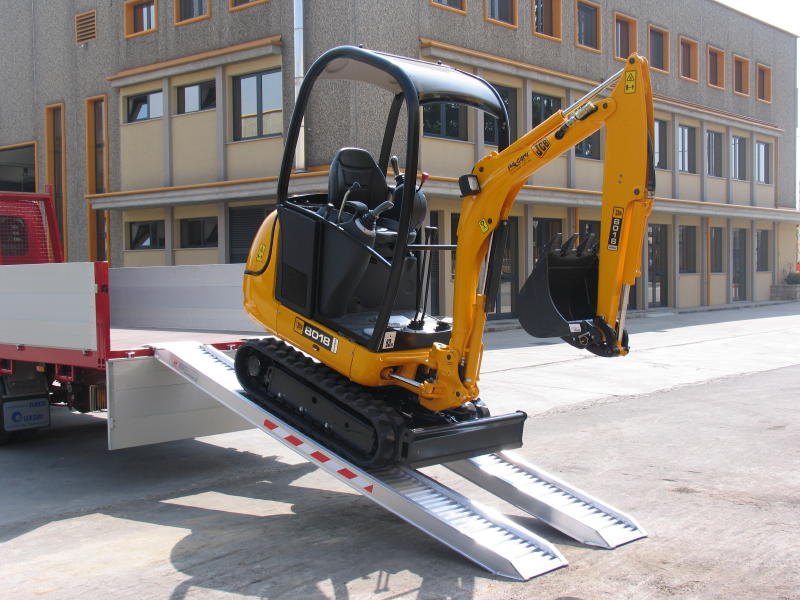

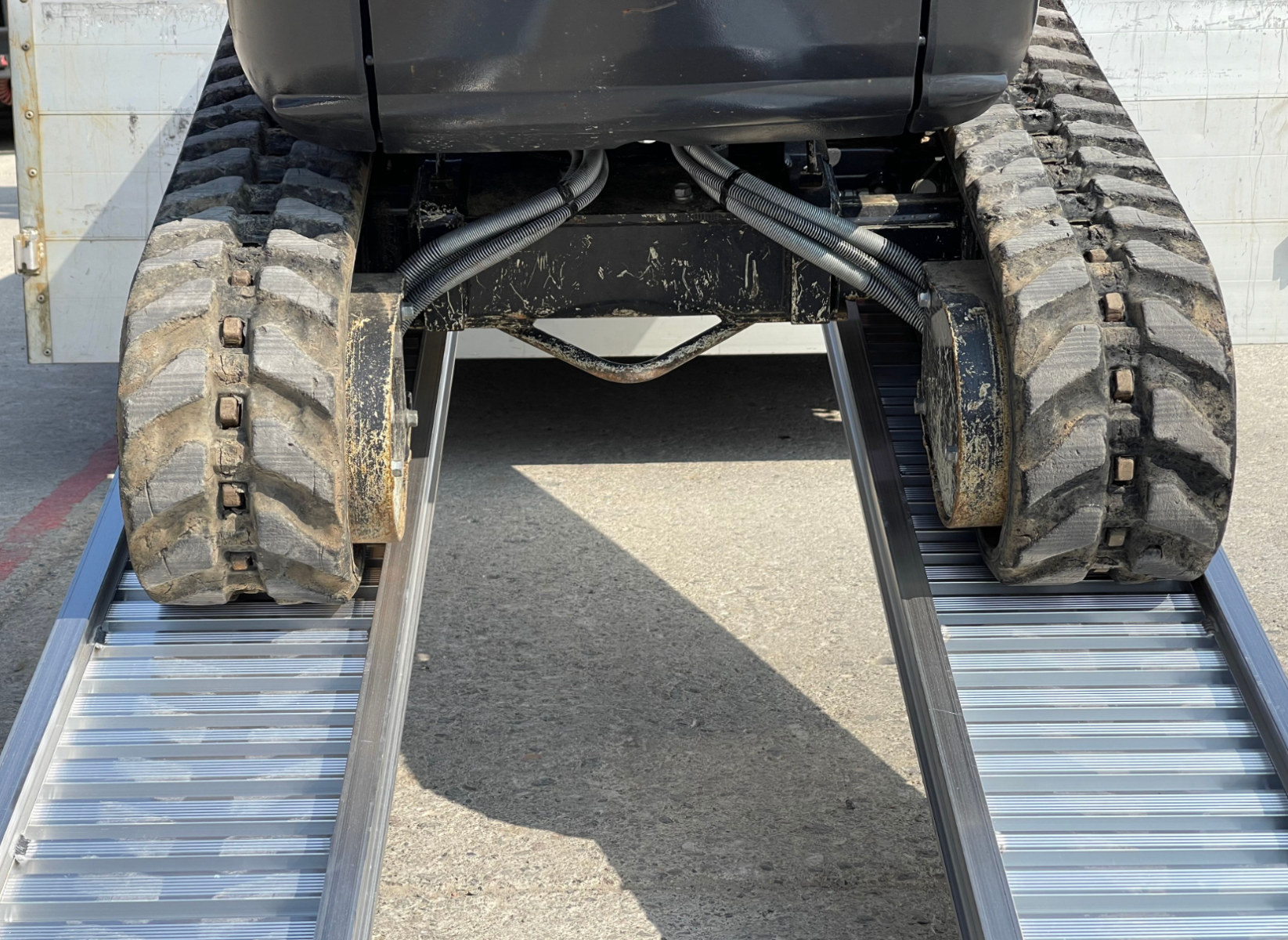

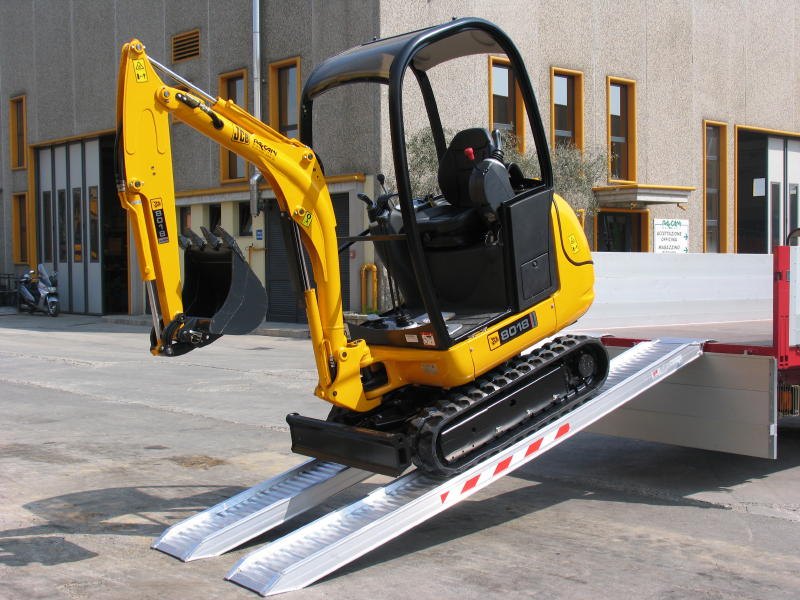

Aluminum loading ramps from The Ramp Factory are 5000mm long, 400mm wide, and have a profile height of 100mm. There is a maximum loading capacity of 1070kg on these ramps, making them ideal for loading plant machinery and vehicles. They are constructed from durable aluminum, making them lightweight and corrosion-resistant. They feature a non-slip loading surface to ensure safe loading and unloading. They are also easy to install and store. Please note these ramps require a minimum/maximum track or tyre width of 200mm/280mm.

In order to meet the individual or professional needs of our customers, The Ramp Factory offers a wide selection of loading ramps. The Ramp Factory's ramps are designed to be durable, lightweight and easy to use. They are available in a variety of sizes and styles to suit any application. The ramps are also competitively priced and backed by a satisfaction guarantee.

Capacity and price is for the PAIR.

£1,686.00 £1,405.00

Built to Order

Aluminium Ramps for Plant & Machinery FAQs

Description

The TRP101L Series core profile thickness is 100mm and have a width of 400mm. They feature a capacity of up to 1070kg and are ideal for use as car ramps or lightweight plant ramps. The TRP1011L Series has a minimum width of tracks/wheels is 200mm.

These Ramps are designed for use at a 30% gradient.

These ramps are available both with and without edges. The default is however without edges
Four different connection options available, however the default connection is the rest on connection
Custom load heights available
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
Quotes for bespoke ramps can be supplied on request
Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP101/50L
Default Connection	Rest On Connection
Capacity (kg)	1070
Height of Ramps Profile (mm)	100
Length (mm)	5000
Max Load Height	1500
Min. Load Height (mm)	1350
Weight per Ramp (kg)	33
Weight Per Pair (kg)	66
Width (mm)	400
Minimum Track Width (mm)	200
Maximum Track Width (mm)	320
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	940
Capacity Wheelbase 1250mm (kg)	1000
Capacity Wheelbase 1500mm (kg)	1070

Print/Save Datasheet

Buy With Confidence

The Ramp Factory value transparency in all of their business transactions and want you to be able to buy from us with confidence. We have taken a number of measures to ensure that this is possible. These include:

Fast Delivery

We aim to despatch all of our orders on the same day when ordered on a business day before 1pm or within a maximum of 48 hours after they have been received if ordered over the weekend or bank holidays. Our target is to deliver within 2 business days which is included free of charge as standard to UK mainland and other shipping methods are available at an extra charge to various regions.

No Quibble Returns Policy

All non-faulty stock items can be returned within 30 calendar days of purchase for a full refund. If you aren’t sure how to choose the correct ramp, do give our friendly sales team a call.

Fully Secure Payment Processing

The Ramp Factory are proud to use the most safest payment methods, we use Adyen, one of the world’s fastest growing E-Commerce Payment Providers to process all of our transactions. Adyen encrypt all of your payment details to the highest level possible, ensuring that none of your personal details are passed on to third parties. we also use PayPal which is an online payment system that makes paying for orders online and sending and receiving money safe and secure.

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
