Ramps for Steel Tracks with Rubber Coating (3500mm x 720mm x 19.149kg)

£5,992.80 £4,994.00
Built to Order
Ask A Question
Ramps for Steel Tracks with Rubber Coating (3500mm x 720mm x 19.149kg)

SKU
TRP120S/6/35 R

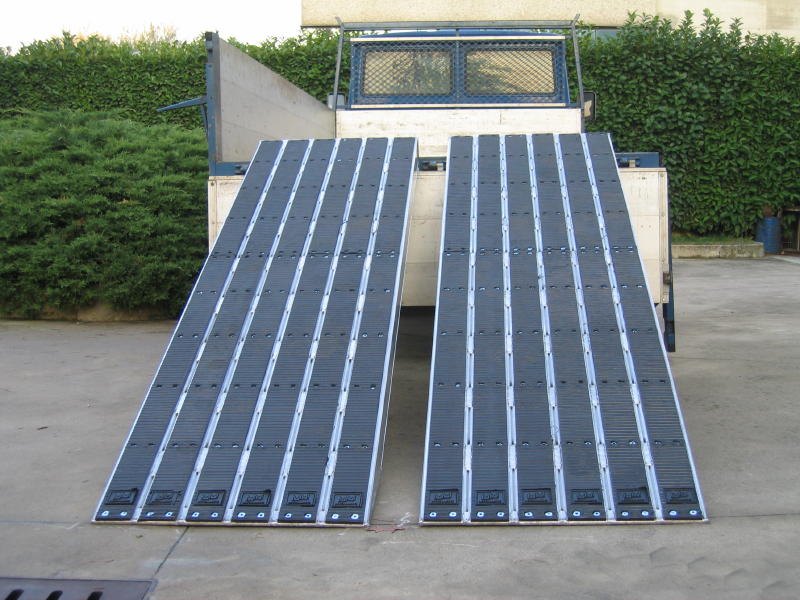

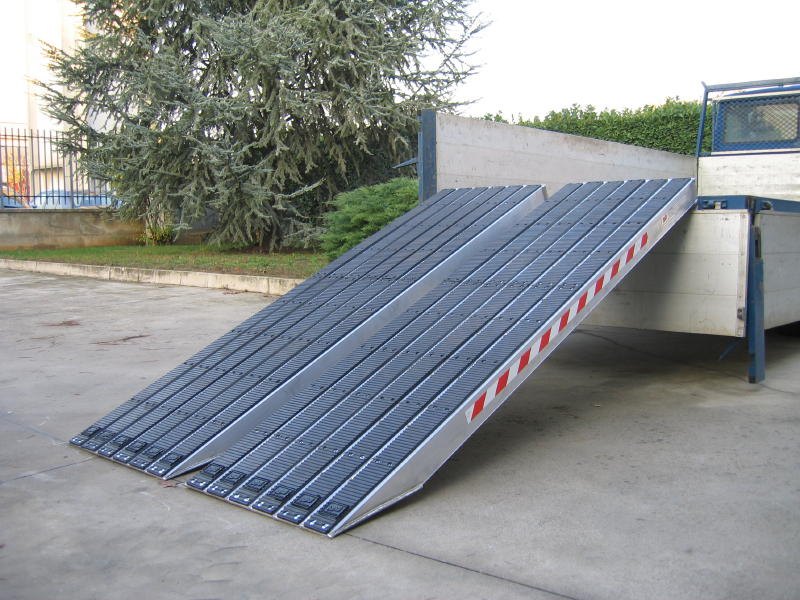

3500mm length, 720mm width and a profile height of 130mm . These ramps include a maximum capacity of 19149kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, with a rubber coating making them ideal for steel tracks.

Capacity and price is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

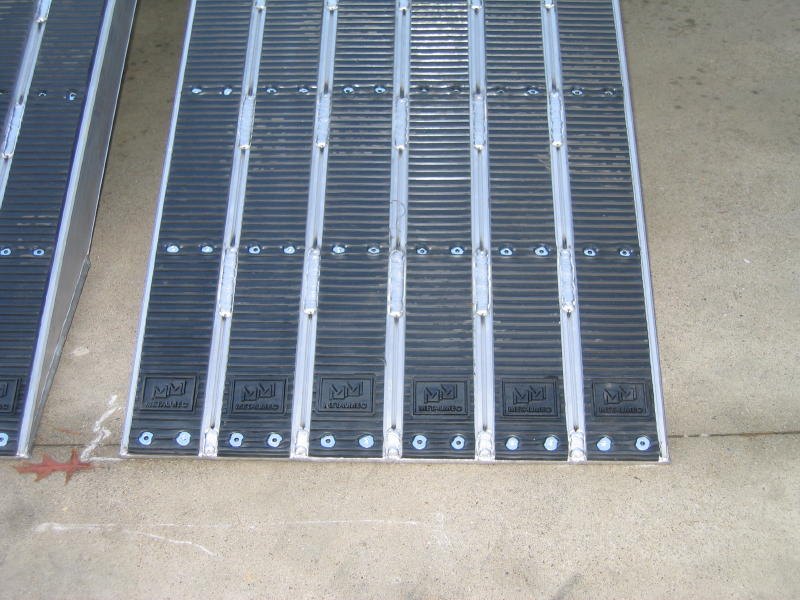

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 130mm. Available up to 720mm wide, these ramps feature no external welds and rubber coating strips and offer a capacity of up to 19,149kg and are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds
  • Removable rubber surface
  • Four different connection options
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP120S/6/35 R
Capacity (kg) 19,149
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight Per Pair (kg) 339
Width (mm) 720
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1500mm (kg) 14362
Capacity Wheelbase 1750mm (kg) 16414
Capacity Wheelbase 2000mm (kg) 19149
