Viper Premium Heavy Duty Van Ramp 1000mm Wide x 1000kg

From £762.00 £635.00
In Stock
Only %1 left
Ask A Question
Viper Premium Heavy Duty Van Ramp 1000mm Wide x 1000kg

SKU
TRP-Viper1000
Single Piece Aluminium Loading Heavy Duty Van Ramp with a capacity from 1000kg and a 1000mm width. Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm, 3000mm and 3600mm.

Truck and Van Ramps FAQ's

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description


Viper Premium Heavy Duty Van Ramp 1000mm wide



Available in the lengths 1800mm, 2000mm, 2400mm, 2600mm, 3000mm and 3600mm with a 1000kg Capacity and the width 1000mm. These ramps are ideally suited for flight cases.

  • Rest on connection: to fit just rest on and start loading and unloading
  • No vehicle or van modification required
  • Suitable for an extensive range of vans

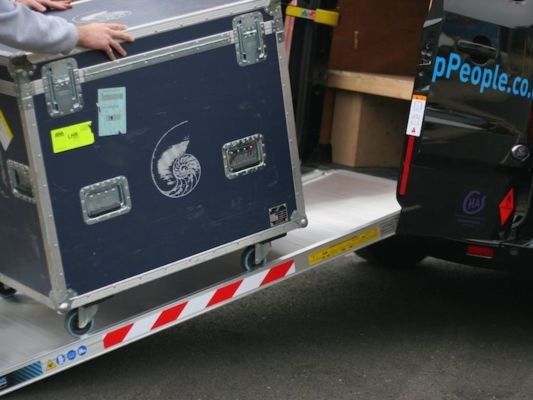

  • Perfect for flight cases
  • Entry onto ramp slightly smoother than our economy version.
  • Lies flat for easy storage when not being used
  • Manufactured from lightweight aluminium (type 6005A)
  • Robot welded for solid, strong and durable construction
  • Lightweight for easy handling
  • Fully TUV Certified to 1000kg capacity as standard
  • Angled foot, this allows for smooth access onto the van ramp when using casters or wheels
  • Edges on each side of the van ramp to prevent accidentally wheeling off
  • Ramps without edges are also available
  • Optimised ramp weight ensures the ramp stays connected to the van
  • Hook connection option available
  • Extended connection terminal bridges most bumpers, crash bars and tow bars

Viper Premium Heavy Duty Van Ramp 1000mm wide

1800mm

  • Length (mm): 1800
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 540
  • Min Load Height (mm): 390
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 27
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 65

2000mm

  • Length (mm): 2000
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 600
  • Min Load Height (mm): 450
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 30
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 65

2400mm

  • Length (mm): 2400
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 720
  • Min Load Height (mm): 570
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 37
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 85

2600mm

  • Length (mm): 2600
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 780
  • Min Load Height (mm): 630
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 40
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 85

3000mm

  • Length (mm): 3000
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 46
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 100

3600mm

  • Length (mm): 3600
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 1050
  • Min Load Height (mm): 900
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 56
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 115
Details
SKU TRP-Viper1000
Default Connection Rest On Connection
Capacity (kg) 1000
Height of Raised Side (mm) 29
Height of Ramps Profile (mm) 65-115
Internal Width (mm) 940
Length (mm) 1800-3600
Max Load Height (mm) 540-1050
Weight per Ramp (kg) 27-56
Width (mm) 1000
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
External Width (mm) 1000
