Designed for organisations that require a safe and practical solution for carrying boxes, stock and equipment at height, the Klimie-Ezee Extra Wide Platform Ladder features extra-wide 700mm treads, providing a secure and comfortable ascent and descent. The generous 700mm x 400mm working platform offers ample space for accessing shelving and racking or carrying out maintenance tasks with confidence.

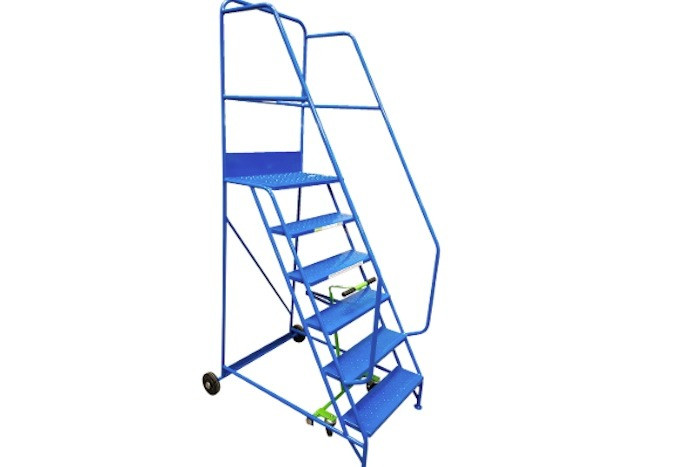

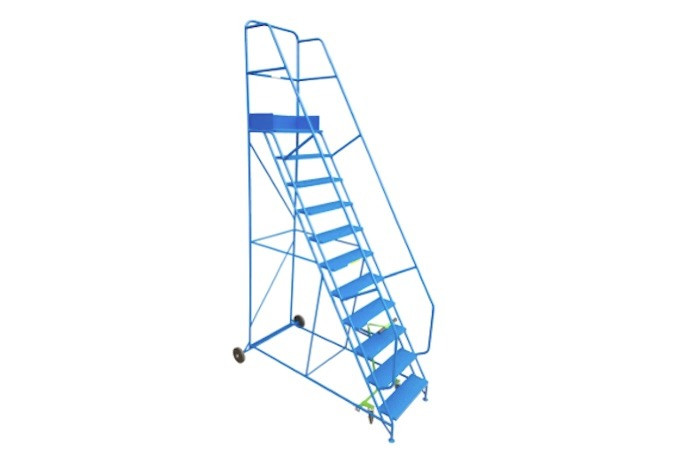

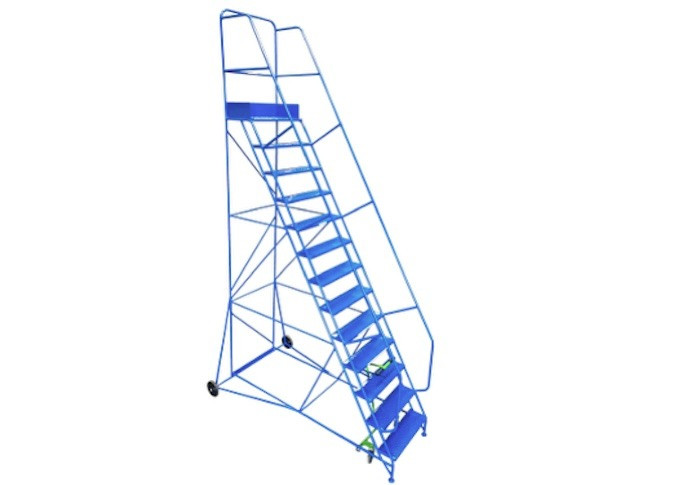

Manufactured with safety at the forefront, this extra-wide steel mobile ladder is fitted with a reliable braking system to provide stability during use, dual handrails to help maintain three points of contact, and high-traction treads for enhanced grip. Combining safety, durability and ease of use, it is an ideal choice for warehouses, stockrooms and industrial environments.
Description
Spacious 700mm x 400mm working platform allows users to safely work at height and undertaking picking tasks or maintenance works
The 3-tread option has a side brake. The 4-tread option and above have a central brake to secure the ladder in position, eliminating the need for a second person to hold it in place.
300kg capacity, heavy-duty design
Provided on four wheels, easy to manoeuvre around the warehouse or site
Choose from punched metal or PVC-covered treads to reduce the risk of slips when climbing or descending the ladder - please contact our team following your order to confirm your preferred tread type
Dual handrails allow users to maintain 3-point contact at all times
Toe plate (75mm high) on the platform to prevent tools, equipment, and materials from accidentally falling off the platform. The 3 - 6 tread options have a rear toe plate only. The 7 - 15 tread options have toe plates on all three sides of the platform
High-visibility blue design alerts passers-by, employees and drivers to the presence of the structure - alternative colour options are available
Welded construction for a long-lasting, durable design with tread strengtheners at the front of each tread for additional durability
High-gloss powder-coated coating which offers water resistance and is easy to clean, scratch-resistant, and environmentally friendly - please note the ladder is not waterproof, so it is recommended the ladder is stored inside
Manufactured from Electric Resistance Welded (ERW) steel tube, providing a light and strong solution
Wide treads at 700mm x 200mm wide, designed to provide a safe place for users to place their feet when climbing the ladder and a spacious width for those carrying items
60-degree ascent angle
Delivered fully assembled
One-year warranty with the option to extend to four years following your purchase
Customisations available, including alternative colour options and exit options - please contact our team for more details.
Made in Britain
Please note the number of treads includes the top platform step/tread. For example, if you select 5 treads, this includes 4 treads plus the platform.
The main framework is approximately 750mm wide. The width stated in the product specification is the width at the widest point (the axle).
Klime-Ezee Extra Wide KW
3 Tread
Working Height 1750 - 2500mm
Platform Height 750mm
Overall Height 1750
Overall Width 995mm
Overall Depth 820mm
Weight 42kg
Safe Working Load (SWL) 300kg
Brake Type Side Brake
4 Tread
Working Height 2000 - 2750mm
Platform Height 1000mm
Overall Height 2000mm
Overall Width 995mm
Overall Depth 1040mm
Weight 51kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
5 Tread
Working Height 2250 - 3000mm
Platform Height 1250mm
Overall Height 2250mm
Overall Width 995mm
Overall Depth 1270mm
Weight 75kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
6 Tread
Working Height 2500 - 3250mm
Platform Height 1500mm
Overall Height 2500
Overall Width 995mm
Overall Depth 1360mm
Weight 82kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
7 Tread
Working Height 2750 - 3500mm
Platform Height 1750mm
Overall Height 2750mm
Overall Width 995mm
Overall Depth 1450mm
Weight 90kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
8 Tread
Working Height 3000 - 3750mm
Platform Height 2000mm
Overall Height 3000mm
Overall Width 995mm
Overall Depth 1575mm
Weight 98kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
9 Tread
Working Height 3250 - 4000mm
Platform Height 2250mm
Overall Height 3250mm
Overall Width 995mm
Overall Depth 850mm
Weight 110kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
10 Tread
Working Height 3500 - 4250mm
Platform Height 2500mm
Overall Height 3500mm
Overall Width 1150mm
Overall Depth 1905mm
Weight 118kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
11 Tread
Working Height 3750 - 4500mm
Platform Height 2750mm
Overall Height 3750mm
Overall Width 1150mm
Overall Depth 2070mm
Weight 125kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
12 Tread
Working Height 4000 - 4750mm
Platform Height 3000mm
Overall Height 4000mm
Overall Width 1150mm
Overall Depth 2230mm
Weight 136kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
13 Tread
Working Height 4250 - 5000mm
Platform Height 3250mm
Overall Height 4250mm
Overall Width 1380mm
Overall Depth 2470mm
Weight 145kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
14 Tread
Working Height 4500 - 5250mm
Platform Height 3500mm
Overall Height 4500m
Overall Width 1380mm
Overall Depth 2630mm
Weight 150kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
15 Tread
Working Height 4750 - 5500mm
Platform Height 3750mm
Overall Height 4750mm
Overall Width 1470mm
Overall Depth 2795mm
Weight 158kg
Safe Working Load (SWL) 300kg
Brake Type Central Brake
Specifications
SKU
TRP-KW
Capacity (kg)
300
Platform Length (mm)
400
Platform Width (mm)
700
Tread Size (mm)
700 x 200
One Year Warranty
Yes
Customisable
Yes
Colour Options
White
