10 Tonne Mobile Shipping Container Ramp, Extra Wide

SKU

TRP-YR10-2

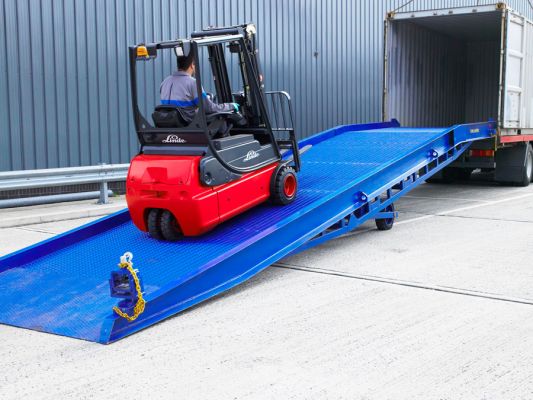

Our TRP-YR10-2 is CE Marked and meets the latest European standards and directives. The yard ramp is a popular choice for those seeking to easily, and quickly, load and unload containers. The fixed swivel clamp allows the ramp to easily be moved to the desired location whilst the hydraulic assist allows the load height to be to amended to heights of between 800mm-1650mm. The ramp has a 10,000kg capacity.

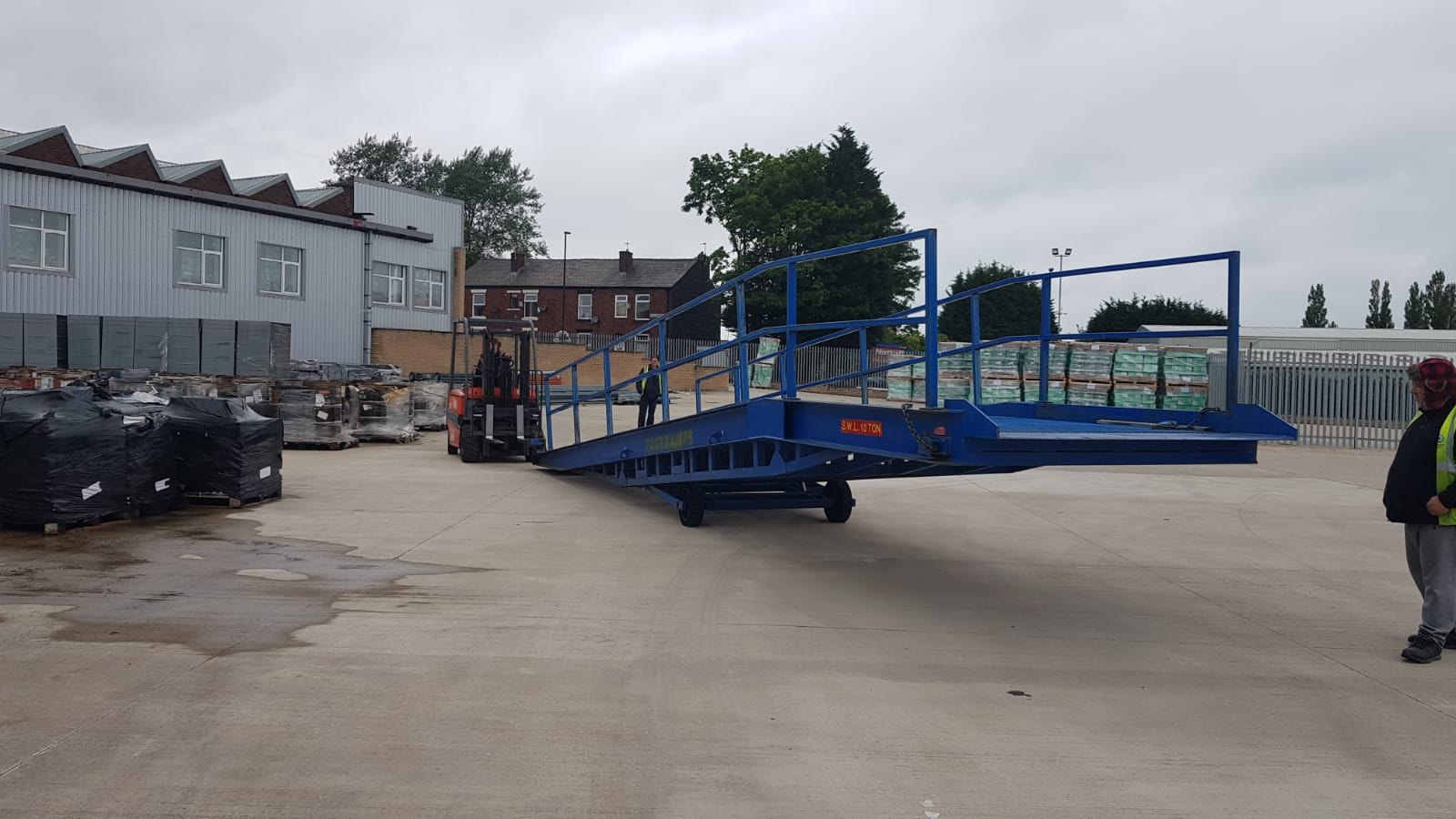

Handrails available on request, please contact us for a quote.

£17,478.00 £14,565.00

Built to Order

Mobile Yard Ramps FAQ's

Description

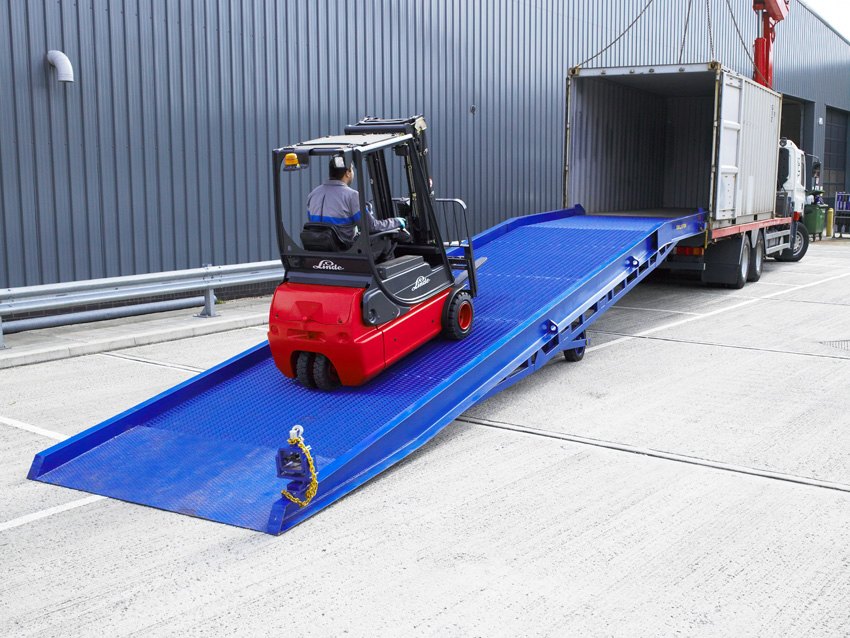

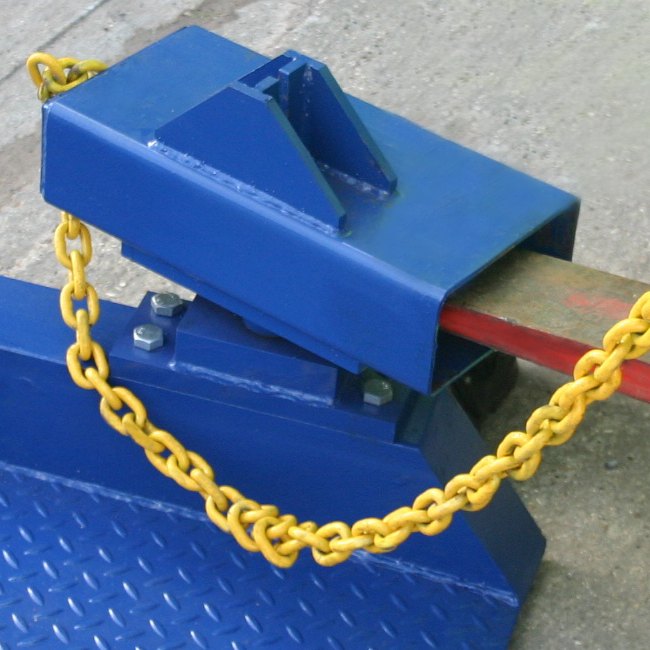

This 10 ton extra wide yard ramp increases the ease to load wider machinery. This ramp makes loading and unloading containers much simpler. The fixed swivel clamp allows the ramp to easily be moved with a forklift whilst the hydraulic assist allows the ramp height to be adjusted with ease.

The side profiles of all models are constructed from a single piece of steel giving these the highest levels of performance, durability and safety. They can be customised to include handrails if required. The useable width is 2,260mm

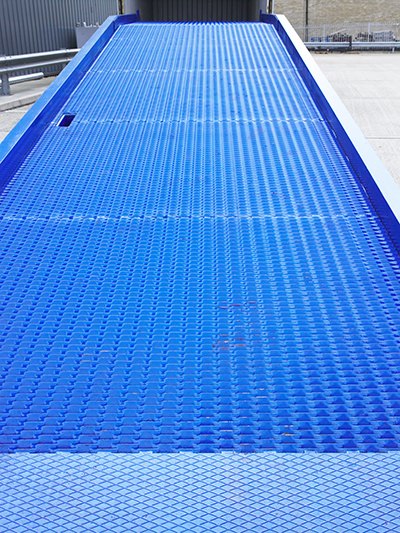

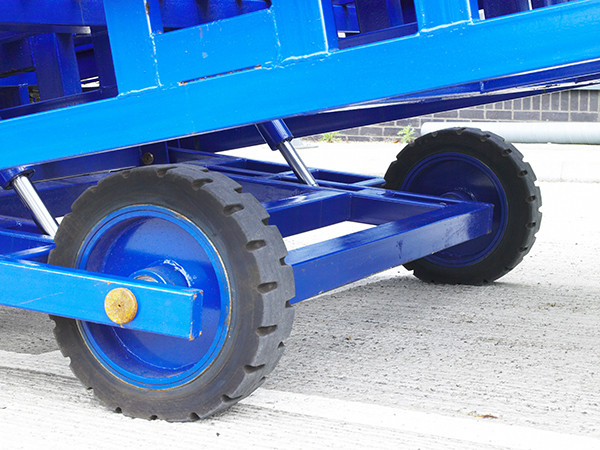

These ramps are fully certified and tested and feature a reinforced steel undercarriage, high traction UK produced mesh anti-slip surface and come supplied with swivel fork mount, steel chains and clamps, hydraulic assist and wheel chocks.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Details

SKU	TRP-YR10-2
Capacity (kg)	10000
Height of Ramp (mm)	800
Internal Width (mm)	2260
Length (mm)	11260
Max Load Height (mm)	1650
Outer Ramp Width (mm)	2460
Weight (kg)	4050
One Year Warranty	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Leave Outside	Yes
Usable Width (mm)	2260

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
