Yard Ramp (11260x2260x7000kg)

SKU

TRP-YR7-1-Config

CE Marked and meeting the latest European standards and directives, this yard ramp is a popular choice for those seeking to easily, and quickly, load and unload containers. The fixed swivel clamp allows the ramp to easily be moved to the desired location whilst the hydraulic assist allows the load height to be amended swiftly.

Available with and without handrails.

Length (mm)	11260
Width (mm)	2260
Minimum Load Height (mm)	800
Maximum Load Height (mm)	1650
Capacity (kg)	7000

From £15,804.00 £13,170.00

Built to Order

Only %1 left

Mobile Yard Ramps FAQ's

Description

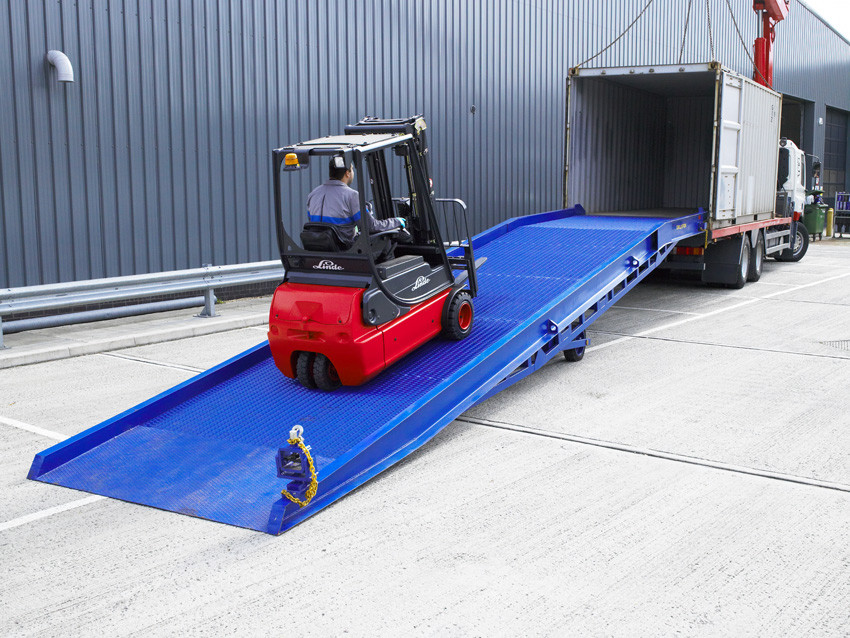

This popular yard ramp can be used to load various vehicles, including cars, forklifts and farm machinery up to 7,000kg. The side profiles of all models are constructed from a single piece of steel giving these the highest levels of performance, durability and safety.

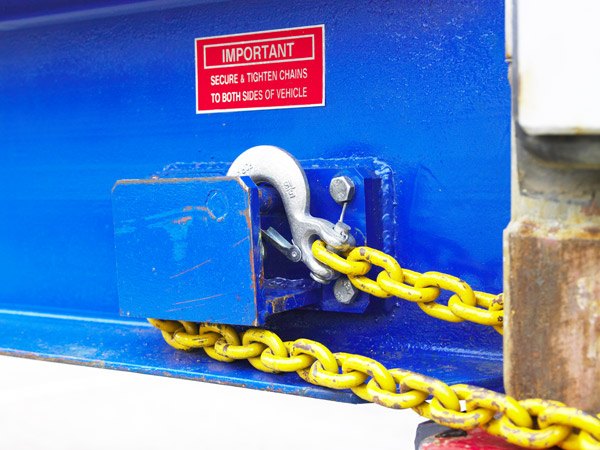

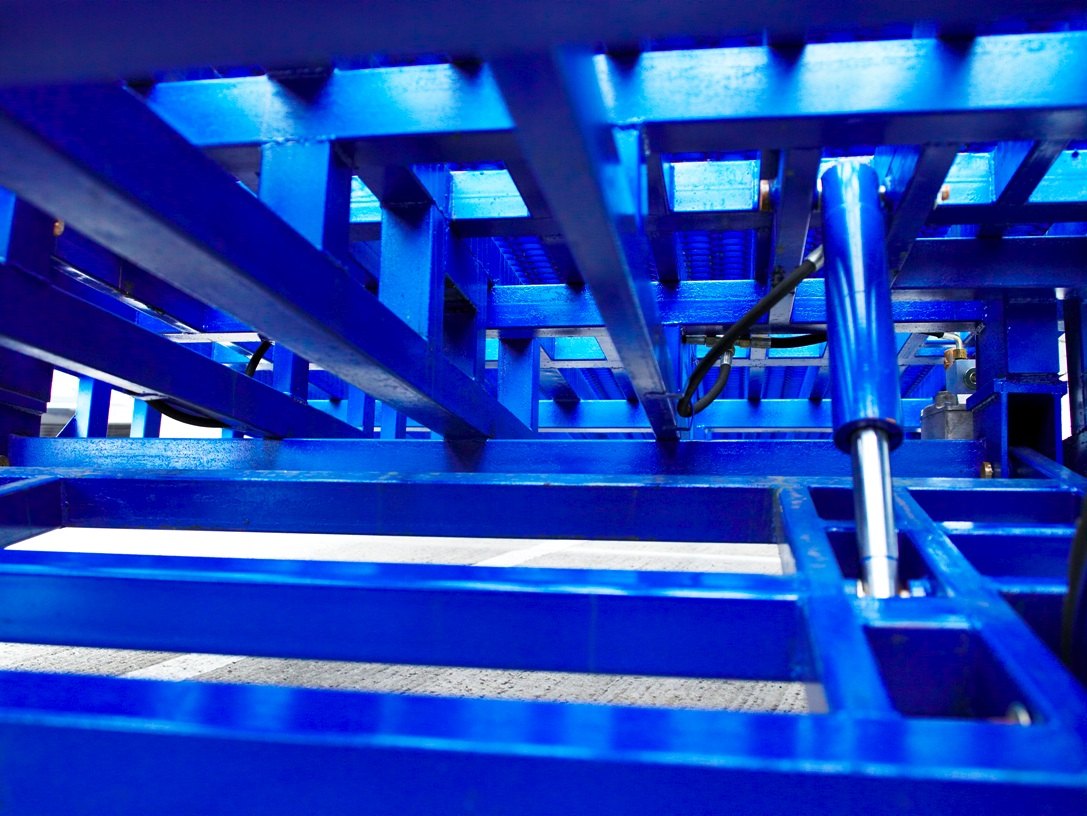

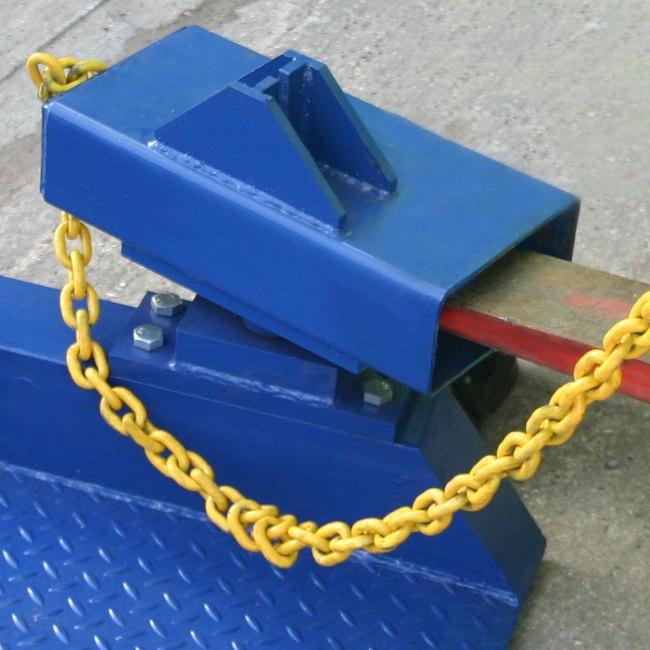

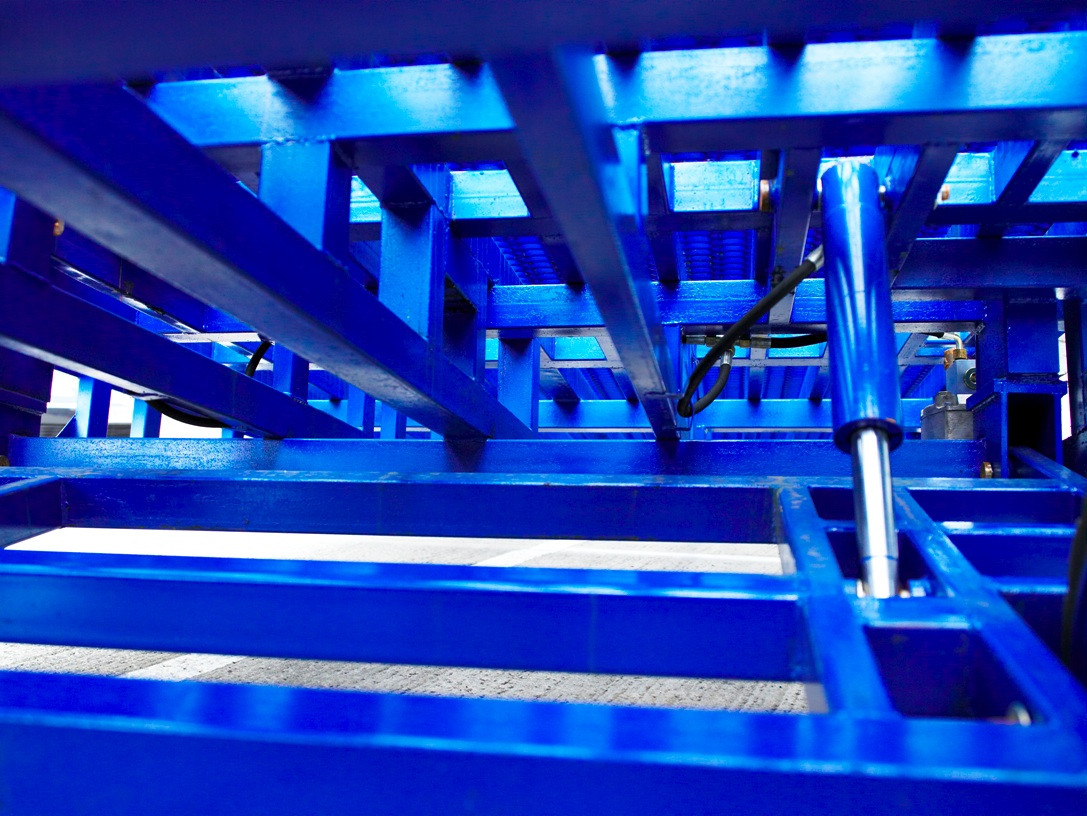

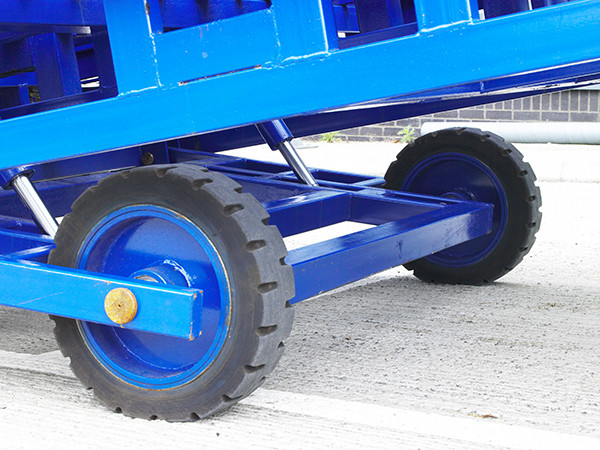

These ramps are fully certified and tested and feature a reinforced steel undercarriage, high traction UK produced mesh anti-slip surface and come supplied with a fixed swivel clamp allowing this to be easily manoeuvred as required. In addition, the ramp includes steel safety chains, clamps and a hydraulic assist. Wheel chocks are also available at an additional charge for additional security whilst the ramp whilst stationary and not in use.

The total ramp length is 11260mm. Length of inclined section: 8440mm. Length of level section: 2520mm. The size of the rest on connection / lip into the container is 2060mm x 300mm. The total ramp width is 2260mm, the useable width is 2060mm.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Details

SKU	TRP-YR7-1-Config
Capacity (kg)	7000
Height (mm)	800-1650
Internal Width (mm)	2060
Length (mm)	11260
Max Load Height (mm)	1650
Weight (kg)	3400
Width (mm)	2260
One Year Warranty	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Leave Outside	Yes
Usable Width (mm)	2,060

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
