Aluminium Loading Ramps (3500x510x9600kg)
Some of our best selling heavy duty plant ramps, the TRP170 Series core profile thickness is 170mm.

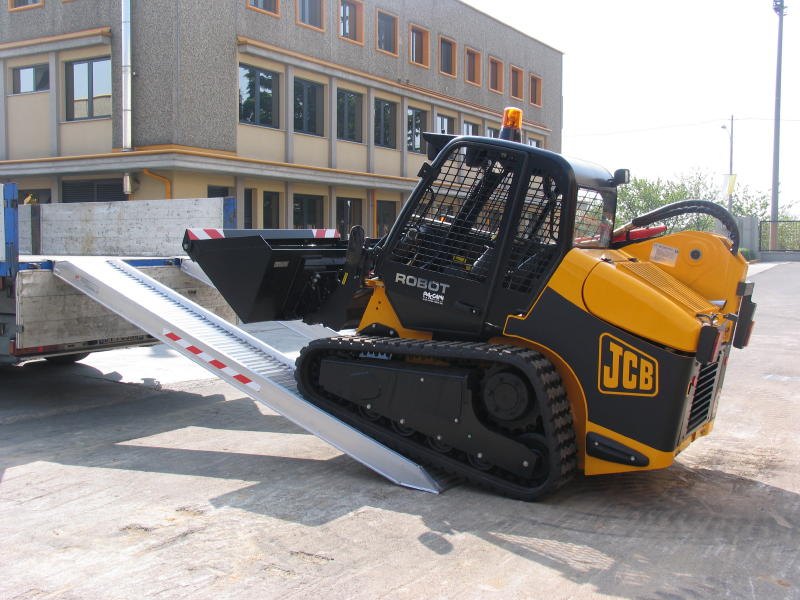

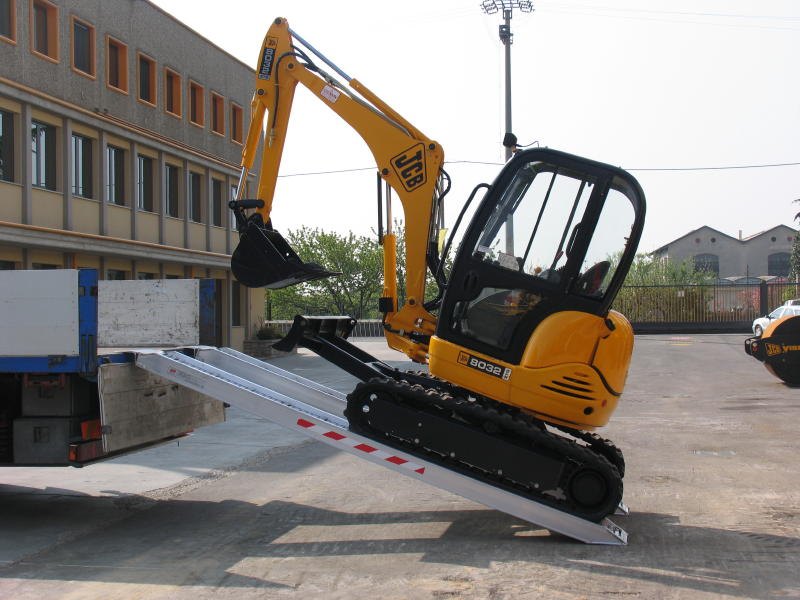

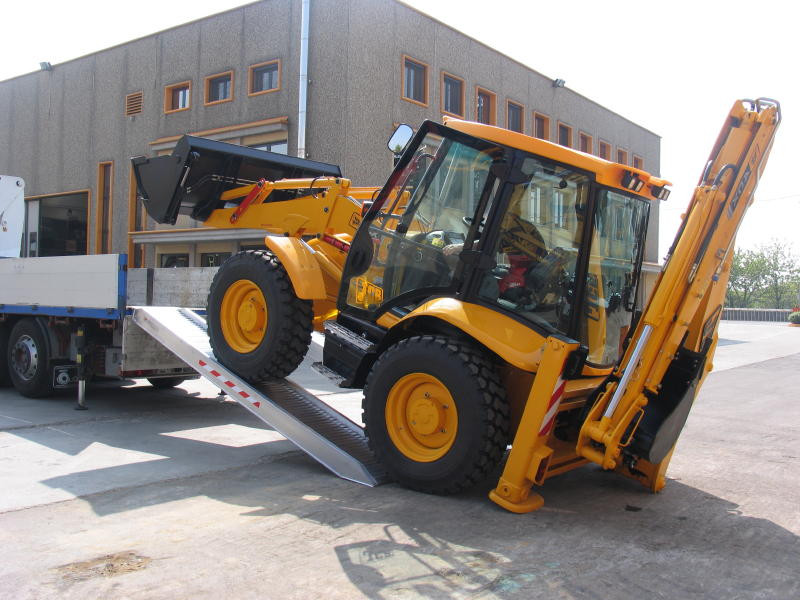

At 530mm these ramps are over half a metre wide, feature a capacity of up to 8300kg and are ideal for use as plant ramps, for digger ramps and for diggers and tele-handlers.
On the TRP170 series the minimum width of tracks/wheels is 400mm.
- These ramps are available both with and without edges. The default is however without edges

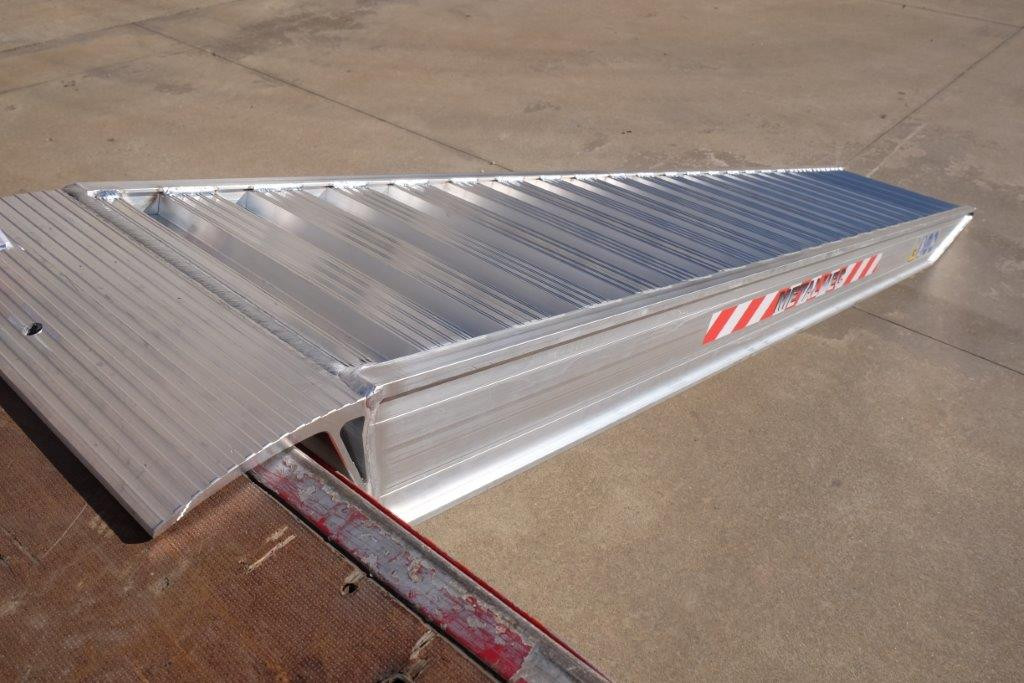

- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
- Quotes for bespoke ramps can be supplied on request
Usage guidelines and safety information for our full vehicle ramp range can be found here.
| SKU | TRP170/35 |
|---|---|
| Default Connection | Rest On Connection |
| Capacity (kg) | 9600 |
| Height of Ramps Profile (mm) | 170 |
| Length (mm) | 3500 |
| Max Load Height (mm) | 1050 |
| Min. Load Height (mm) | 900 |
| Weight per Ramp (kg) | 51.5 |
| Weight Per Pair (kg) | 103 |
| Width (mm) | 510 |
| Minimum Track Width (mm) | 200 |
| Maximum Track Width (mm) | 430 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 1000mm (kg) | 5760 |
| Capacity Wheelbase 1500mm (kg) | 7200 |
| Capacity Wheelbase 2000mm (kg) | 9600 |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
