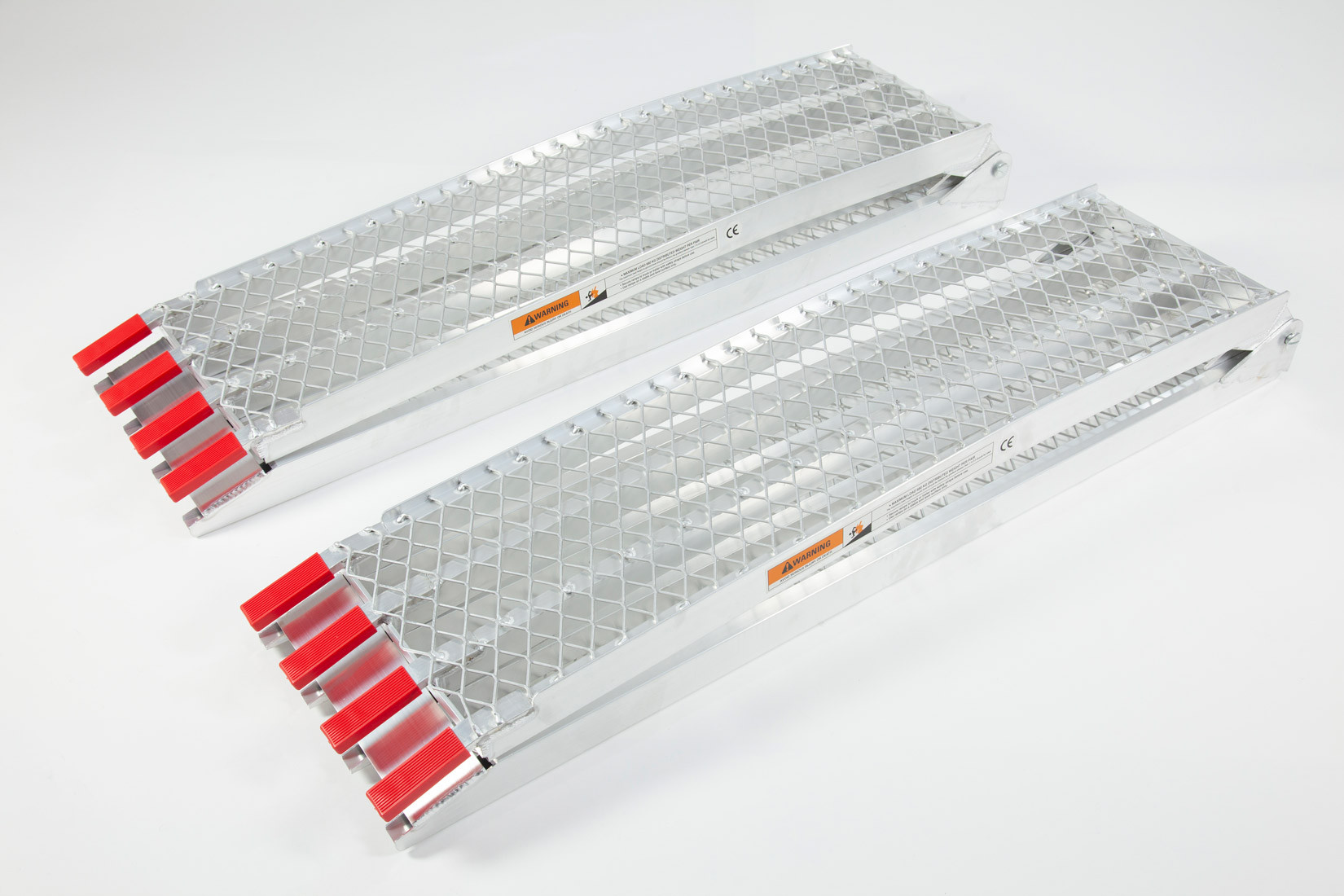

Pair of aluminium loading ramps with mesh surface

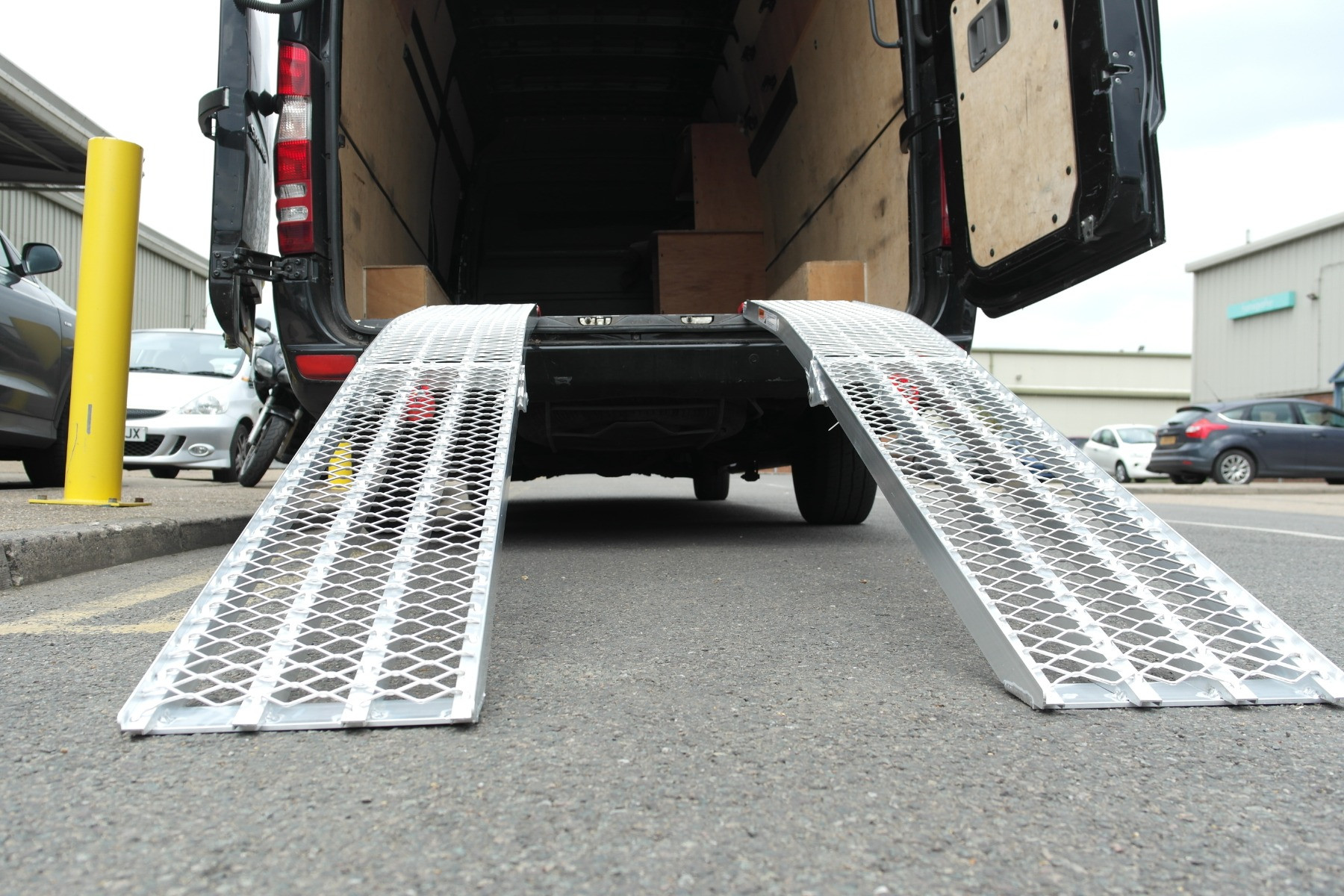

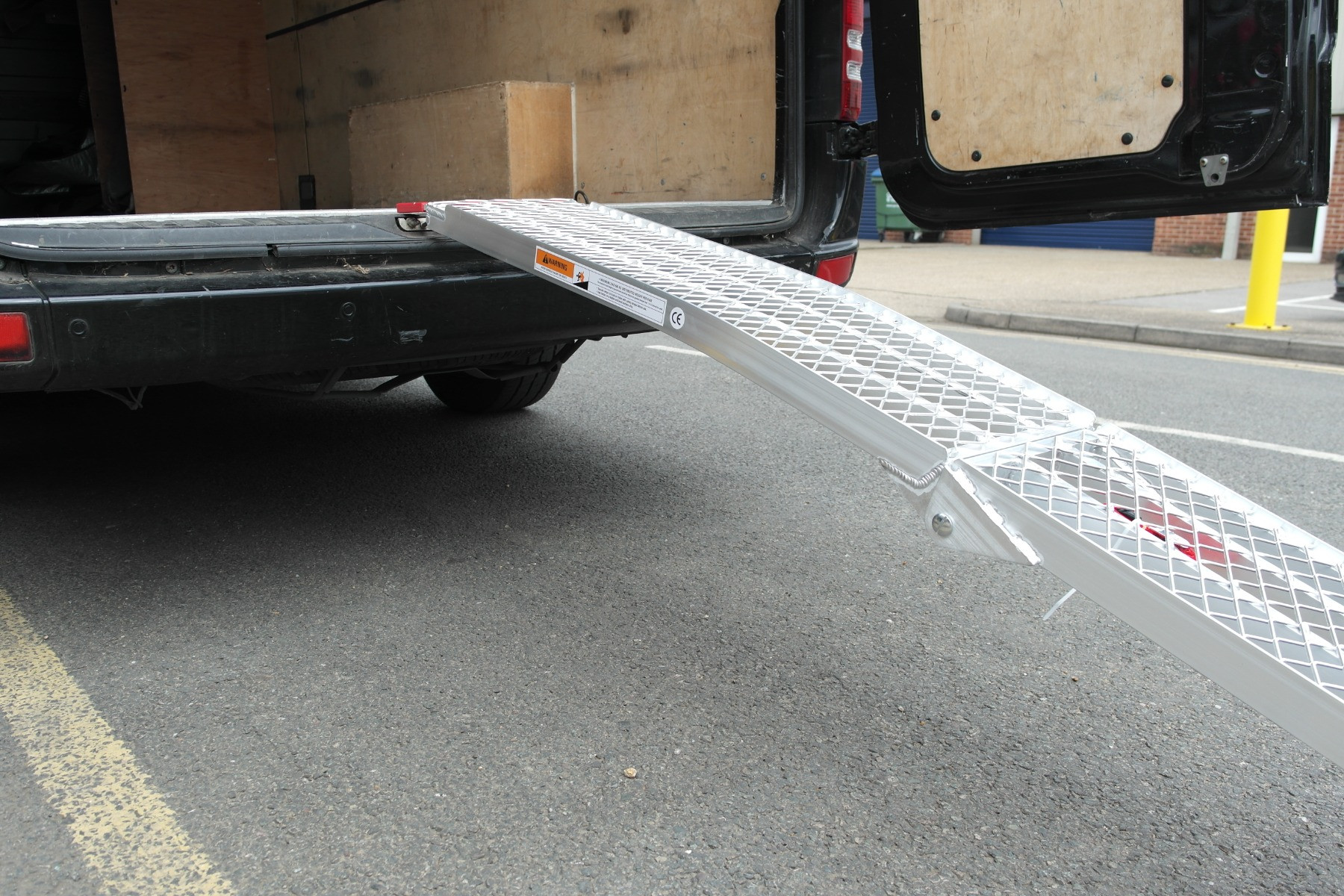

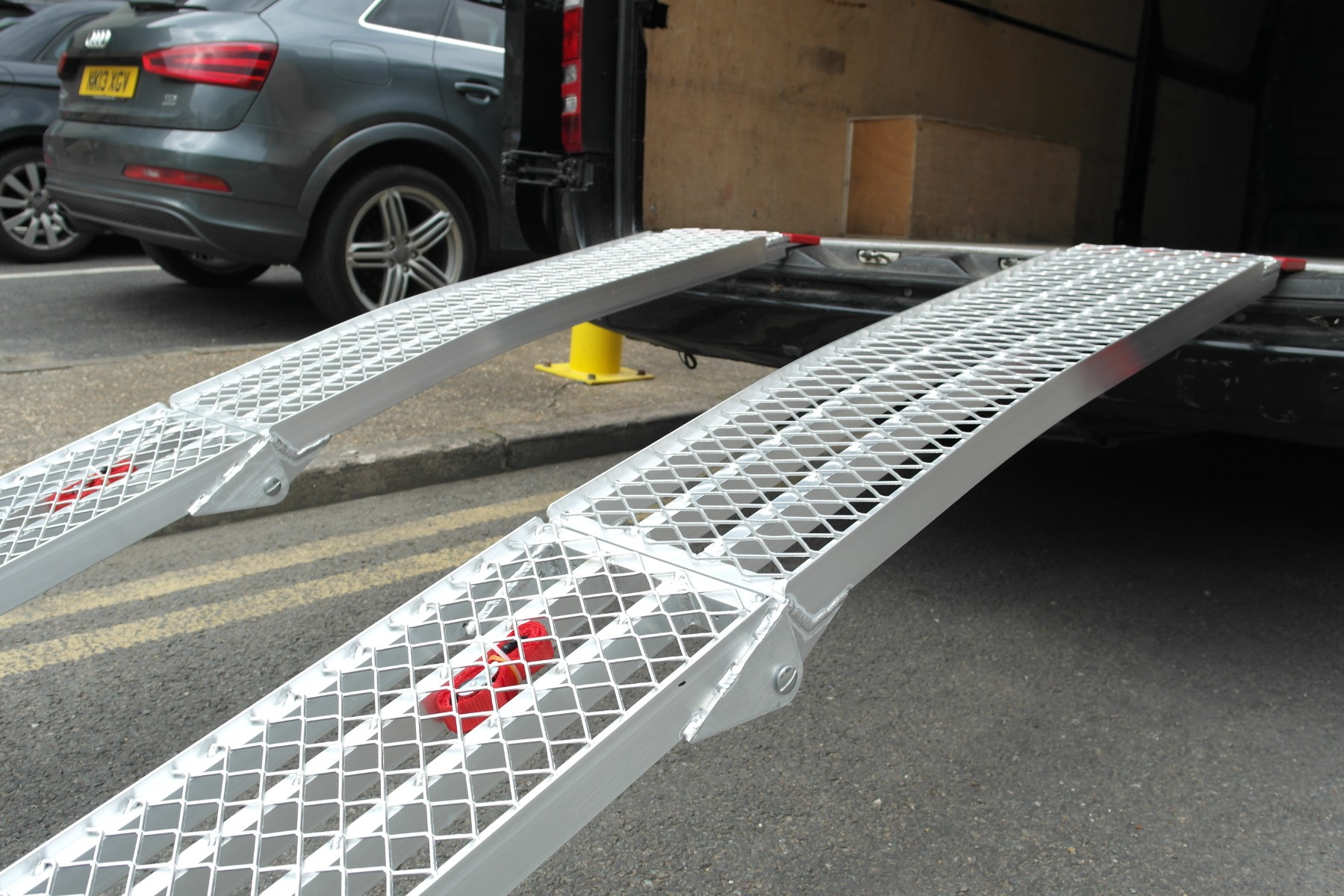

Pair of aluminium loading ramps with mesh surface Portable mesh loading ramp Hinge on the aluminium loading ramp Curved ramp Mesh surface Full length ramp Folded motorbike ramp Mesh Motorbike Loading Ramp (2260mmx285mm) Mesh Motorbike Loading Ramp (2260mmx285mm) Folding bike ramp with mesh surface Mesh Motorbike Loading Ramp (2260mmx285mm) Mesh Motorbike Loading Ramp (2260mmx285mm) Mesh Motorbike Loading Ramp (2260mmx285mm) Angled foot of the aluminium loading ramp to provide smooth entry onto the ramp Mesh Motorbike Loading Ramp (2260mmx285mm) Ramp resting onto van for loading Curved loading ramp resting onto van Angled foot of the aluminium loading ramp Loading ramp resting on concrete floor Safety strap Pair of aluinium loading ramps folded Mesh surface and hinge Pair of alloy loading ramps Angled foot of the loading ramp hing of the bike ramps Pair of aluminium loading ramps resting on van Curved aluminium loading ramps
  • Easy to Fit
  • Not for Solid Wheels
  • One Year Warranty
  • Leave Outside

Mesh Motorbike Loading Ramp (2260mmx285mm)

SKU
TRP650Conf
As low as £86.40 £72.00
11 In stock at our warehouse

Saturday Delivery

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

The Ramp Factory's folding bike ramp with a mesh surface provides optimum grip during loading. This lightweight loading ramp, which offers a 340kg capacity, can be used as a single ramp to load motorbikes into vans or as a pair to load quad bikes and ride-on-mowers.

Please note, these ramps are not suitable for single axle or tracked machinery/vehicles, caster wheels or solid wheels. These Ramps are not suitable for industrial use or professional mowers, for this application please view our professional range.

Motorcycle and Folding Loading Ramps FAQ's

Description

Motorcycle Loading Ramp

  • Folding motorbike ramp (2260mm x 285mm)
  • 340kg per ramp, 680kg capacity across the pair
  • Lightweight at 6.4kg

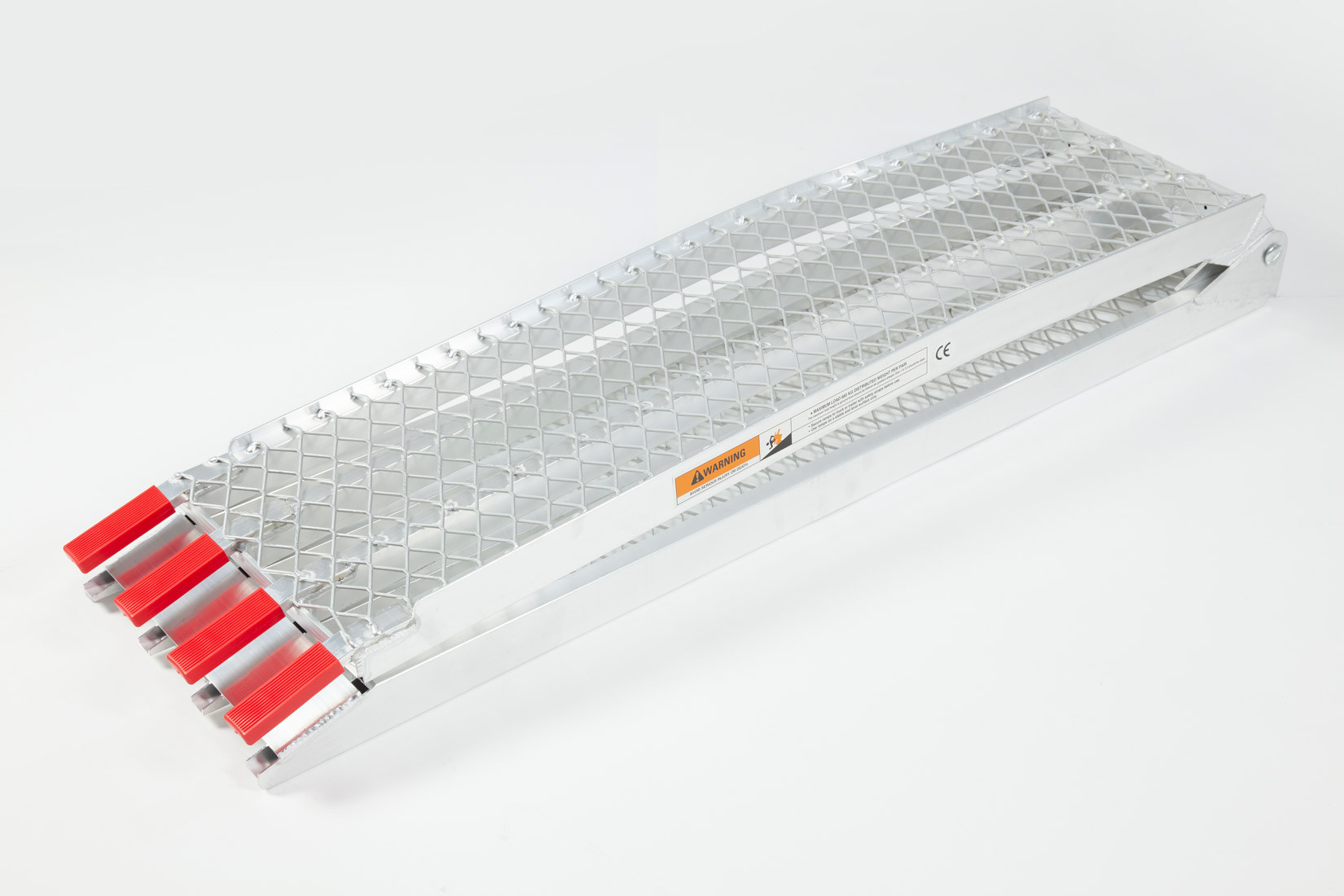

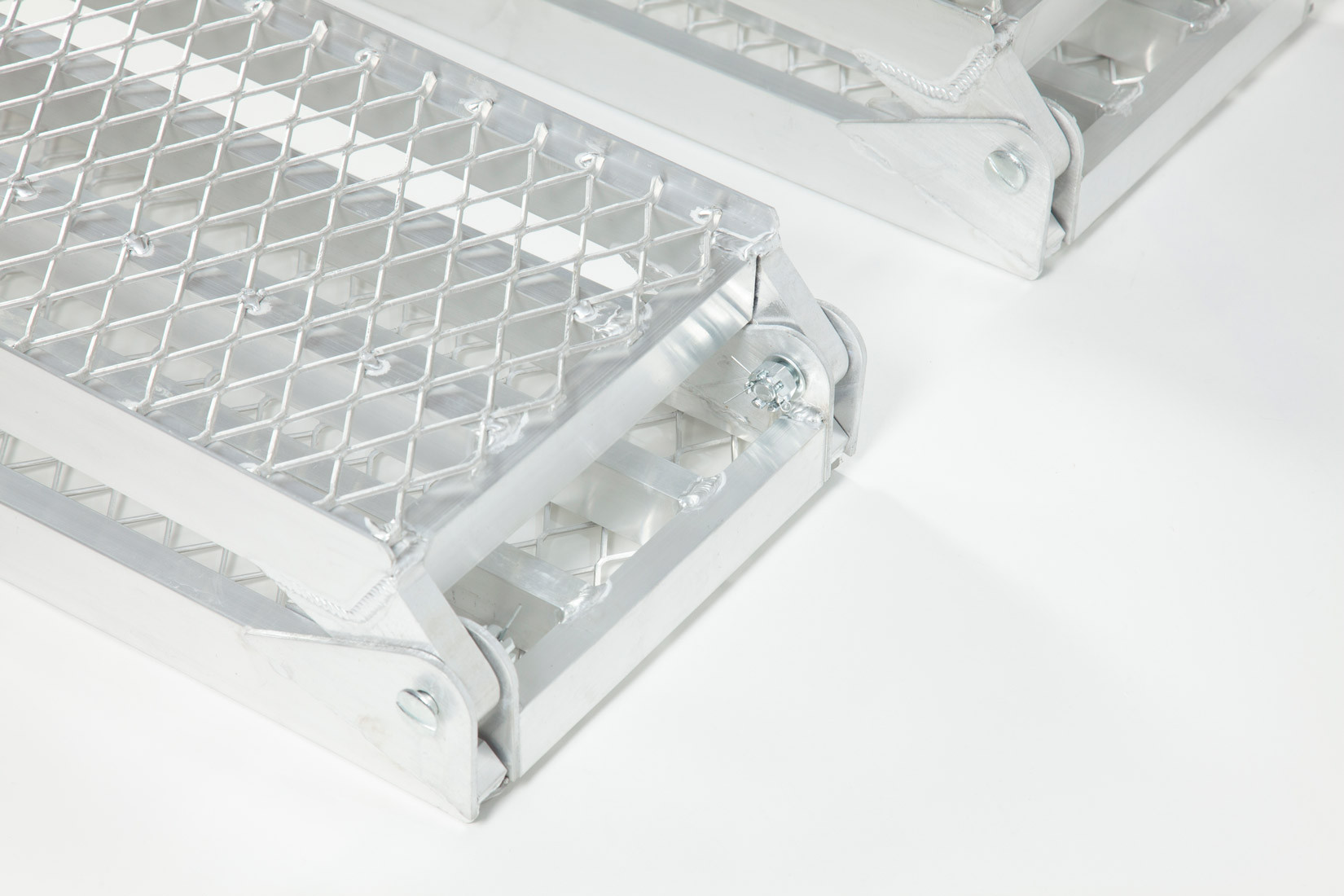

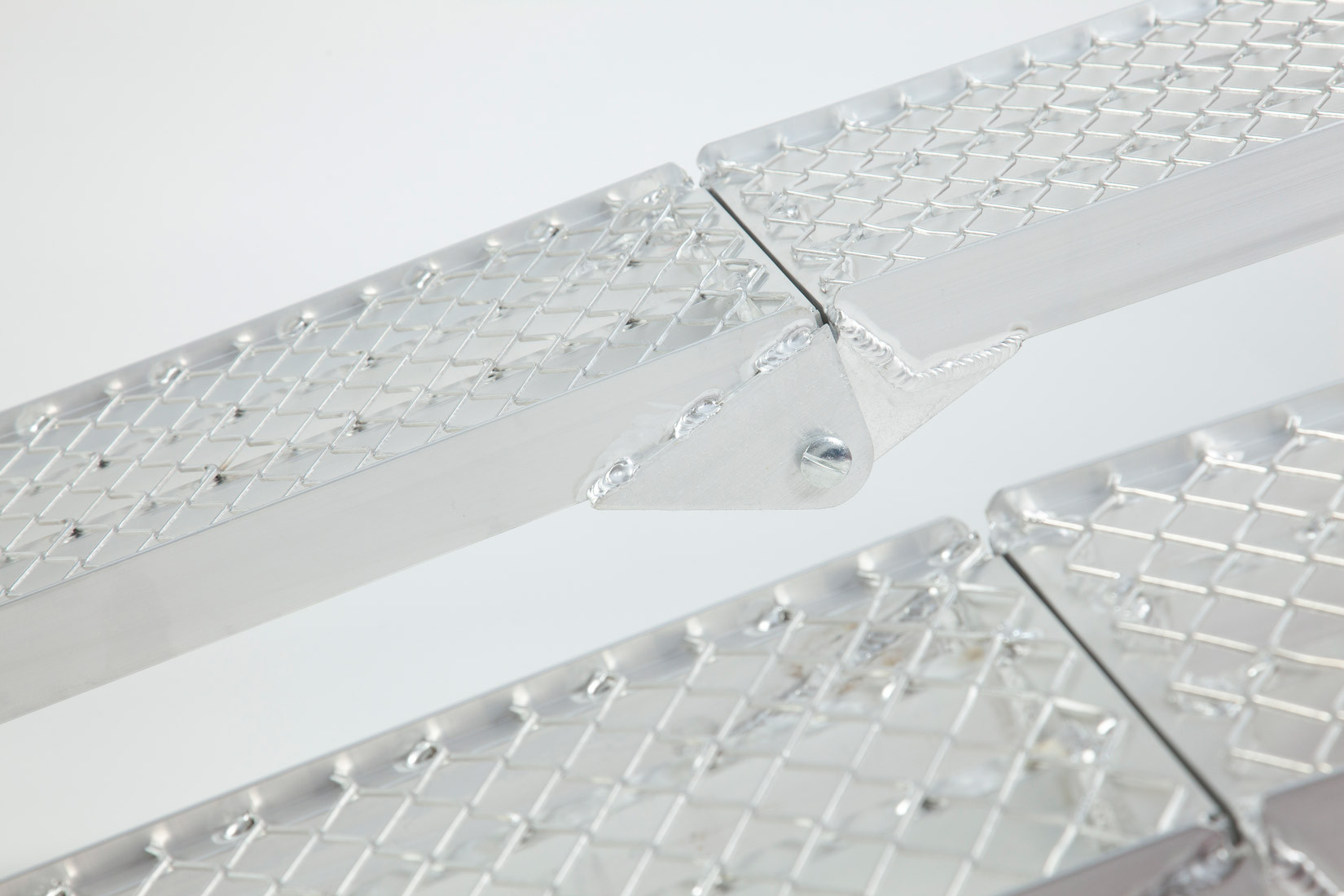

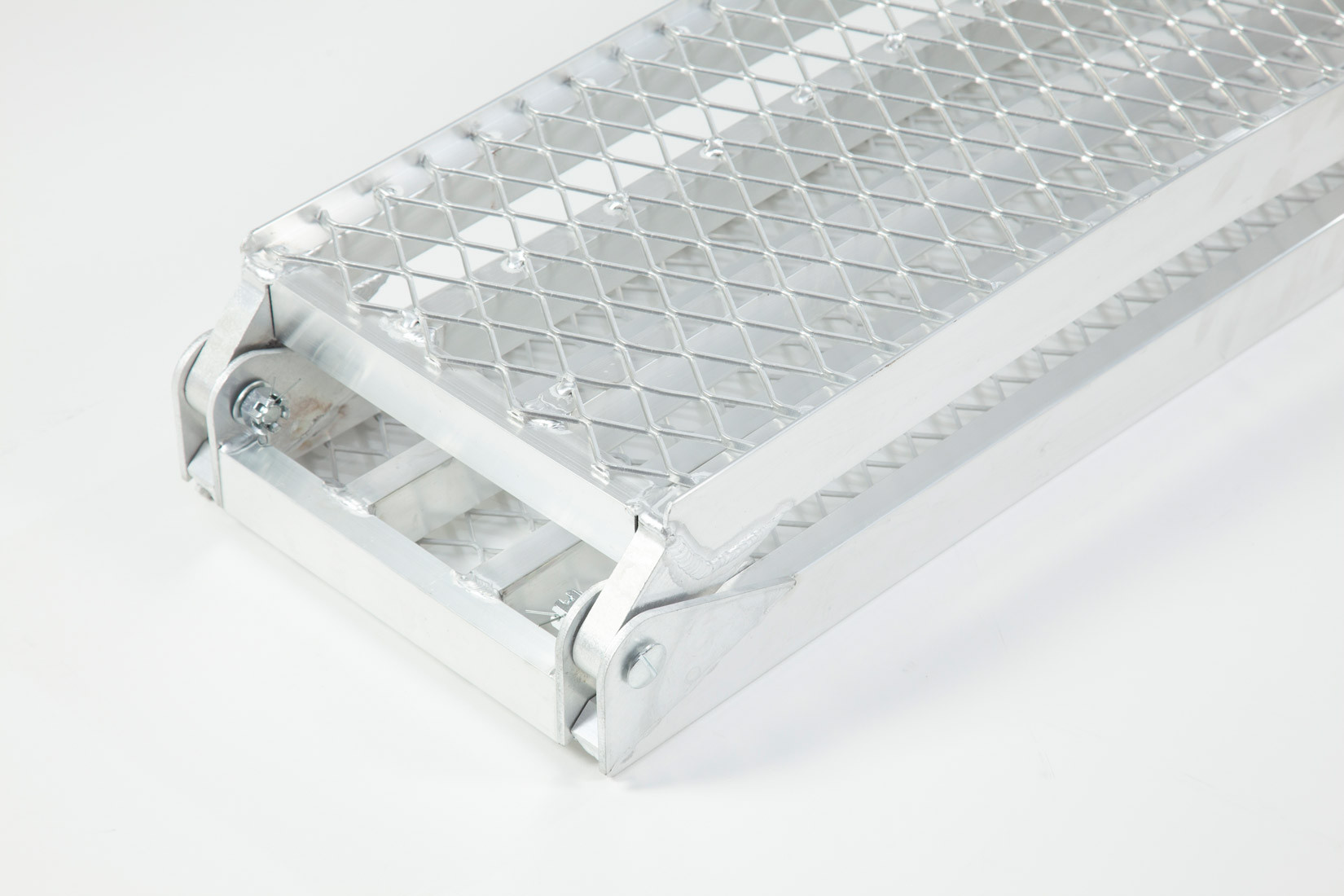

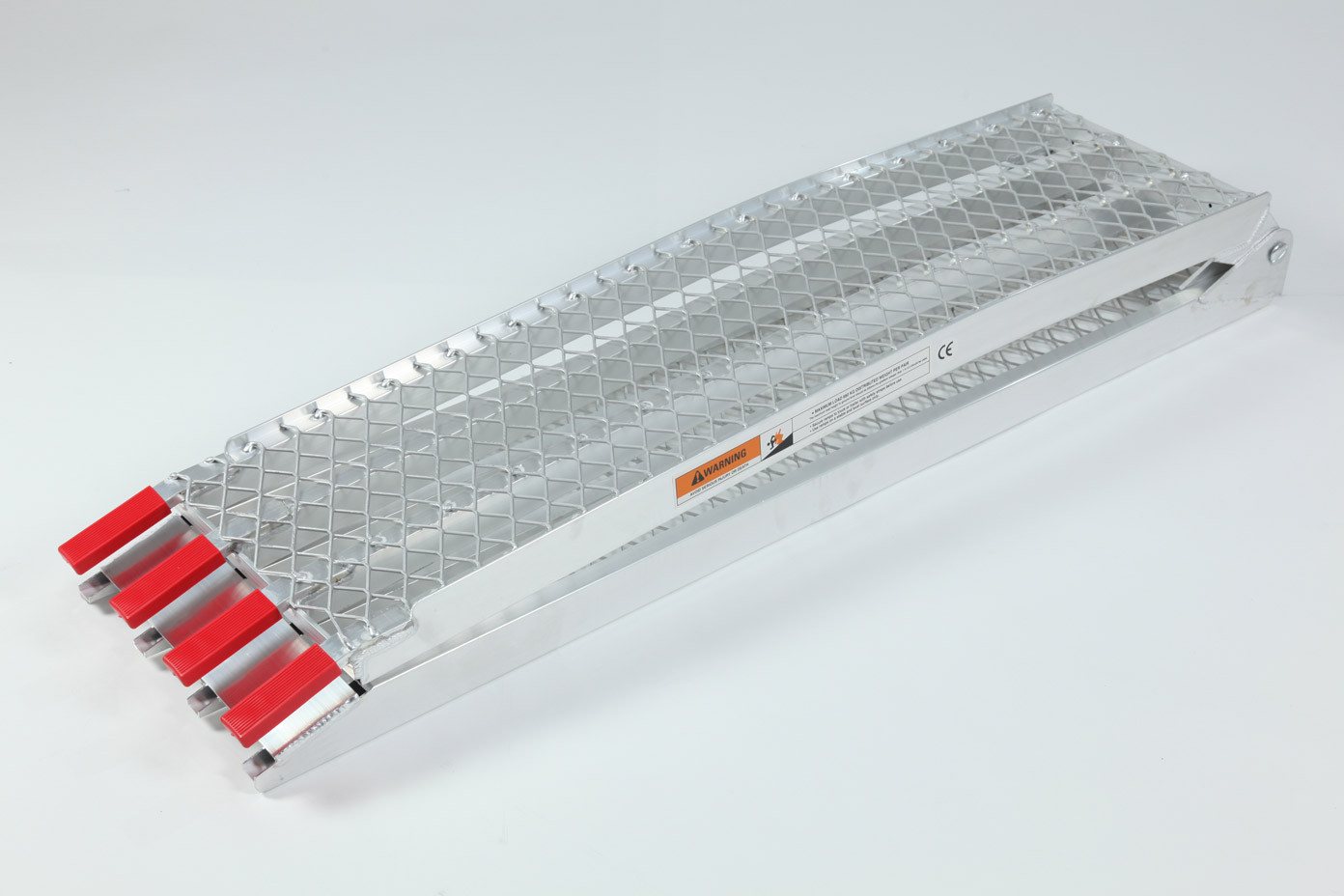

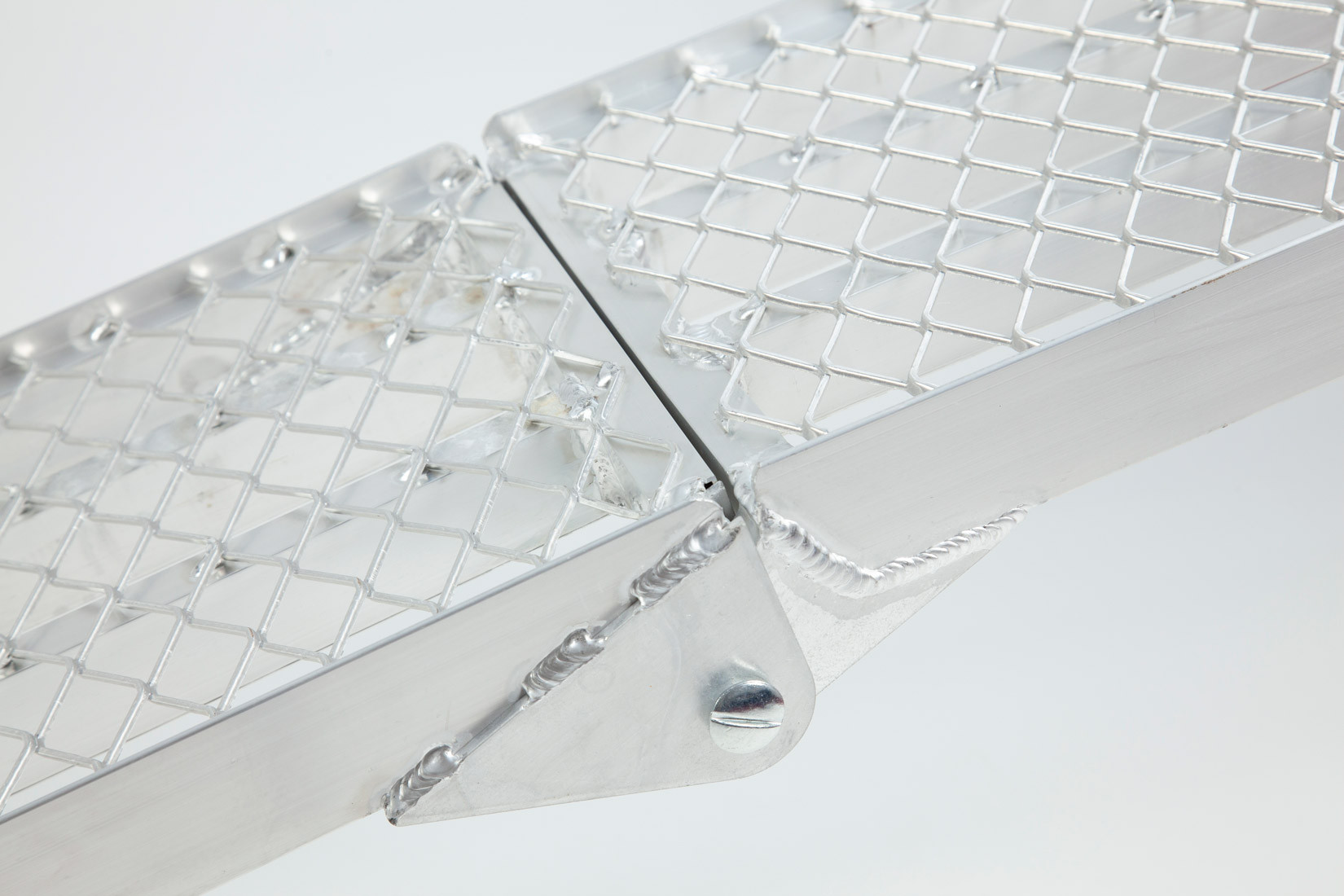

  • Folds to half its length for storage and transportation

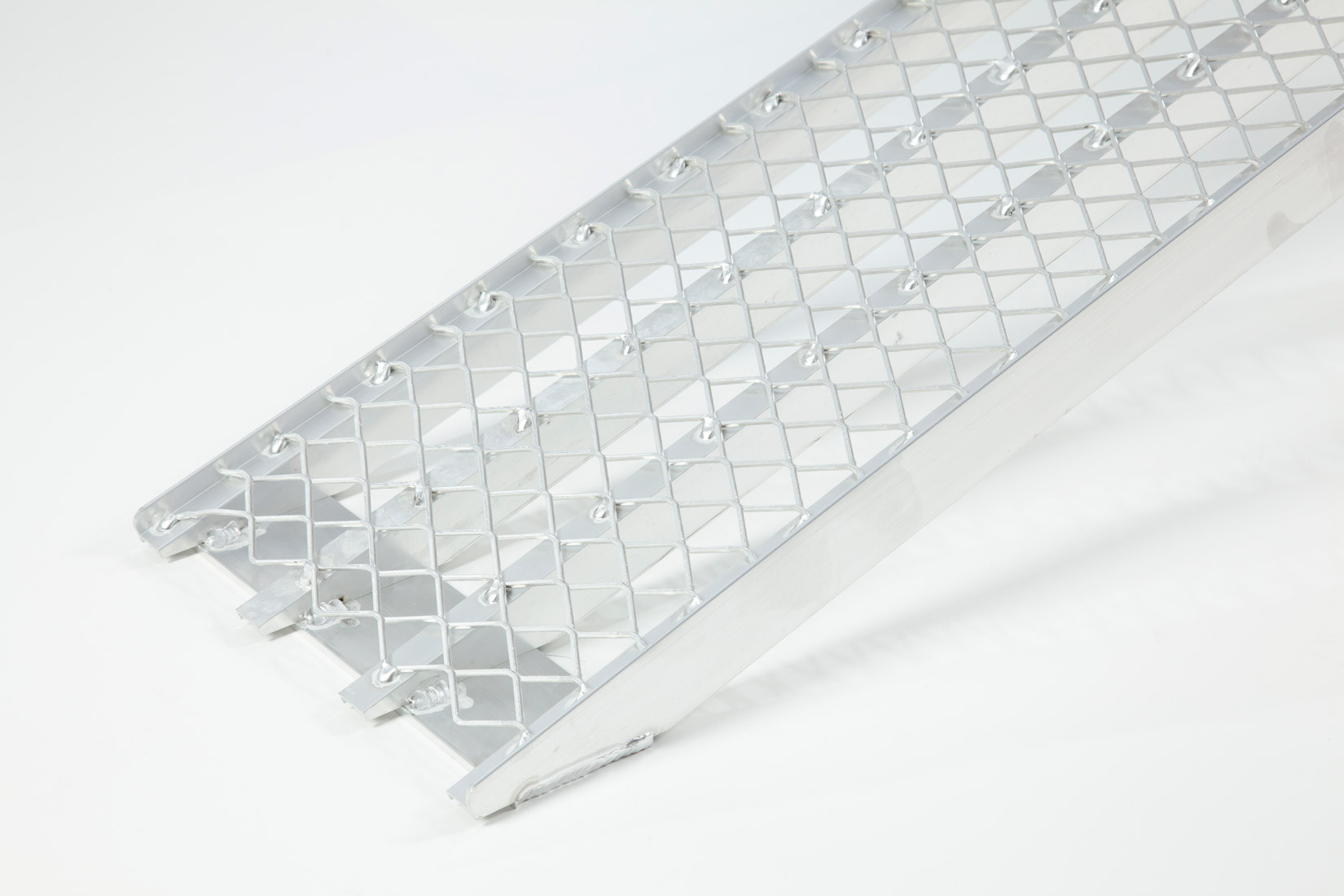

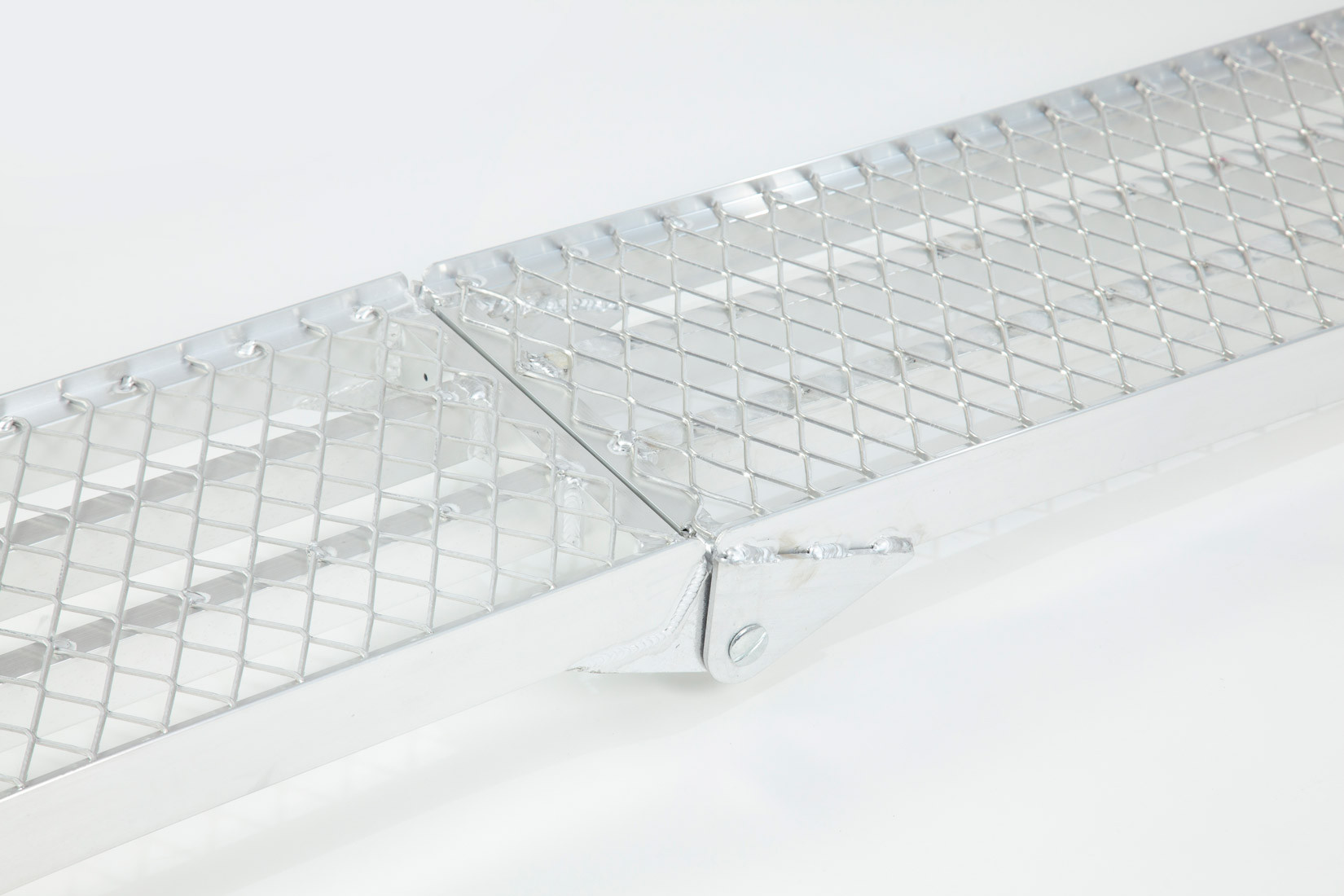

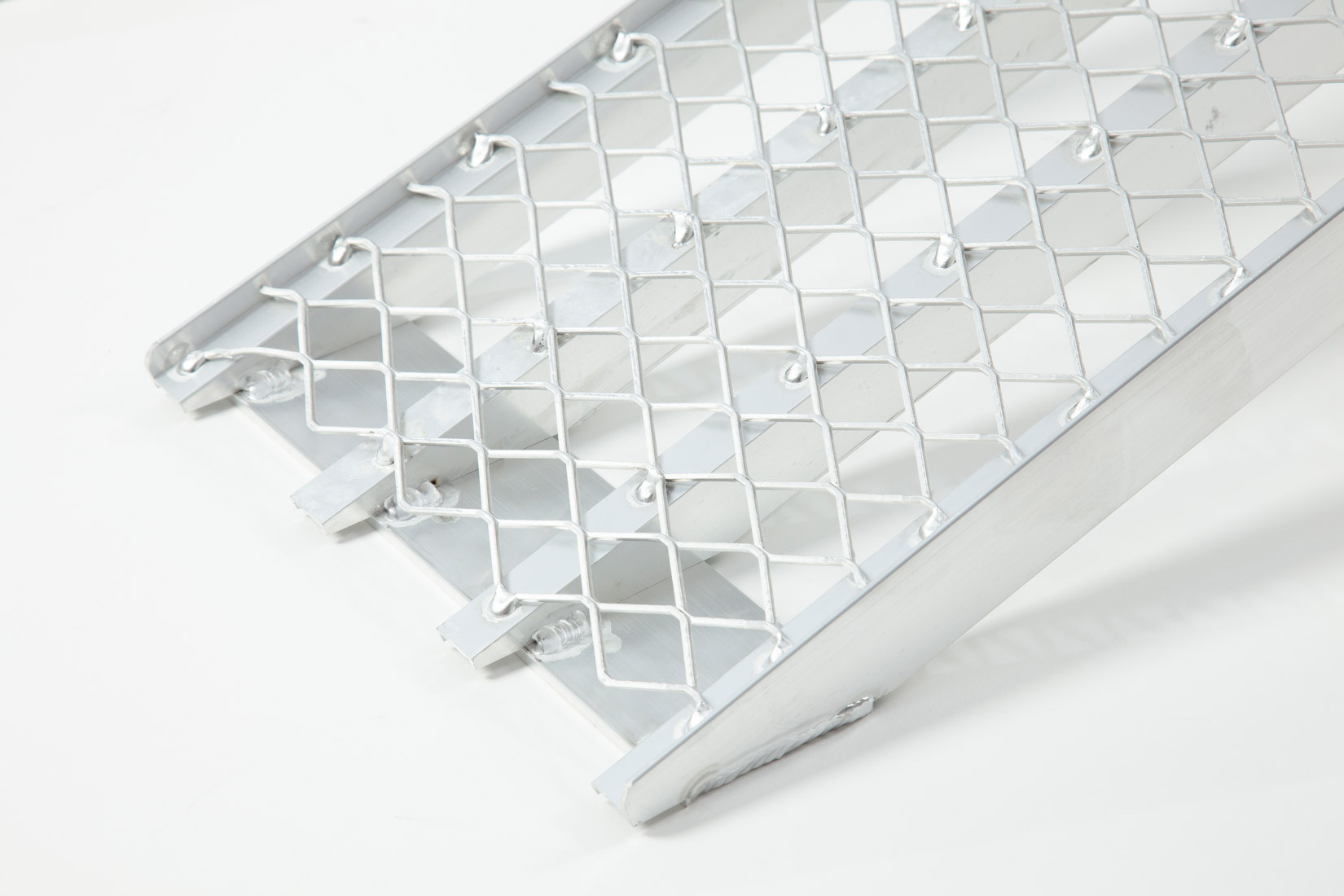

  • Mesh surface for optimum grip and to allow dirt to drop through the ramp

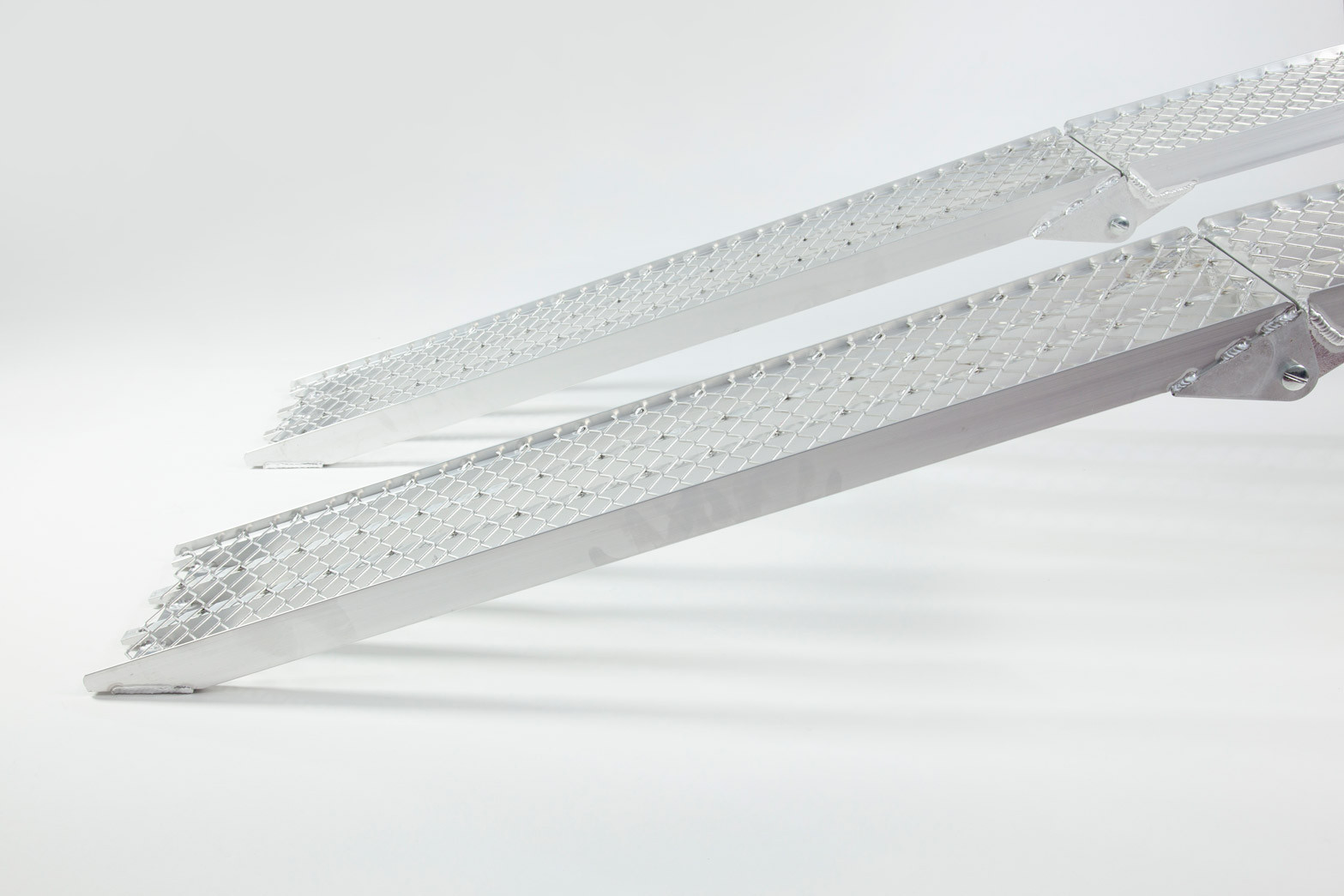

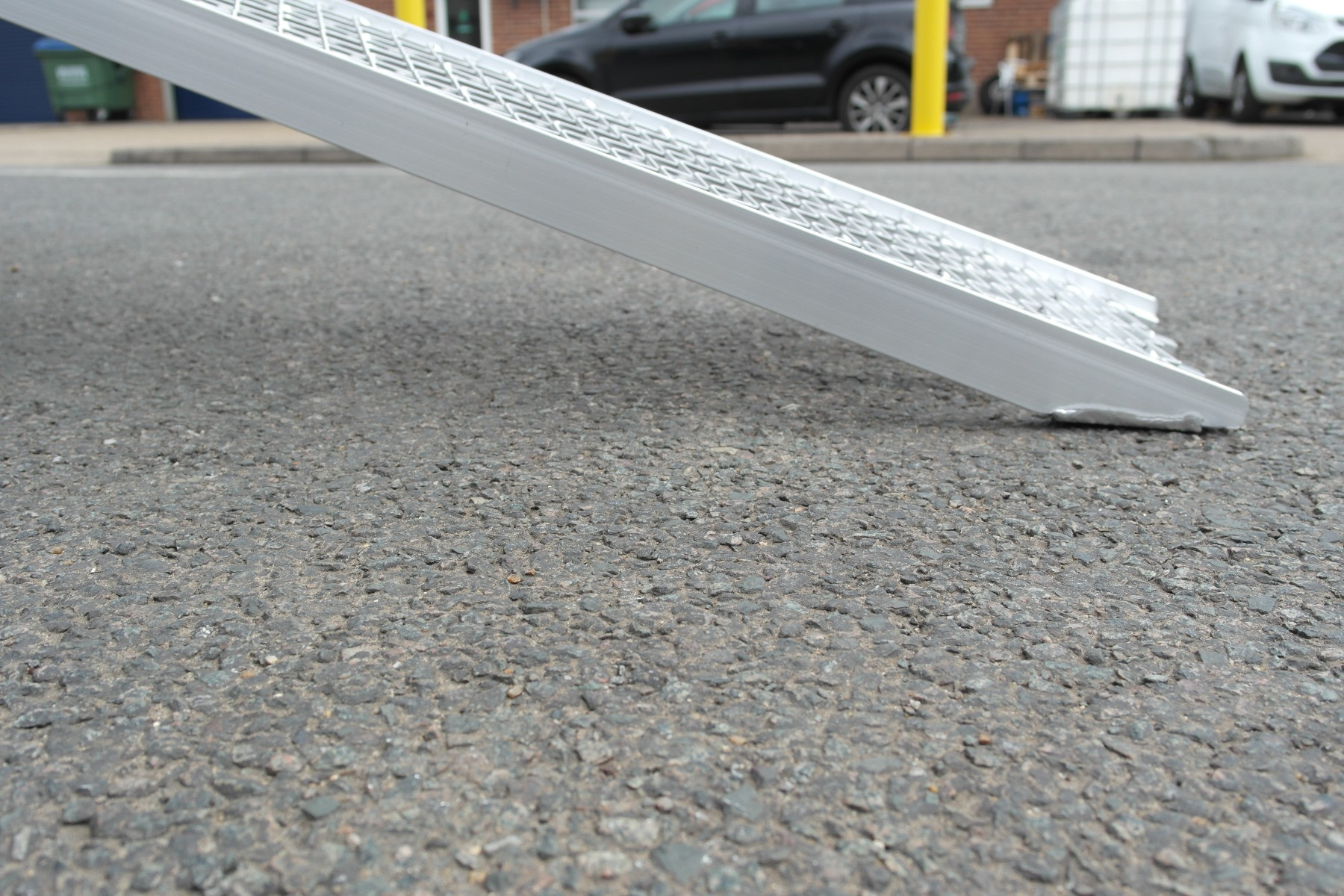

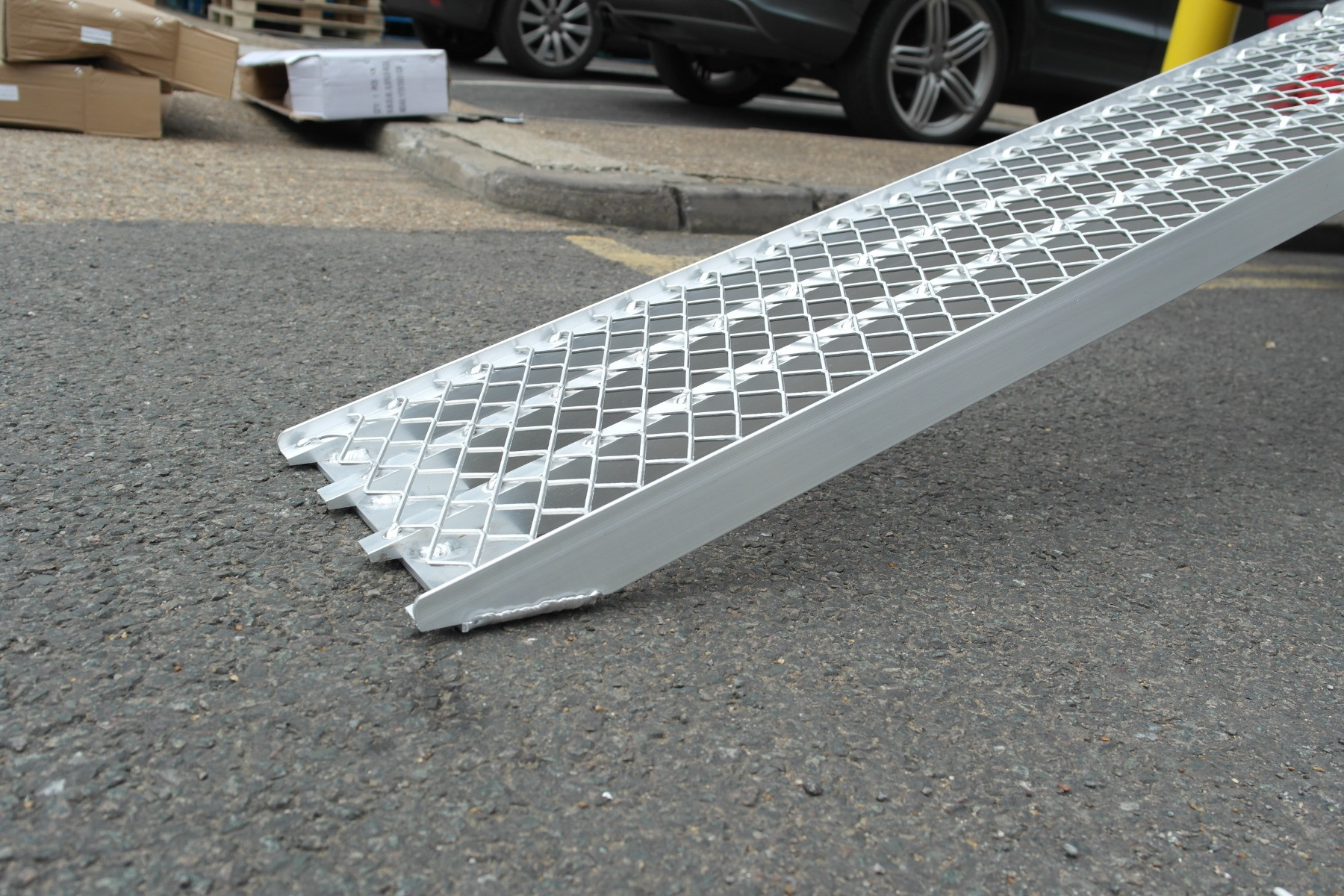

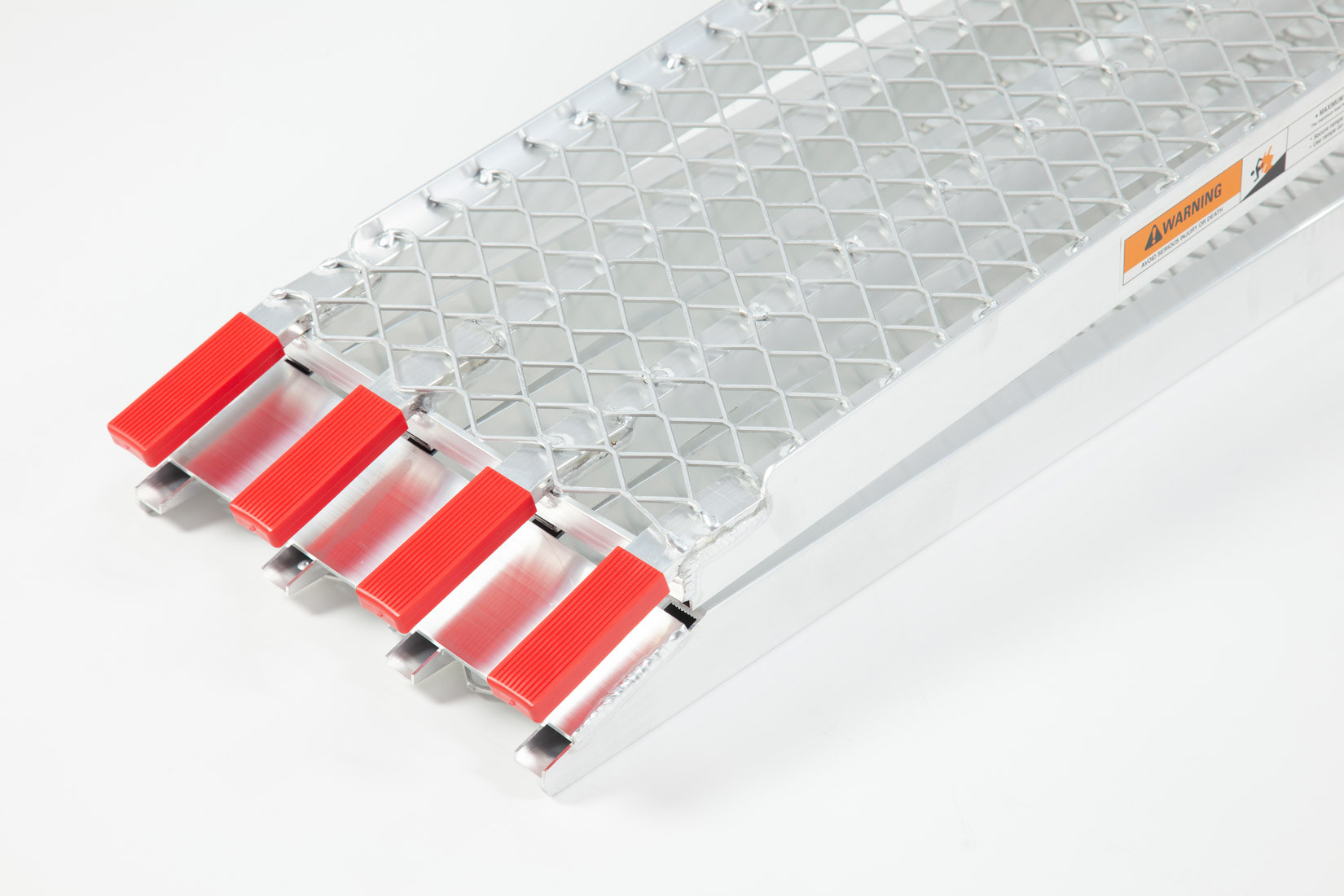

  • Angled foot to provide smooth entry onto the motorbike ramp
  • Use as a single ramp for loading motorbikes or as a pair to load ATV's and ride on mowers

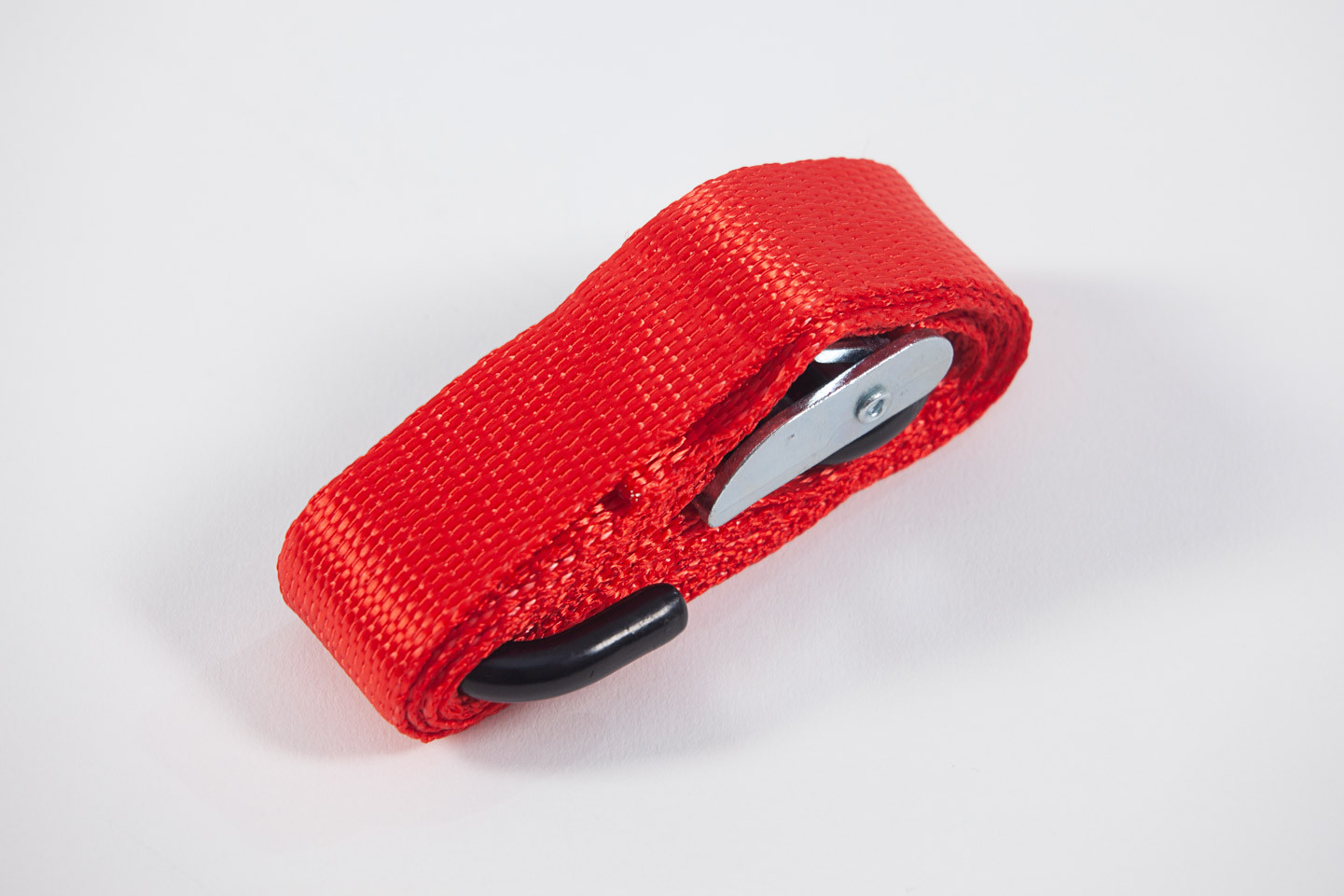

  • Provided with a safety strap to alllow the ramp to be secured to the van or trailer during loading
  • Designed to be used at heights up to 678mm
  • Allow motorbikes to gain access into vans, trailers or overcome steps

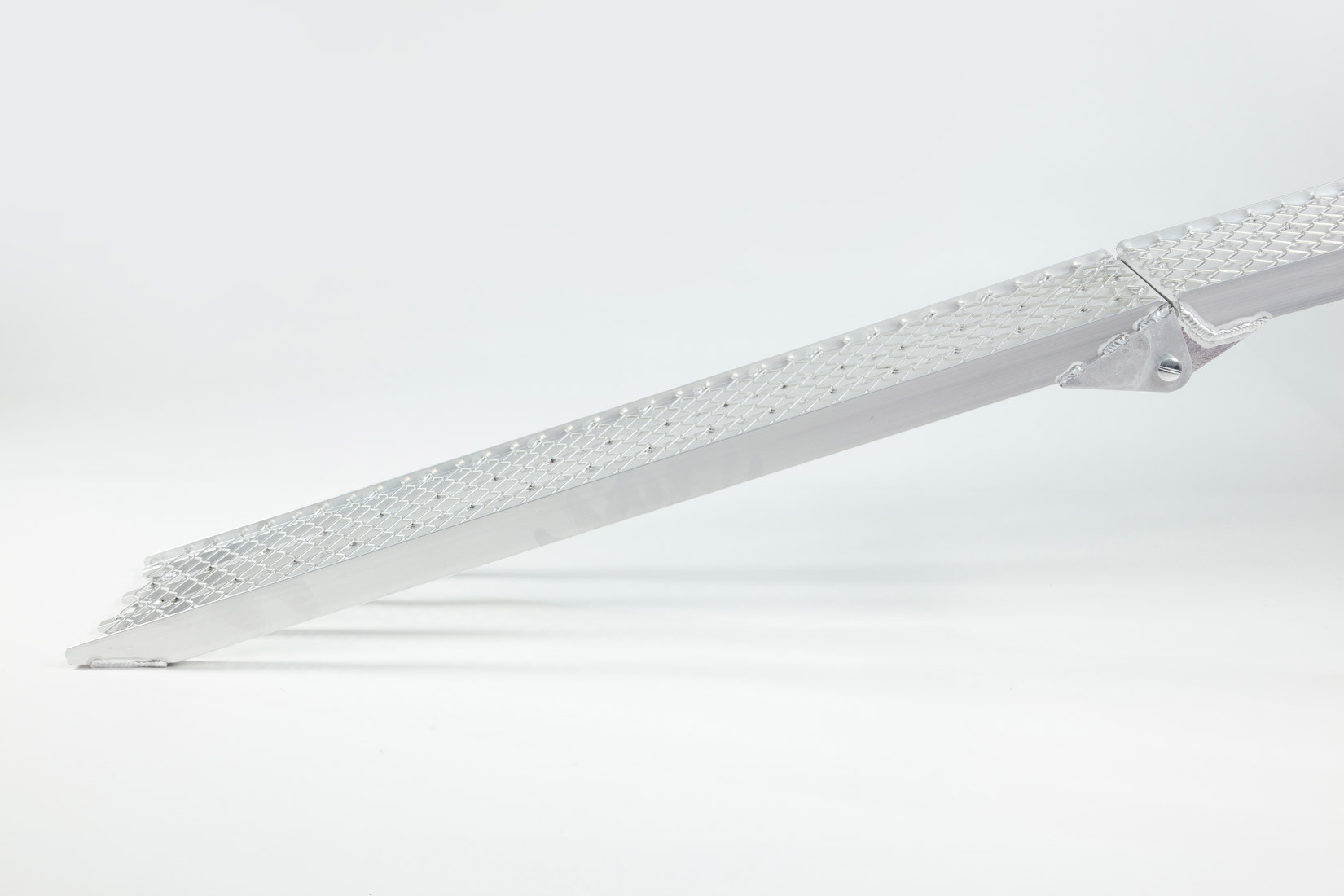

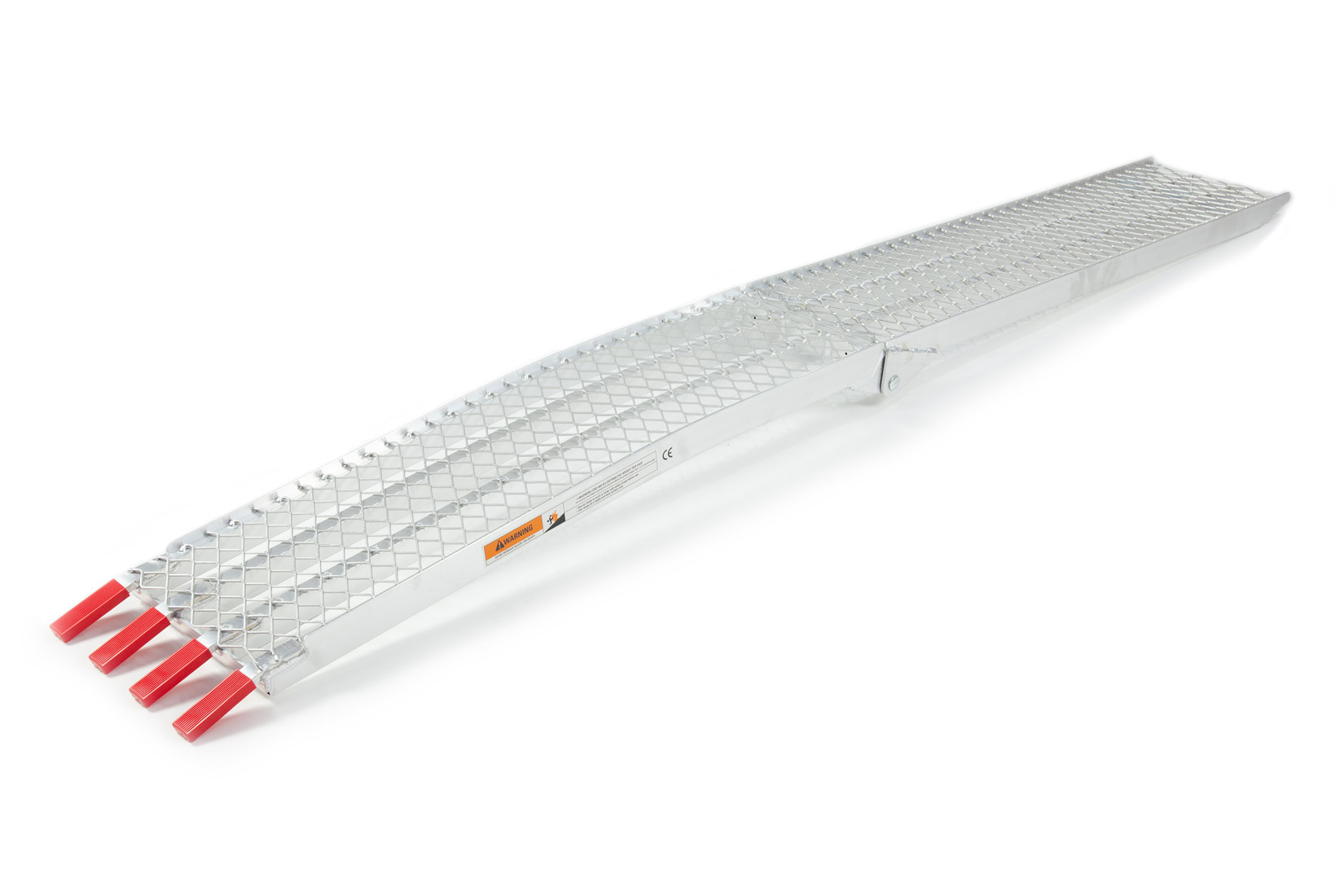

  • Curved for improved ground clearance

Mesh Motorbike Ramps

Single

  • Length (mm): 2260
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 530
  • Max. load height (mm): 678
  • Weight per Ramp (kg): 6.4
  • Capacity per Ramp (kg): 340

Pair

  • Length (mm): 2200
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 530
  • Max. load height (mm): 678
  • Weight per Pair (kg): 12.8
  • Capacity per Pair (kg): 680
Product Questions
How do The Ramp Factory's folding loading ramps stay securely in place during loading?

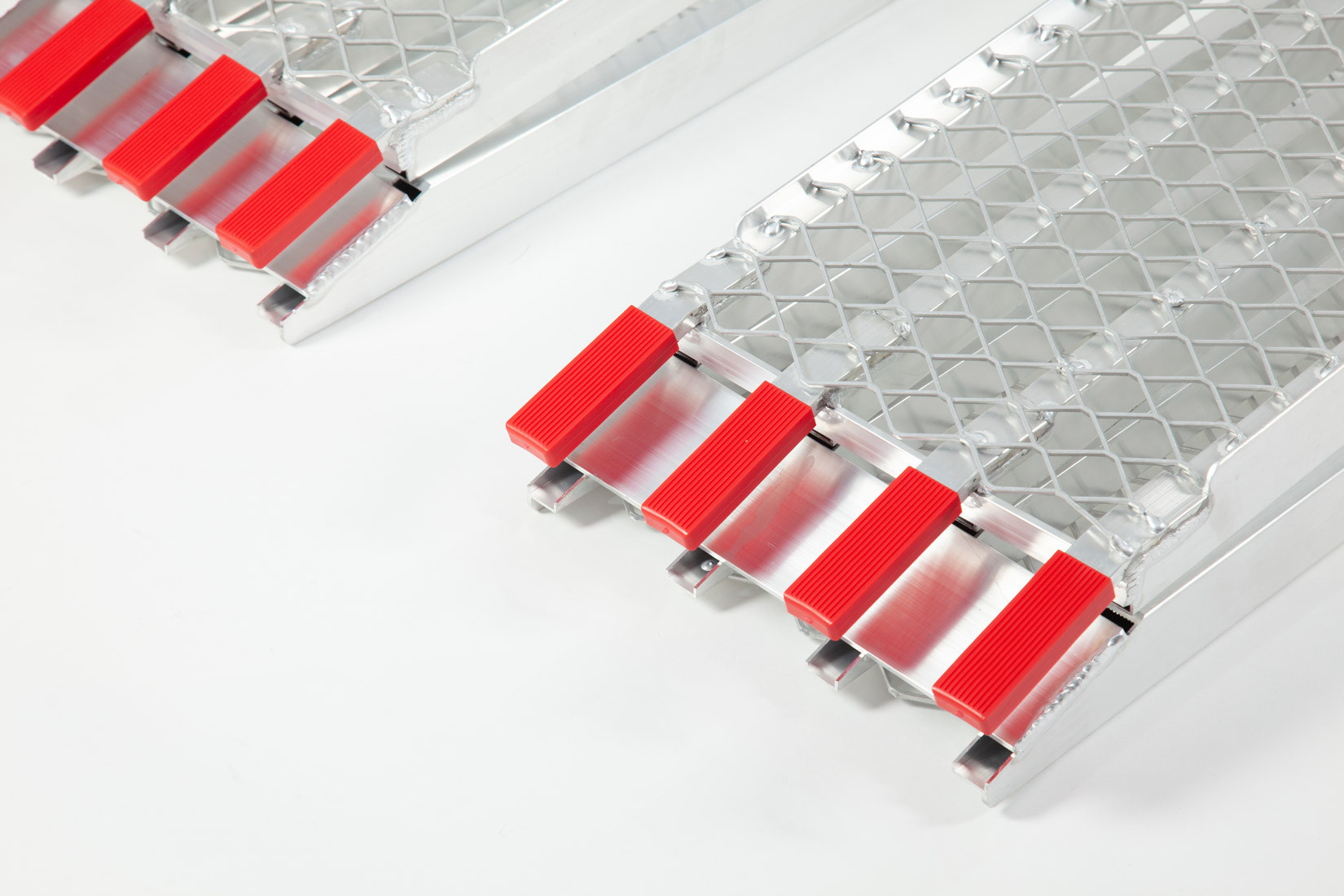

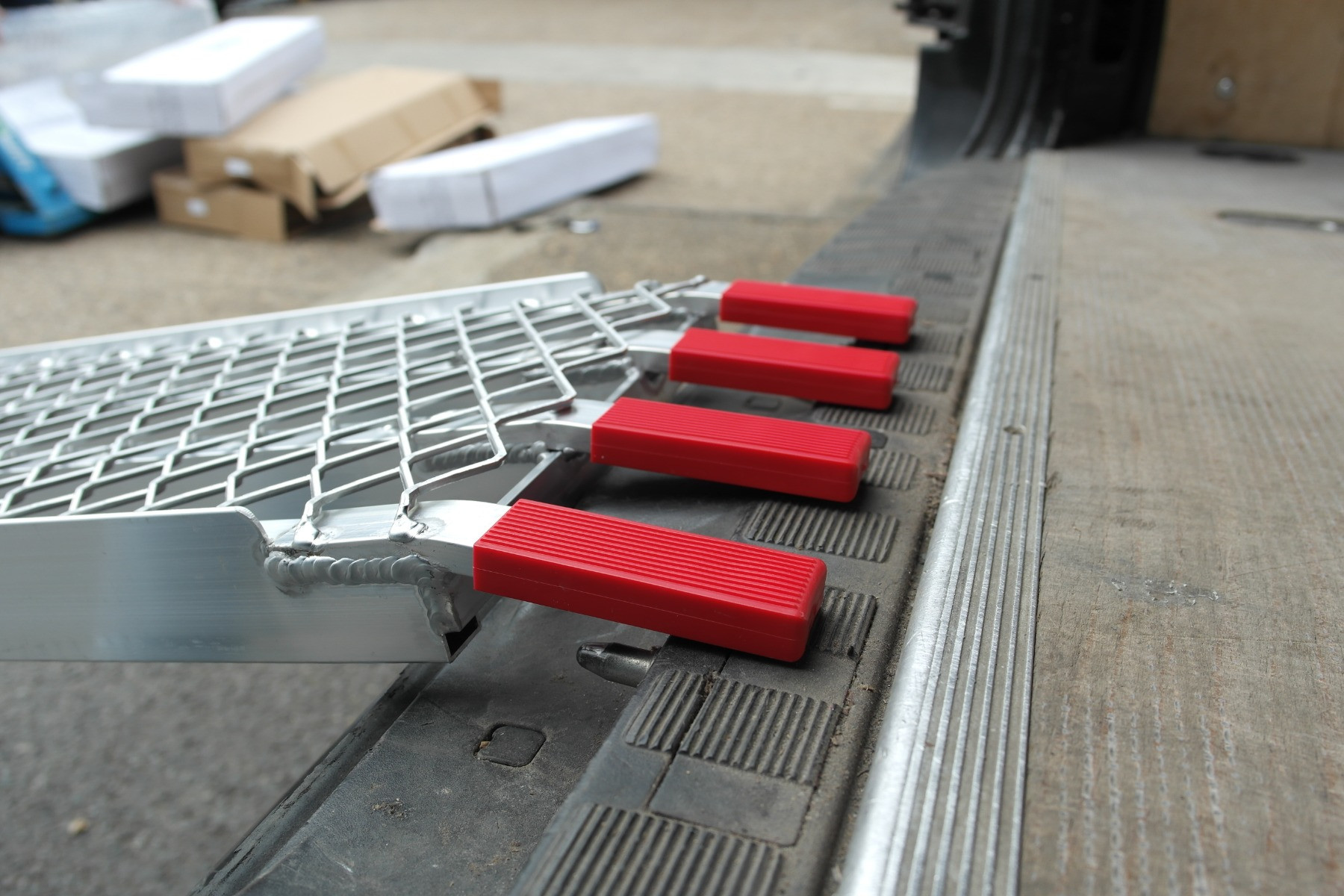

The ramps have a curved rest on connection which rests onto the vehicle. The foot of the ramp is cut at an angle to ensure the ramp stays securely on the ground. The ramps are provided with safety straps to secure the ramp to the vehicle. The ramp weight and angle also assists the ramp to stay in place.
I require a motorcycle loading ramp. How do I identify which motorcycle ramp length is most suitable for my requirements?
You will need to check your load height (vertical height from the ground to where the ramp will rest) as this identifies which ramp length you need. All of our ramps state the minimum and maximum height they are designed for.
What is the benefit of purchasing a Motorbike Ramp with a mesh surface?
The mesh surface is a designed to provide additional grip to the motorbike, quad bike or ATV. This is especially beneficial when you have wet or muddy tyres.
Specifications
SKUTRP650Conf
Capacity (kg)340
Height of Ramp Profile (mm)50
Length (mm)2260
Max Load Height (mm)678
Min. Load Height (mm)530
Weight (kg)6.4 - 12.8
Width (mm)285
Minimum Tyre Width (mm)100
One Year WarrantyYes
Easy to FitYes
Not Solid WheelsYes
Leave OutsideYes
Colour OptionBlack
