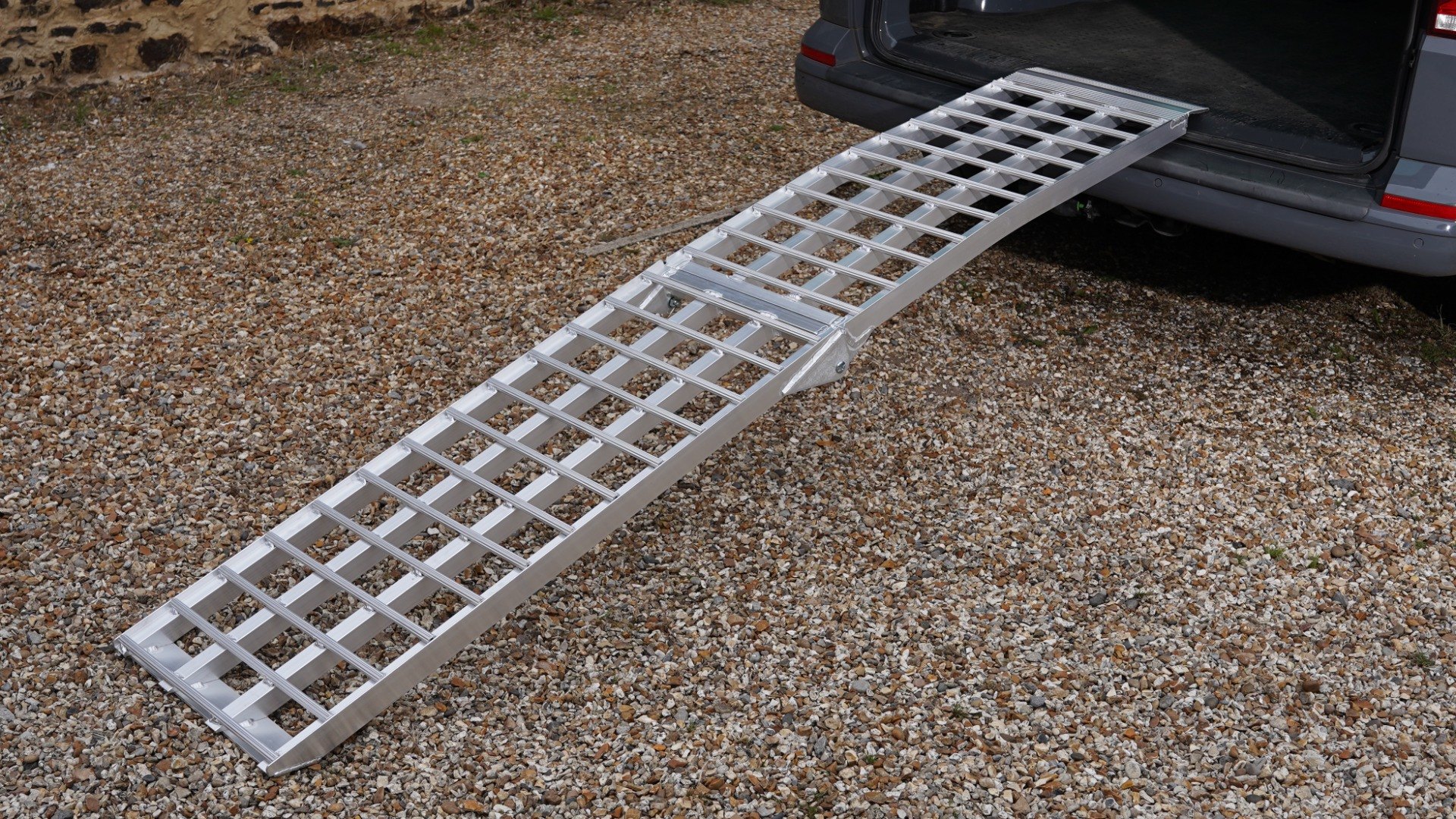

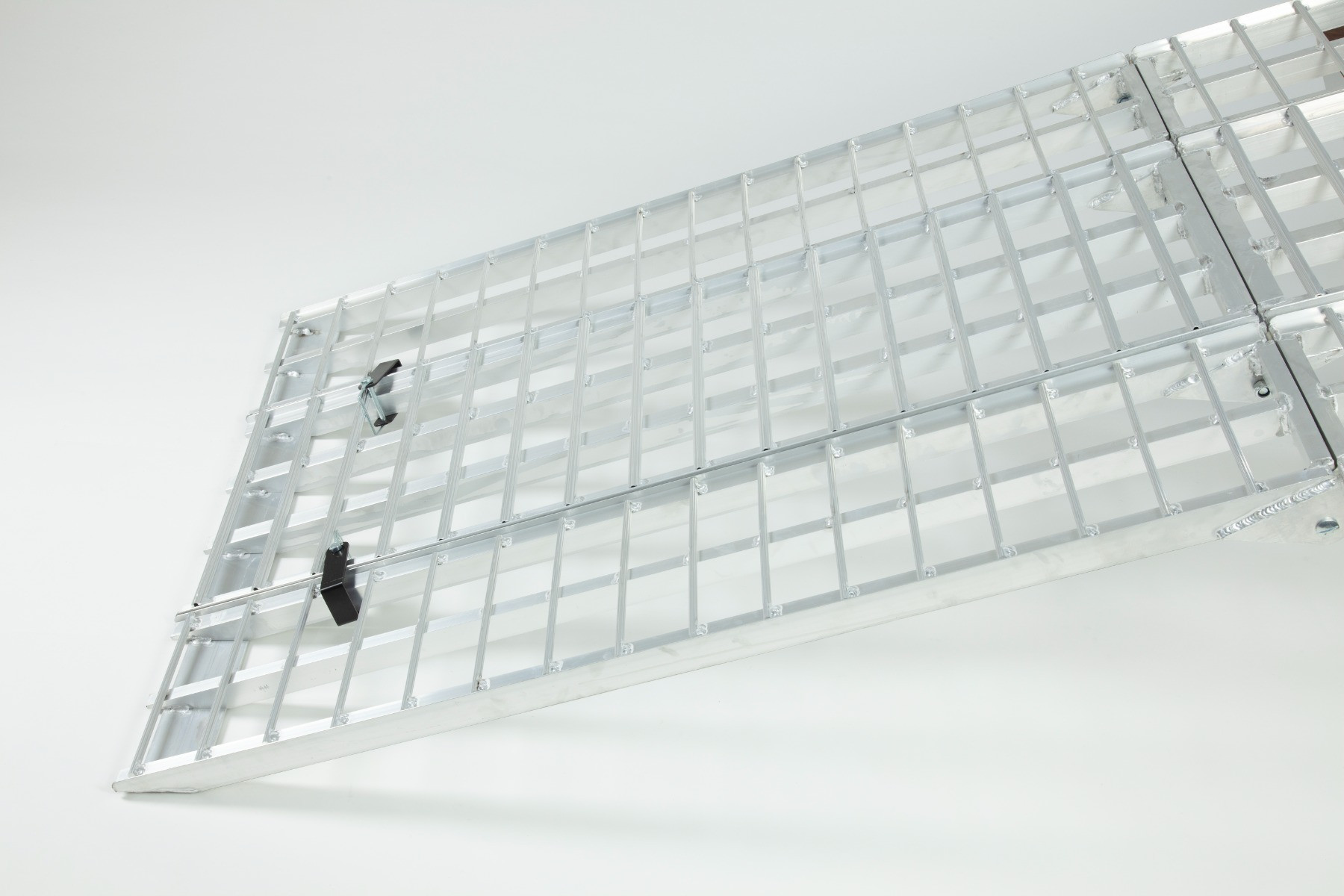

Folding extra wide motorcycle loading ramp
Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Folding extra wide motorcycle loading ramp Folding hinge Foot of the ramp Hinge Foot of the ramp on ground Folded ramp Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Foot of the ramp pair Hinge pair Folded Extra Wide Loading Ramp Rest on connection Motorcycle loading kit folded quad bike loading ramps Foot of the ramp and straps Loading ramps with red strap Extra Wide Loading Ramp mesh surface Ramp Grip surface Loading ramps resting on vehicle  Motorbike going up the motorbike kit ramps Straps Single motorcycle ramp on step Motorcycle ramp resting on step Rest on connection and strap Ramp kit three ramps Surface of the ramp Foot of ramp surface Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Brackets on the ramp quad bike loading ramps Brackets on the ramp pair of aluminium loading ramps Brackets on the ramp  bottom of the ramp motorbike ramp kit motorbike loading ramps Single extra wide motorcycle ramp resting in place on the boot of a vehicle Close up of the rest on connection of our single, extra wide bike loading ramp Close up of the bar surface on the extra wide loading ramp Push bike being pushed up our extra wide motorcycle loading ramps Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Push bike being pushed up our extra wide motorcycle loading ramps Push bike being pushed up our single extra wide motorcycle loading ramp Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Push bike being pushed up our extra wide motorcycle loading ramp kit - close up of the rest on connection Close up of the foot end of the extra wide motorcycle loading ramp kit Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Extra Wide Motorcycle Ramp (Single, Pair, or Kit) Full extra wide loading ramp kit set up and resting on the boot of a vehicle Full extra wide motorcycle kit folded up and and stored in the boot of a car Full extra wide motorcycle kit folded up and and stored in the boot of a car Single extra wide motorcycle ramp folded up and and stored in the boot of a car
  • Easy to Fit
  • Not for Solid Wheels
  • One Year Warranty
  • Leave Outside

Extra Wide Motorcycle Ramp (Single, Pair, or Kit)

SKU
TRP615Conf
As low as £168.00 £140.00
Over 100 In stock at our warehouse

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

These extra-wide and extremely popular motorcycle ramps have a capacity of up to 680kg and  are available in lengths of 2380mm, 2750mm and 3000mm.

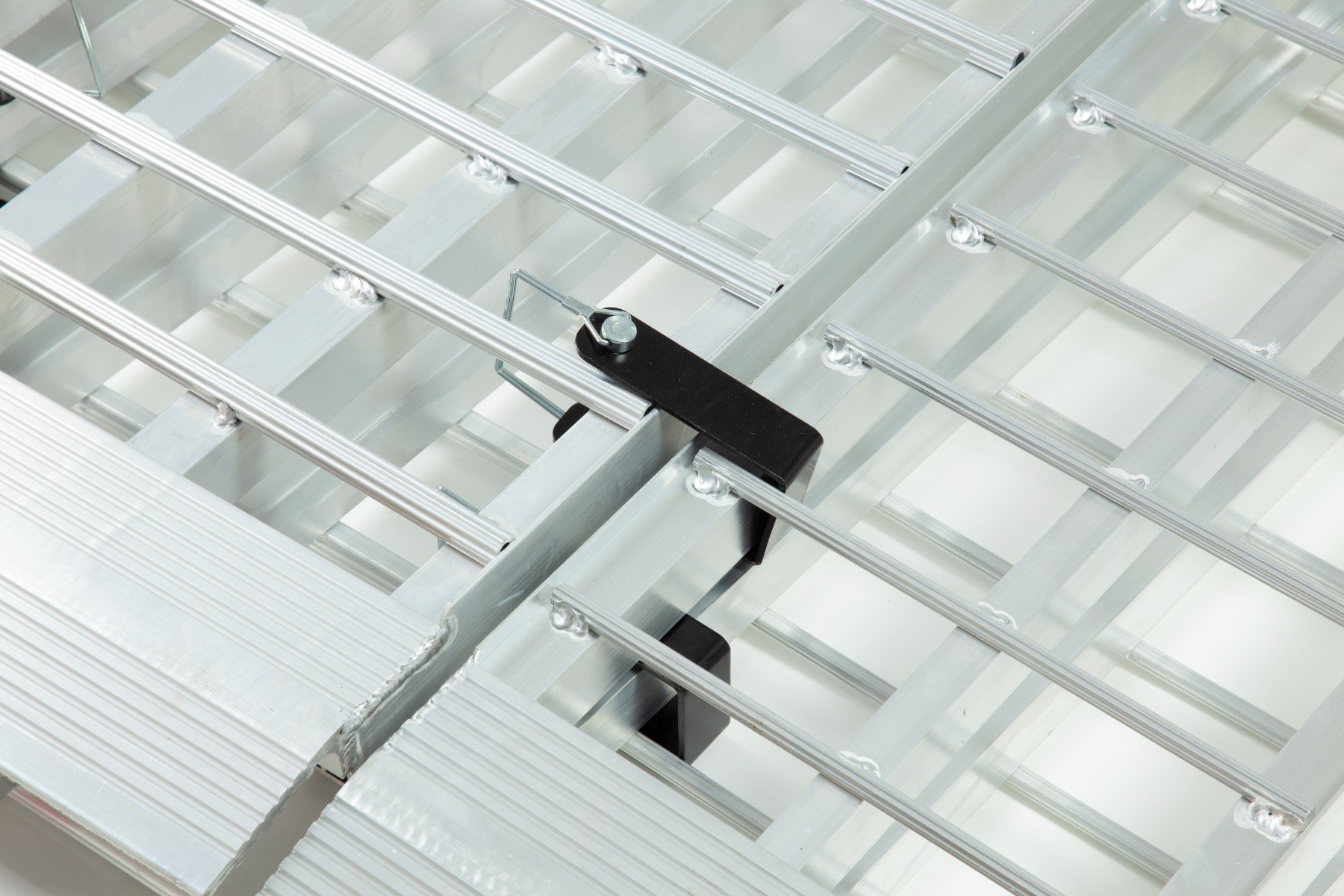

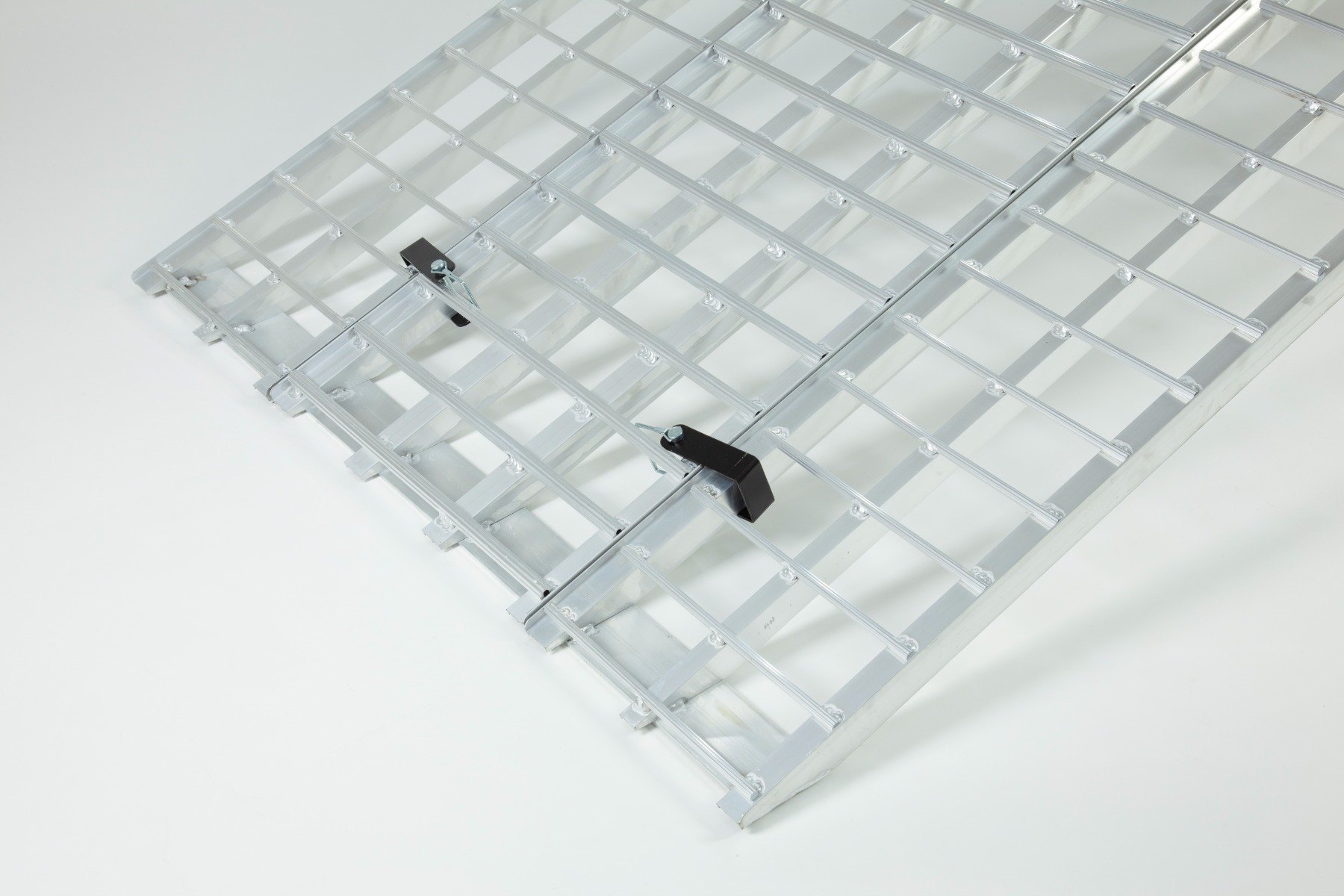

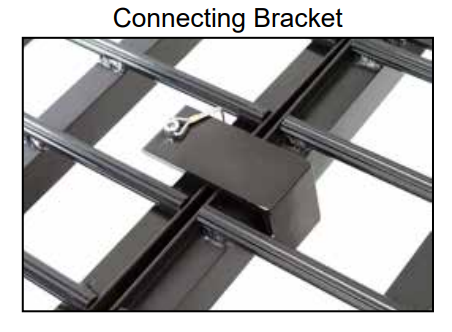

While the standard ramp kit includes safety straps to connect the ramp to the vehicle while loading, you can also add the U-shaped joining brackets.

Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps

Motorcycle and Folding Loading Ramps FAQ's

Description

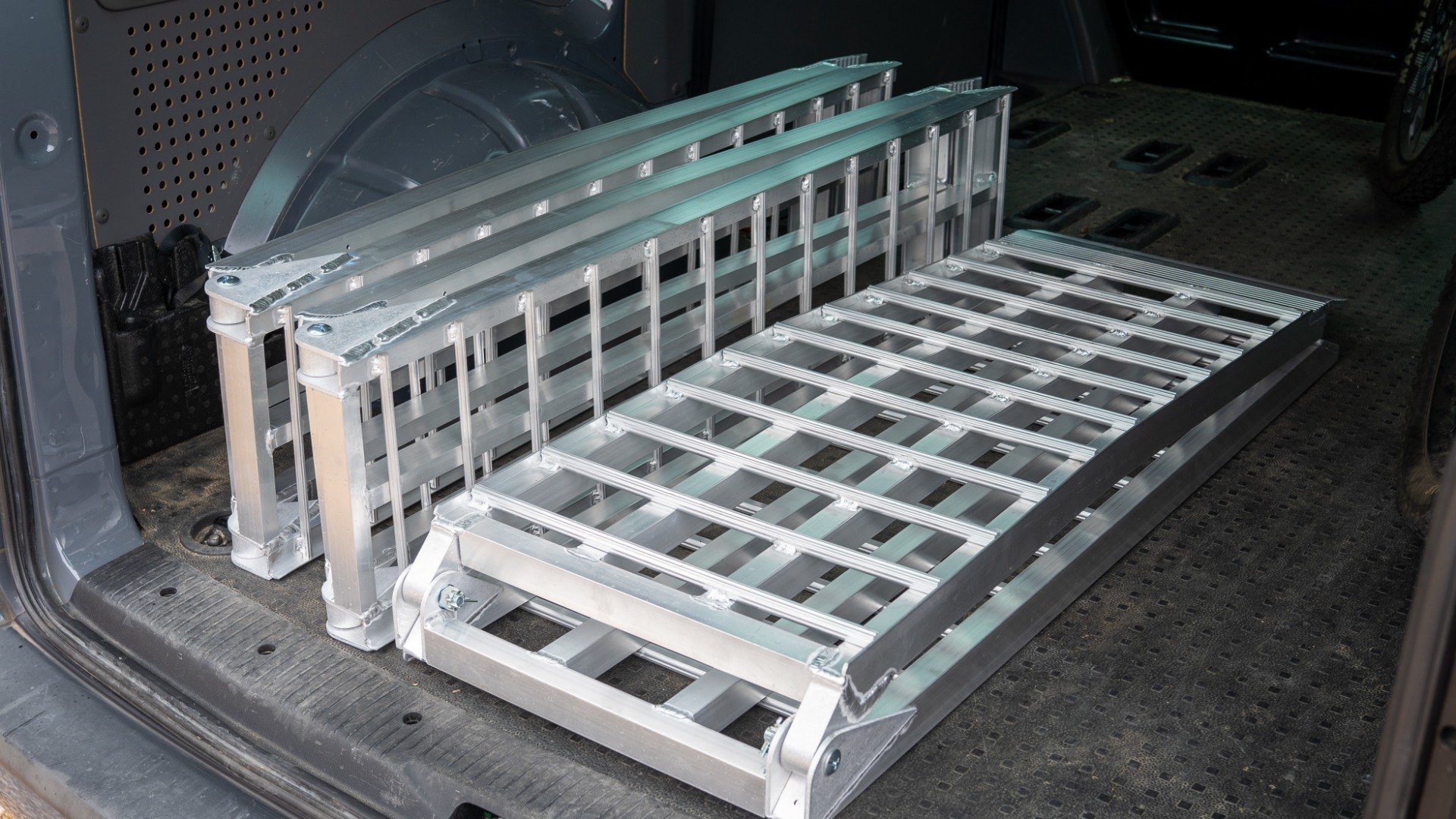

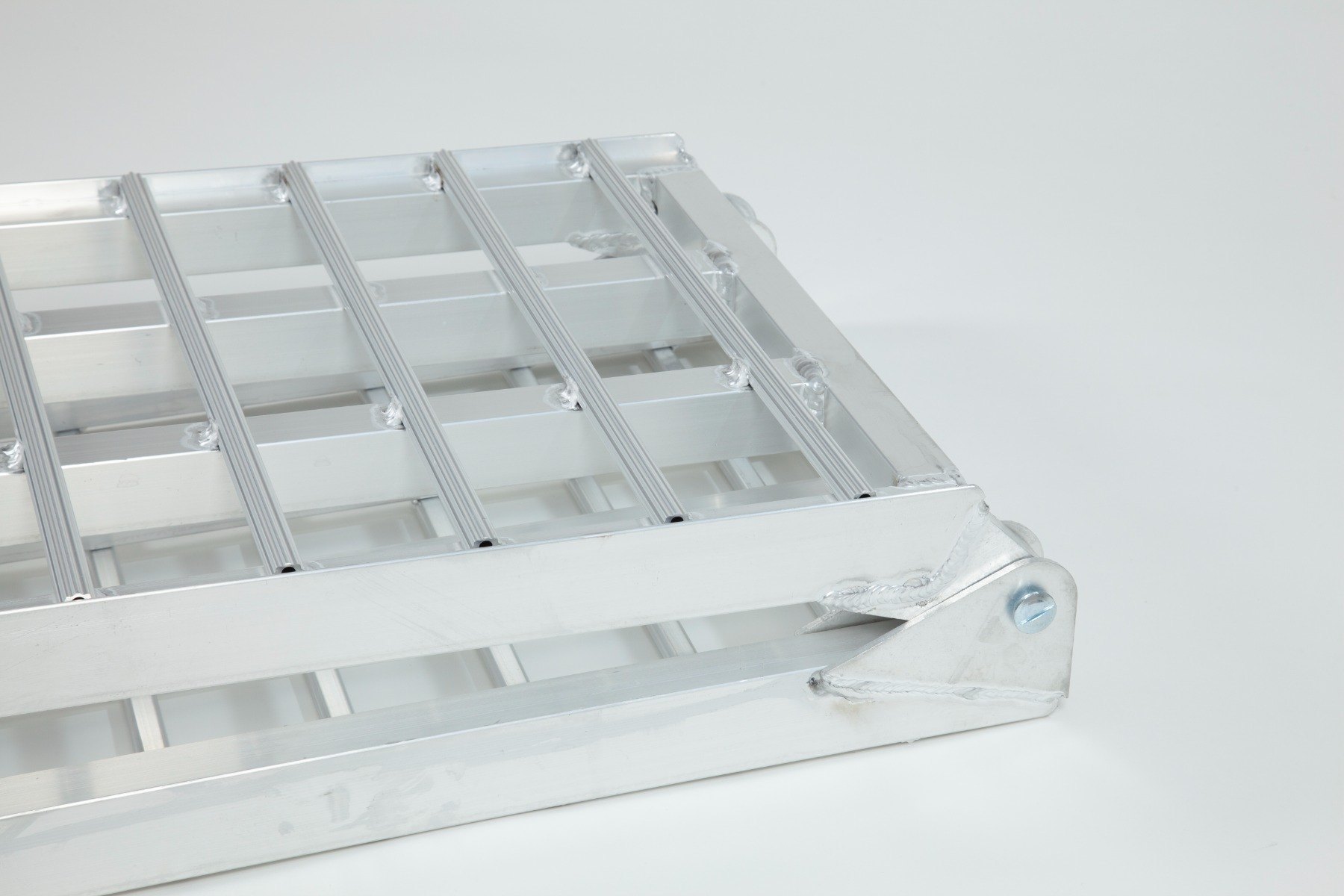

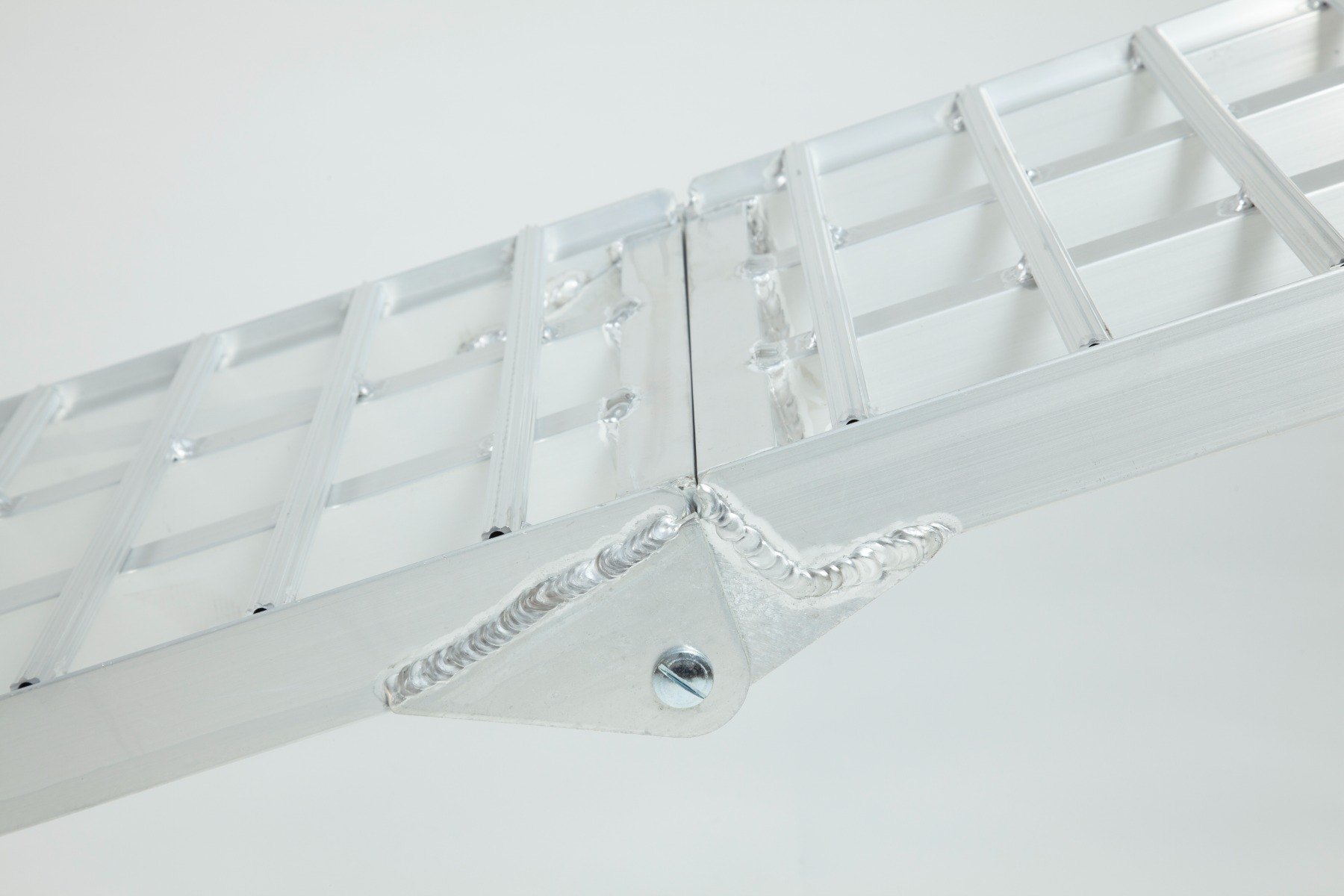

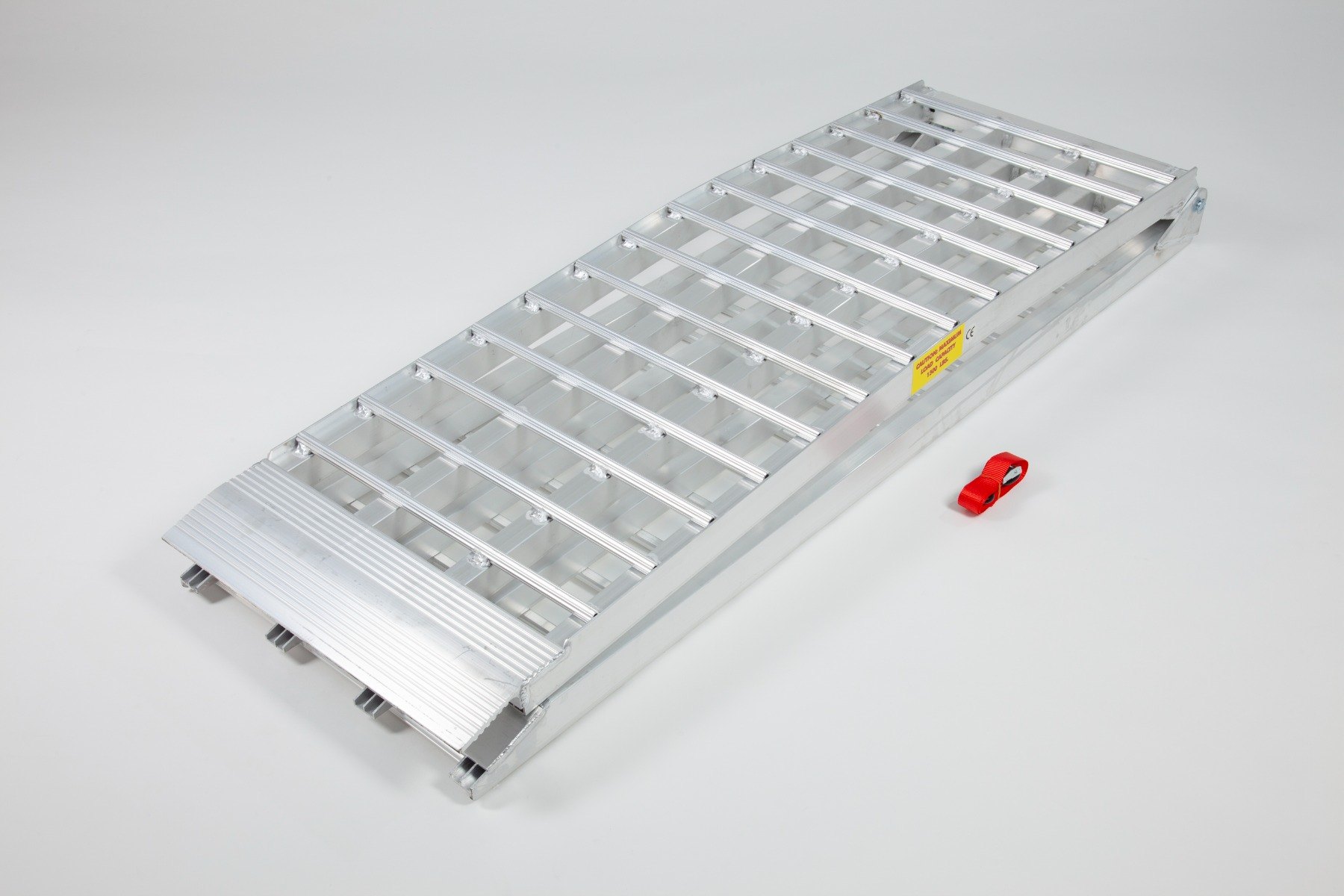

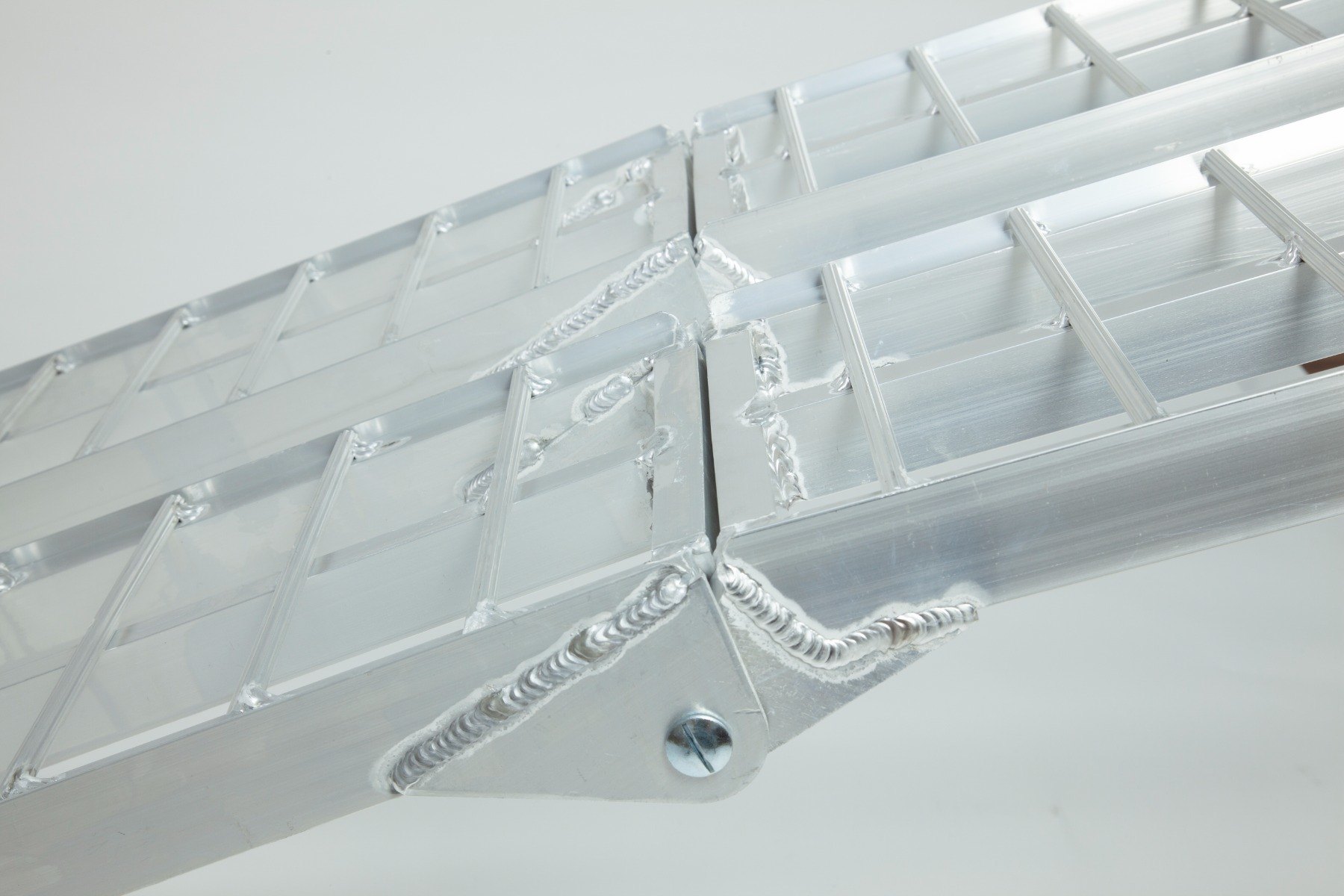

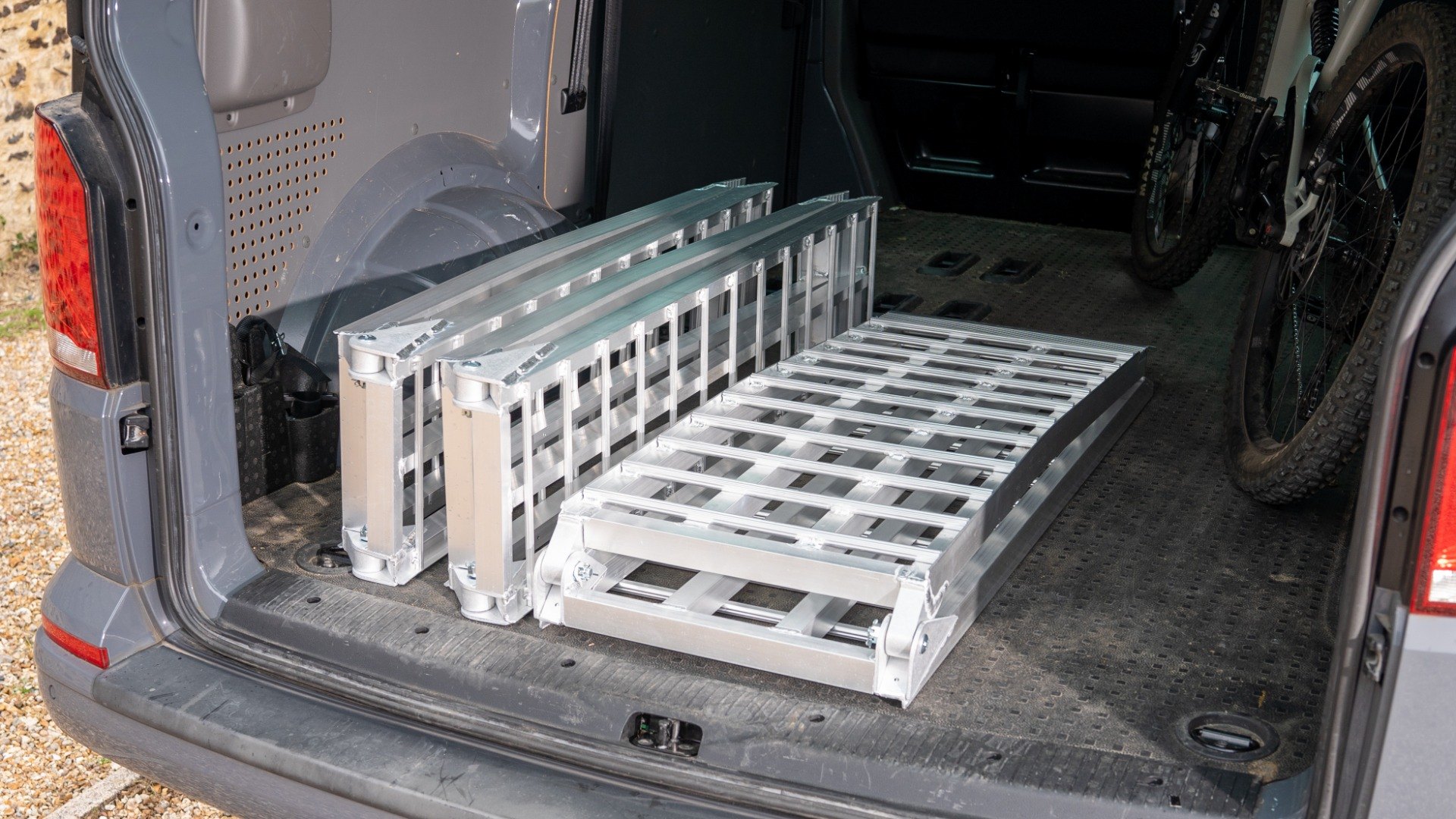

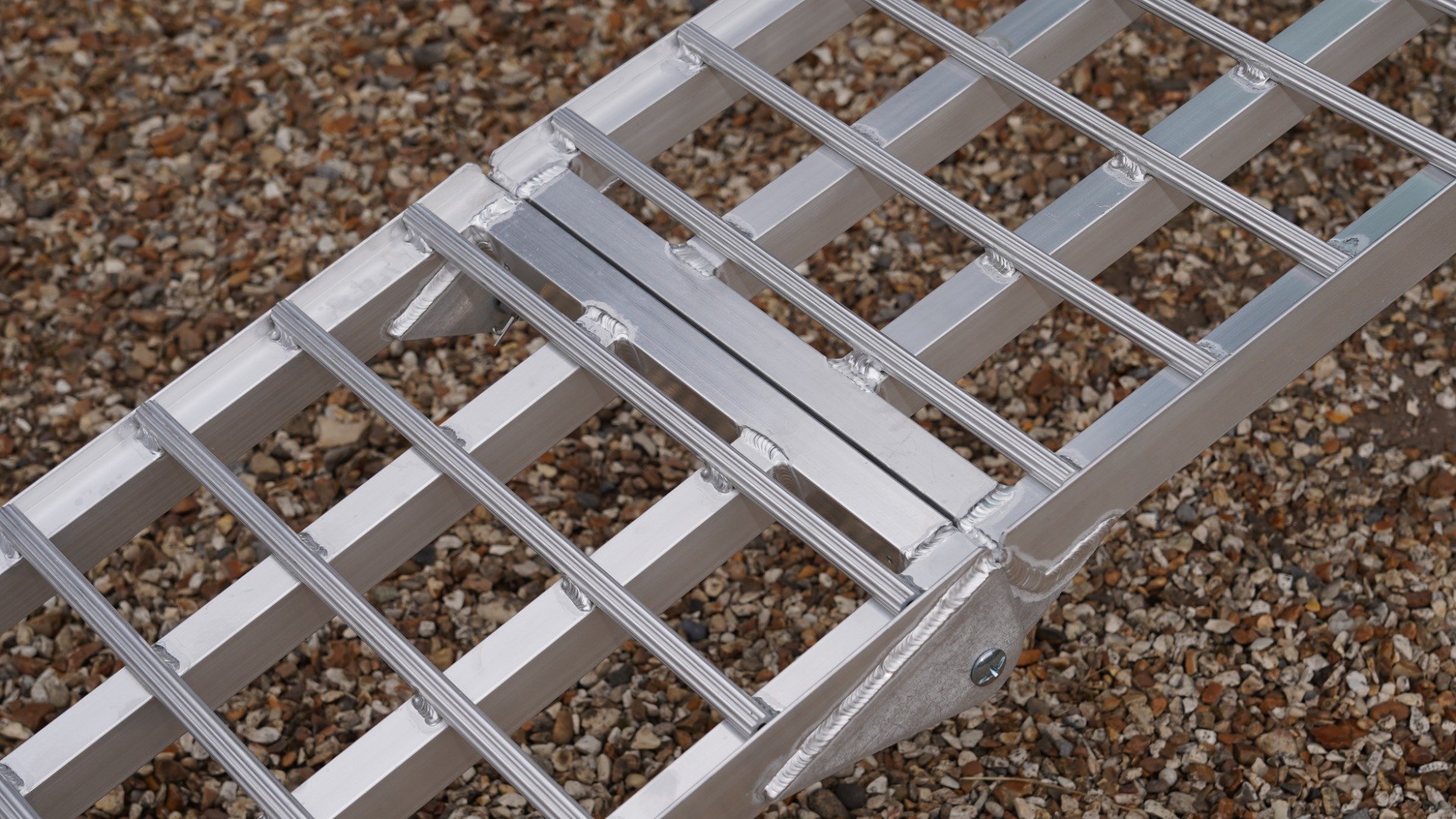

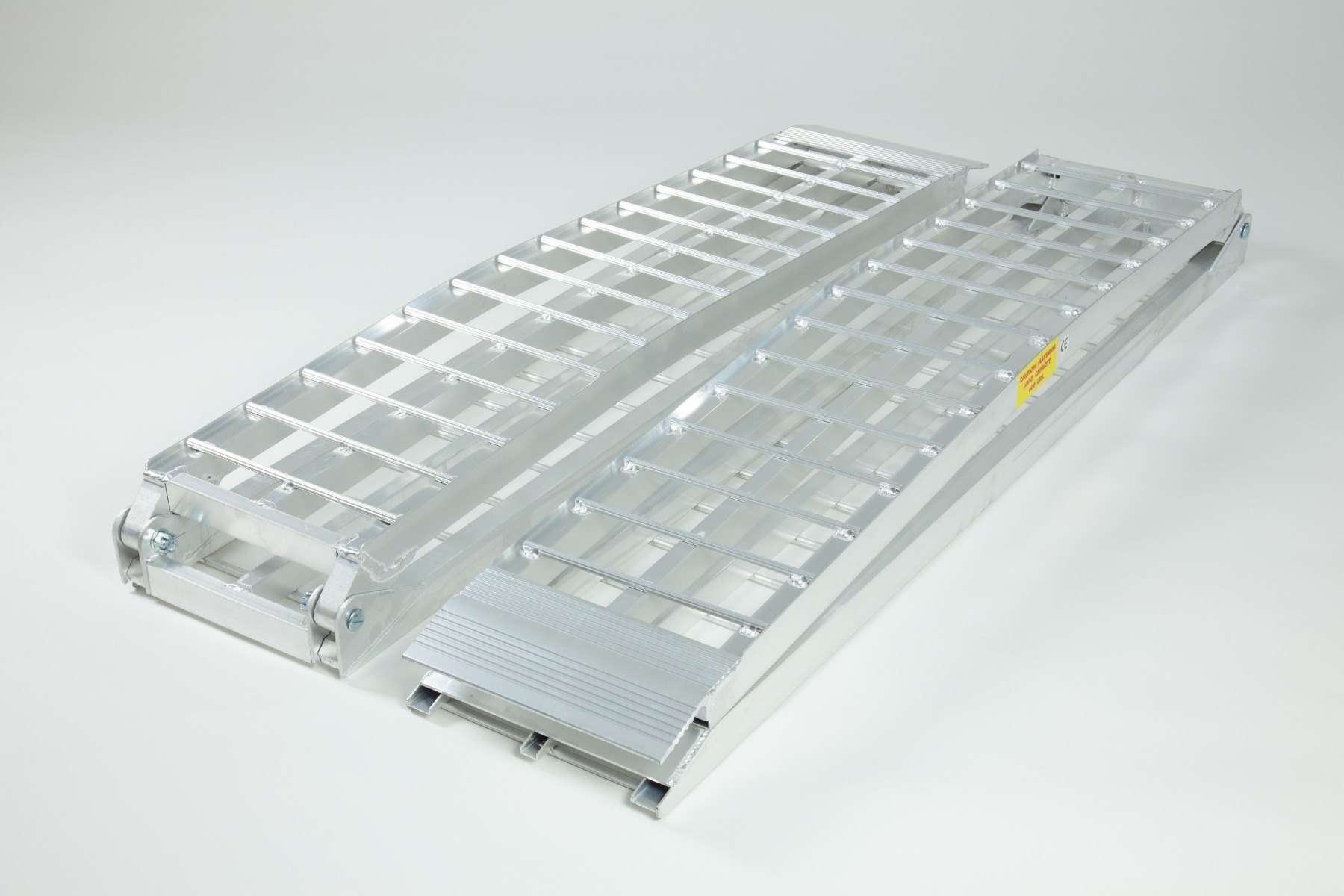

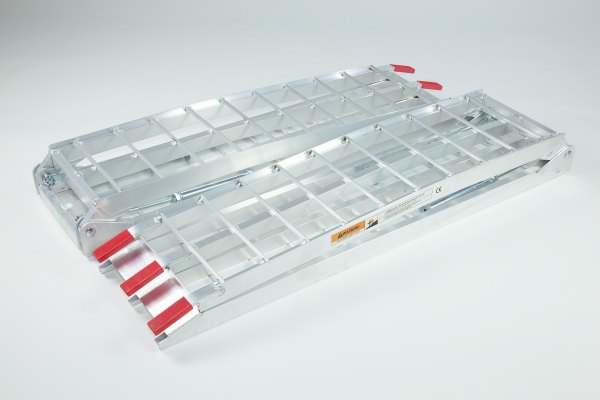

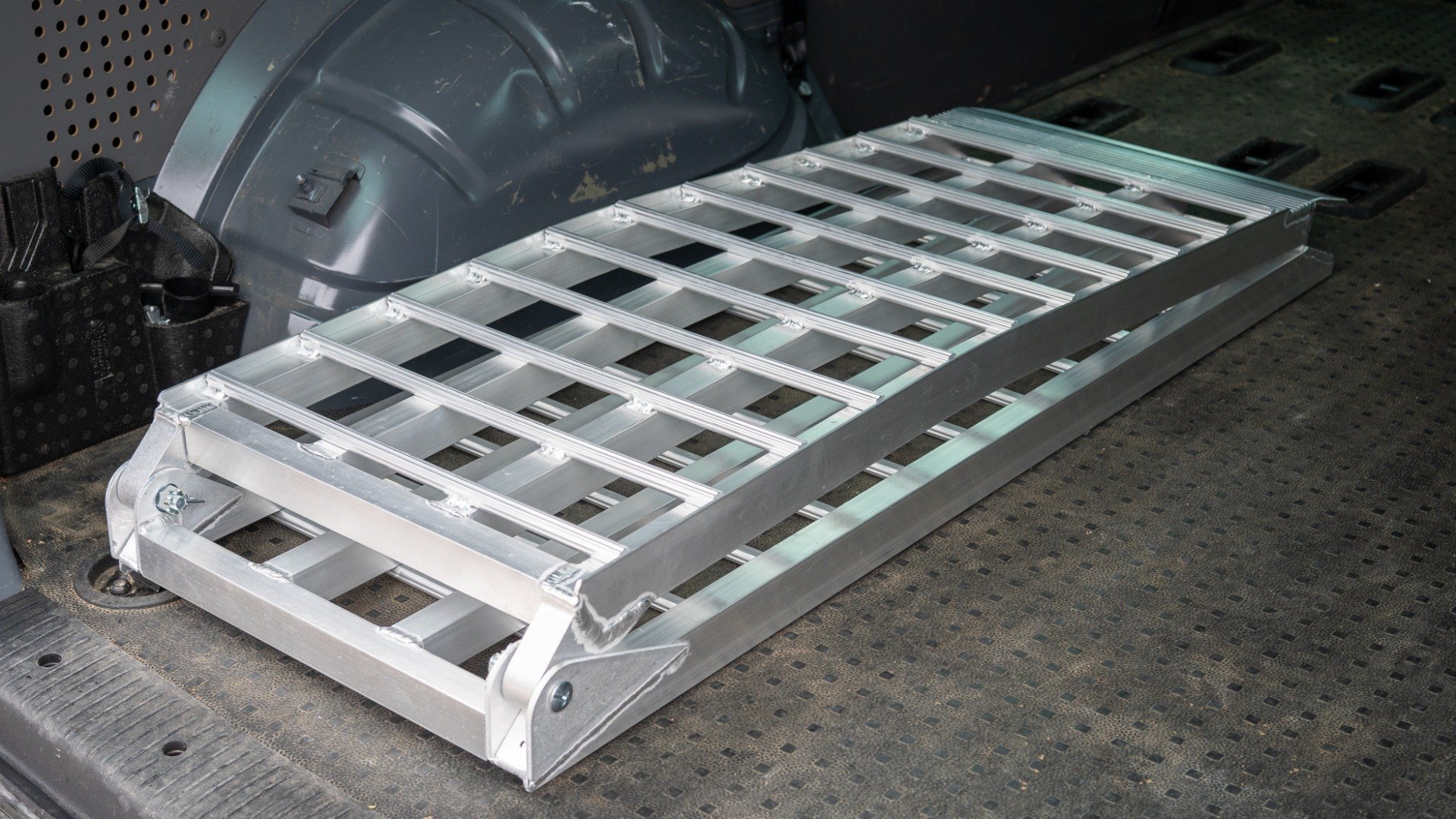

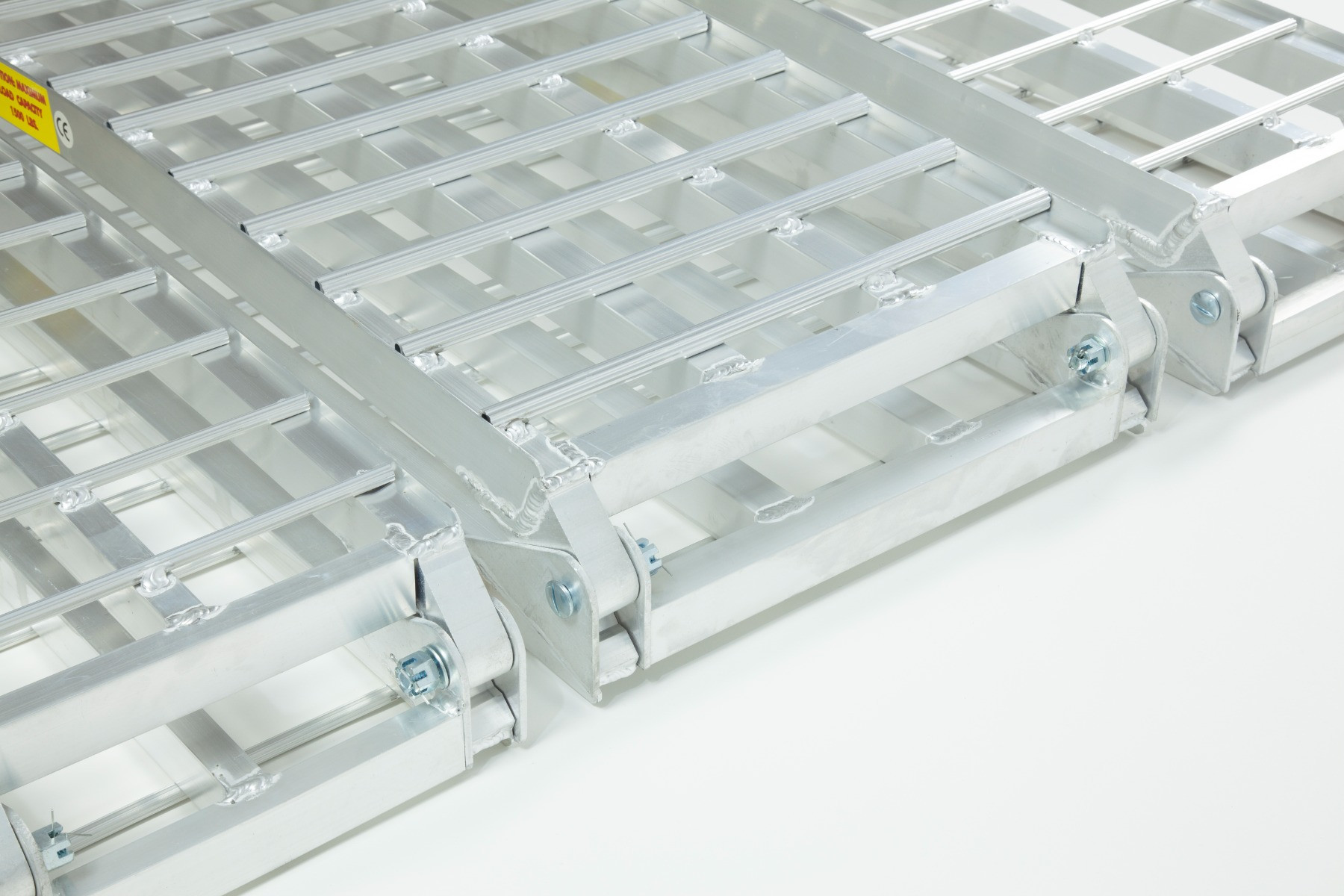

  • Folds in half for quick storage

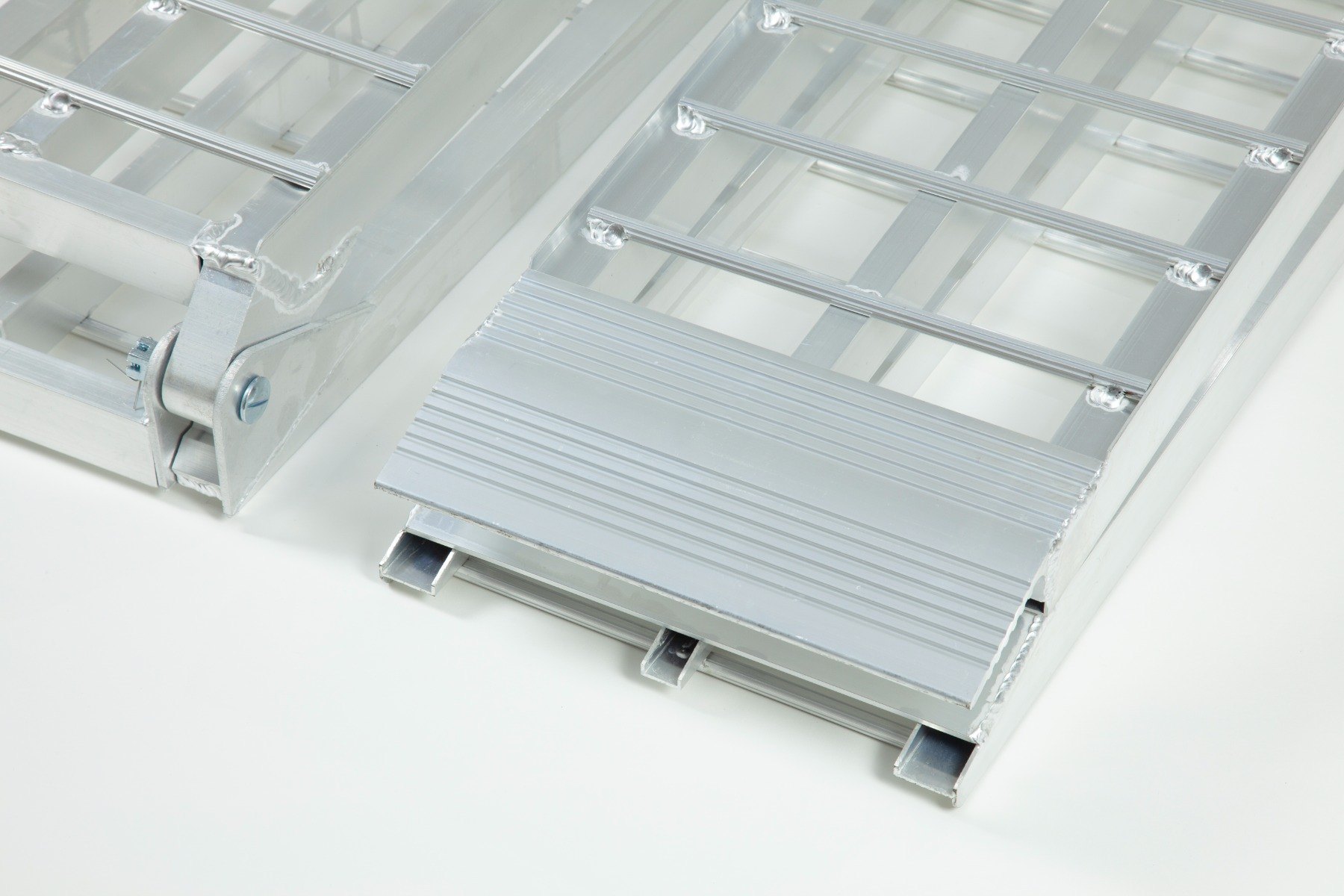

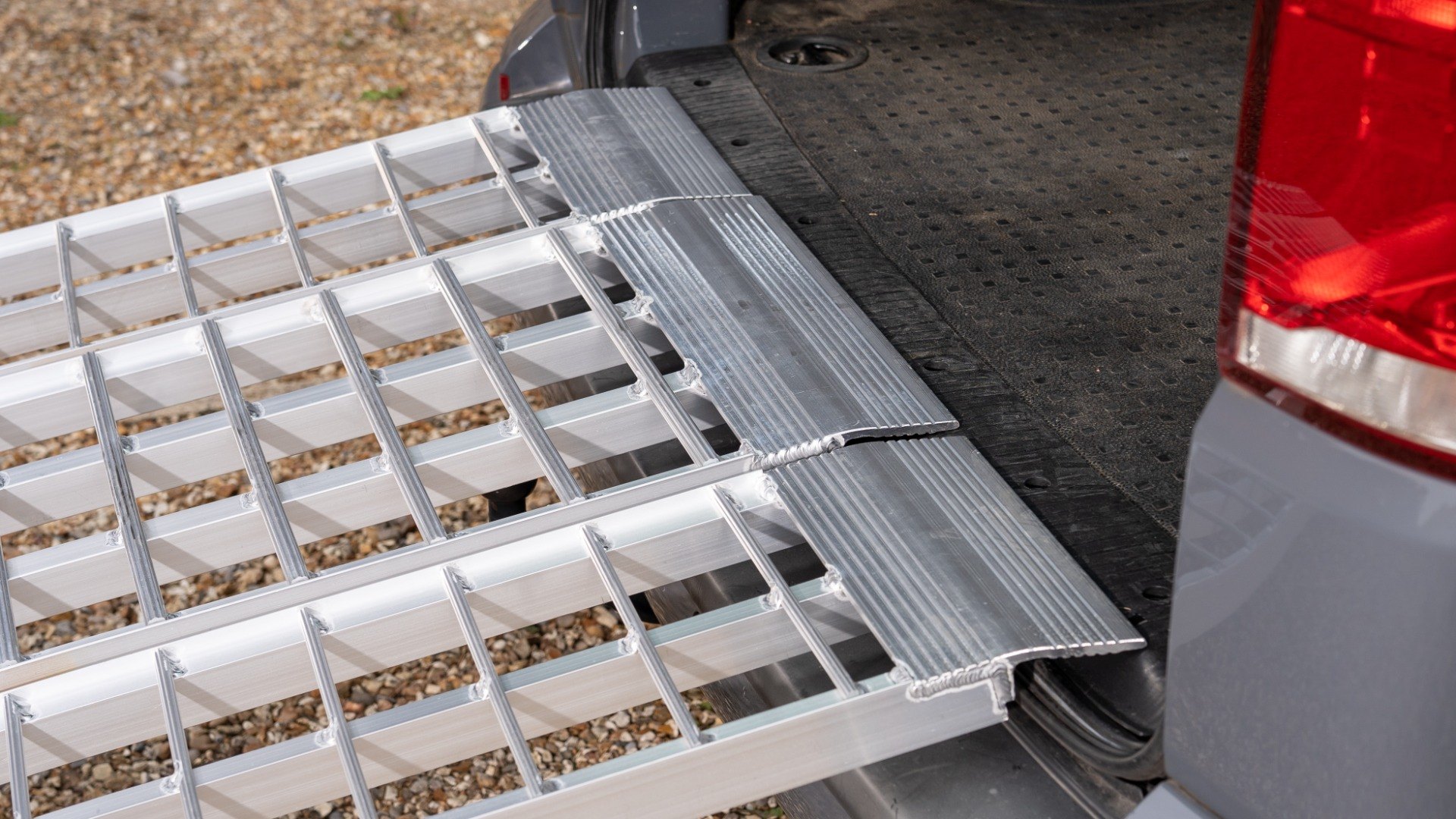

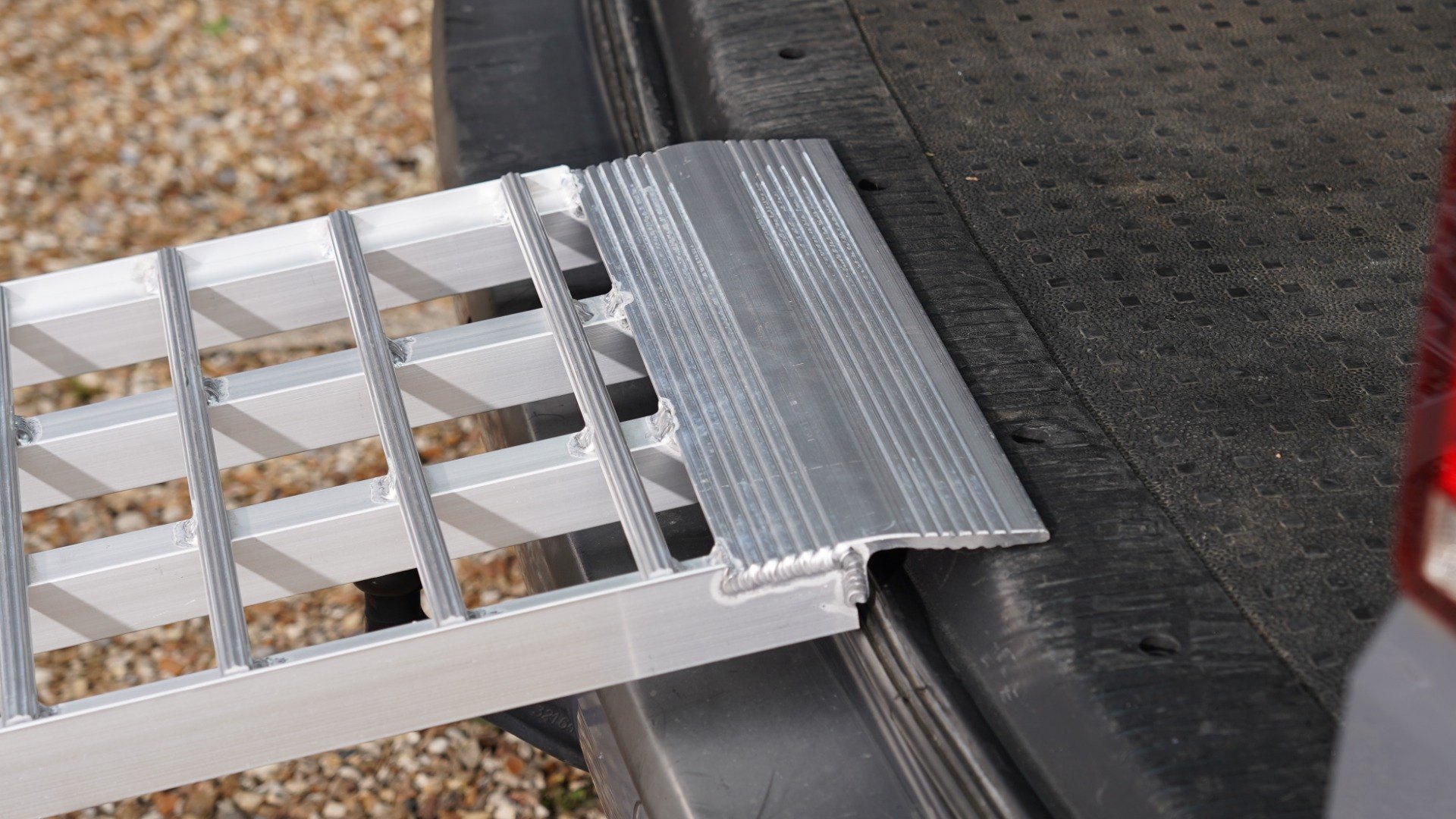

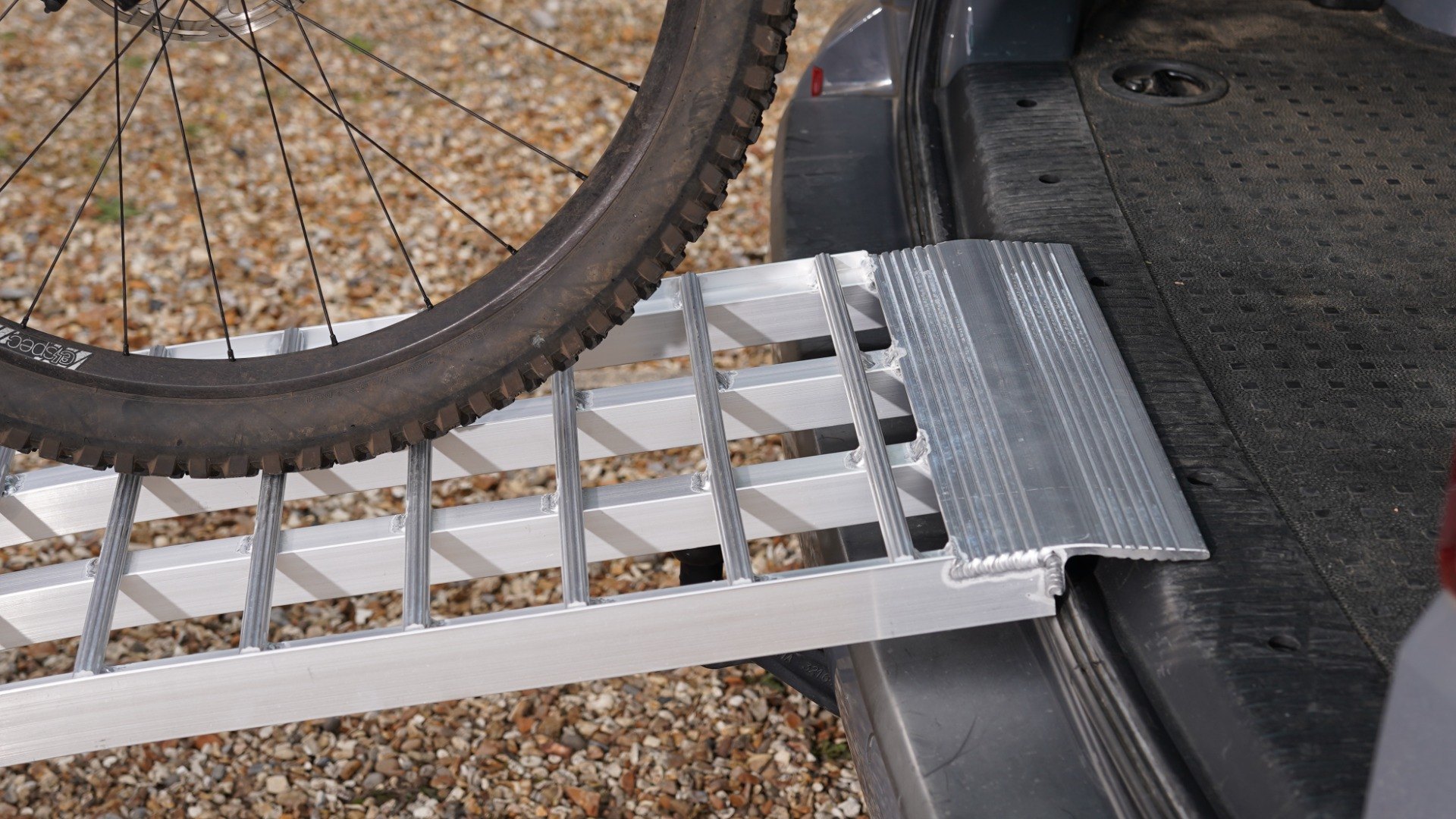

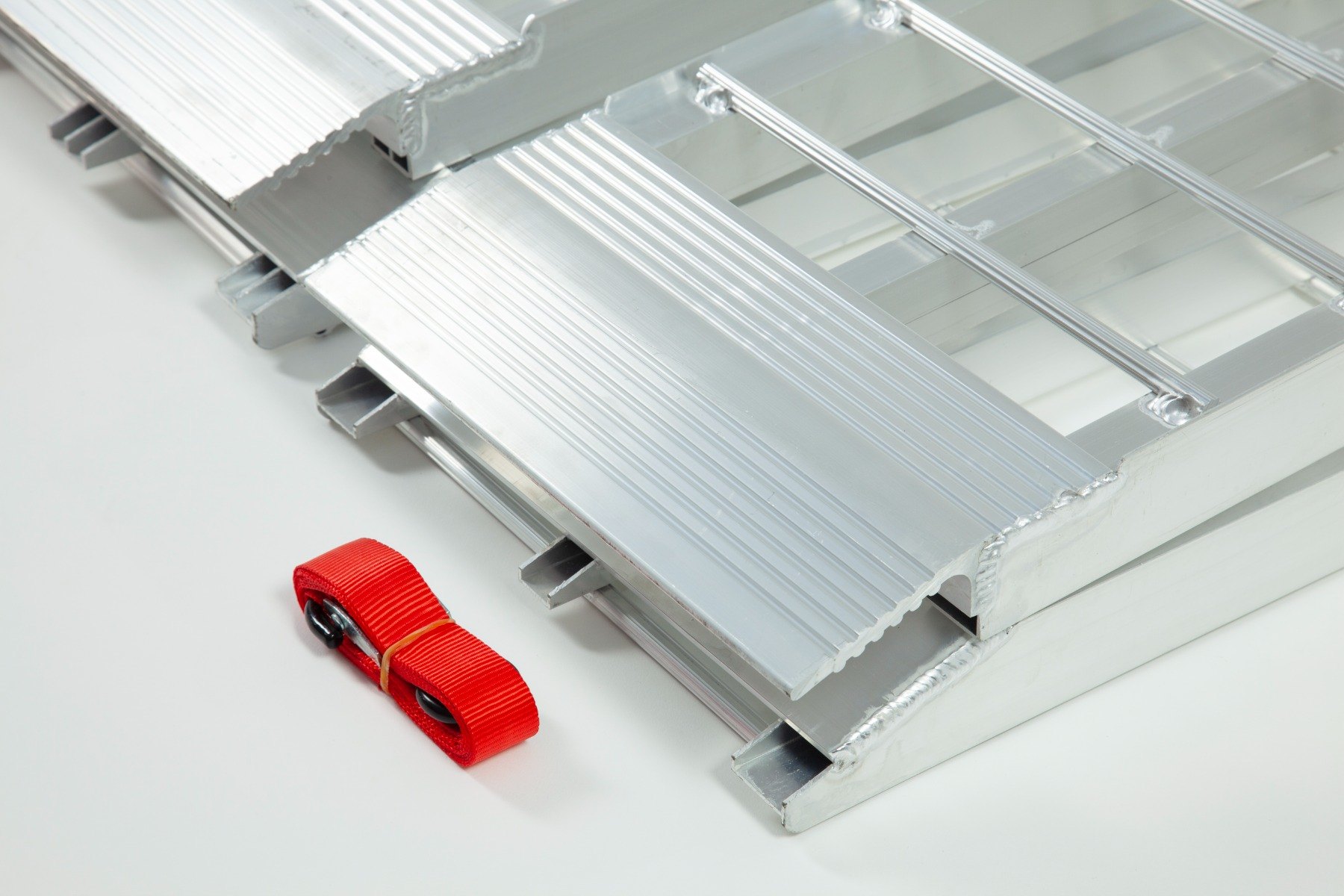

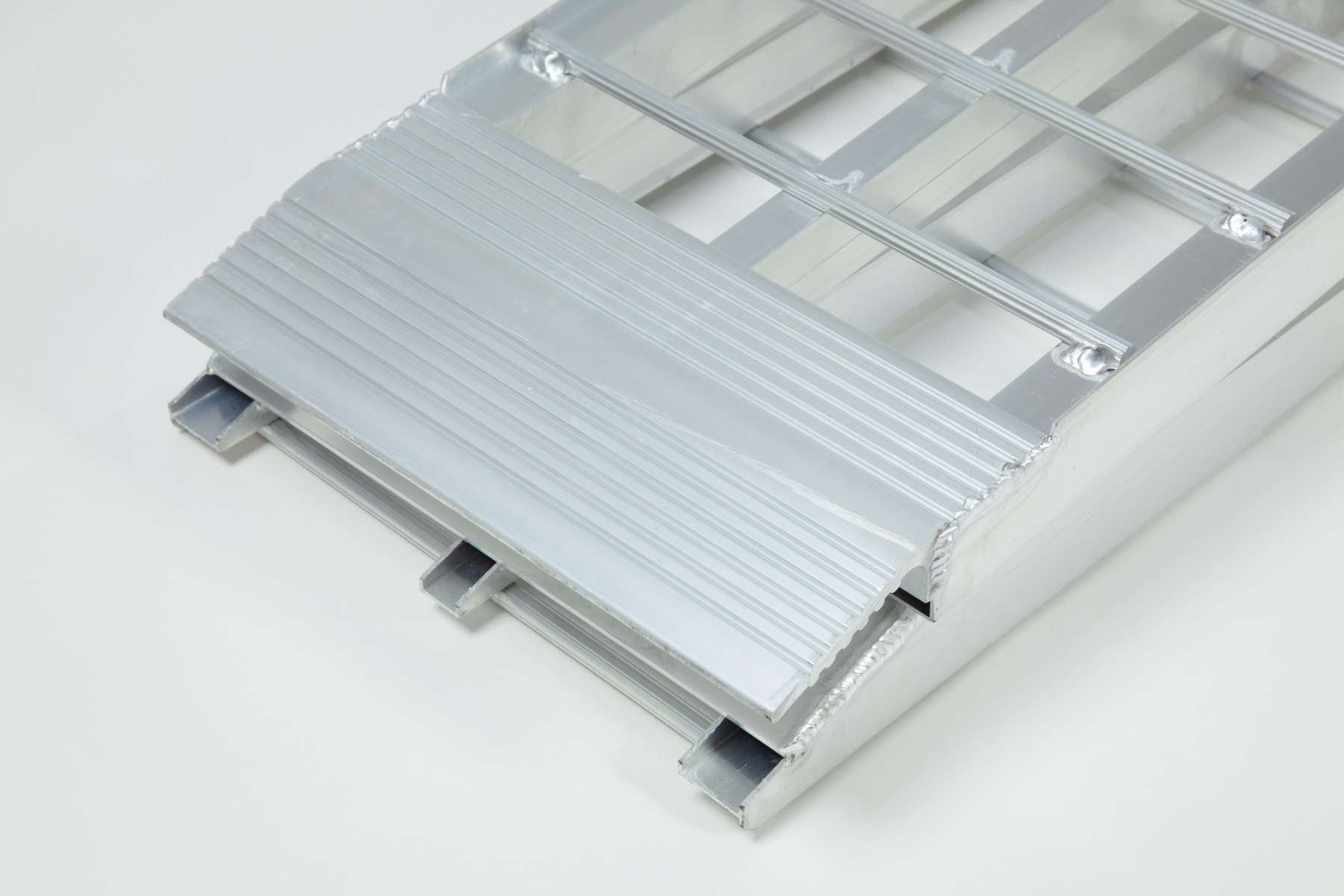

  • Solid plate style lip rest for grip on tailgate
  • All aluminum construction

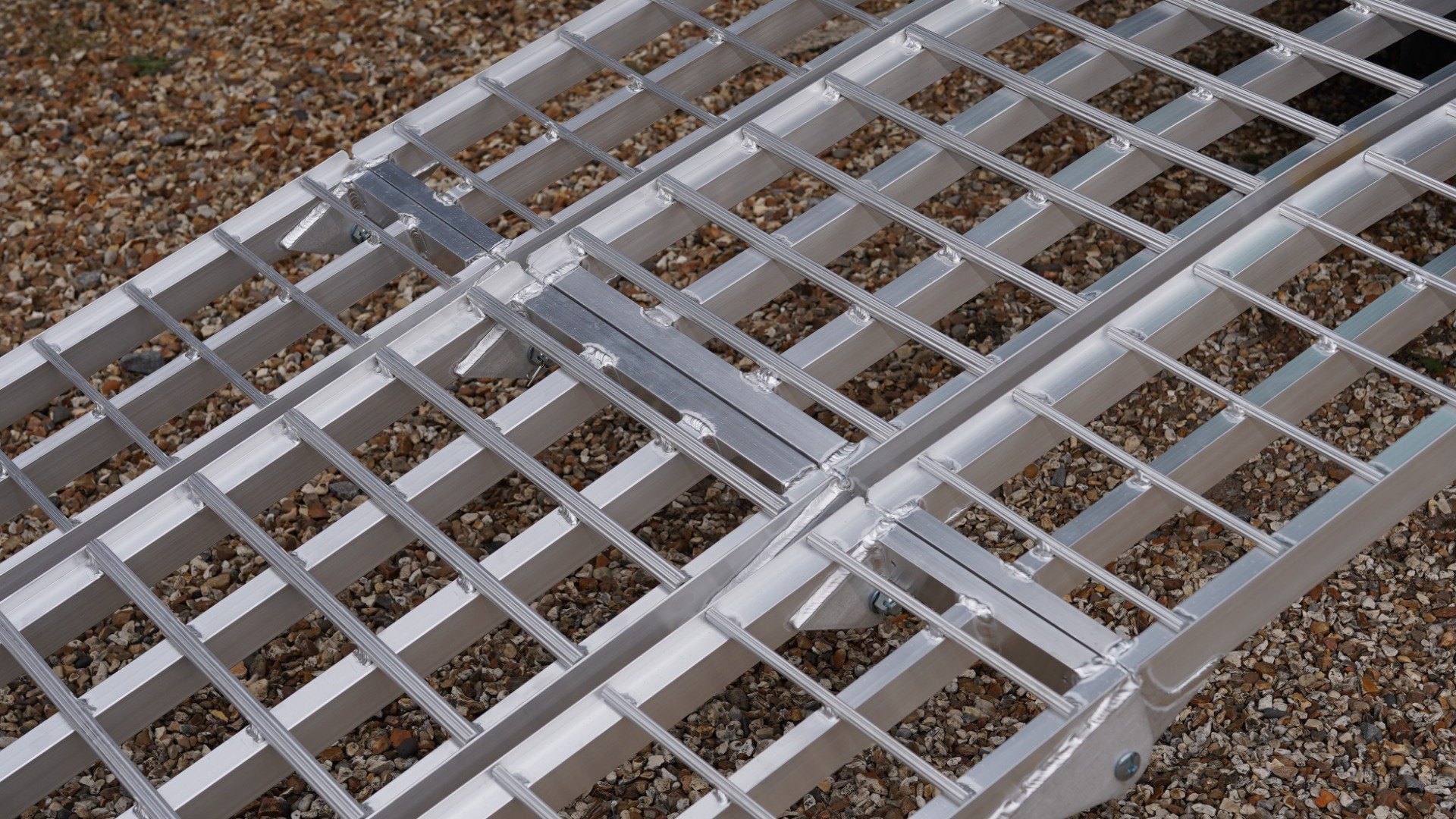

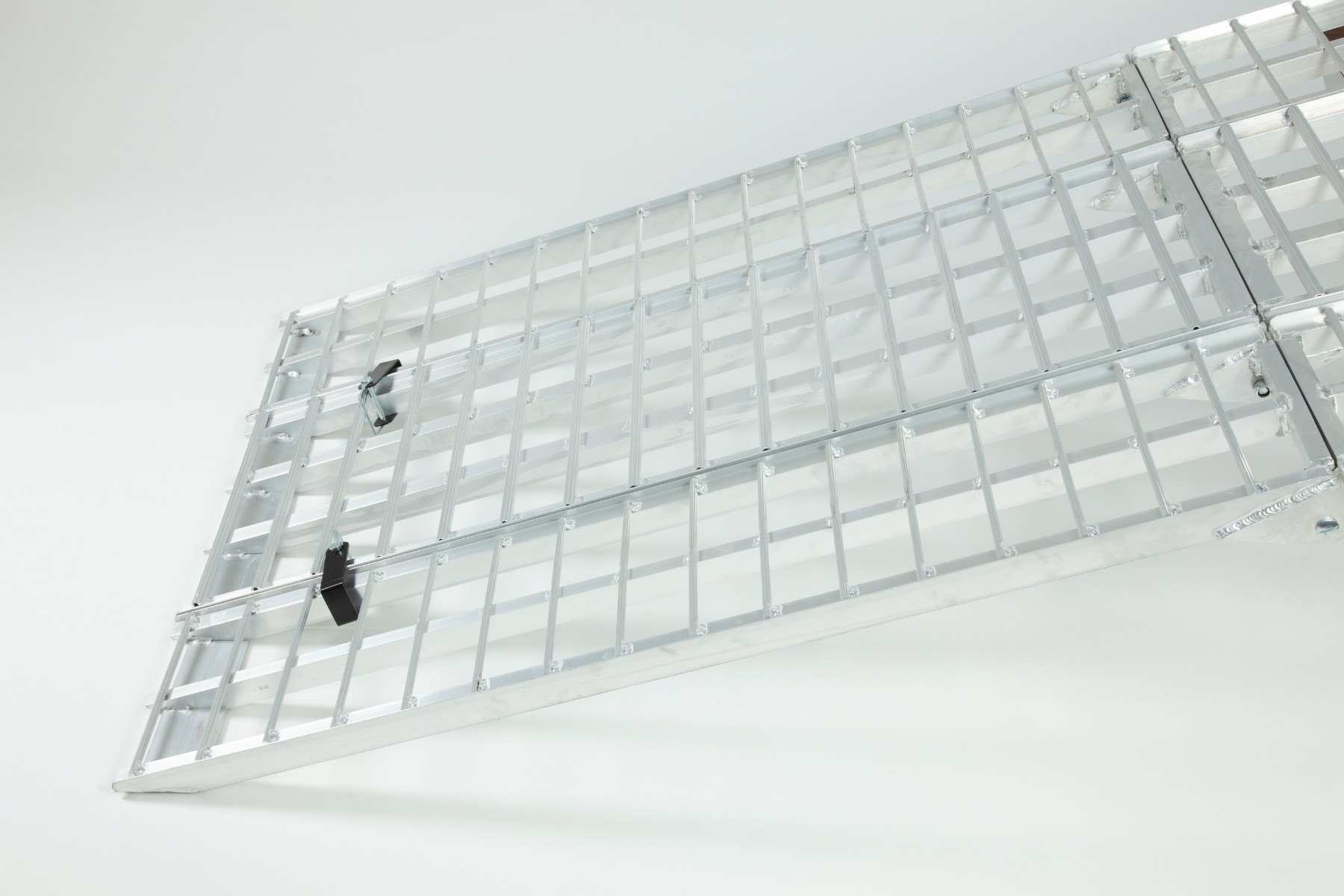

  • Ramps can be strapped together

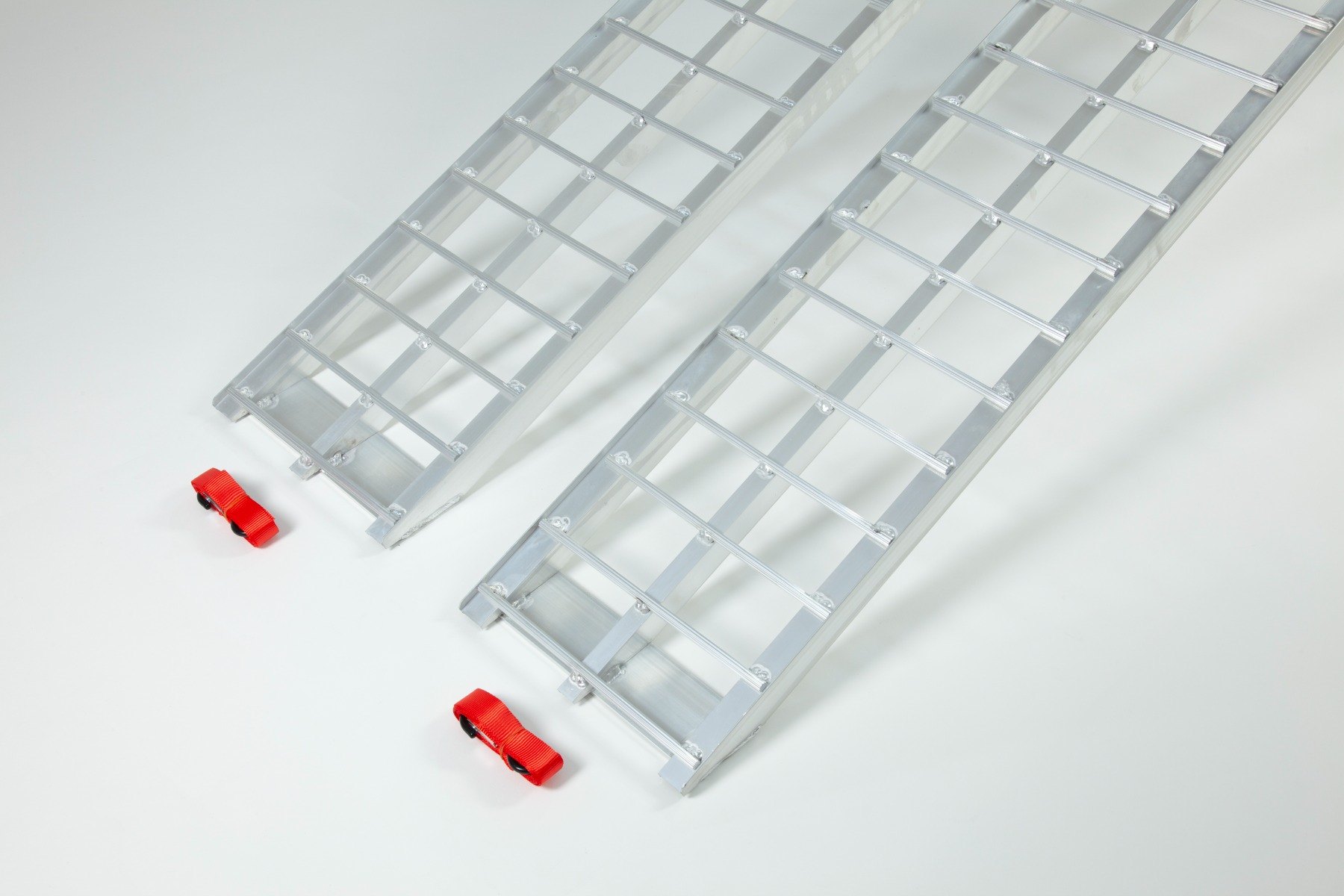

  • Safety straps included to keep ramp secure to loading surface, black joining brackets can be purchased separately
  • One person loading and unloading

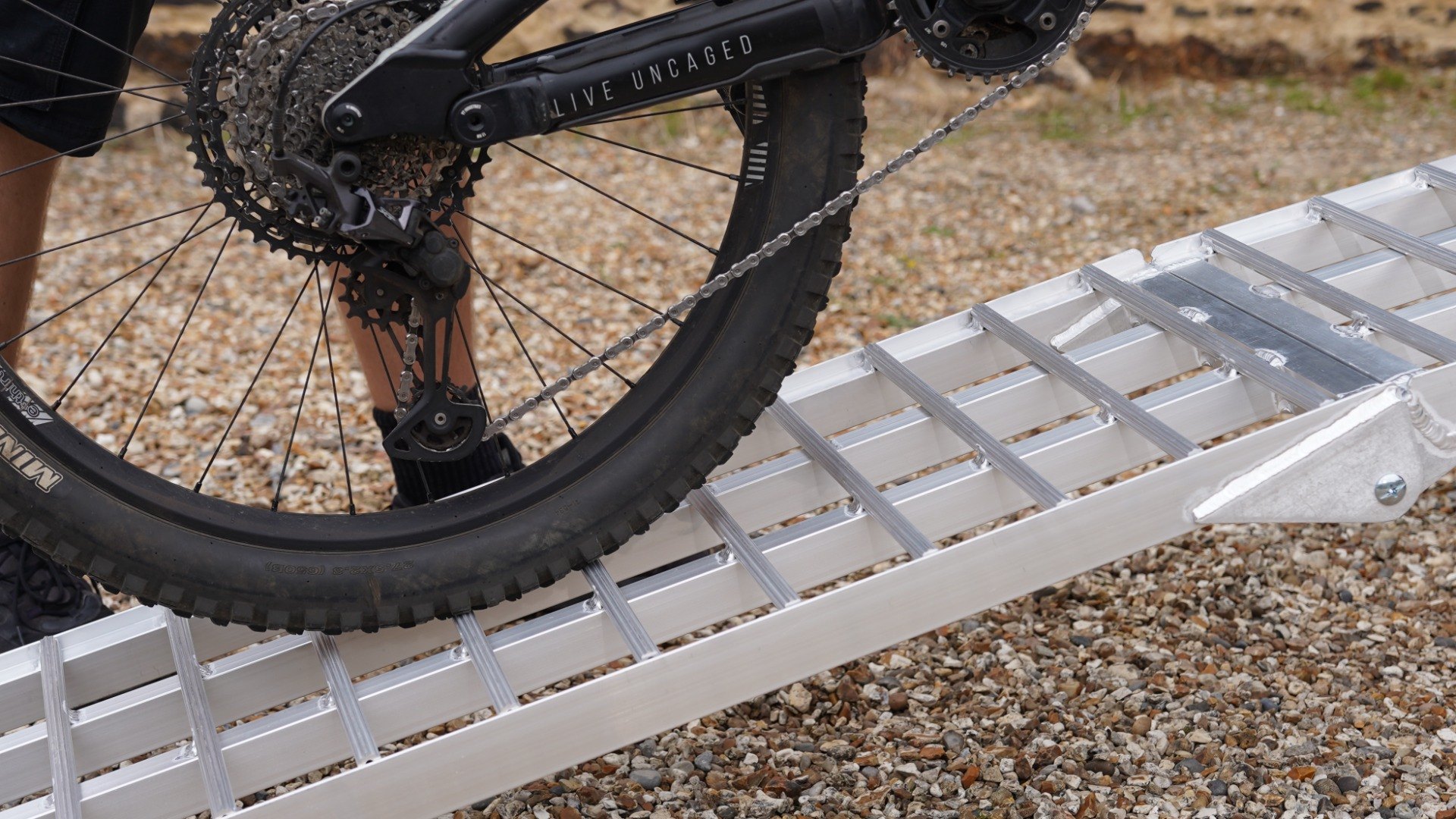

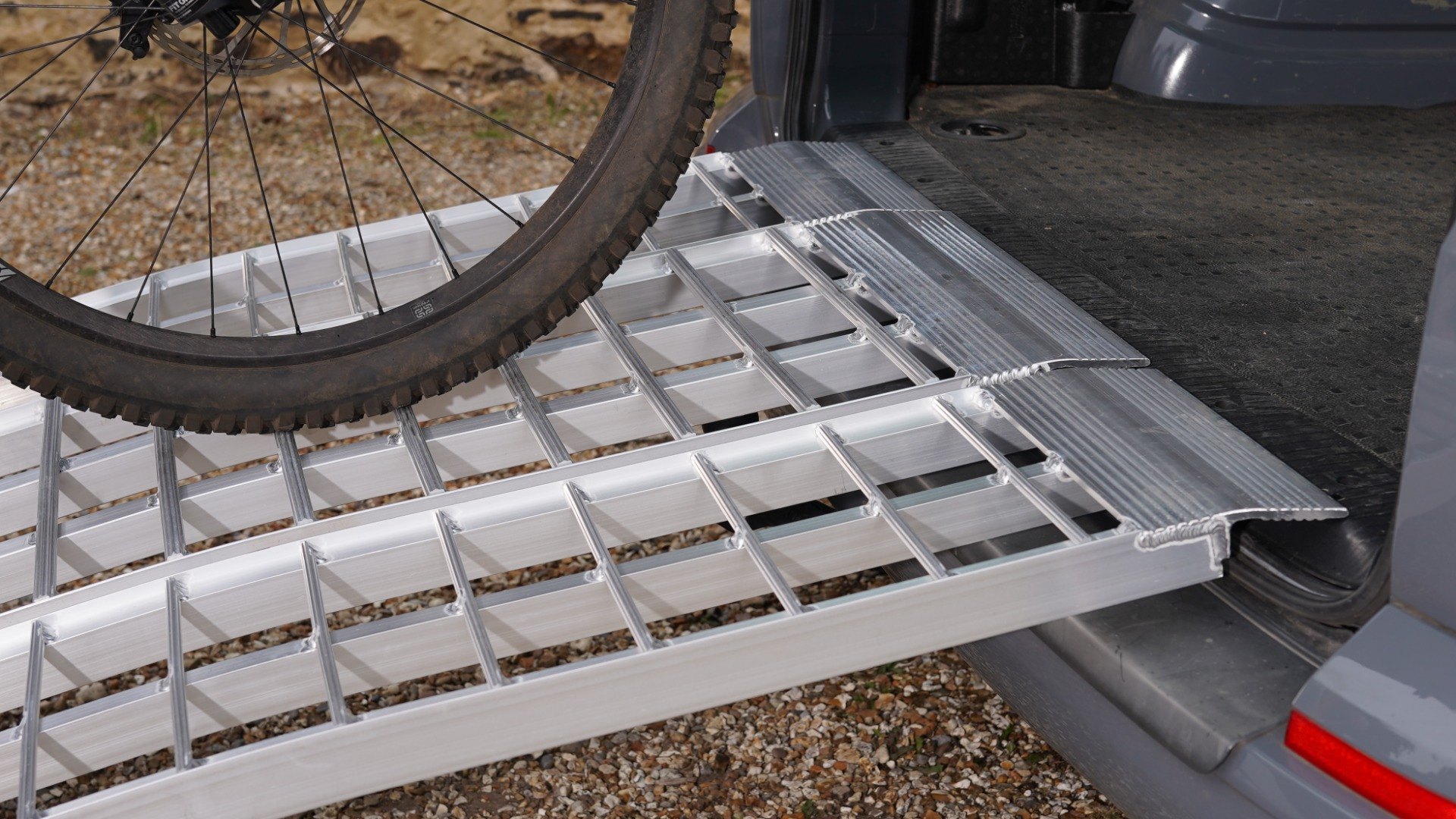

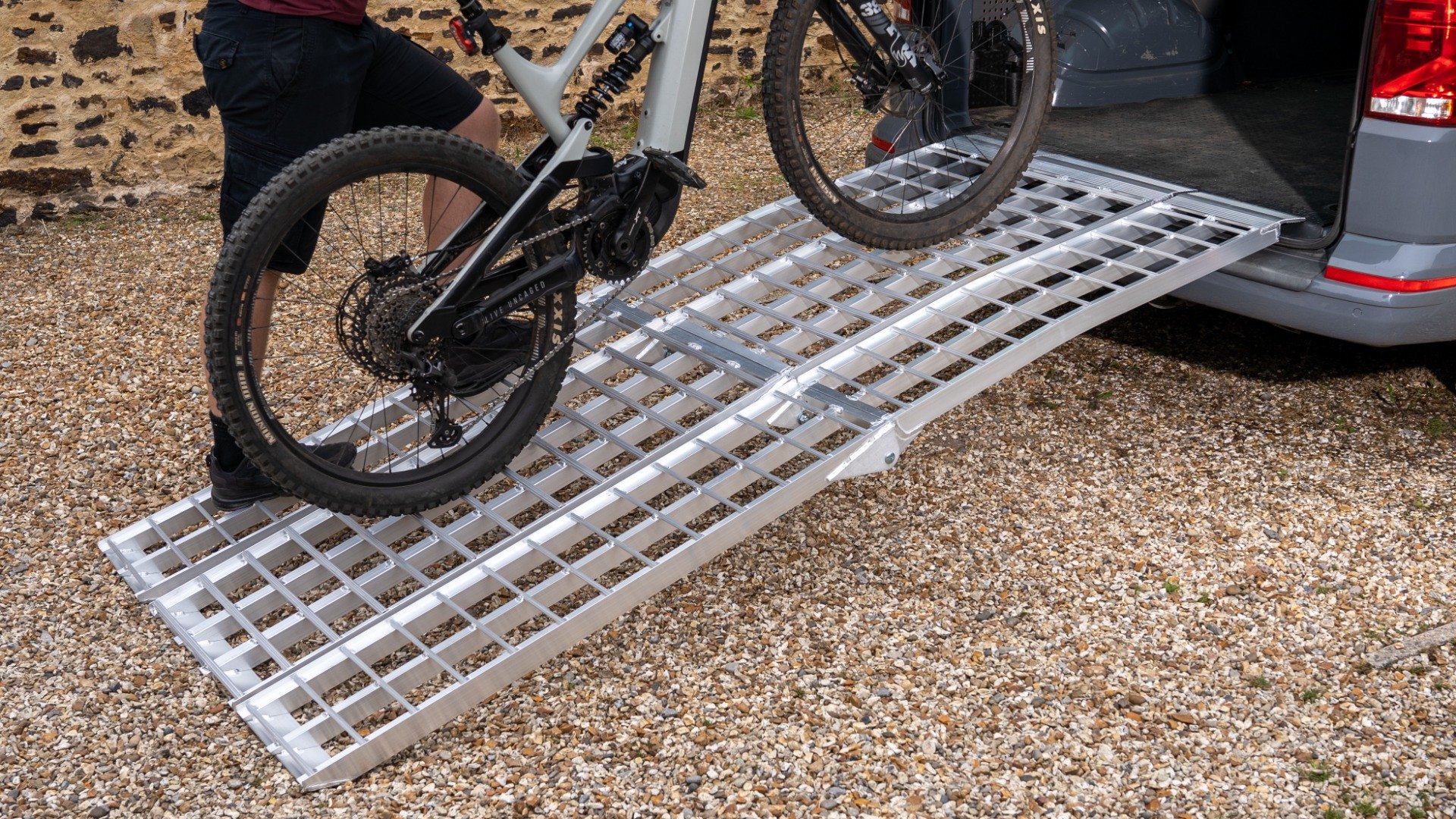

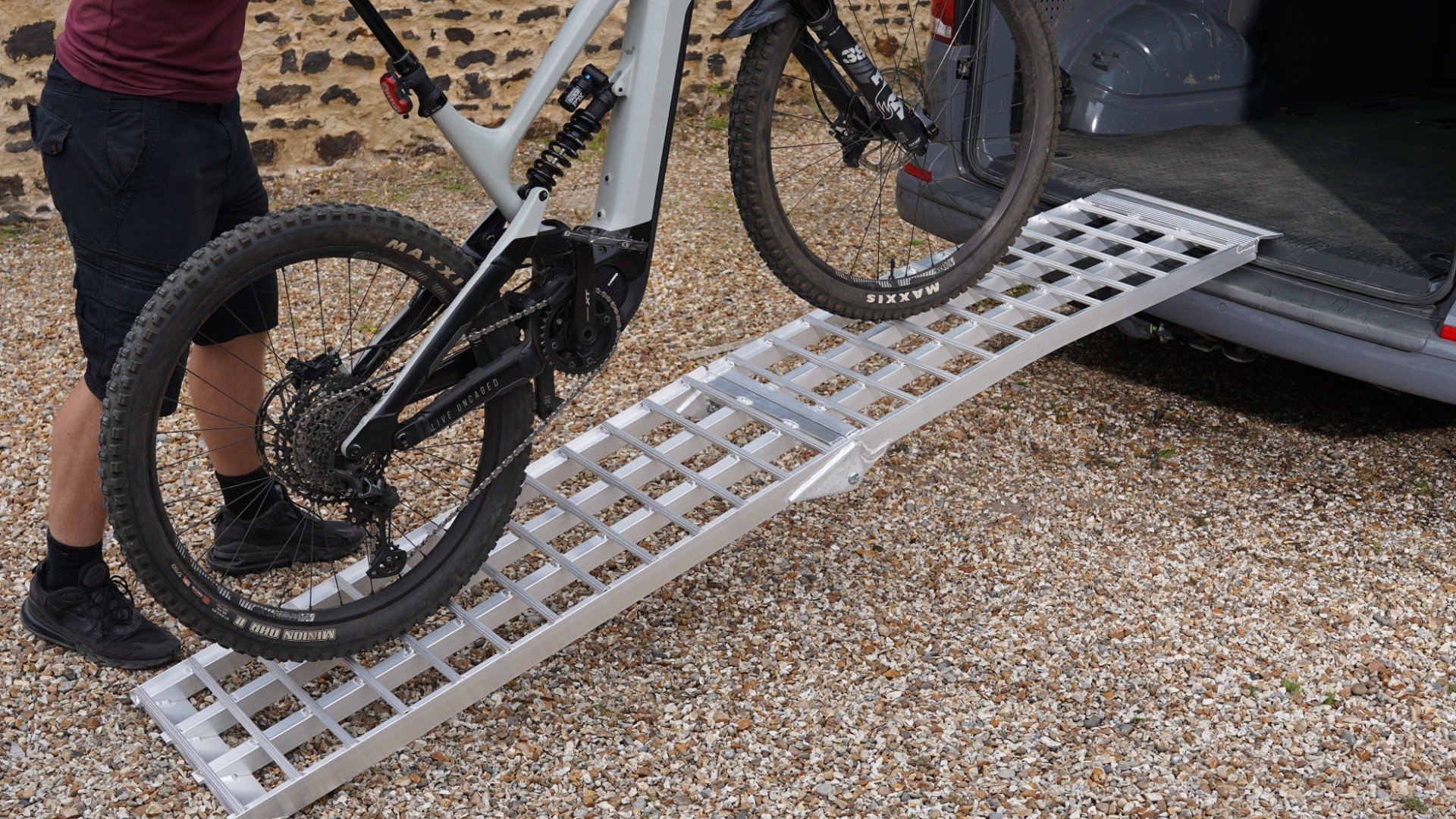

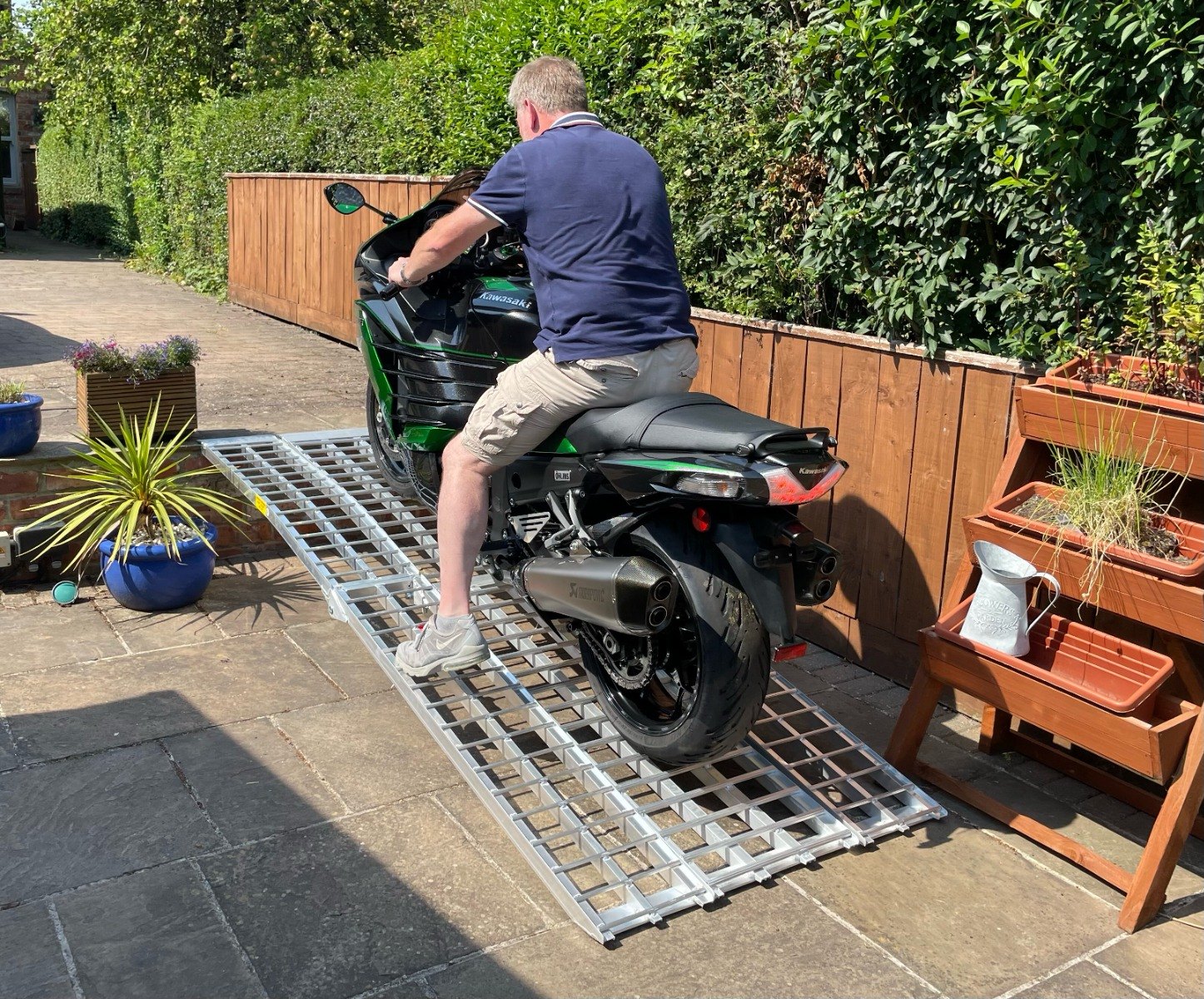

  • Walk or ride your bike up the ramps

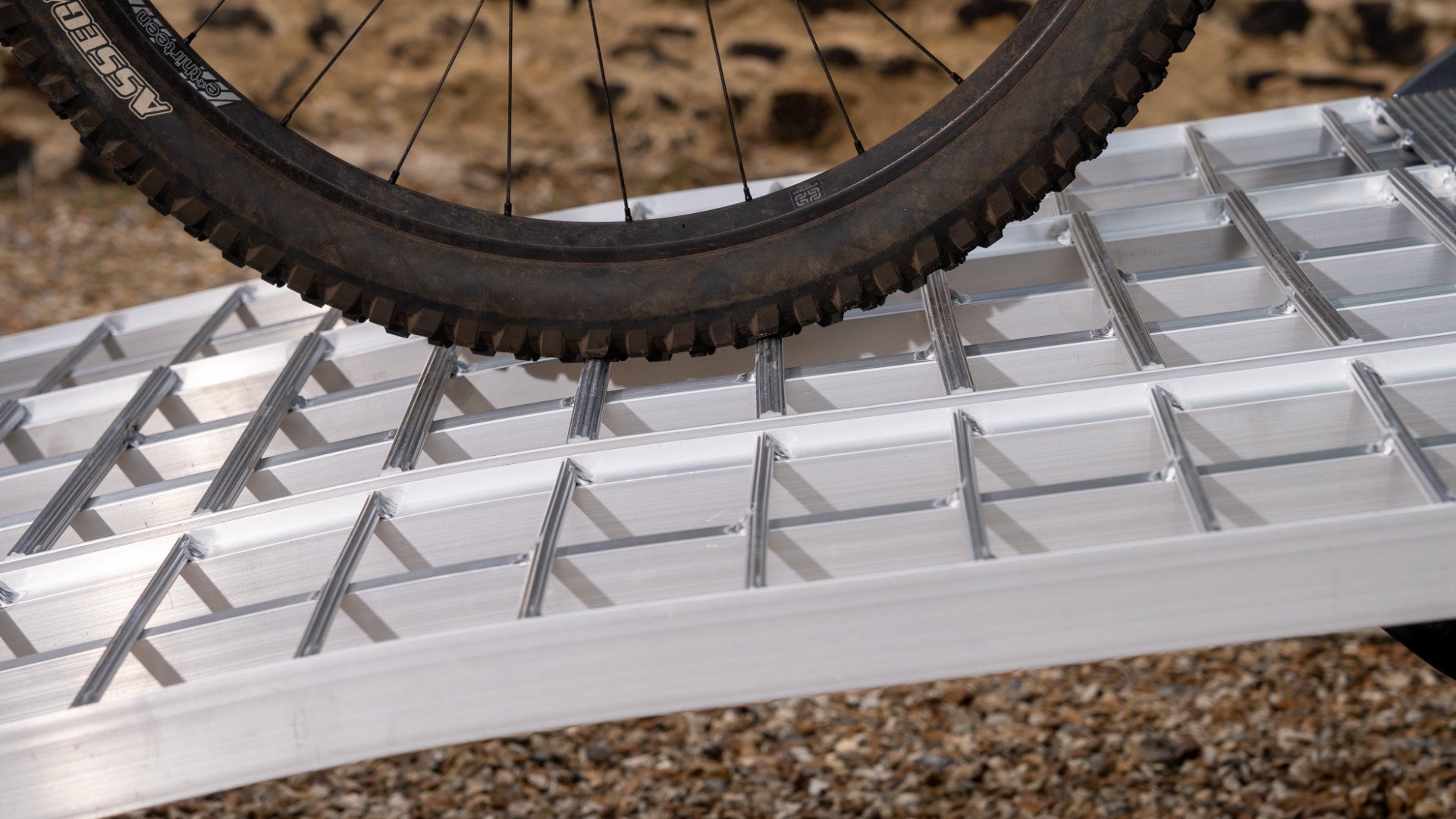

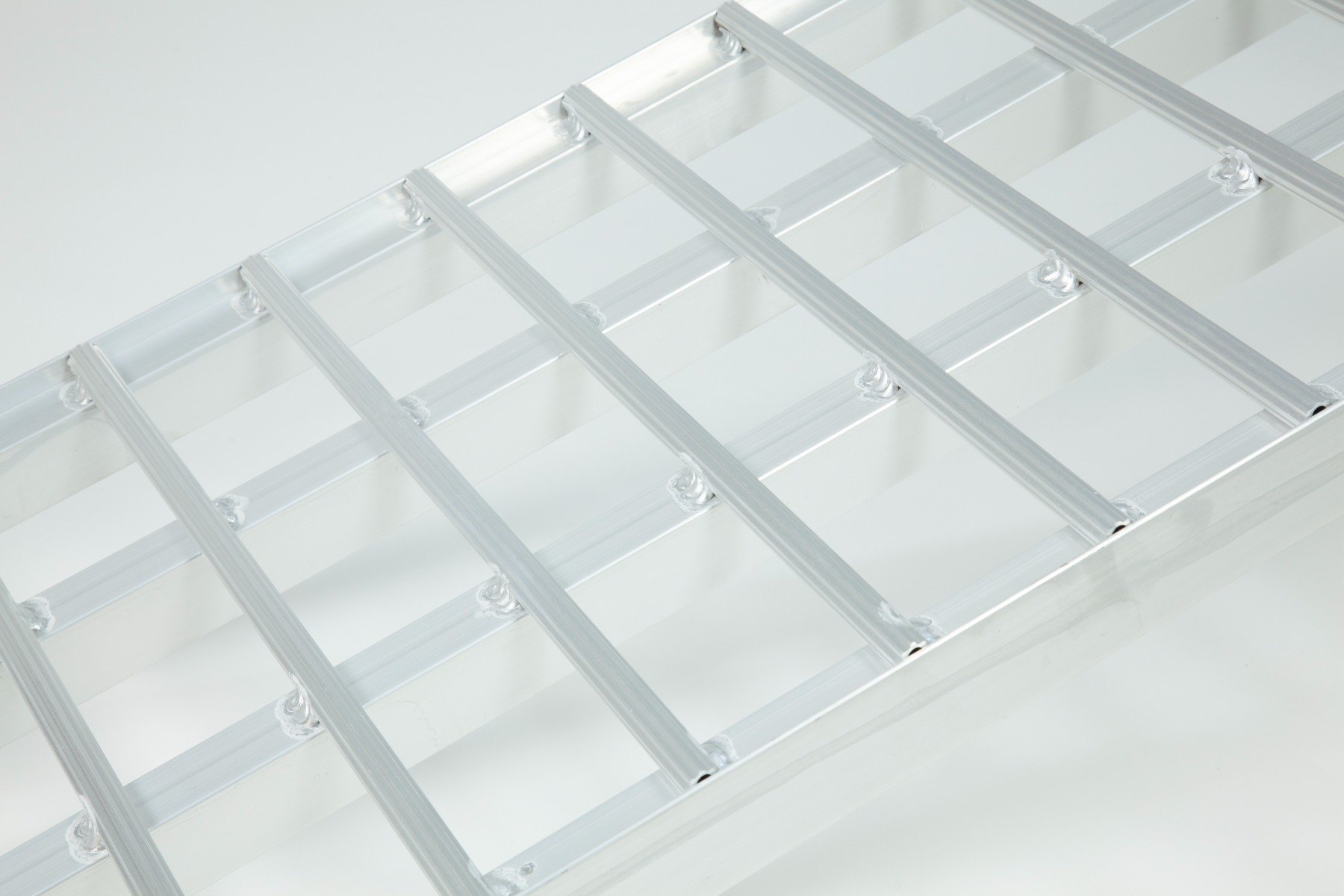

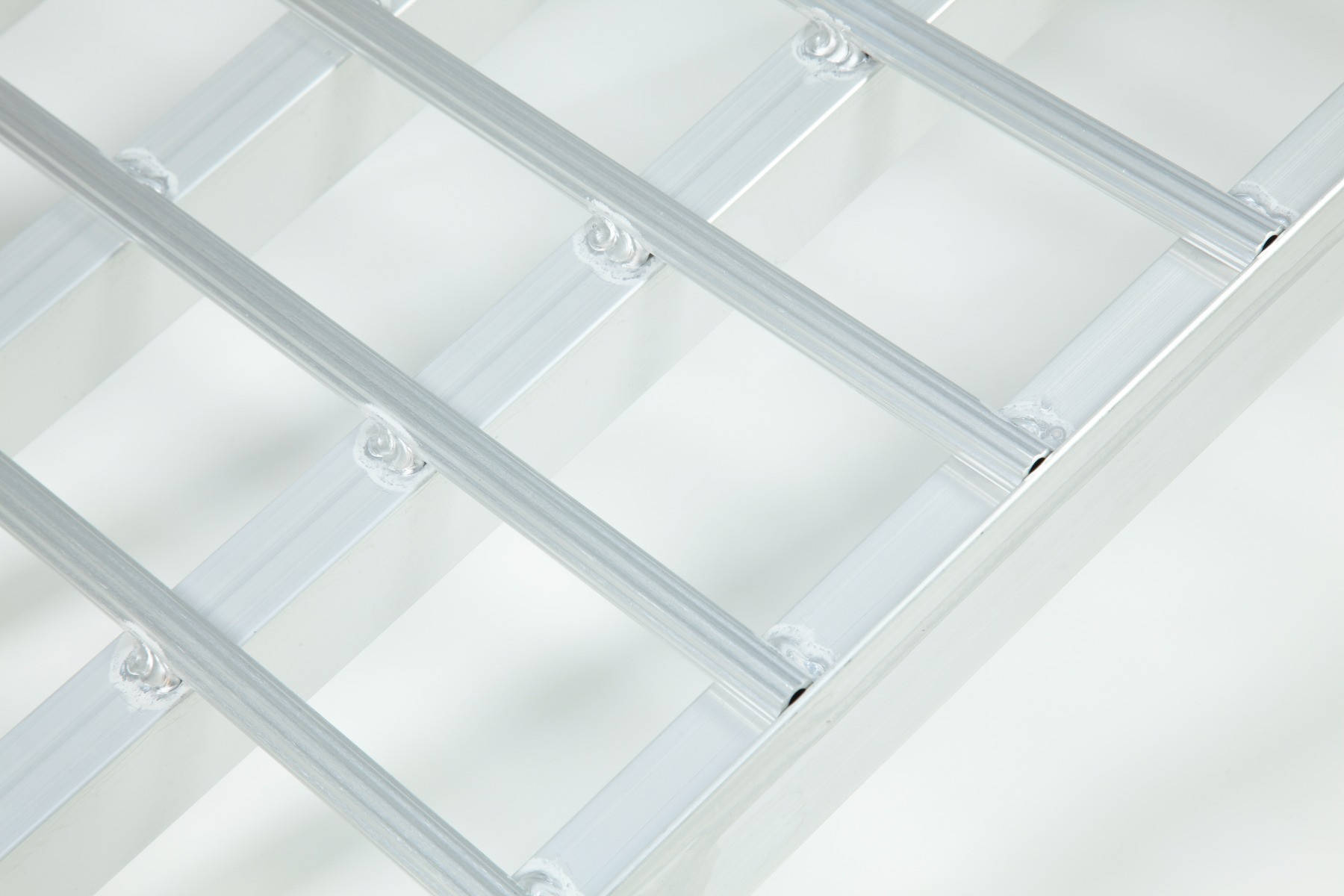

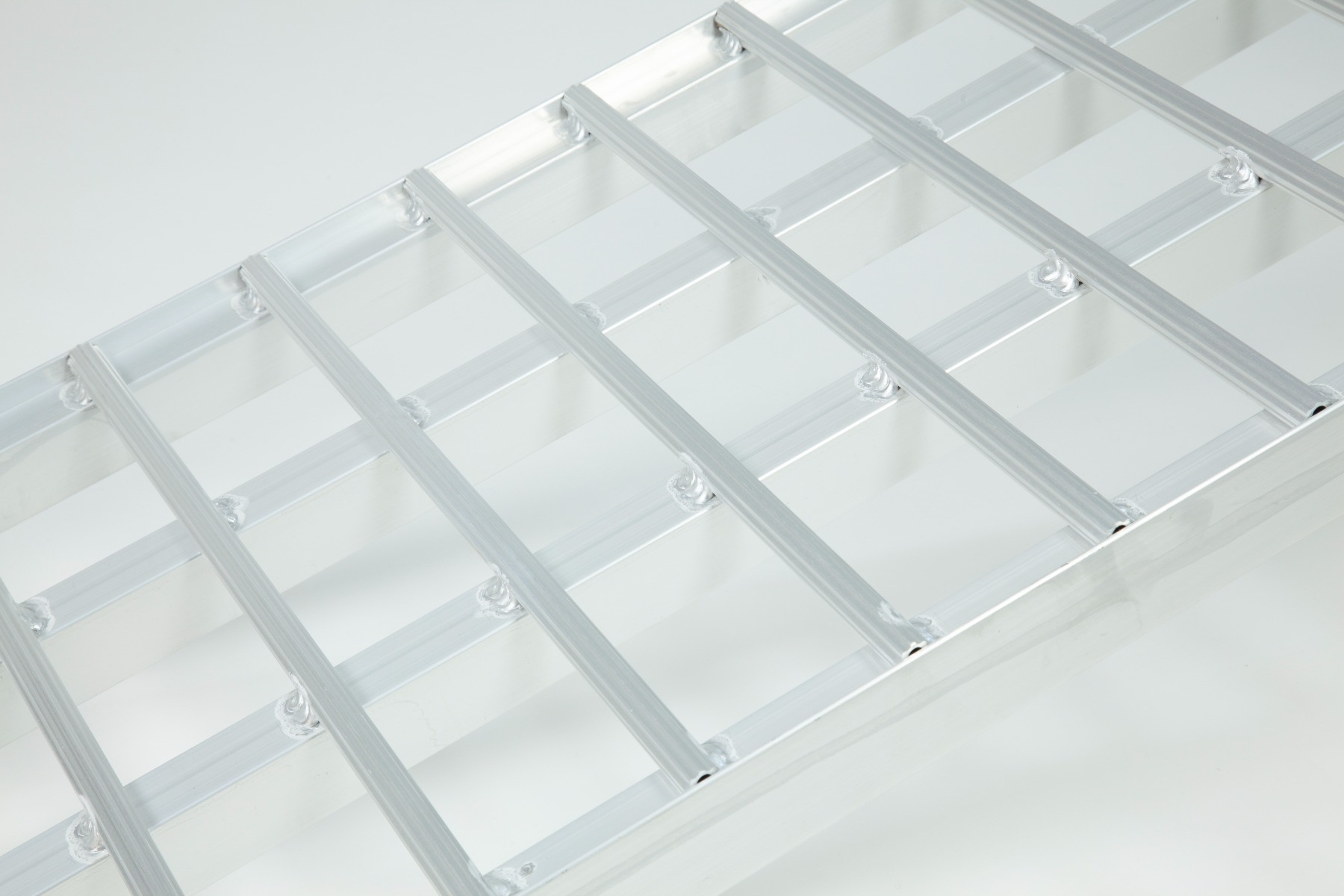

  • Notched cross rungs provide extra traction for wet tires

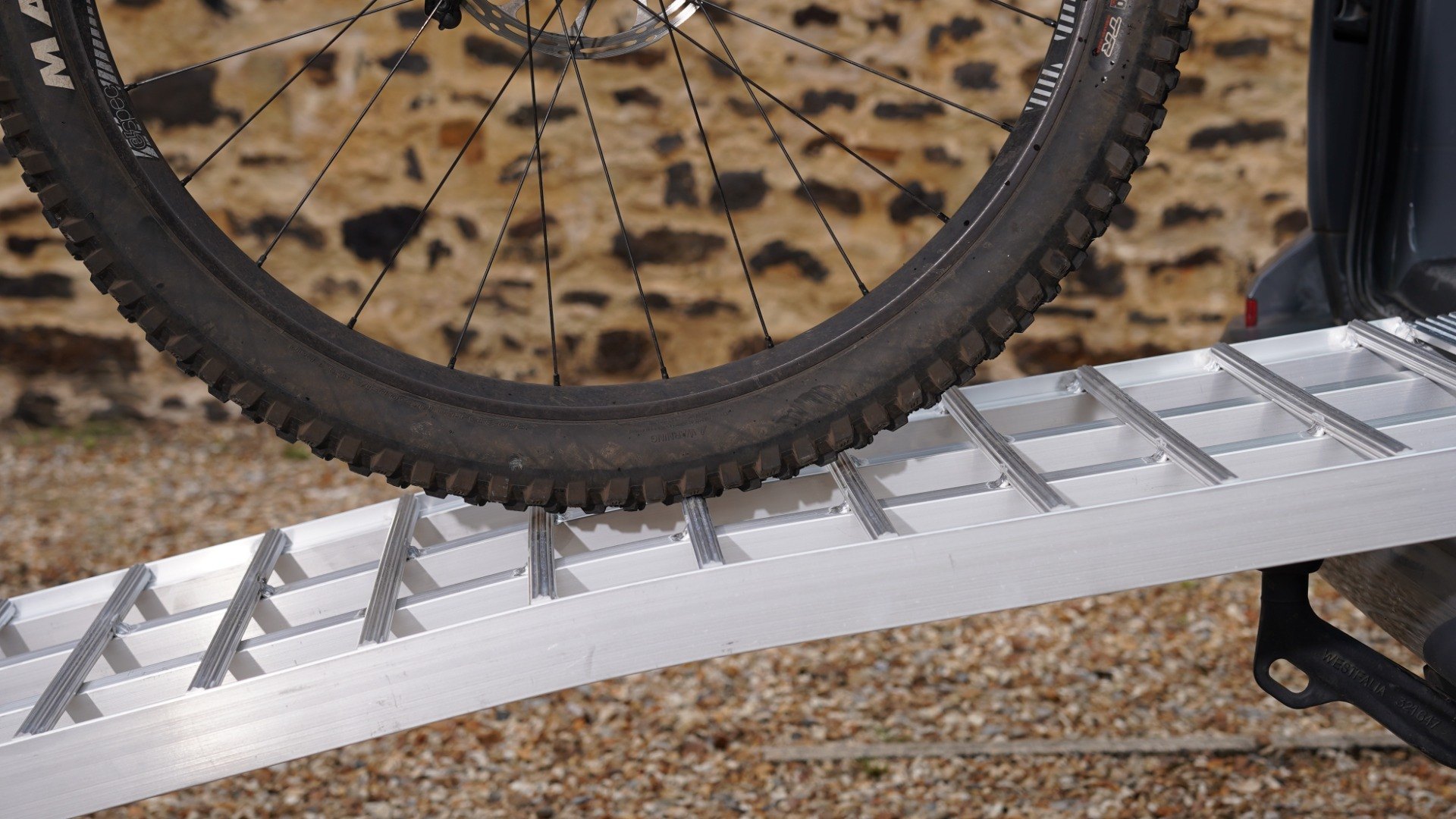

  • Arched for greater clearance
  • Safety straps included to keep ramp secure to loading surface
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Motorcycle Ramps

2380mm Single Motorcycle Ramp TRP612M

  • Length (mm): 2380
  • Folded Length (mm): 1190
  • Width (mm): 440
  • Max Load Height (mm): 714
  • Min Load Height (mm) 564
  • Weight (kg): 18
  • Capacity (kg): 680

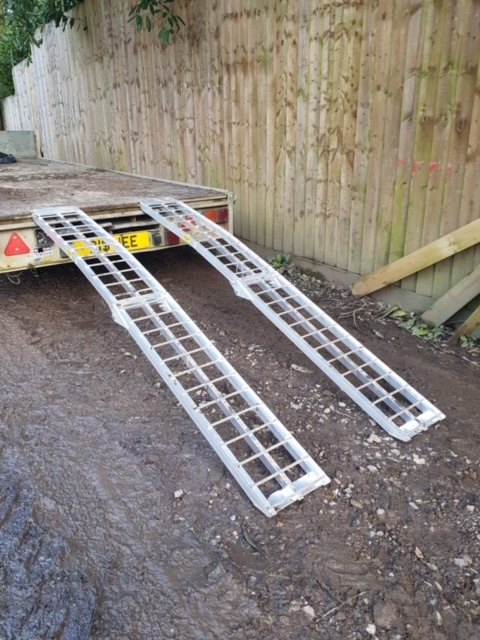

2380mm Pair of Loading Ramps TRP612O

  • Length (mm): 2380
  • Folded Length (mm): 1190
  • Width (mm): 280
  • Max Load Height (mm): 714
  • Min Load Height (mm) 564
  • Weight per Ramp (kg): 9
  • Weight per Pair (kg): 18
  • Capacity per Pair (kg): 540

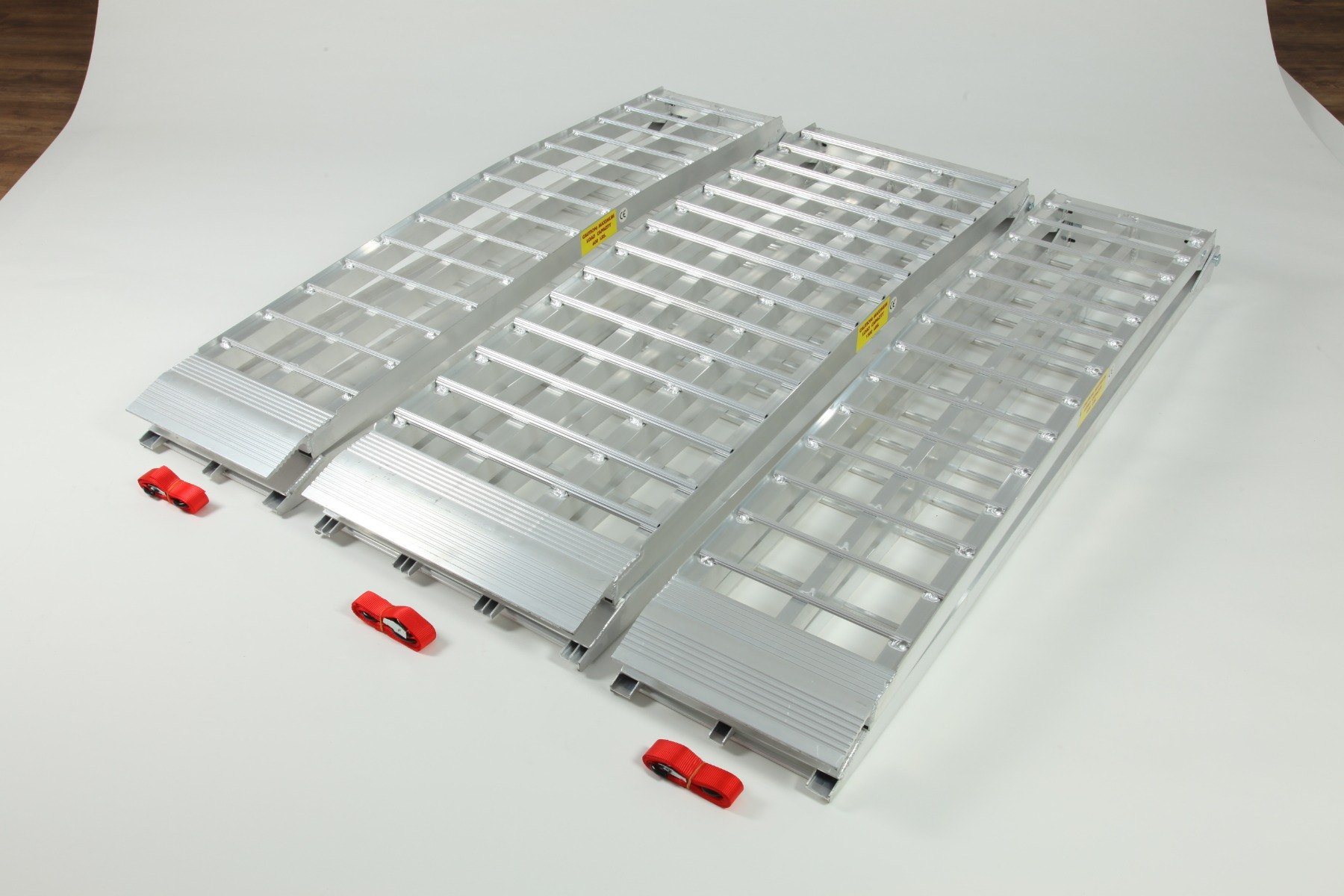

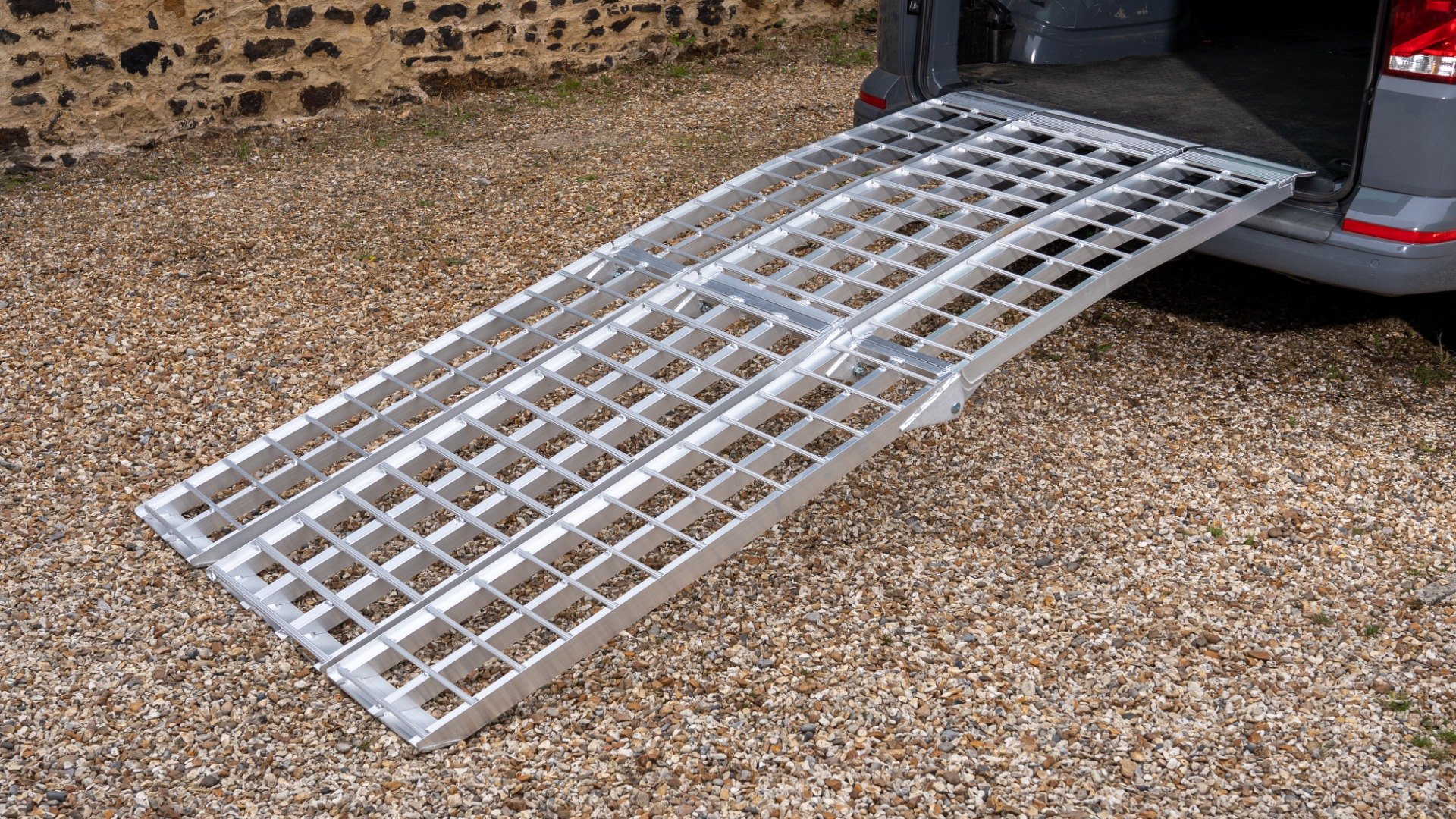

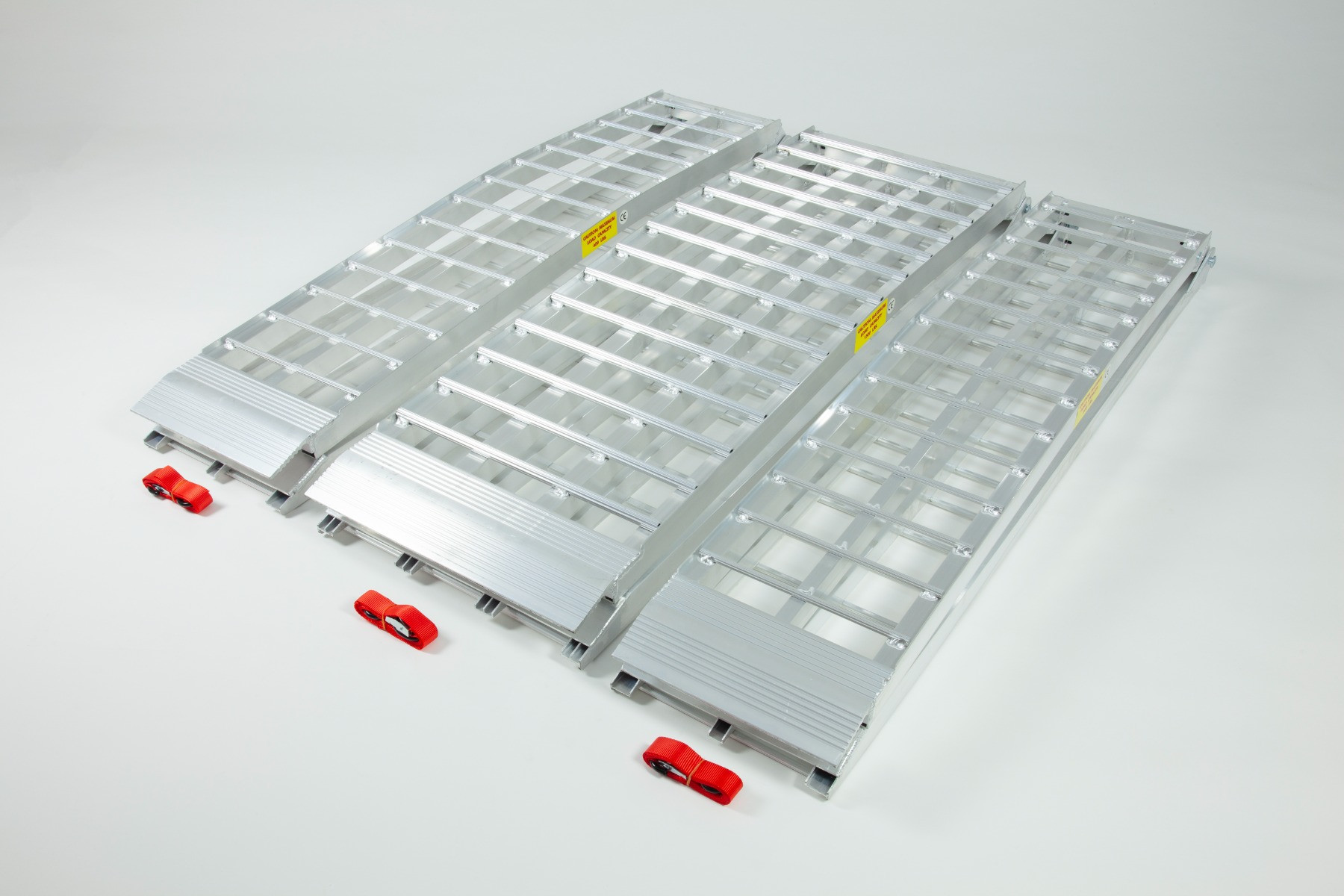

2380mm Ramp Kit (includes single ramp & pair of ramps)

  • Length (mm): 2380
  • Folded Length (mm): 1190
  • Total Width (mm): 1000
  • Max Load Height (mm): 714
  • Min Load Height (mm) 564
  • Weight per Kit (kg): 36
  • Capacity per Pair (kg): 1120

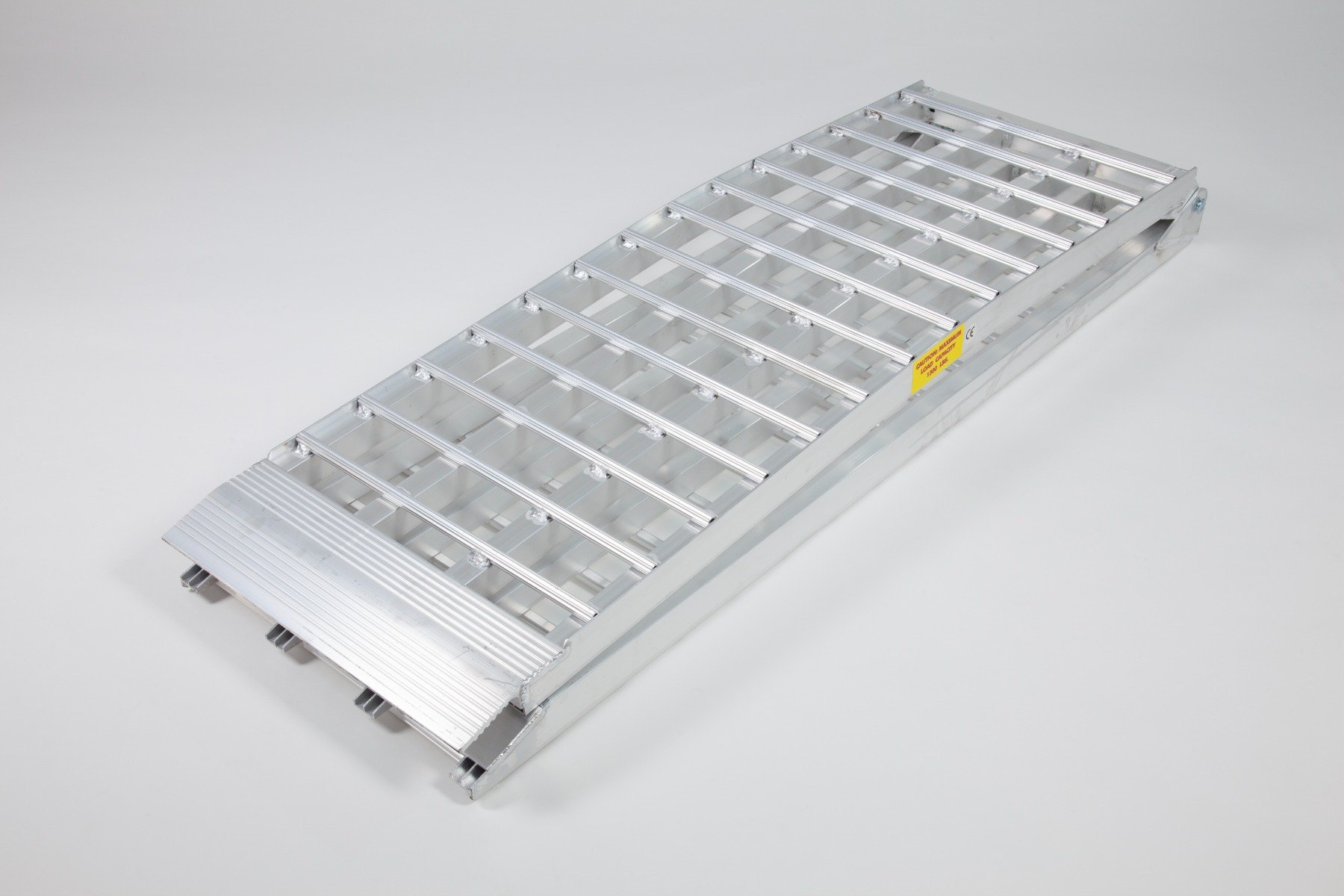

2750mm Single Motorbike Ramp TRP615M

  • Length (mm): 2750
  • Folded Length (mm): 1375
  • Width (mm): 440
  • Max Load Height (mm): 835
  • Min Load Height (mm) 685
  • Weight (kg): 19
  • Capacity (kg): 680

2750mm Pair of Loading Ramps TRP615S

  • Length (mm): 2750
  • Folded Length (mm): 1375
  • Width (mm): 280
  • Max Load Height (mm): 835
  • Min Load Height (mm) 685
  • Weight per Ramp (kg): 9.5
  • Weight per Pair (kg): 19
  • Capacity per Pair (kg): 540

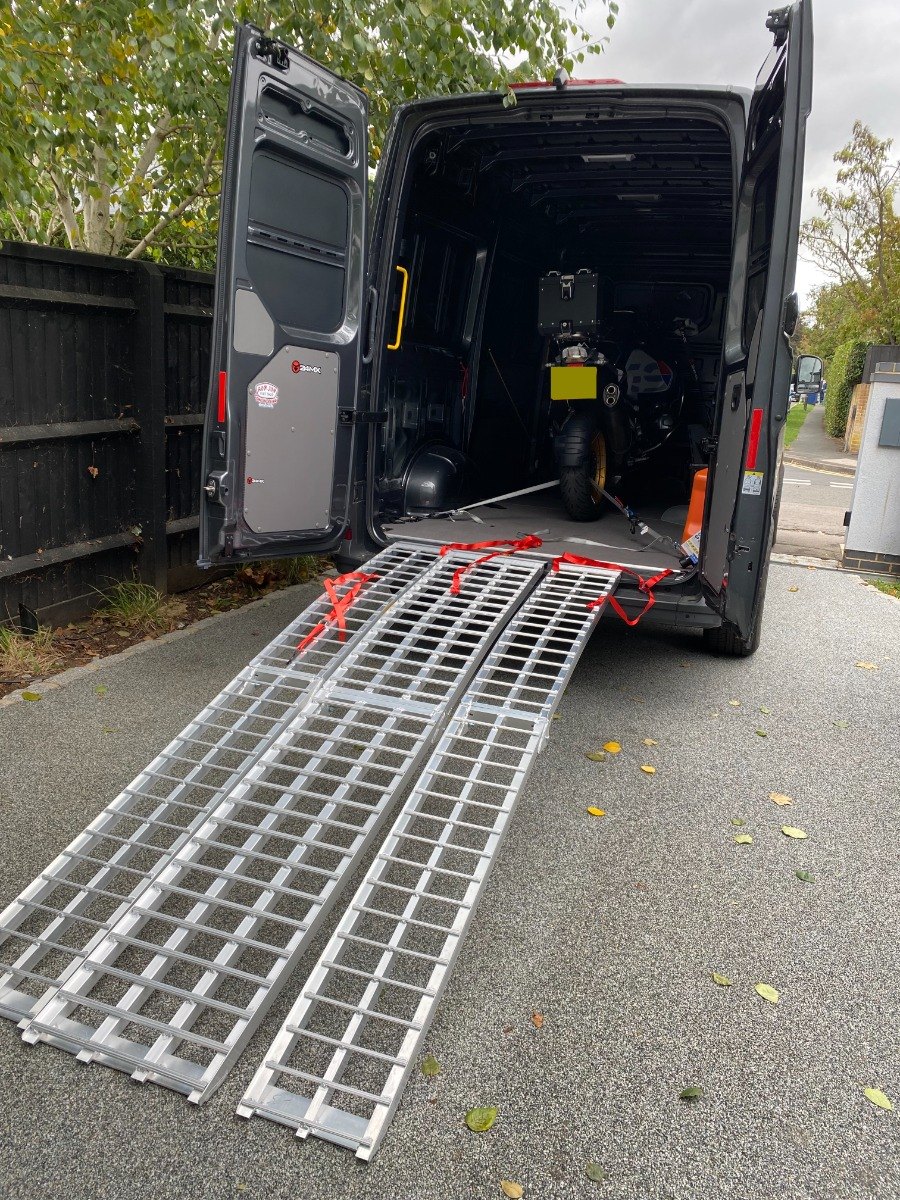

2750mm Ramp Kit (includes single ramp & pair of ramps)

  • Length (mm): 2750
  • Folded Length (mm): 1375
  • Total Width (mm): 1000
  • Max Load Height (mm): 835
  • Min Load Height (mm) 685
  • Weight per Kit (kg): 38
  • Capacity per Pair (kg): 540

3000mm Single Motorbike Ramp TRP617M

  • Length (mm): 2750
  • Folded Length (mm): 1500
  • Width (mm): 440
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • Weight (kg): 22.5
  • Capacity (kg): 600

3000mm Pair of Loading Ramps TRP617P

  • Length (mm): 3000
  • Folded Length (mm): 1500
  • Width (mm): 280
  • Max Load Height (mm): 900
  • Min Load Height (mm) 750
  • Weight per Ramp (kg): 10.5
  • Weight per Pair (kg): 21
  • Capacity per Pair (kg): 500

3000mm Ramp Kit (includes single ramp & pair of ramps)

  • Length (mm): 3000
  • Folded Length (mm): 1500
  • Total Width (mm): 1000
  • Max Load Height (mm): 900
  • Min Load Height (mm) 750
  • Weight per Kit (kg): 43.5
  • Capacity per Kit (kg): 500
Product Questions
I am looking to purchase these ramps, am I able to purchase one central ramp and one outer ramp?
Unfortunately, we only sell the outer ramps as a pair so, if you wish to purchase an outer ramp you will need to purchase the pair.
How do The Ramp Factory's folding loading ramps stay securely in place during loading?

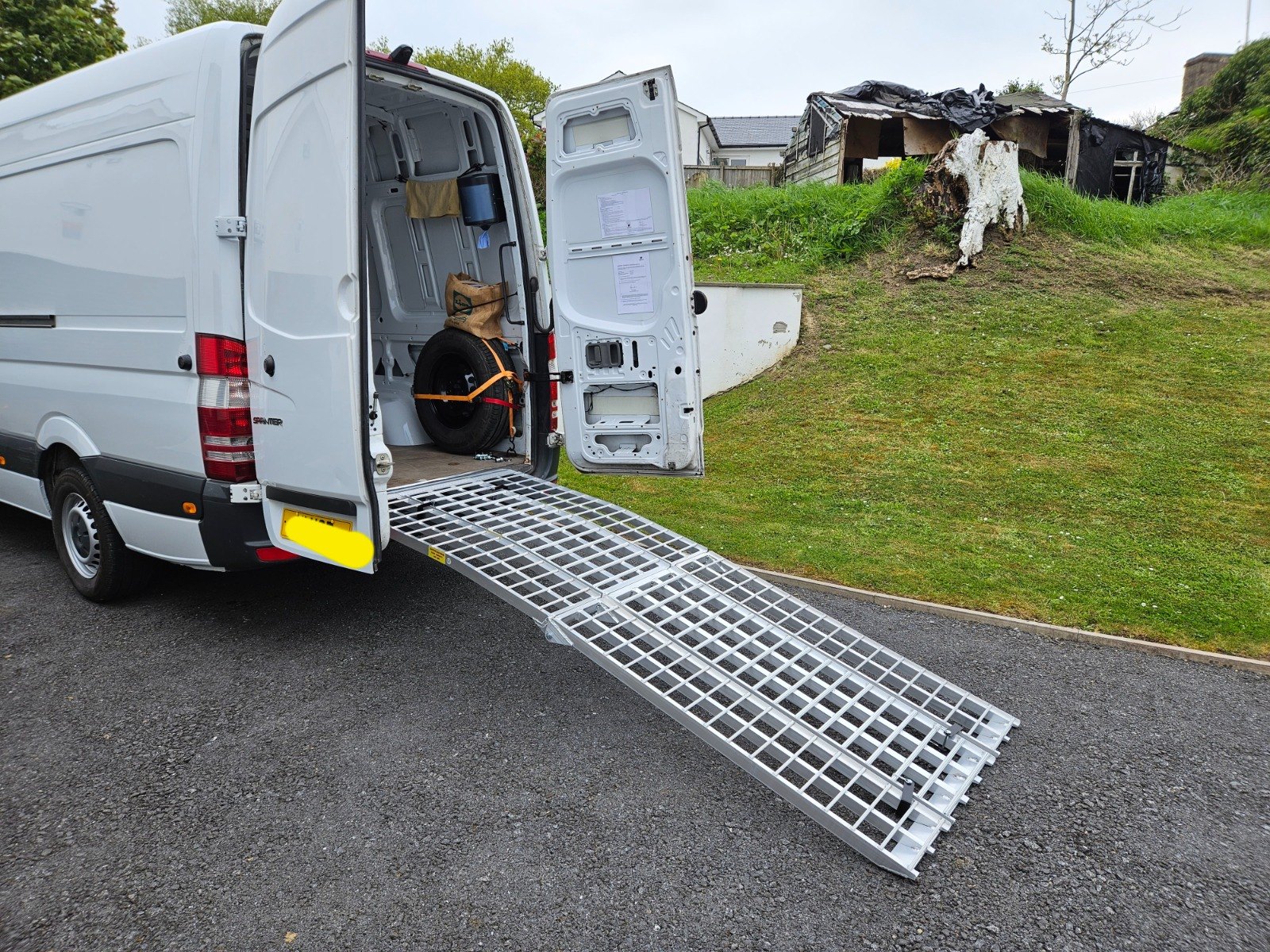

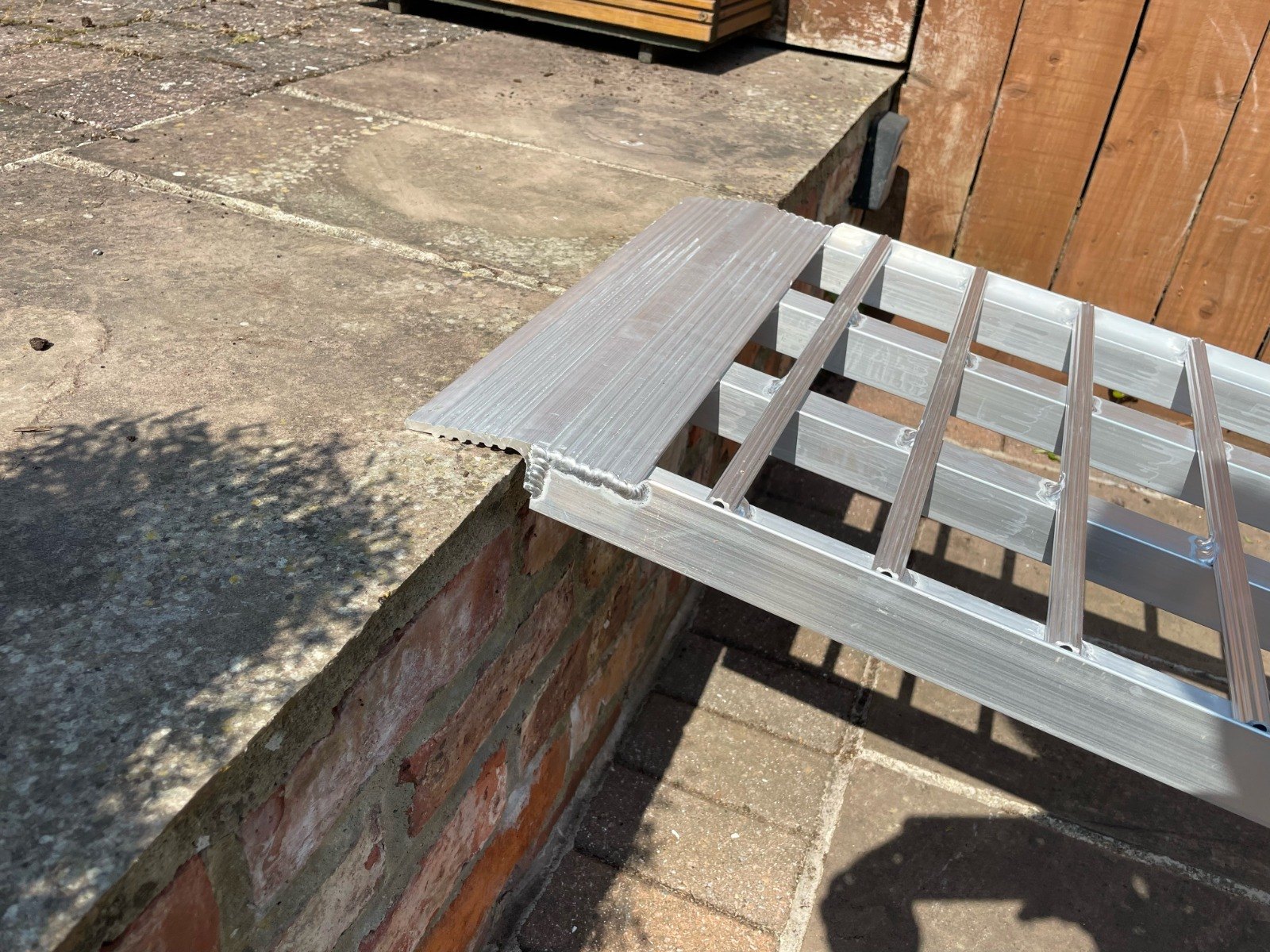

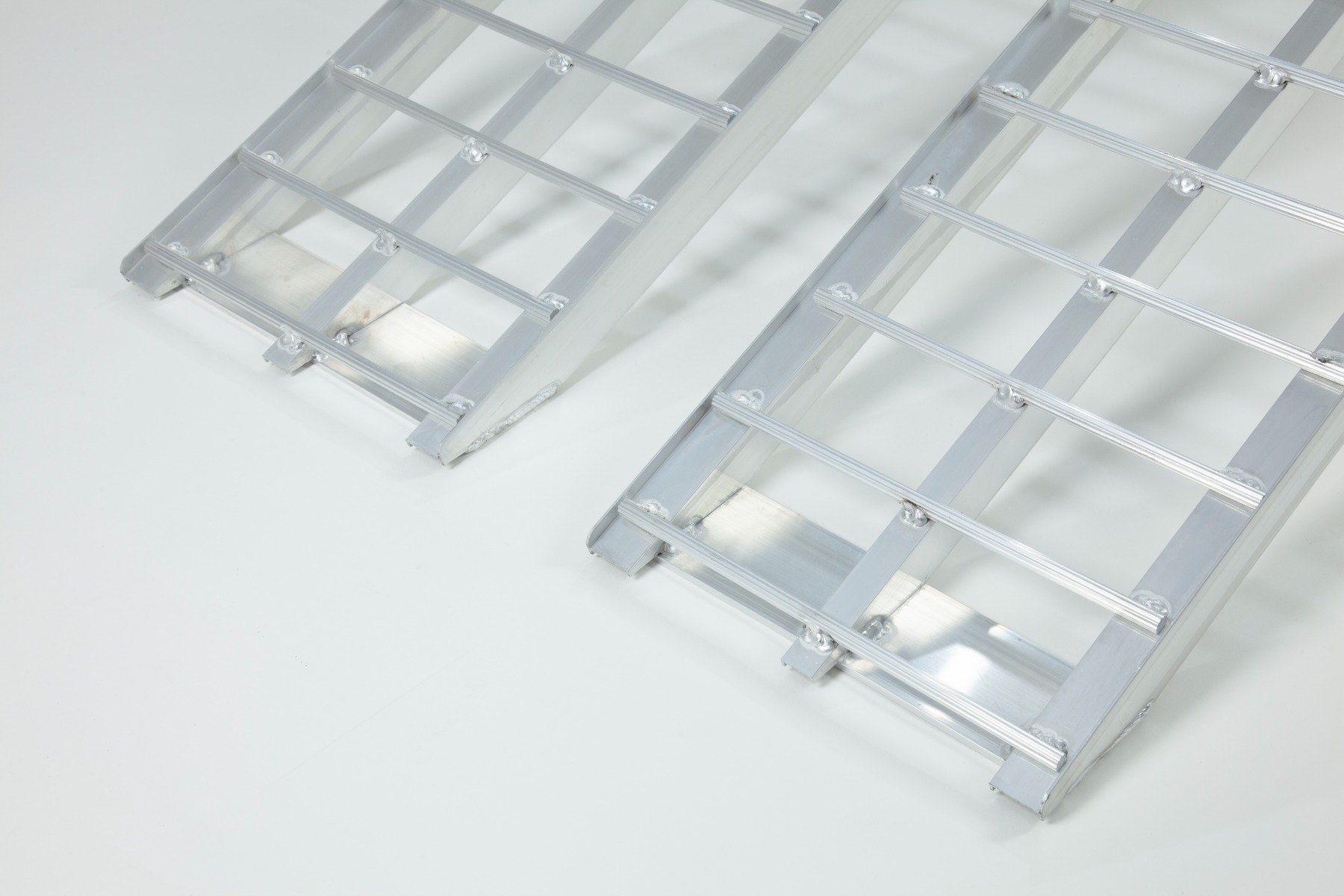

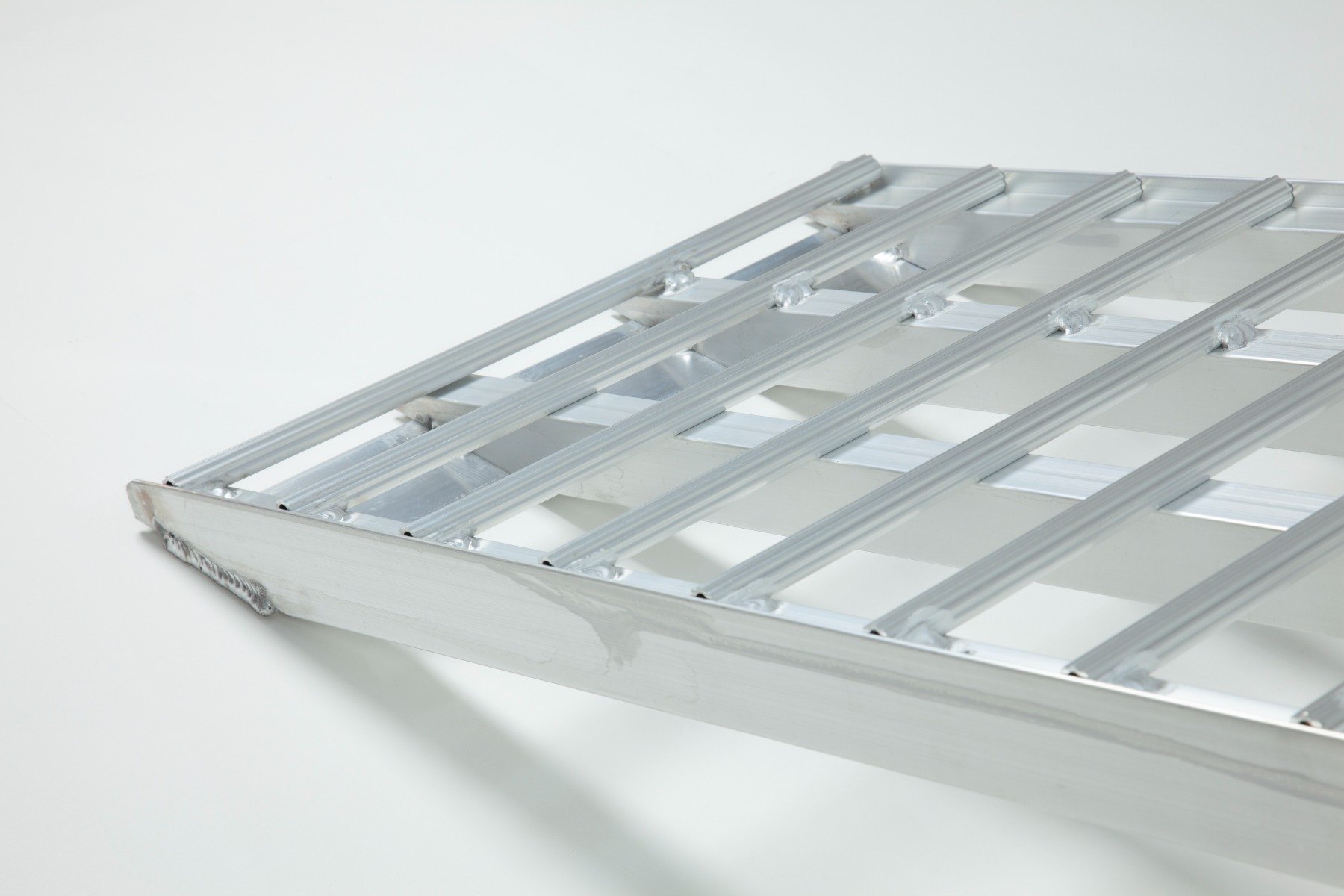

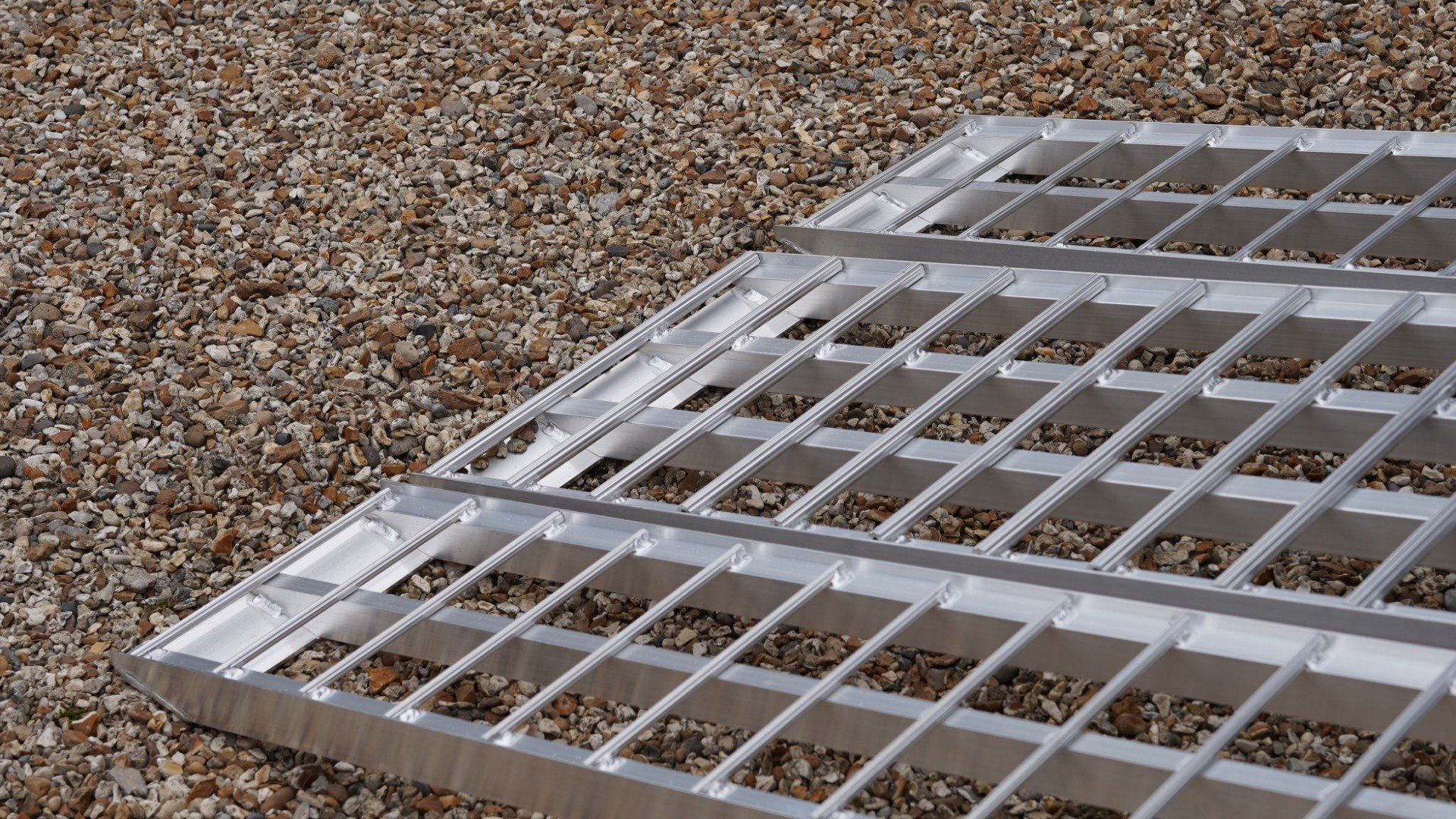

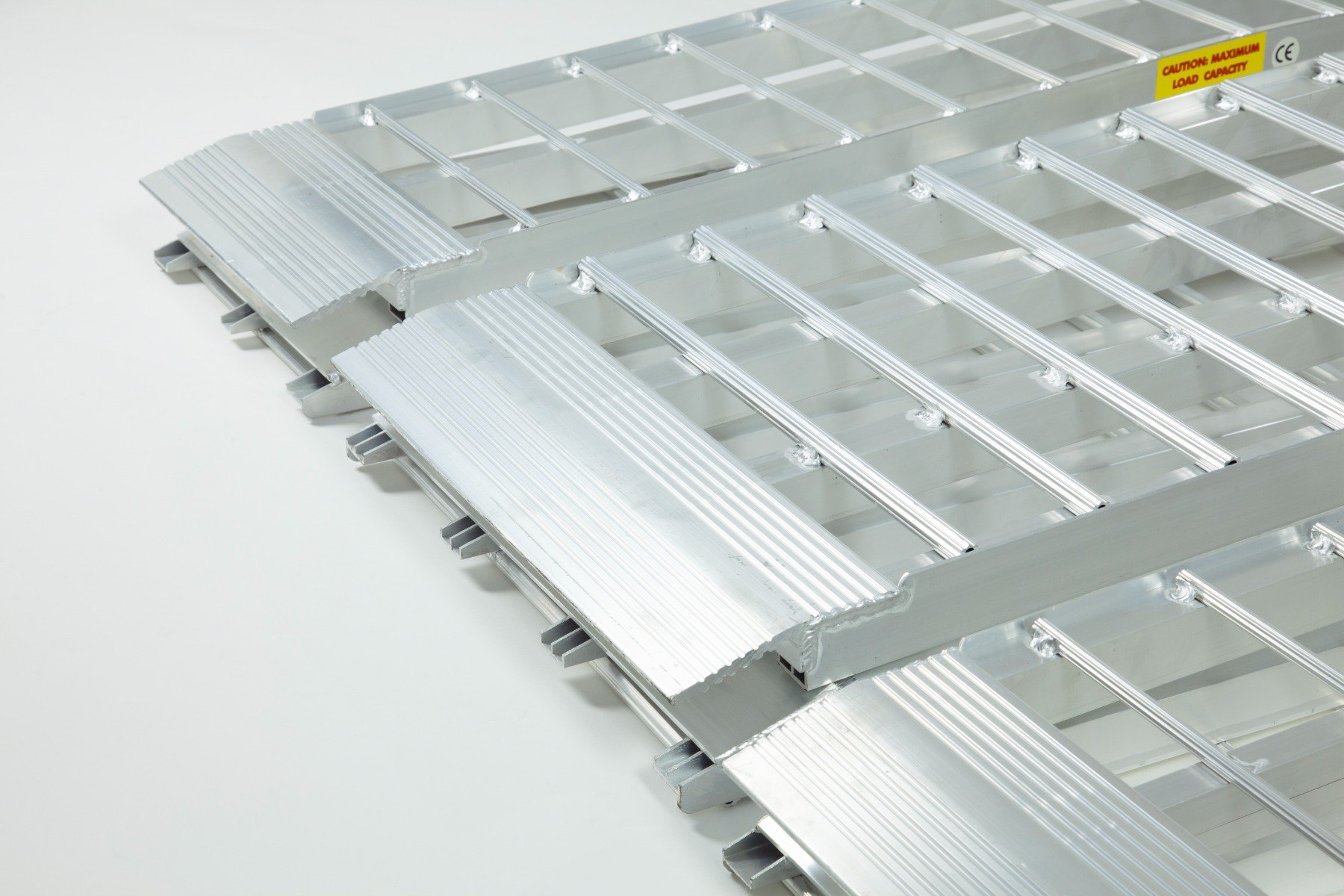

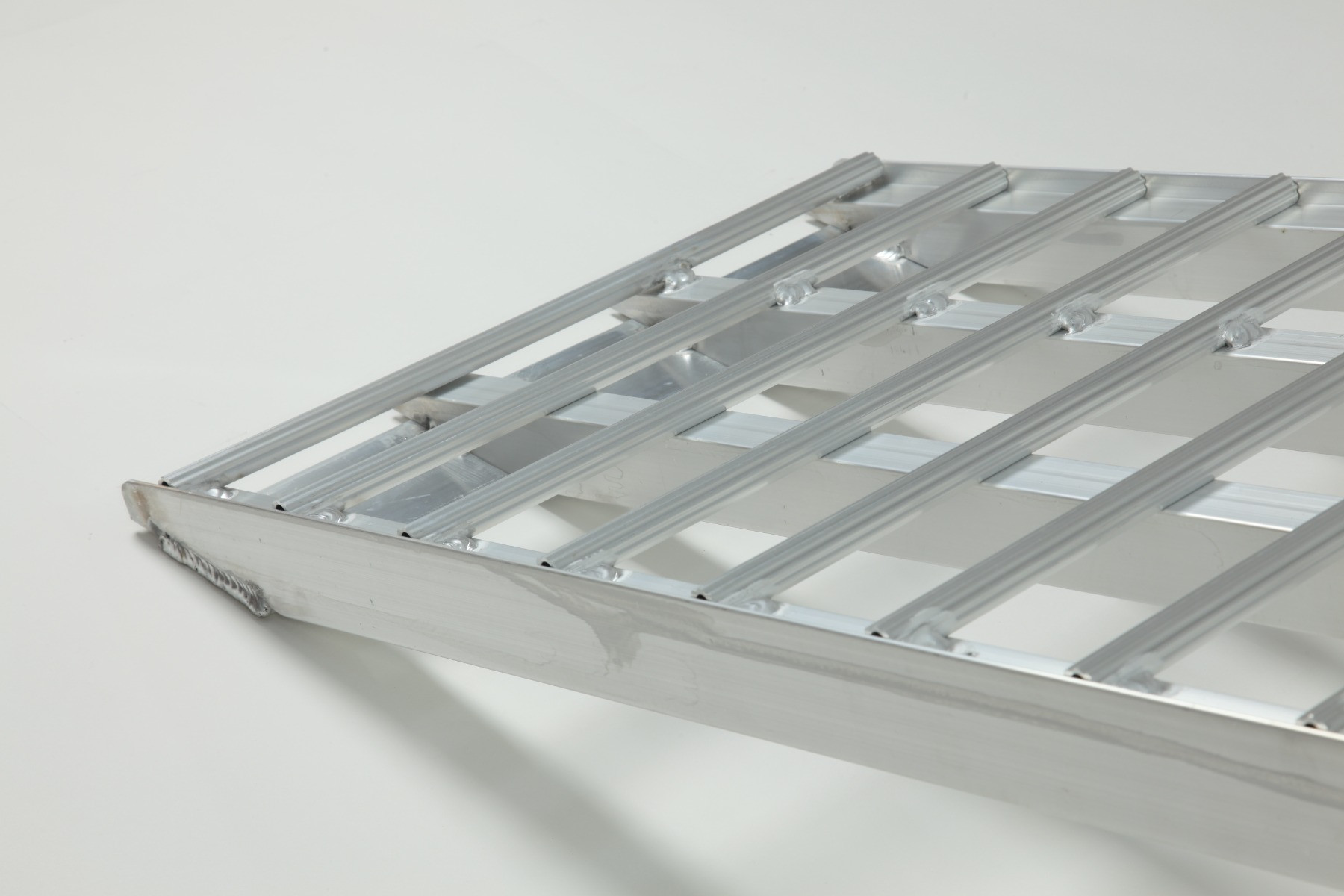

The ramps have a curved rest on connection which rests onto the vehicle. The foot of the ramp is cut at an angle to ensure the ramp stays securely on the ground. The ramps are provided with safety straps to secure the ramp to the vehicle. The ramp weight and angle also assists the ramp to stay in place.
I require a motorcycle loading ramp. How do I identify which motorcycle ramp length is most suitable for my requirements?
You will need to check your load height (vertical height from the ground to where the ramp will rest) as this identifies which ramp length you need. All of our ramps state the minimum and maximum height they are designed for.
I am interested in the folding loading ramps. Are safety straps provided with these ramps?

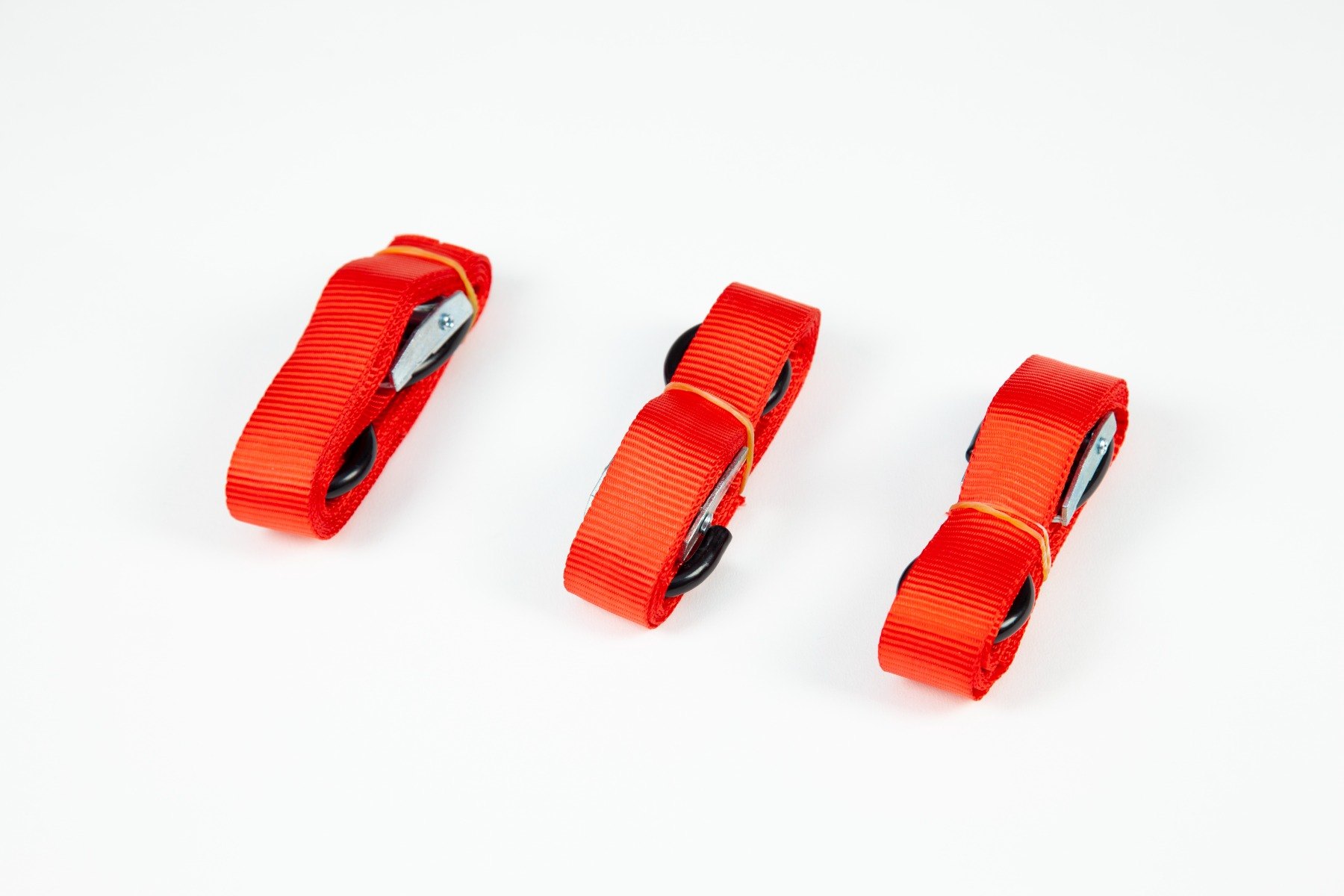

Yes, each ramp is provided with a safety strap to allow you to secure the ramp to your van or trailer during loading.
Video
Specifications
SKUTRP615Conf
Capacity (kg)540 - 680
Height (mm)80 - 120
Length (mm)2380 - 3000
Max Load Height (mm)714 - 900
Weight (kg)18 - 43.5
Width (mm)280 - 1000
Minimum Tyre Width (mm)100
One Year WarrantyYes
Easy to FitYes
Not Solid WheelsYes
Leave OutsideYes
