Loading Ramp with Bar Grip Surface and Support Legs (2200mmx282mm)

SKU
TRP611-L Conf
From £102.00 £85.00
91 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

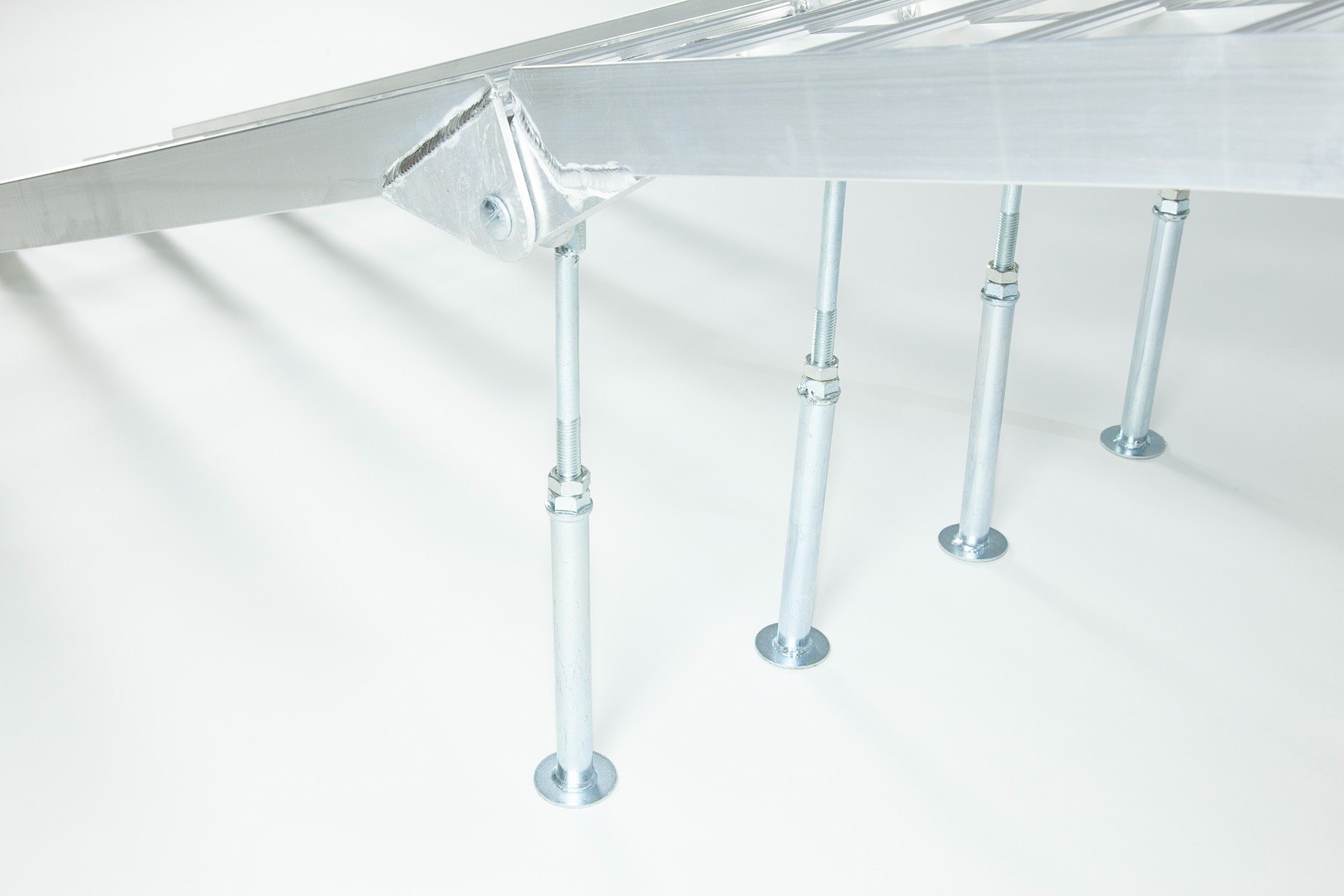

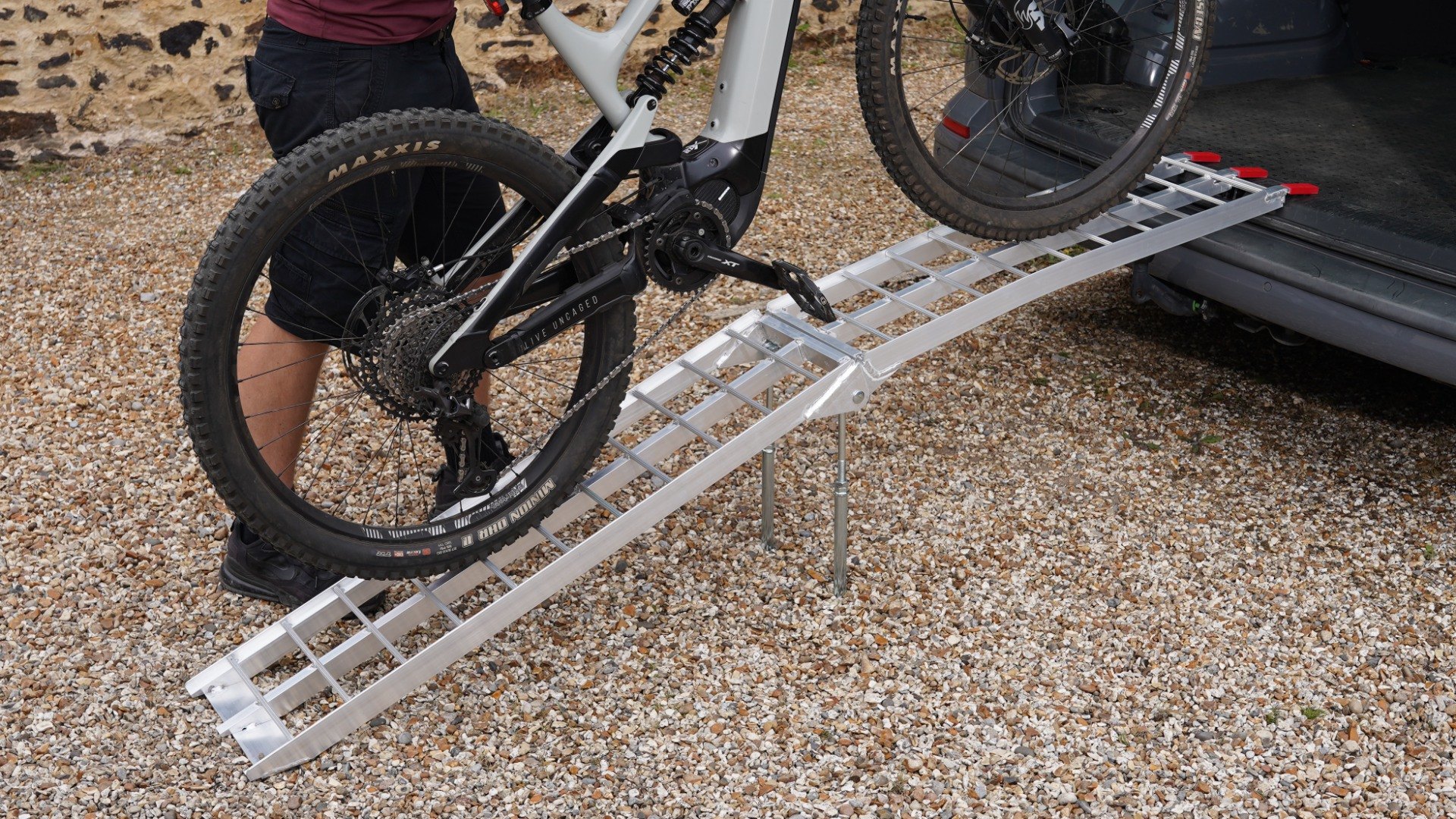

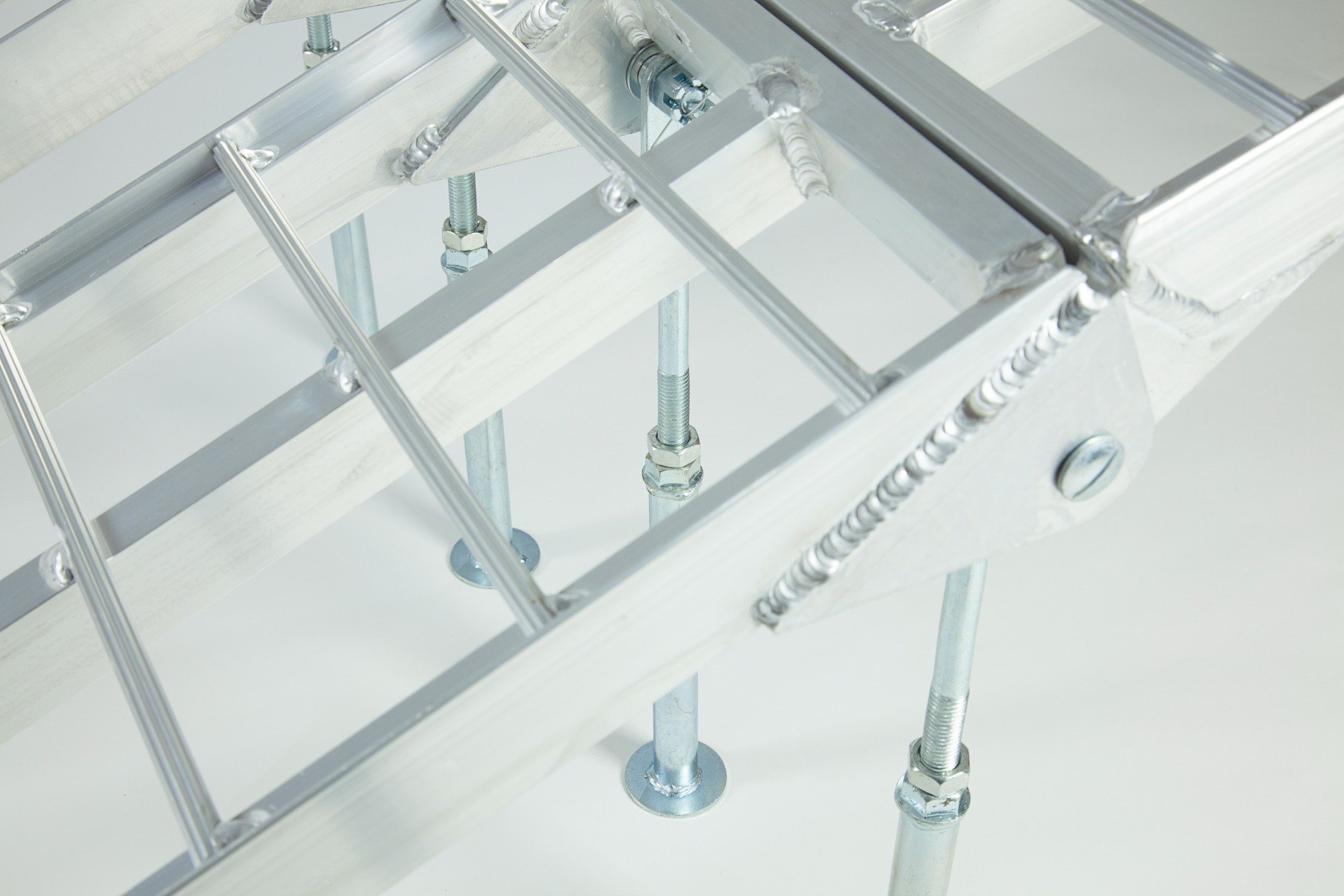

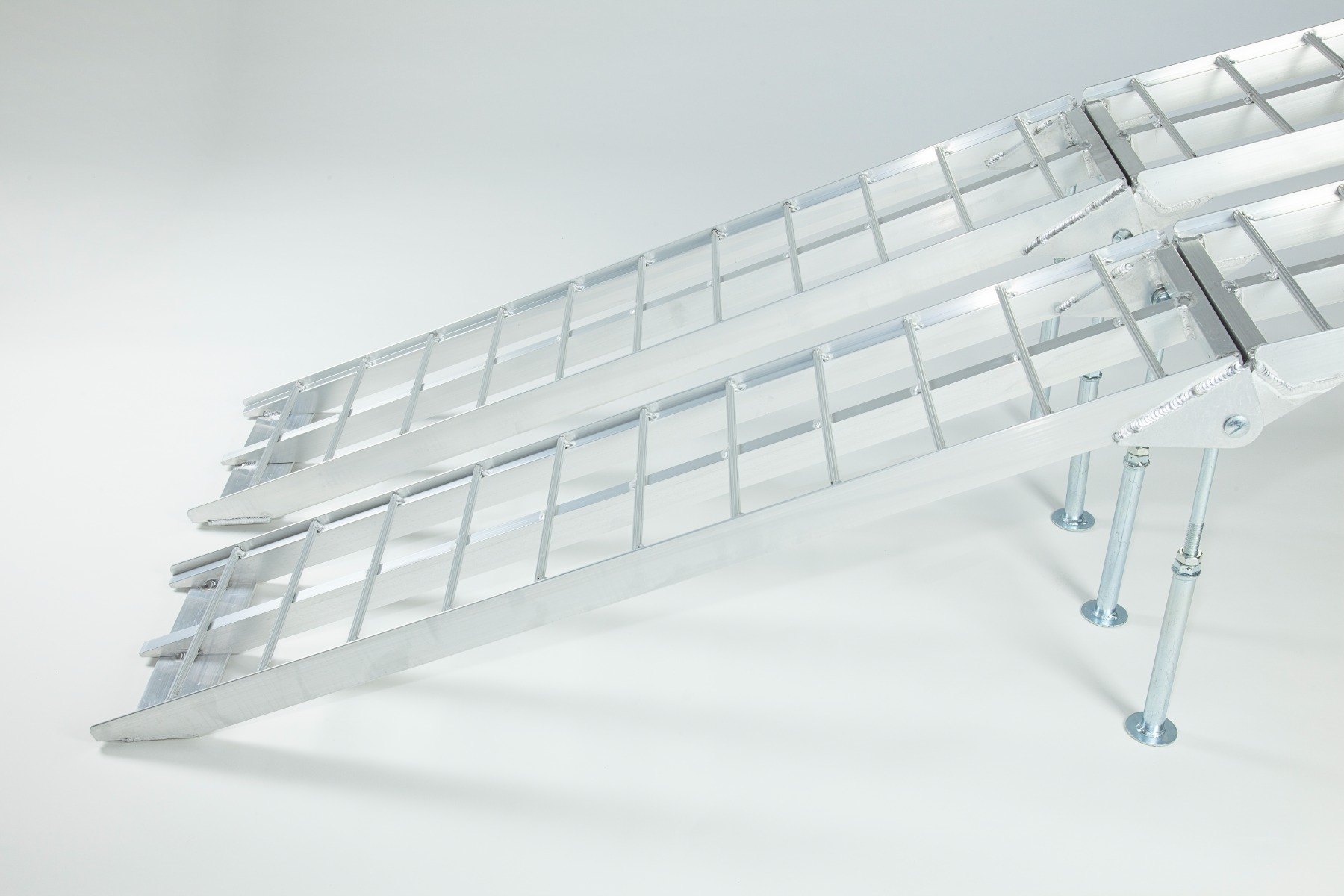

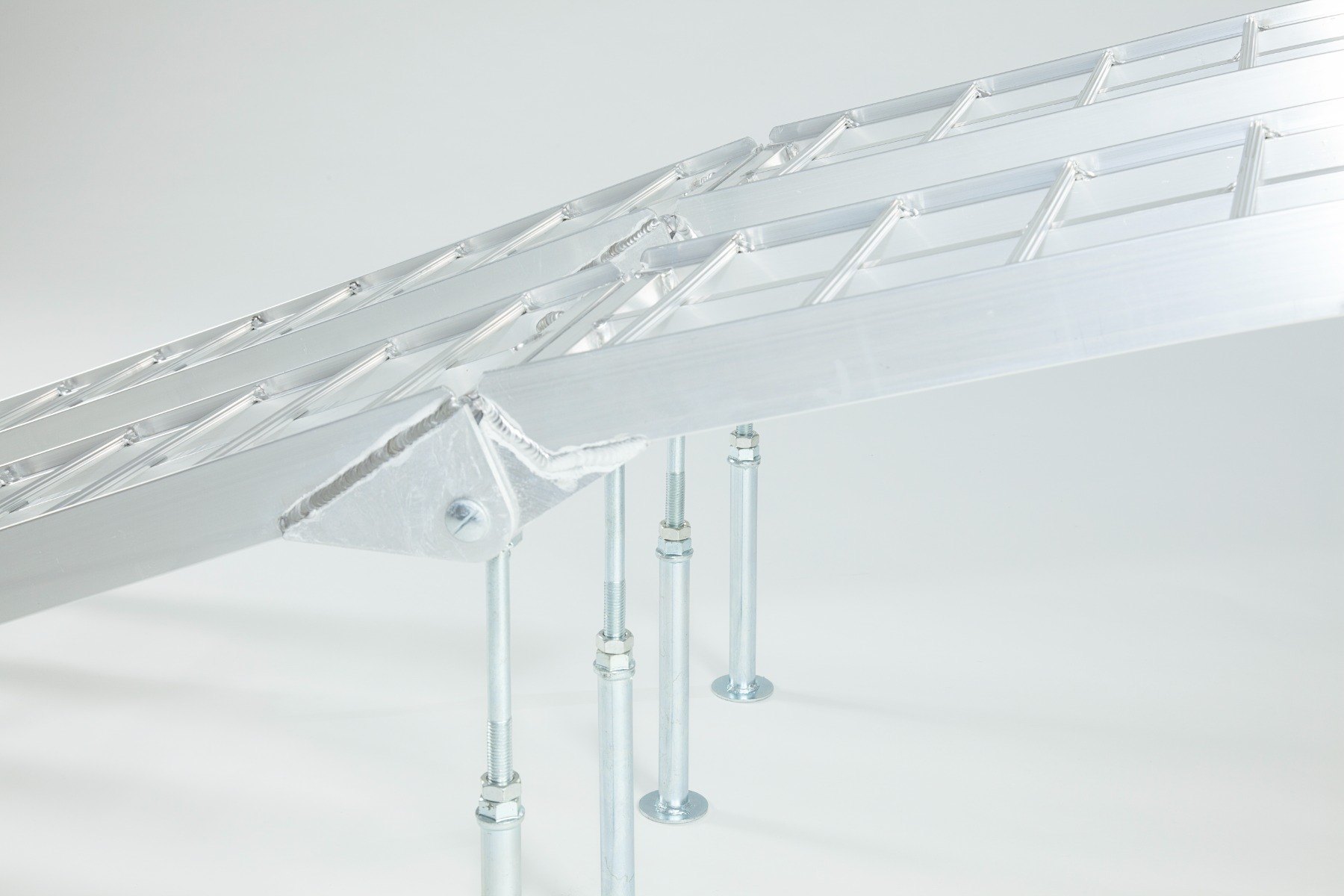

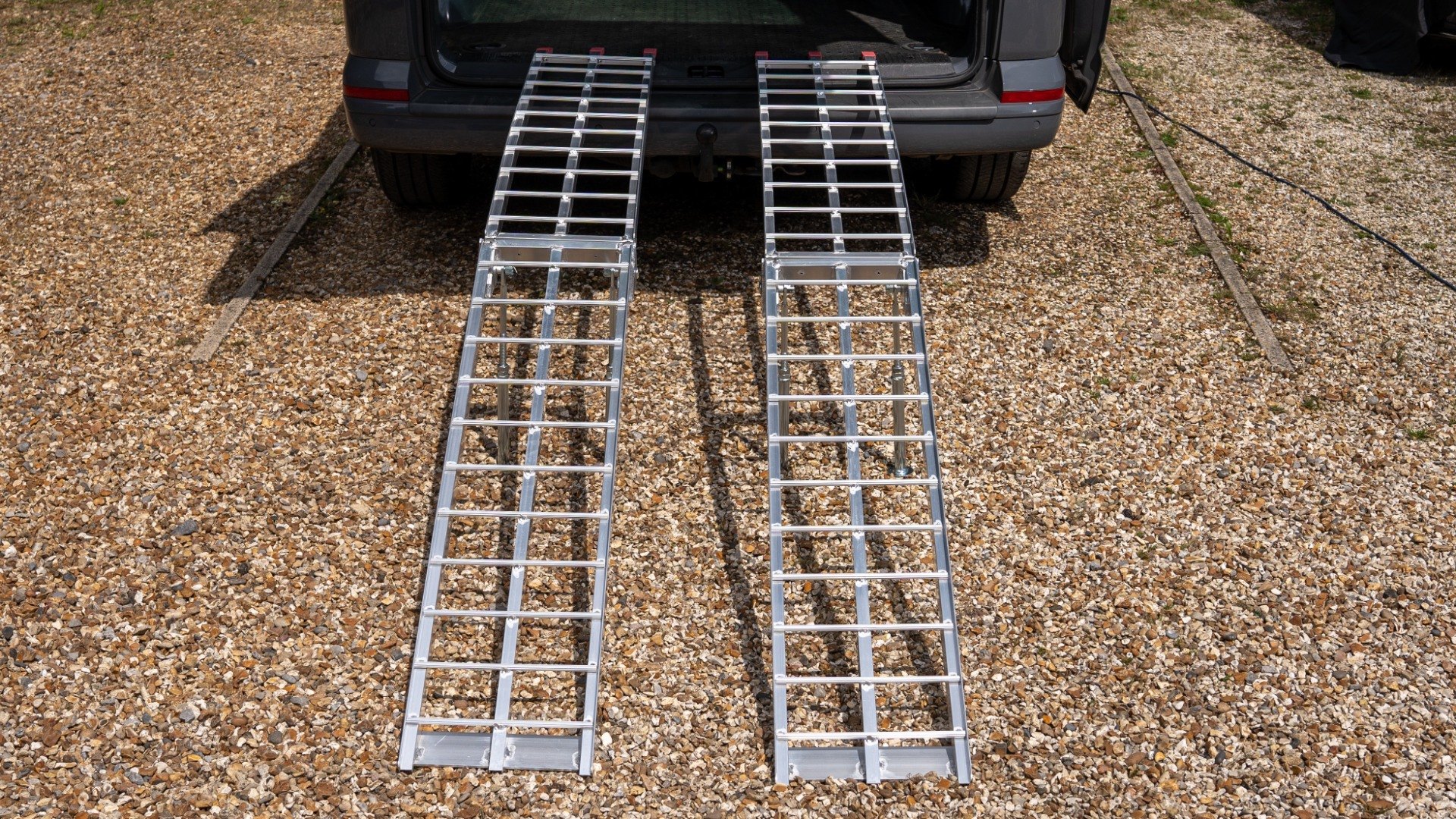

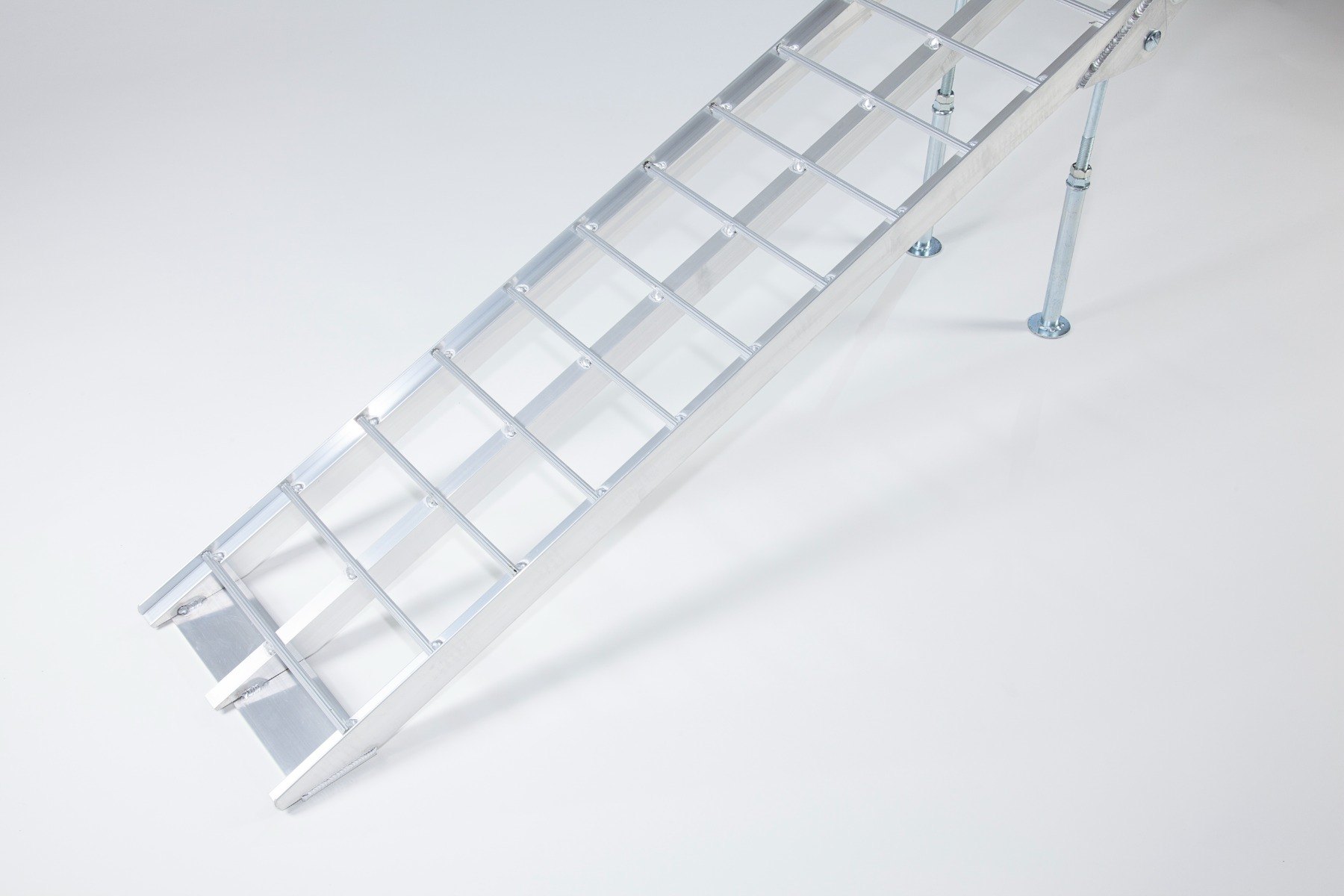

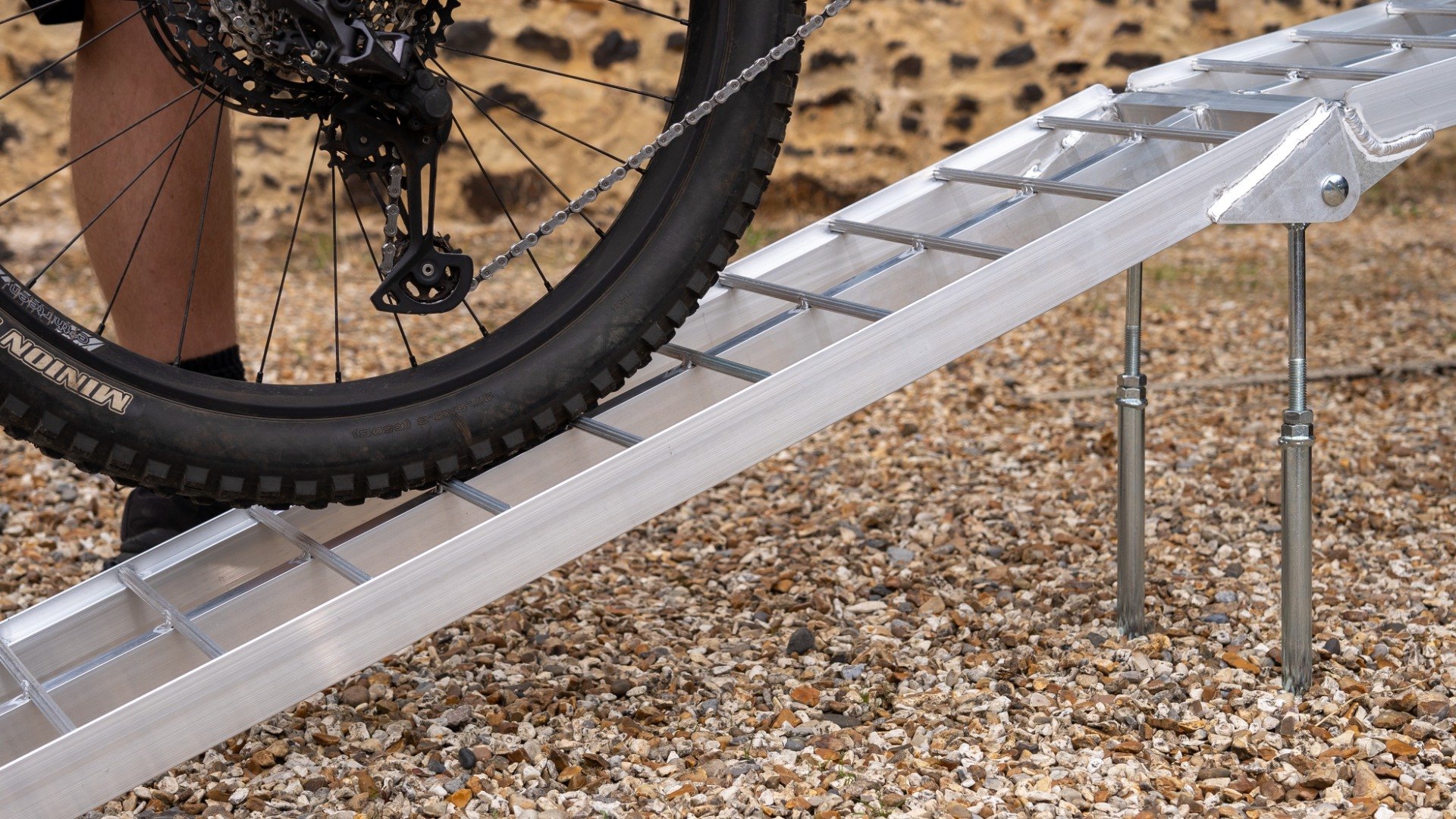

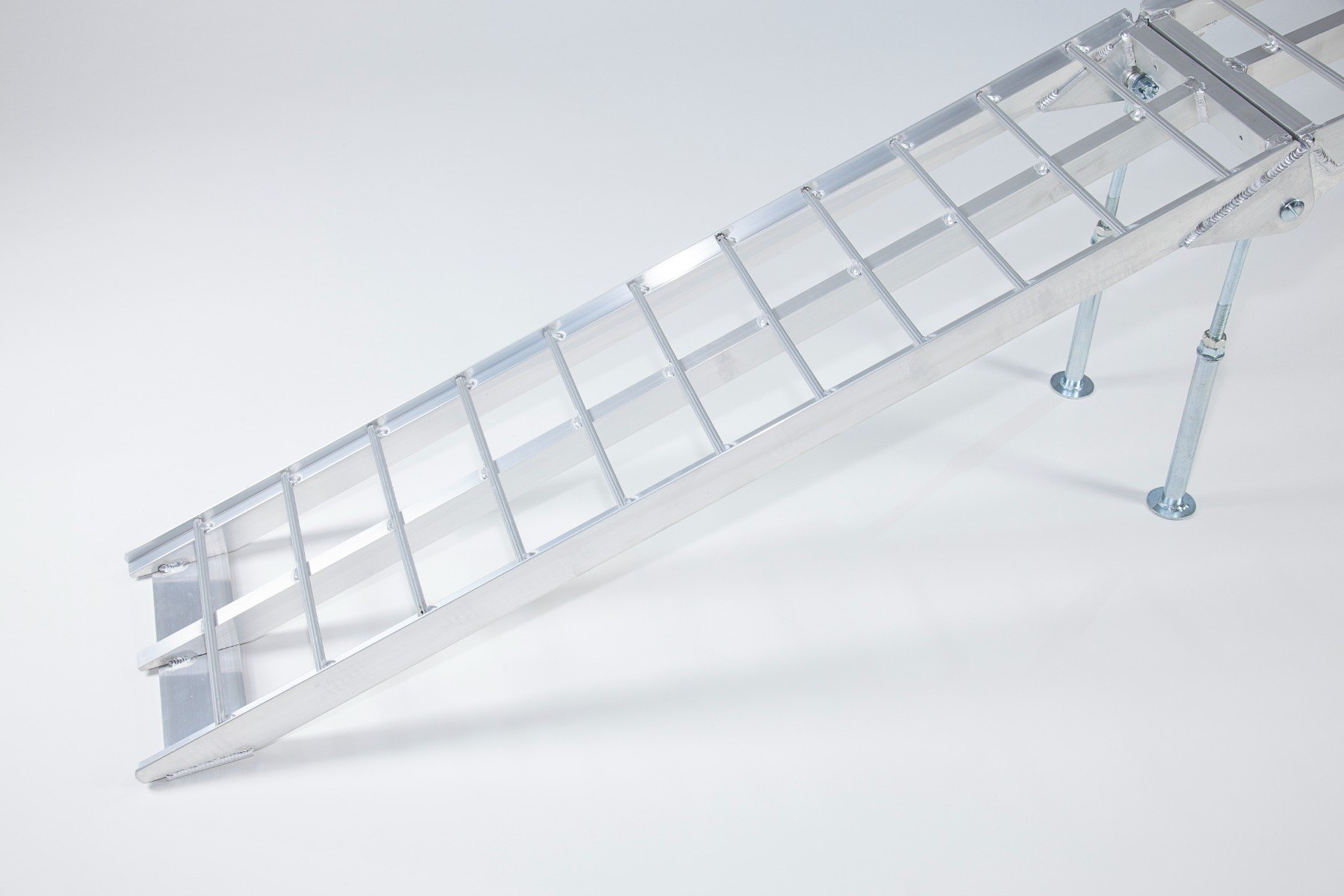

The Ramp Factory's lightweight aluminium folding loading ramps with double support bar are slightly curved for improved ground clearance. Each ramp has a capacity of 680kg (1360kg across the pair). The support bar legs can be adjusted from 340mm up to 425mm.

Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps.

Motorcycle and Folding Loading Ramps FAQ's

Description

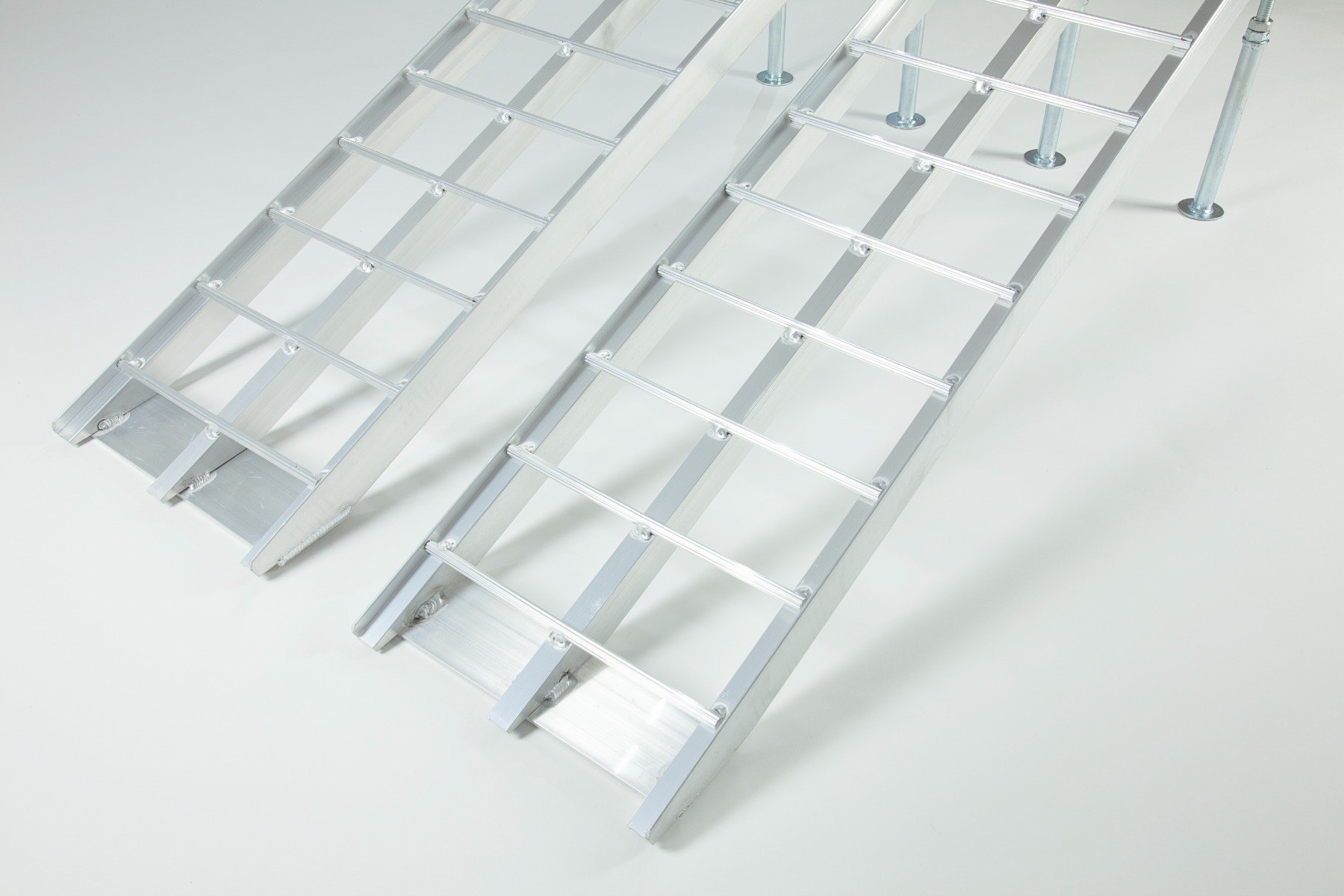

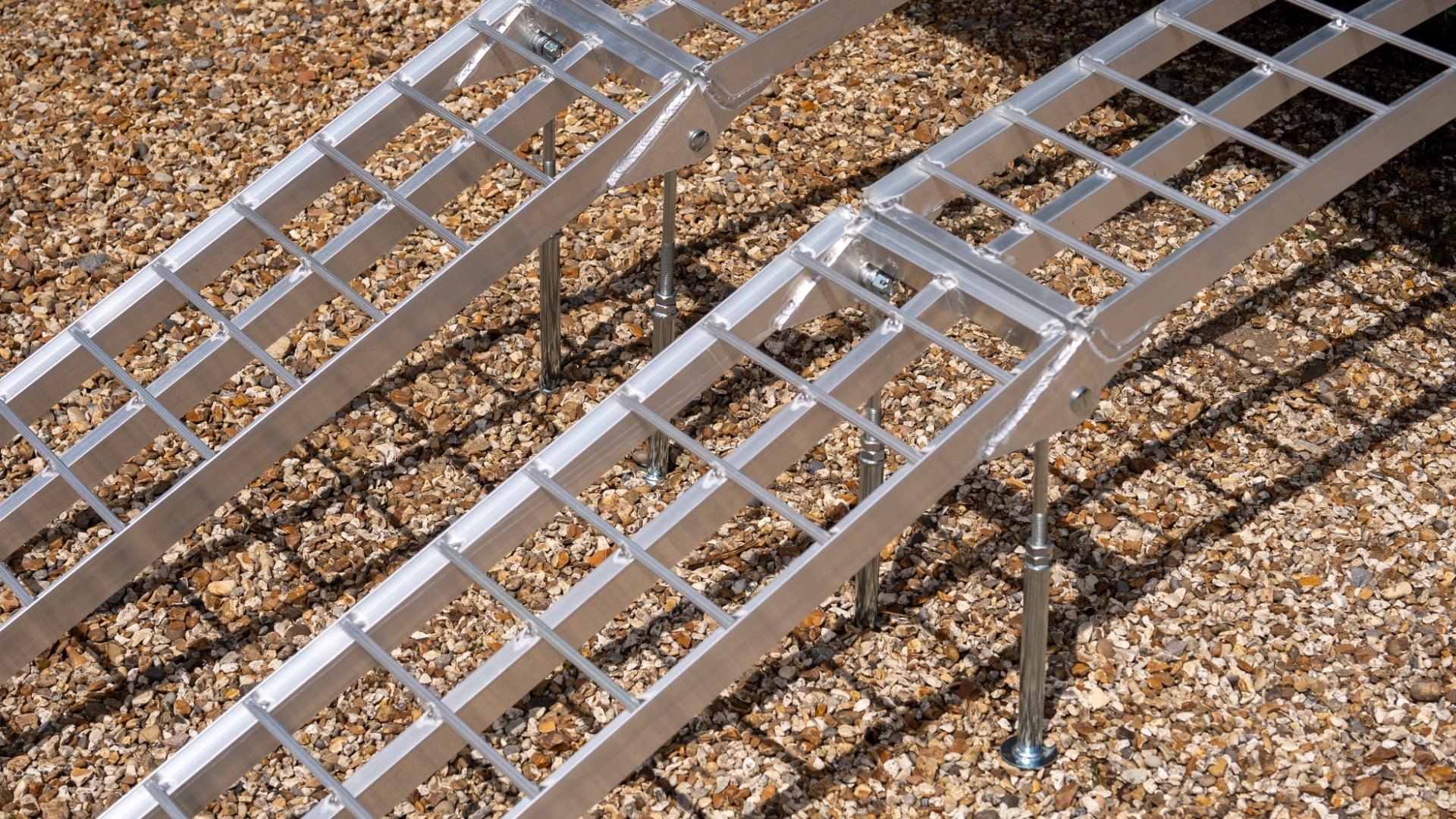

  • Provided with bar grip surface which adds greater strength and durability

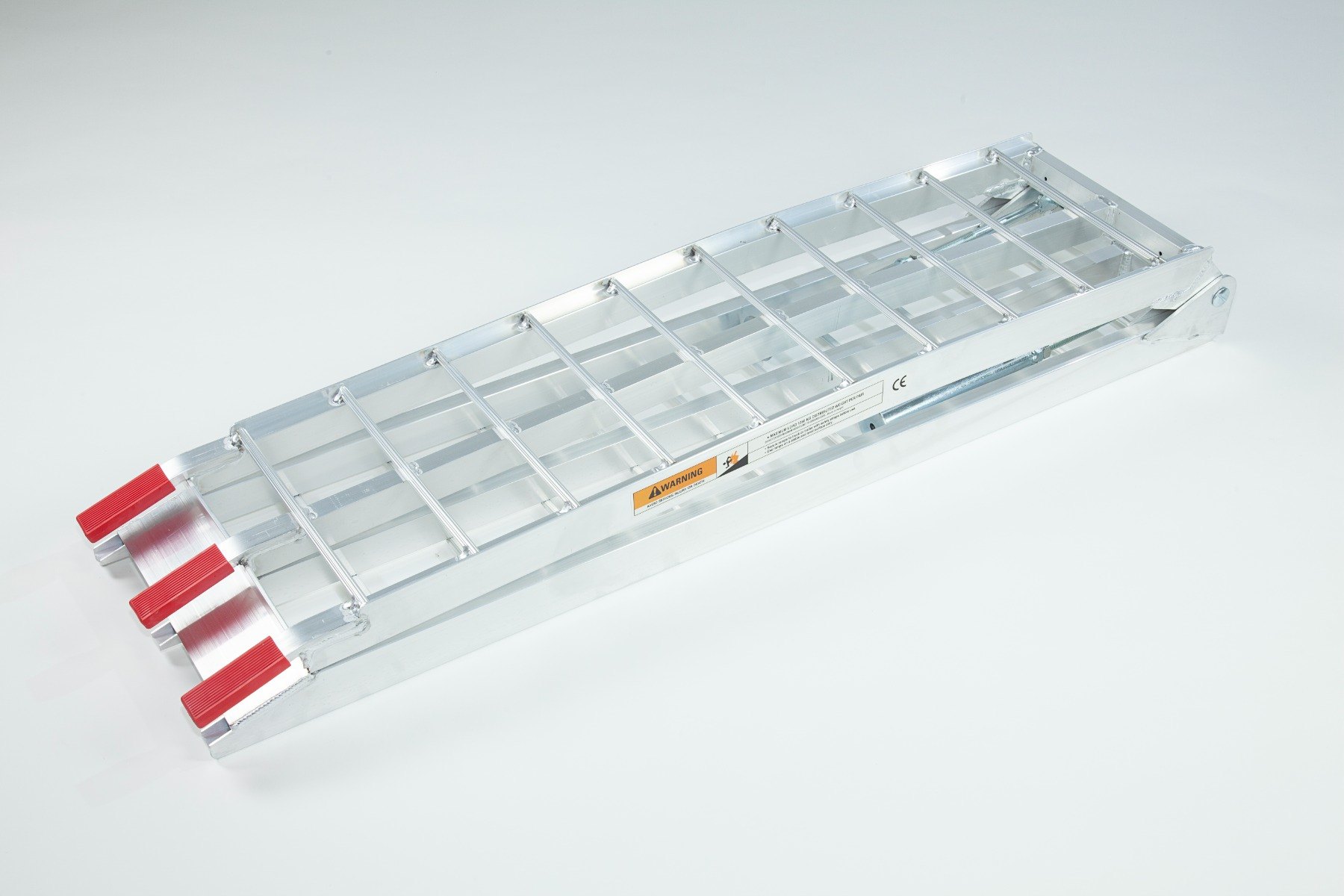

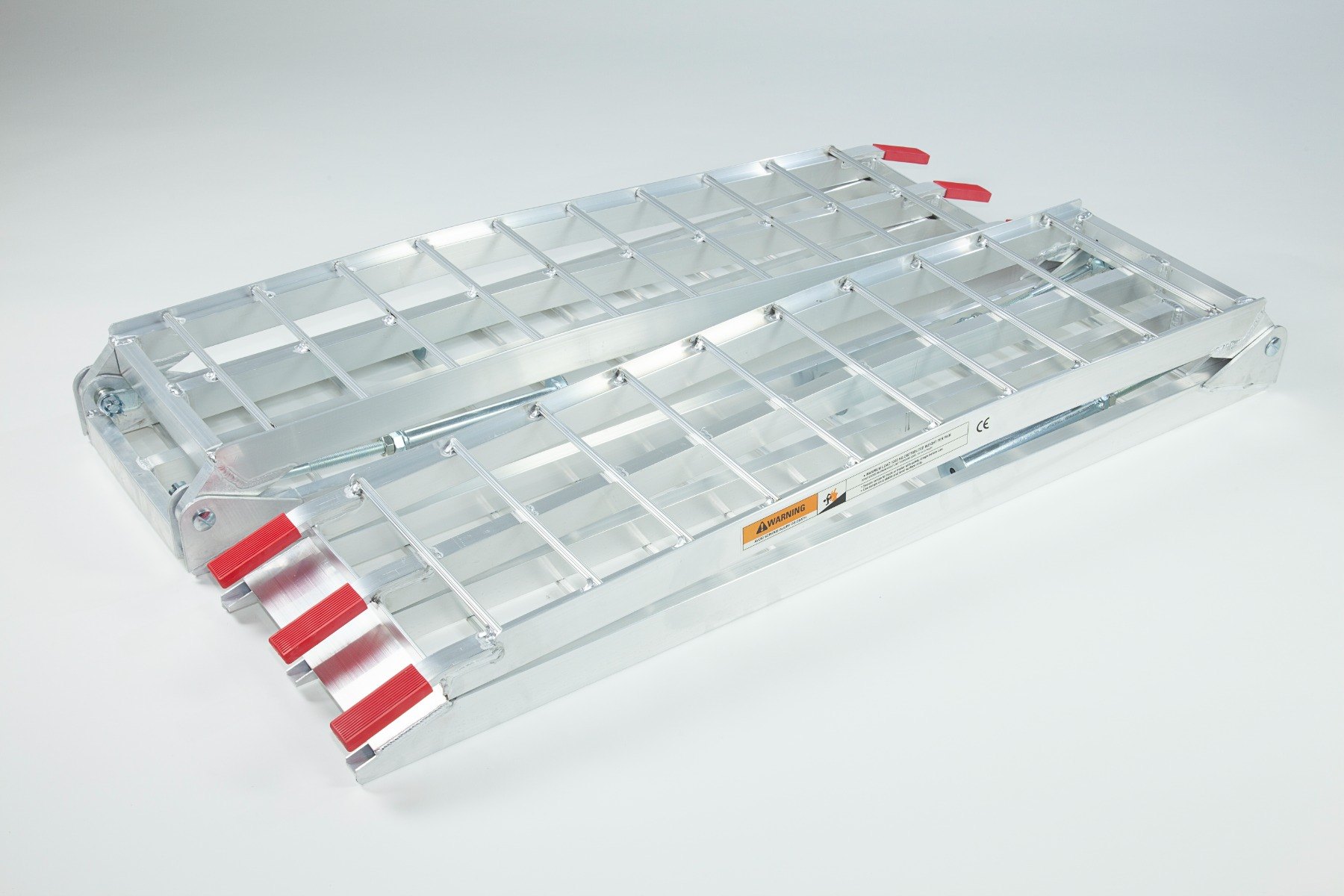

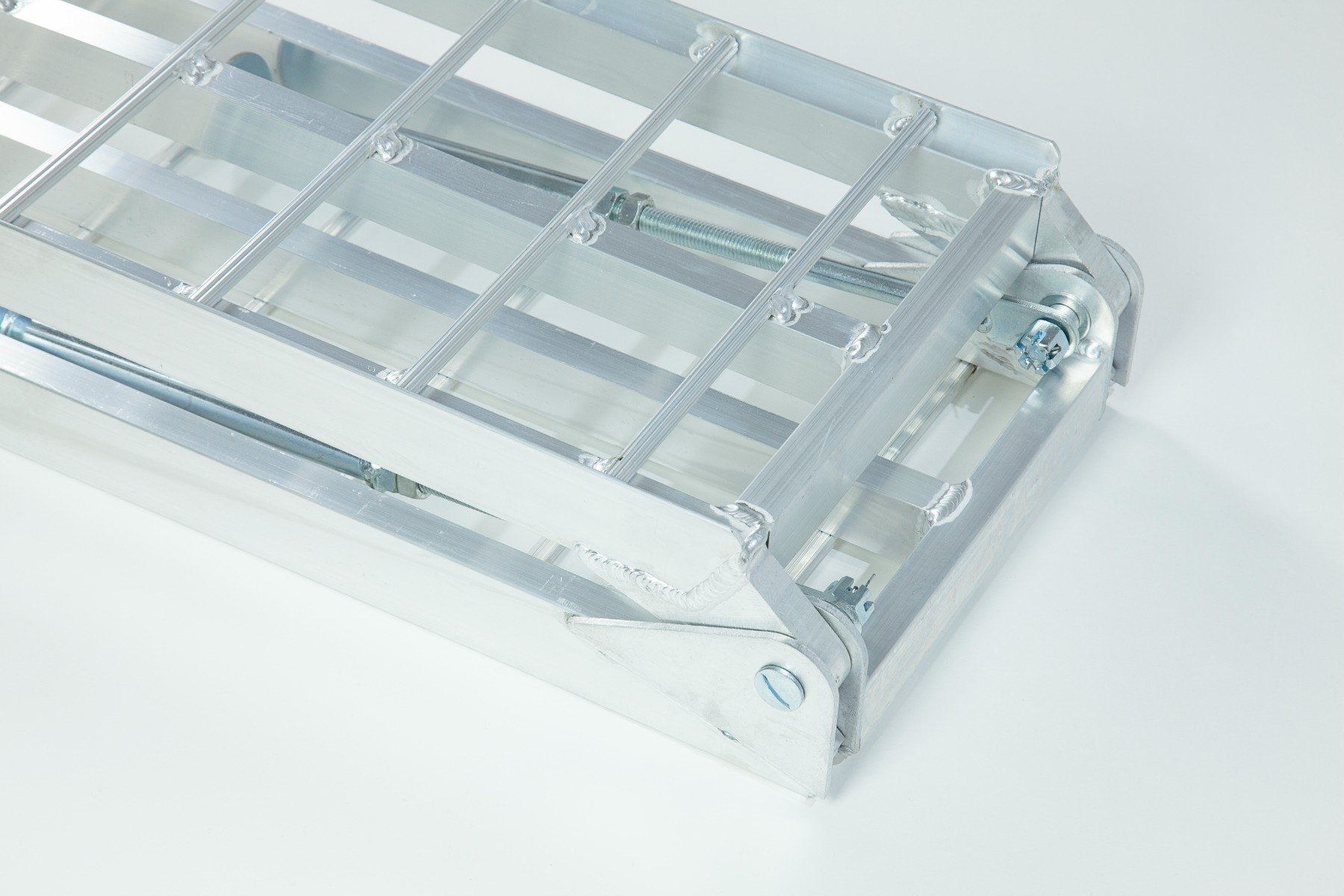

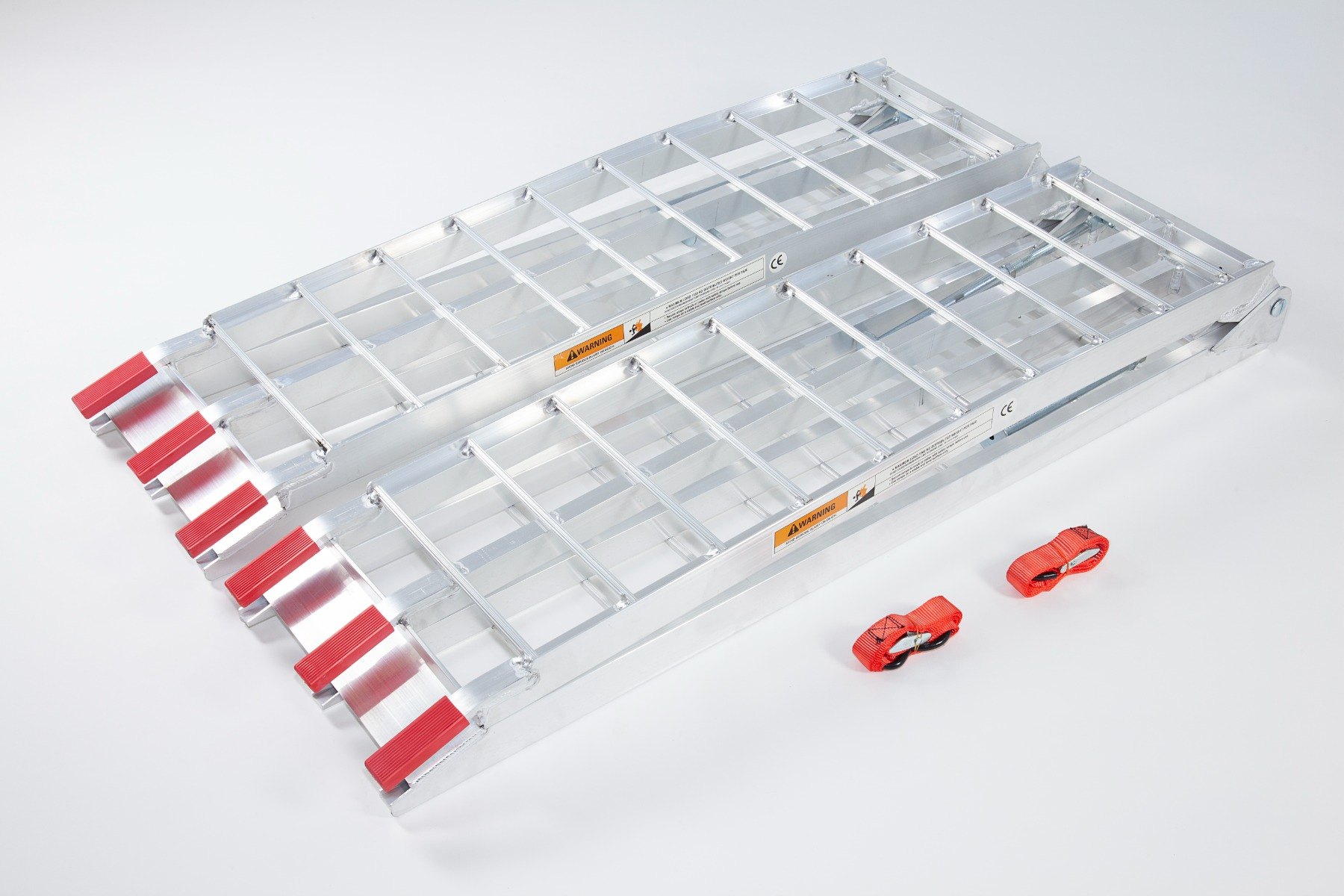

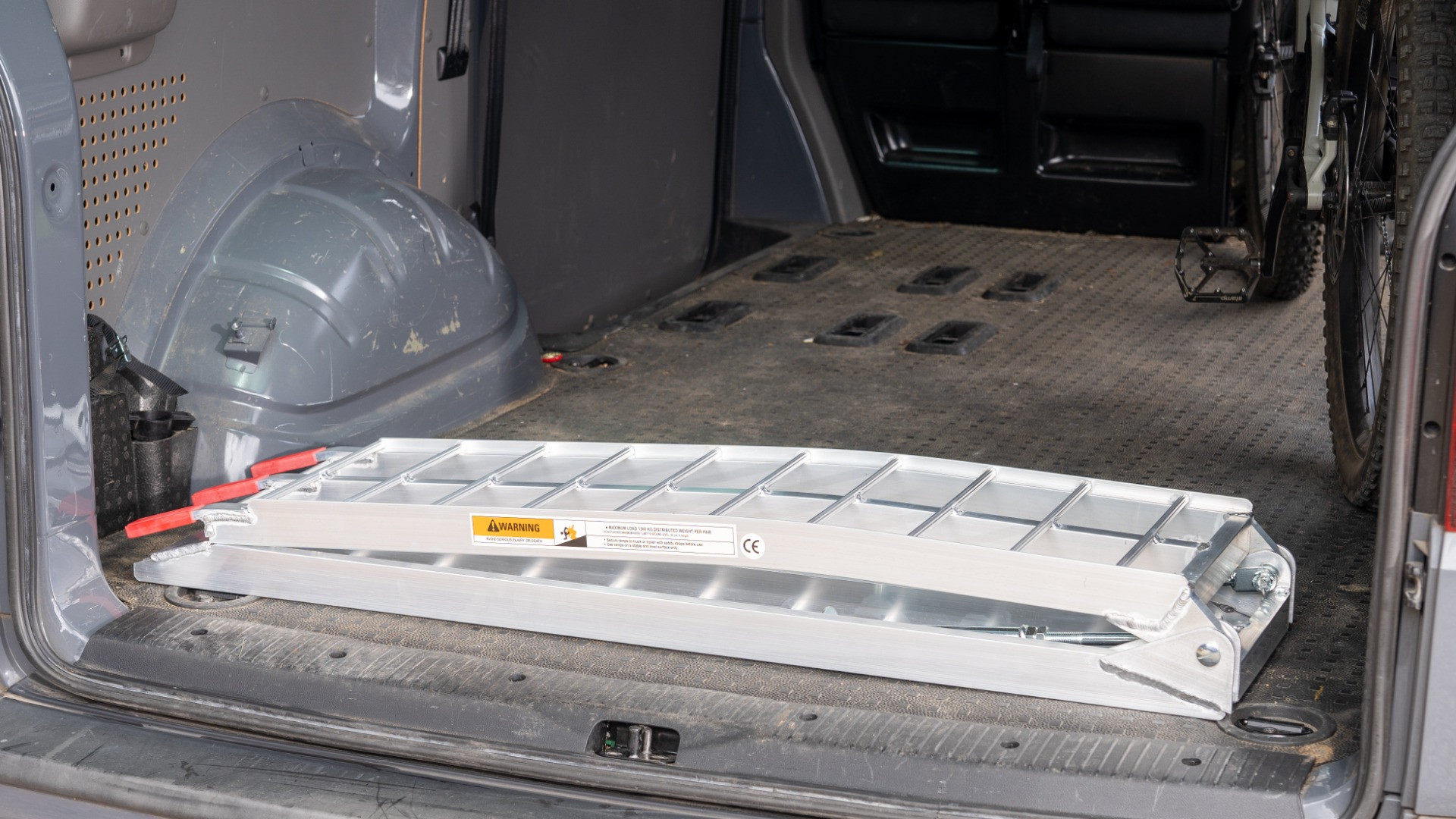

  • Folding ramp design for easy storage and transport

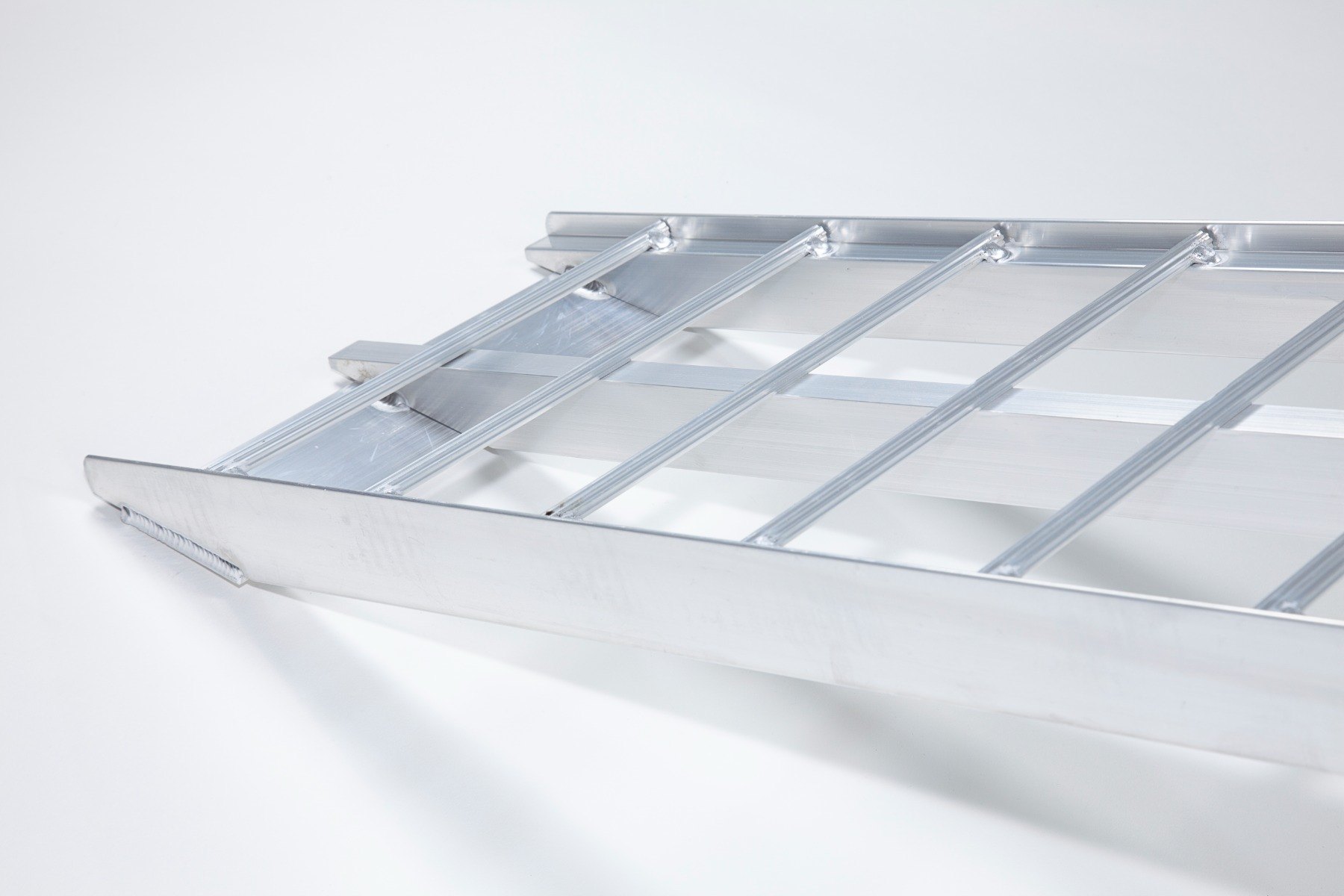

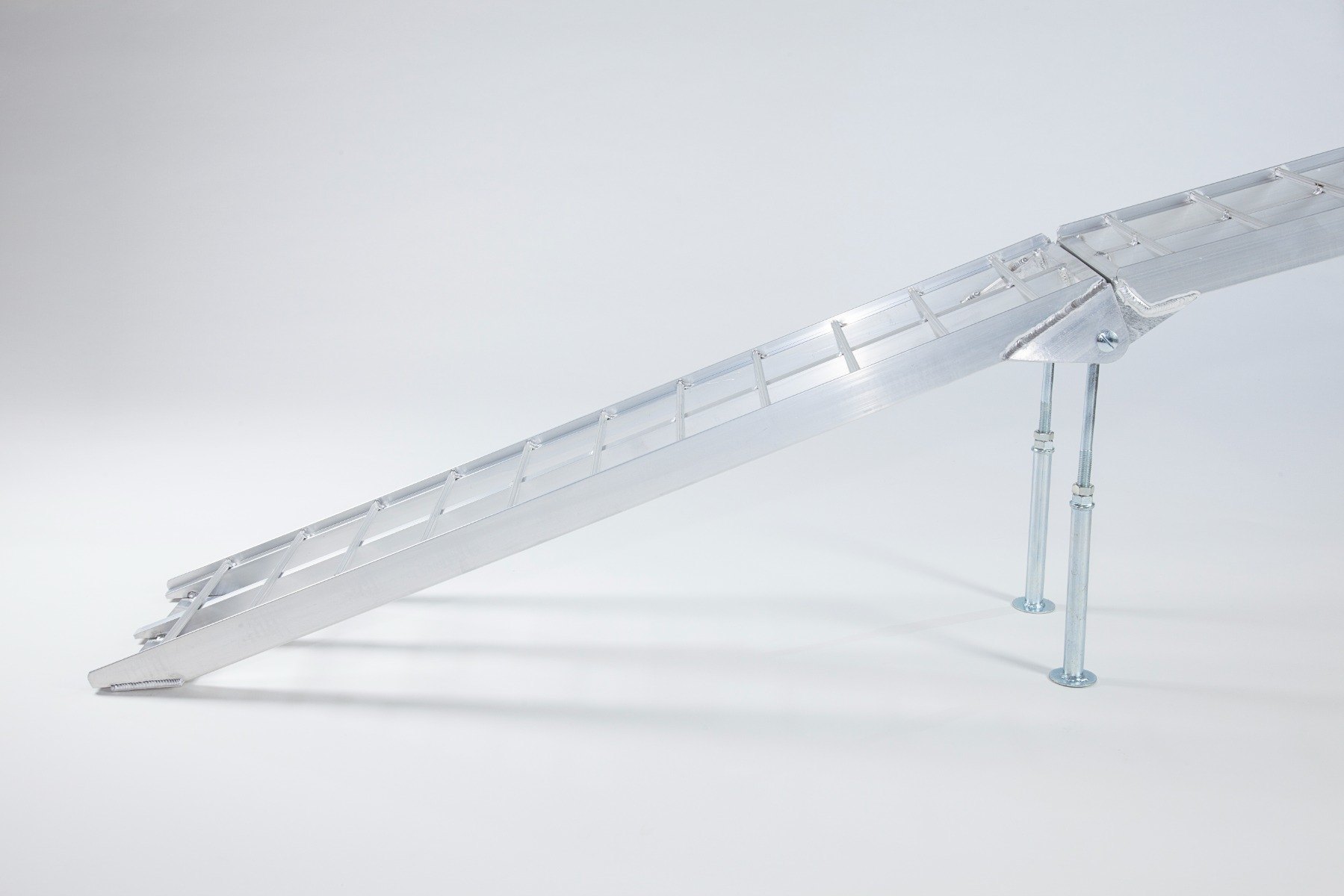

  • Slightly curved for improved ground clearance
  • Minimum tyre width 10cm
  • Manufactured from lightweight aircraft grade aluminium (type 6005A)
  • Robot welded for solid, strong and durable construction
  • Lightweight for easy handling

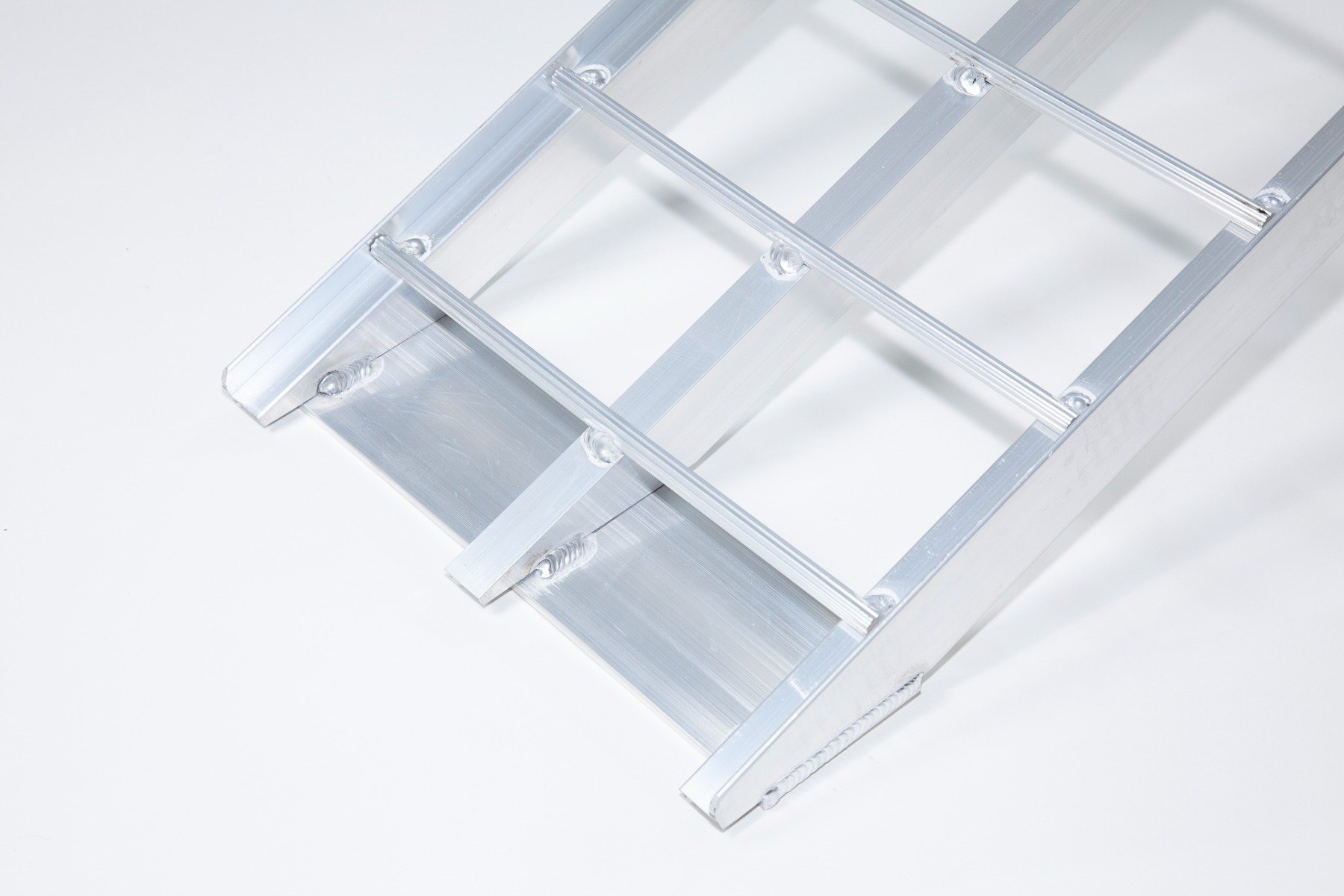

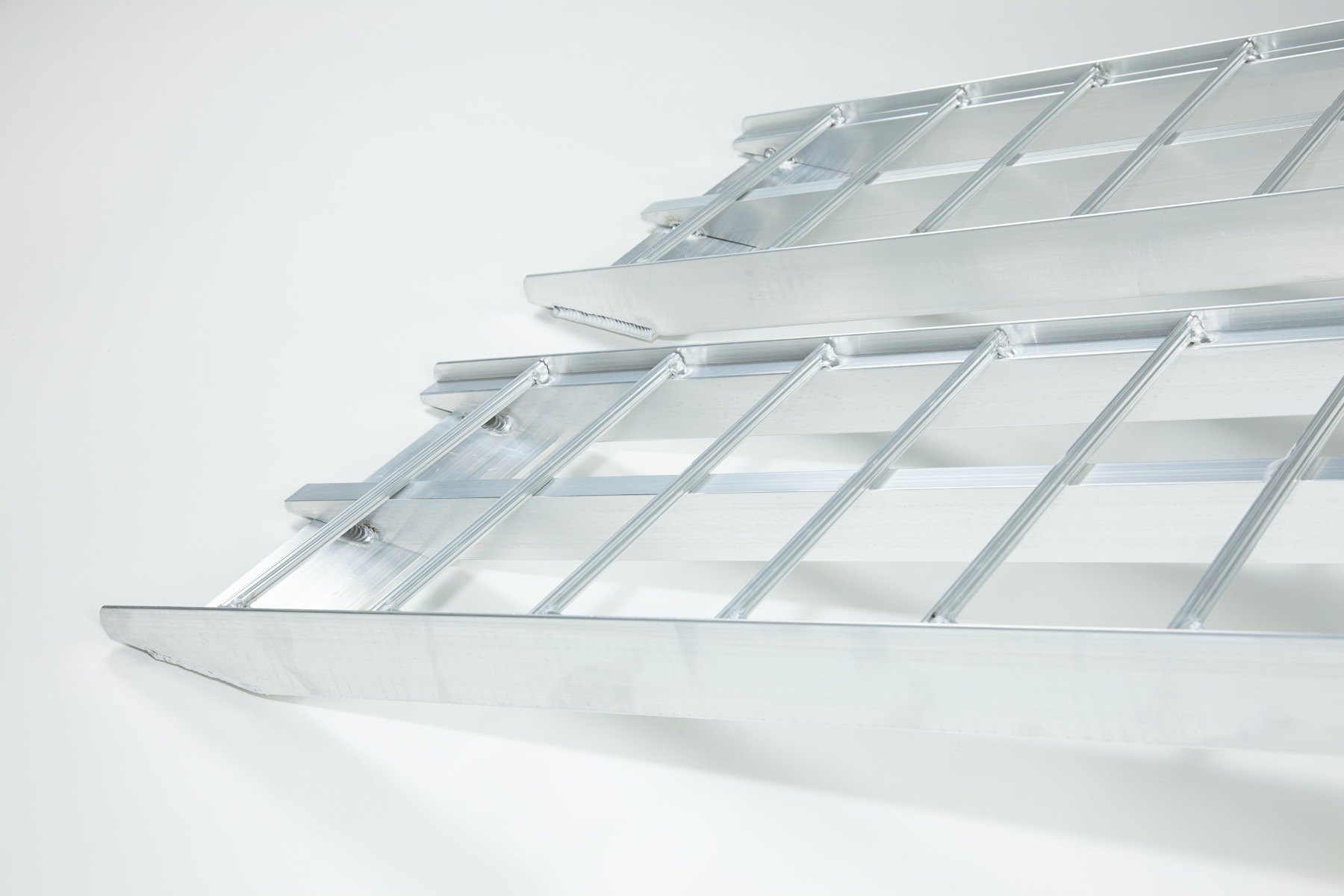

  • Angled foot, this allows for smooth access onto the ramp
  • Each ramp has a capacity of 680kg, capacity of across the pair is 1360kg
  • Each ramp is 2200mm long x 282mm wide
  • Designed for load heights of 520mm - 666mm
  • Folded Length 1100mm

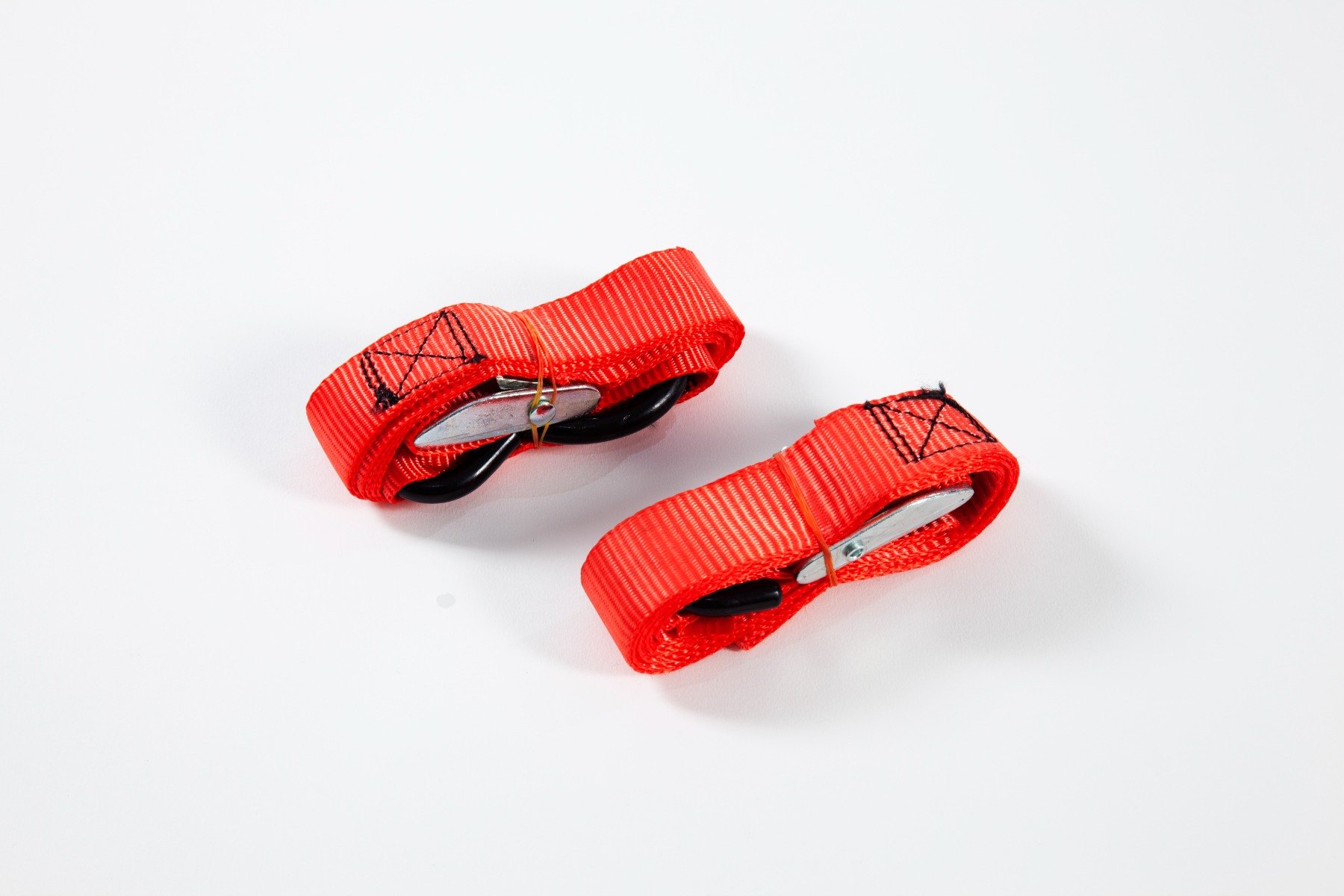

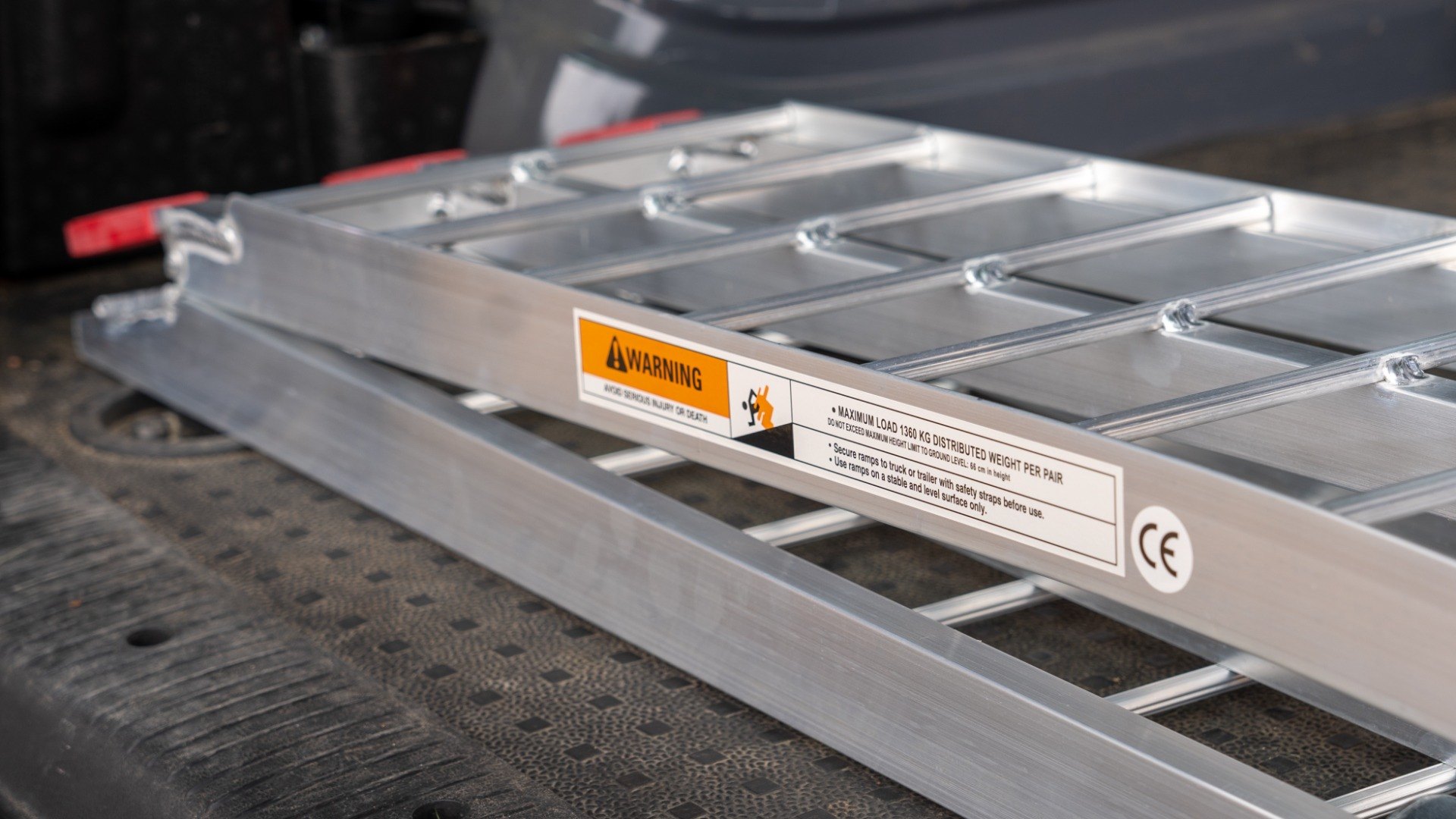

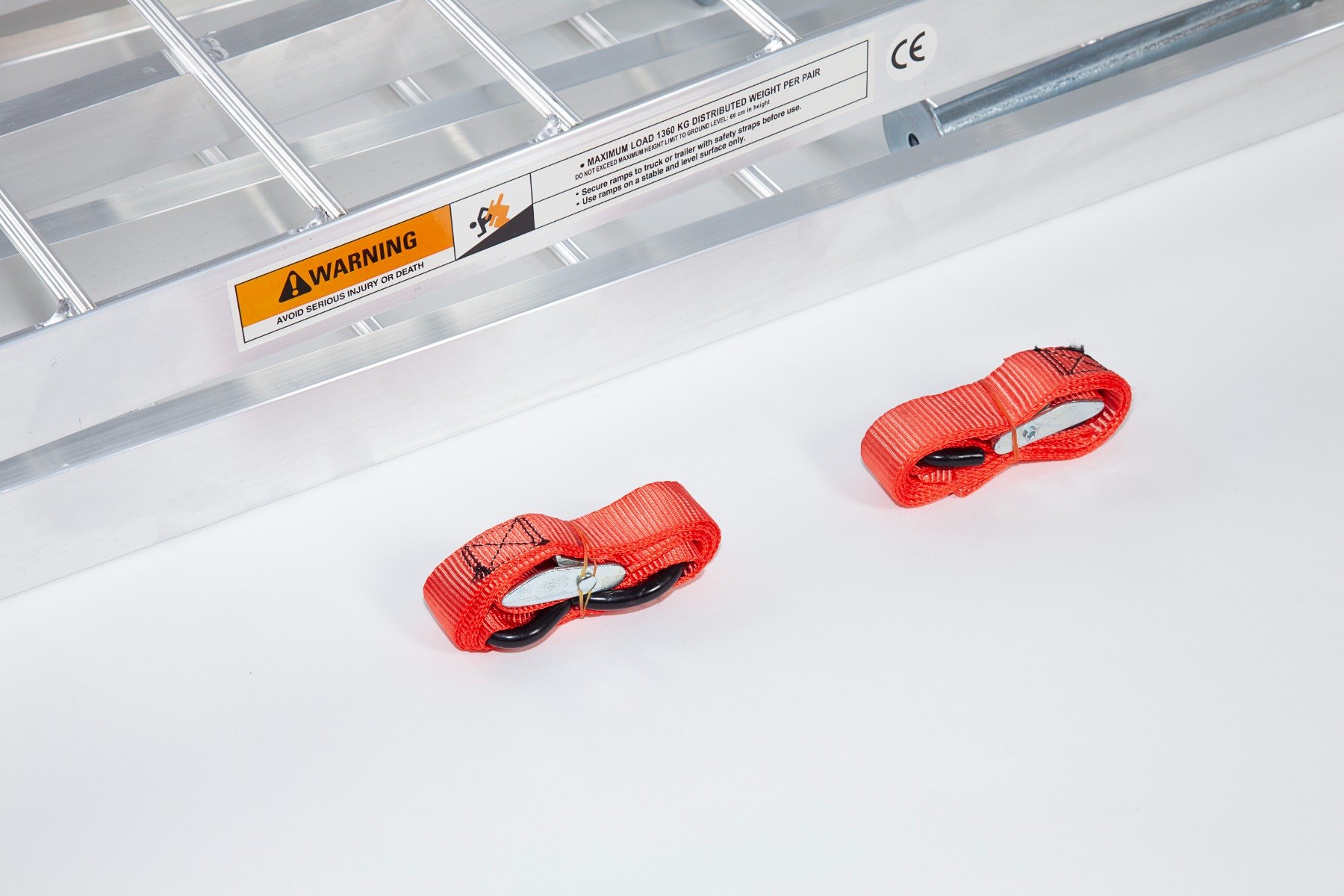

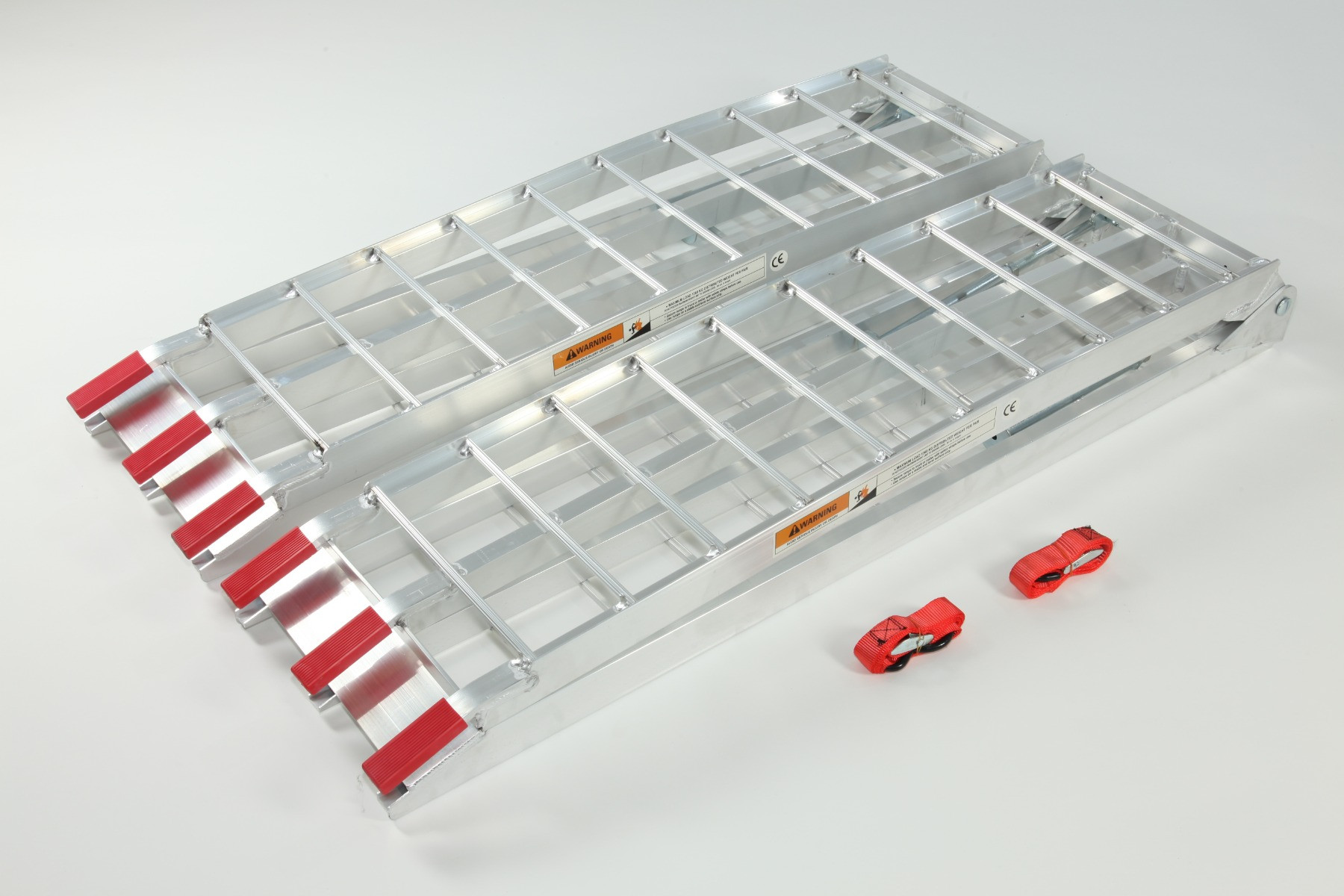

  • Straps are provided with the ramps
  • Support legs must be used during loading and unloading
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Motorcycle Ramp with Bar Grip Surface and Legs

Single

  • Length (mm): 2200
  • Width (mm): 282
  • Height (mm): 100
  • Min. Load Height (mm): 200
  • Max Load Height (mm): 666
  • Weight per Ramp (kg): 8.2
  • Capacity per Ramp (kg): 680

Pair

  • Length (mm): 2200
  • Width (mm): 282
  • Height (mm): 100
  • Min. Load Height (mm): 520
  • Max Load Height (mm): 666
  • Weight per Pair (kg): 16.4
  • Capacity per Pair (kg): 1360
Product Questions
I am interested in the folding loading ramps. Are safety straps provided with these ramps?
Yes, each ramp is provided with a safety strap to allow you to secure the ramp to your van or trailer during loading.
I am interested in the Loading Ramps with Support Legs. Do I need to use the support legs each time I use the ramp?

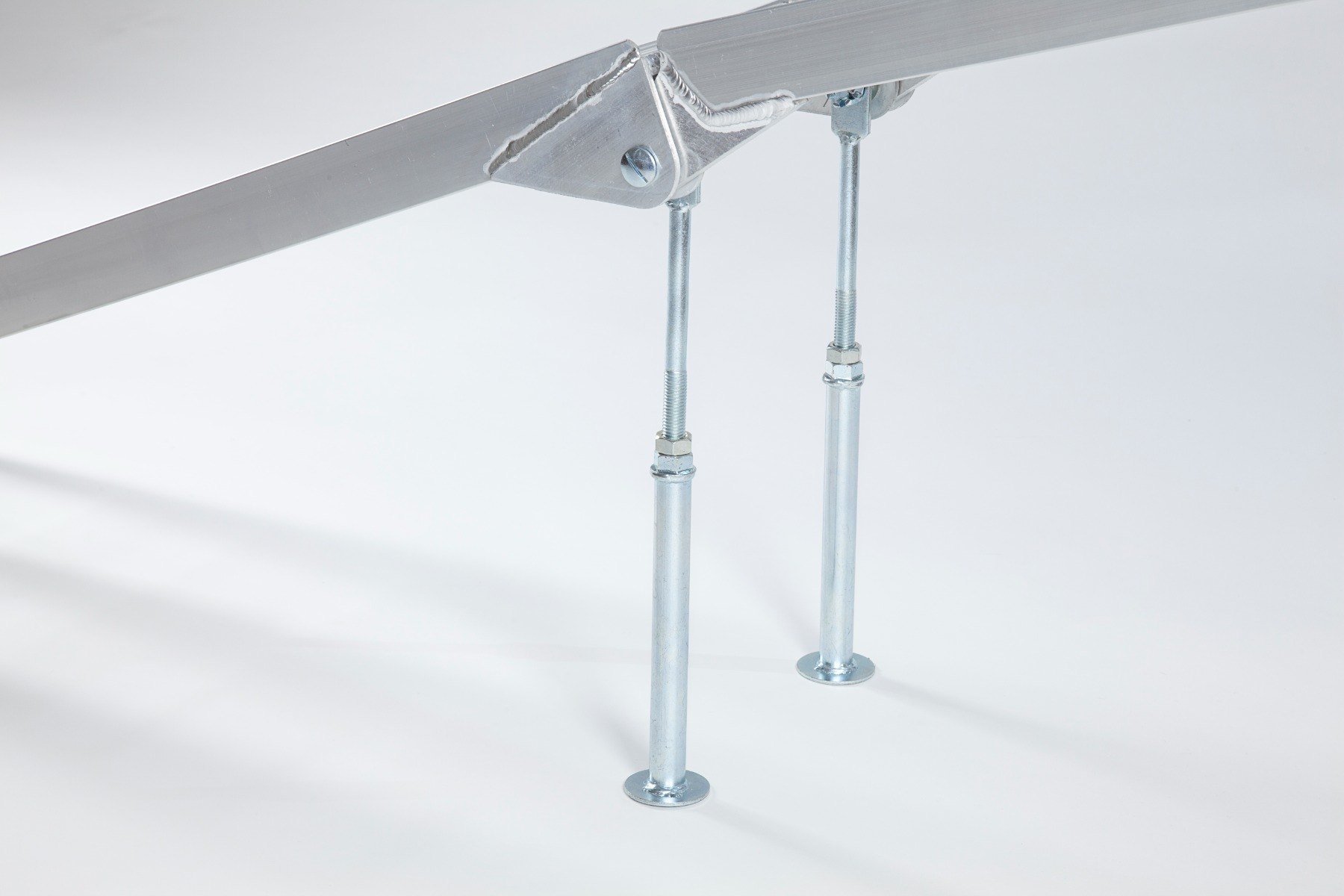

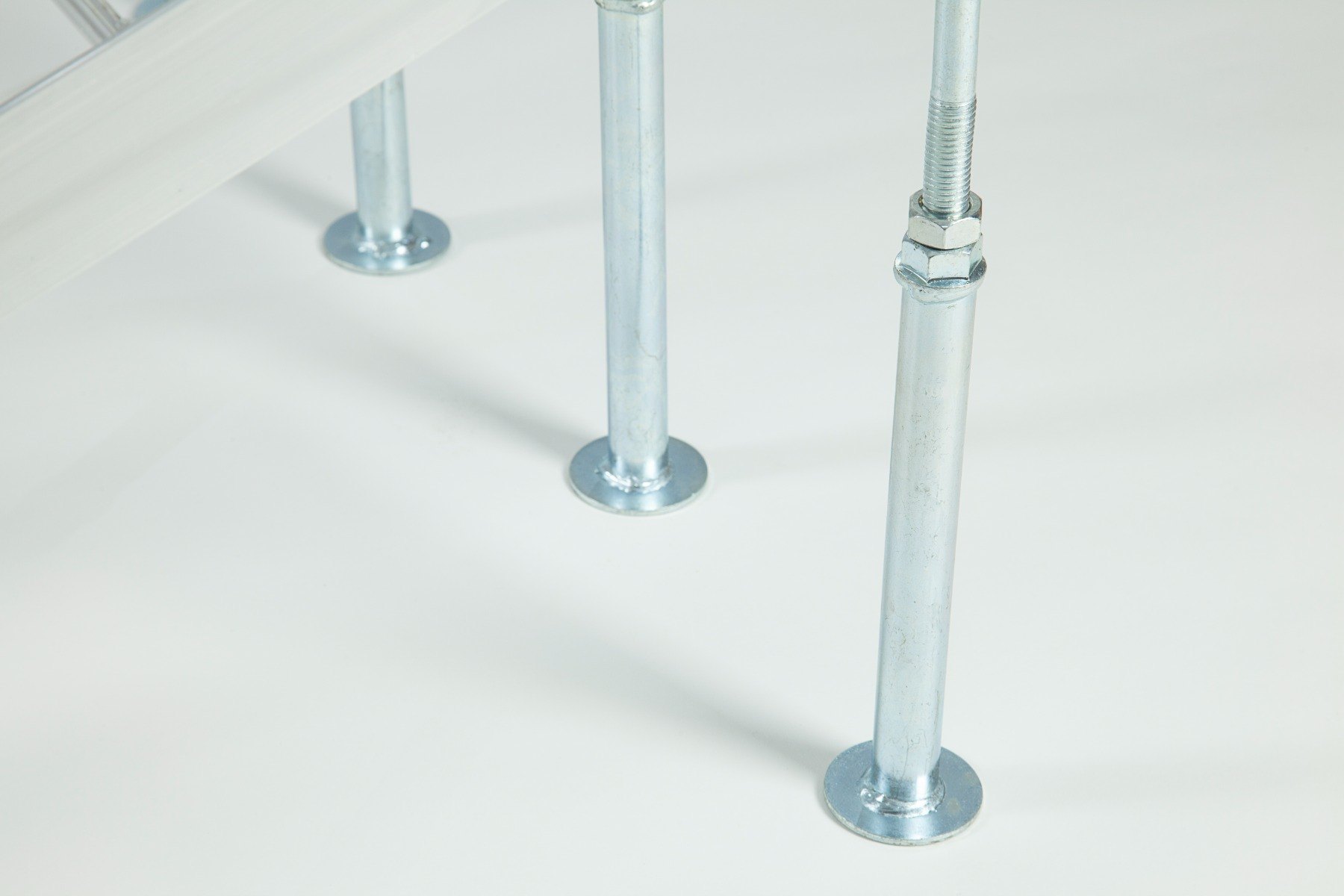

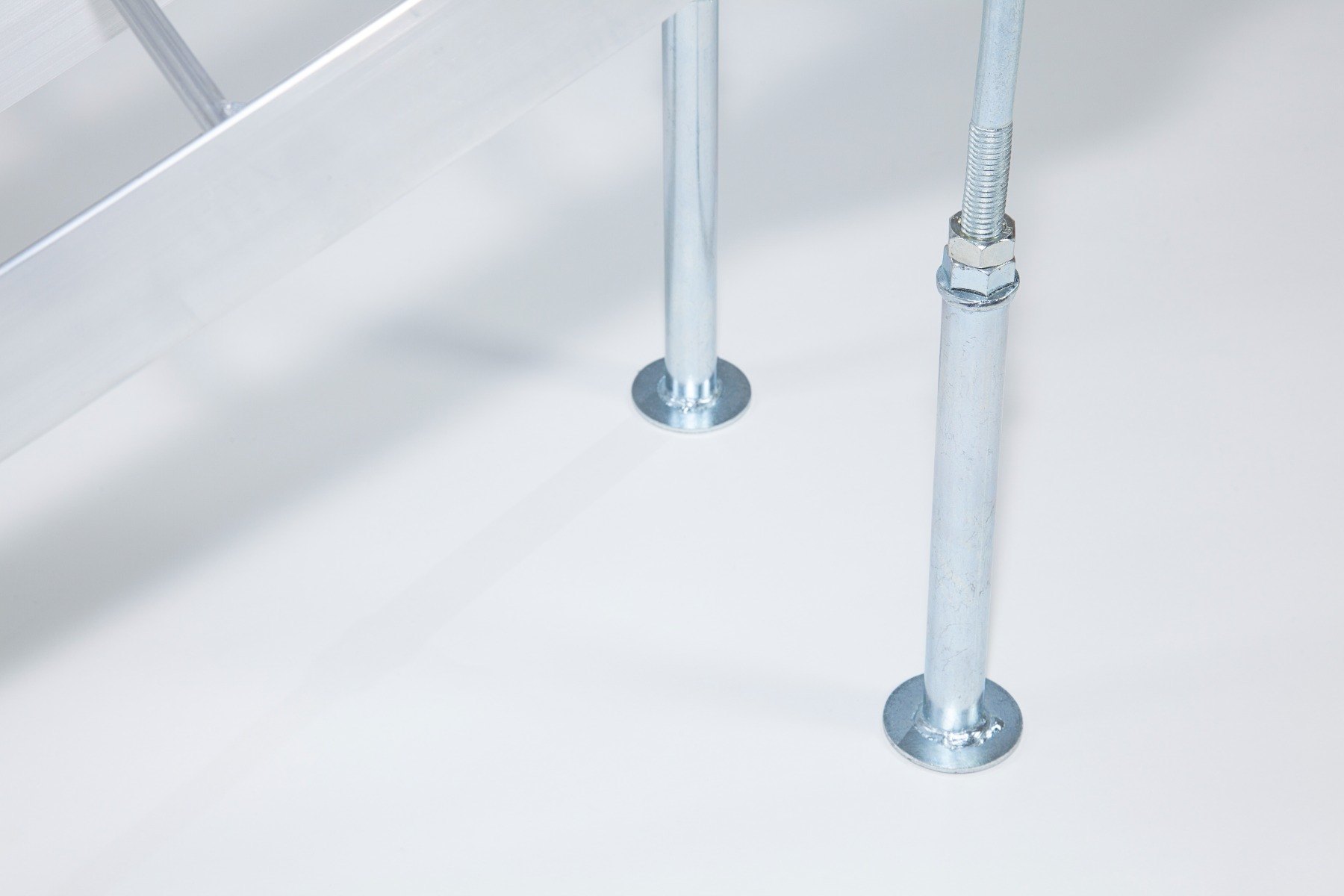

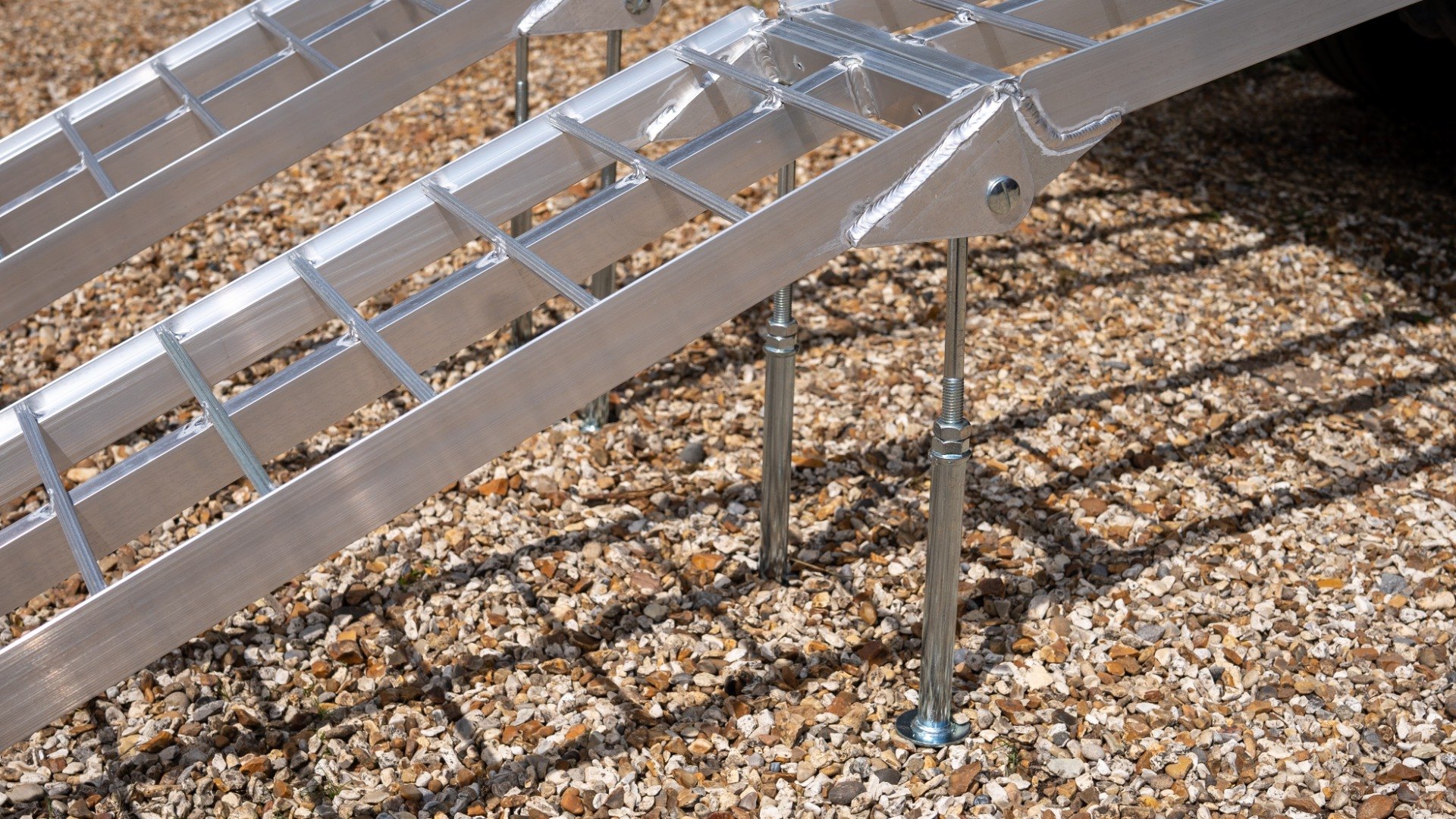

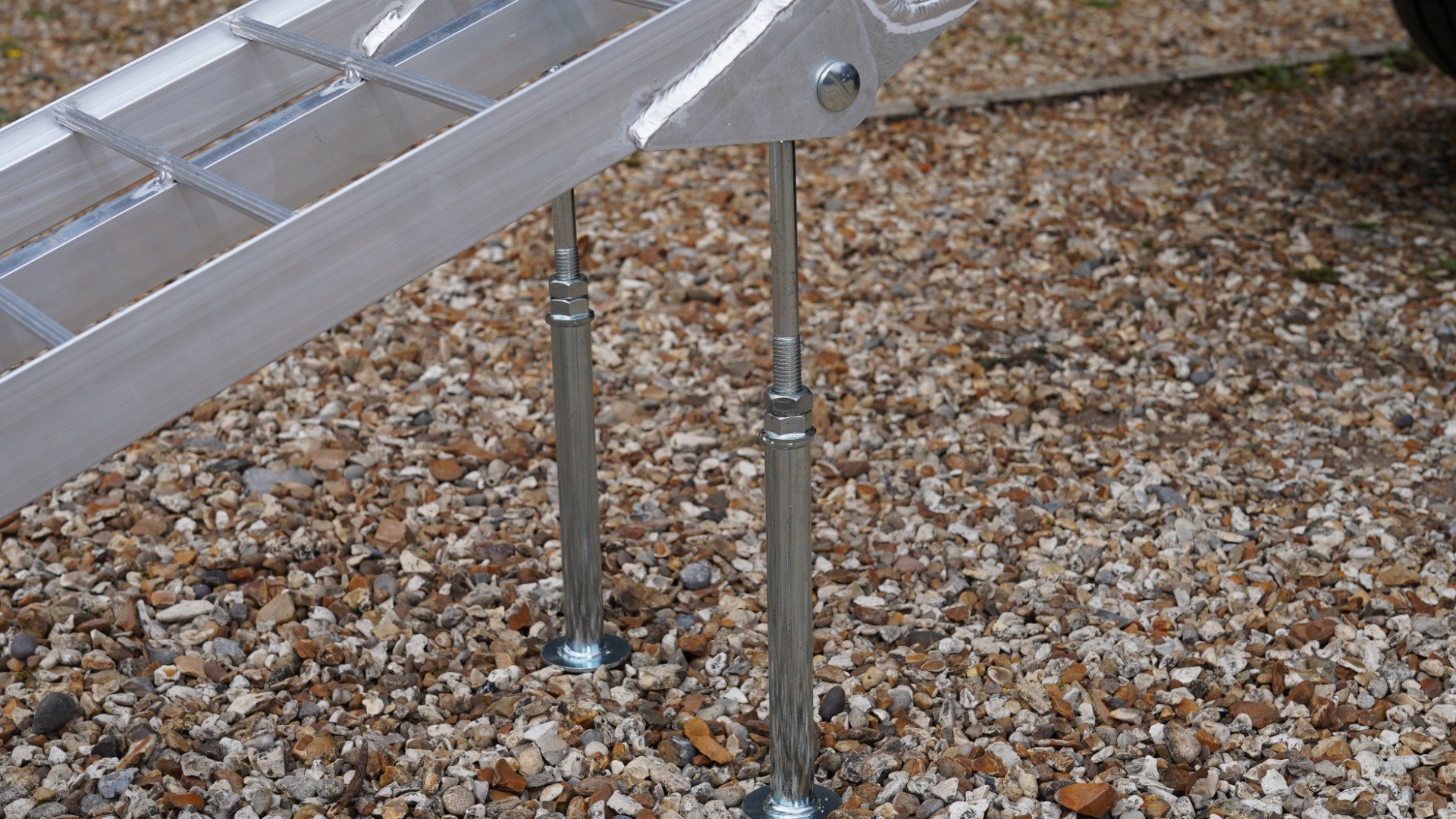

Yes, these ramps are designed to always be used in conjunction with the support legs, not using the support legs will affect the capacity of the ramp. The support bar legs can be adjusted from 340mm up to 425mm.
How do The Ramp Factory's folding loading ramps stay securely in place during loading?

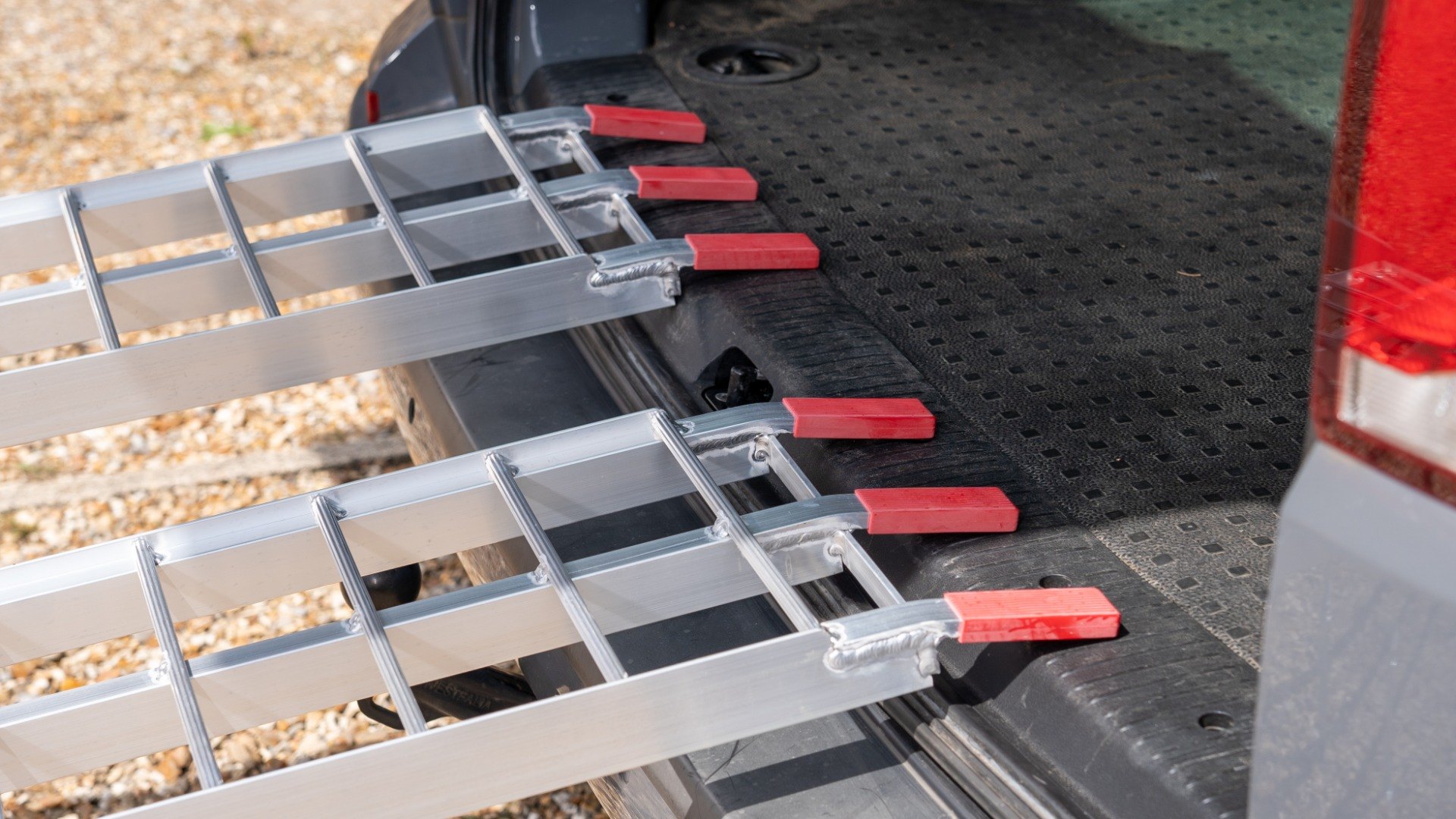

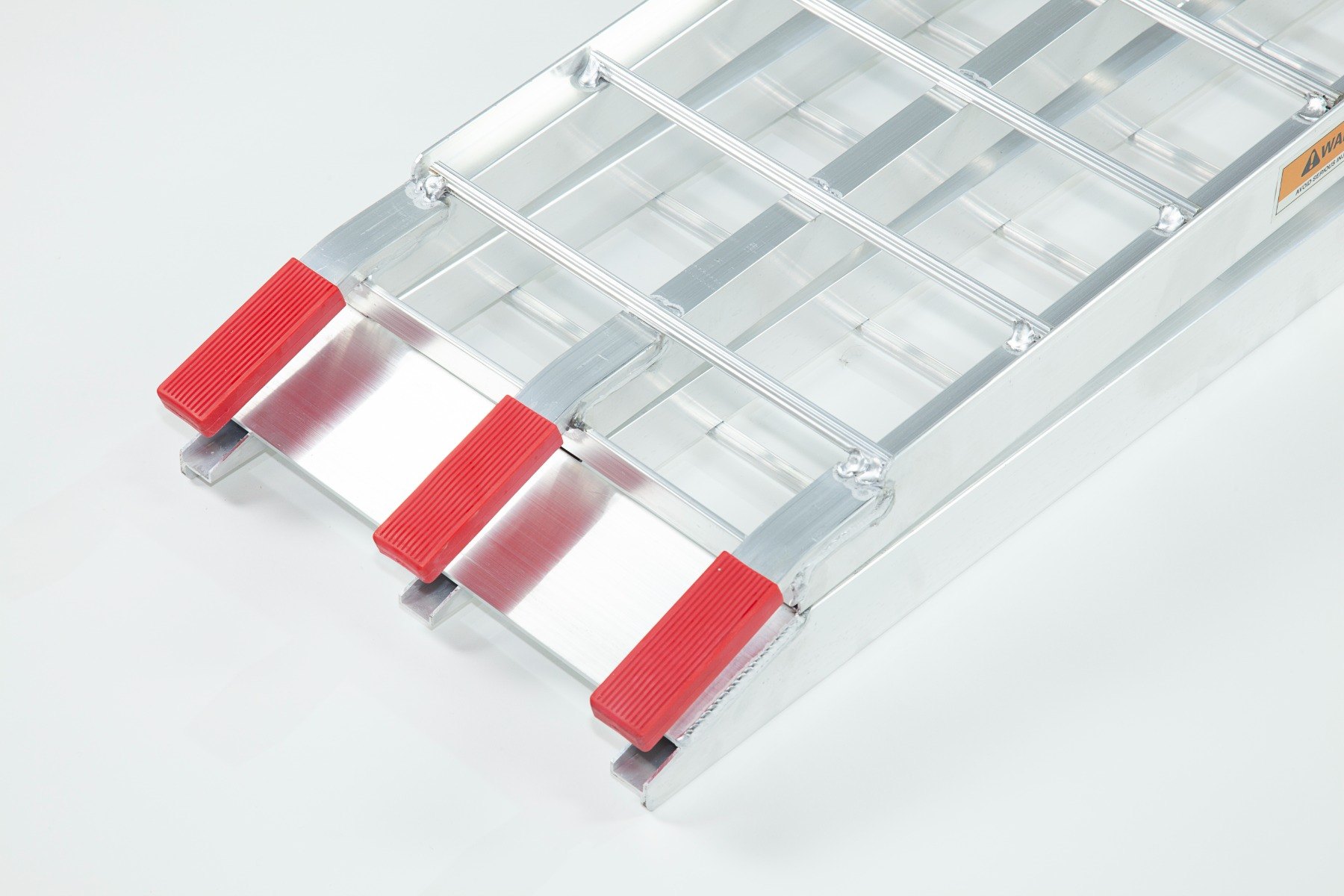

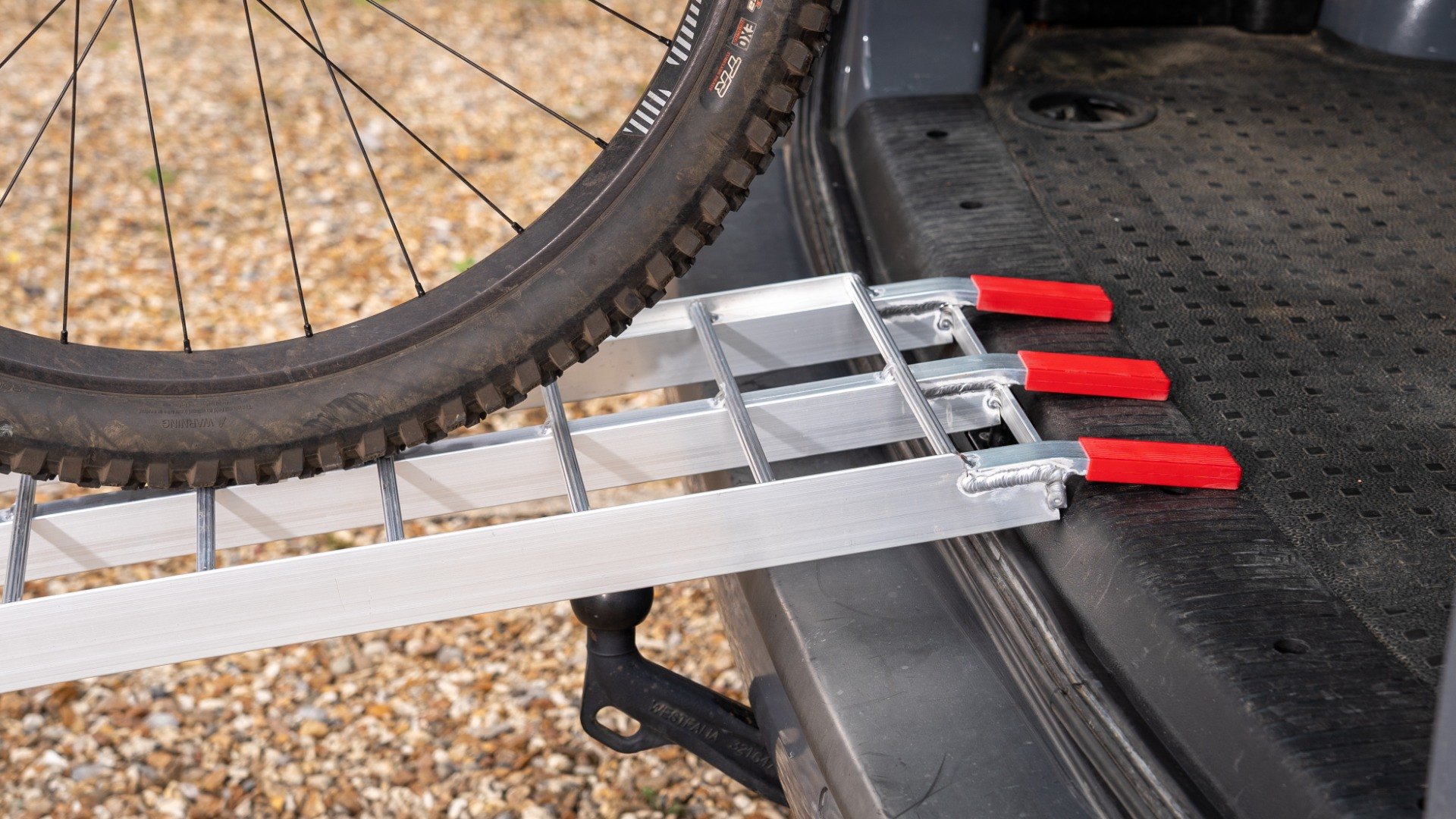

The ramps have a curved rest on connection which rests onto the vehicle. The foot of the ramp is cut at an angle to ensure the ramp stays securely on the ground. The ramps are provided with safety straps to secure the ramp to the vehicle. The ramp weight and angle also assists the ramp to stay in place.
I require a motorcycle loading ramp. How do I identify which motorcycle ramp length is most suitable for my requirements?
You will need to check your load height (vertical height from the ground to where the ramp will rest) as this identifies which ramp length you need. All of our ramps state the minimum and maximum height they are designed for.
Video
Details
SKUTRP611-L Conf
Capacity (kg)680-1360
Folded Length (mm)1100
Height (mm)50
Length (mm)2200
Max Load Height (mm)666
Min. Load Height (mm)520
Weight (kg)16.4
Weight per Ramp (kg)8.2
Width (mm)282
One Year WarrantyYes
Easy to FitYes
Not Solid WheelsYes
Leave OutsideYes
