  • Easy to Fit
  • Fixings Included
  • Free Drill Bit
  • High Visability
  • Includes Cats Eyes
  • One Year Warranty

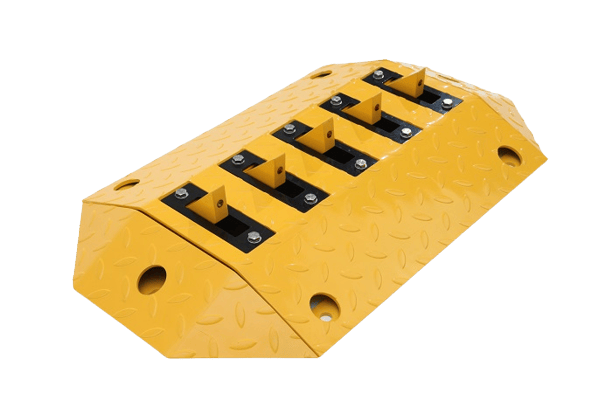

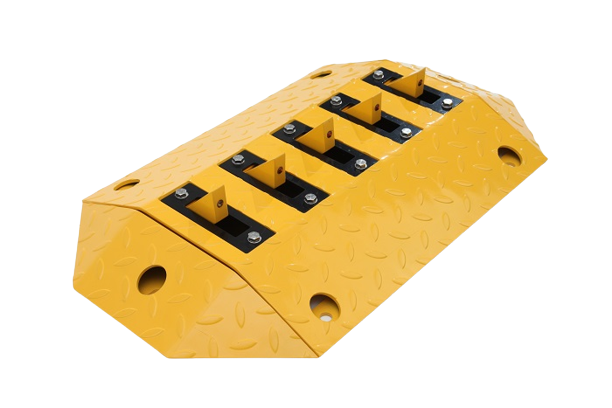

Directional Flow Plate

SKU
TRP-TK-20 Conf
From £114.00 £95.00
Over 100 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Directional flow plates, also known as tyre killer ramps, are designed to slow vehicles and promote one-way traffic flow. Commonly used in car parks, residential areas, and industrial estates, they prevent drivers from exiting through entrances.

The Ramp Factory's highly visible heavy-duty, steel surface-mounted flow plates, with a durable chequered plate design, accommodate all vehicles, from cars to HGVs.

The plate should not be used in areas with pedestrian traffic and should be used in conjunction with speed bumps or other traffic calming products.

Additionally, Ramp Factory offers directional flow plates for heavier traffic and small flow plates for light traffic.

Description

These flow plates/tyre killer ramps have a dual function, allowing them to act as a speed ramp whilst controlling the flow of traffic. The centre section is 500mm wide. Due to the design, the layout of the ramps can be amended to allow you to either have one continuous ramp or various small ramps.

The plates are easy to install with 4 fixing holes provided per plate and single per inter-lockable end cap to allow this to be easily secured with our universal fixings supplied with these into tarmac or concrete surface.  Installation Guide

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

  • Each middle section is 500mm long and end 110mm long
  • End caps are sold as a pair
  • Capacity 15,000kg per axle, suitable for cars and HGVs
  • Pre-drilled fixing points for ease of installation
  • We provide fixings for tarmac and concrete free of charge and an SDS drill bit per order
  • Durable design, produced from reinforced steel
  • Please read the Installation Guide before fitting
  • Maximum speed 5mph
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

It is important that flow plates are driven over in a straight line, vehicles should not approach or drive over the flow plates at an angle.

Directional Traffic Flow / Tyre killer Ramp section dimensions:

Middle Section

  • Width: 500mm
  • Length : 422mm
  • Height : 60mm (teeth depressed)
  • Weight (kg): 23

End Caps (Pair Provided)

  • Width: 110mm
  • Length : 422mm
  • Height : 60mm (teeth depressed)
  • Weight (kg): 5
Product Questions
Do The Ramp Factory install Flow Plates?
As an online business we only supply Flow Plates, we do not offer installation services. We provide fixings with the Flow Plates. Installation can usually be done by a builder or handyman. Please view our installation guide for more details.
What fixings are provided with the Flow Plates?
The Flow Plates have pre-drilled fixing points. The Flow Plates are provided with fixings for tarmac and concrete and a SDS drill bit. The fixings are M10 x 120mm. The drill bit has a diameter of 14mm and 150mm drill length, total length 276mm.
I am interested in the Directional Flow Plates. How many end caps do I require?
Our end caps listing includes a pair of end caps. The quantity required is a matter of personal preference based on your preferred layout. Please see the installation guide for examples of suggested layouts.
Details
SKUTRP-TK-20 Conf
Capacity (kg)15,000
Height (mm)105mm / 60mm (teeth collapsed)
Length (mm)422
Weight (kg)5-23
Width (mm)110-500
One Year WarrantyYes
Easy to FitYes
Fixings IncludedYes
Free Drill BitYes
High VisabilityYes
Includes Cats EyesYes
Capacity per Axle (kg)15000
