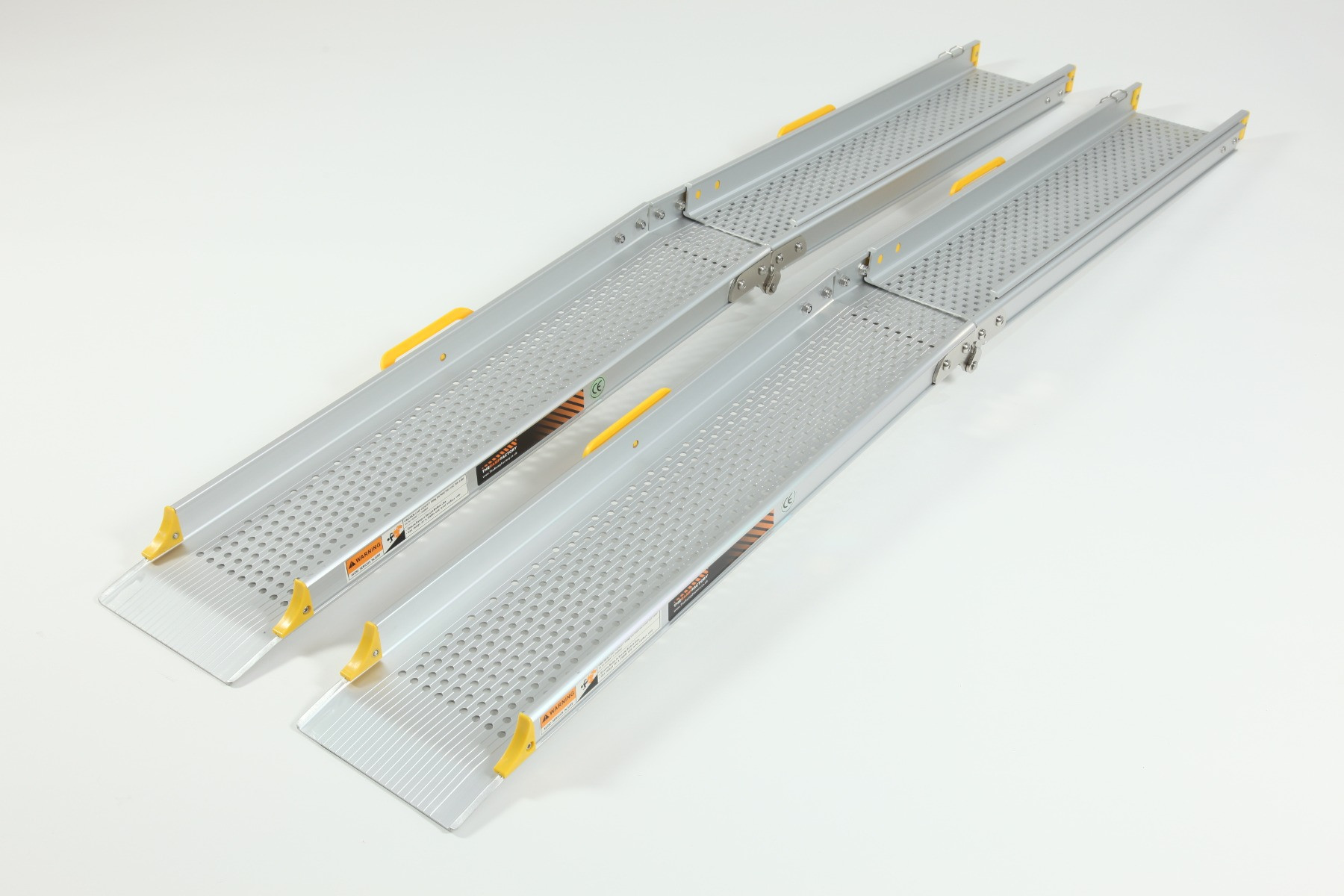

Dual Purpose Folding Telescopic Channel & Bridge Ramps 7ft - 10ft

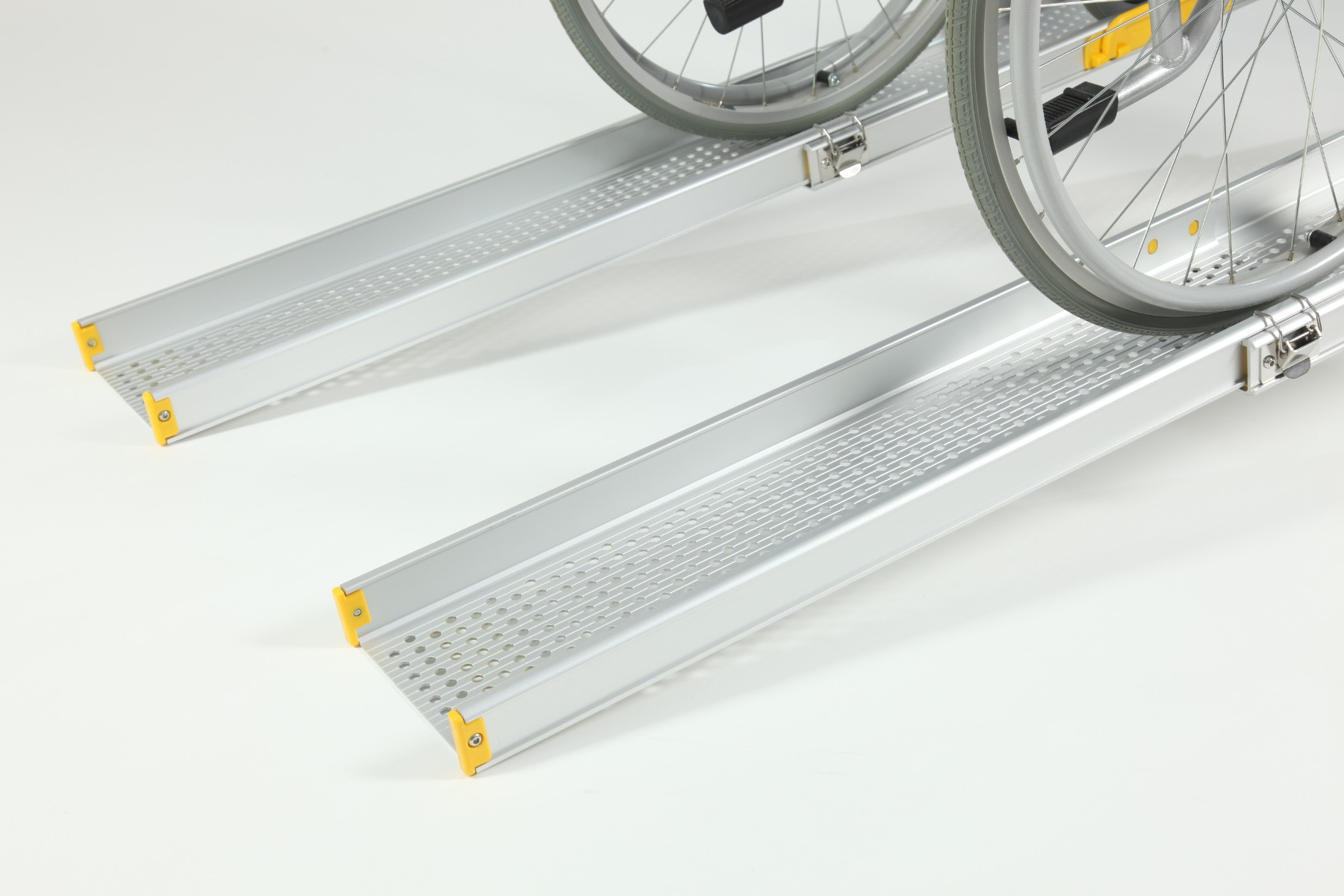

The Dual Purpose Folding Telescopic Channel & Bridge Ramps Combi provides unlimited flexibility and easy storage. The ramps are available from 7ft - 10ft and can be used at standard channel ramps or used to bridge thresholds with the folding hinge feature.
Wheelchair ramp bags available separately here.
Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.
The Ramp Factory have a wide range of channel ramps for manual wheelchairs such as the economy channel ramps, the telescopic channel ramps if you require a wheelchair ramp with a length up to 12ft or, the low profile channel ramp which is suitable for mobility scooters.
Please note that those channel ramps are ONLY suitable for manual wheelchairs.
- Maximum gradient = 1 in 6 although 1 in 8 is recommended
- Quick and easy to set up
- Lightweight, aerospace design

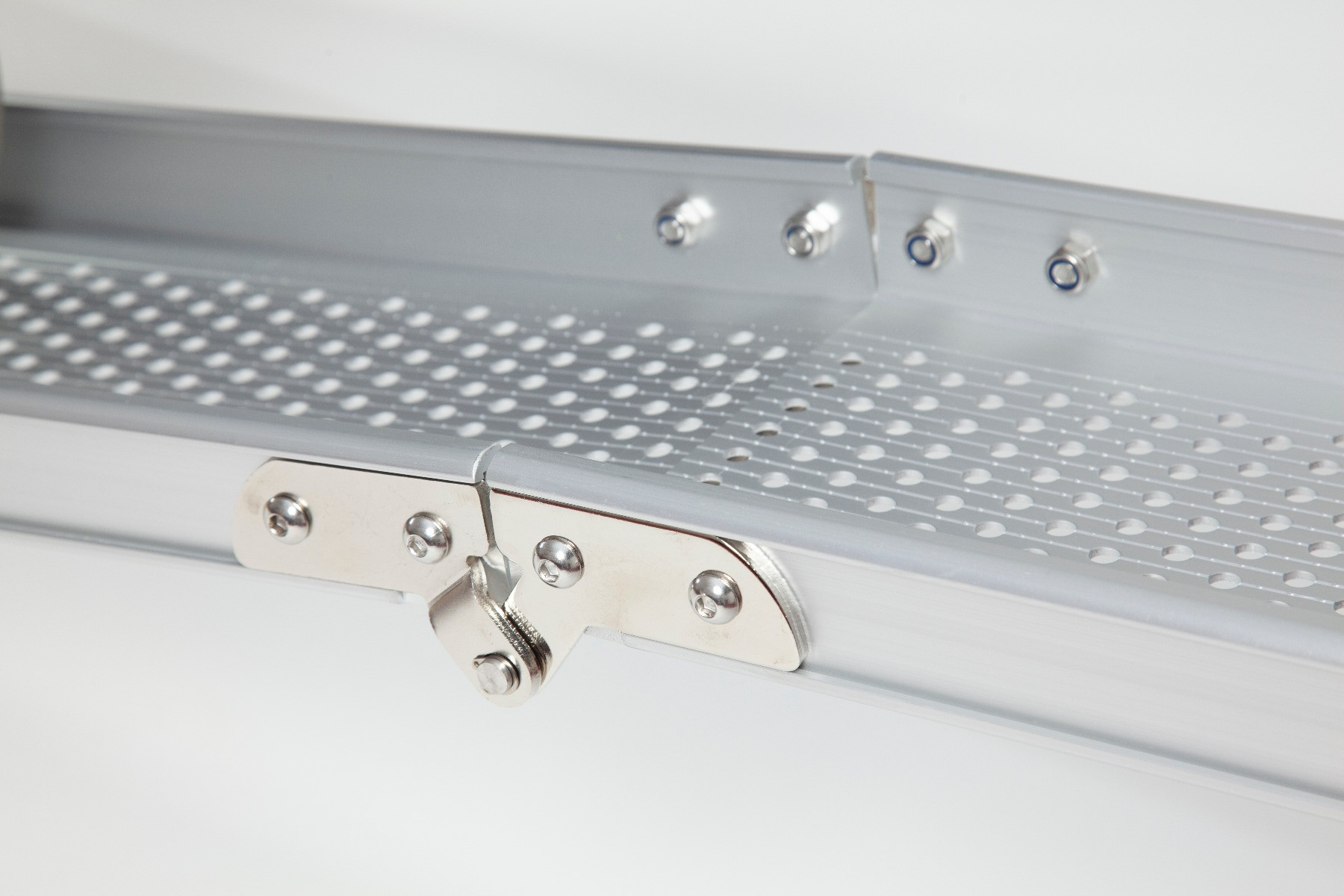

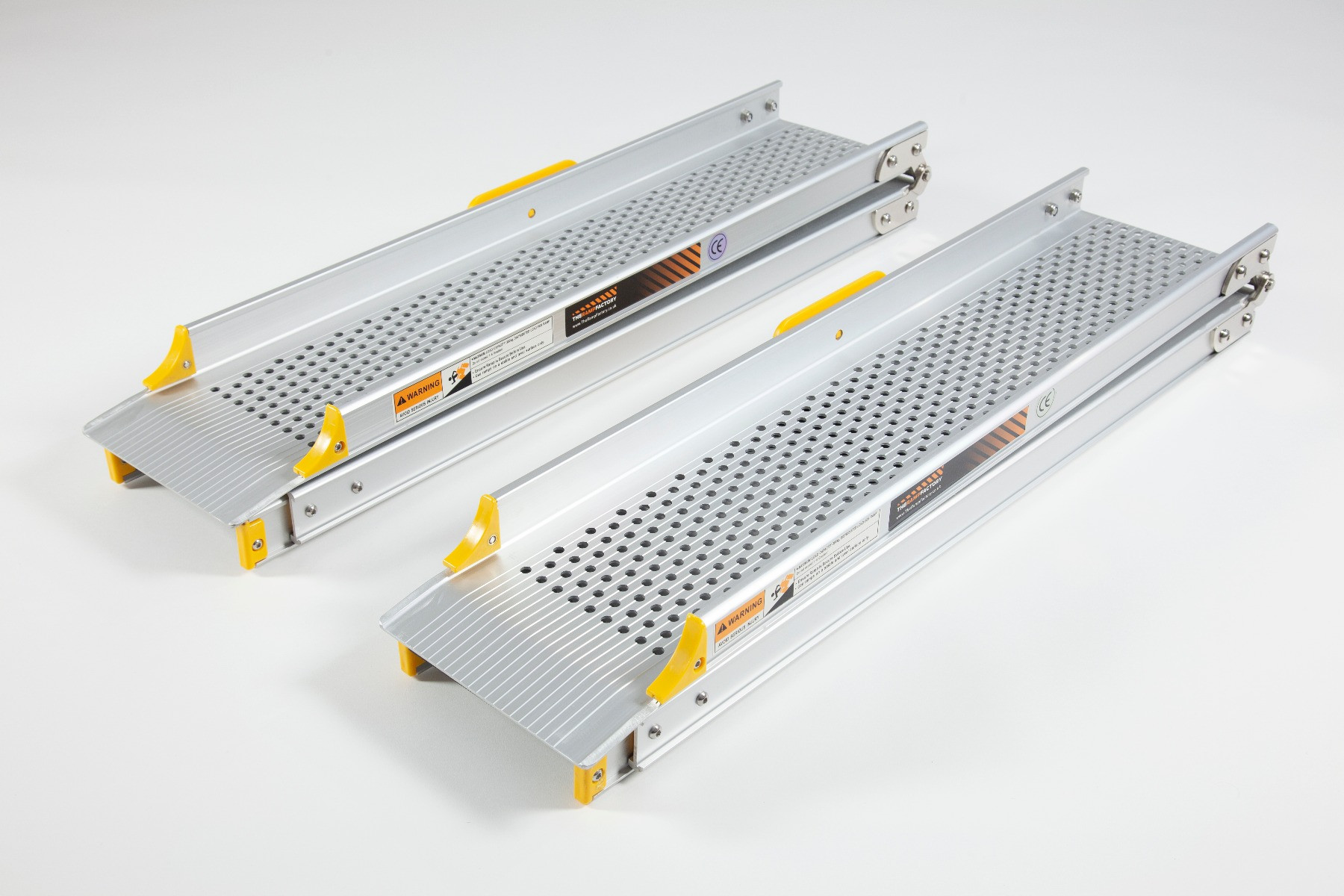

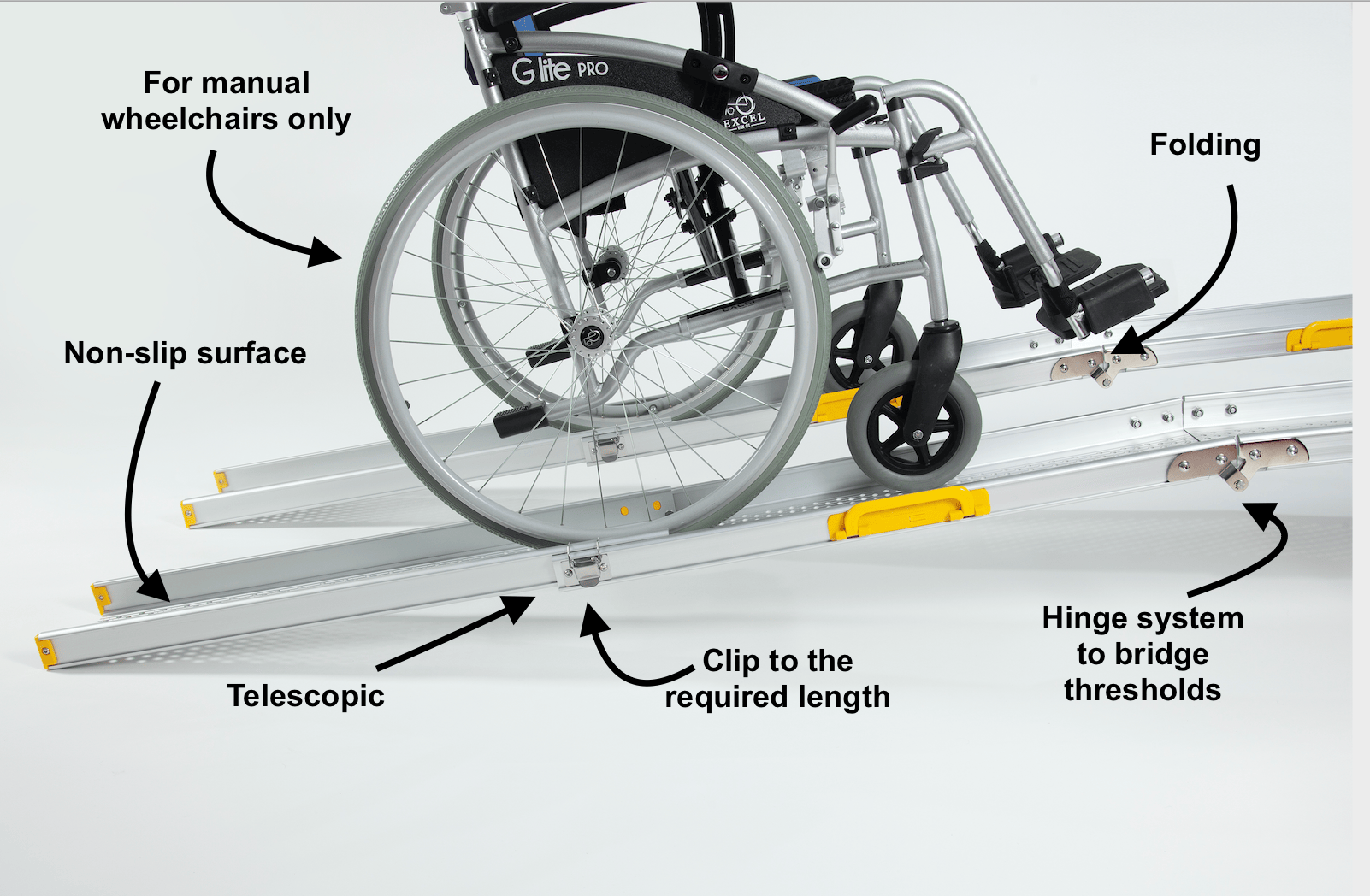

- Folding and telescopic features

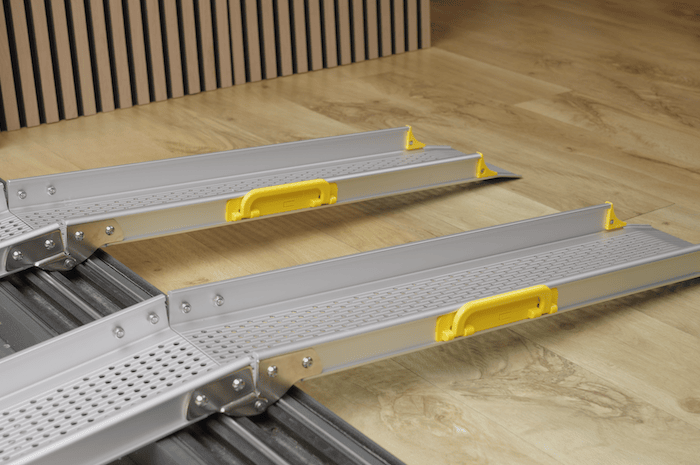

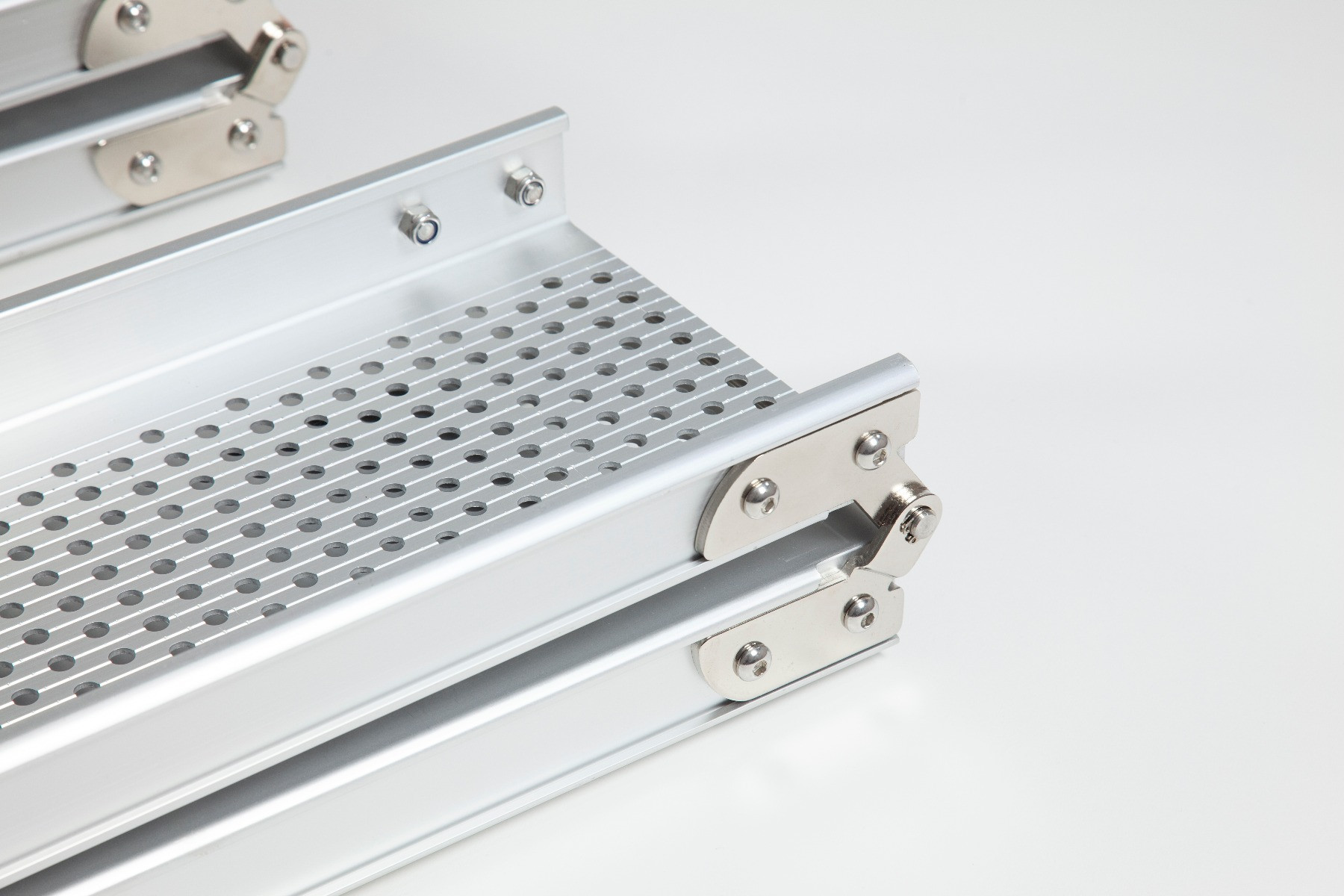

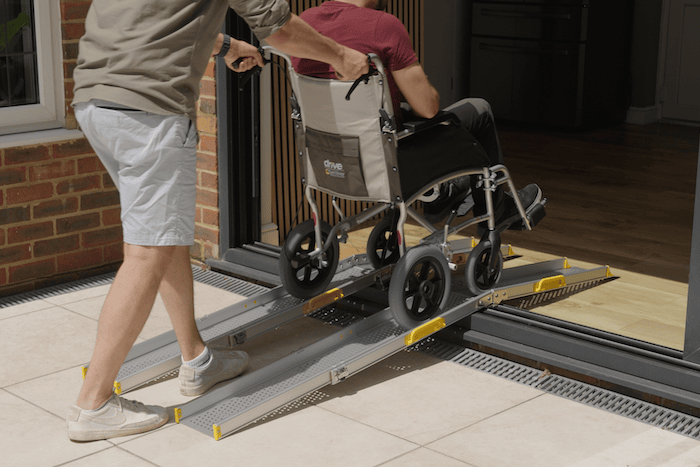

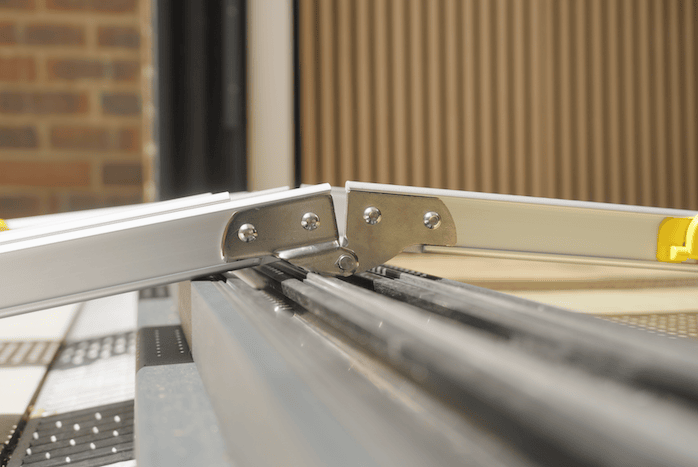

- Suitable for bridging thresholds with unequal levels on each side

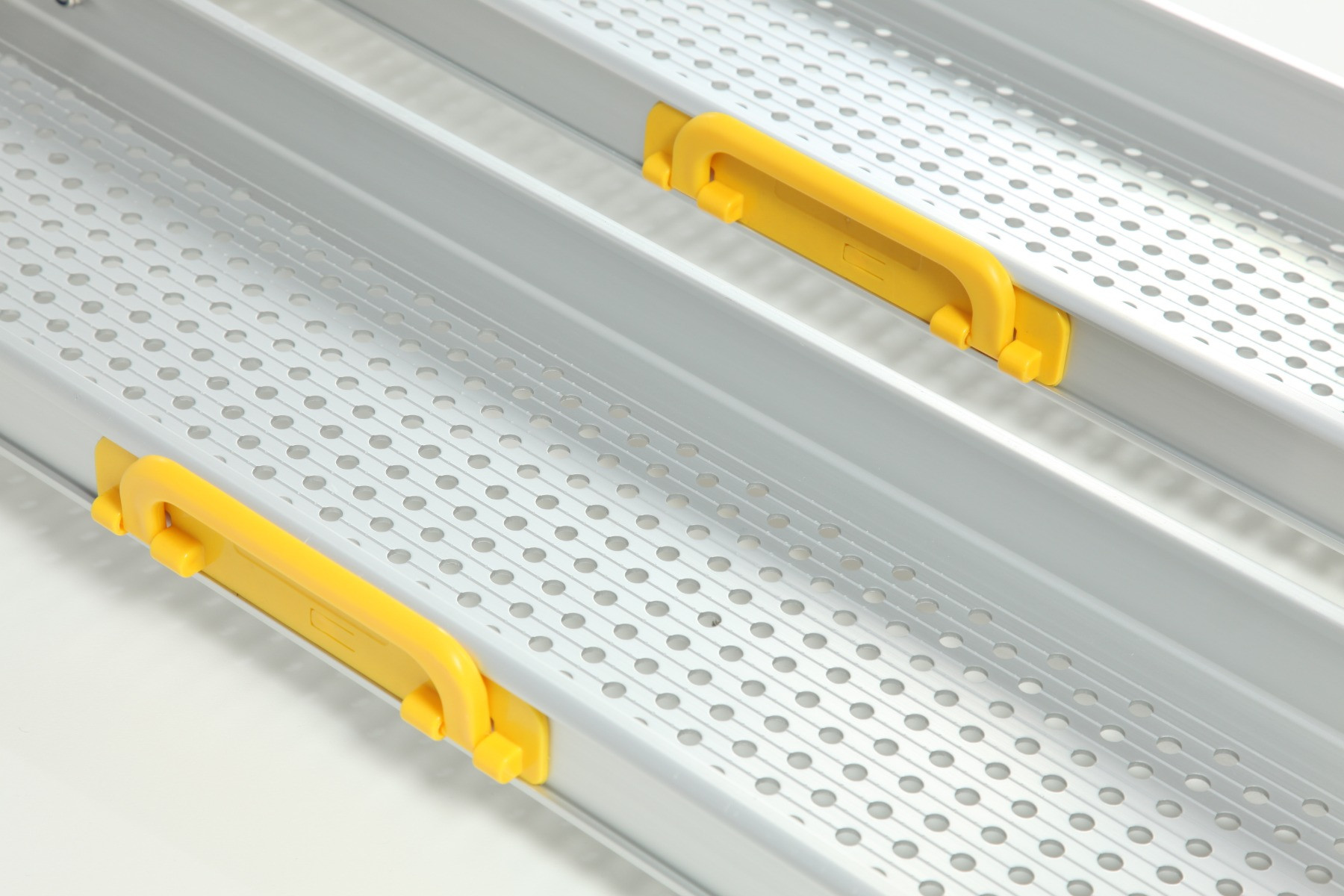

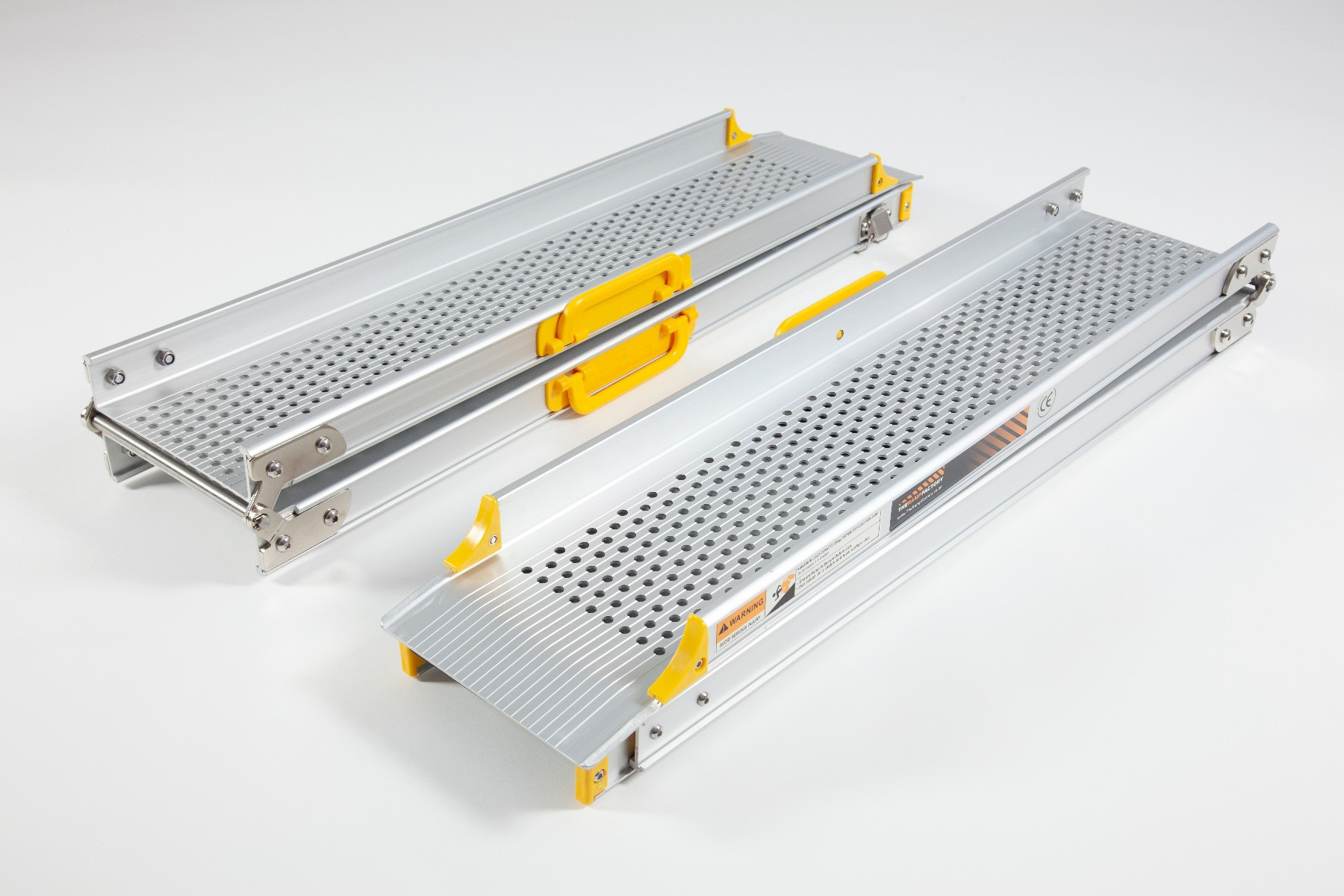

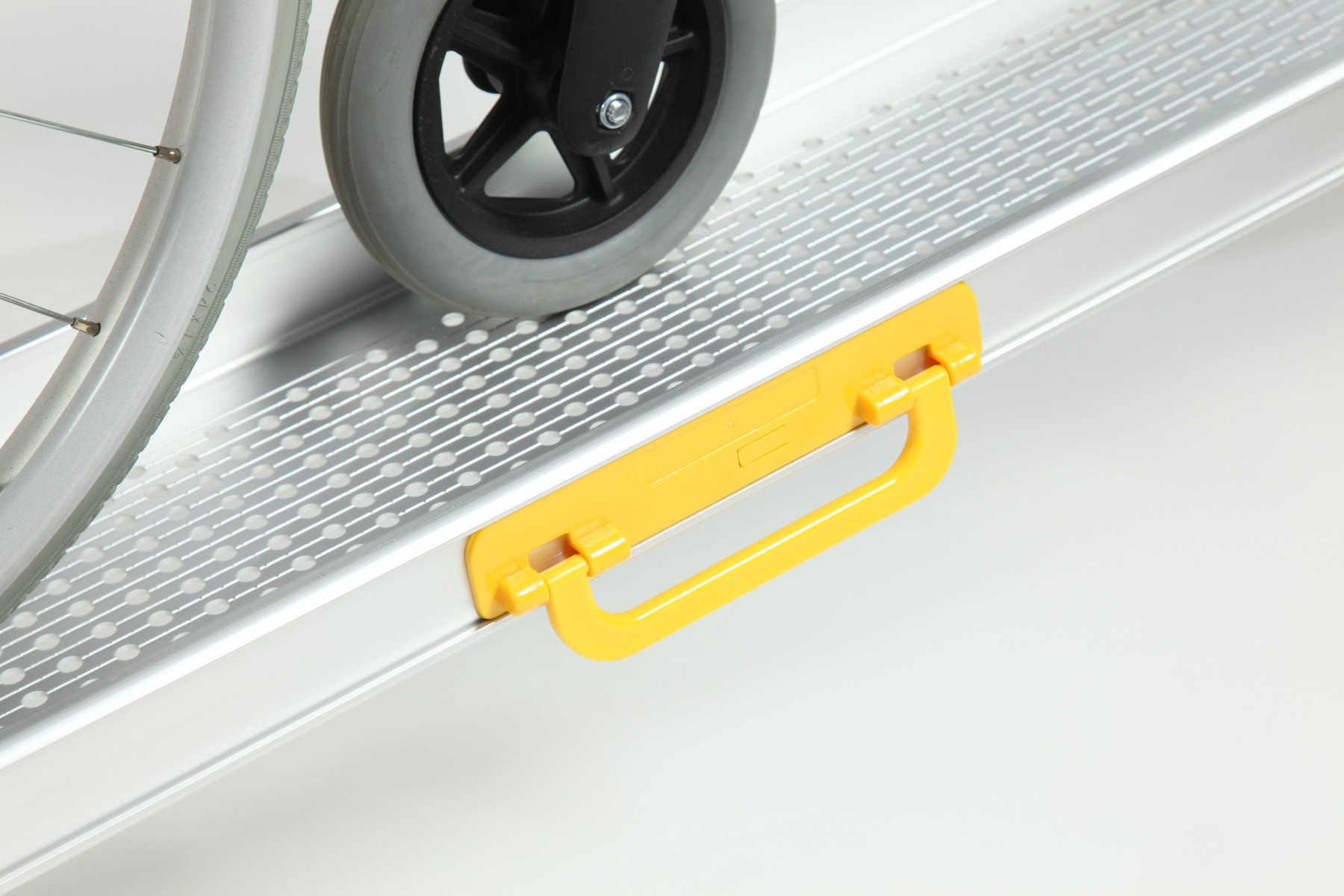

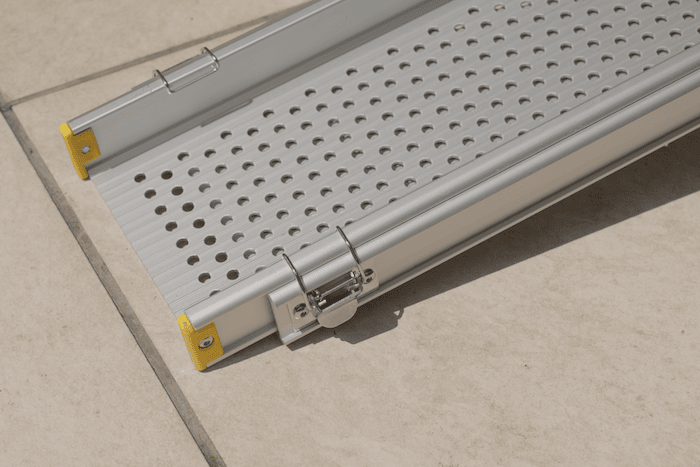

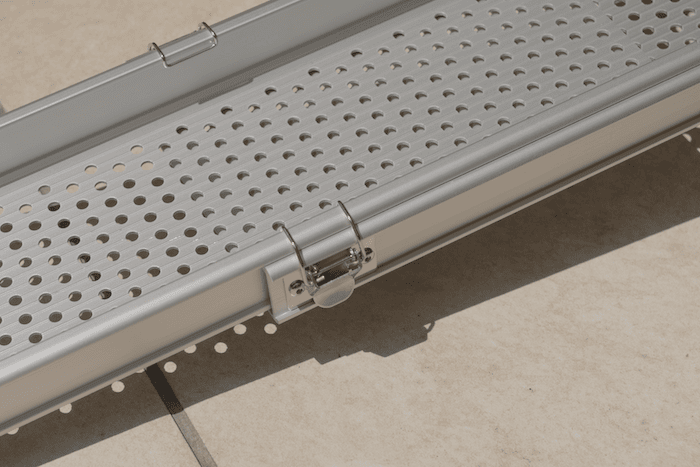

- Provided with carry handles and clips shut for easy storage

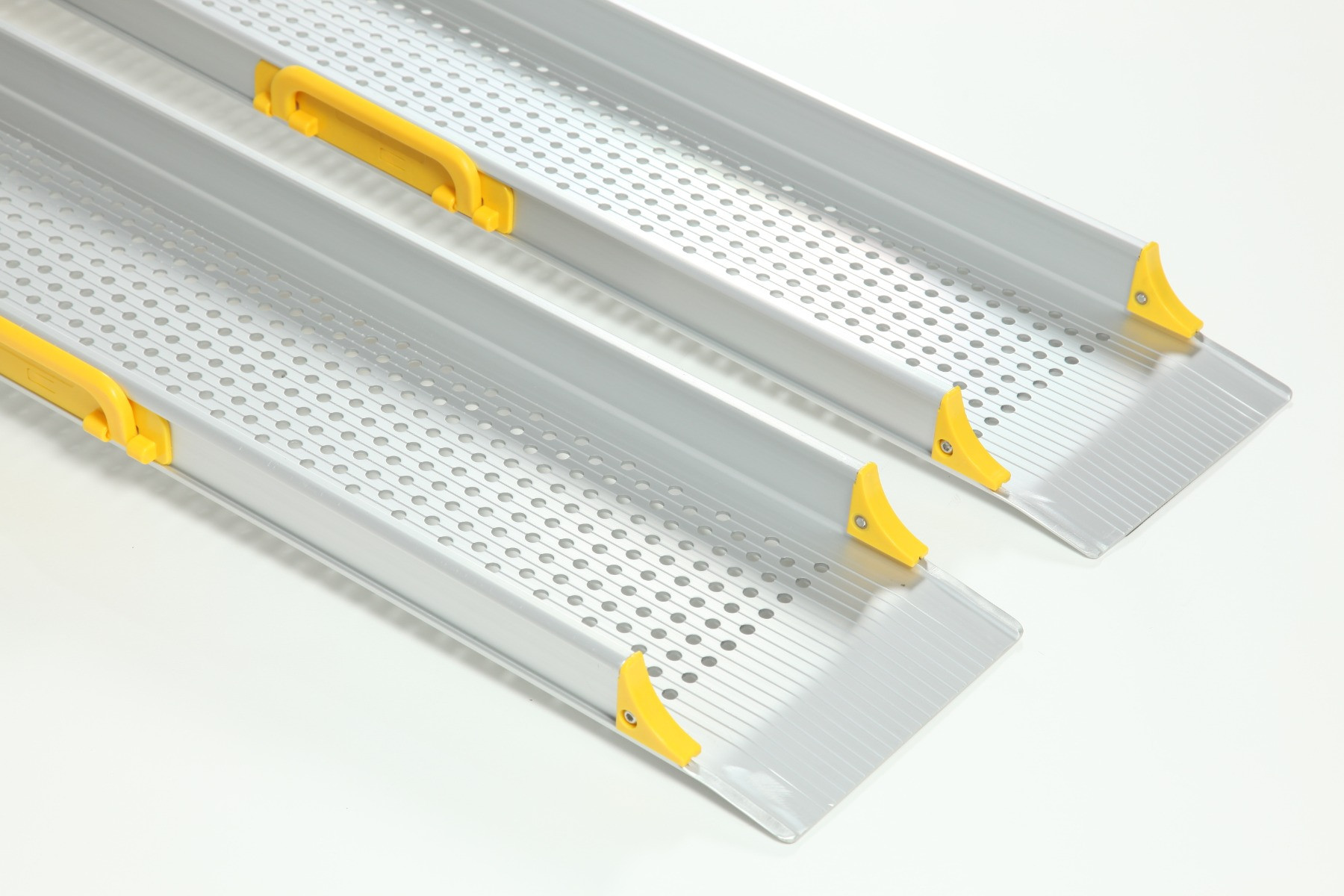

- Durable non-slip surface
- Rest on connection, to fit just rest on and start loading

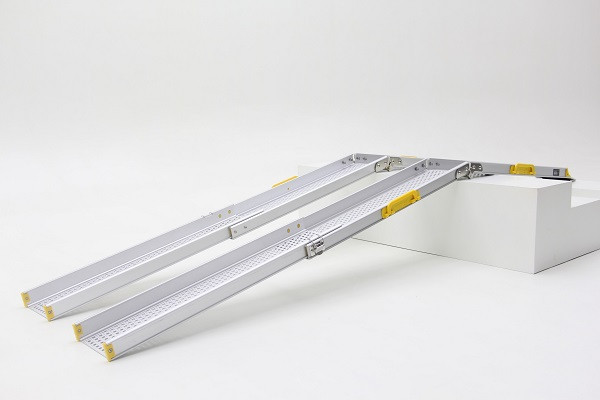

- Perfect for kerbs and steps
- Edges on each side of the ramp to prevent accidentally wheeling off
- Available in lengths of 7ft, 8ft and 10ft
- 45mm high walls
- Not suitable to be kept outside
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
-
These ramps are only suitable for use as mobility aids
Economy Channel Ramps Range
7ft
- Extended Length: 7ft/2100mm
- Folded Length (mm): 810
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 355mm
- Weight: 13kg
- Weight per ramp: 6.5kg
- Main ramp length: 4ft/1300mm
- Threshold ramp length: 2ft/800mm
8ft
- Extended Length: 8ft/2400mm
- Folded Length (mm): 900
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 405mm
- Weight: 15kg
- Weight per ramp: 7.5kg
- Main ramp length: 5ft/1500mm
- Threshold ramp length: 3ft/900mm
10ft
- Extended Length: 10ft/3000mm
- Folded Length (mm): 1100
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 505mm
- Weight: 19kg
- Weight per ramp: 9.5kg
- Main ramp length: 6ft/1900mm
- Threshold length ramp: 3ft/1100mm
SKU | TRP307-Channel |
---|---|
Capacity (kg) | 275 |
Height (mm) | 45 |
Length (ft) | 7-10 |
Length (mm) | 2133 - 3048 |
Max Load Height (mm) | 355 - 505 |
Weight (kg) | 13-19 |
Weight per Ramp (kg) | 6.5-9.5 |
Width (mm) | 210 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Manual Wheelchair | Yes |
Not Mobility Scooter Friendly | Yes |
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Ramp Length & Load Height
It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.
Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.
Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.
Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.
Which wheelchair ramp length? Use our ramp length calculator! Learn more
-
