Telescopic Wheelchair Ramps 6ft - 12ft

SKU
TRP107-channel-Multi
From £174.00 £145.00
In Stock
Only %1 left

ORDER NOW - For delivery on: Thursday, 12th December

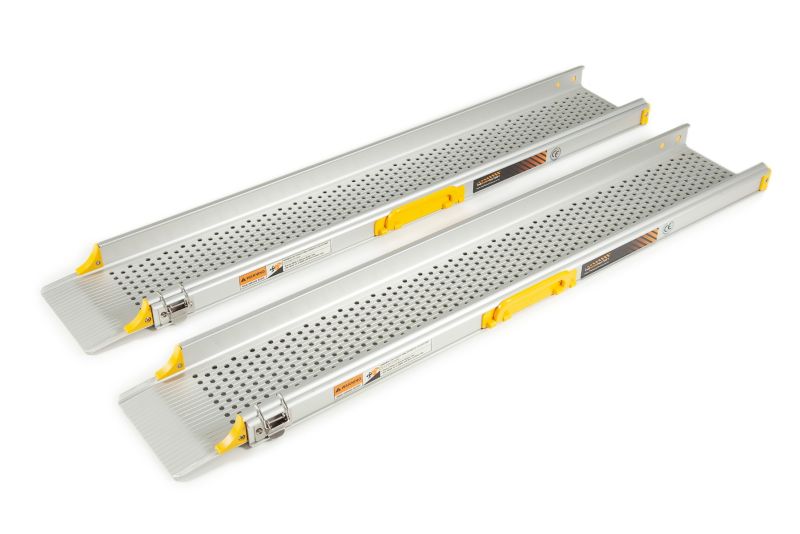

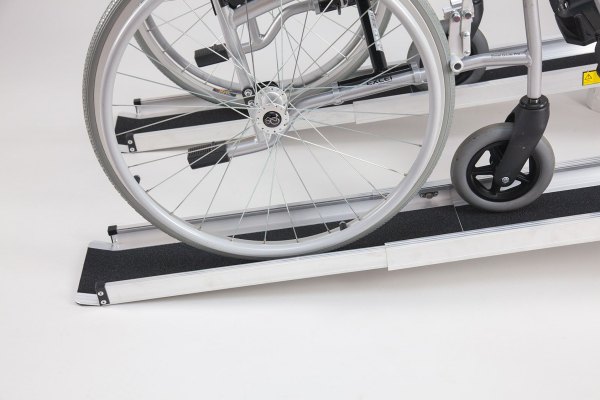

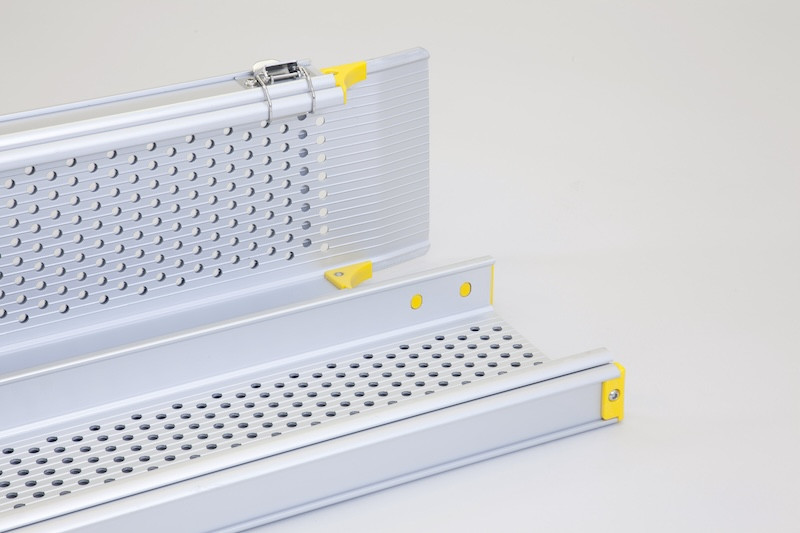

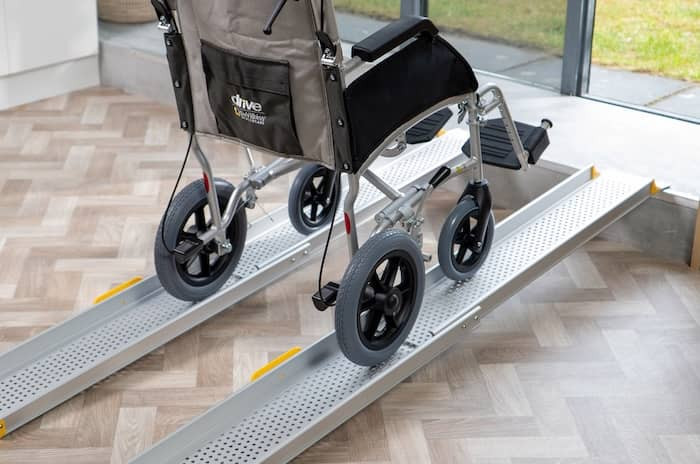

The Telescopic Economy Channel Ramps for users that need more flexibility and easy storage. The ramps are available from 6ft - 12ft and they are extremely versatile which makes them great for home and commercial use.

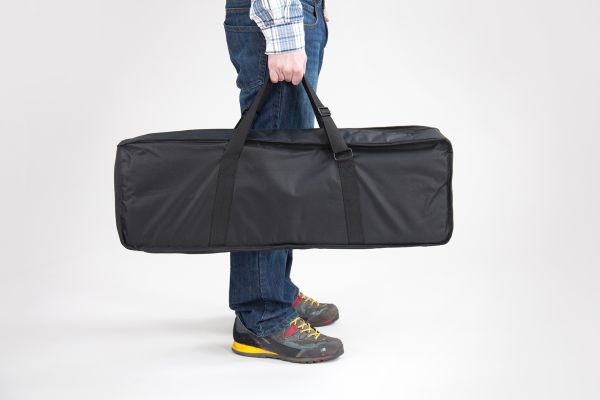

Wheelchair ramp bags available separately here.

Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.

The Ramp Factory have a wide range of channel ramps for manual wheelchairs such as the economy channel ramps, the dual purpose channel ramps, if you require a threshold and exterior ramp or, the low profile channel ramp which is suitable for mobility scooters.

Channel Ramps FAQ's

Description

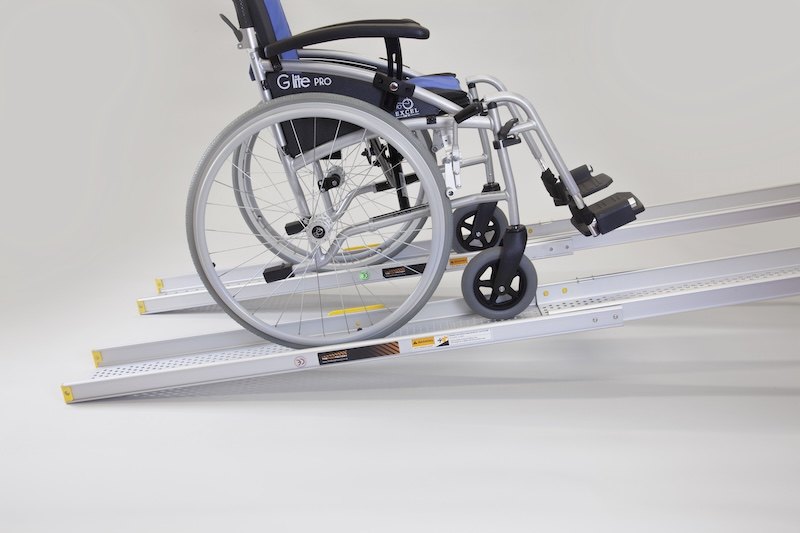

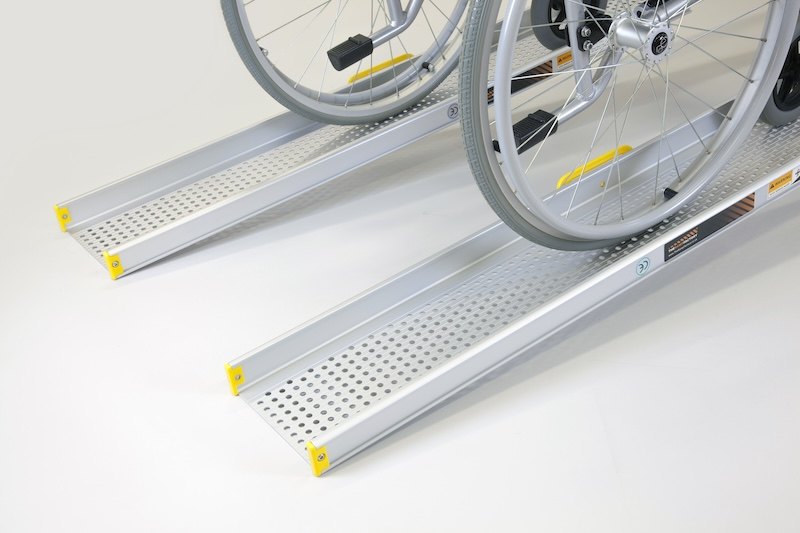

Please note that those channel ramps are ONLY suitable for manual wheelchairs.

    • Maximum gradient = 1 in 6 although 1 in 8 is recommended

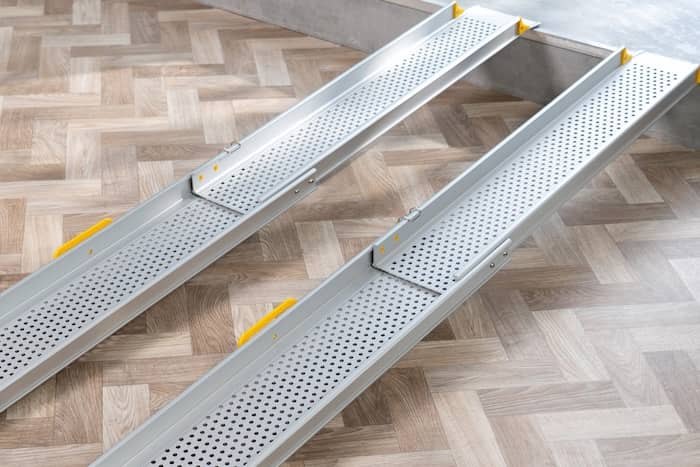

    • Clip down to use at shorter lengths where space is limited (please note the 12ft ramp can only be used at 12ft)

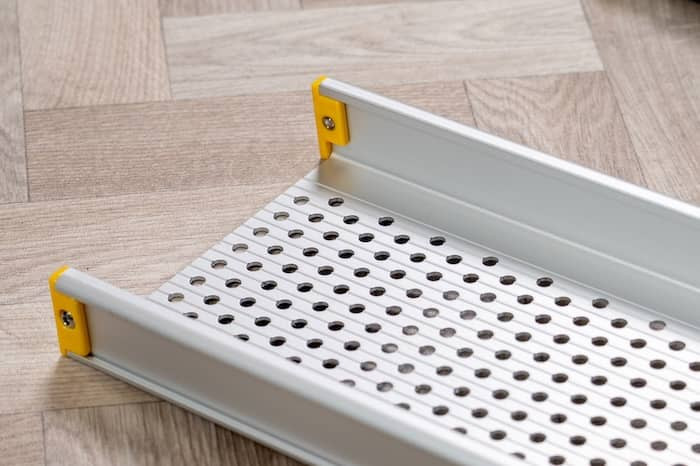

    • 5cm High Walls
    • Quick and easy to set up

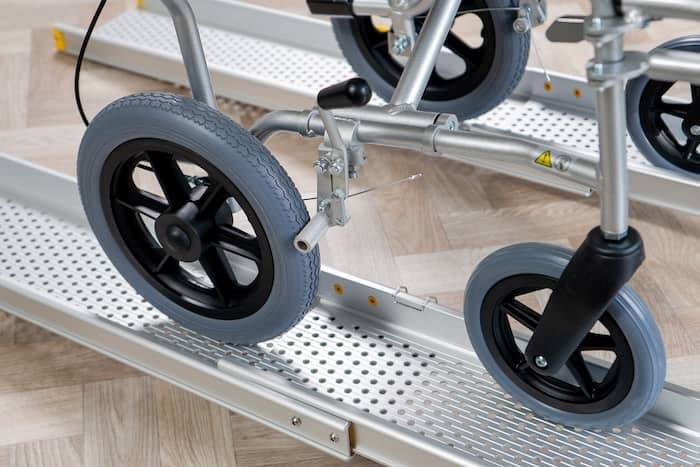

    • Durable non-slip surface

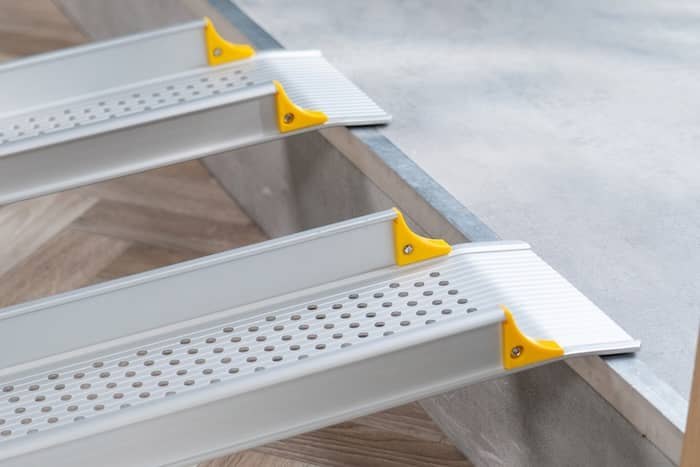

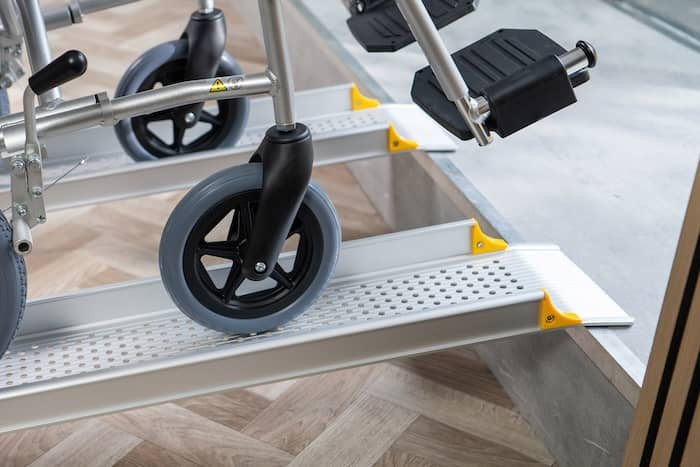

    • Rest on connection, to fit just rest on and start loading

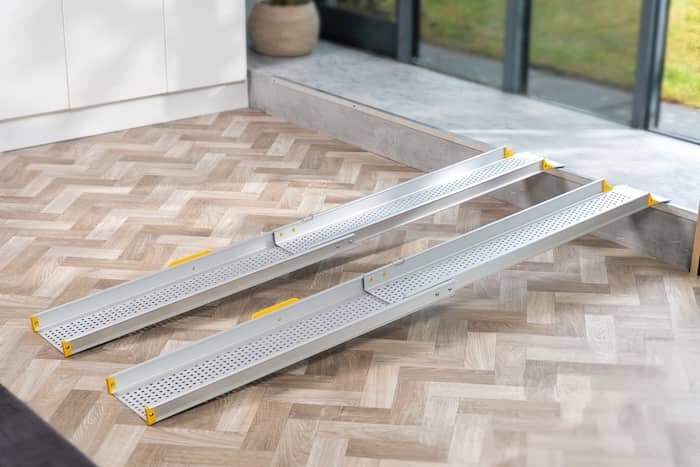

    • Perfect for kerbs and steps

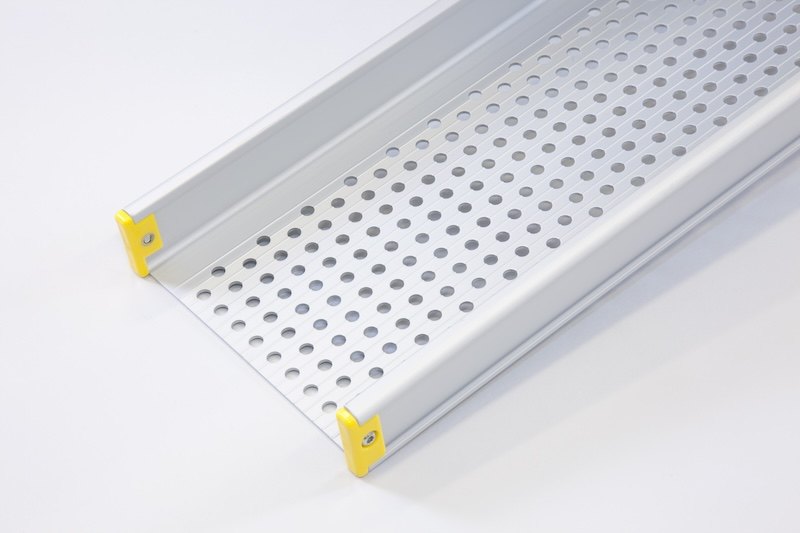

    • Edges on each side of the ramp to prevent accidentally wheeling off
    • 275kg capacity
    • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • These ramps are only suitable for use as mobility aids

Economy Channel Ramps Range

6ft

  • Extended Length: 6ft(1820mm)
  • 2 Part Ramp
  • Min. Length (mm): 1045
  • Weight per ramp (kg): 6
  • Capacity (kg): 275
  • Total width (mm): 210
  • Max. load height (mm): 300

7ft

  • Extended Length: 7ft(2125mm)
  • 2 Part Ramp
  • Min. Length (mm): 1195
  • Weight per ramp (kg): 7
  • Capacity (kg): 275
  • Total width (mm): 210
  • Max. load height (mm): 355

8ft

  • Extended Length: 8ft(2430mm)
  • 2 Part Ramp
  • Min. Length (mm): 1350
  • Weight per ramp (kg): 8
  • Capacity (kg): 275
  • Total width (mm): 210
  • Max. load height (mm): 405

10ft

  • Extended Length: 10ft(2990mm)
  • 3 Part Ramp
  • Min. Length (mm): 1270
  • Weight per ramp (kg): 10
  • Capacity (kg): 275
  • Total width (mm): 190
  • Max. load height (mm): 505

12ft

Please note this ramp can only be used at 12ft

  • Extended Length: 12ft(3595mm)
  • 3 Part Ramp
  • Stored. Length (mm): 1550
  • Weight per ramp (kg): 11.5
  • Capacity (kg): 275
  • Total width (mm): 190
  • Max. load height (mm): 600

Video

Details
SKUTRP107-channel-Multi
Product Safety GPSRpopup_gpsr_importer
Capacity (kg)275
Internal Width (mm)162
Length (ft)6 - 12
Length (mm)1830 - 3650
Max Load Height (mm)600
Weight (kg)6 - 11.5
Width (mm)210
One Year WarrantyYes
Easy to FitYes
Manual WheelchairYes
Not Mobility Scooter FriendlyYes
