Heavy Duty 2 Part Folding van ramp 480mm wide

From £2,124.00 £1,770.00
Built to Order
Only %1 left
Ask A Question

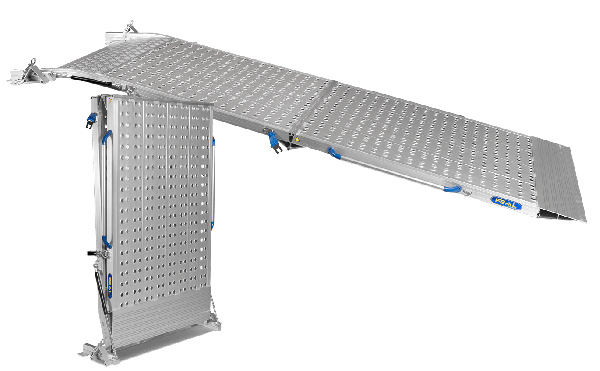

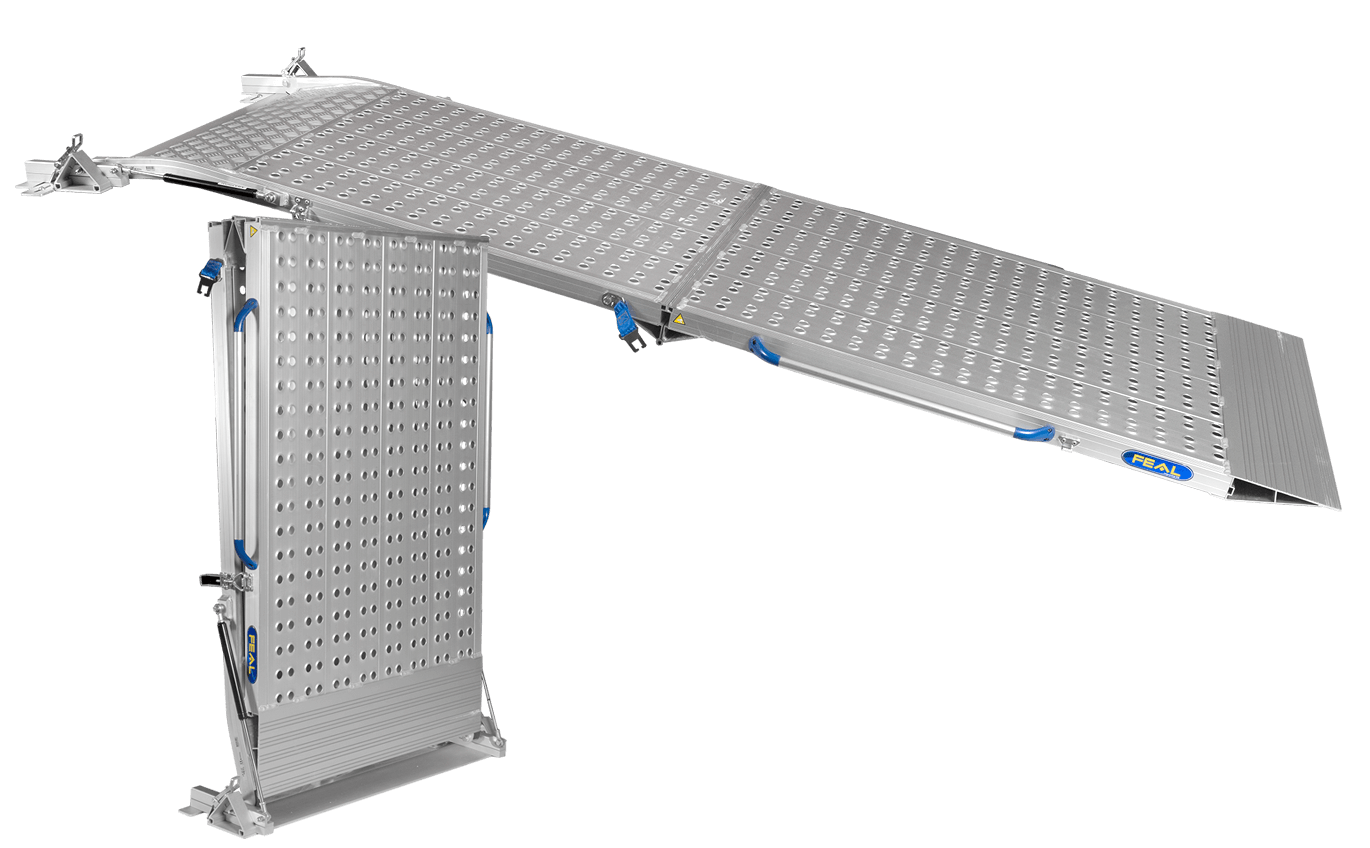

Heavy Duty 2 Part Folding van ramp 480mm wide


Our Heavy Duty 2 Part Folding van ramp is 480mm wide with a perforated surface. The ramps are made from durable material that can easily be installed in the back of your vehicle. They are available in a variety of lengths and to fit a wide range of vehicles.

Fixed Folding Van Ramps FAQ's

  • Bolt Down
  • Easy to Fit
  • European Made
  • One Year Warranty

Standard Installation

Mounting Swivel base

If you're unsure which ramp will fit into your vehicle; see our handy Vehicle Compatibility Checklist.

Features include:

  • 650kg and 800kg capacity available
  • Excellent grip from perforated anti-slip surface
  • Easy to install: fully fitted with only two clips
  • Includes fixing kit and brackets
  • Installation time of less than 30 minutes
  • Lightweight, strong and durable
  • Robot welded for solid, strong and durable construction
  • Easily installed on several vehicles of the same size
  • Lateral safety edges to prevent accidentally wheeling off
  • Bypasses most bumpers, crash bars, steps and tow bars
  • Can be used to connect two vehicles
  • Can function as a table or workbench
  • Customised Lengths, Widths and Capacities available. Please contact us for more information
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty 2 Part Folding van ramp 480mm wide with perforated Surface


  • Length (mm): 1900
  • Folded Height (mm): 1070
  • Max Load Height (mm): 450*
  • Internal Width (mm): 480
  • Weight per ramp (kg): 18
  • Capacity (kg): 800


  • Length (mm):2140
  • Folded Height (mm): 1190
  • Max Load Height (mm): 500*
  • Internal Width (mm): 480
  • Weight per ramp (kg): 20
  • Capacity (kg): 800


  • Length (mm): 2380
  • Folded Height (mm): 1310
  • Max Load Height (mm): 550*
  • Internal Width (mm): 480
  • Weight per ramp (kg): 23
  • Capacity (kg): 650


  • Length (mm): 2820
  • Folded Height (mm): 1490
  • Max Load Height (mm):600*
  • Internal Width (mm): 480
  • Weight per ramp (kg): 28
  • Capacity (kg): 650

* Max. load height may vary depending on the vehicle

Capacity (kg) 800
Folded Height (mm) 920- 1490
Internal Width (mm) 480
Length (mm) 1900 - 2820
Surface en Maille
Weight per Ramp (kg) 18- 28
One Year Warranty Yes
Bolt Down Yes
Easy to Fit Yes
European Made Yes
