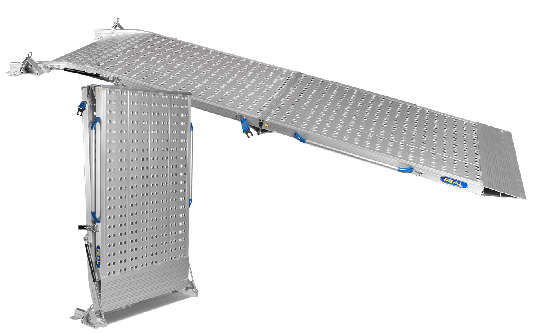

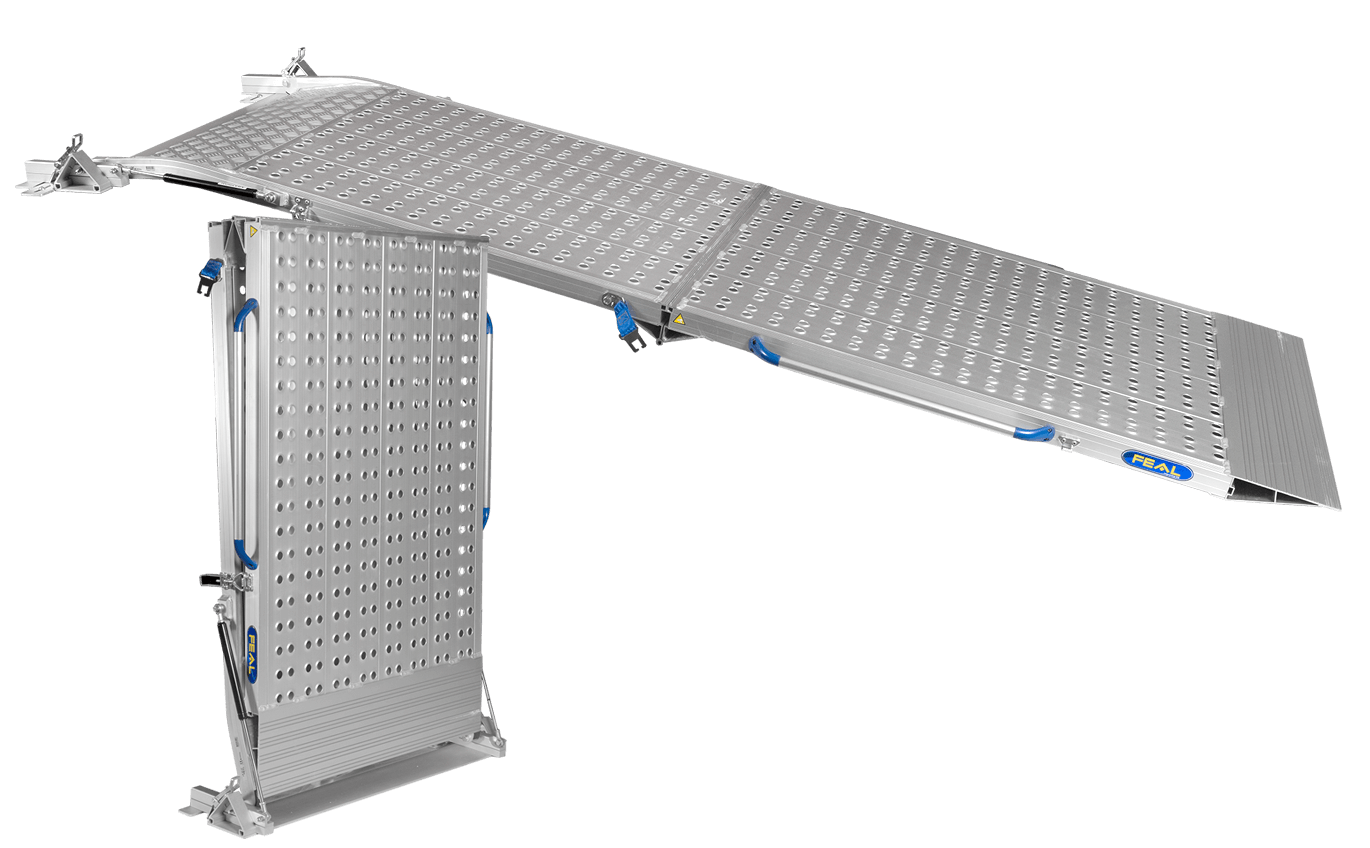

Heavy Duty 2 Part Folding van ramp 690mm wide

SKU

TRP-LR69

Our Heavy Duty 2 Part Folding van ramp is 690mm wide with a perforated surface. The ramps are made from durable material that can easily be installed in the back of your vehicle. They are available in a variety of lengths and to fit a wide range of vehicles.

From £2,388.00 £1,990.00

Built to Order

Only %1 left

Fixed Folding Van Ramps FAQ's

Description

Standard Installation

Mounting Swivel base

Please note; the yellow and black mounting plate in the "Mounting Swivel Base" video is not included. This is for demonstration purposes only.

If you're unsure which ramp will fit into your vehicle; see our Vehicle information checklist. Please add the information and send this to us and we will confirm a suitable option.

Features include:

650kg and 800kg capacity available
Excellent grip from perforated anti-slip surface
Easy to install: fully fitted with only two clips
Includes fixing kit and brackets
Installation time of less than 30 minutes
Lightweight, strong and durable
Robot welded for solid, strong and durable construction
Easily installed on several vehicles of the same size
Lateral safety edges to prevent accidentally wheeling off
Bypasses most bumpers, crash bars, steps and tow bars
Can be used to connect two vehicles
Can function as a table or workbench
Customised Lengths, Widths and Capacities available. Please contact us for more information
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty 2 Part Folding van ramp 690mm wide with perforated Surface

TRP-LR069-19

Length (mm): 1900
Folded Height (mm): 1070
Max Load Height (mm): 450*
Internal Width (mm): 690
Weight per ramp (kg): 25
Capacity (kg): 800

TRP-LR069-21

Length (mm):2140
Folded Height (mm): 1190
Max Load Height (mm): 500*
Internal Width (mm): 690
Weight per ramp (kg): 28
Capacity (kg): 800

TRP-LR069-23

Length (mm): 2380
Folded Height (mm): 1310
Max Load Height (mm): 550*
Internal Width (mm): 690
Weight per ramp (kg): 31
Capacity (kg): 650

TRP-LR069-27

Length (mm): 2820
Folded Height (mm): 1490
Max Load Height (mm): 700*
Internal Width (mm): 690
Weight per ramp (kg): 35
Capacity (kg): 650

* Max. load height may vary depending on the vehicle

Details

SKU	TRP-LR69
Capacity (kg)	800
Folded Height (mm)	670 - 1350
Internal Width (mm)	690
Length (mm)	1900 - 2820
Surface	Mesh
Total Width (mm)	795
Weight per Ramp (kg)	25- 35
One Year Warranty	Yes
Bolt Down	Yes
Easy to Fit	Yes
European Made	Yes
