Joining support for wheelchair ramp kit with handrails

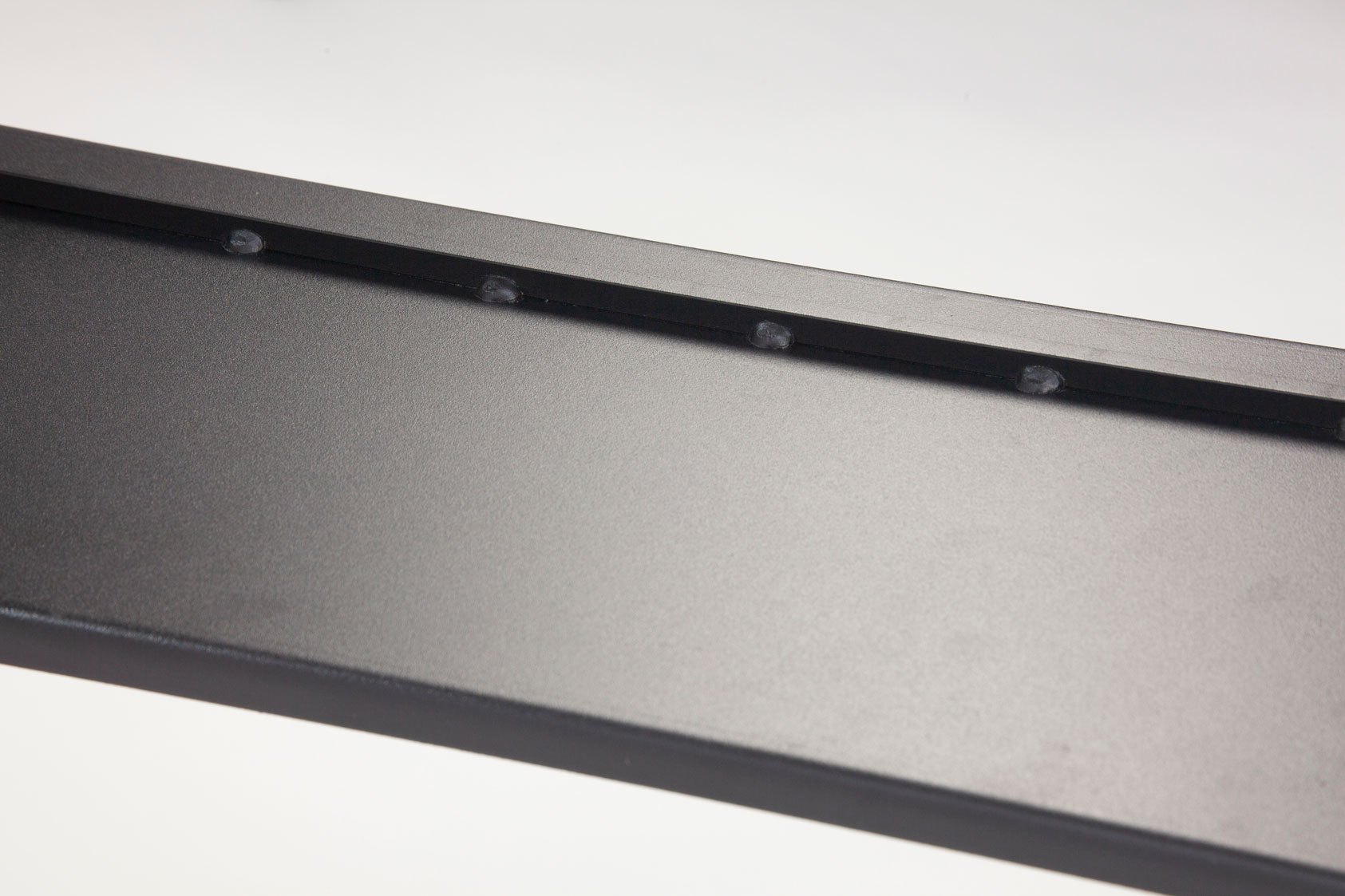

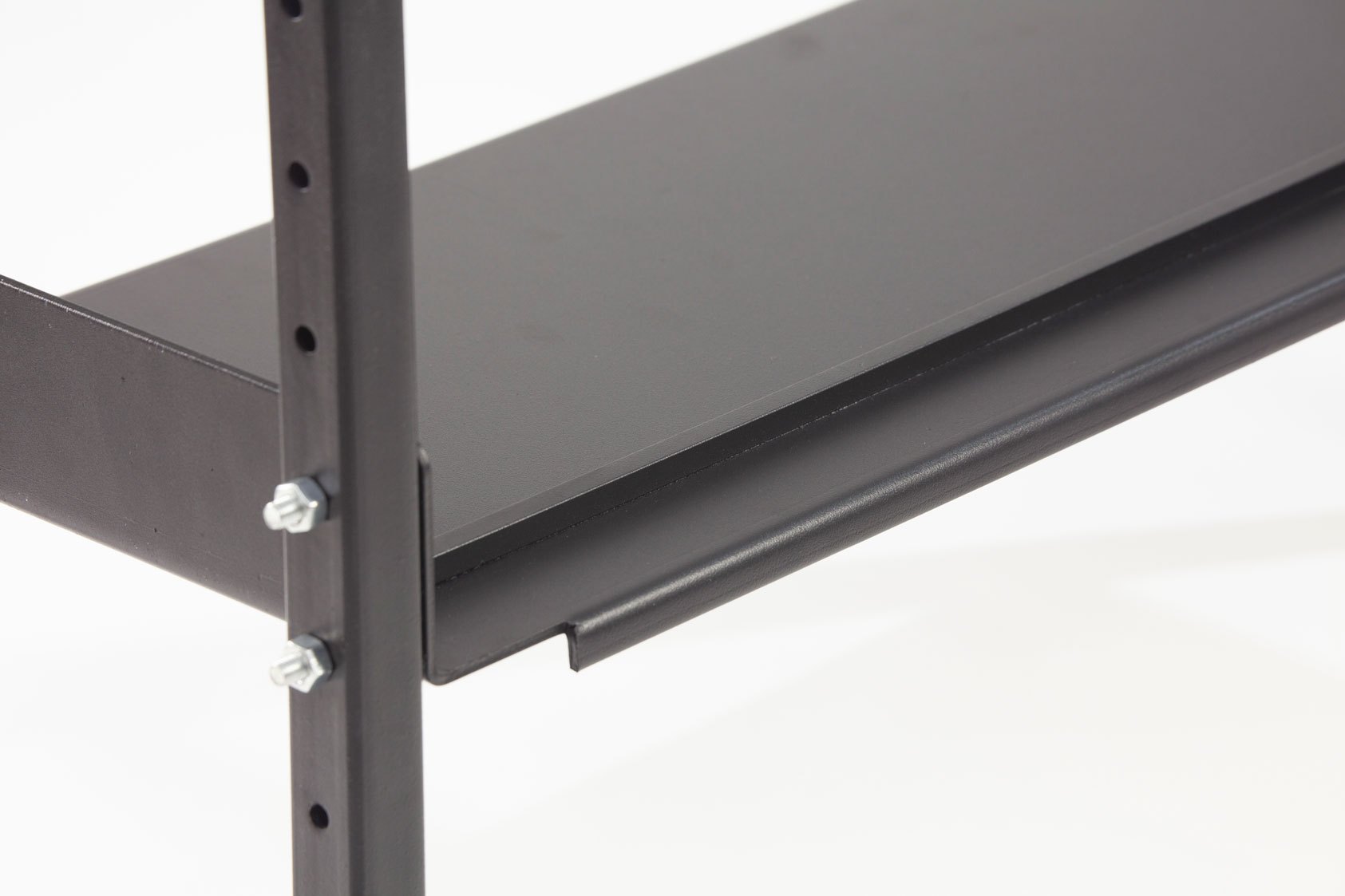

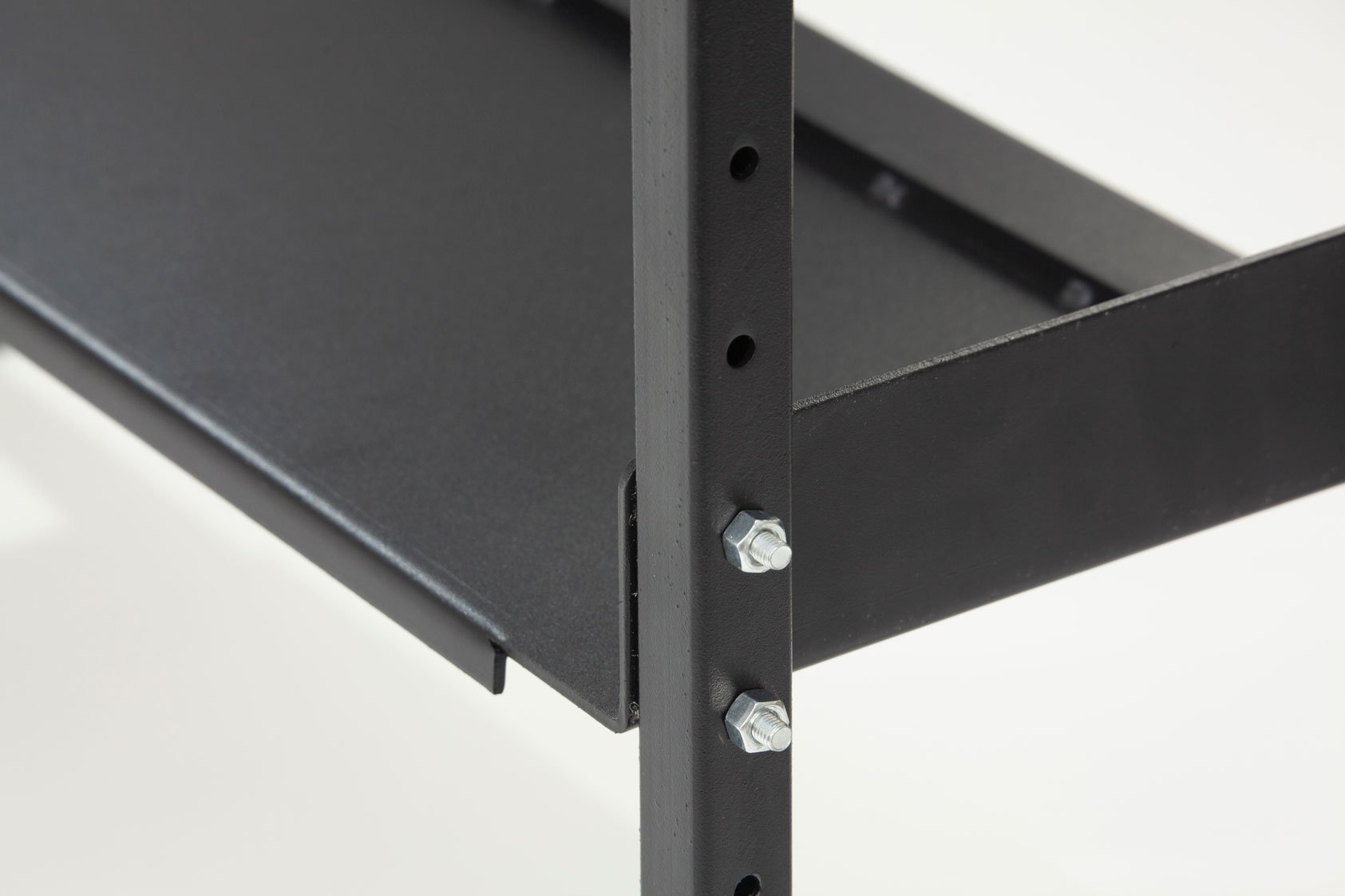

Wheelchair going up wheelchair ramps with joining support Joining support sizes Wheelchair ramp with handrails joining support Joining support line drawing Manual wheelchair on wheelchair ramps Joining support connecting two wheelchair ramps together joining support close up Close up of the joining support  Wheelchair Ramps connecting with joining support Joining support in place adjustable joining support for wheelchair ramps Joining support in parts Black joining support Joining support for wheelchair ramp kit with handrails Legs of joining support Wheelchair going up two ramps connected by black joining support Joining support connection two aluminium ramps Fixings on the adjustable joining support Joining support to connect two wheelchair ramps joining support holding two ramps Adjustable joining support joining support connecting two ramps joining support adjustable height settings Pin to hold ramps to joining support Two wheelchair ramps one with handrails Manual wheelchair by handrails
  • Bolt Down
  • Easy to Fit
  • Electric Wheelchair
  • Manual Wheelchair
  • Mobility Scooter
  • One Year Warranty
  • Leave Outside

Joining Support for TRP-WR ramps

SKU
TRP-WR-JS
£156.00 £130.00
36 In stock at our warehouse

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

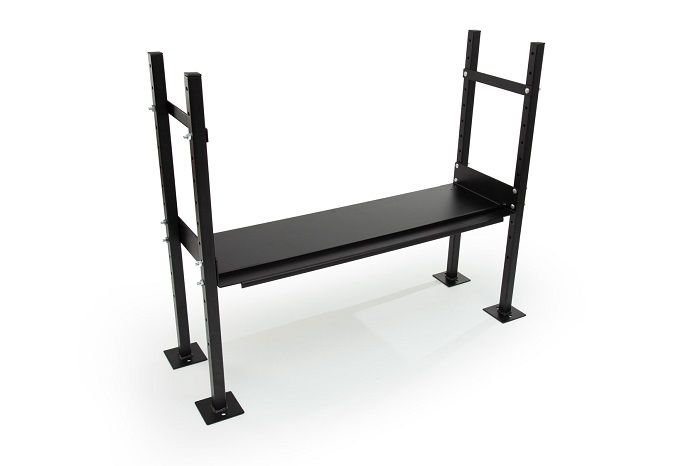

The Ramp Factory's joining support allows two ramps to be joined together to make a longer ramp. This handy support negates the need for longer, more expensive, custom ramps. The Ramp Factory's joining support is suitable for manual wheelchairs, electric wheelchairs and mobility scooters.

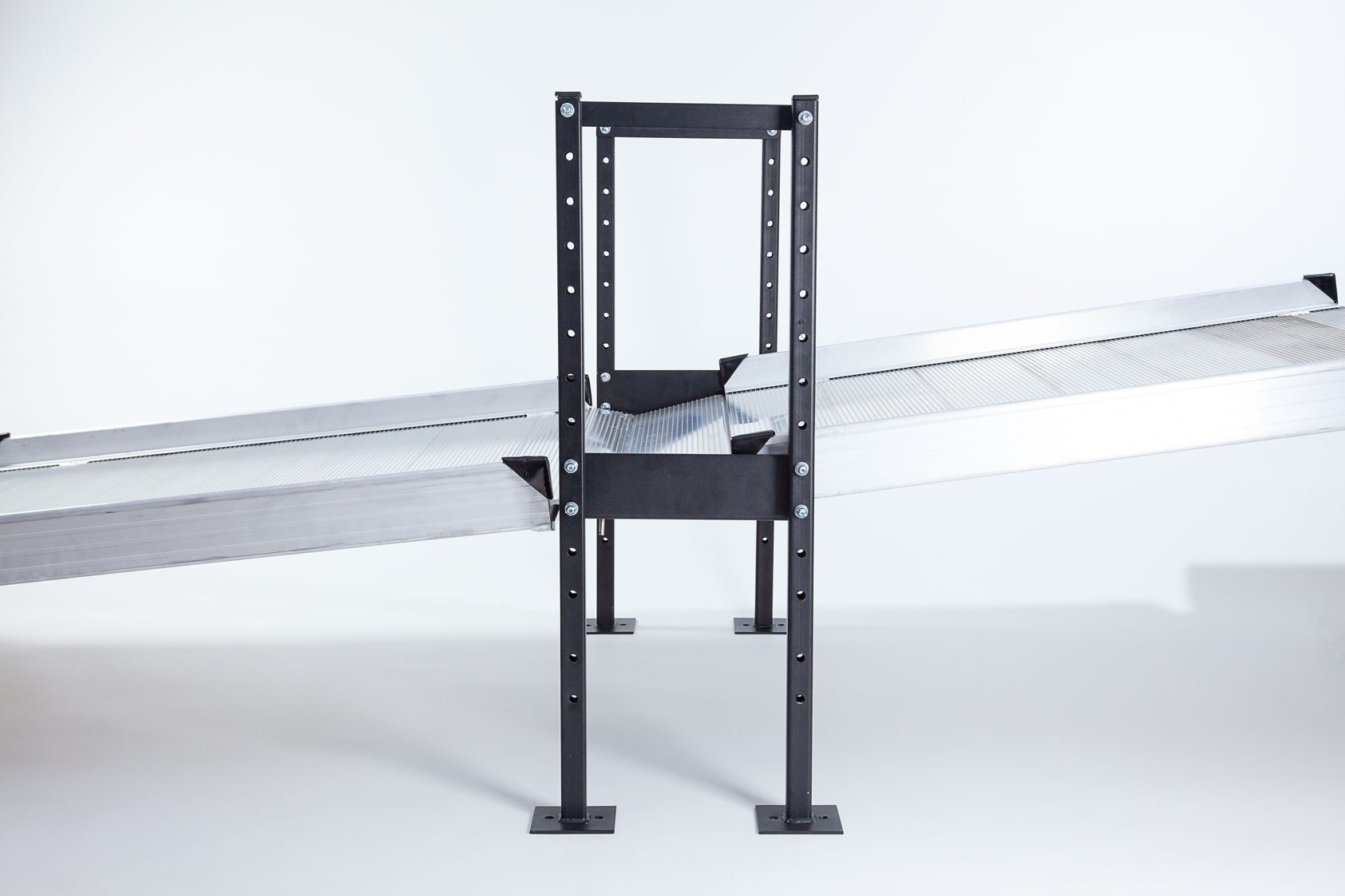

Our ramp joining support which is for use with our TRP-WR ramps. This allows two WR ramps to be joined together to make a longer ramp section. Only suitable for use with our disabled access ramps from the wheelchair ramps with handrails.

Fixings to fix support to ground NOT included.

Description

Our ramp joining supports are the Innovative, portable, lightweight and convenient solution to the need for a longer ramp. They allow you to join together two (or more) of our wheelchair TRP-WR range ramps , creating a longer ramp and allowing access to higher steps.

An easy user guide can be seen here.

  • Fully adjustable
  • Set to heights between 330mm - 825mm
  • Easy to assemble
  • 21kg
  • Strong with a 350kg capacity
  • Pre-drilled holes to allow the joining support to be secured to the ground (no fixings provided)
  • Please note as the minimum height the ramp can be set to is 330mm, the minimum ramp length which can be used from the joining support to ground level is 8ft

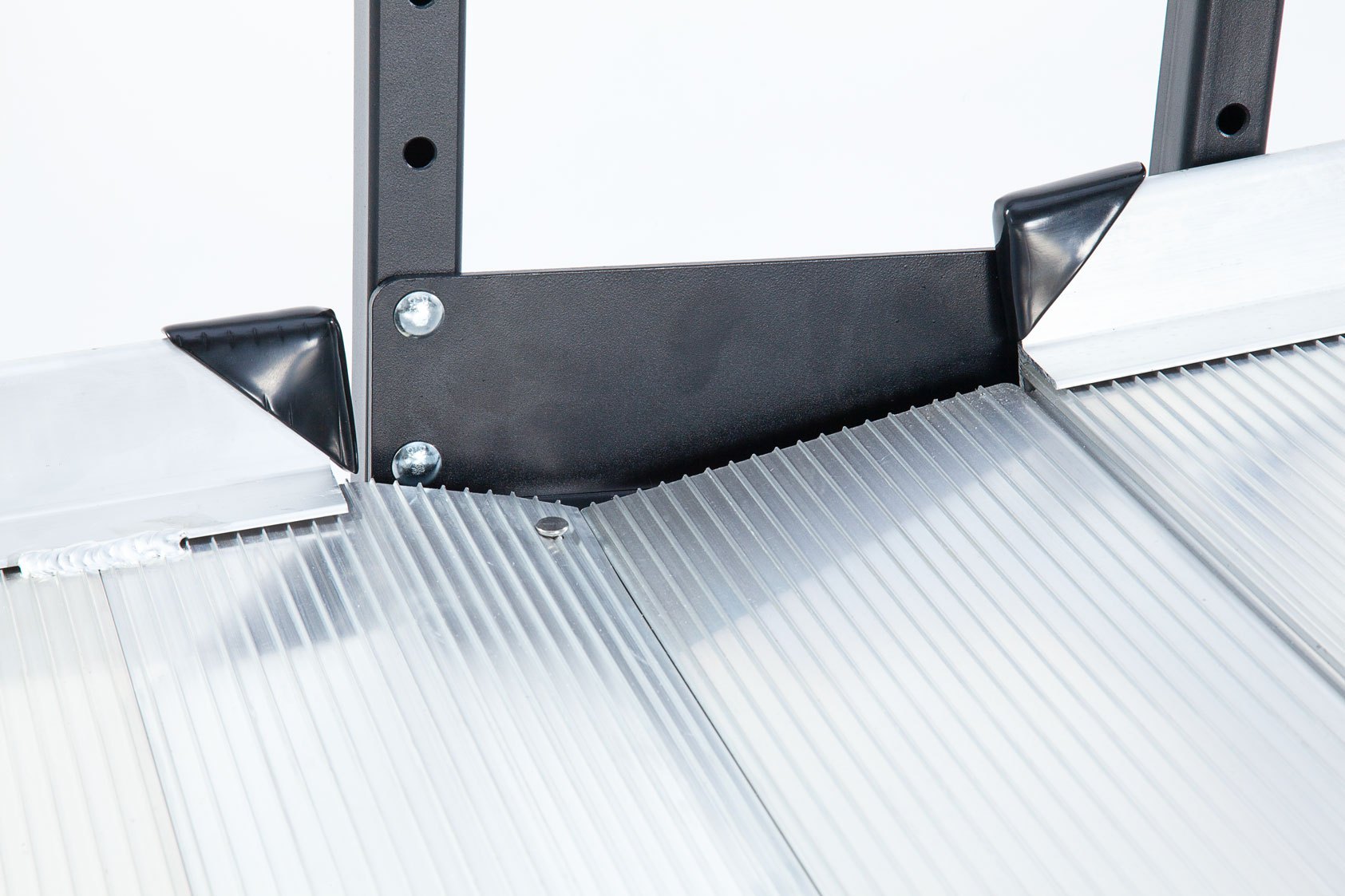

  • Provided with a fixing pin to secure the ramp to the joining support
  • Suitable for indoor and outdoor use, can be left outside

The price is for the joining support only, ramps are not included.

Only suitable for our Portable Wheelchair Ramps With Handrails from TRP-WR Range

Product Questions
I am interested in the Joining Support. What is the benefit of purchasing a Joining Support instead of one long ramp?
Joining Supports are beneficial for those who require a portable wheelchair ramp but have identified the ramp length required will be too heavy to carry or to large to store. Joining Supports allow you to connect two wheelchair ramps, in turn making it easier to carry as the weight is split into two sections.

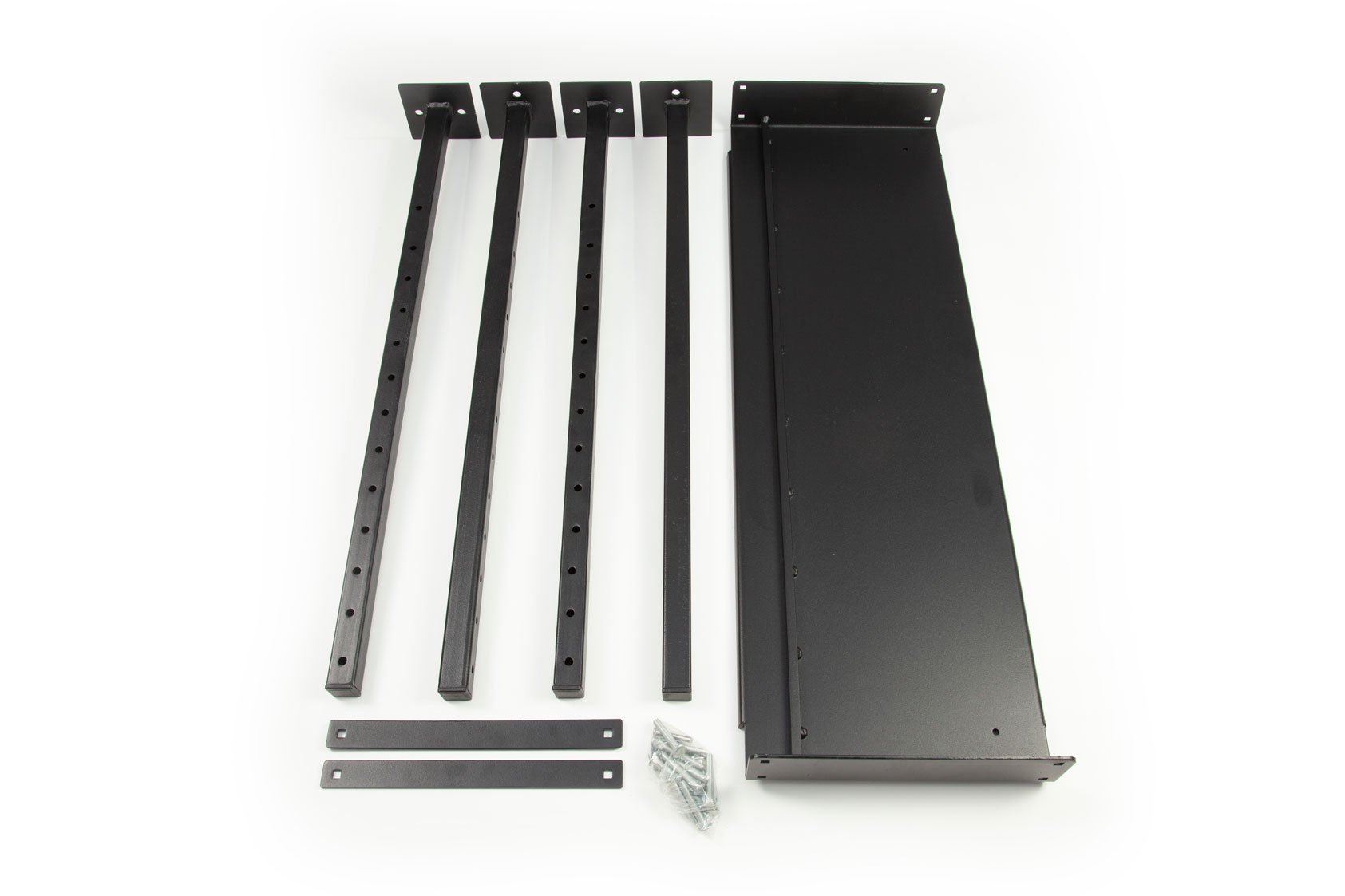

I am interested in The Ramp Factory's Joining Support, what assembly is required?
We provide the required fixings to allow you to assemble the joining support, you will also need a spanner (not provided). Please note we do not provide fixings to secure the support to the ground. Assembly can usually be completed in under 20 minutes. Please view the instruction manual for more details.
I require a joining support. Is The Ramp Factory's Joining Support compatible with all wheelchair ramps?
No, this joining support is only designed to be used with our solid aluminium TRP-WR wheelchair ramps. We do have alternative joining supports which are compatible with our folding wheelchair ramps, please view our Ramp Platforms and Joining Supports category.
I wish to purchase a joining support. How do I identify what height to set the joining support to?
It is important to ensure you achieve a smooth gradient. You will need to check the total vertical height you wish to overcome to identify which ramp lengths to purchase and, in turn, the height to set the joining support at. Please contact our team for advice.

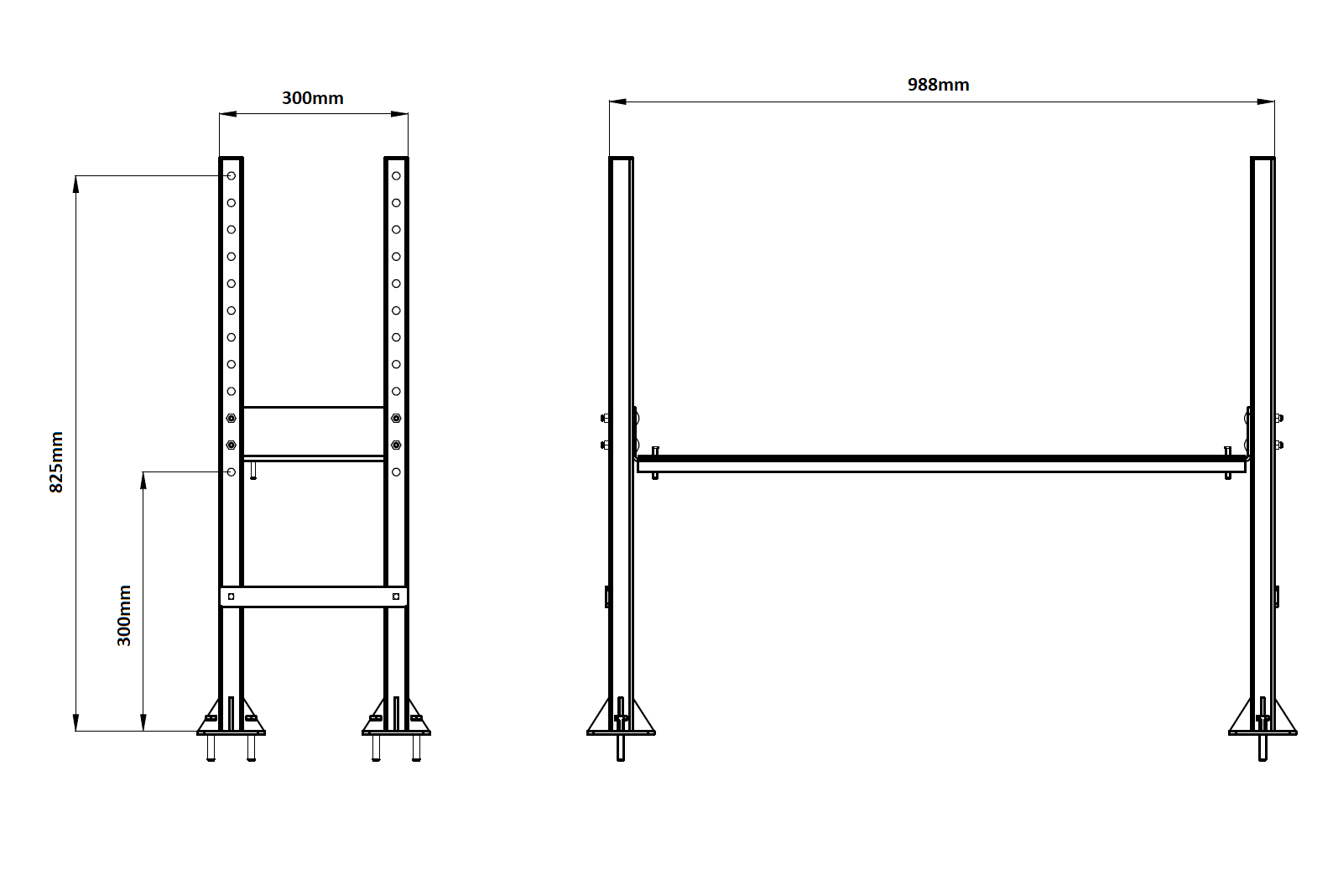

Specifications
SKUTRP-WR-JS
Capacity (kg)350
Depth (mm)300
Height (mm)835
Internal Width (mm)935
Max Load Height (mm)825
Min. Load Height (mm)330
Weight (kg)21
Width (mm)988
One Year WarrantyYes
Bolt DownYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
Colour OptionBlack
