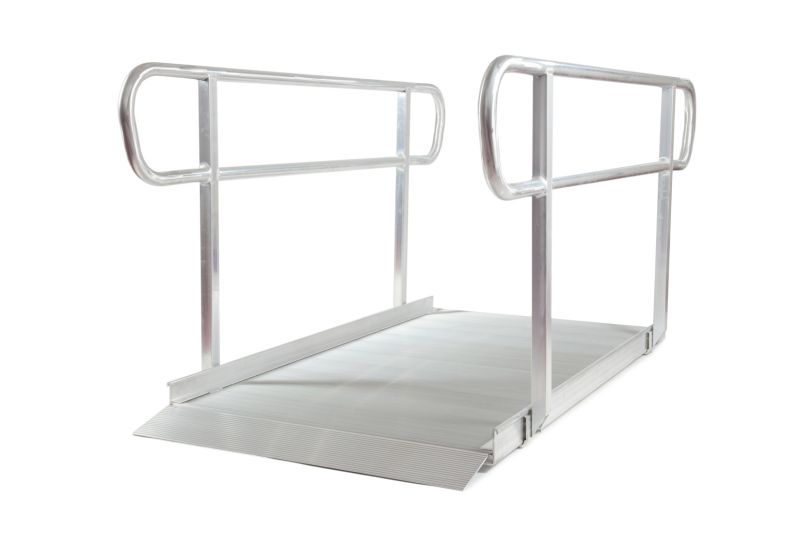

Wheelchair Ramp With Handrails 4ft - 10ft

SKU

TRP-WR-KIT

The Ramp Factory's wheelchair ramp with or without handrails is provided in lengths from 4ft to 10ft. This ramp is easy to assemble and can be secured and left in place as a semi-permanent access ramp or moved as required when used as a temporary wheelchair ramp. With a 350kg capacity, this ramp is suitable for manual wheelchairs, electric wheelchairs and mobility scooters.

Available with and without handrails.

The semi-permanent wheelchair ramp kit can be used in conjunction with The Ramp Factory's platforms to make a modular style ramp. Alternatively, The Ramp Factory offer other semi permanent / outdoor ramps such as the adjustable threshold ramps, or the roll-a-ramp.

From £360.00 £300.00

In Stock

Only %1 left

Description

Maximum gradient = 1:6 although 1:8 is recommended
350kg capacity
Rest on connection with predrilled holes to allow the ramp to be secured into place as required
Use with or without handrails
Produced from aluminium
Double handrails specifically designed to be used in conjunction with this ramp
Diameter of the ground fixing holes is 6mm, secure with pegs or bolts (not included)
Total width 933mm, internal width 888mm
Total ramp width is 930mm, width of the ramp including handrails is 1020mm
The sides of the ramp are 9cm high
Suitable for manual wheelchairs, electric wheelchairs, scooters and walkers
Suitable to be left outside
Anti-slip aluminium surface
Use with or without handrails

Wheelchair Ramp Kit with Handrails Range

4ft / 122cm - TRP-WR4Kit

Length: 4ft / 1220mm
Weight: 23kg
Handrail weight: 8kg, Ramp weight: 15kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 200mm
Height (with handrails): 927mm

5ft / 152cm - TRP-WR5Kit

Length: 5ft / 1524mm
Weight: 27kg
Handrail weight: 9kg, Ramp weight: 18kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 250mm
Height (with handrails): 927mm

6ft / 182cm - TRP-WR6Kit

Length: 6ft / 1828mm
Weight: 31kg
Handrail weight: 10kg, Ramp weight: 21kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 300mm
Height (with handrails): 927mm

8ft / 243cm - TRP-WR8Kit

Length: 8ft / 2438mm
Weight: 39.5kg
Handrail weight: 12kg, Ramp weight: 27.5kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 405mm
Height (with handrails): 927mm

10ft / 304cm - TRP-WR10Kit

Length: 10ft / 3048mm
Weight: 47.5kg
Handrail weight: 14kg, Ramp weight: 33.5kg
Width: 933mm
Capacity: 350kg
Internal width 888mm
Max. load height (mm): 505mm
Height (with handrails): 927mm

Please note due to the size of the 10ft ramp it can be difficult and expensive to return so please ensure this is suitable for you prior to ordering.

Video

Details

SKU	TRP-WR-KIT
Capacity (kg)	350
Height (mm)	927
Height of Raised Side (mm)	90
Internal Width (mm)	888
Length (ft)	4-10
Length (mm)	1220-3050
Max Load Height (mm)	505
Weight (kg)	15 - 47.5
Width (mm)	933
One Year Warranty	Yes
Bolt Down	Yes
Easy to Fit	Yes
Electric Wheelchair	Yes
Manual Wheelchair	Yes
Mobility Scooter Friendly	Yes
Leave Outside	Yes

Print/Save Datasheet

Buy VAT Exempt

Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.

Who is eligible?

VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.

Who is not eligible?

Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.

How do I claim my VAT back?

At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.

If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.

Ramp Length & Load Height Information

Ramp Length & Load Height

It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.

Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.

Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.

Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.
