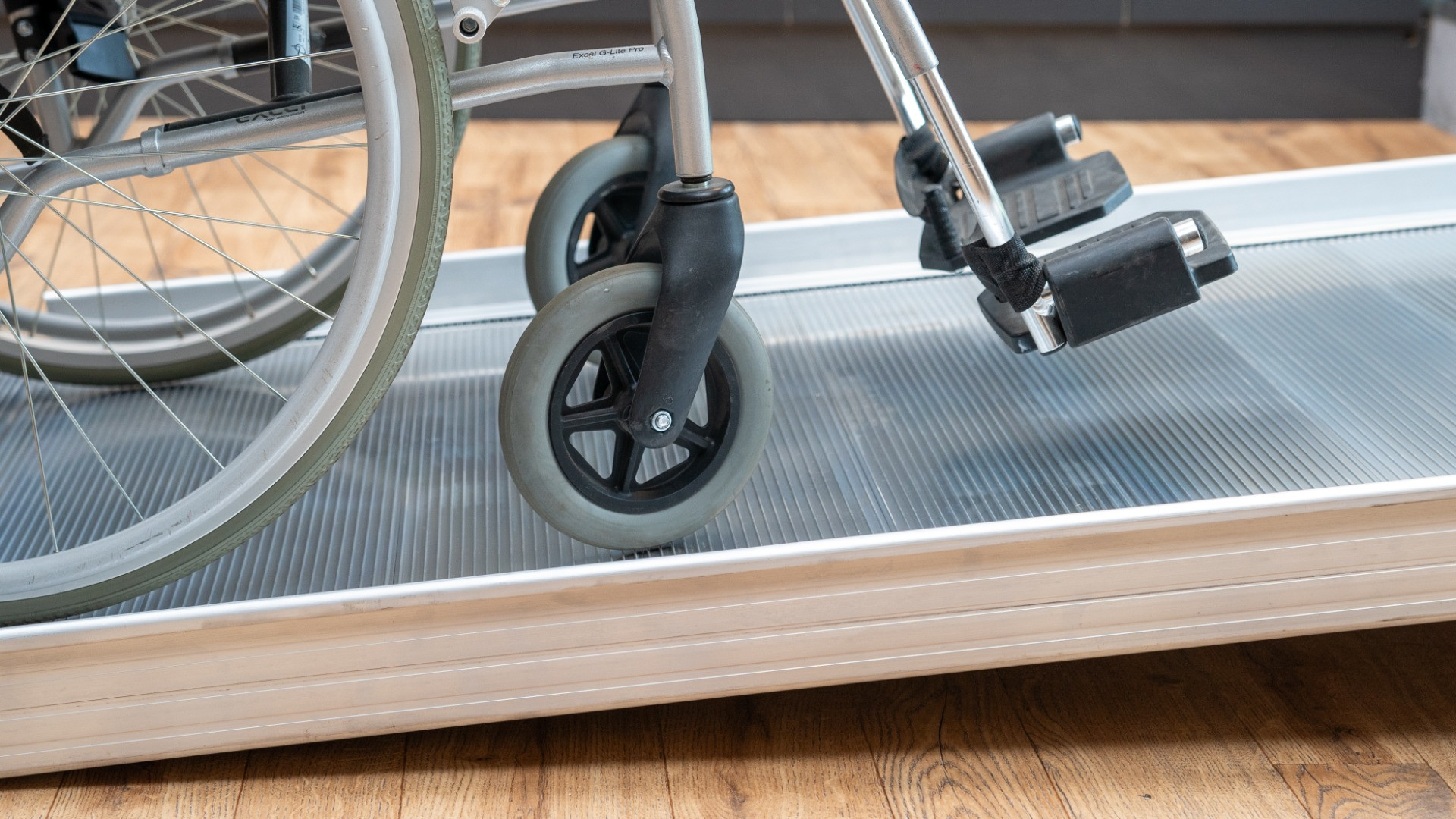

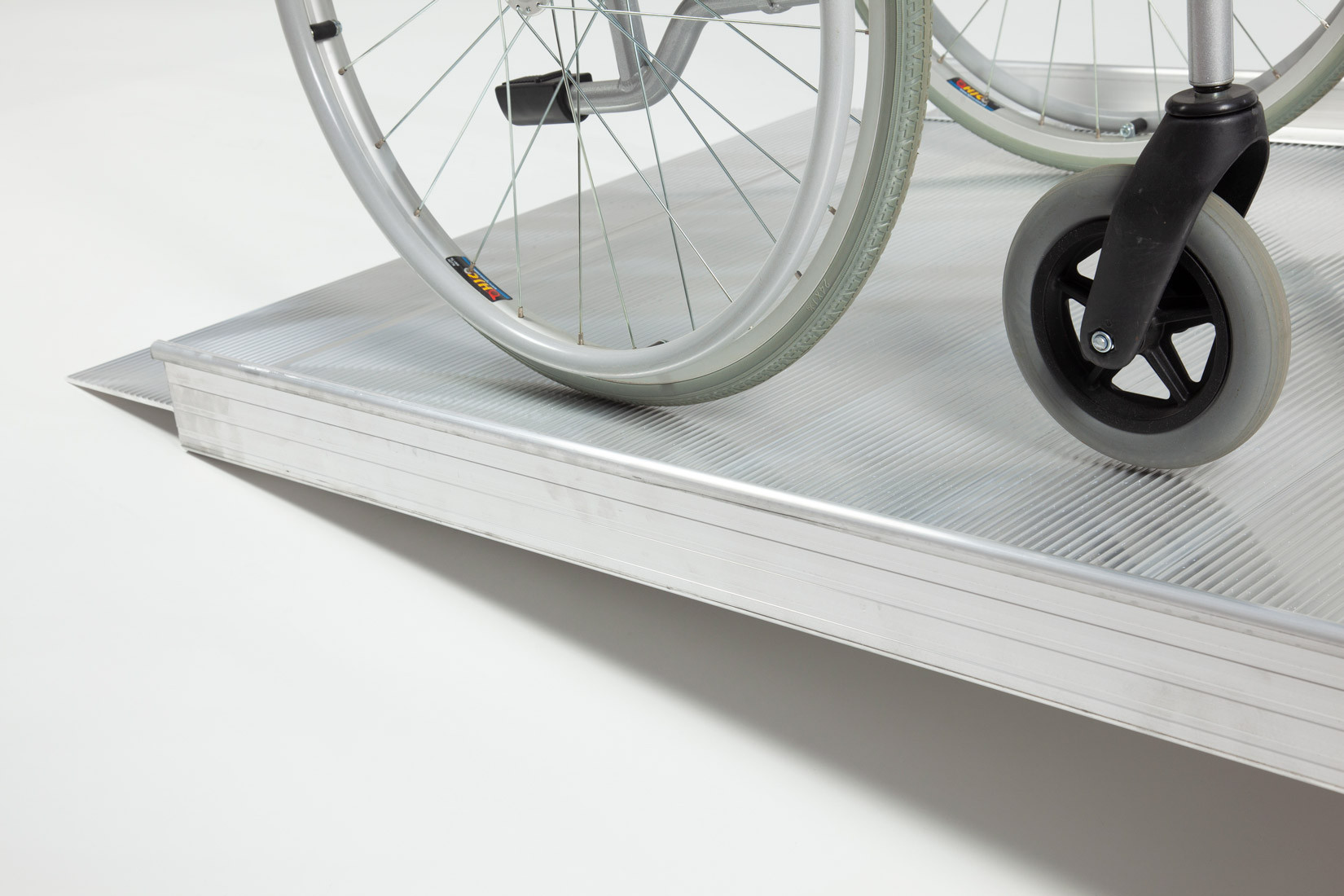

Wheelchair on wheelchair ramp

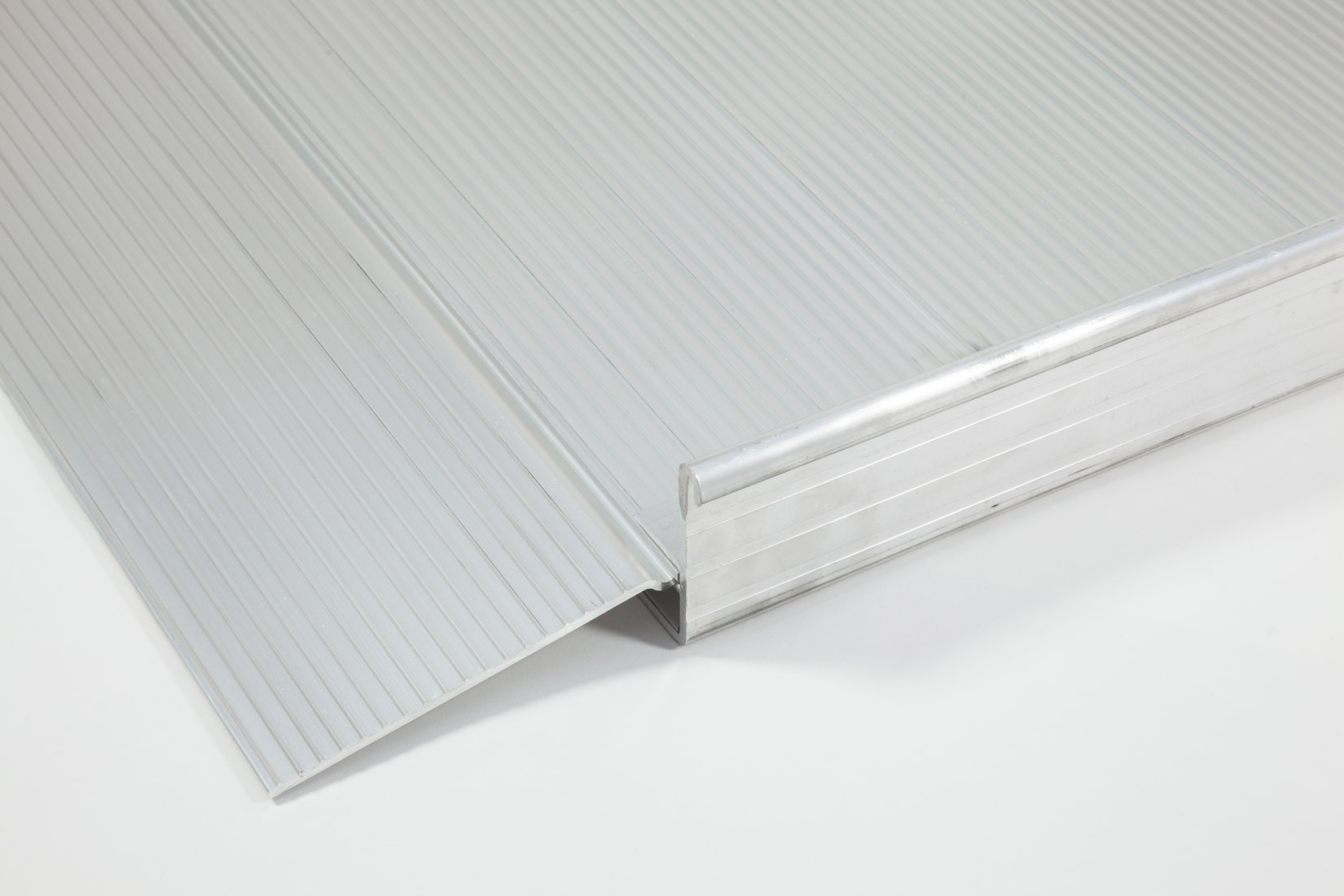

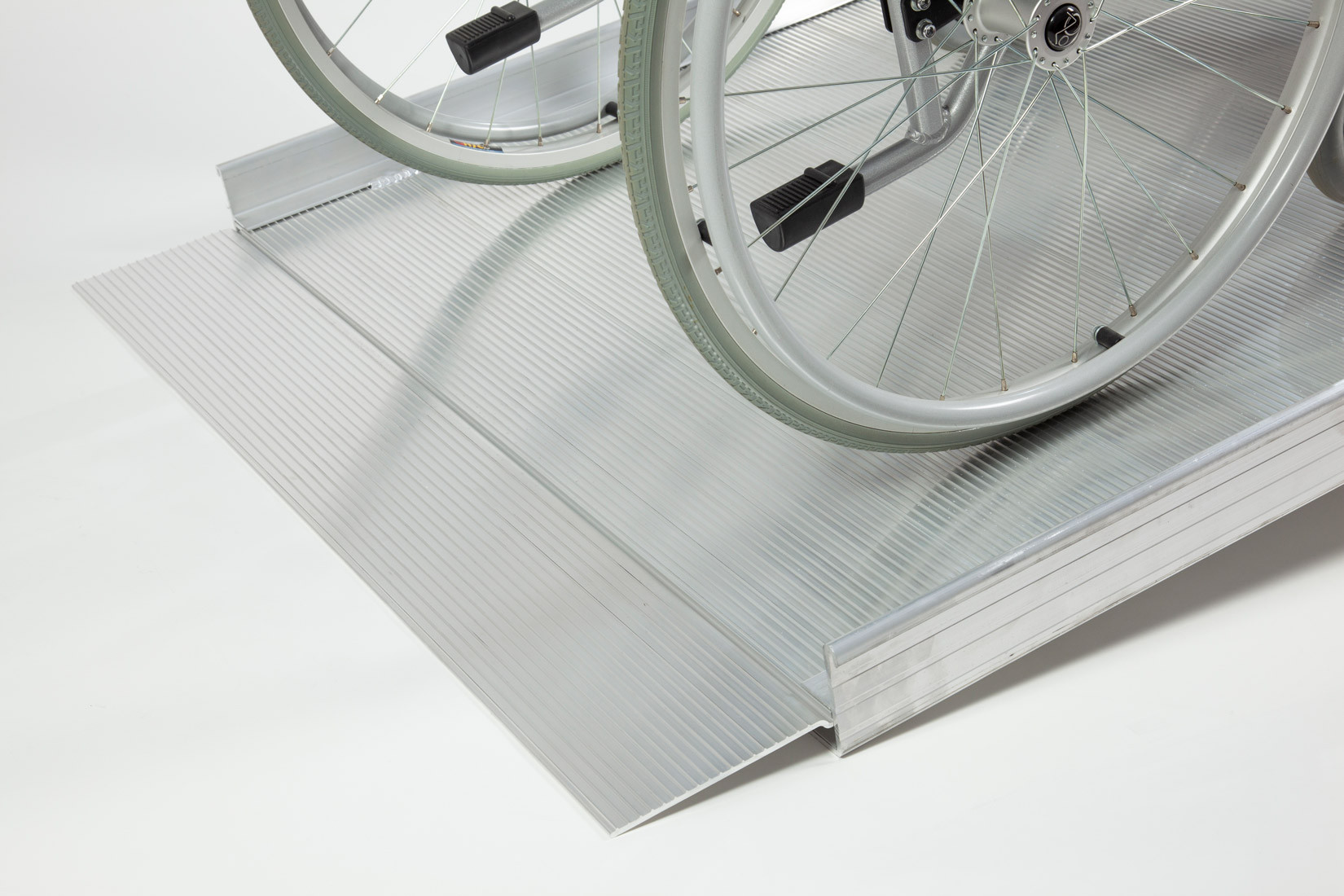

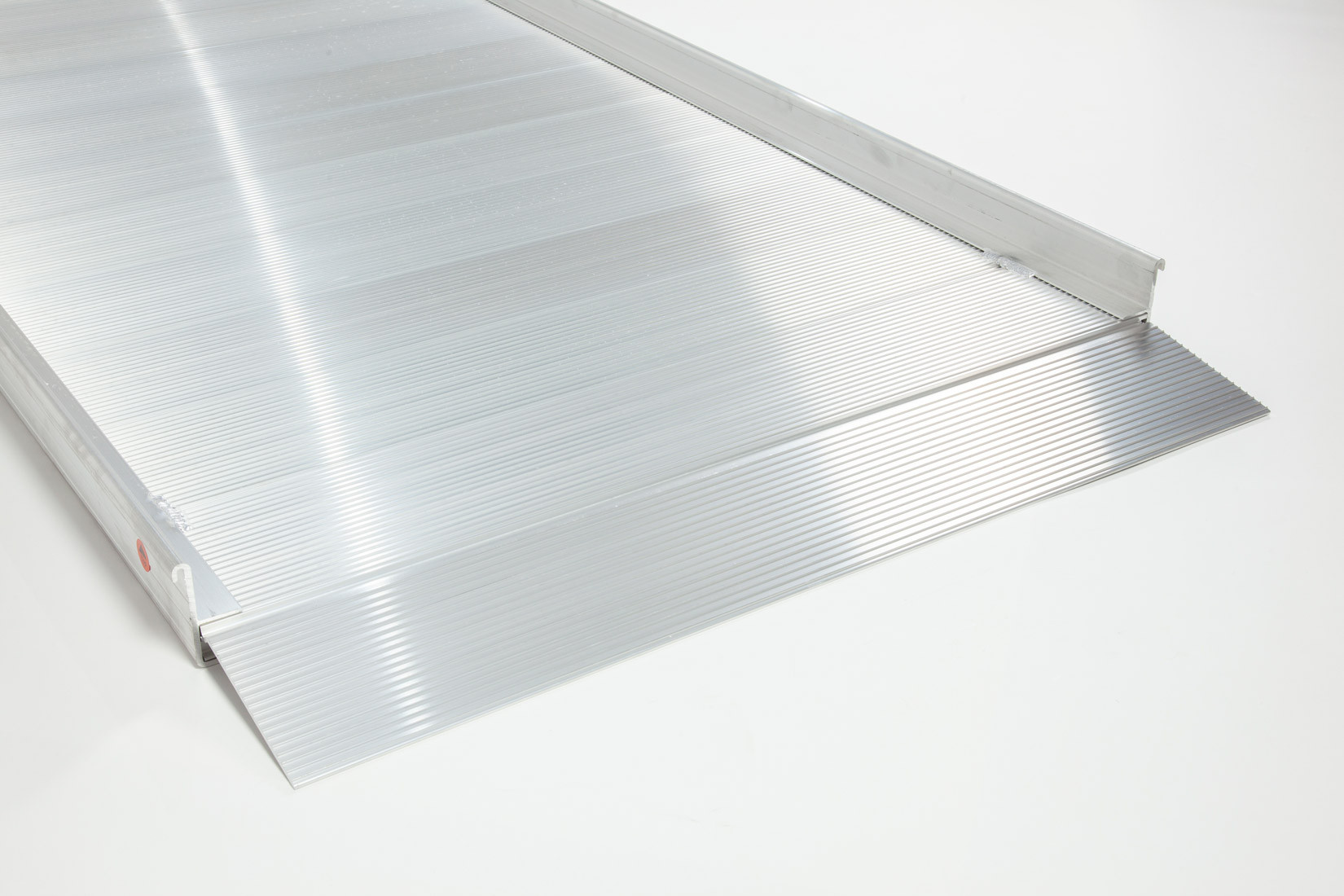

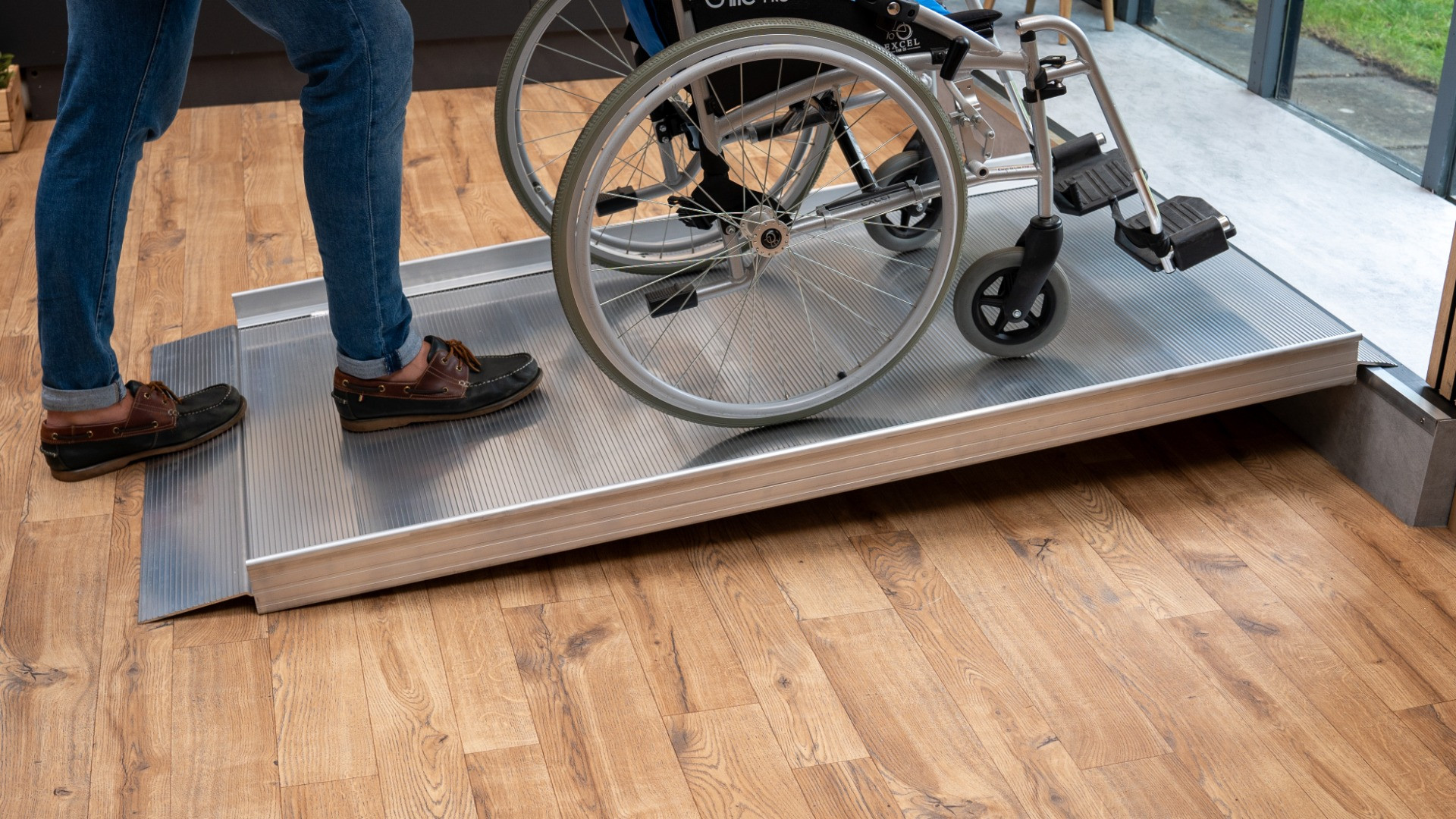

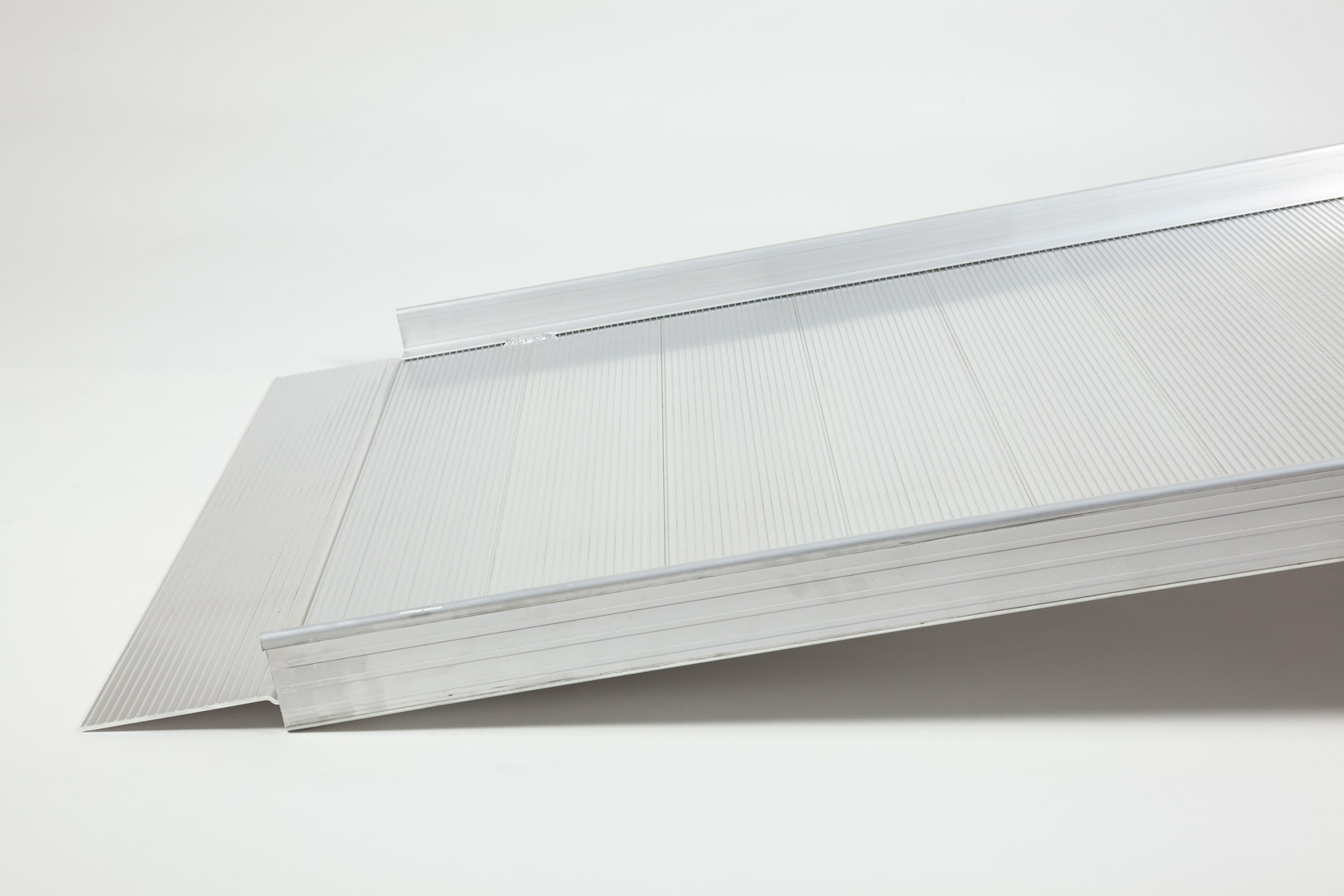

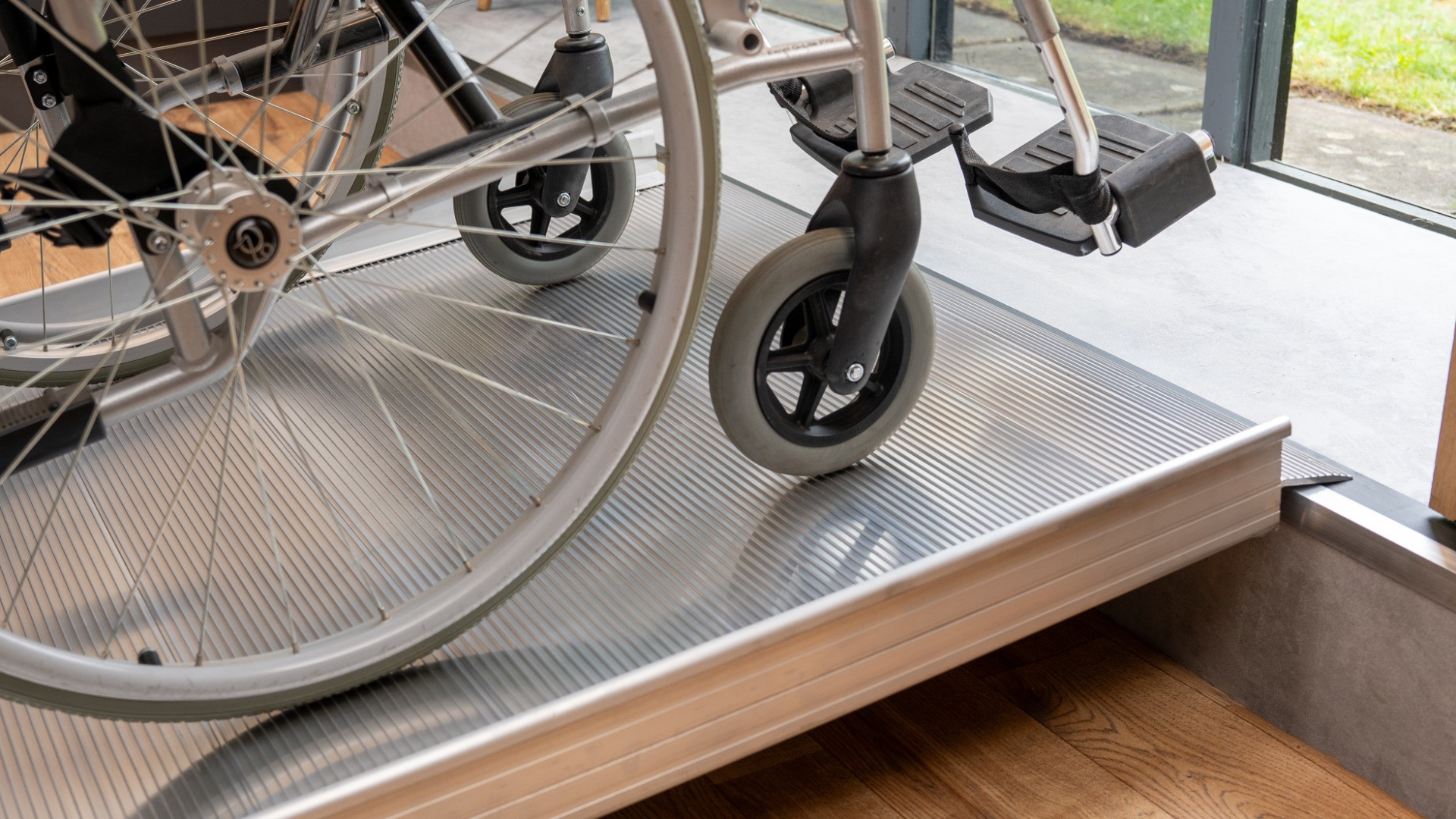

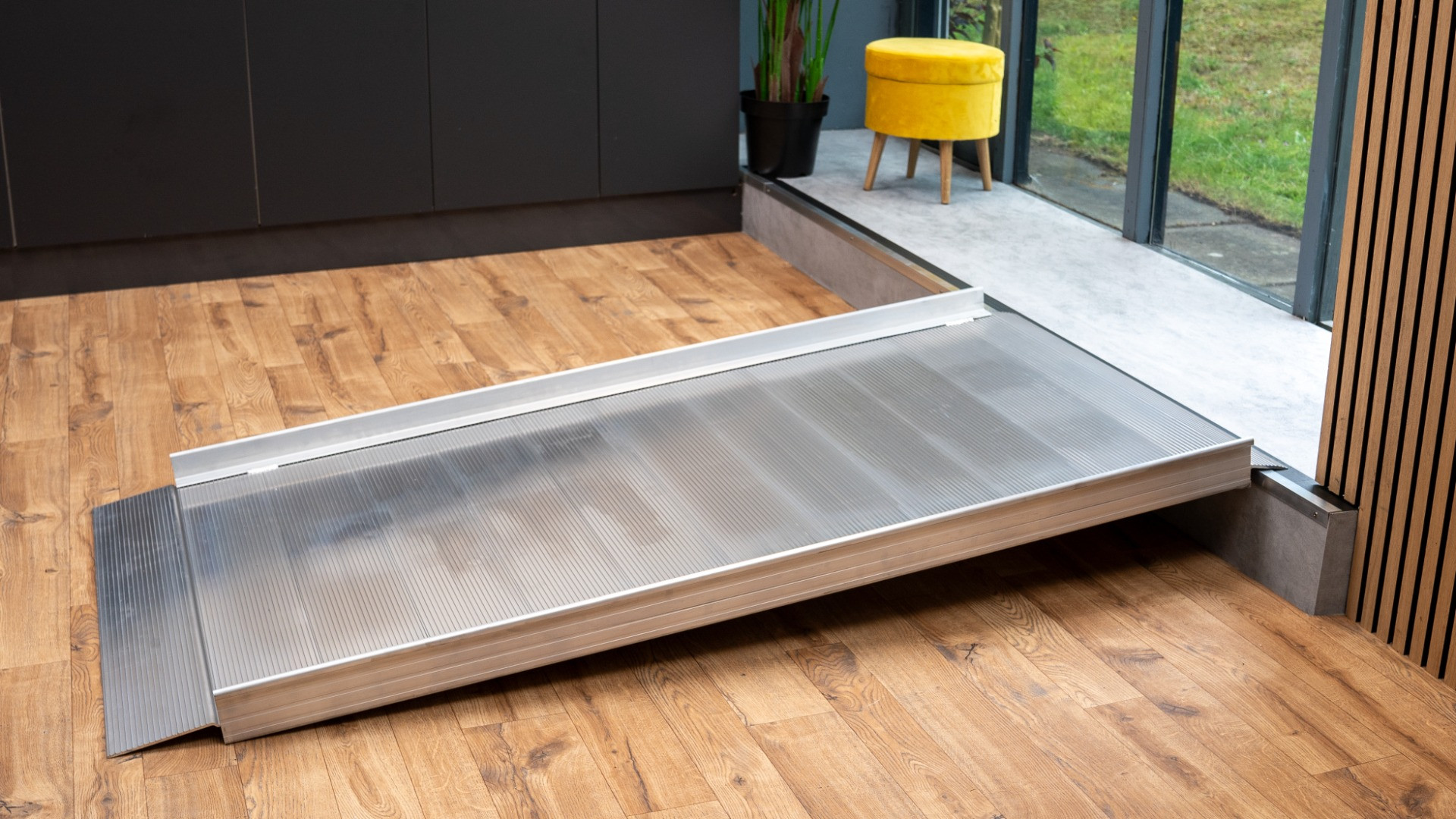

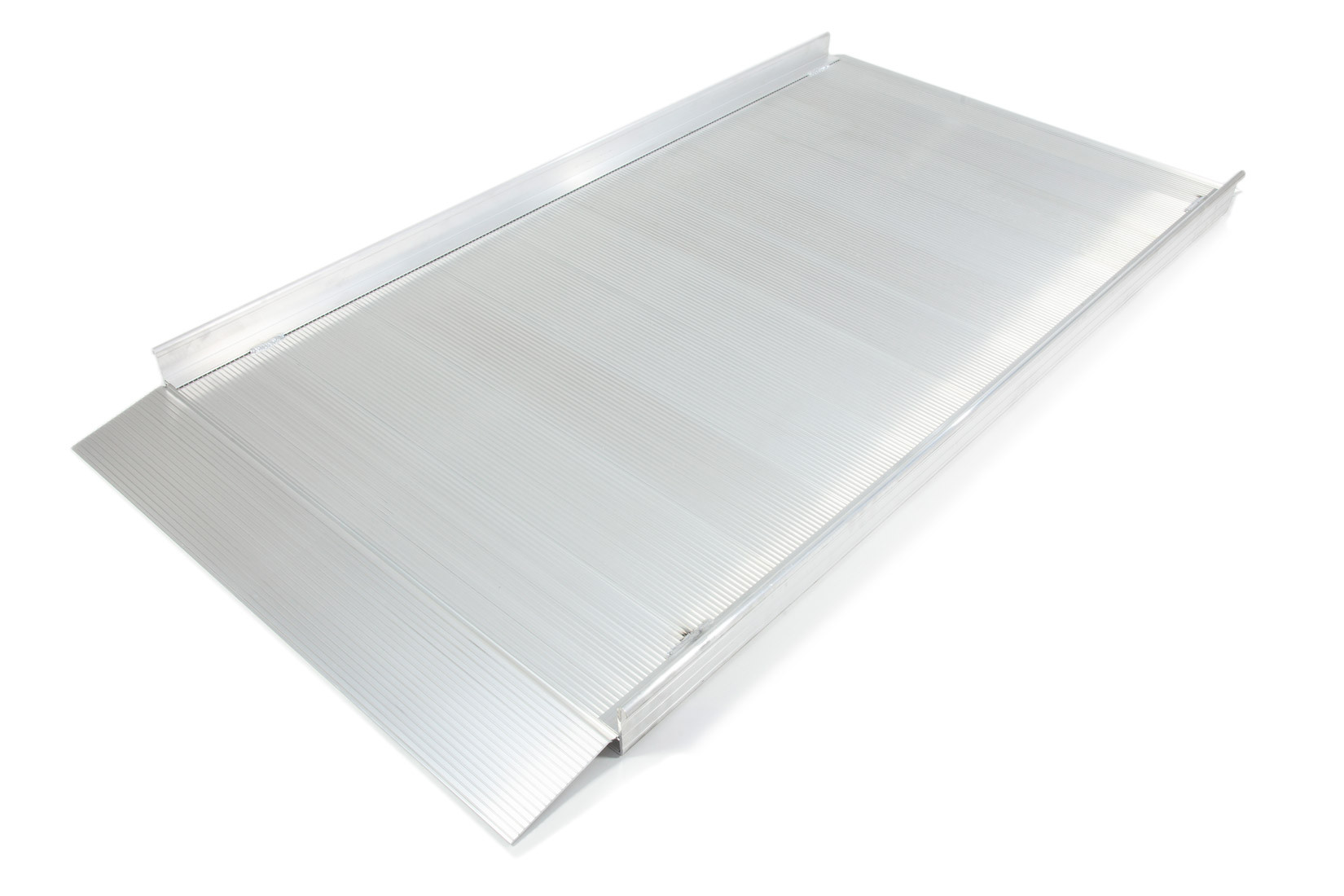

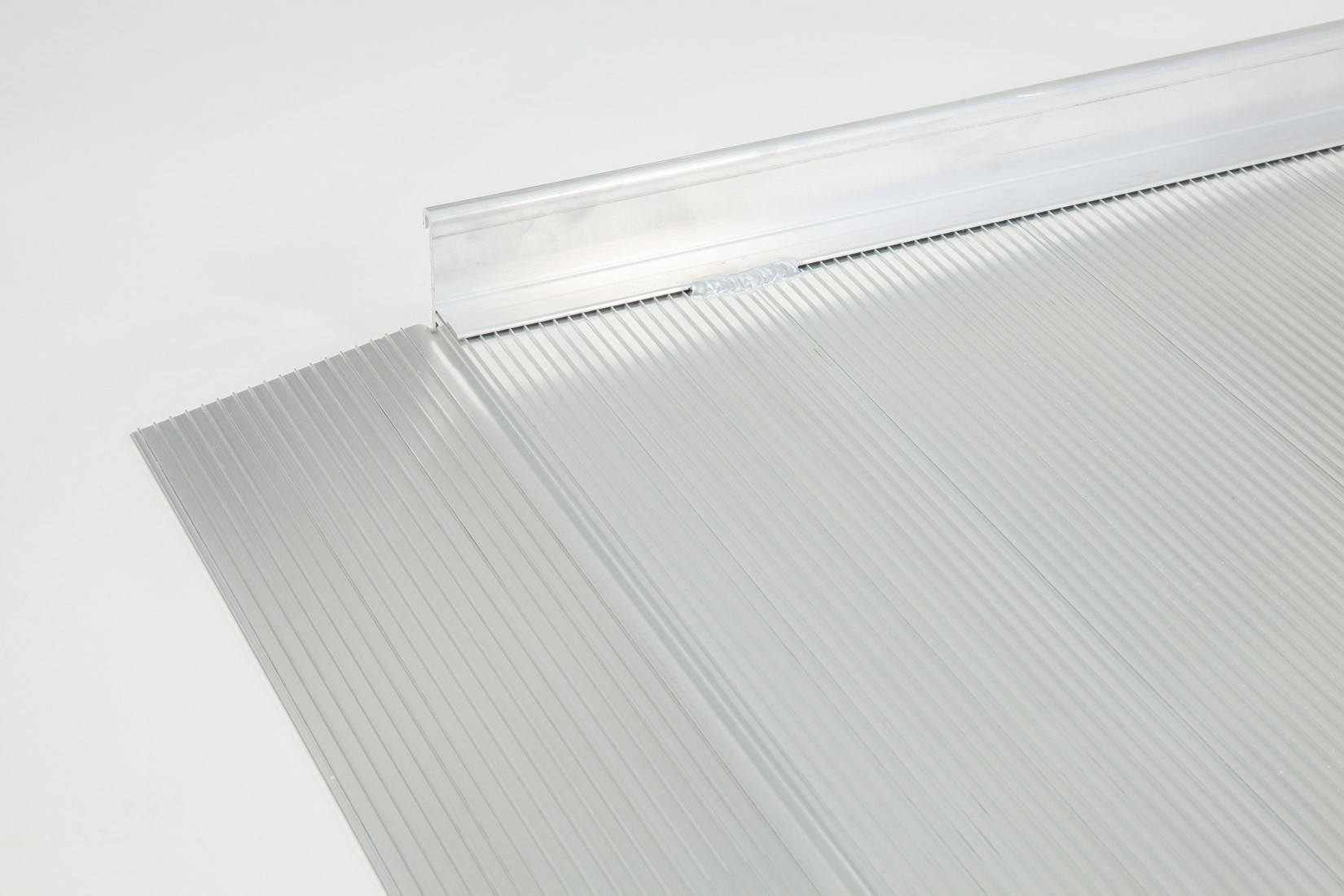

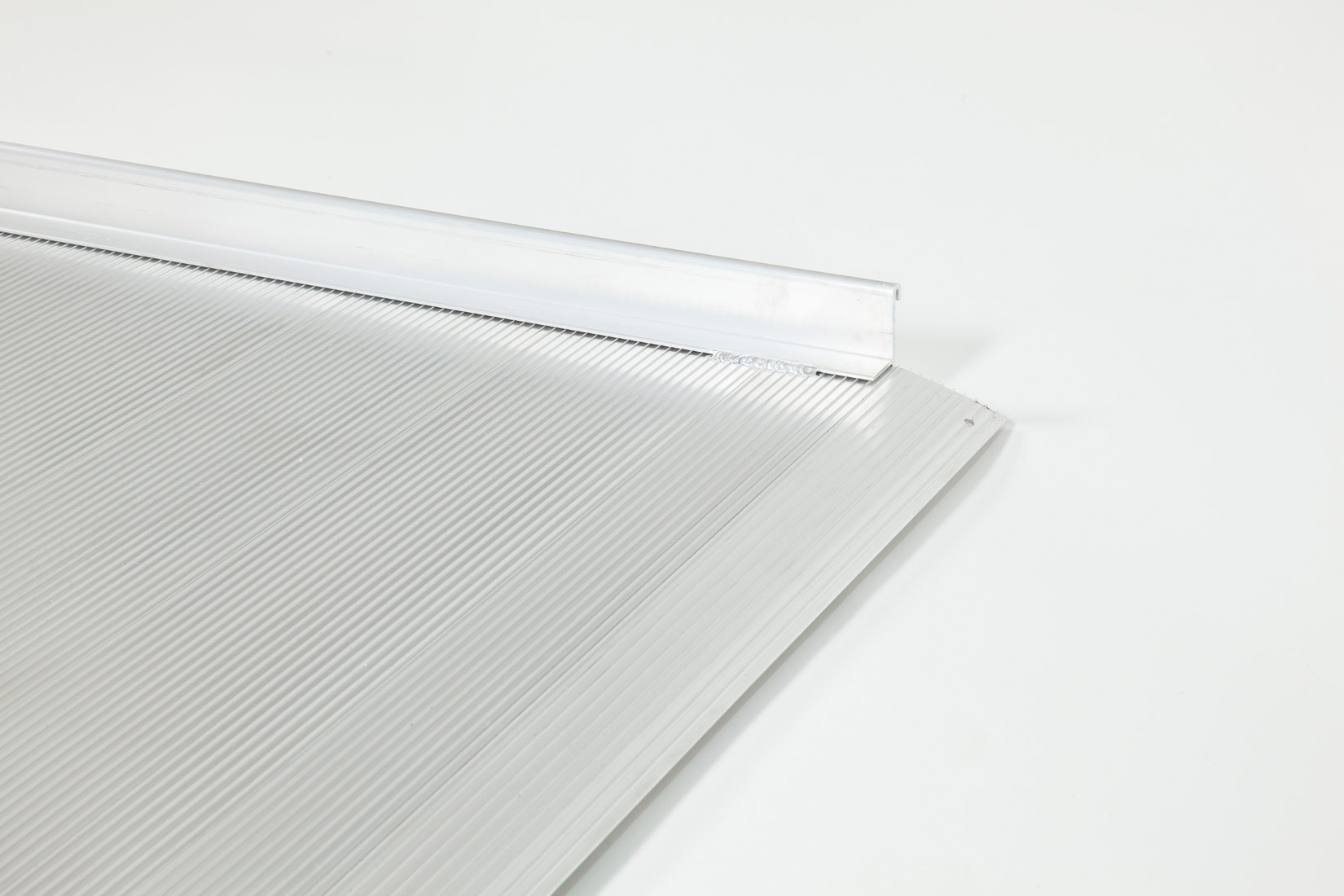

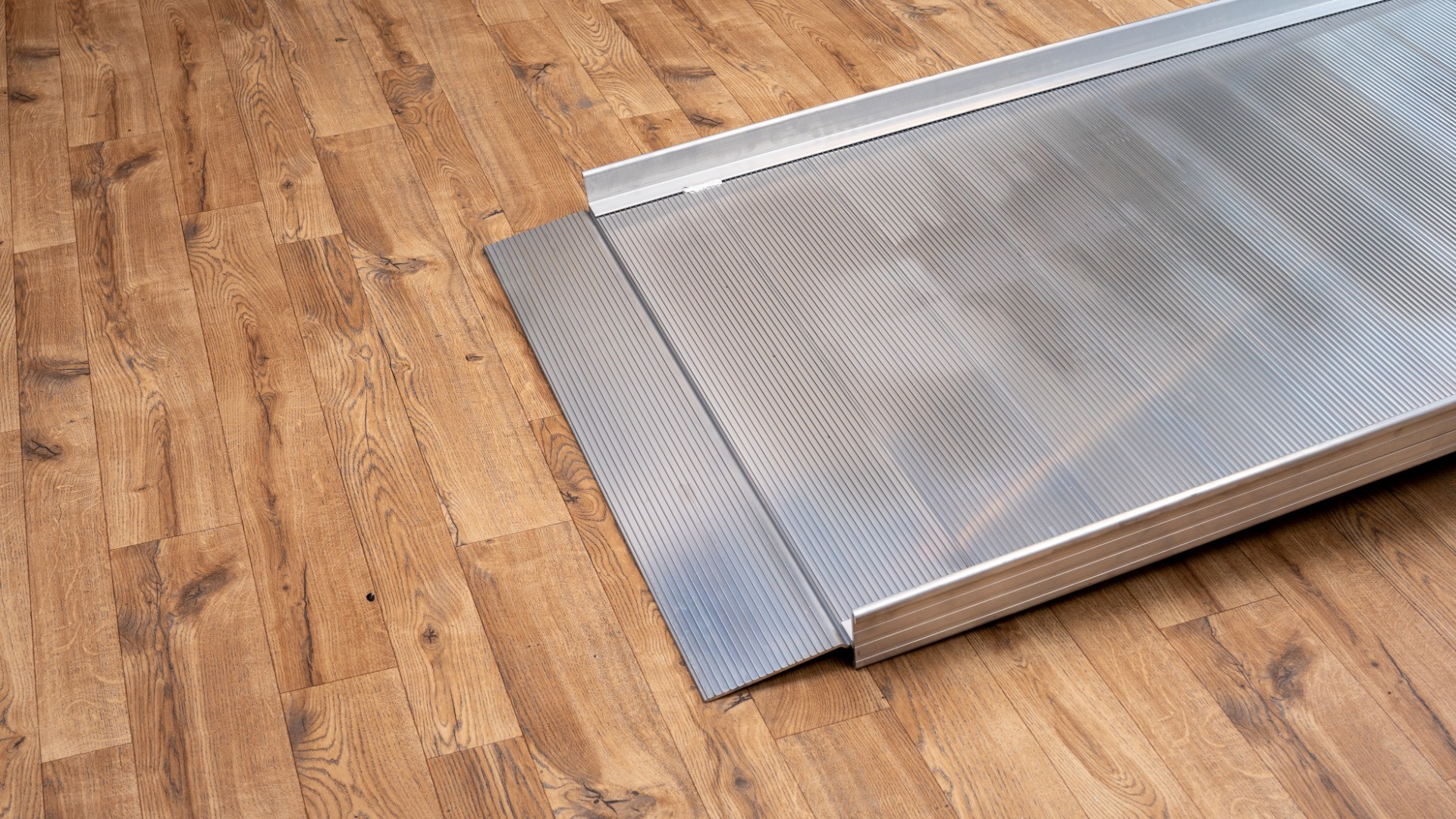

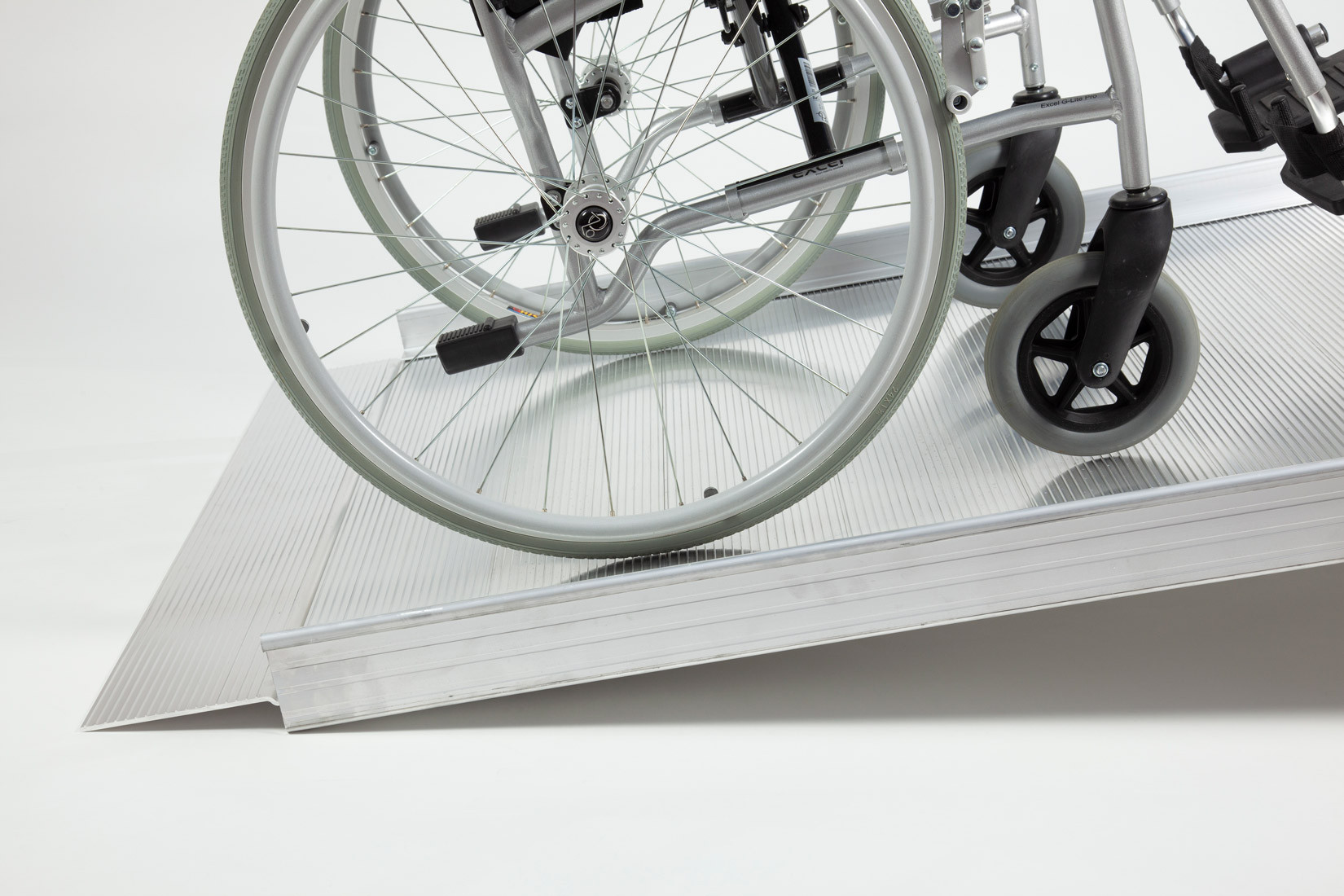

Wheelchair ramp with handrails End of wheelchair ramp with handrail bracket Wheelchair ramp without handrails Edges of wheelchair ramp with handrails End of wheelchair aluminium wheelchair ramp Wheelchair on wheelchair ramp Raised edge of wheelchair ramp Wheelchair going up wheelchair ramp Rest on connection on wheelchair ramp Wheelchair ramp grip surface Drilled hole in rest on connection Close up of a wheelchair ramp without handrails to show the grip surface. A wheelchair is being pushed up the ramp which is resting on a step. Close up of a wheelchair ramp without handrails to show the grip surface. A wheelchair is being pushed up the ramp which is resting on a step. Close up of a wheelchair ramp rest on connection with pre-drilled holes. A wheelchair is being pushed up the ramp which is resting on a step. Wide view of a wheelchair ramp without handrails. A wheelchair is being pushed up the ramp which is resting on a step. Full view of a wheelchair ramp without handrails which is resting on a step. Close up of the foot end of a wheelchair ramp without handrails resting on a step. Close up of the rest on connection of a wheelchair ramp without handrails resting on a step. Shows the pre-drilled holes where the ramp can be fixed in place.
  • Bolt Down
  • Easy to Fit
  • Electric Wheelchair
  • Manual Wheelchair
  • Mobility Scooter
  • One Year Warranty
  • Leave Outside

Wheelchair Ramp 3ft - 12ft

SKU
TRP-WR-RAMP
As low as £312.00 £260.00
Over 100 In stock at our warehouse

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

The disabled access ramp is available in 3ft to 12ft. The all-weather ramp is easy to assemble and can be left in place or moved as required. As it comes with a 350kg capacity, this is suitable for manual and electric wheelchairs.

Available with and without handrails.

The semi-permanent wheelchair ramp kit can be used in conjunction with The Ramp Factory's platforms to make a modular style ramp. Alternatively, The Ramp Factory offer other outdoor ramps such as the adjustable threshold ramps, or the roll-a-ramp.

Description

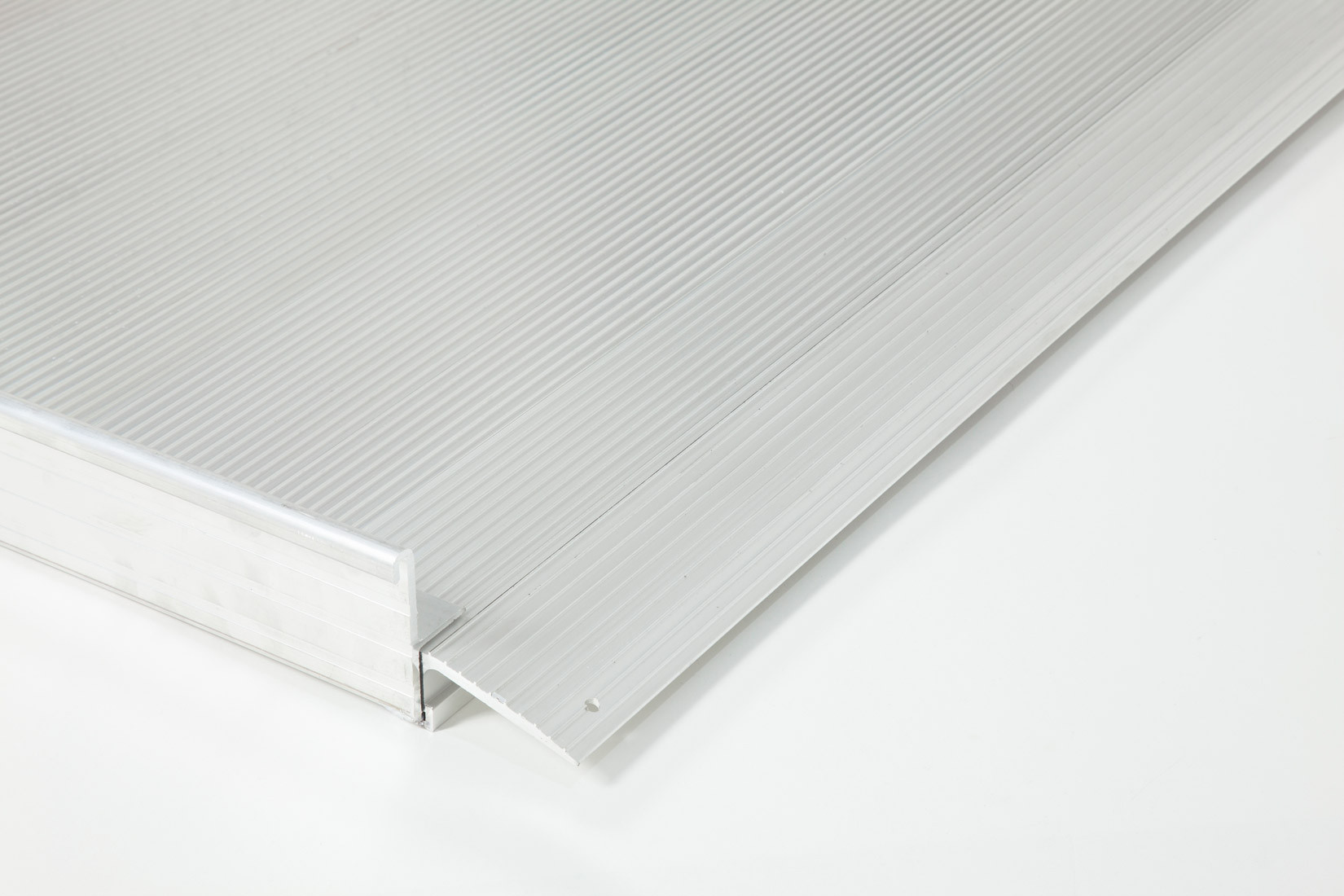

  • Rest on connection
  • Predrilled holes to allow the ramp to be secured into place when required
  • Handrails can be purchased separately if required
  • Made from high-quality aluminium
  • Minimum of a 1:6 gradient although 1:8 is recommended
  • Available in 72cm wide (useable width 69cm) or 93cm wide (useable width 88cm)
  • Suitable for indoor and outdoor use, can be left outside
  • Suitable for manual and electric wheelchairs
  • 350kg capacity

Solid Wheelchair Ramp

3ft - TRP-WR3

  • Length: 3ft (914mm)
  • Weight: 10.5kg / 14.8kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 150mm
  • Capacity: 350kg

4ft - TRP-WR4

  • Length: 4ft (1220mm)
  • Weight: 11.7kg / 15kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 200mm
  • Capacity: 350kg

5ft - TRP-WR5

  • Length: 5ft (1524mm)
  • Weight: 14.3kg / 18kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 250mm
  • Capacity: 350kg

6ft - TRP-WR6

  • Length: 6ft (1830mm)
  • Weight: 16.8kg / 21kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 300mm
  • Capacity: 350kg

8ft - TRP-WR8

  • Length: 8ft (2440mm)
  • Weight: 22kg / 27.5kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 405mm
  • Capacity: 350kg

10ft - TRP-WR10

  • Length: 10ft (3048mm)
  • Weight: 27.1g / 33.5g
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 505mm
  • Capacity: 350kg

12ft - TRP-WR12

  • Length: 12ft (3657mm)
  • Weight: 32kg / 38.5kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 600mm
  • Capacity: 350kg

Please note due to the size of the 10ft and 12ft ramp they can be difficult and expensive to return so please ensure this is suitable for you prior to ordering.

Product Questions

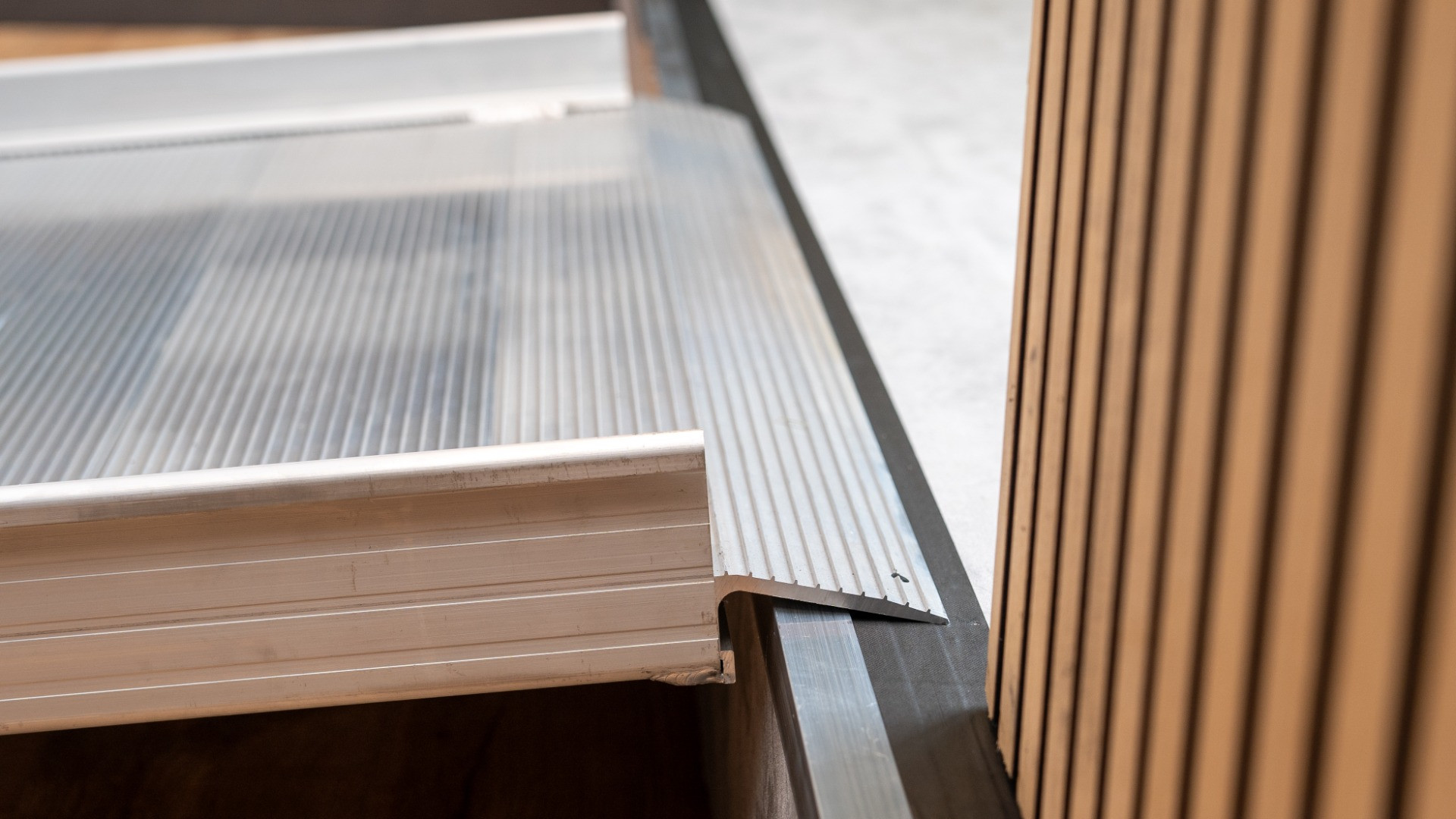

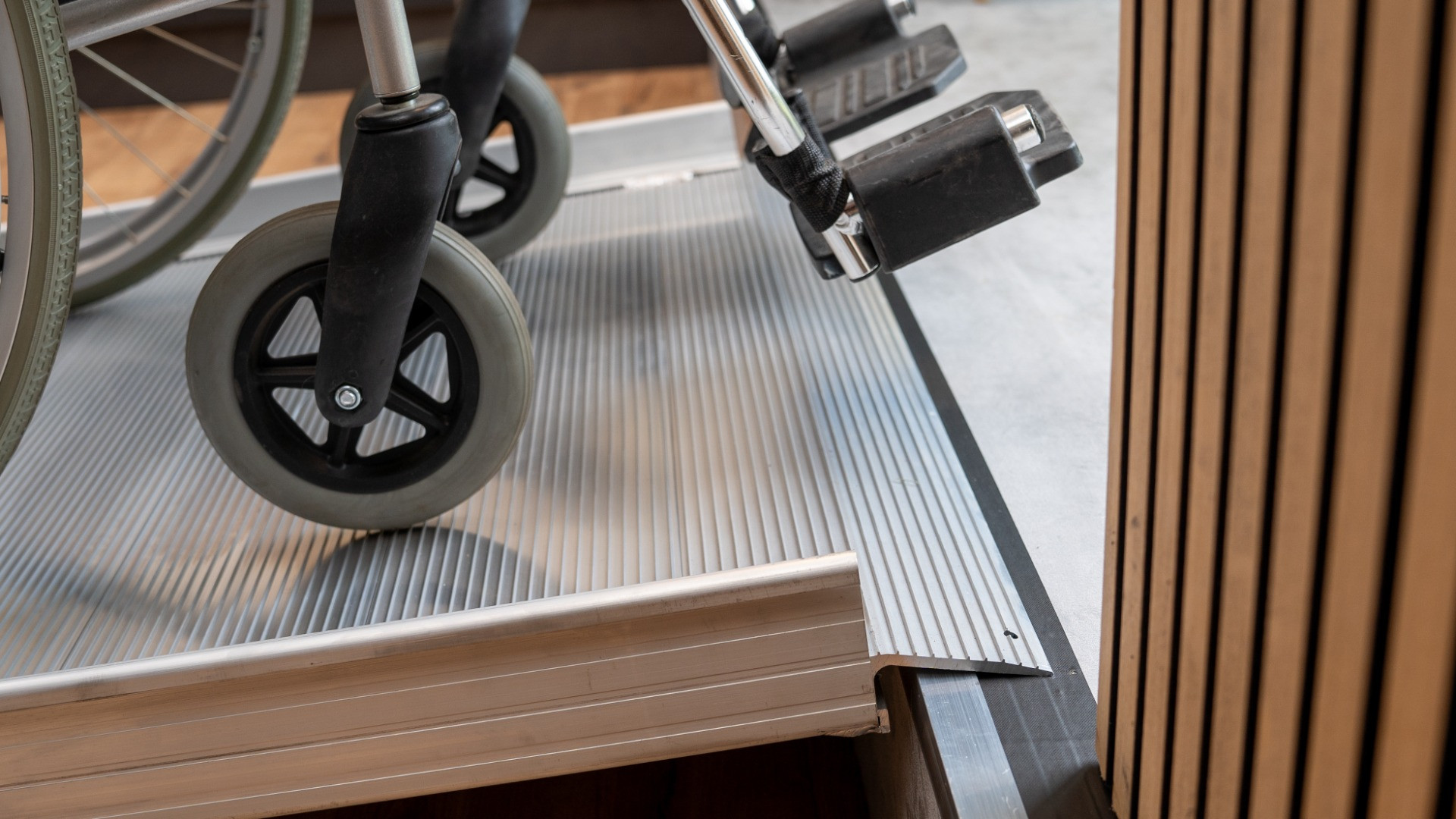

How long is the rest on connection which rests onto the step?
The rest on connection is 60mm long.
Can The Ramp Factory's Wheelchair Ramp 3ft - 12ft be secured in place?
The Wheelchair Ramp 3ft - 12ft can be used as a portable wheelchair ramp or can be secured in place. The ramp has pre-drilled holes in the rest on connection to allow it to be fixed in place. The longer ramp lengths are quite heavy so are often left in place.
Video
Specifications
SKUTRP-WR-RAMP
Capacity (kg)350
Height of Raised Side (mm)88
Internal Width (mm)690 - 888
Length (mm)914-3657
Max Load Height (mm)150 - 600
Total Width (mm)720 - 933
Weight (kg)10.5 - 38.5
One Year WarrantyYes
Bolt DownYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
