Adjustable Threshold Ramp 2ft - 8ft

SKU

TRP-AD Adjust

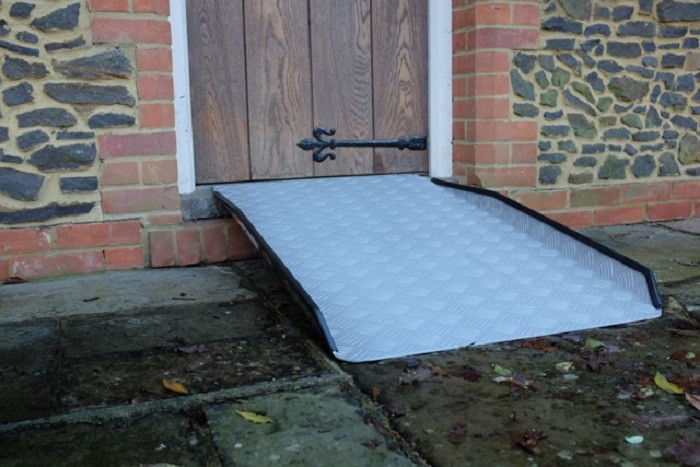

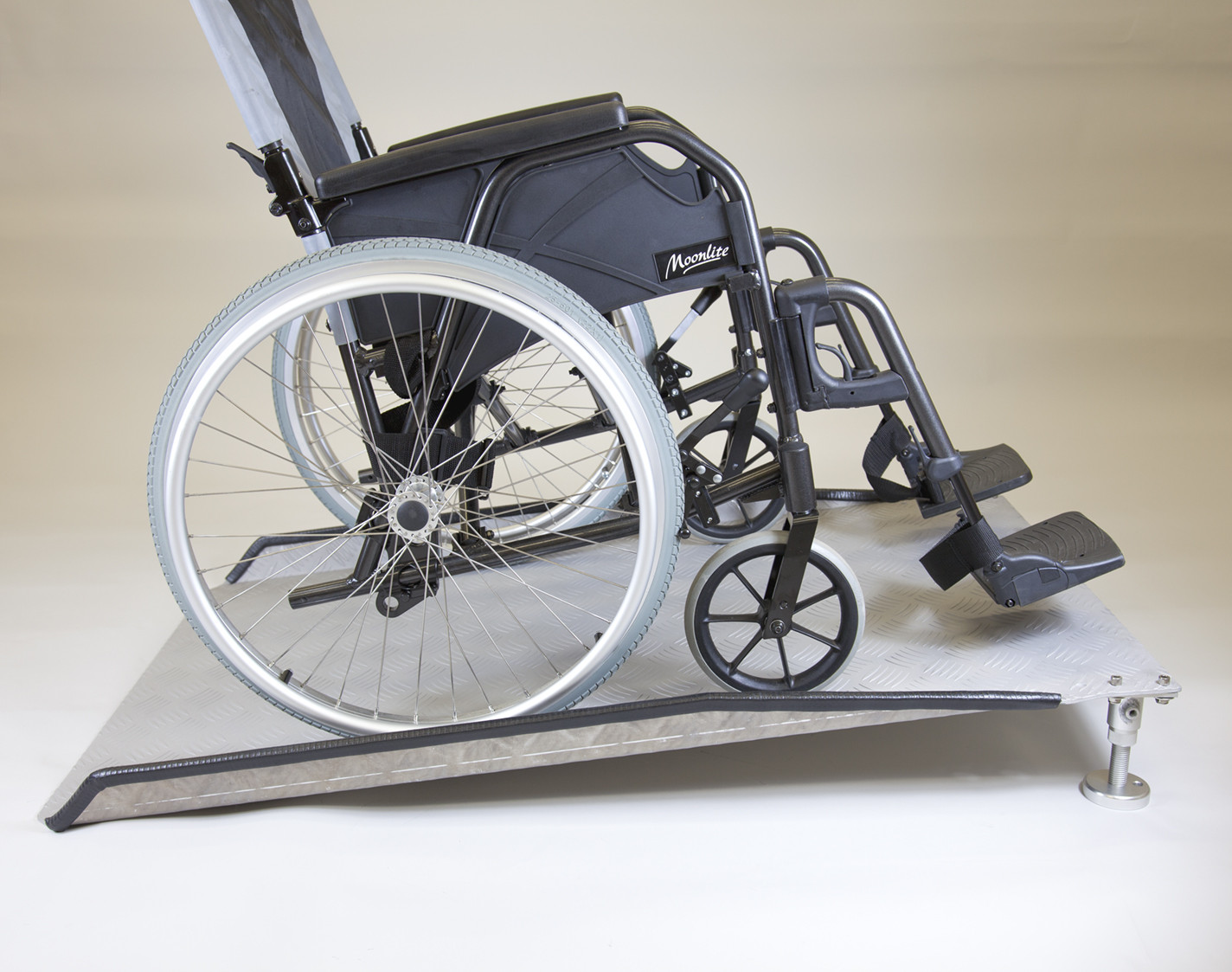

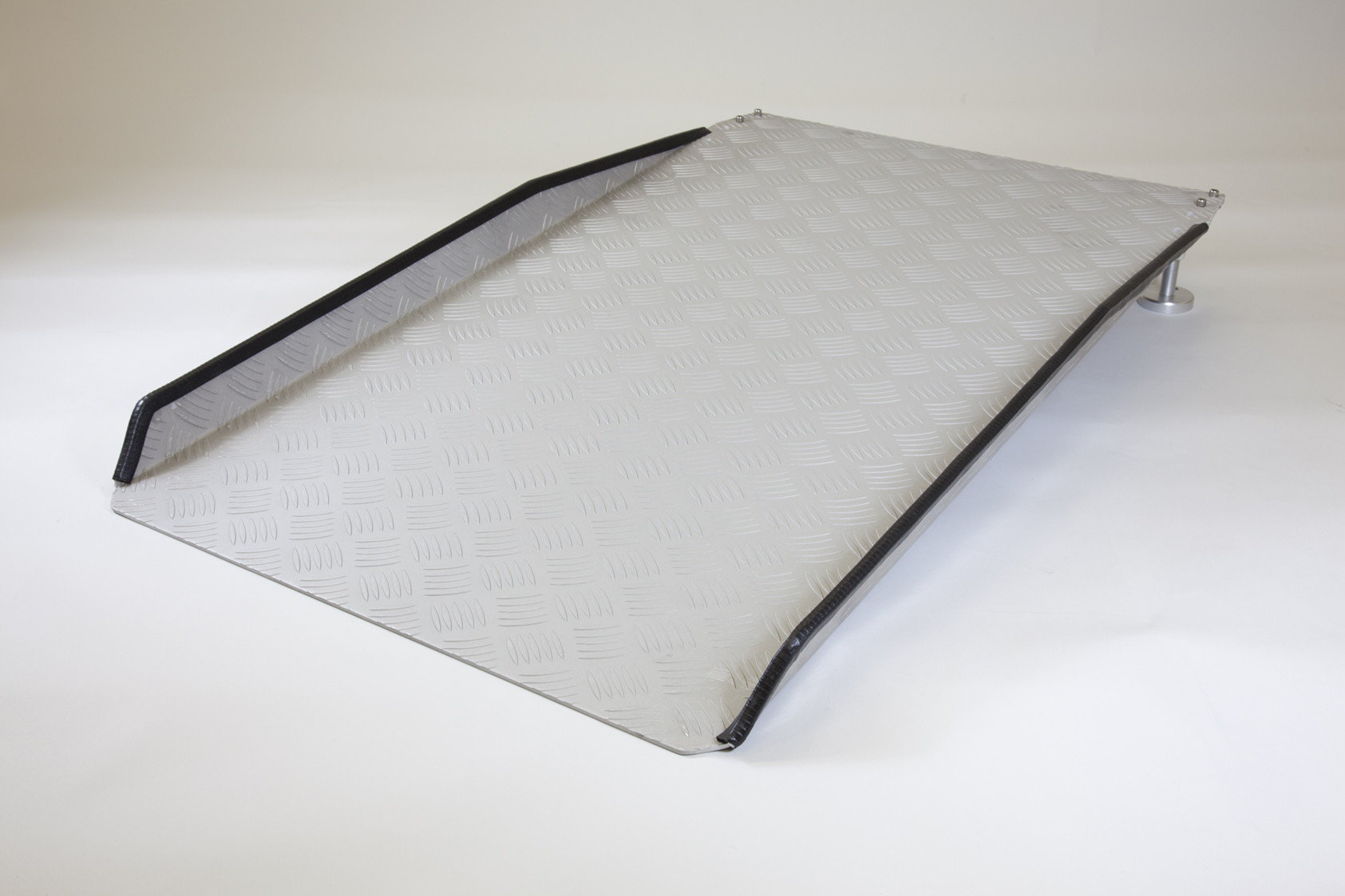

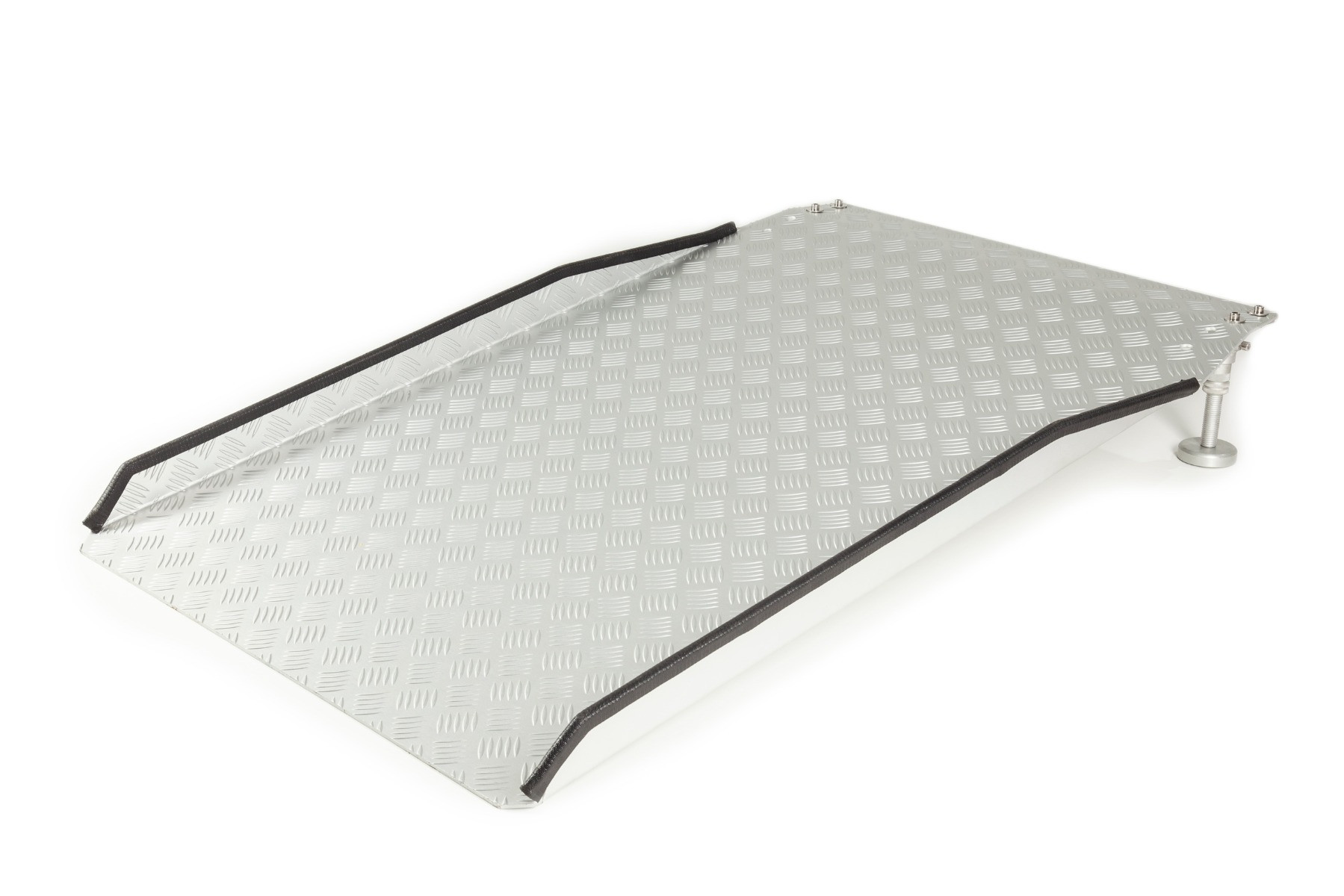

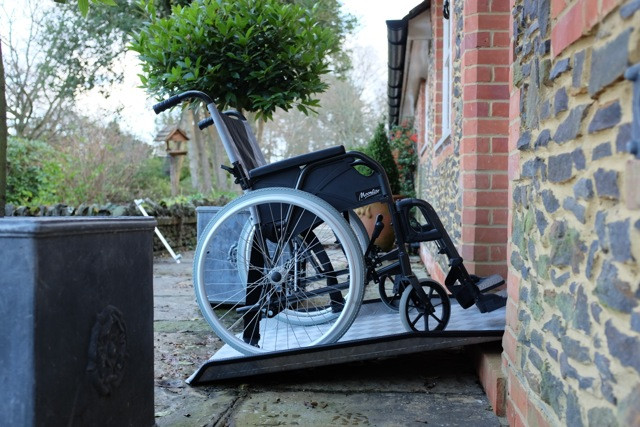

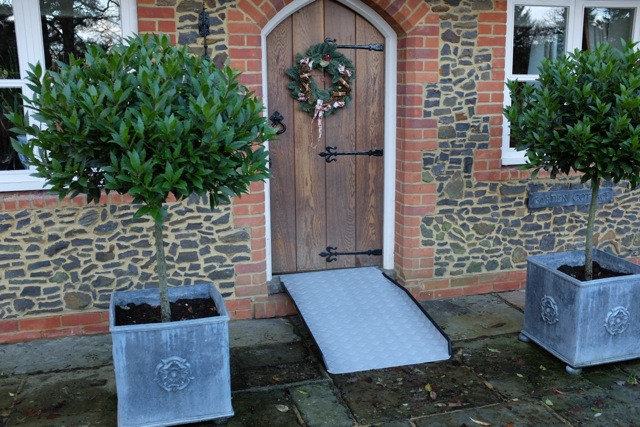

The Ramp Factory's Fixed Anodised Aluminium Threshold Ramp is ideal for fixing on a step or a threshold which can be supplied with a leg kit for height differences from 70mm - 254mm (3" - 10") The adjustable threshold ramp with legs are ideal for overcoming tricky PVC doorways. The ramp without the leg kit will rest on the door/threshold and can also be fixed in place.

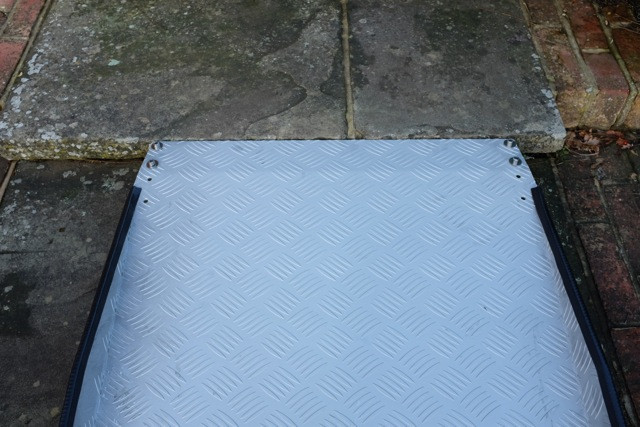

Available in the lengths 2ft, 3ft, 4ft and 6ft. The leg kit allows the ramp to be put flush next to the step without putting any weight on the step.

Due to the safety edges this product might not work well on outwards opening doors.

The Ramp Factory also offer threshold plates to work in conjunction with this ramp. Alternatively, The Ramp Factory offer rubber threshold ramps, or aluminium threshold ramps if you are seeking different options. For a portable solution, look no further than the dual channel ramps which can act as a threshold and exterior ramp.

From £204.00 £170.00

In Stock

Only %1 left

Description

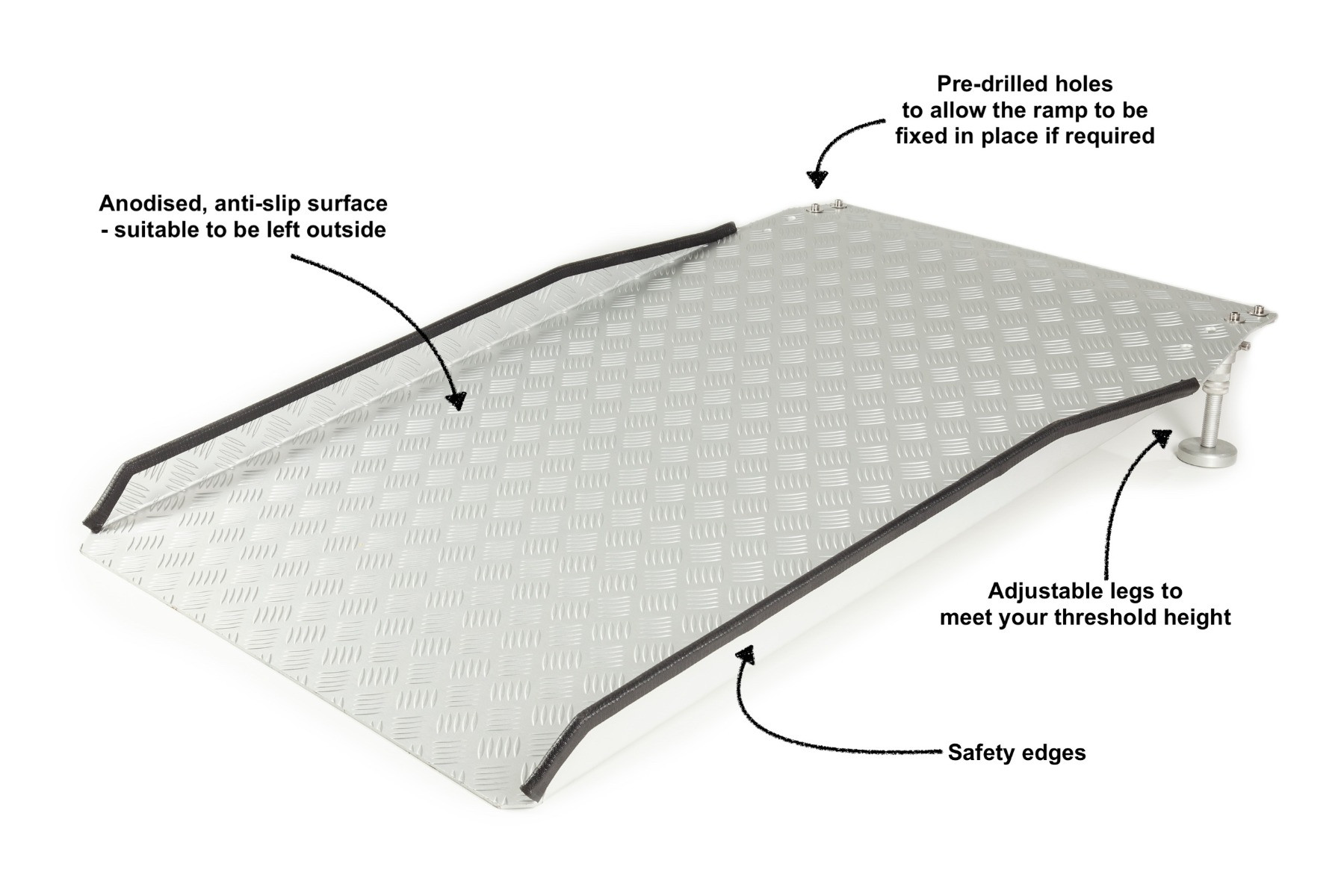

Quick and easy to install
Unique design enables incredible grip

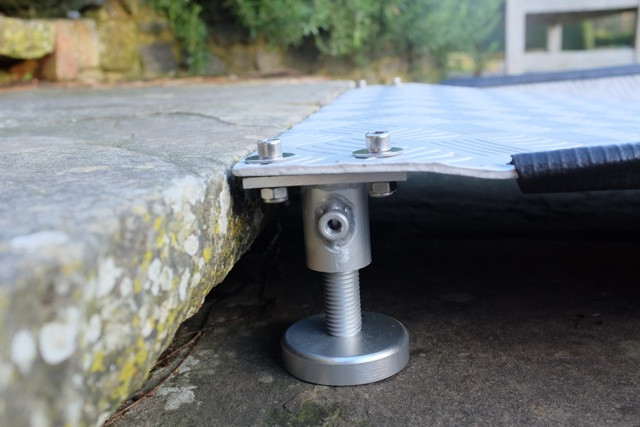

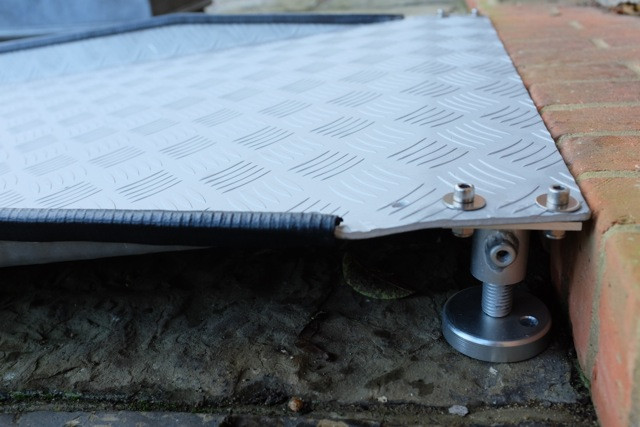

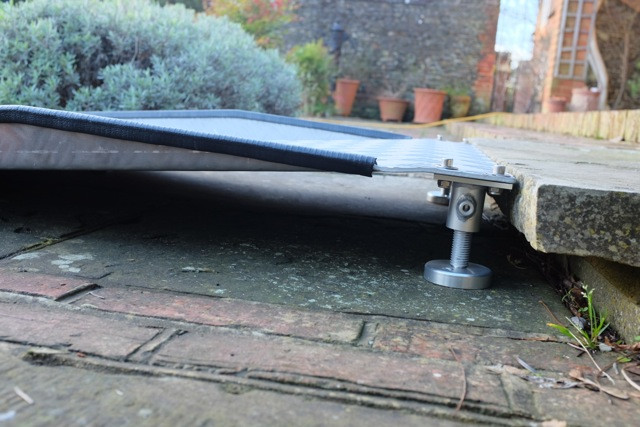

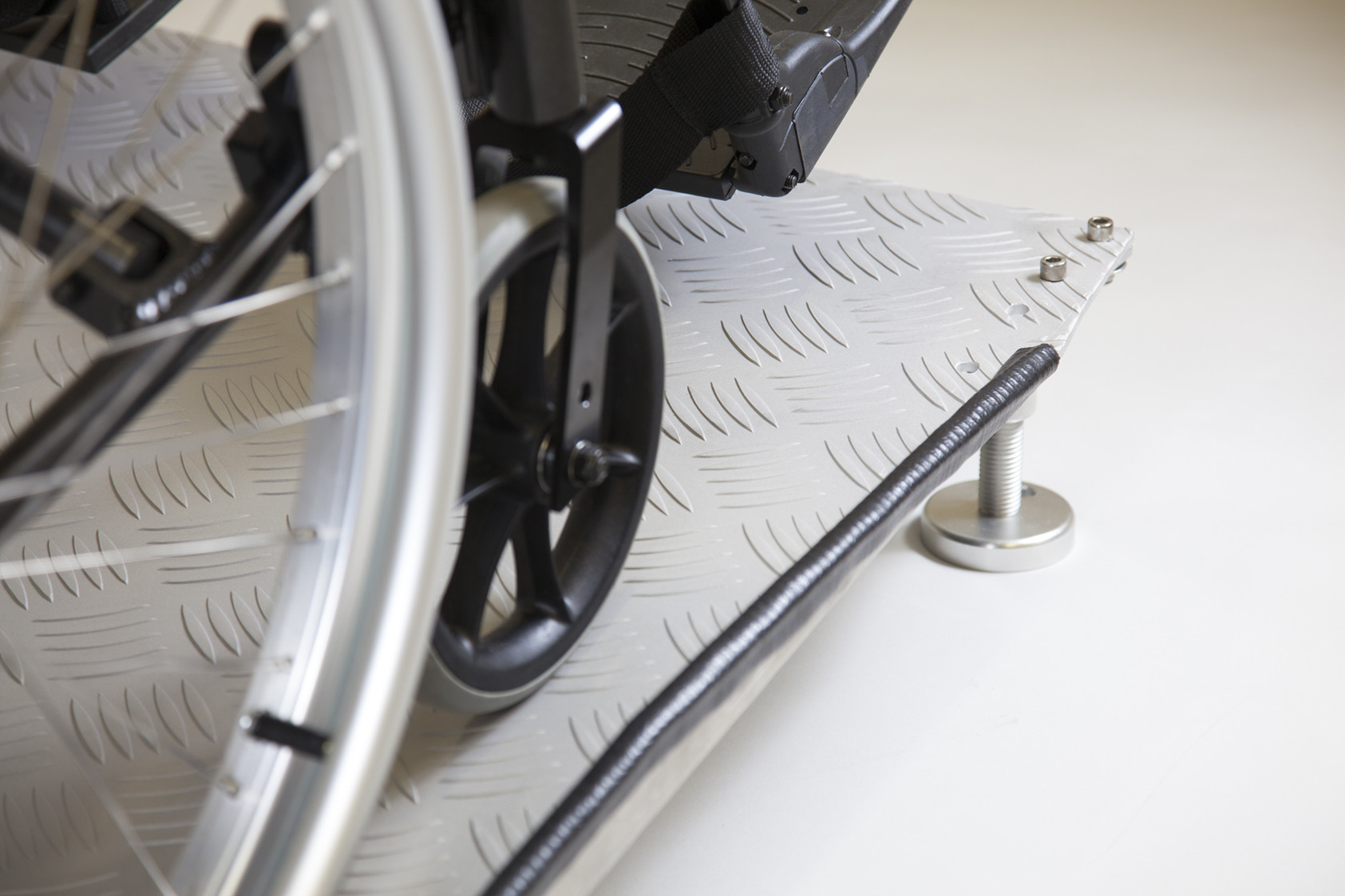

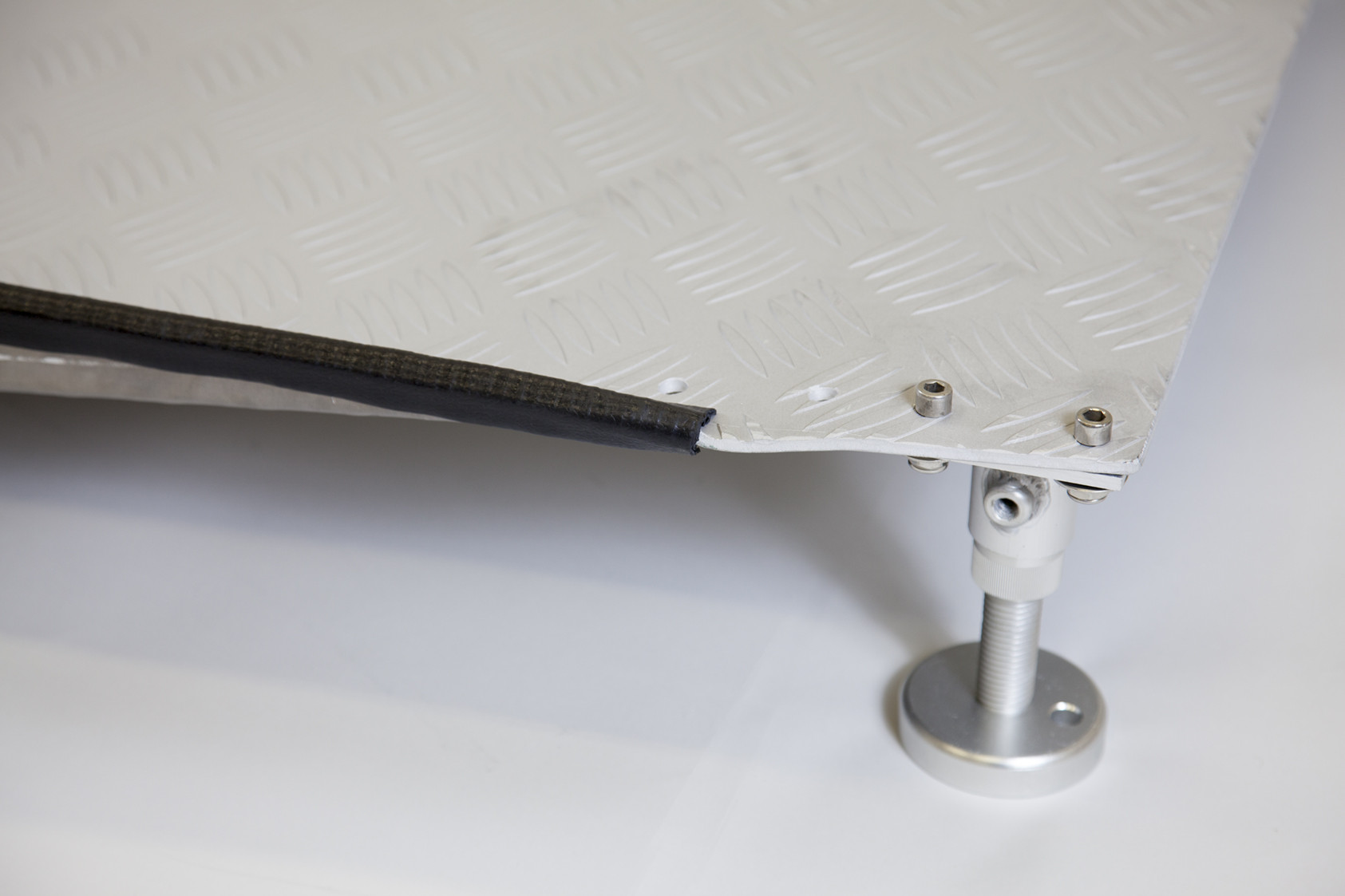

Easily positioned telescopic legs

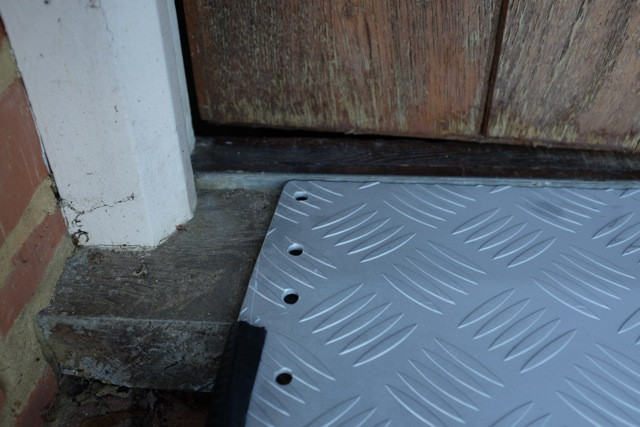

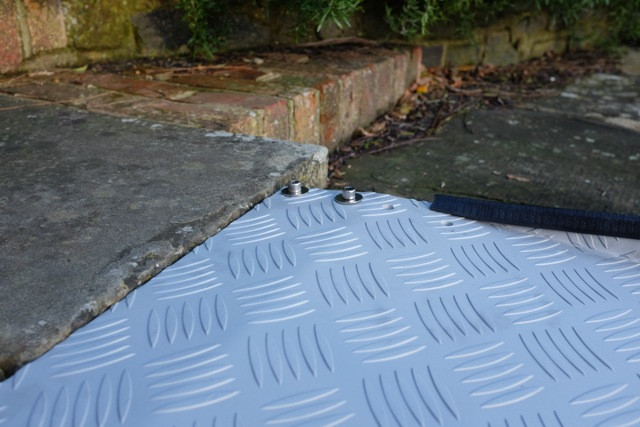

Multiple fixing options - fixing holes at top and bottom of the rest on connection for secure location
Excellent for wood, PVC and WPVC thresholds& steps

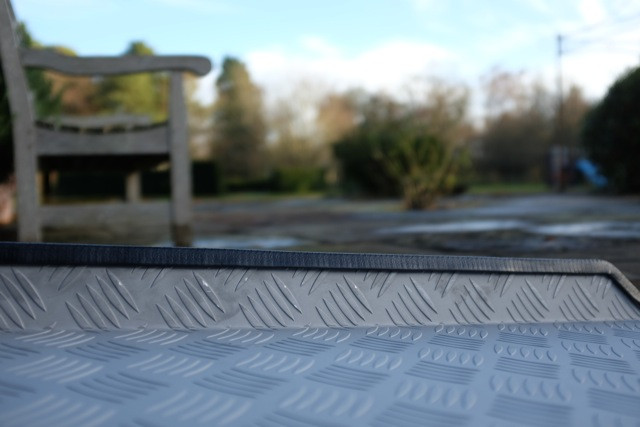

Full width anti-slip surface for sustained outdoor use

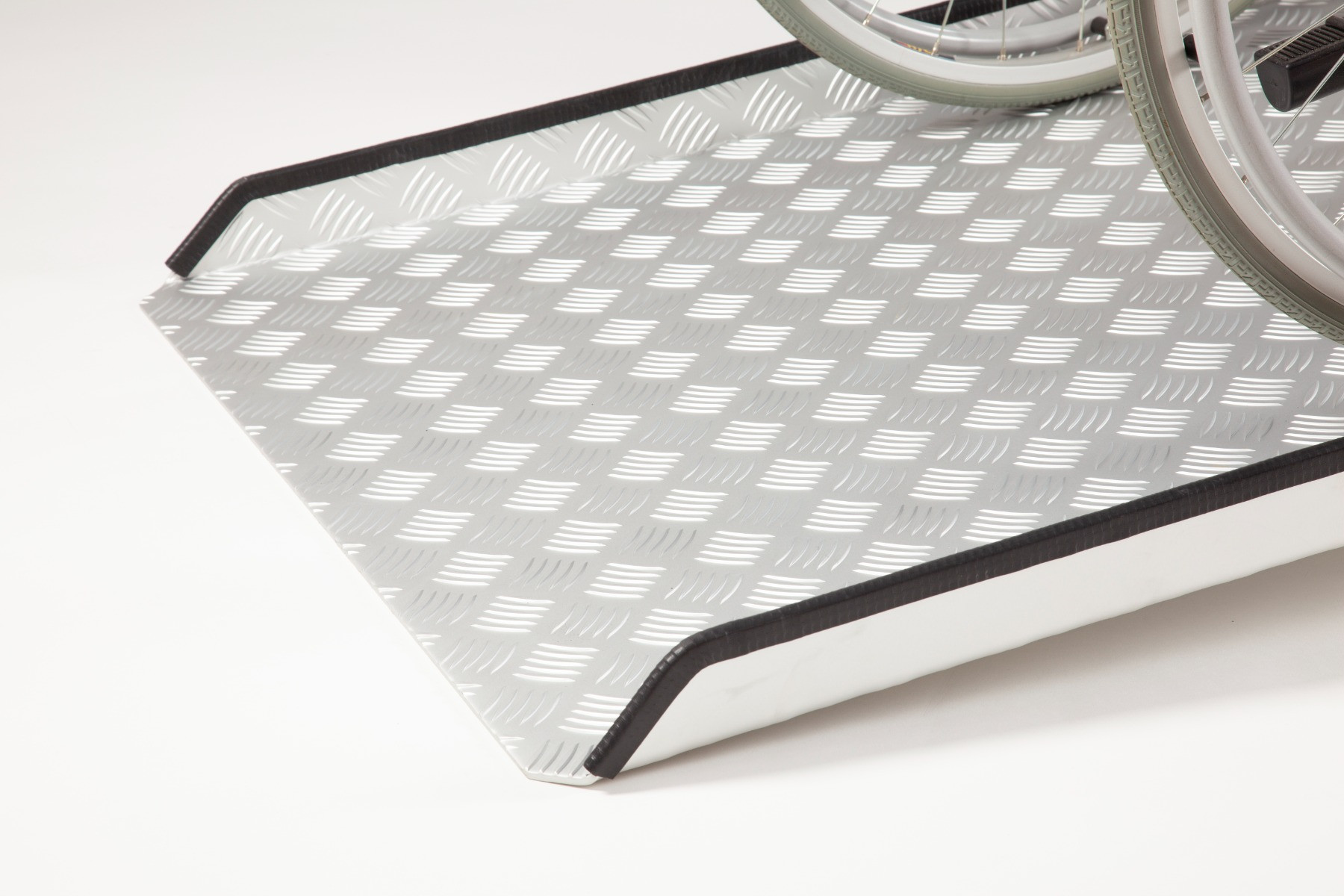

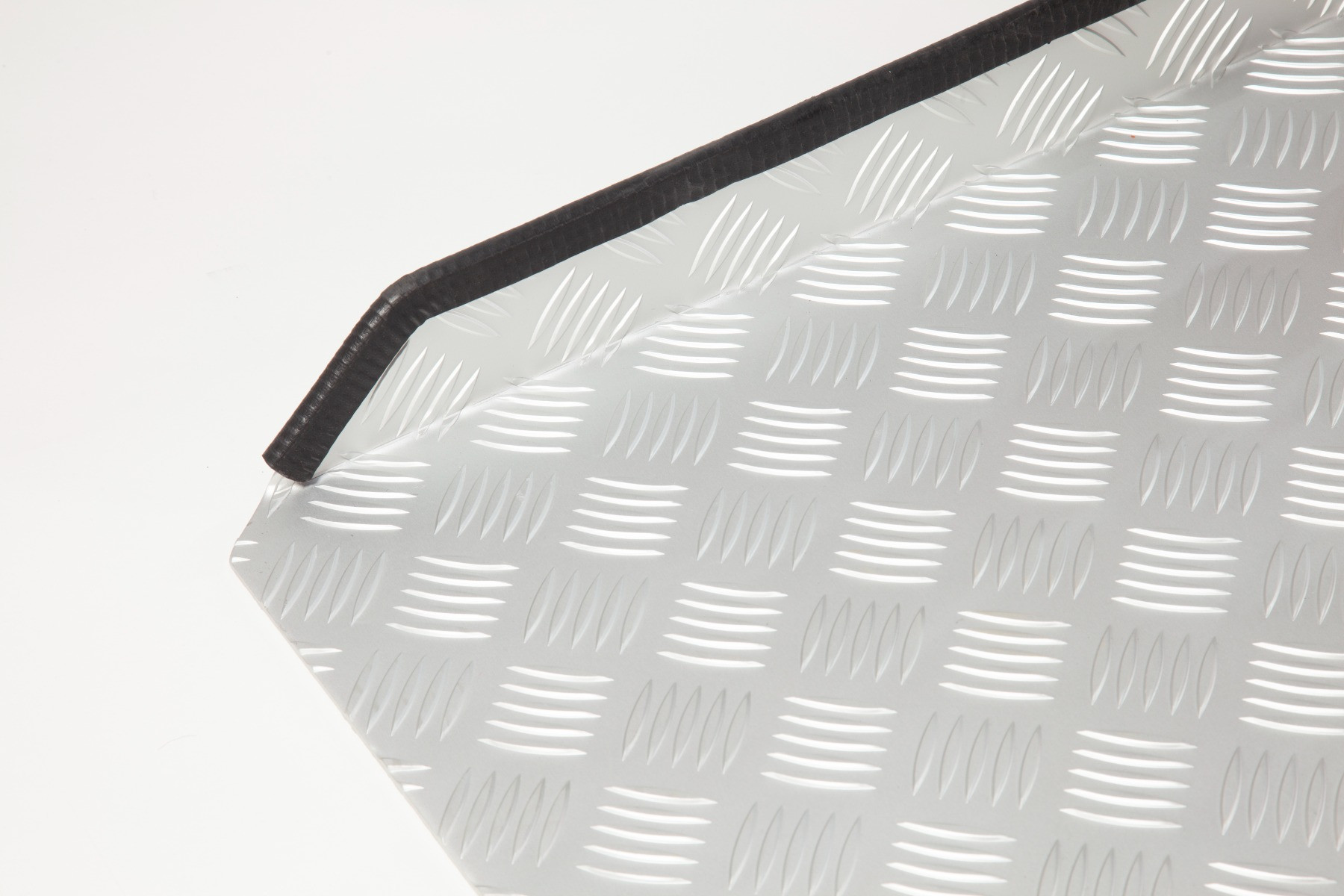

Lateral safety edges in contrasting colour
Extremely lightweight
Up to 400kg capacity
Anodised finish prevents stains and corrosion
Easy wash surface for long life and re-use

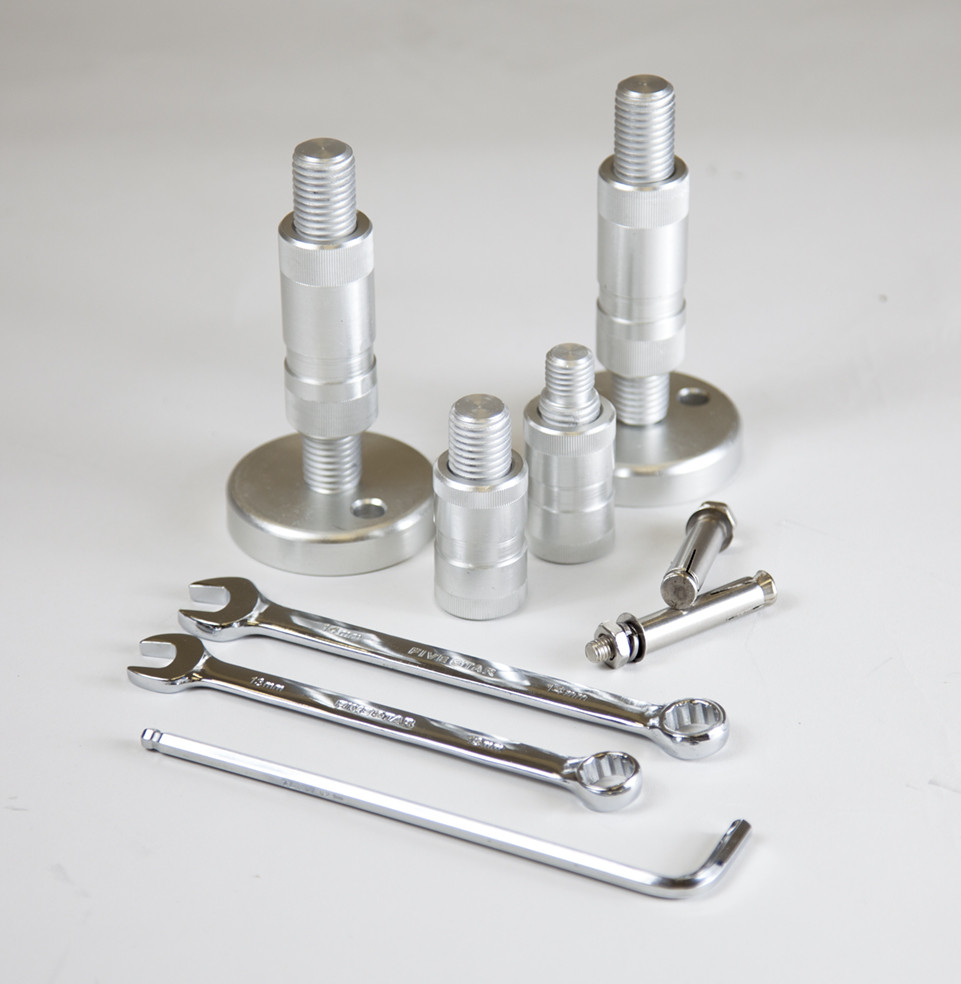

Instructions for assembling the leg kit can also be found here.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
These ramps are only suitable for use as mobility aids

Adjustable Threshold Ramps

2ft long

Length (mm): 610
Weight (kg): 10
Capacity (kg): 400
Total width (mm): 790
Internal width (mm): 755
Max. load height (mm): 100

3ft long

Length (mm): 920
Weight (kg): 14
Capacity (kg): 400
Total width (mm): 790
Internal width (mm): 755
Max. load height (mm): 150

4ft long

Length (mm): 1220
Weight (kg): 18
Capacity (kg): 400
Total width (mm): 790
Internal width (mm): 755
Max. load height (mm): 200

6ft long

Length (mm): 1830
Weight (kg): 26
Capacity (kg): 400
Total width (mm): 790
Internal width (mm): 755
Max. load height (mm): 254

8ft long

Length (mm): 2440
Weight (kg): 34
Capacity (kg): 400
Total width (mm): 790
Internal width (mm): 755
Max. load height (mm): 254

Ramps Without Legs

2ft long

Length (mm): 610
Weight (kg): 8
Capacity (kg): 400
Open width (mm): 790
Max. load height (mm): 100

3ft long

Length (mm): 920
Weight (kg): 12
Capacity (kg): 400
Open width (mm): 790
Max. load height (mm): 150

4ft long

Length (mm): 1220
Weight (kg): 16
Capacity (kg): 400
Open width (mm): 790
Max. load height (mm): 200

6ft long

Length (mm): 1830
Weight (kg): 24
Capacity (kg): 400
Open width (mm): 790
Max. load height (mm): 300

8ft long

Length (mm): 2440
Weight (kg): 32
Capacity (kg): 400
Open width (mm): 790
Max. load height (mm): 405

Video

Details

SKU	TRP-AD Adjust
Capacity (kg)	400
Height of Raised Side (mm)	63.5
Length (ft)	2-8
Length (mm)	610-2438
Max Load Height (mm)	70-265
Total Width (mm)	790
Weight (kg)	8-34
Width (mm)	755
One Year Warranty	Yes
Bolt Down	Yes
Easy to Fit	Yes
Electric Wheelchair	Yes
Manual Wheelchair	Yes
Mobility Scooter Friendly	Yes
Leave Outside	Yes

Print/Save Datasheet

Buy VAT Exempt

Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.

Who is eligible?

VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.

Who is not eligible?

Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.

How do I claim my VAT back?

At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.

If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.

Ramp Length & Load Height Information

Ramp Length & Load Height

It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.

Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.

Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.

Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.
