Aluminium Loading Ramps (4500x400x1800kg)
4500mm length, 400mm width and a profile height of 115mm . These ramps include a maximum capacity of 1800kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min/max track or tyre width of 200mm/320mm.
Contact our customer services team for custom built orders.
Price and capacity stated is for the PAIR.

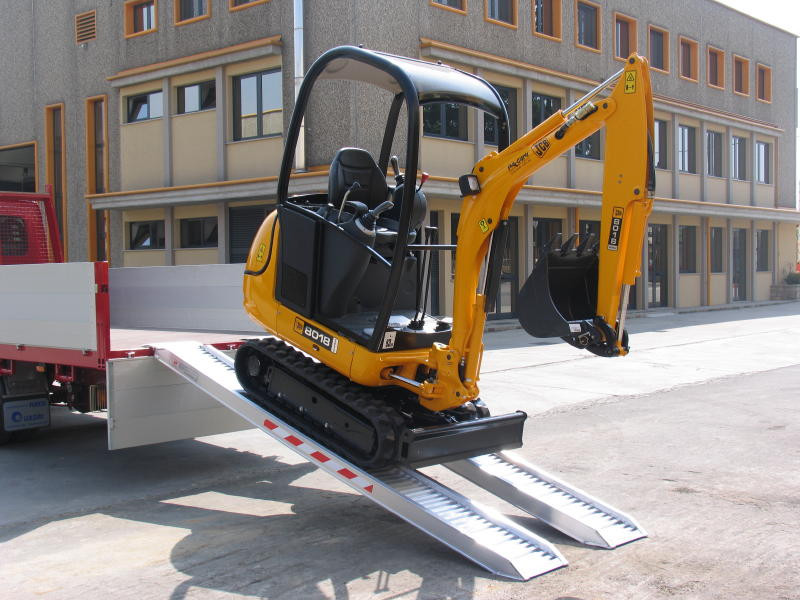

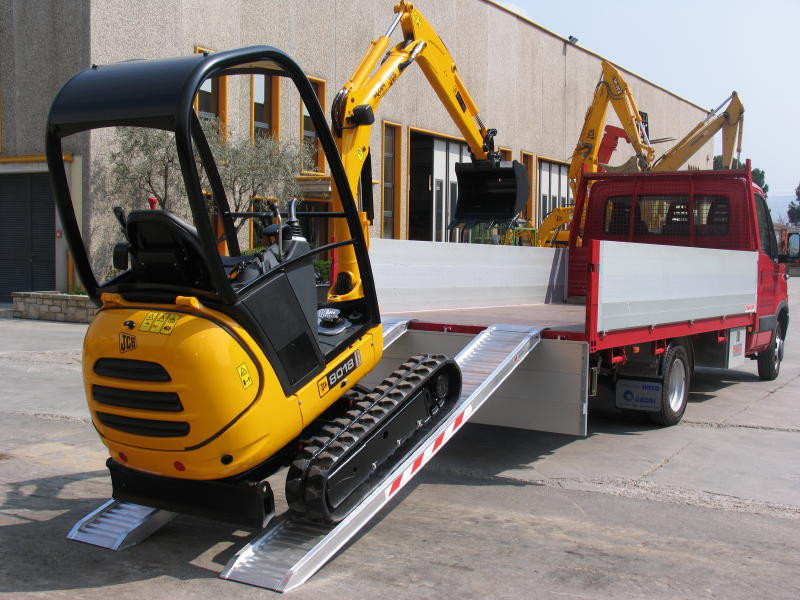

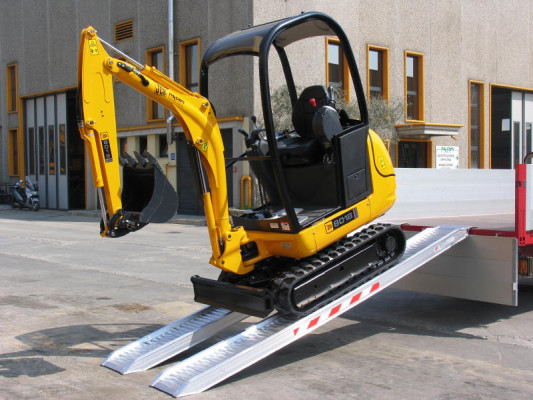

Some of our best selling plant ramps, the TRP116L has a core profile thickness of 115mm. Their width is 400mm. They feature a capacity of up to 1800kg and are ideal for use as plant ramps and mini digger ramps.
With a width of 400mm, a minimum track width of 200mm is recommended, the maximum track width of 320mm should not be exceeded . The height of the ramp profile is 115mm.
These ramps are not designed for use over 30% gradient
- These ramps are available both with and without edges. The default is however without edges.
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
Usage Guidelines and Safety Information for these ramps can be found here.
|Default Connection||Rest On Connection|
|Height of Ramps Profile (mm)||115|
|Max Load Height (mm)||1350|
|Min. Load Height (mm)||1200|
|Weight per Ramp (kg)||39|
|Weight Per Pair (kg)||78|
|Minimum Track Width (mm)||200|
|Maximum Track Width (mm)||320|
|One Year Warranty||Yes|
|Connection Options Available||Yes|
|Easy to Fit||Yes|
|Not Solid Wheels||Yes|
|Capacity Wheelbase 1000mm (kg)||1285|
|Capacity Wheelbase 1500mm (kg)||1500|
|Capacity Wheelbase 2000mm (kg)||1800|
