Steel Track Ramps with Rubber Coating (4000mmx480mm)

SKU
TRP120S/4/40 R
£4,512.00 £3,760.00
Built to Order

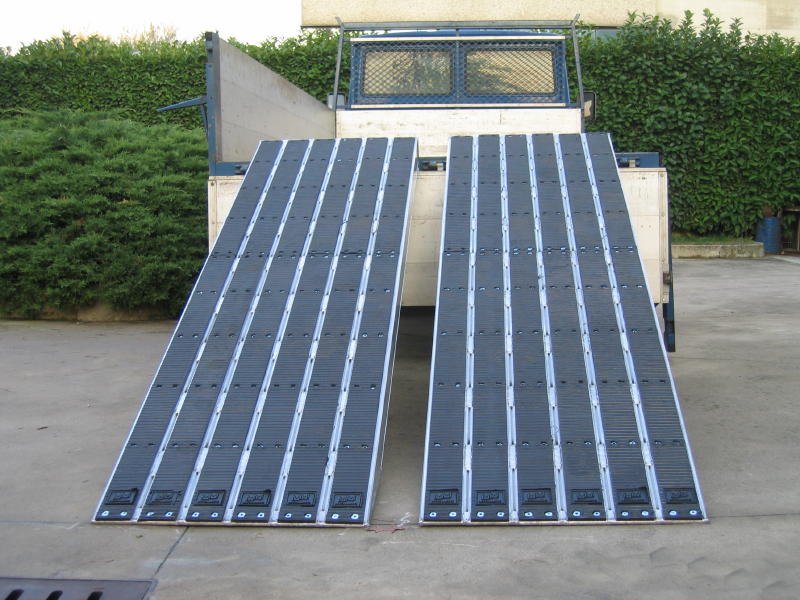

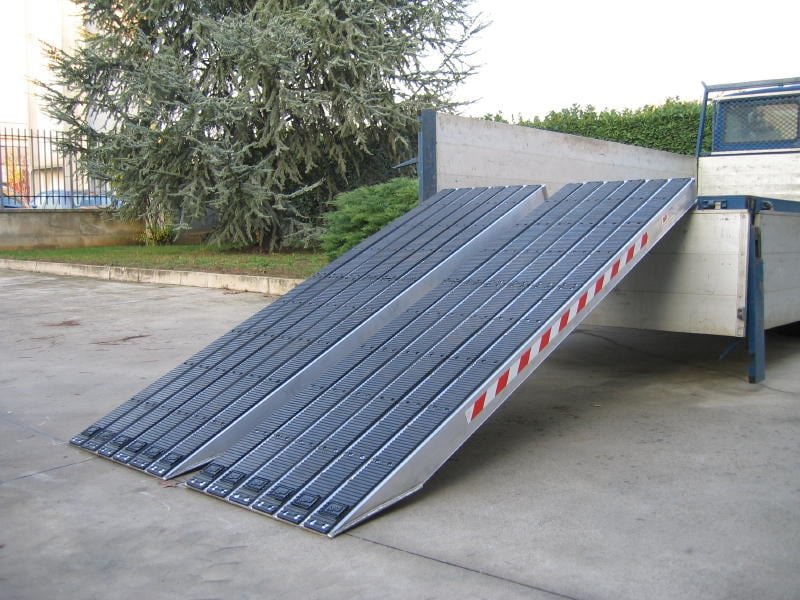

The Ramp Factory's Industrial Aluminium Ramps are European made and TUV certified. With a rubber coating, these ramps are ideal for steel tracks, plant machinery and vehicles.

Capacity and price is for the PAIR.

Length (mm) 4000
Width (mm) 480
Min to Max Load Height (mm) 1050-1200
Capacity (kg) 9,574

Aluminium Ramps for Plant & Machinery FAQs

Description

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 120mm. Available up to 720mm wide, these ramps feature no external welds and rubber coating strips and offer a capacity of up to 9,574kg and are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds

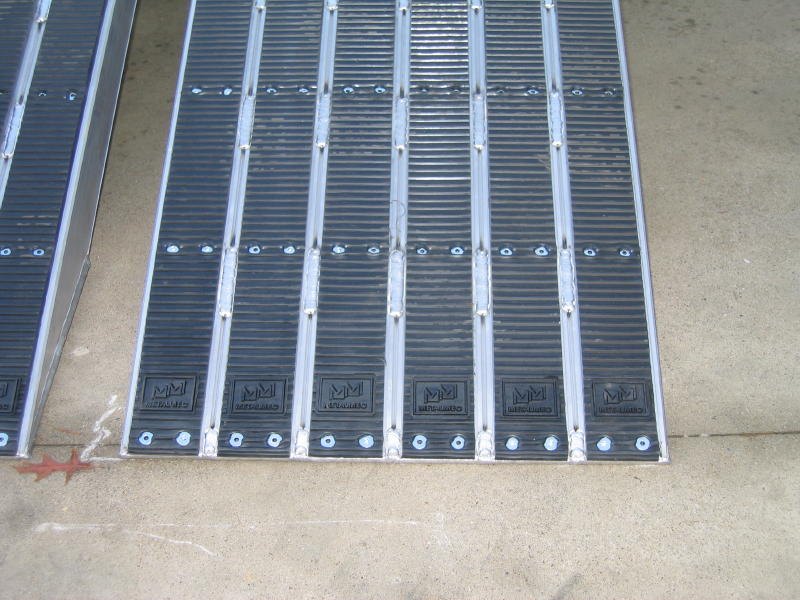

  • Removable rubber surface
  • Four different connection options
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP120S/4/40 R
Product Safety GPSRpopup_gpsr_importer
Capacity (kg)9,574
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight Per Pair (kg) 257
Width (mm)480
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1500mm (kg)7659
Capacity Wheelbase 1750mm (kg)8511
Capacity Wheelbase 2000mm (kg)9574
