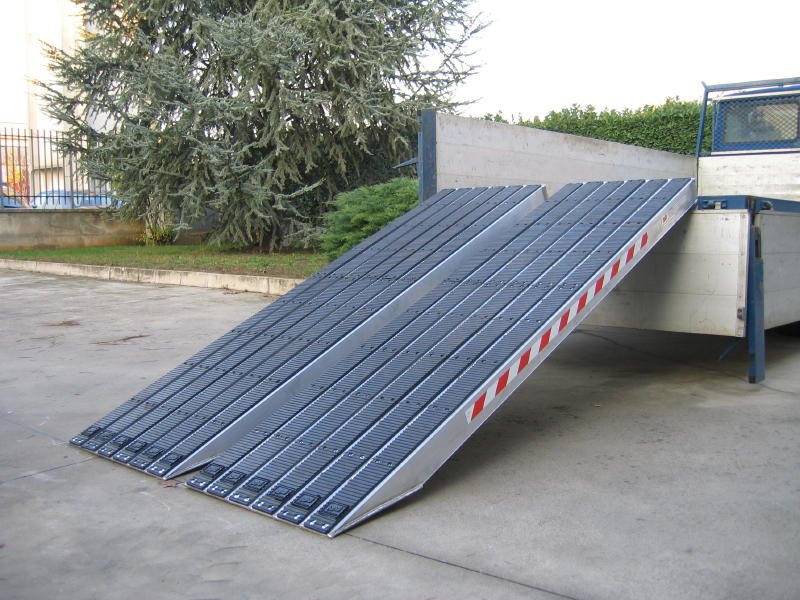

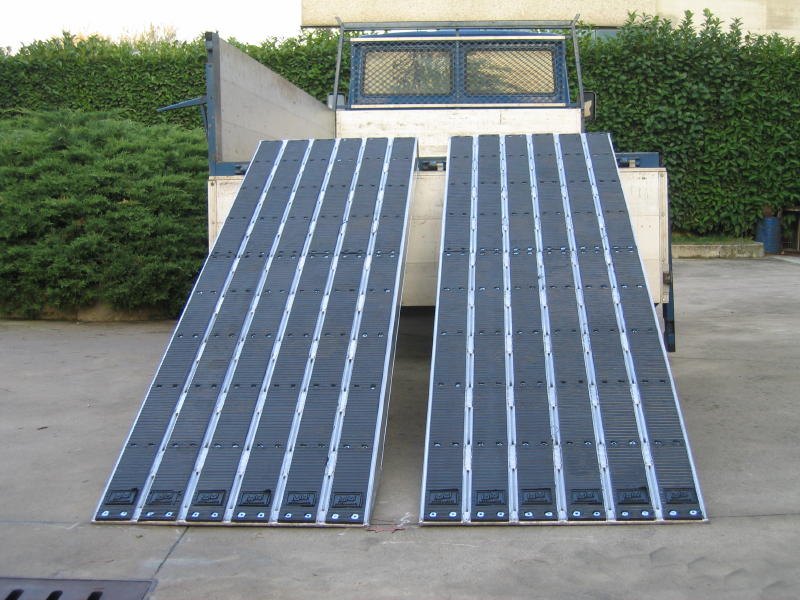

Steel Track Ramps with Rubber Coating (5000mmx480mm)
The Ramp Factory's Industrial Aluminium Ramps are European made and TUV certified. With a rubber coating, these ramps are ideal for steel tracks, plant machinery and vehicles.
Capacity and price is for the PAIR.
Length (mm) | 5000 |
Width (mm) | 480 |
Min to Max Load Height (mm) | 1350-1500 |
Capacity (kg) | 6,383 |
Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 120mm. Available up to 720mm wide, these ramps feature no external welds and rubber coating strips and offer a capacity of up to 6,383kg and are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.
- Flat top with no external welds

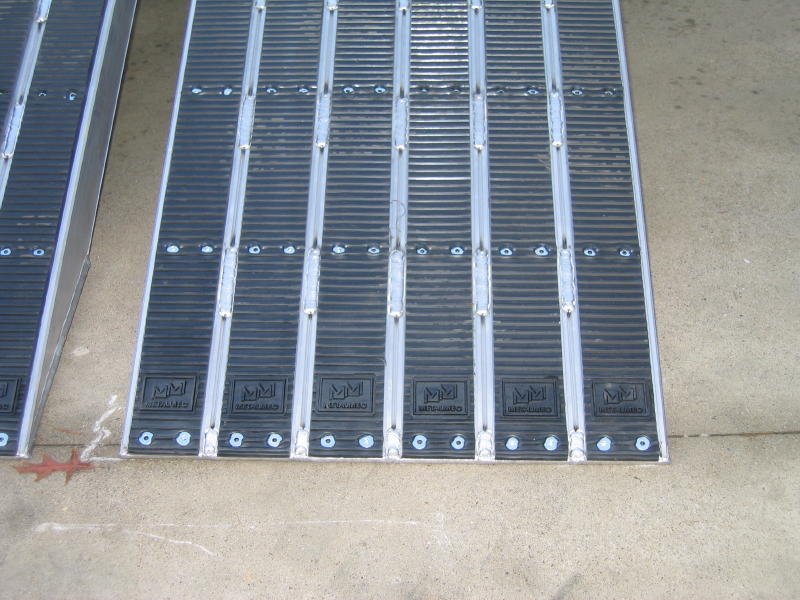

- Removable rubber surface
- Four different connection options
- Custom load heights available
- Quotes for bespoke ramps can be supplied on request
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Fully TUV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP120S/4/50 R |
---|---|
Capacity (kg) | 6,383 |
Length (mm) | 5000 |
Max Load Height (mm) | 1500 |
Min. Load Height (mm) | 1350 |
Weight Per Pair (kg) | 320 |
Width (mm) | 480 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1500mm (kg) | 5471 |
Capacity Wheelbase 1750mm (kg) | 5892 |
Capacity Wheelbase 2000mm (kg) | 6383 |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
