Aluminium Loading Ramps Extra Wide (2500x510)

SKU
TRP160/25LTRP

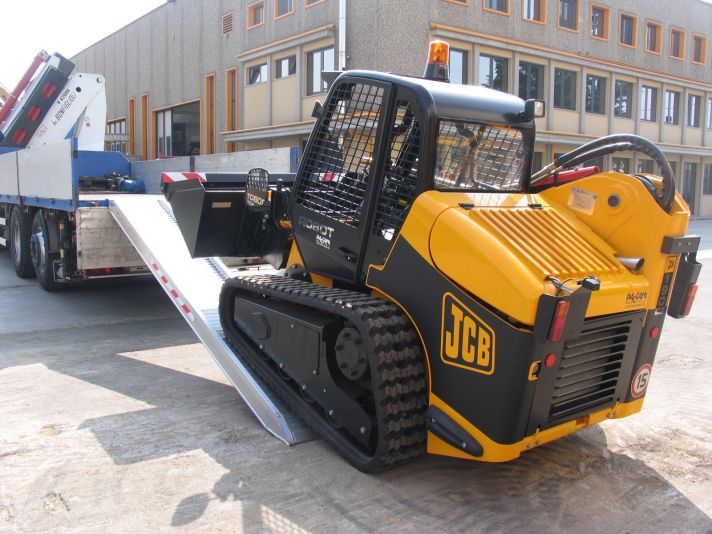

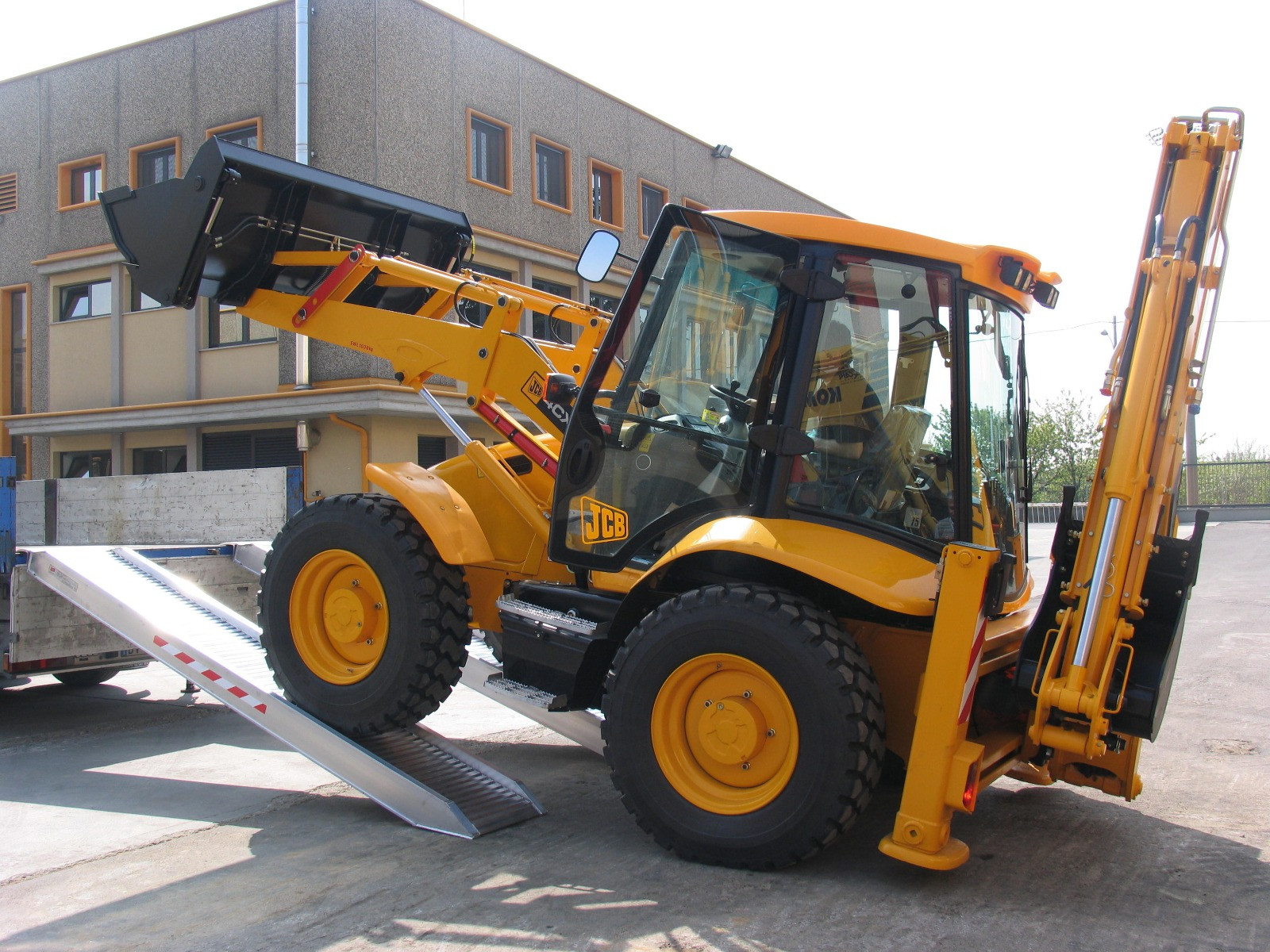

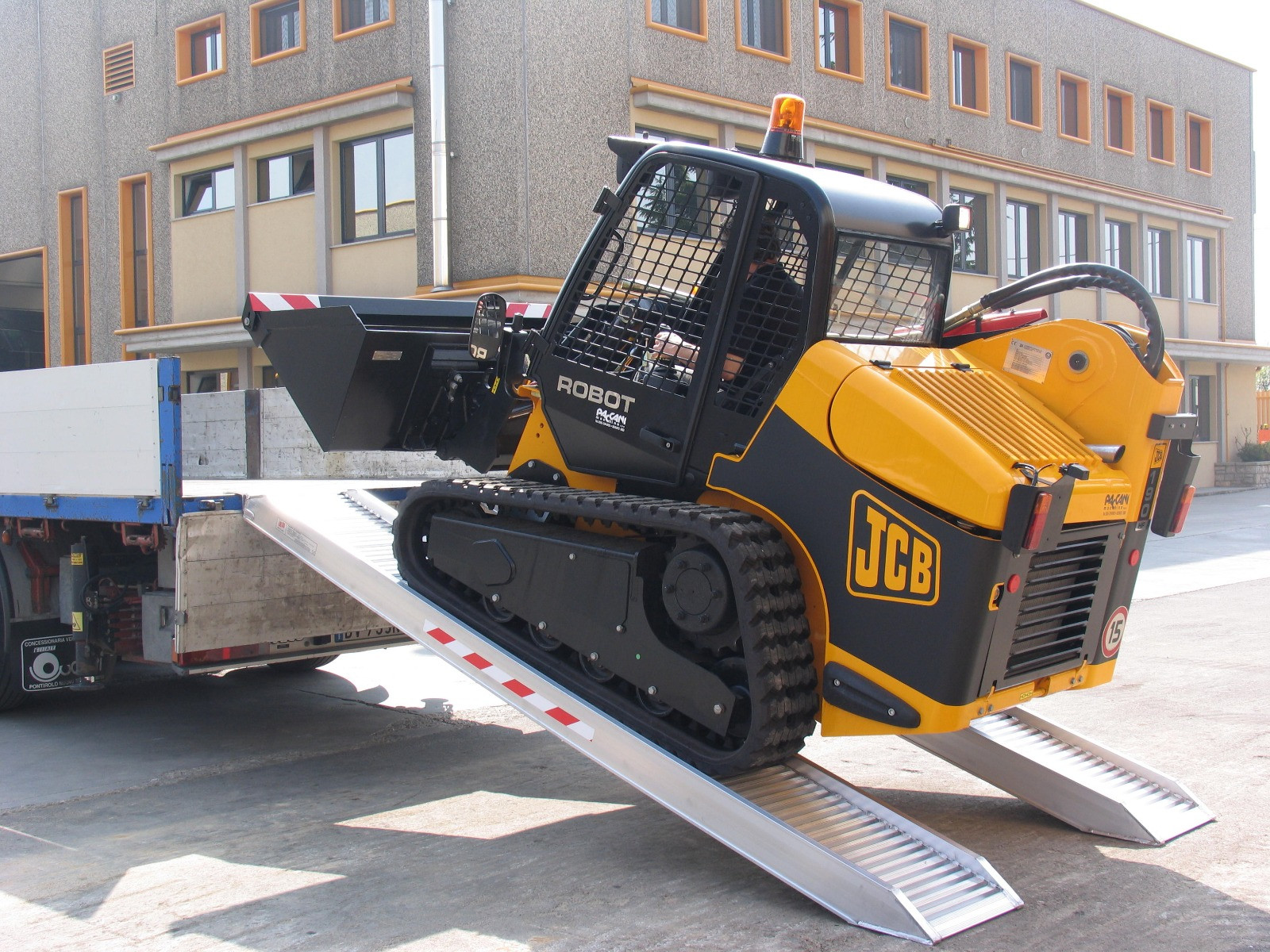

Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.

Length (mm) 2500
Width (mm) 510
Max. Load Height (mm) 750
Min. Load Height (mm) 600
Weight Per Ramp (kg) 39.5
Profile Height (mm) 160
Minimum Track Width (mm) 400
Maximum Track Width (mm) 580
Capacity (kg) 14000

Capacity and price is for the PAIR.

£1,548.00 £1,290.00
In Stock
Description

The TRP65LTRP Series has a core profile thickness of 65mm and a width of 510mm. On the TRP65LTRP Series the minimum width of tracks/wheels is 400mm.


They feature a capacity of up to 14,000kg and are ideal for use as car ramps or plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP160/25LTRP
Default Connection Rest On Connection
Capacity (kg) 14.000
Height of Ramps Profile (mm) 160
Length (mm) 2500
Max Load Height 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 39,5
Weight Per Pair (kg) 79
Width (mm) 510
Minimum Track Width (mm) 400
Maximum Track Width (mm) 580
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 8435
Capacity Wheelbase 1500mm (kg) 12650
Capacity Wheelbase 2000mm (kg) 14000
