Extra Wide Aluminium Loading Ramps (2000x500)

SKU
TRP65/20L

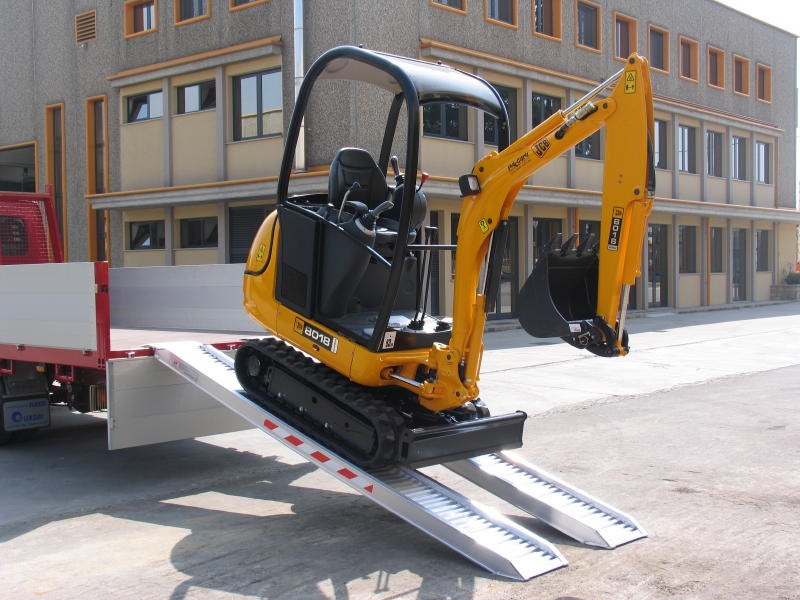

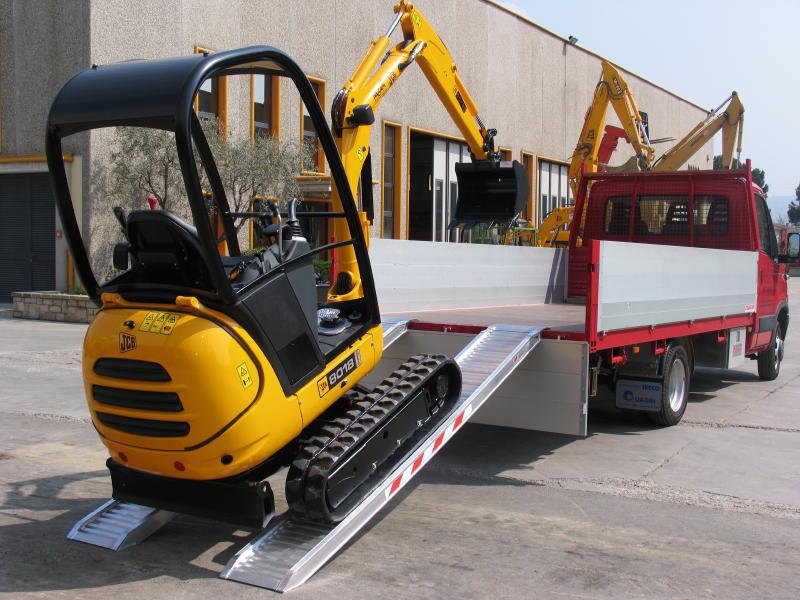

Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.

Length (mm) 2000
Width (mm) 500
Max. Load Height (mm) 600
Min. Load Height (mm) 450
Weight Per Ramp (kg) 15
Profile Height (mm) 65
Minimum Track Width (mm) 300
Maximum Track Width (mm) 420
Capacity (kg) 2450

Capacity and price is for the PAIR.

£744.00 £620.00
Built to Order

Aluminium Ramps for Plant & Machinery FAQs

Description

The TRP65L Series has a core profile thickness of 65mm and a width of 500mm. On the TRP65L Series the minimum width of tracks/wheels is 300mm.

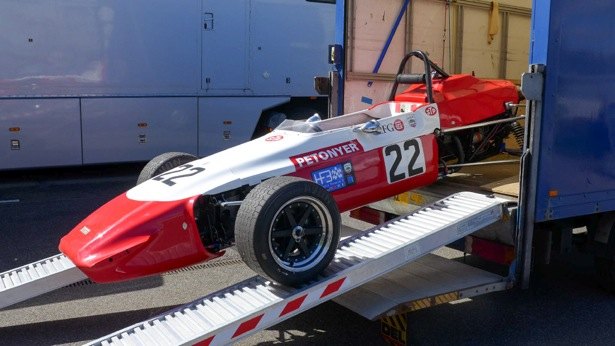

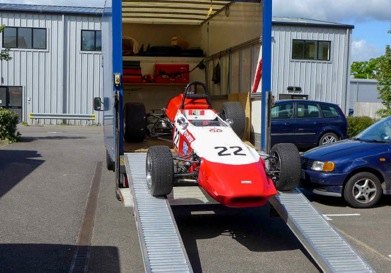

They feature a capacity of up to 2450kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP65/20L
Default Connection Rest On Connection
Capacity (kg) 2450
Height of Ramps Profile (mm) 65
Length (mm) 2000
Max Load Height 600
Min. Load Height (mm) 450
Weight per Ramp (kg) 15
Weight Per Pair (kg) 30
Width (mm) 500
Minimum Track Width (mm) 300
Maximum Track Width (mm) 420
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2000
Capacity Wheelbase 1250mm (kg) 2450
Capacity Wheelbase 1500mm (kg) 2450
