Multi-Fold Wheelchair Ramp for Cars 4ft - 10ft

SKU
TRP506-multifold-1
From £144.00 £120.00
296 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

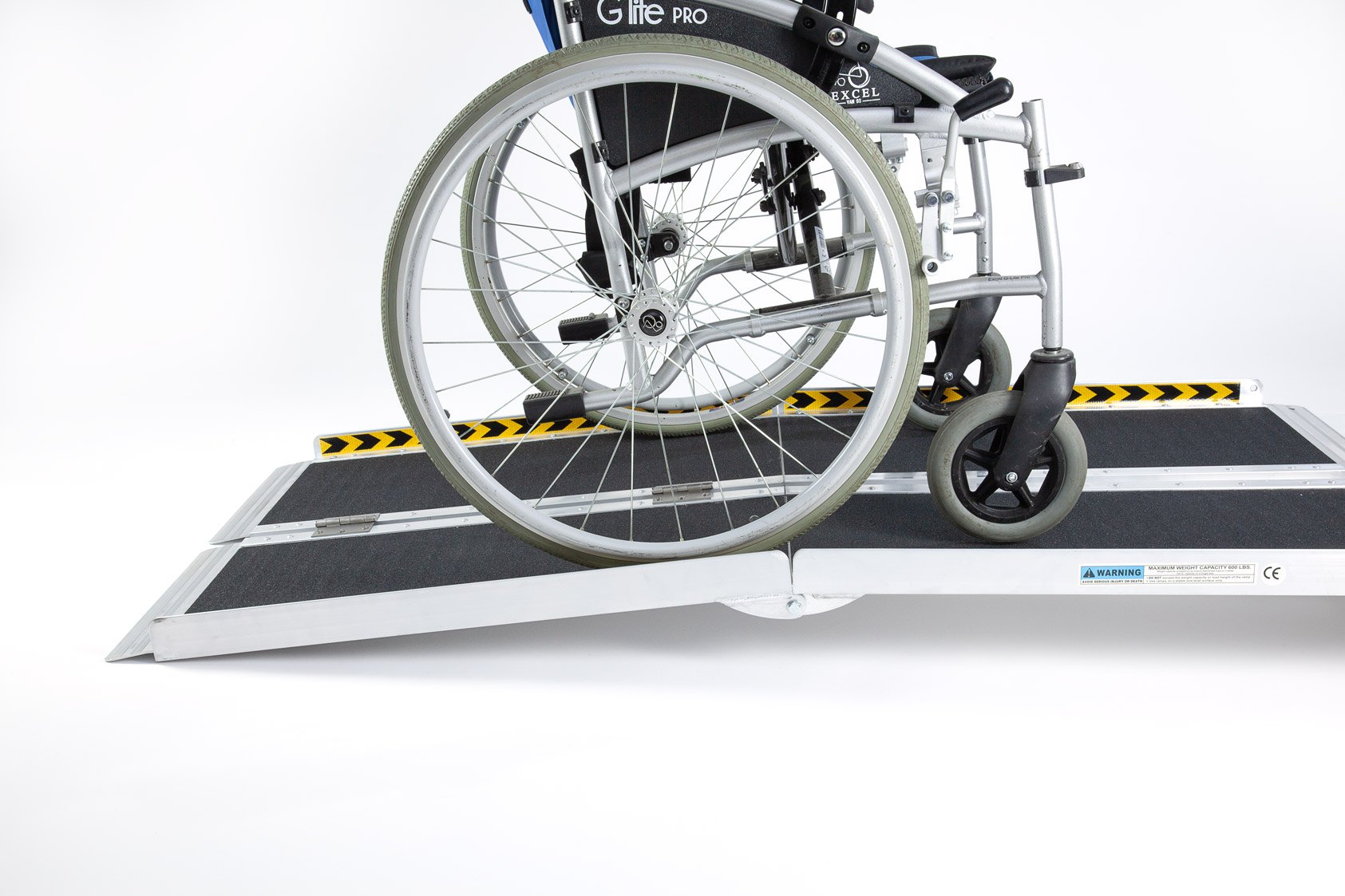

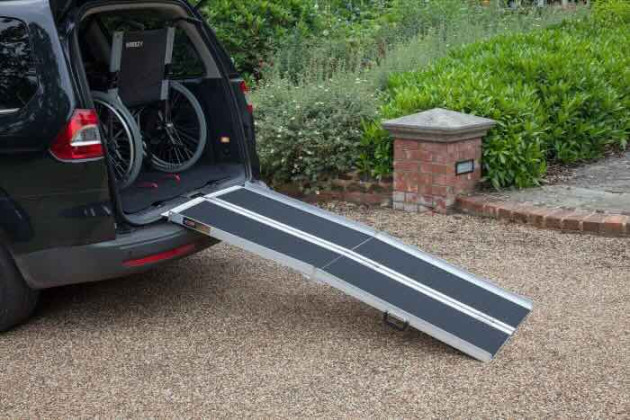

This portable and folding aluminium wheelchair ramp with black non-slip grip surface easily allows you to load your wheelchair or mobility scooter into the car. This dual-purpose ramp can also be used to overcome steps and kerbs. Choose from 4ft, 5ft, 6ft, 8ft and 10ft lengths. Please note, from 6ft upwards the ramps split in 2 - these are SPLIT ramps which make the ramps much easier to put in place and use.

Please note the recommended load height for loading unoccupied wheelchairs and scooters is based on a 1:33 gradient. Please check your scooter's manual to ensure this gradient is suitable.

The Ramp Factory strive to make loading your wheelchair or scooter as simple and versatile as possible. Check out the bestselling scooter ramps, which can be sold as a pair or kit of 3 ramps. Other solid ramp options include the premium multifold, anyramp, or iramp. Need a longer length? Look no further than the dual telescopic ramp or the aluminium ramps for heavier loads.

Folding Wheelchair Ramps FAQ's

Description

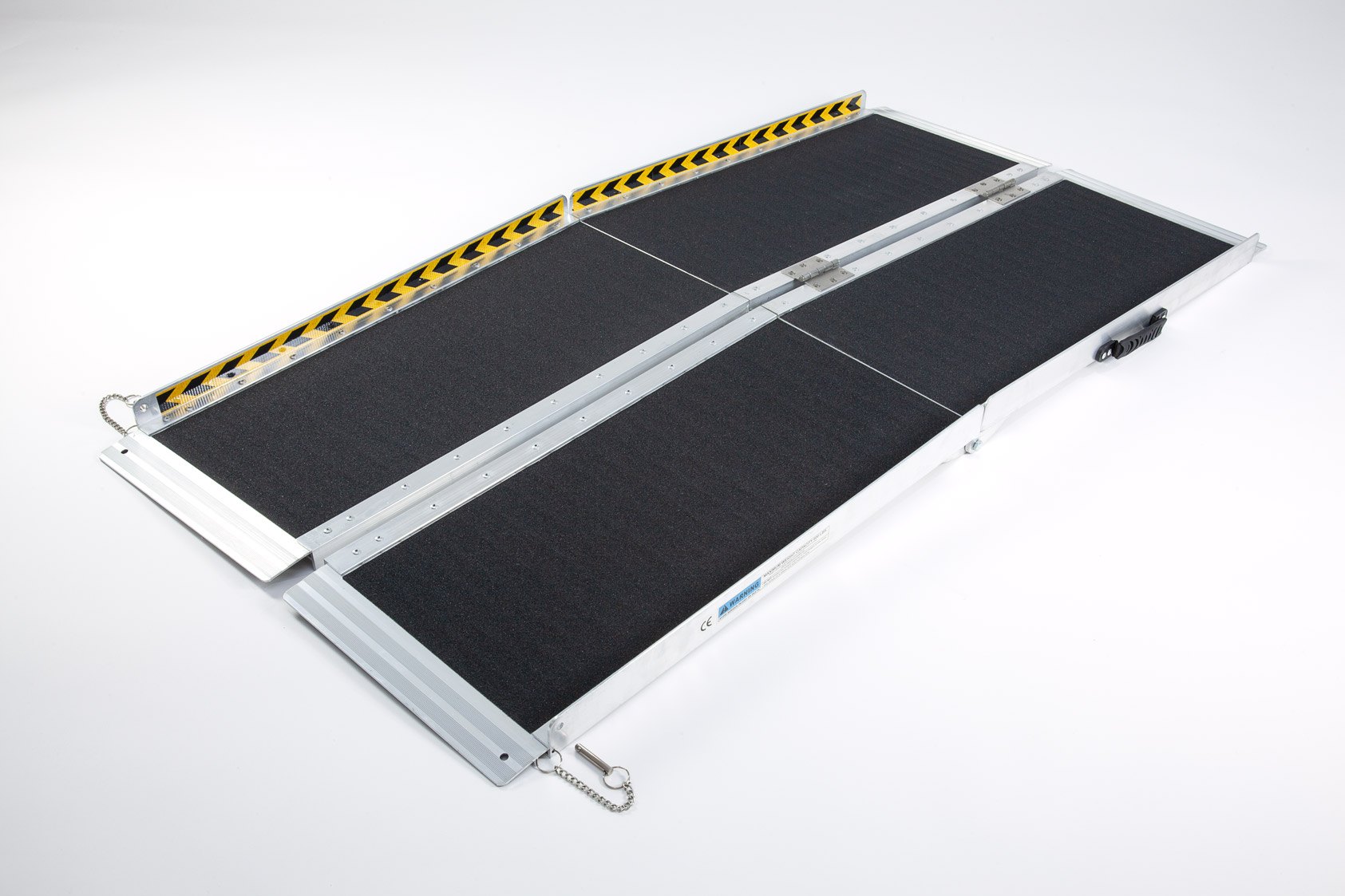

  • Multi-folding ramp design for compact storage

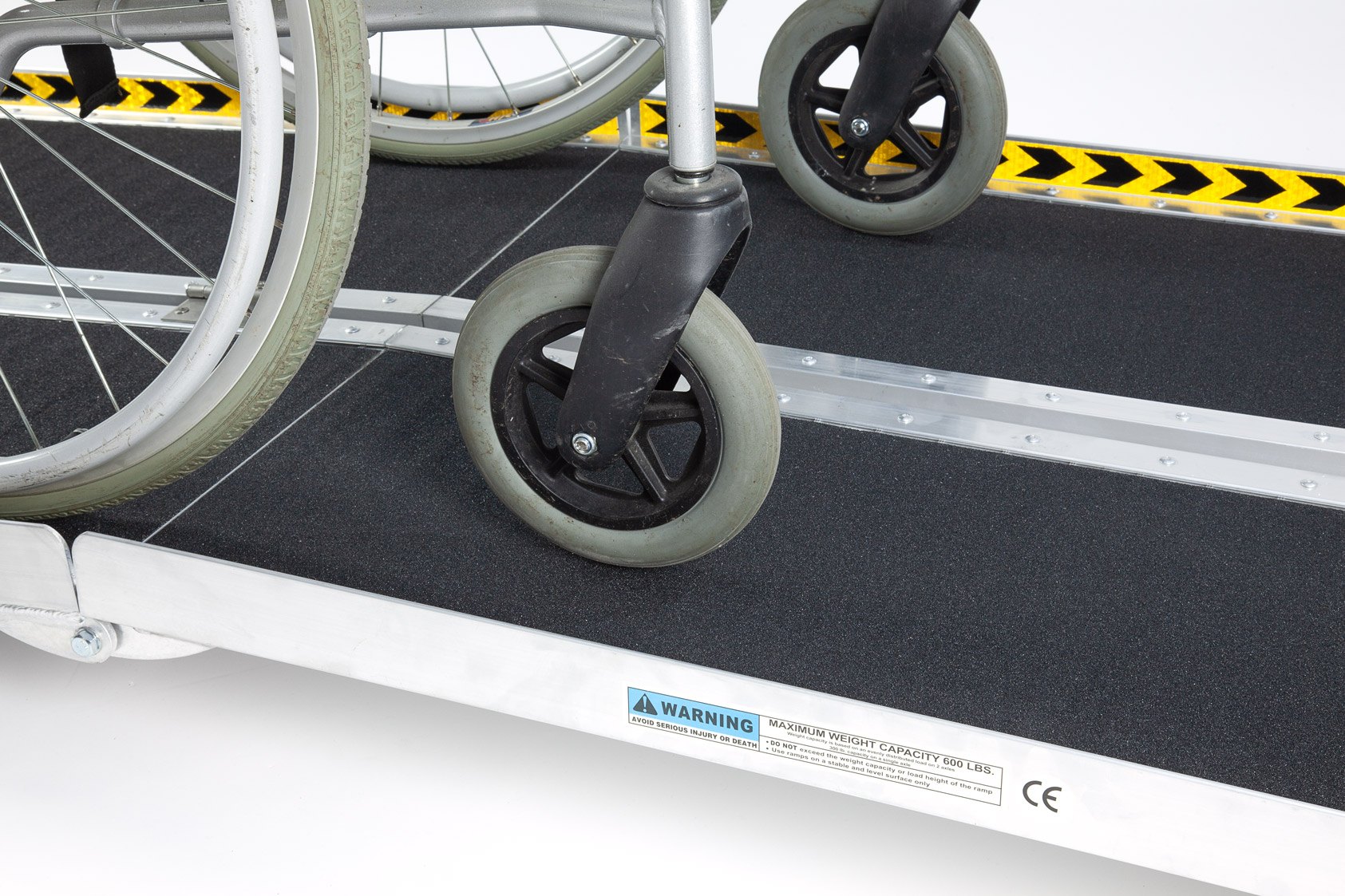

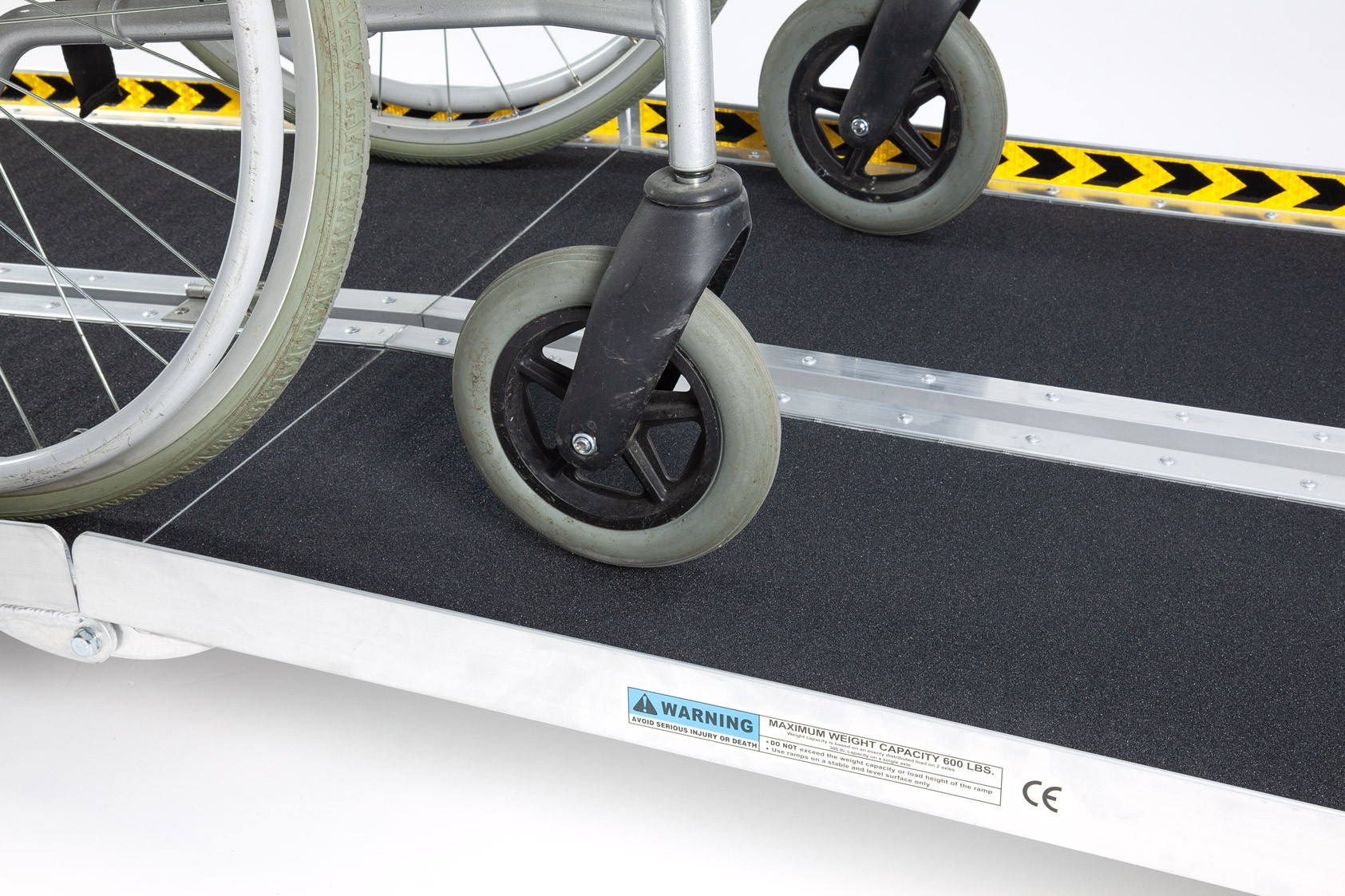

  • Grip tape running surface for extra grip even in wet

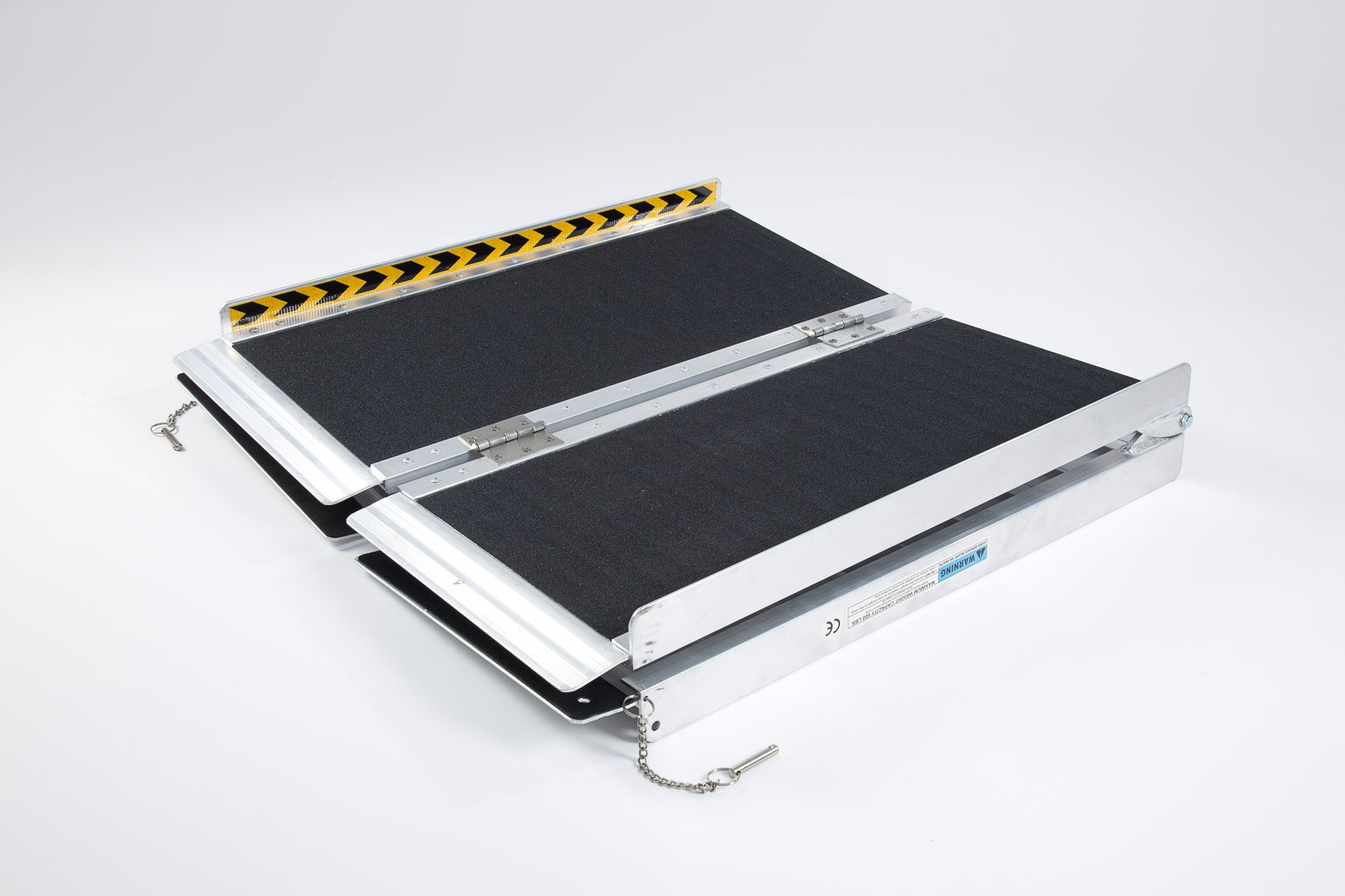

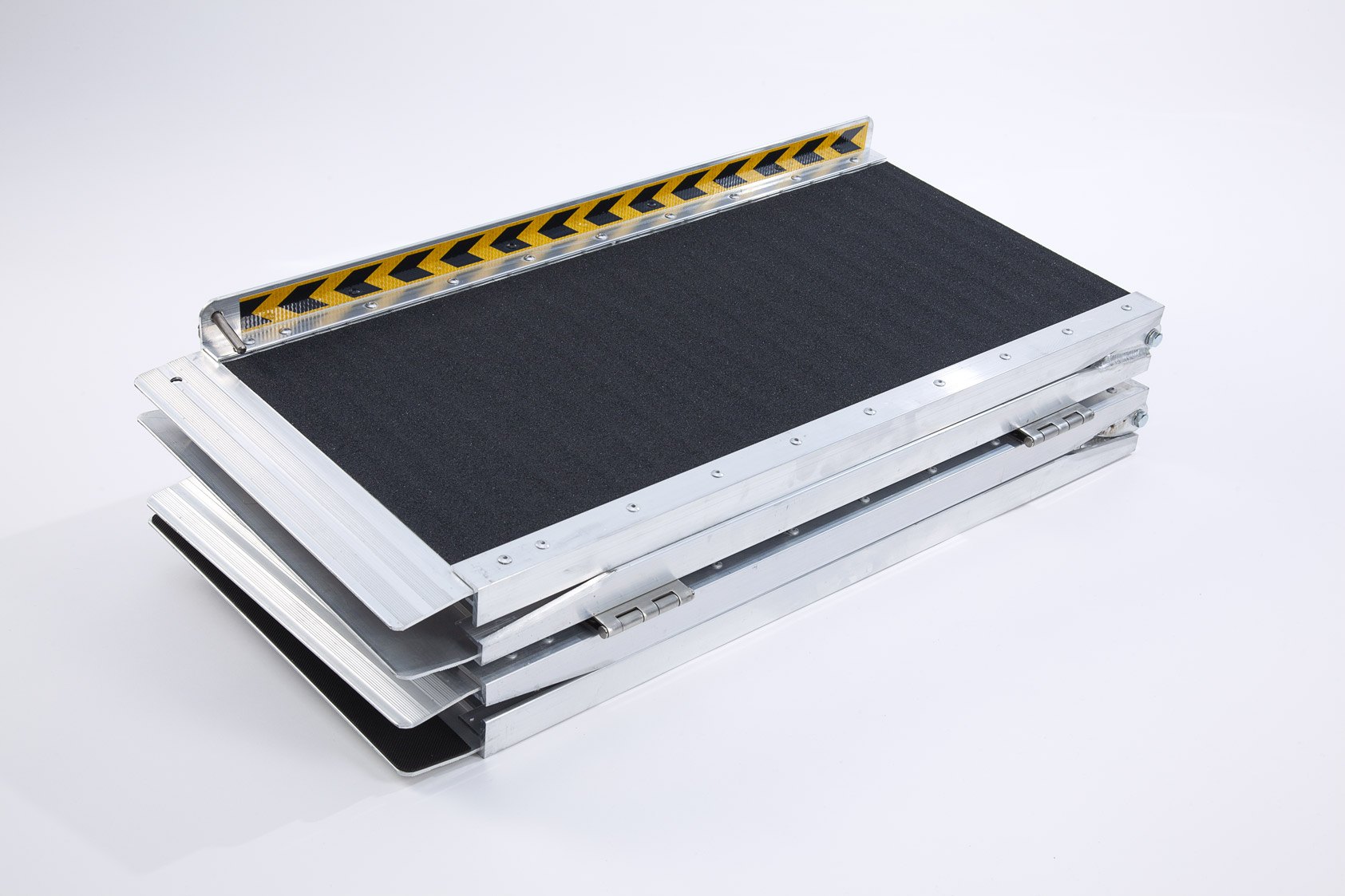

  • Halves in length and its width when folded for easy storage
  • 275kg capacity, Open Width 730mm, internal width 720mm
  • From 6ft upwards the ramps split in 2, these are SPLIT ramps
  • Rest on connection - to fit just rest on and start loading
  • Maximum gradient = 1 in 6 although 1 in 8 is recommended

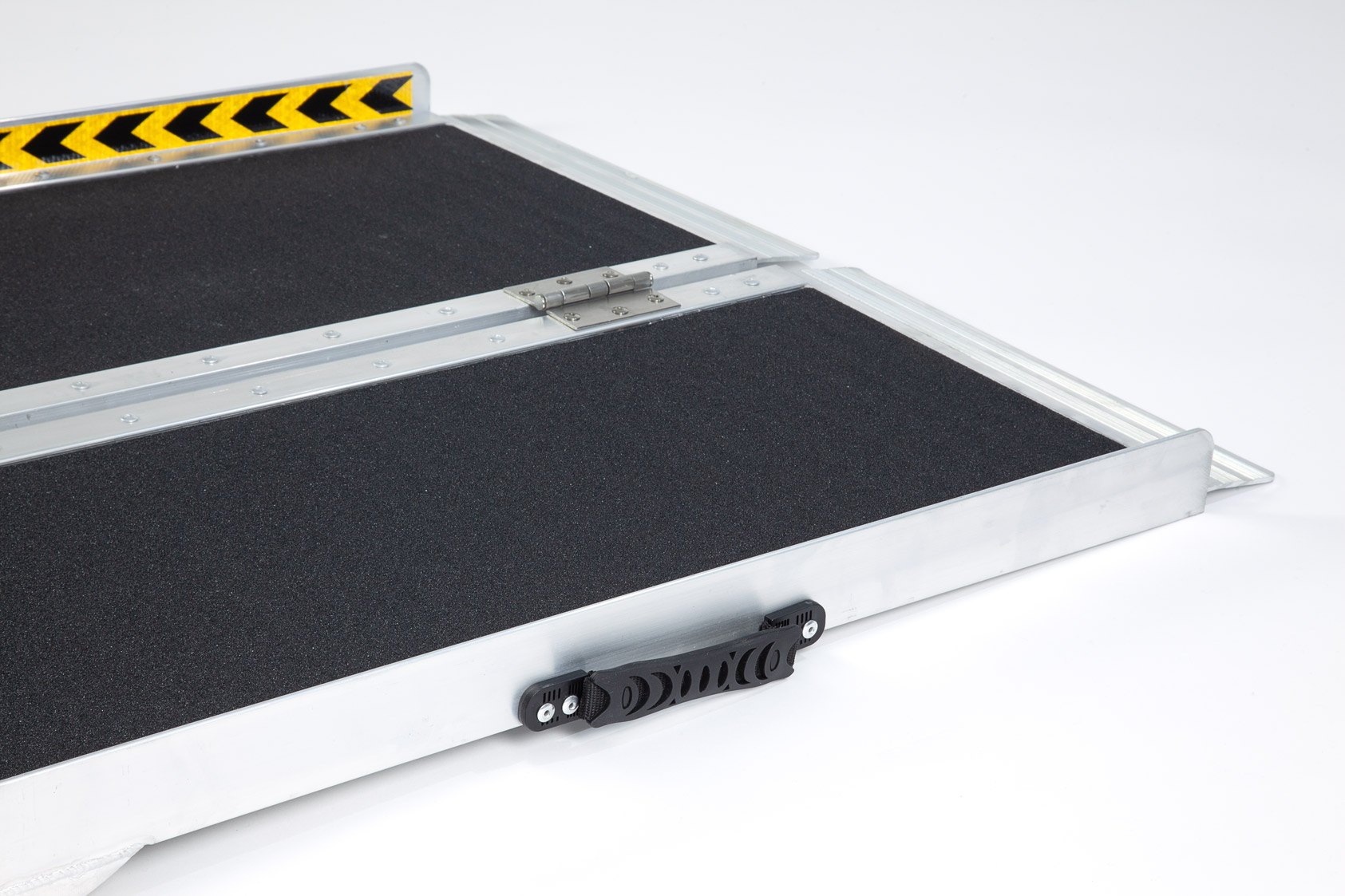

  • Lightweight for easy handling

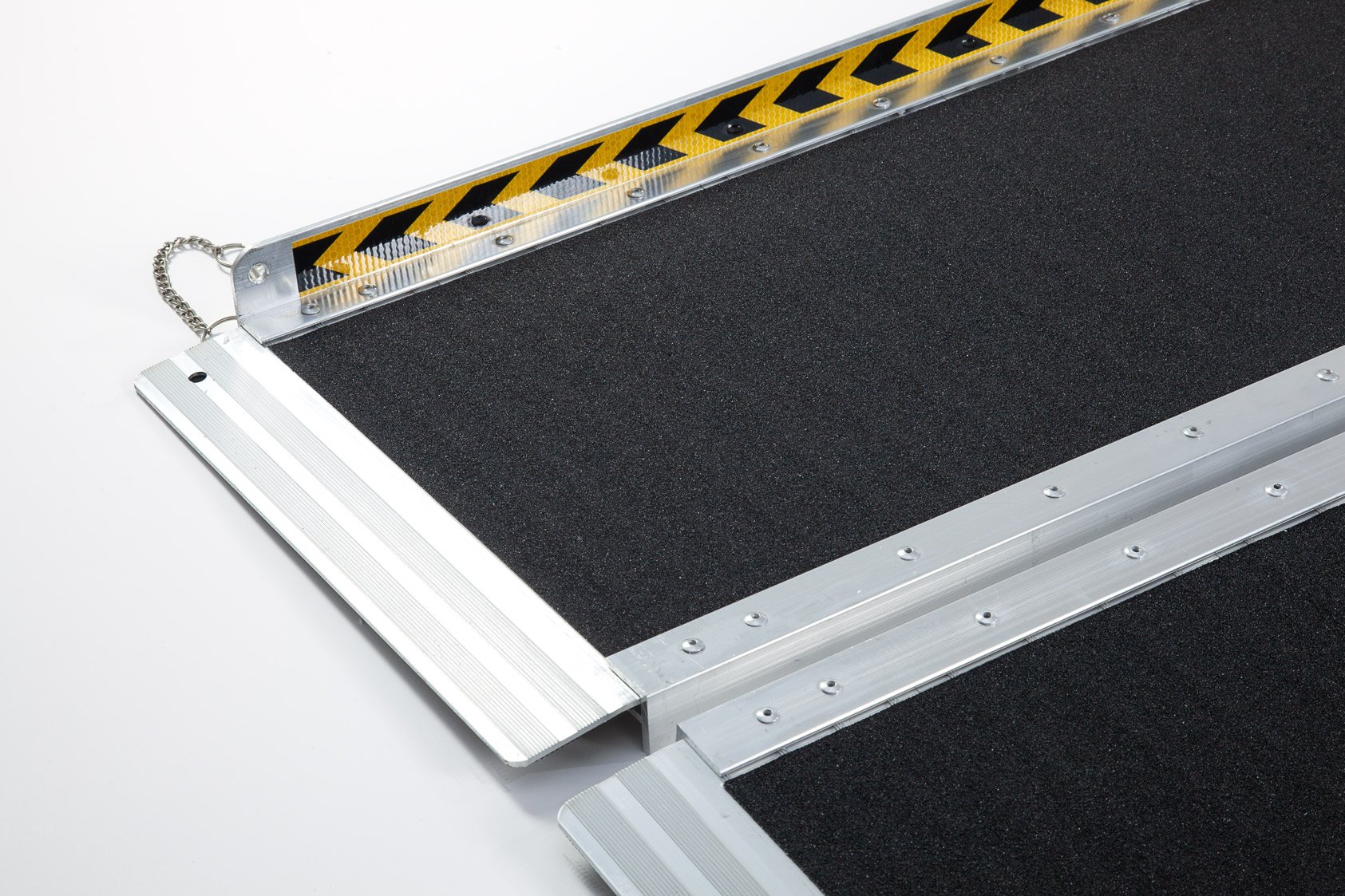

  • Edges on each side of the ramp to prevent accidentally wheeling off
  • The non-slip surface on all of our wheelchair ramps is glued onto the metal ramp. Therefore these ramps are not suitable to be kept outside and exposed to weather
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

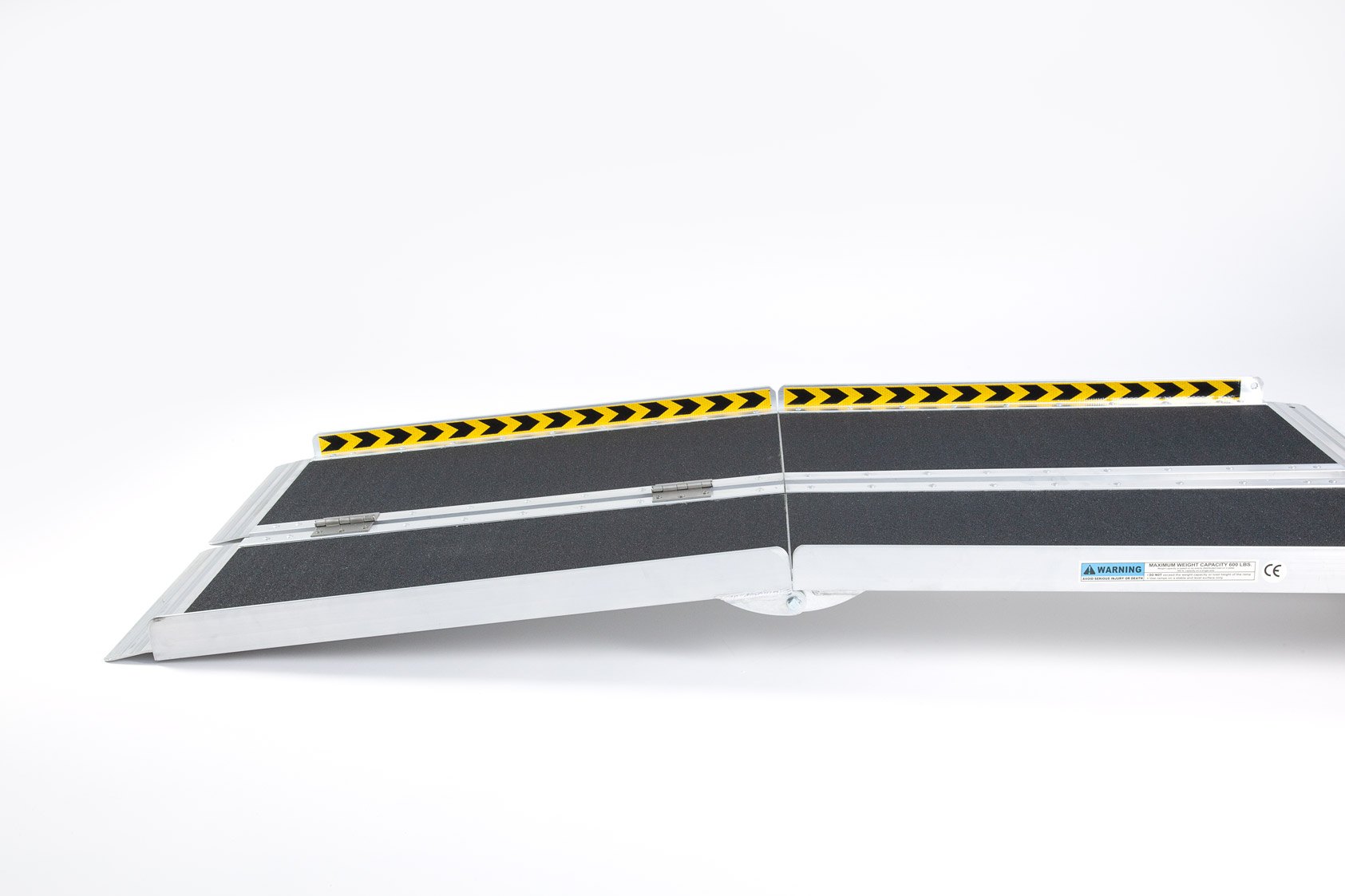

  • Curved for additional ground clearance
  • Please note the 10ft ramp is quite heavy, please check it is suitable for your needs prior to ordering
  •  These ramps are only suitable for use as mobility aids

Multi-fold Wheelchair Ramp Range

4ft / 121cm

  • Length 4ft(1219mm)
  • Foldable length 2ft and height 1.1ft
  • Weight 10.3kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 365mm
  • Max. load height occupied wheelchairs 203mm

5ft / 152cm

  • Length 5ft(1524mm)
  • Foldable length 2.5ft and height 1.1ft
  • Weight 12.6kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 450mm
  • Max. load height occupied wheelchairs 250mm

6ft / 183cm

  • Length 6ft(1830mm)
  • Foldable length 3ft and height 1.1ft
  • Weight per ramp half 8,35kg
  • Weight 16.7kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 540mm
  • Max. load height occupied wheelchairs 305mm

8ft / 243cm

  • Length 8ft(2438mm)
  • Foldable length 4ft and height 1.1ft
  • Weight per ramp half 10,75kg
  • Total Weight 21.5kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 720mm
  • Max. load height occupied wheelchairs 405mm

10ft / 304cm

  • Length 10ft(3048mm)
  • Foldable length 5ft and height 1.1ft
  • Weight per ramp half 13.75kg
  • Total Weight 27.5kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 910mm
  • Max. load height occupied wheelchairs 505mm

Please note the 10ft ramp is quite heavy, please check it is suitable for your needs prior to ordering


Details
SKUTRP506-multifold-1
Capacity (kg)270
Height of Raised Side (mm)50
Length (ft)4 - 10.00
Max Load Height (mm)505
Open Width (mm)730
Total Width (mm)730
Weight (kg)10.3 - 27.5
One Year WarrantyYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
