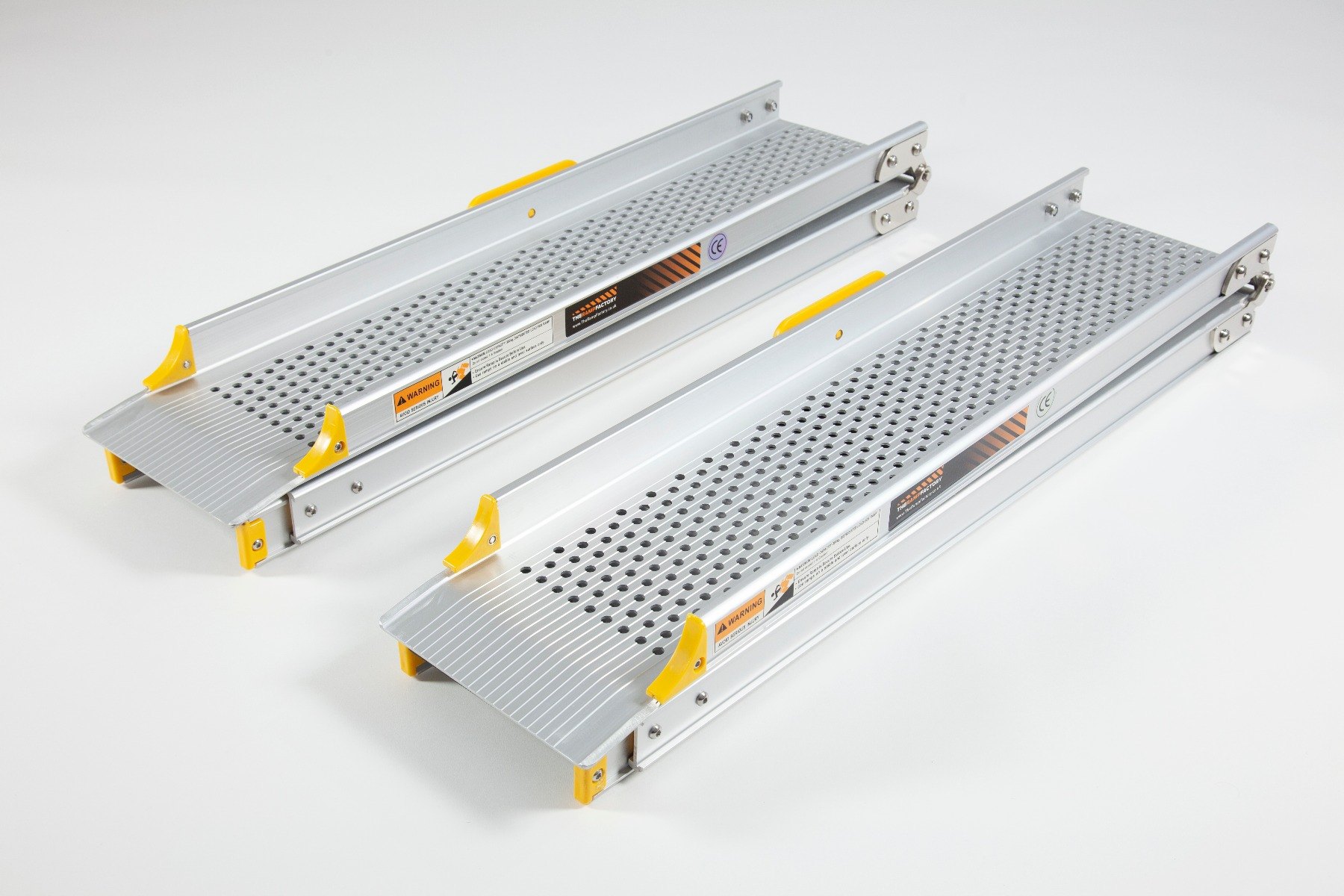

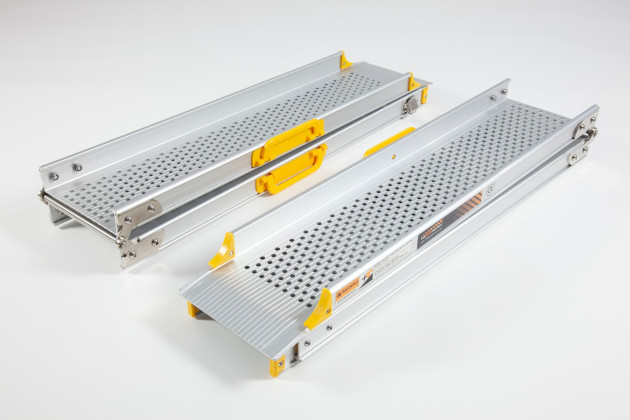

Pair of folded telescopic combi ramps

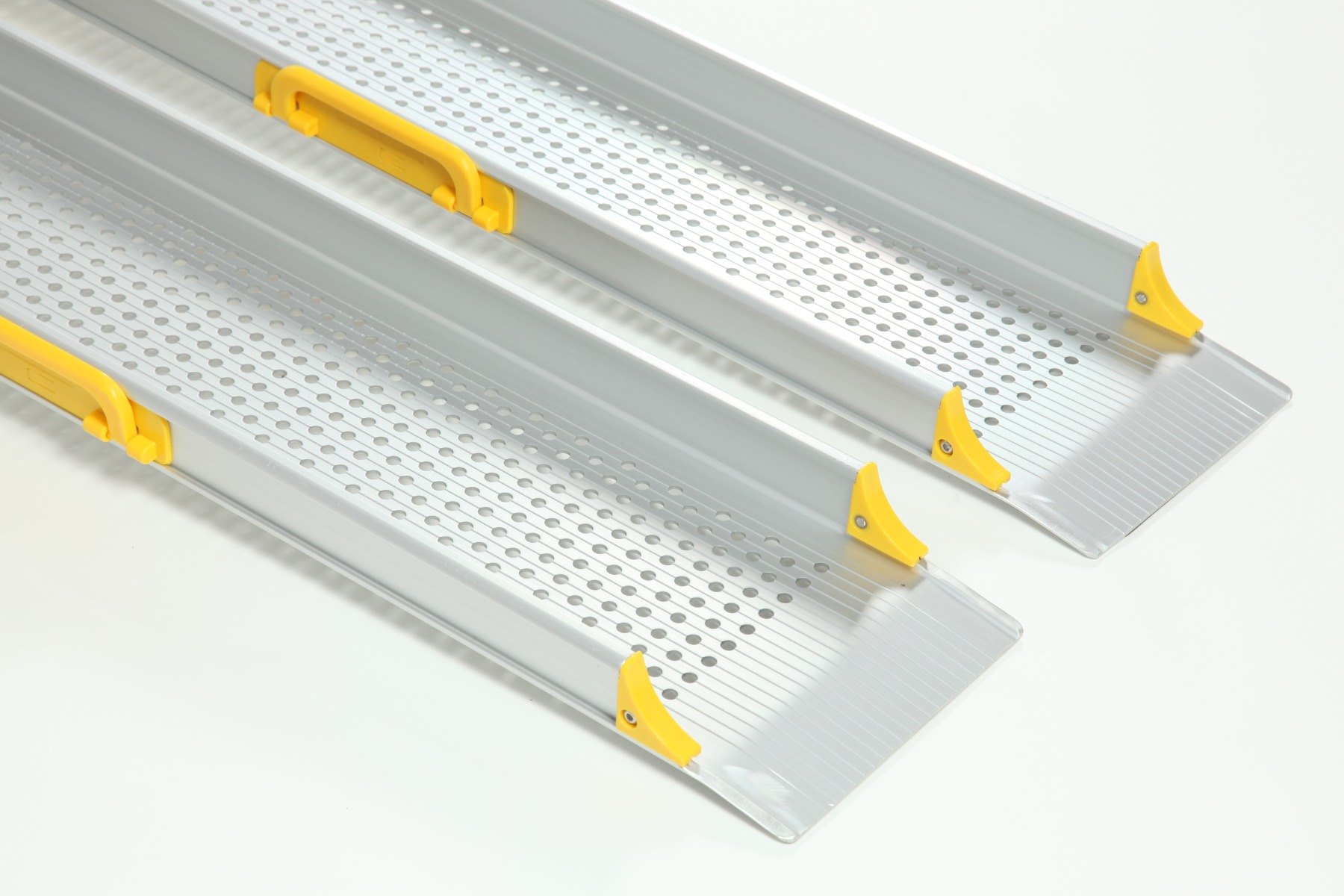

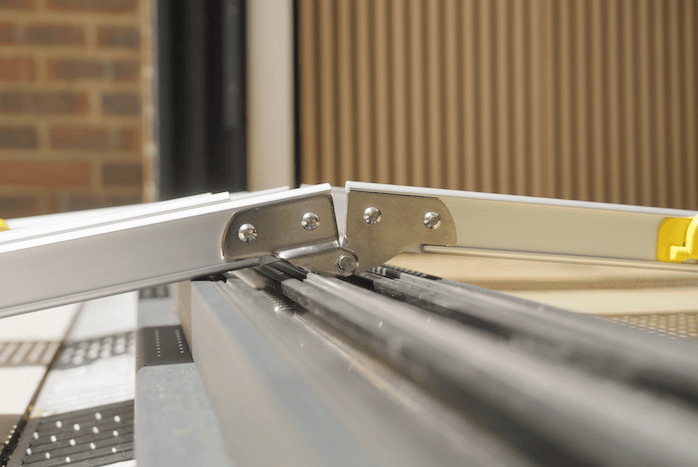

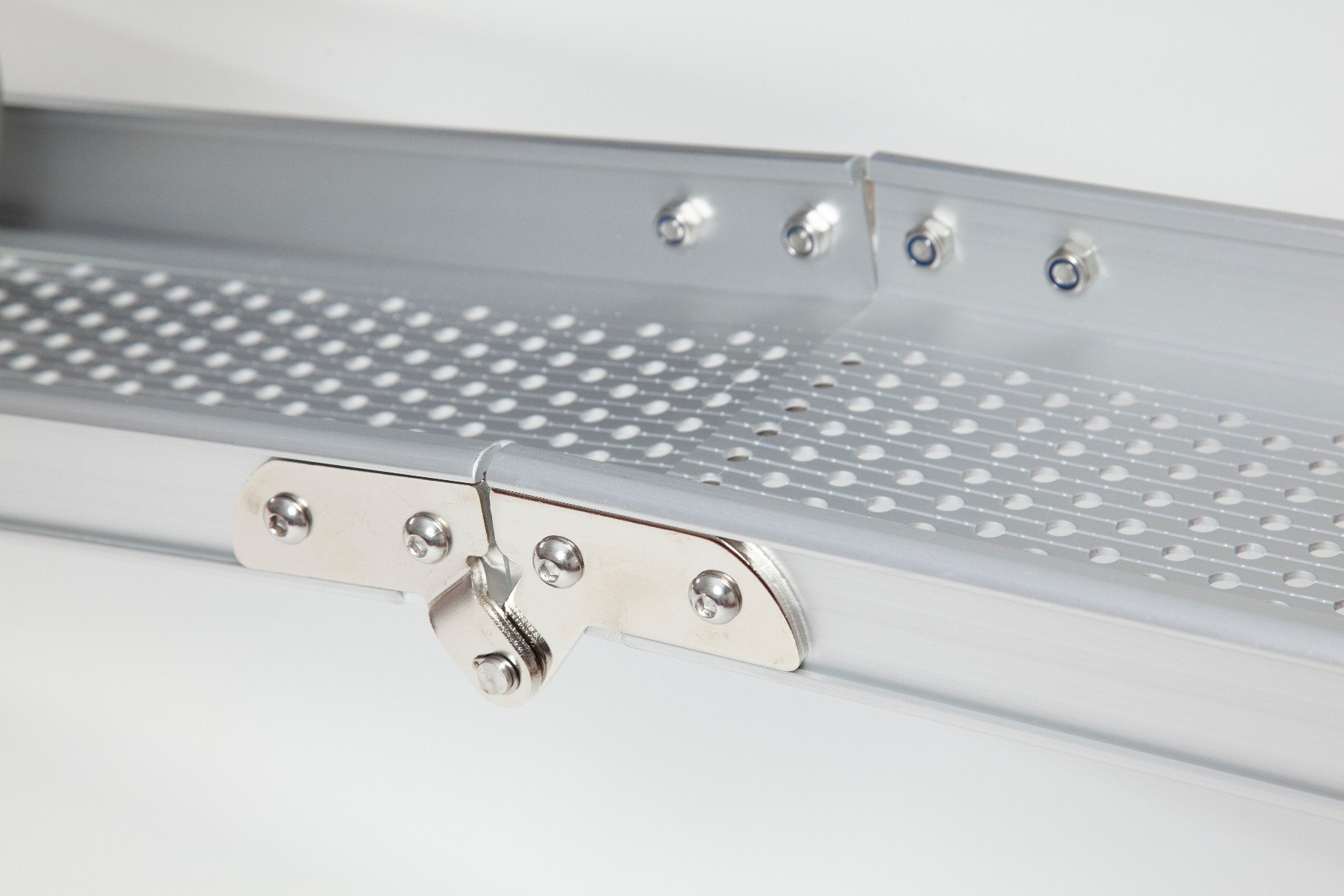

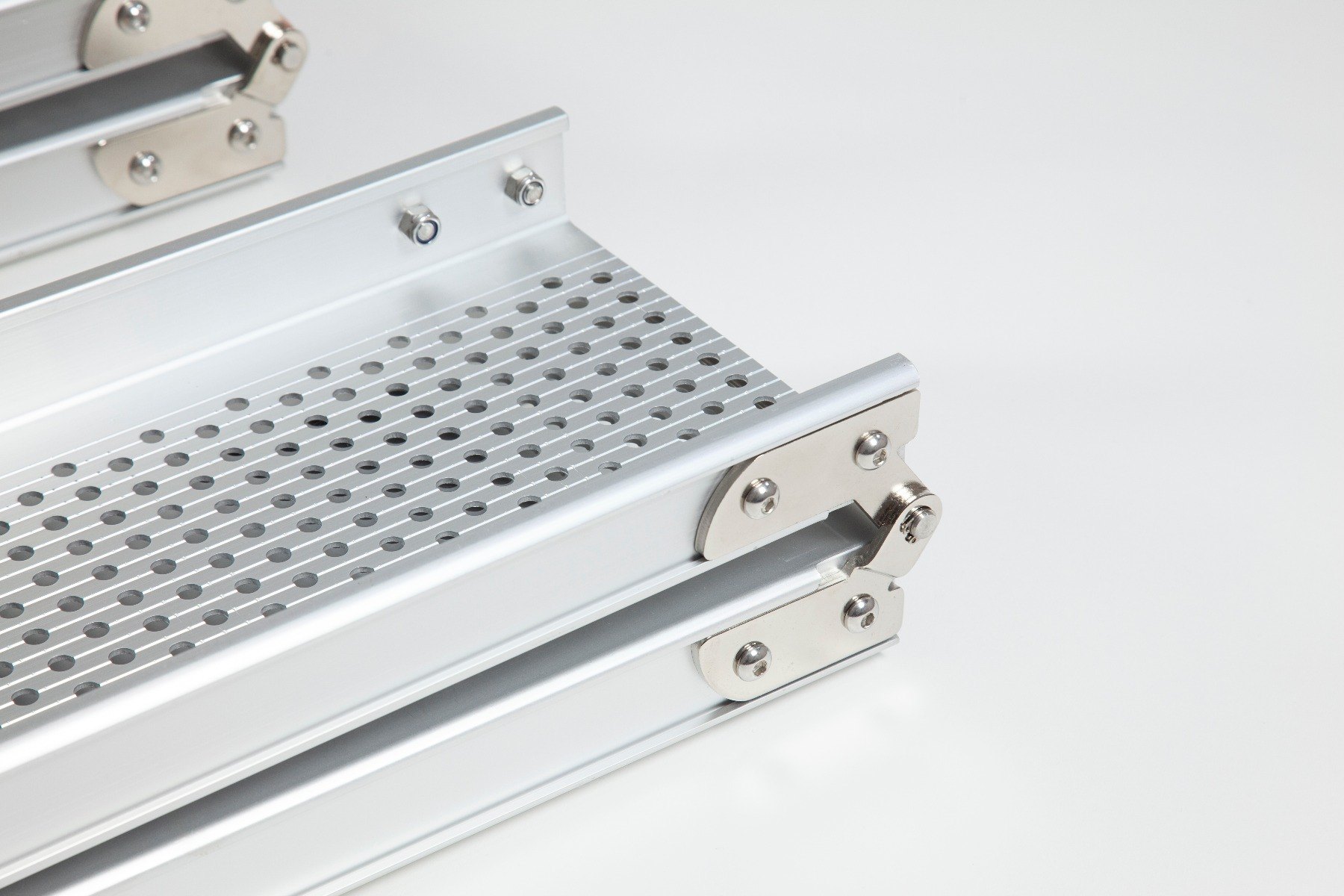

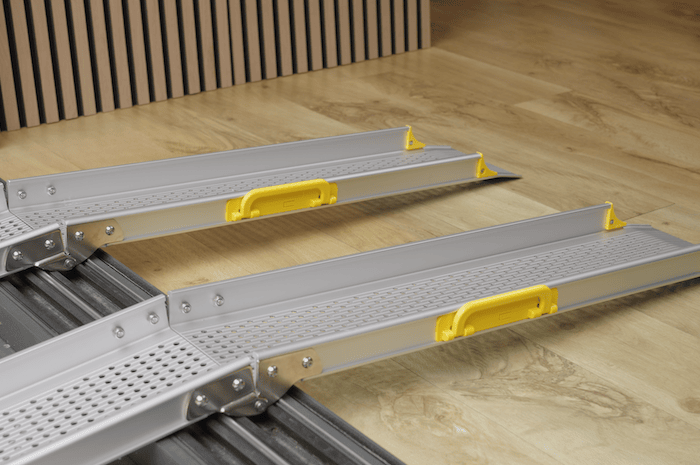

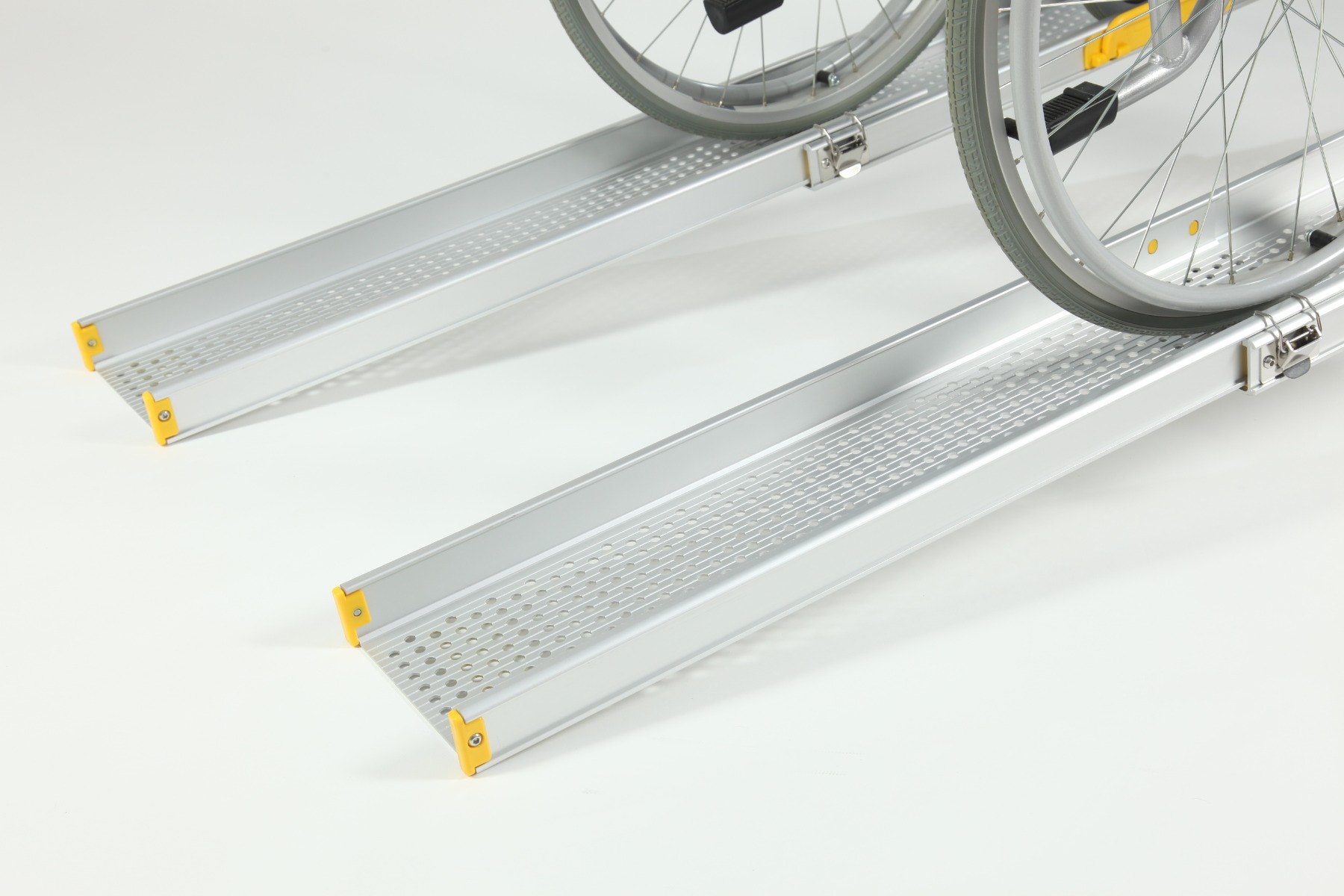

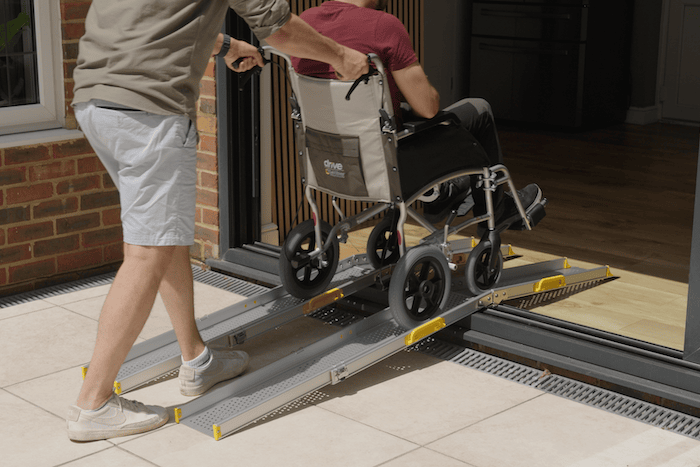

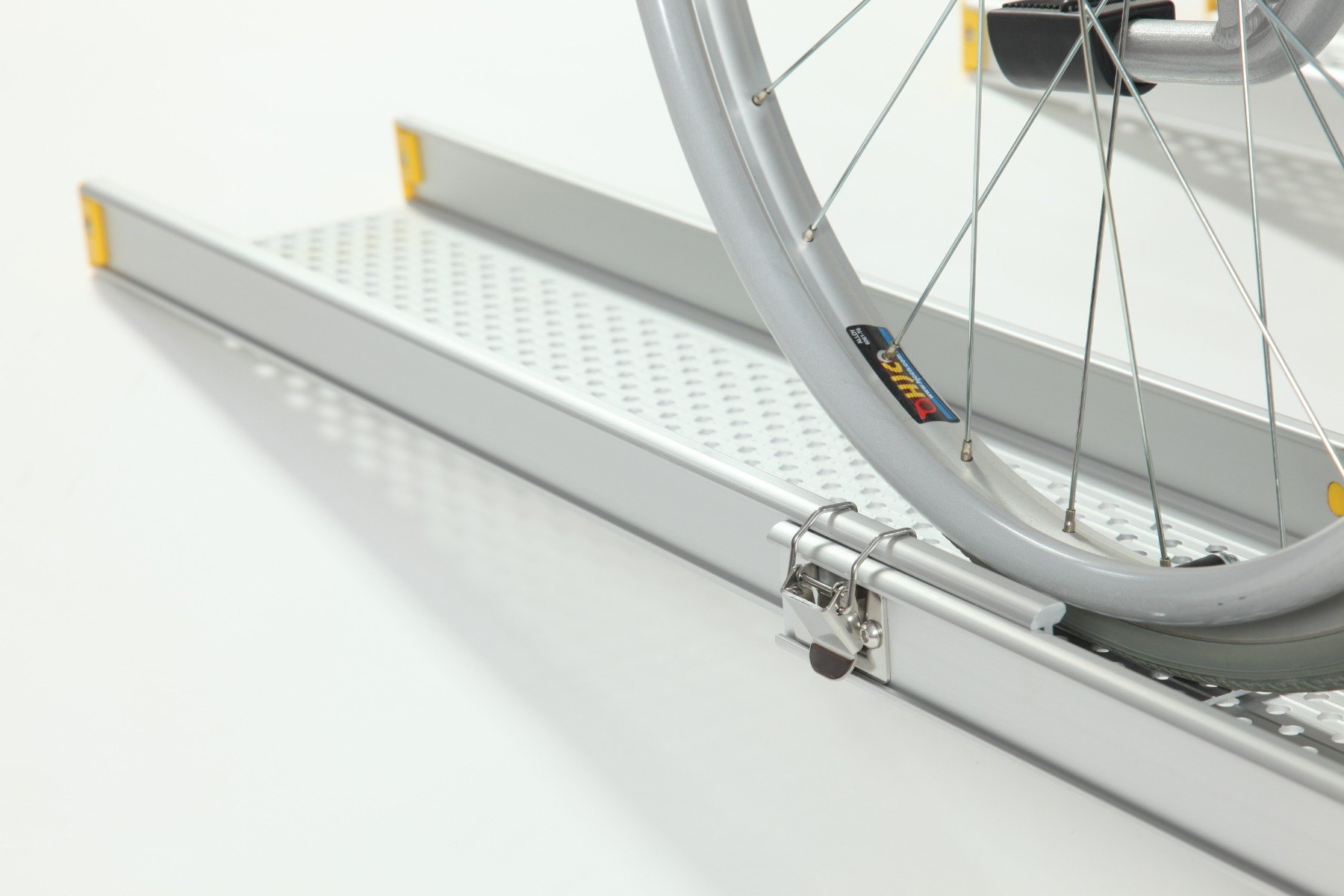

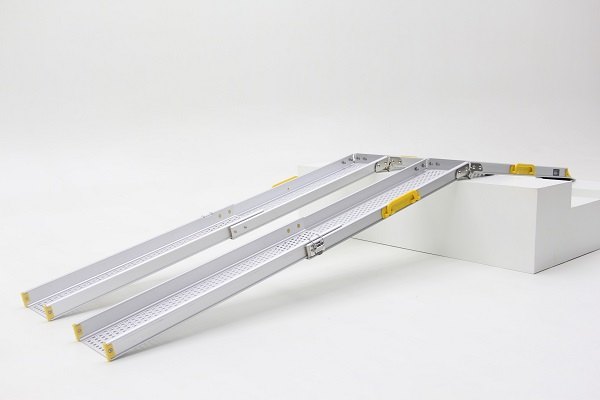

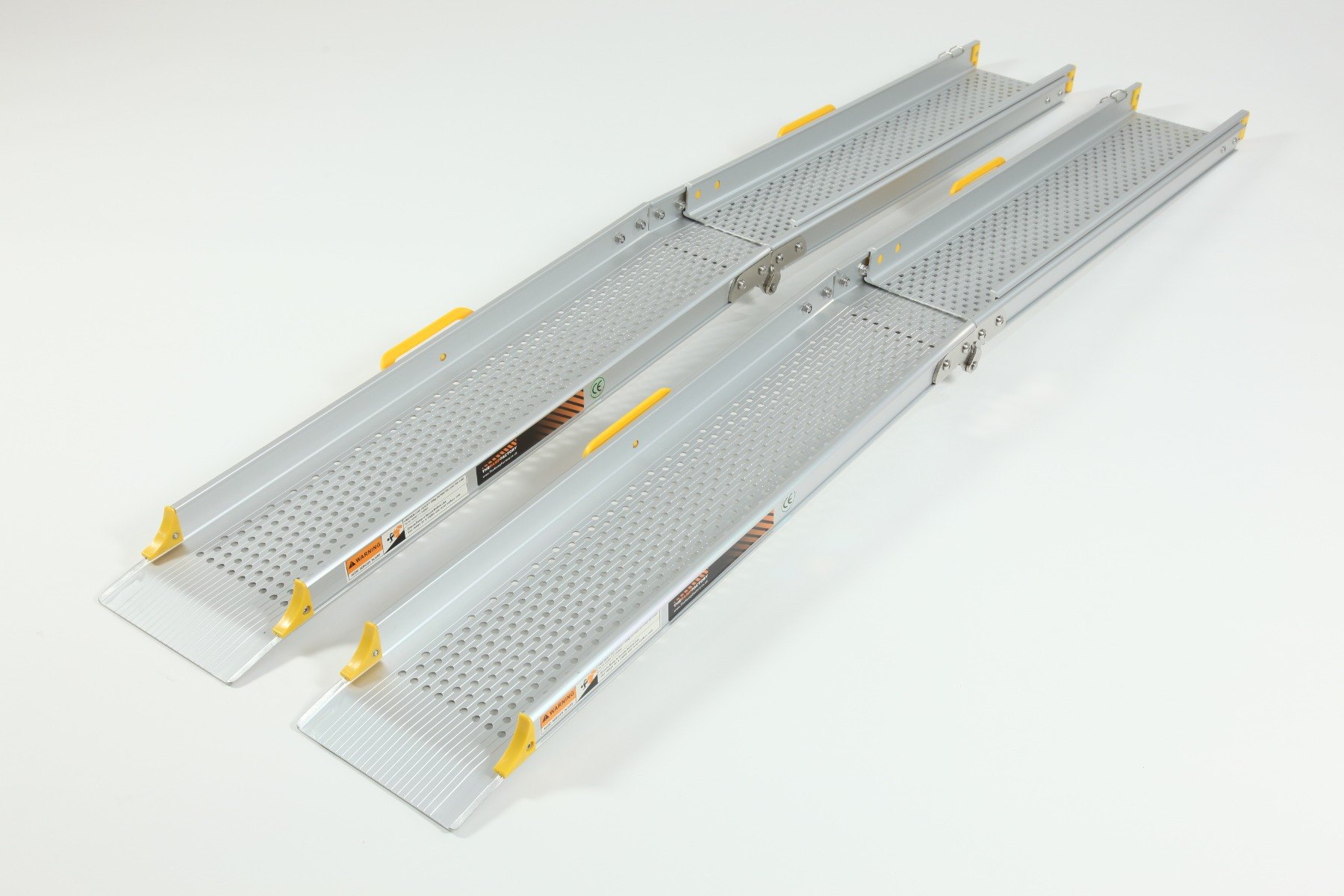

Telescopic channel ramps anti-slip surface Telescopic dual channel ramp specification Telescopic channel ramps used as combi ramps Yellow handles on telescopic channel ramps End of telescopic combi channel ramps Pair of telescopic economy channel ramps Securing clip on combi telescopic channel ramps Handle for telescopic channel ramps Pair of folded telescopic combi ramps Telescopic channel ramps rest on connections Folded hinge on telescopic channel ramps Telescopic bridge wheelchair ramps allowing a manual wheelchair to overcome a threshold Unfolded hinge on telescopic channel ramps Hinge on the bridge ramps overcoming doorway Telescopic channel ramps on stairs Antislip surface on the telescopic wheelchair ramps Channel ramps going up and over uPVC threshold Portable wheelchair ramps used to overcome door threshold Channel ramps going up and over uPVC threshold  internal view Hinged Telescopic Wheelchair Bridge Ramps 7ft - 10ft
  • Easy to Fit
  • Manual Wheelchair
  • Not for Mobility Scooter
  • One Year Warranty

Hinged Telescopic Wheelchair Bridge Ramps 7ft - 10ft

SKU
TRP307-Channel
As low as £276.00 £230.00
67 In stock at our warehouse

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

The Dual Purpose Folding Telescopic Bridge Ramps Combi provides unlimited flexibility and easy storage. The wheelchair ramps are available from 7ft - 10ft and can be used at standard channel ramps or used to bridge thresholds with the folding hinge feature.

Wheelchair ramp bags available separately here.

Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.

The Ramp Factory have a wide range of channel ramps for manual wheelchairs such as the economy channel ramps, the telescopic channel ramps if you require a wheelchair ramp with a length up to 12ft or, the low profile channel ramp which is suitable for mobility scooters.

Channel Ramps FAQ's

Description

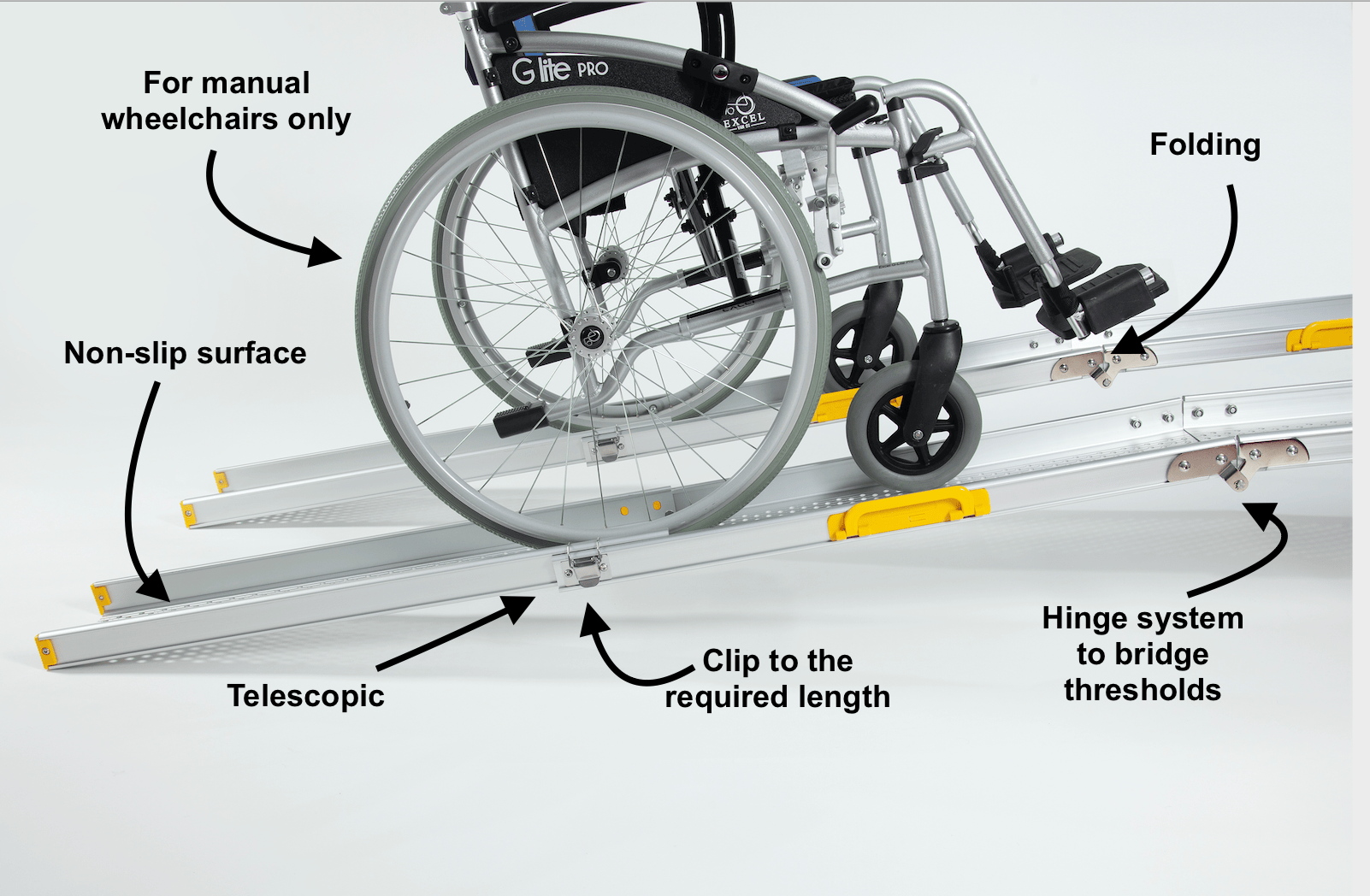

Please note that those channel ramps are ONLY suitable for manual wheelchairs.

    • Maximum gradient = 1 in 6 although 1 in 8 is recommended
    • Quick and easy to set up
    • Lightweight, aerospace design
    • Folding and telescopic features
    • Suitable for bridging thresholds with unequal levels on each side

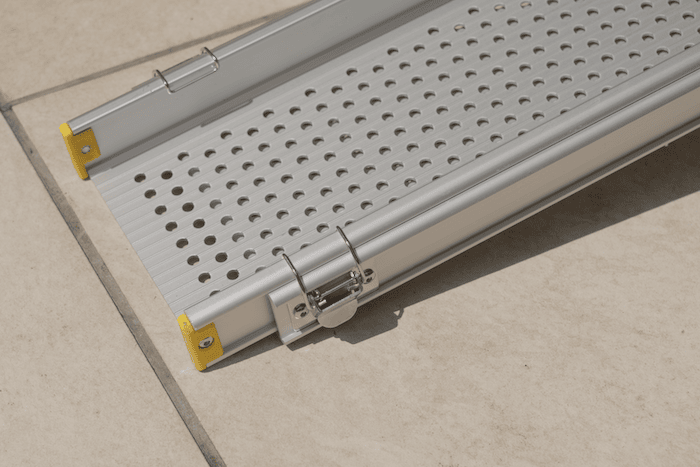

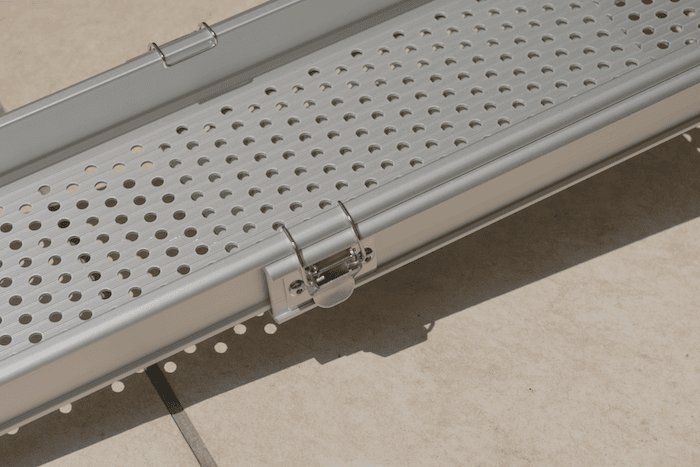

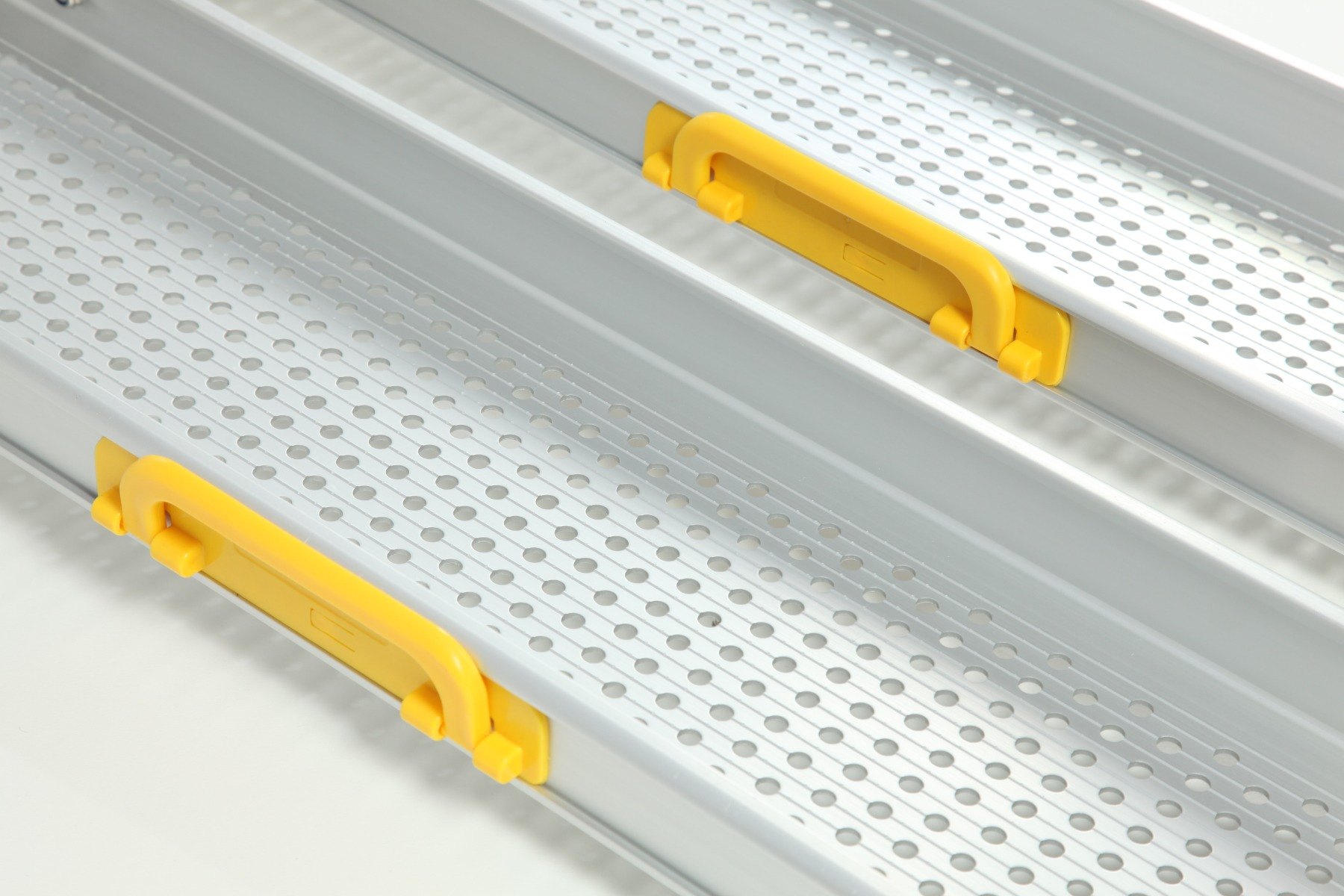

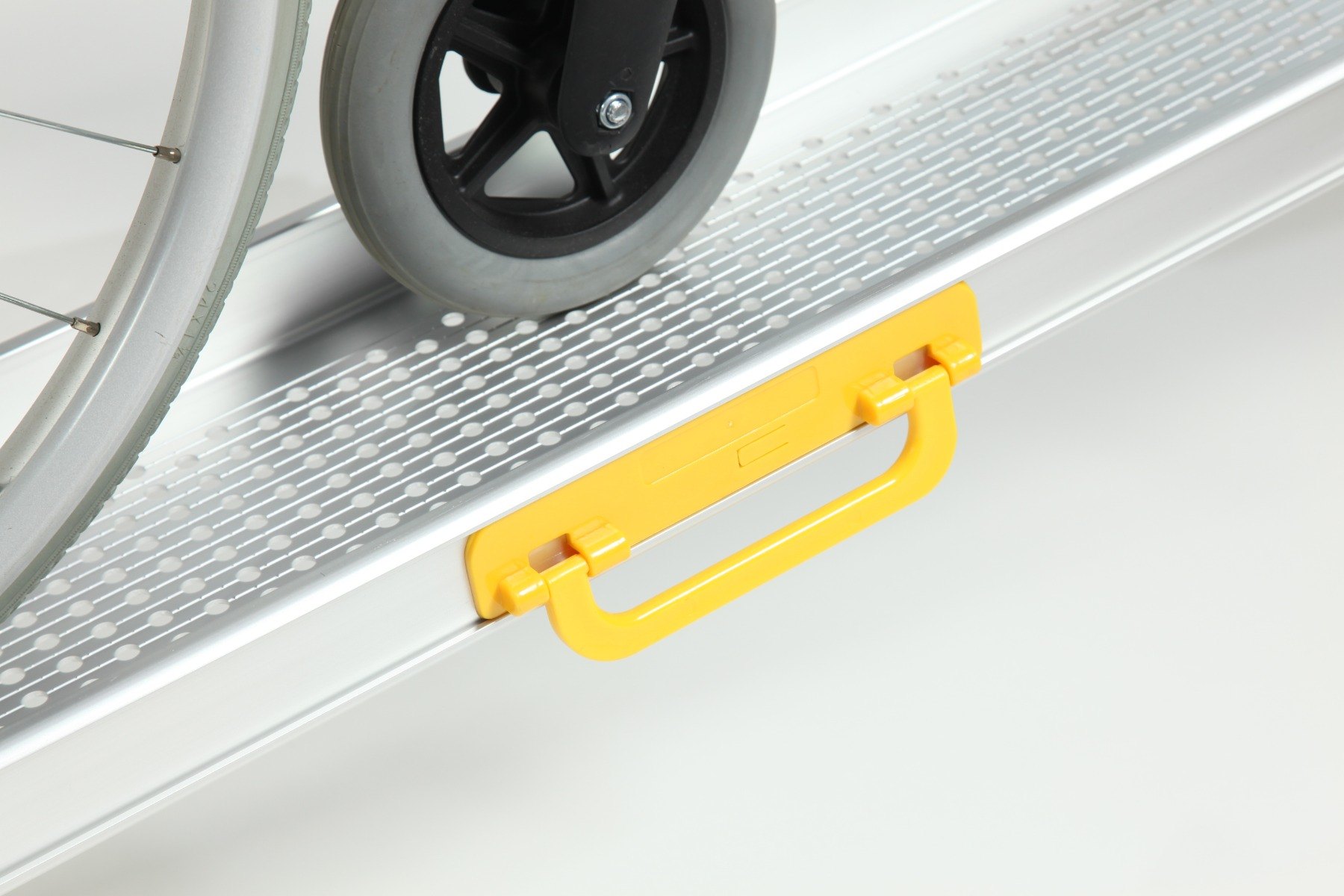

    • Provided with carry handles and clips shut for easy storage
    • Durable non-slip surface
    • Rest on connection, to fit just rest on and start loading
    • Perfect for kerbs and steps
    • Edges on each side of the ramp to prevent accidentally wheeling off
    • Available in lengths of 7ft, 8ft and 10ft
    • 45mm high walls
    • Not suitable to be kept outside
    • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
    •
  • These ramps are only suitable for use as mobility aids

Economy Channel Ramps Range

7ft

  • Extended Length: 7ft/2100mm
  • Folded Length (mm): 810
  • Capacity (kg): 275kg
  • Total width (mm): 210
  • Internal width (mm): 162mm
  • Max. load height (mm): 355mm
  • Weight: 13kg
  • Weight per ramp: 6.5kg
  • Main ramp length: 4.2ft/1300mm
  • Threshold ramp length: 2.6ft/800mm

8ft

  • Extended Length: 8ft/2400mm
  • Folded Length (mm): 900
  • Capacity (kg): 275kg
  • Total width (mm): 210
  • Internal width (mm): 162mm
  • Max. load height (mm): 405mm
  • Weight: 15kg
  • Weight per ramp: 7.5kg
  • Main ramp length: 4.2ft/1500mm
  • Threshold ramp length: 2.9ft/900mm

10ft

  • Extended Length: 10ft/3000mm
  • Folded Length (mm): 1100
  • Capacity (kg): 275kg
  • Total width (mm): 210
  • Internal width (mm): 162mm
  • Max. load height (mm): 505mm
  • Weight: 19kg
  • Weight per ramp: 9.5kg
  • Main ramp length: 6.2ft/1900mm
  • Threshold length ramp: 3.6ft/1100mm
Product Questions
Why are The Ramp Factory's Telescopic Wheelchair Ramps not recommended for mobility scooters and electric wheelchairs?
Mobility scooters and electric wheelchairs often have low ground clearance. As the telescopic ramps have edges, mobility scooters and electric wheelchairs will often hit the edges of the ramp and in turn be unable to climb the ramp. We instead recommend folding wheelchair ramps for these mobility aids.
What is the difference between the Hinged Telescopic Ramps and the channel ramps without a hinge?
The hinged ramps can be used as straight ramps to overcome steps or as a bridge ramp to go up and over doorways and thresholds. The un-hinged channel ramps can only be used as straight ramps to overcome steps and kerbs.
Video
Specifications
SKUTRP307-Channel
Capacity (kg)275
Height (mm)45
Length (ft)7-10
Length (mm)2133 - 3048
Max Load Height (mm)355 - 505
Weight (kg)13-19
Weight per Ramp (kg)6.5-9.5
Width (mm)210
One Year WarrantyYes
Easy to FitYes
Manual WheelchairYes
Not Mobility Scooter FriendlyYes
