Wheelchair Ramp 3ft - 12ft

SKU
TRP-WR-RAMP
From £312.00 £260.00
Over 200 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

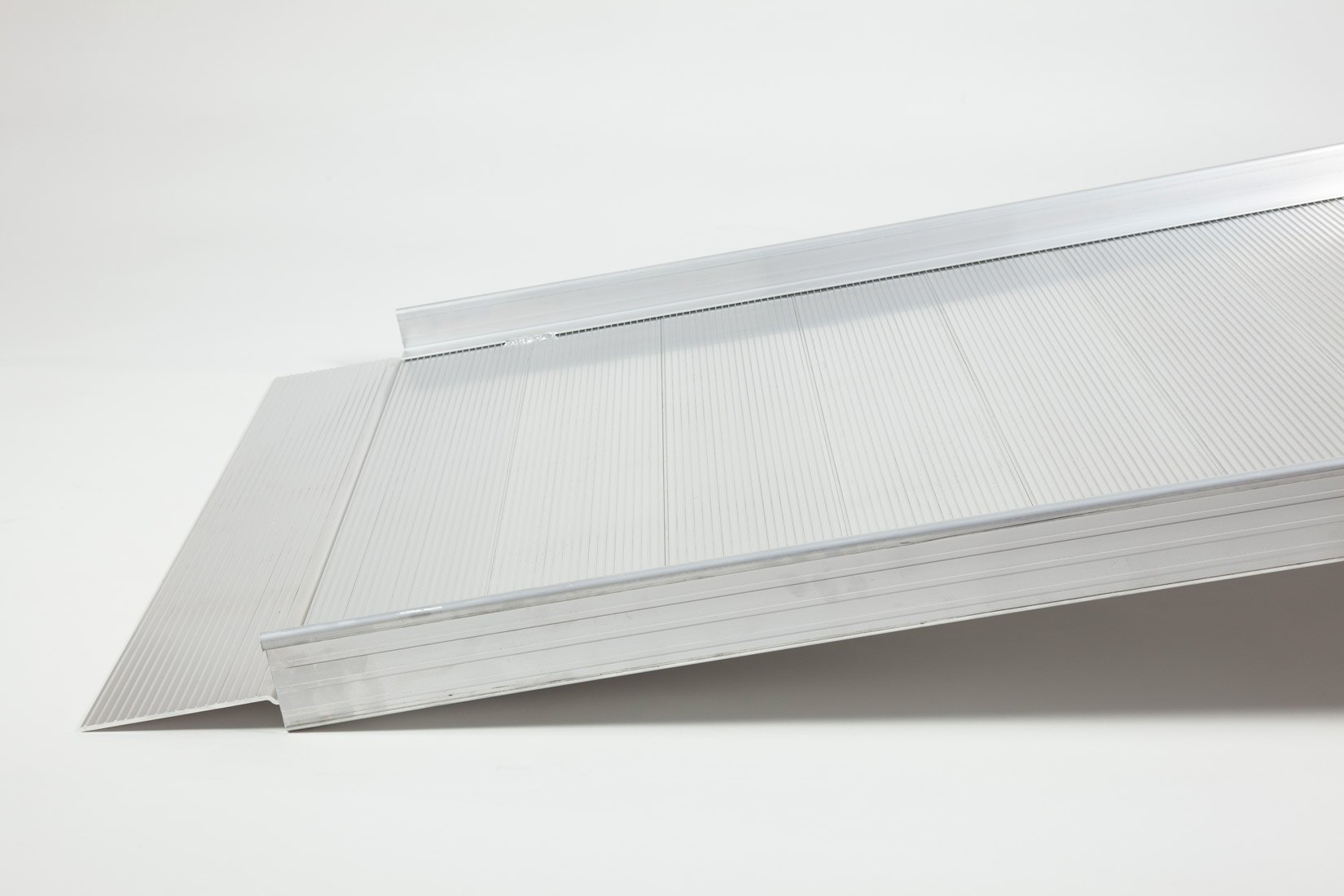

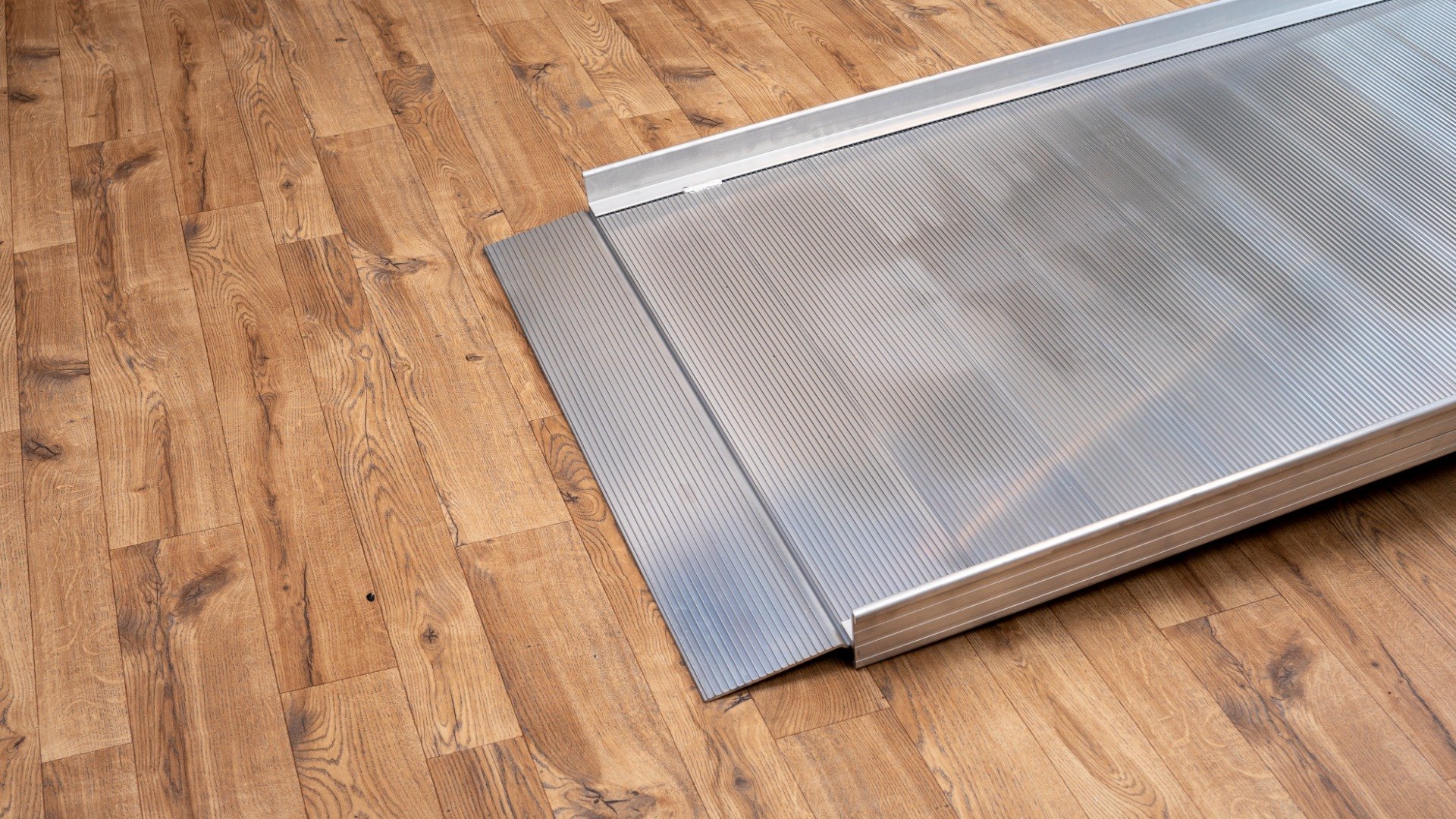

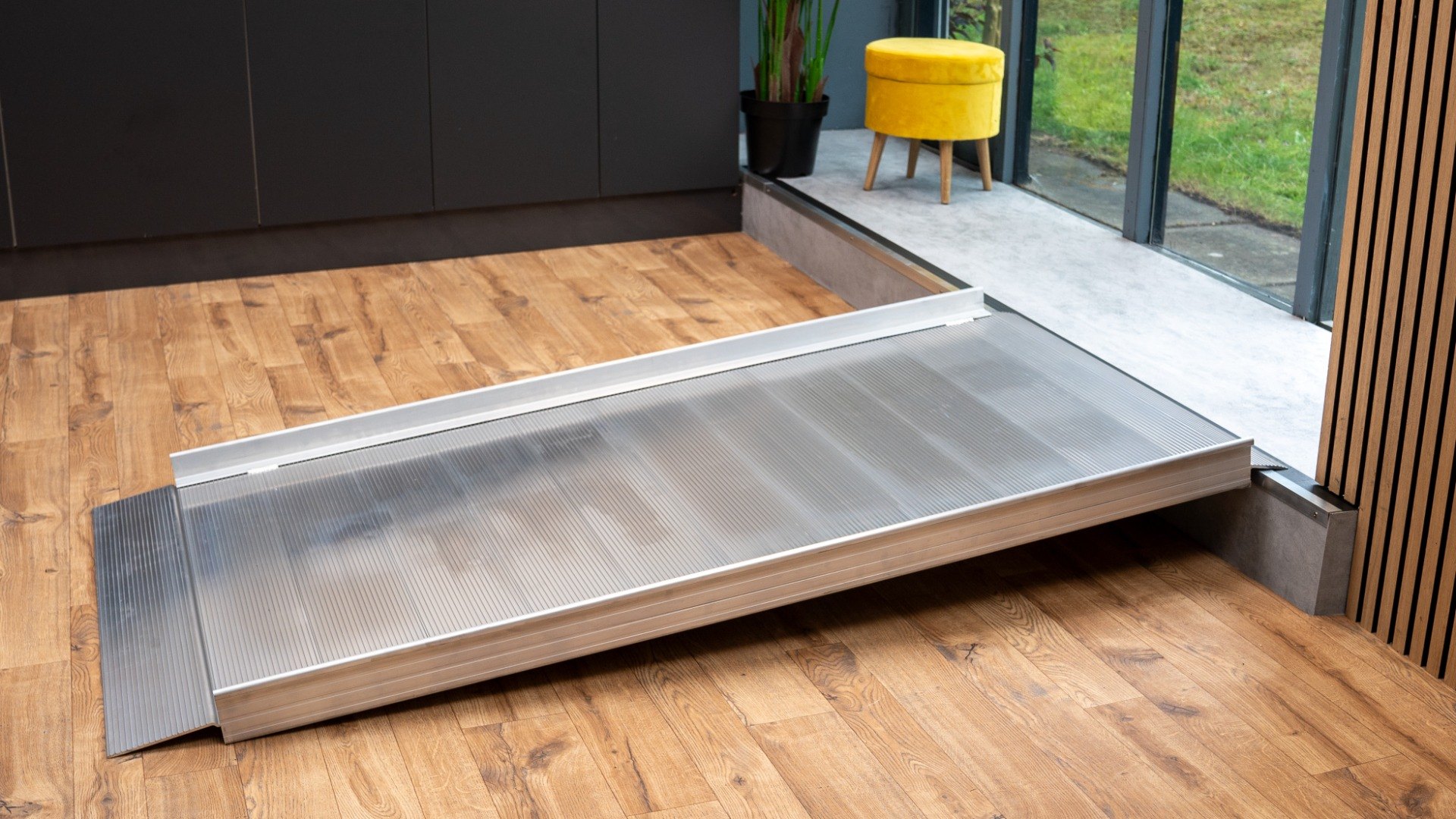

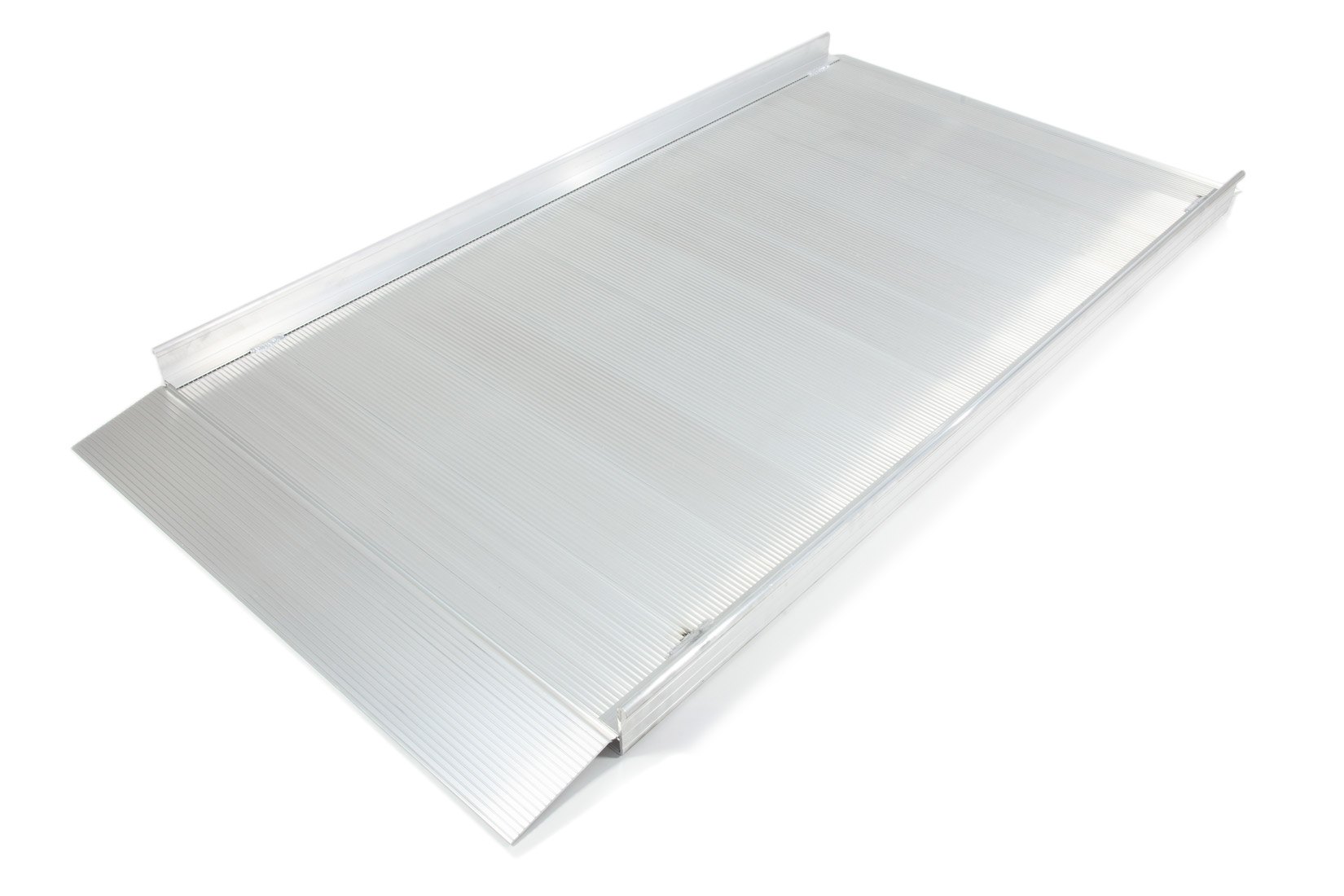

The disabled access ramp is available in 3ft to 12ft. The all-weather ramp is easy to assemble and can be left in place or moved as required. As it comes with a 350kg capacity, this is suitable for manual and electric wheelchairs.

Available with and without handrails.

The semi-permanent wheelchair ramp kit can be used in conjunction with The Ramp Factory's platforms to make a modular style ramp. Alternatively, The Ramp Factory offer other outdoor ramps such as the adjustable threshold ramps, or the roll-a-ramp.

Description

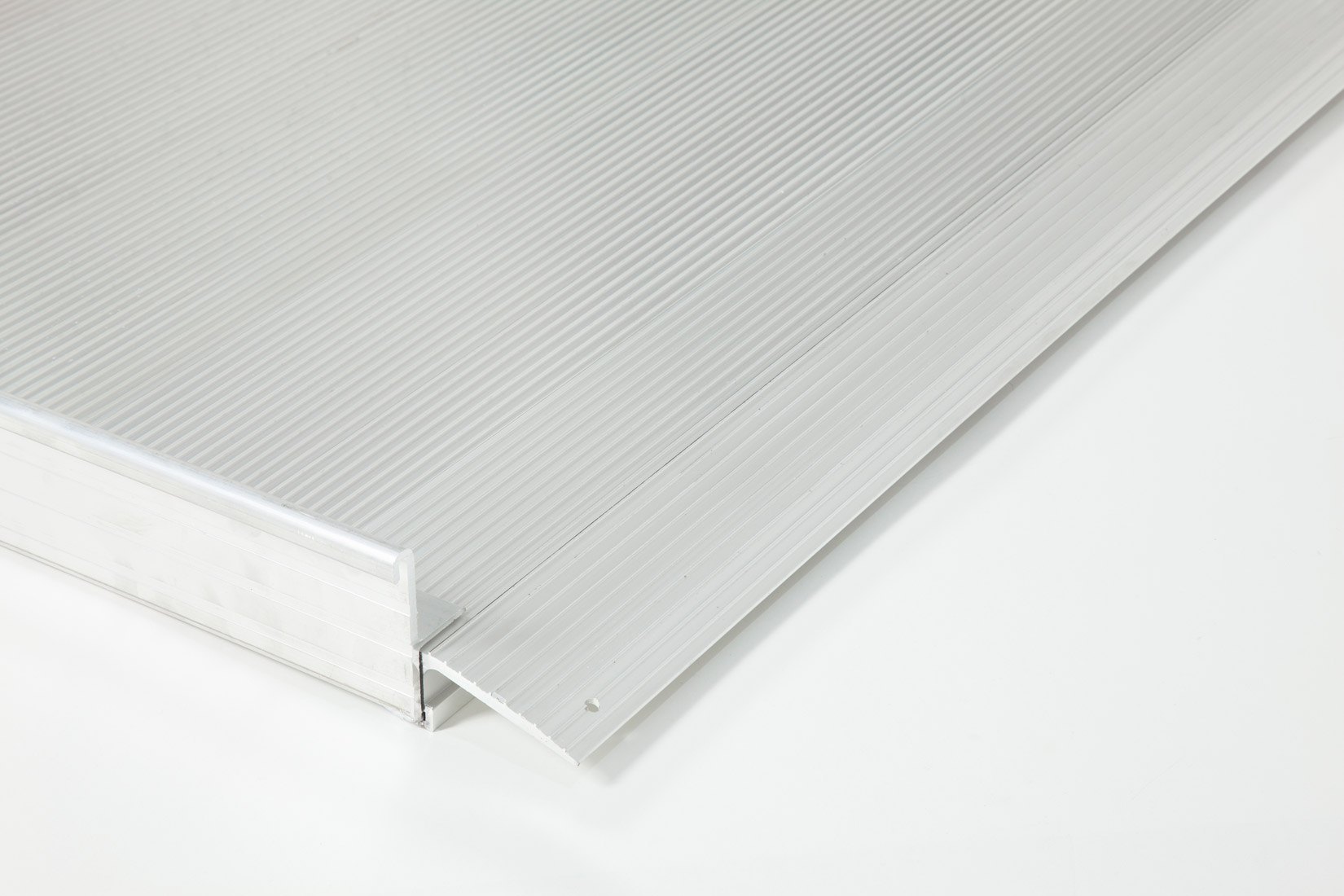

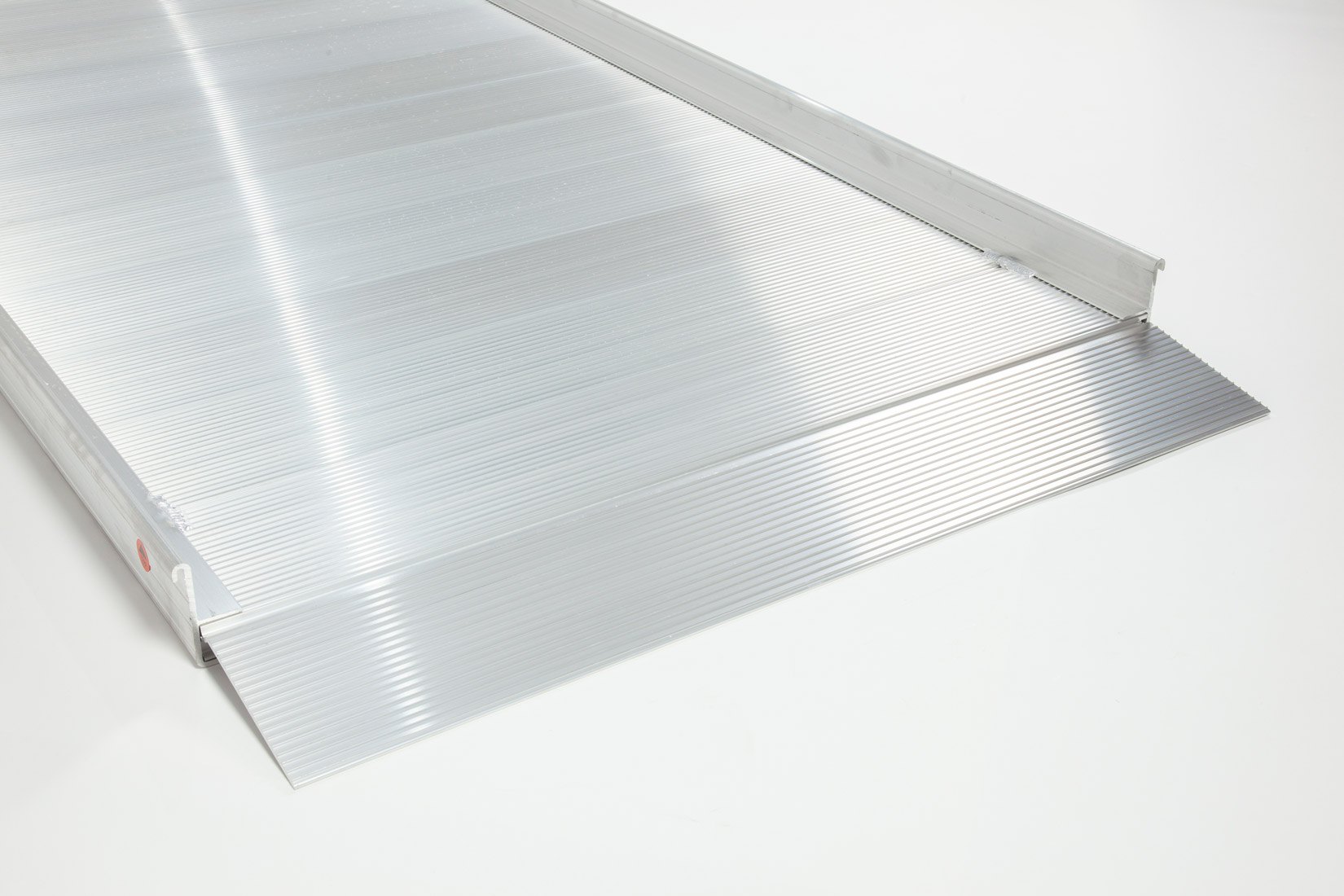

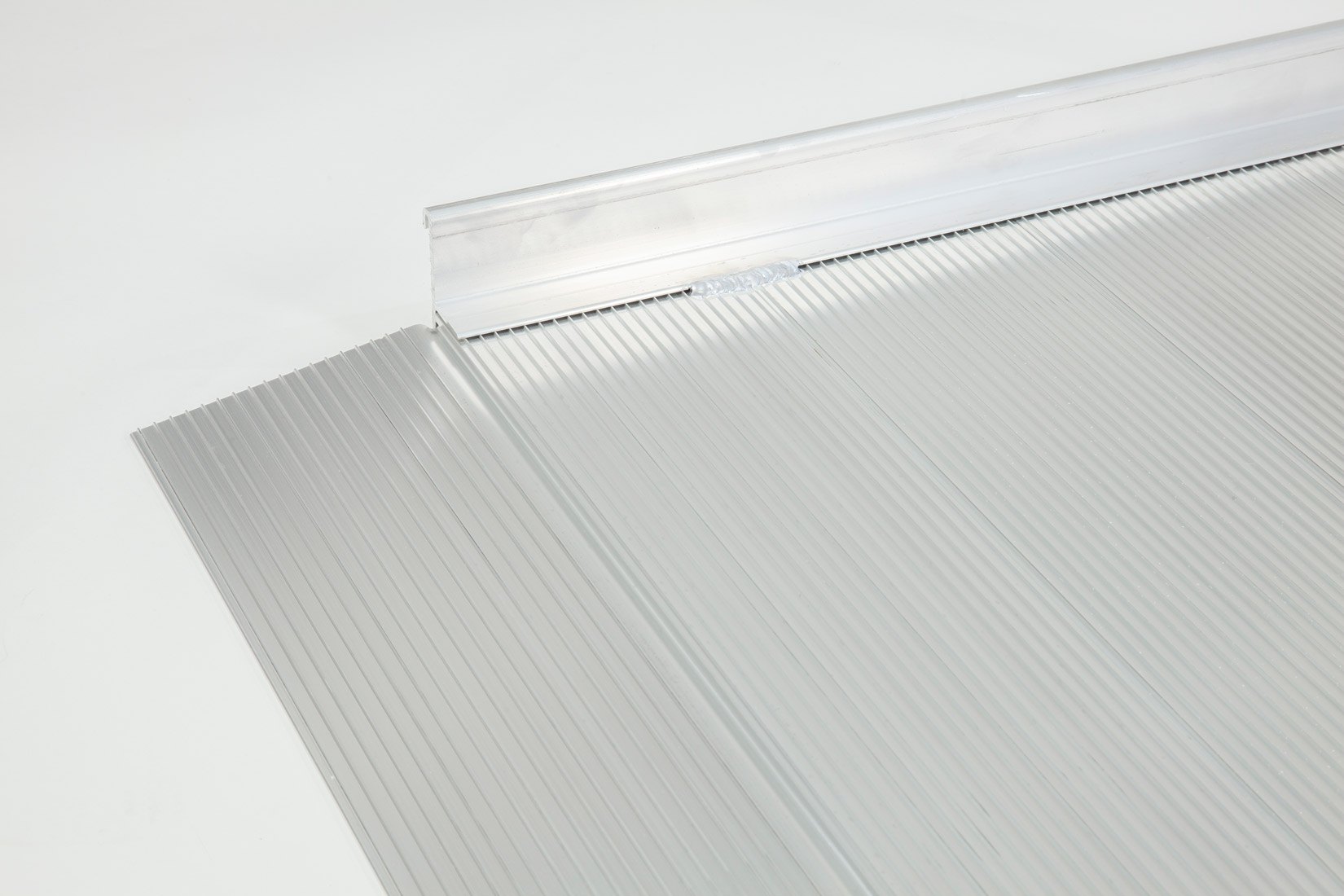

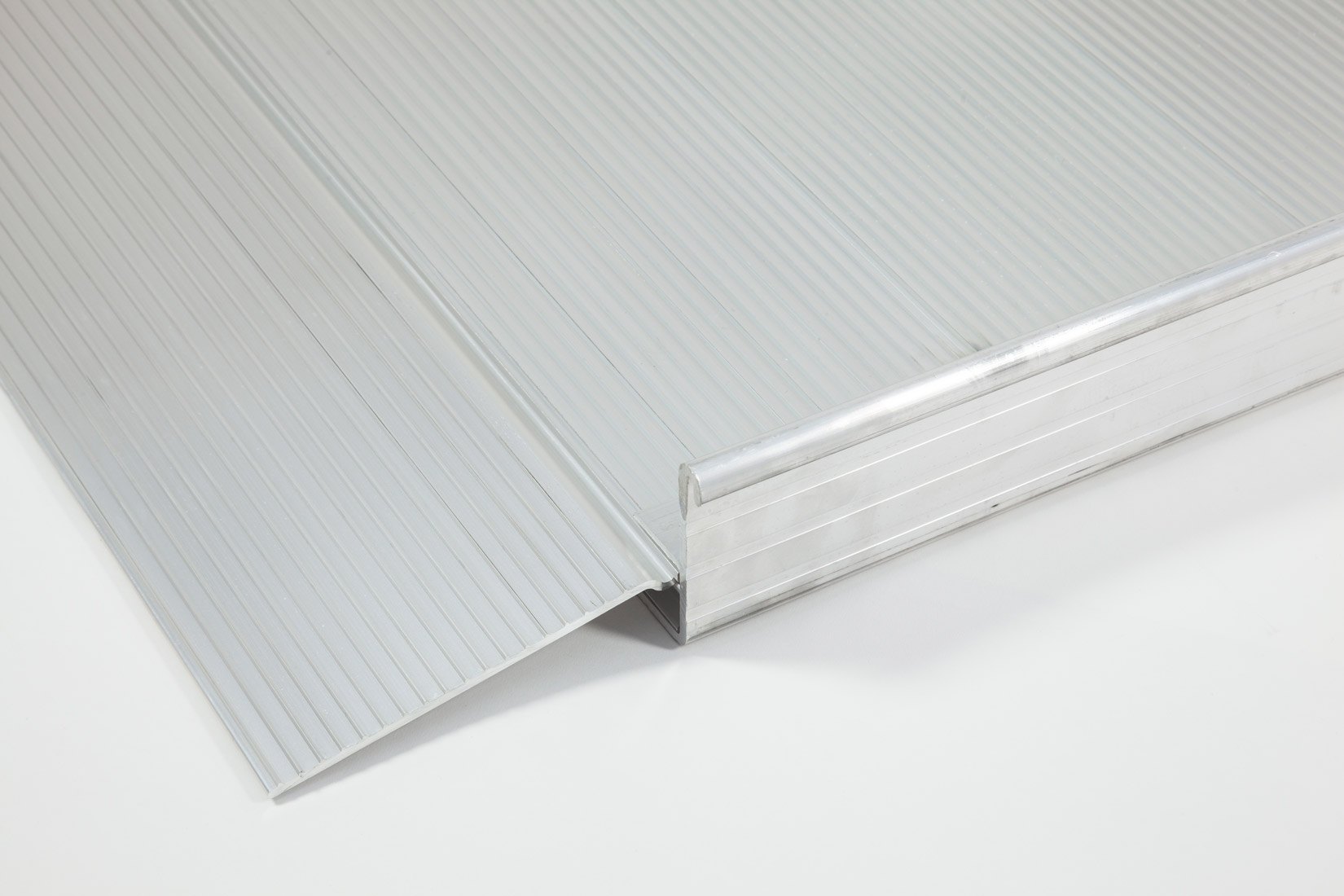

  • Rest on connection
  • Predrilled holes to allow the ramp to be secured into place when required

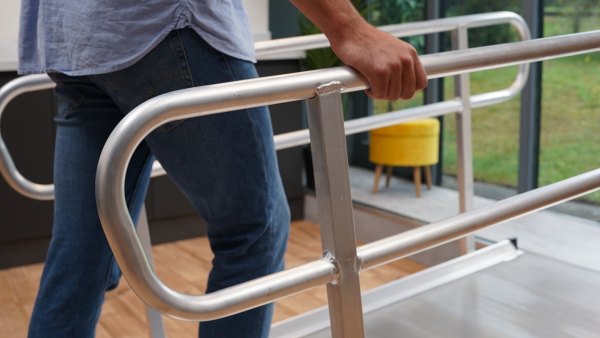

  • Handrails can be purchased separately if required
  • Made from high-quality aluminium
  • Minimum of a 1:6 gradient although 1:8 is recommended
  • Available in 72cm wide (useable width 69cm) or 93cm wide (useable width 88cm)
  • Suitable for indoor and outdoor use, can be left outside

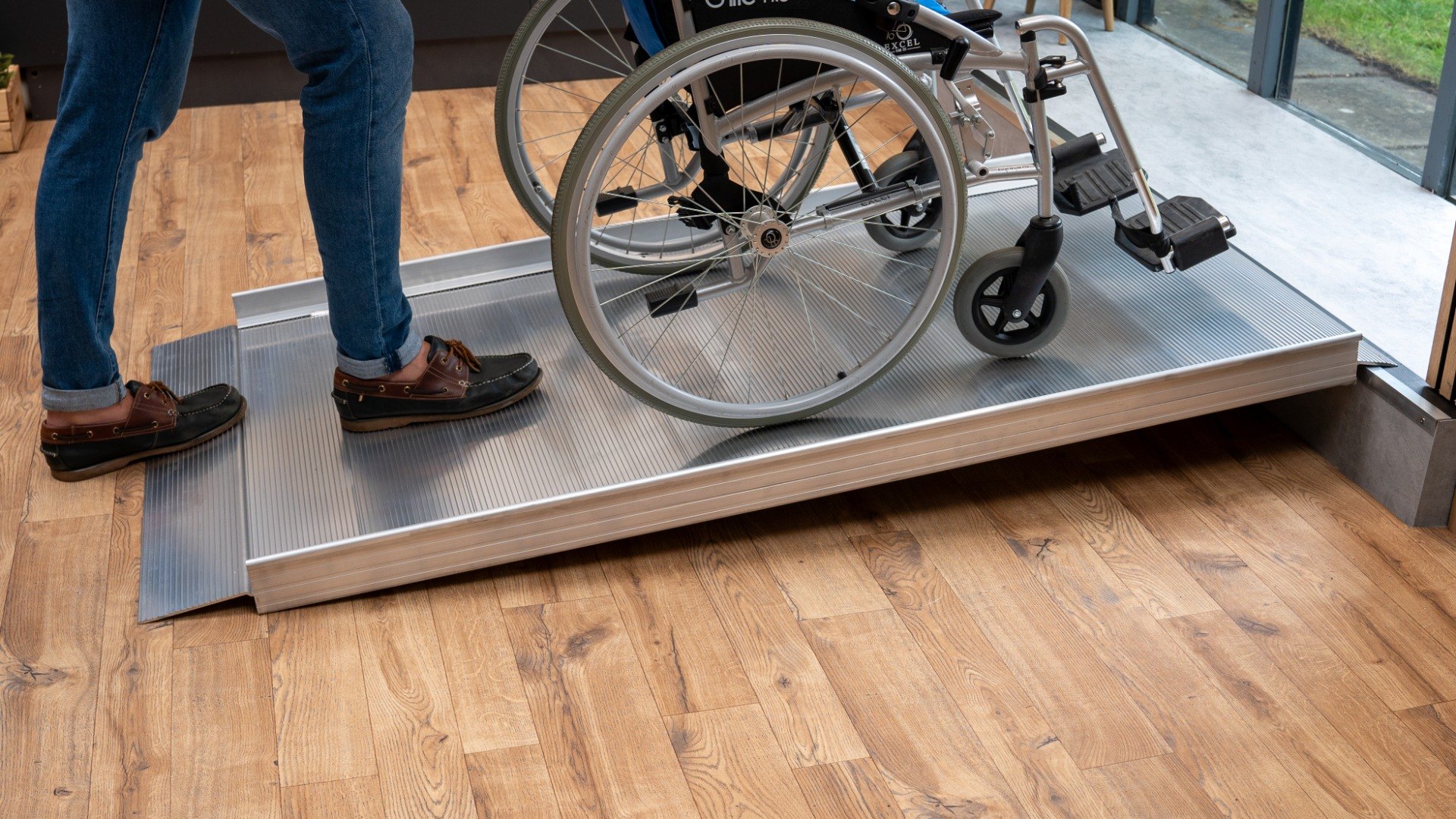

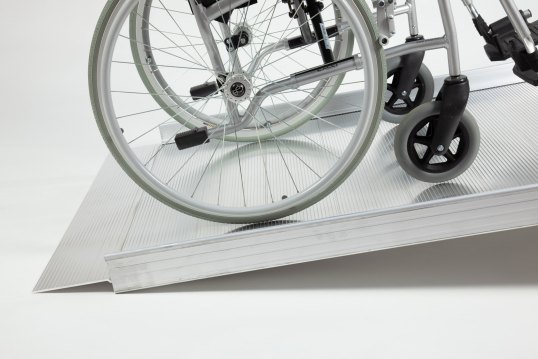

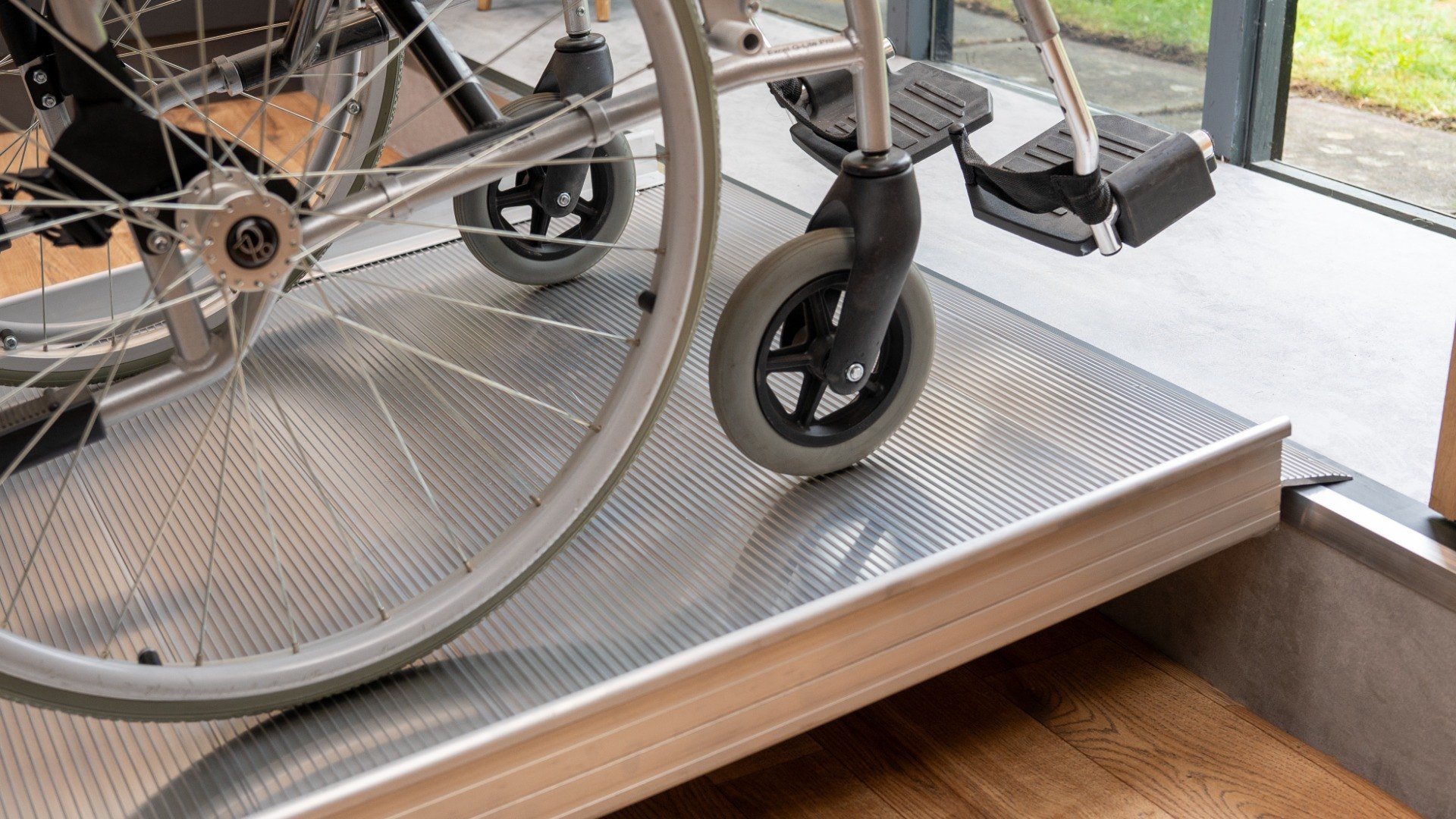

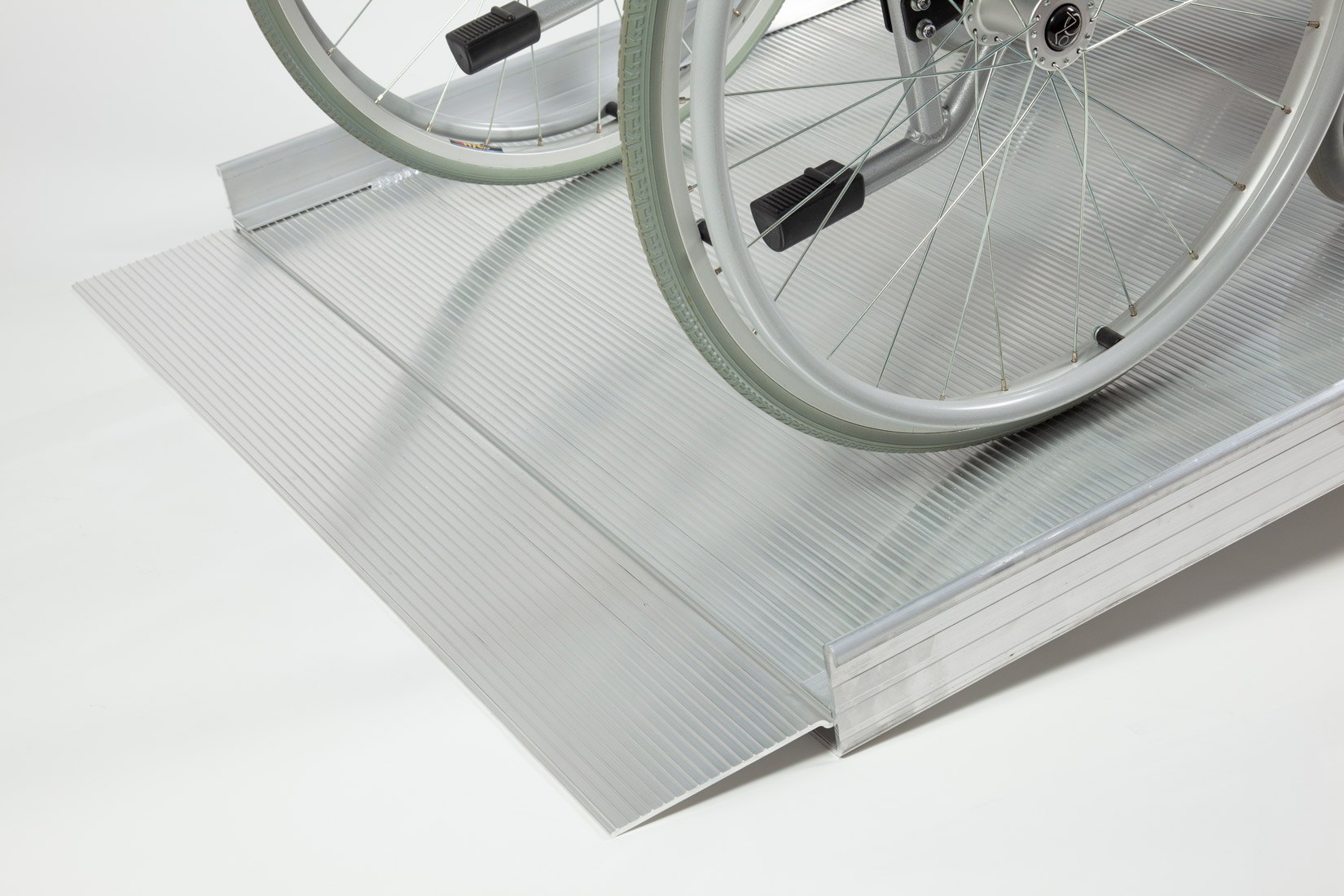

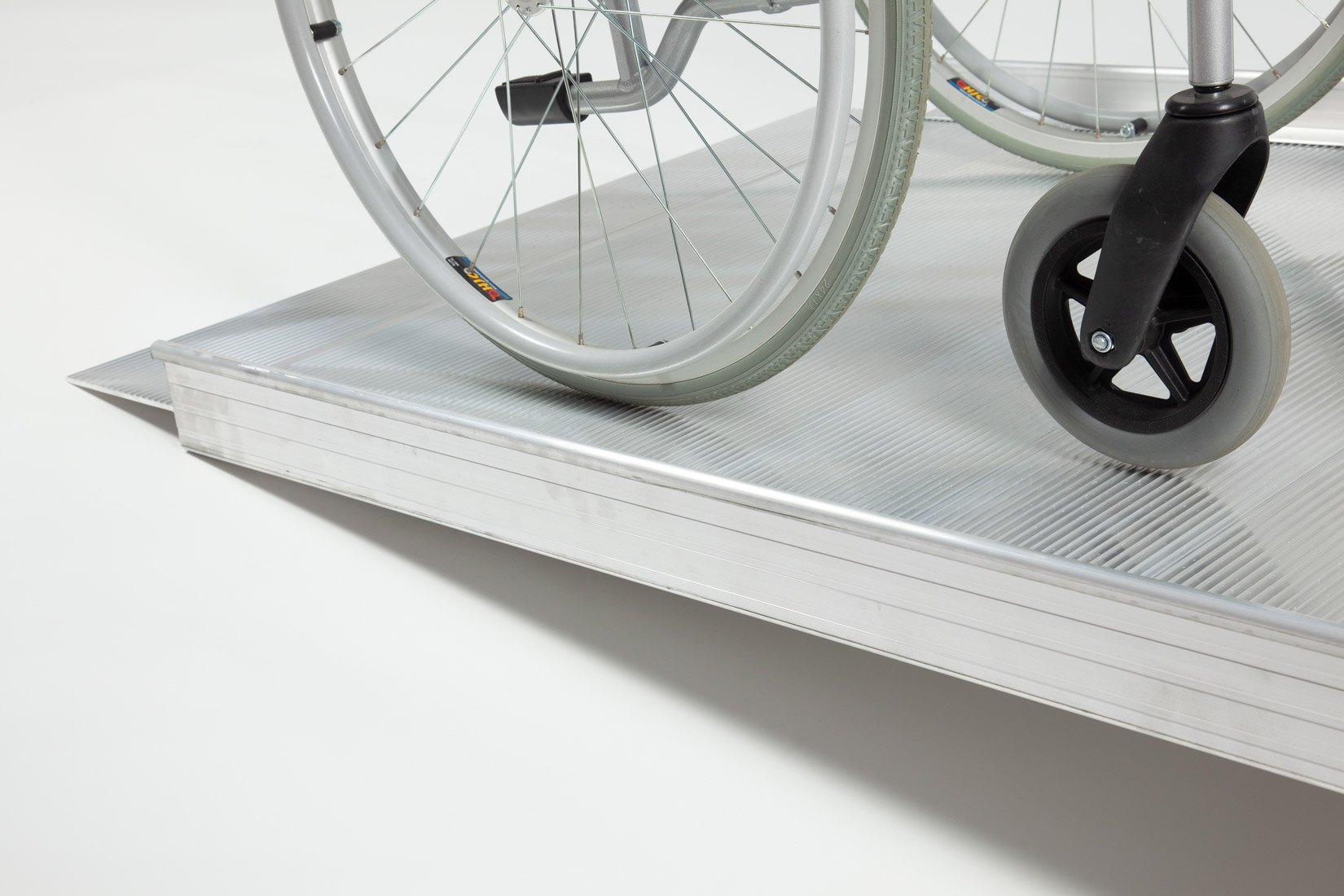

  • Suitable for manual and electric wheelchairs
  • 350kg capacity

Solid Wheelchair Ramp

3ft - TRP-WR3

  • Length: 3ft (914mm)
  • Weight: 10.5kg / 14.8kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 150mm
  • Capacity: 350kg

4ft - TRP-WR4

  • Length: 4ft (1220mm)
  • Weight: 11.7kg / 15kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 200mm
  • Capacity: 350kg

5ft - TRP-WR5

  • Length: 5ft (1524mm)
  • Weight: 14.3kg / 18kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 250mm
  • Capacity: 350kg

6ft - TRP-WR6

  • Length: 6ft (1830mm)
  • Weight: 16.8kg / 21kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 300mm
  • Capacity: 350kg

8ft - TRP-WR8

  • Length: 8ft (2440mm)
  • Weight: 22kg / 27.5kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 405mm
  • Capacity: 350kg

10ft - TRP-WR10

  • Length: 10ft (3048mm)
  • Weight: 27.1g / 33.5g
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 505mm
  • Capacity: 350kg

12ft - TRP-WR12

  • Length: 12ft (3657mm)
  • Weight: 32kg / 38.5kg
  • Width: 720mm / 933mm
  • Internal Width: 690mm / 888mm
  • Max. load height (mm): 600mm
  • Capacity: 350kg

Please note due to the size of the 10ft and 12ft ramp they can be difficult and expensive to return so please ensure this is suitable for you prior to ordering.

Product Questions

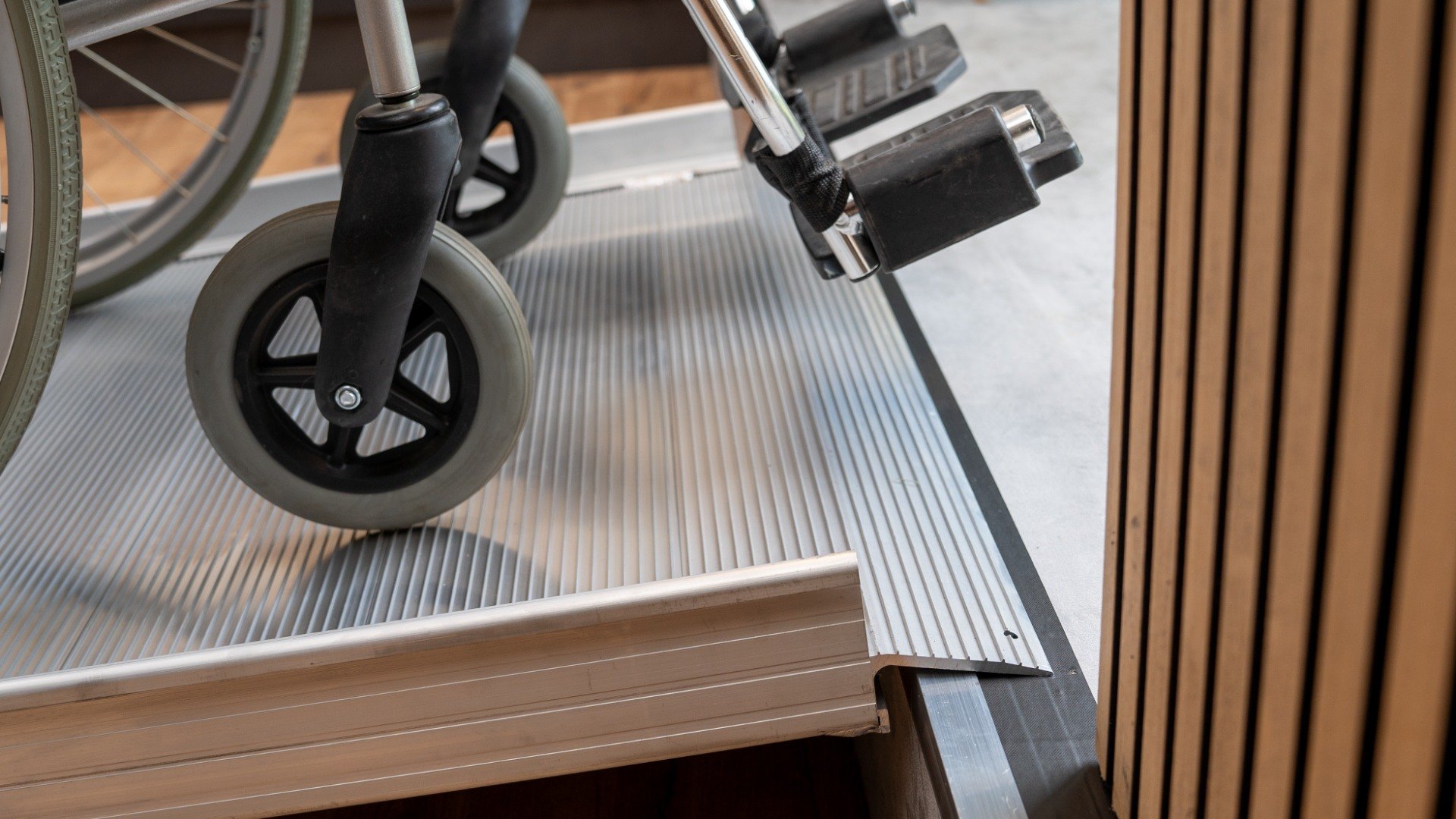

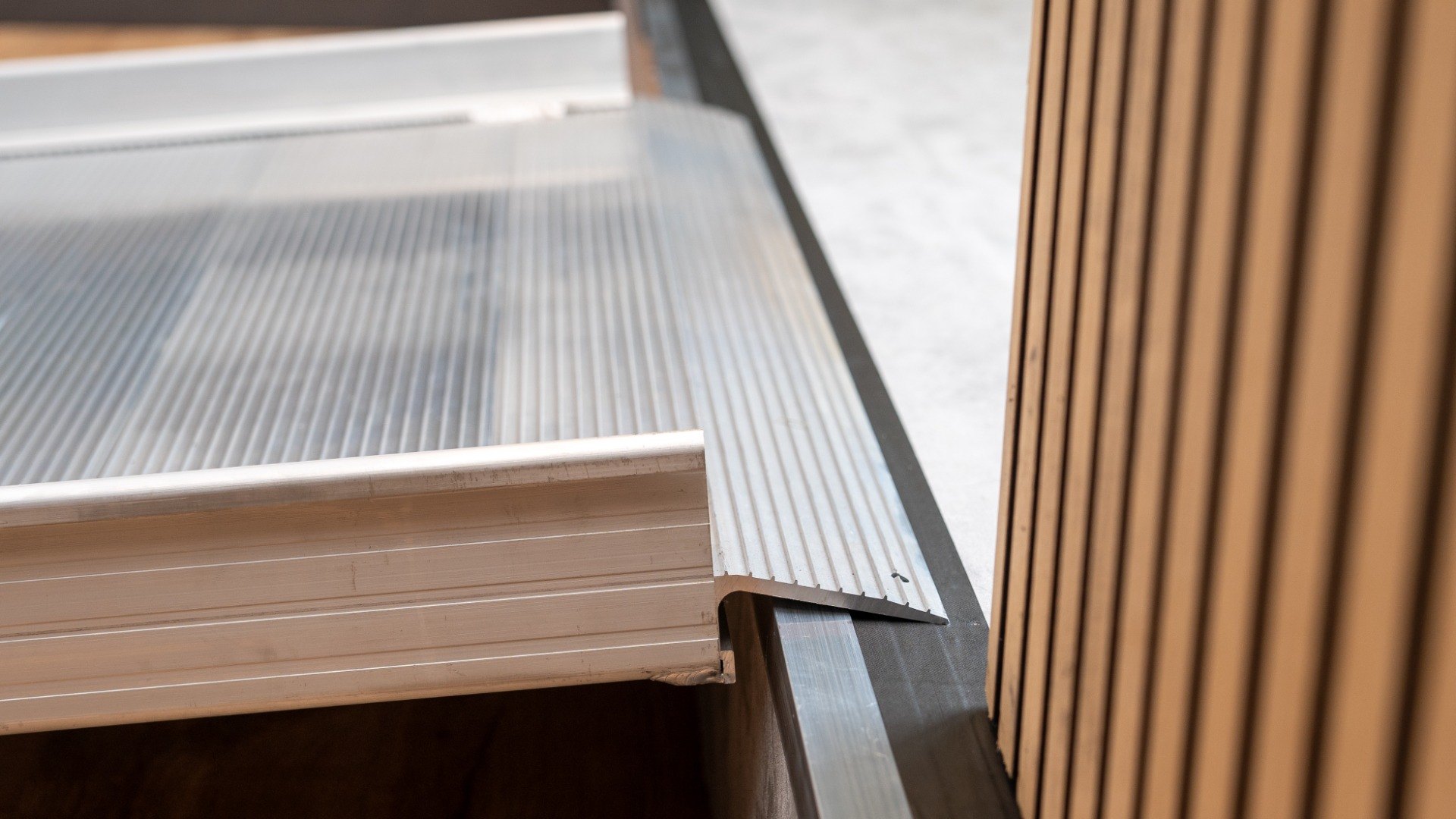

How long is the rest on connection which rests onto the step?
The rest on connection is 60mm long.
Can The Ramp Factory's Wheelchair Ramp 3ft - 12ft be secured in place?
The Wheelchair Ramp 3ft - 12ft can be used as a portable wheelchair ramp or can be secured in place. The ramp has pre-drilled holes in the rest on connection to allow it to be fixed in place. The longer ramp lengths are quite heavy so are often left in place.
Video
Details
SKUTRP-WR-RAMP
Capacity (kg)350
Height of Raised Side (mm)88
Internal Width (mm)690 - 888
Length (mm)914-3657
Max Load Height (mm)150 - 600
Total Width (mm)720 - 933
Weight (kg)10.5 - 38.5
One Year WarrantyYes
Bolt DownYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
