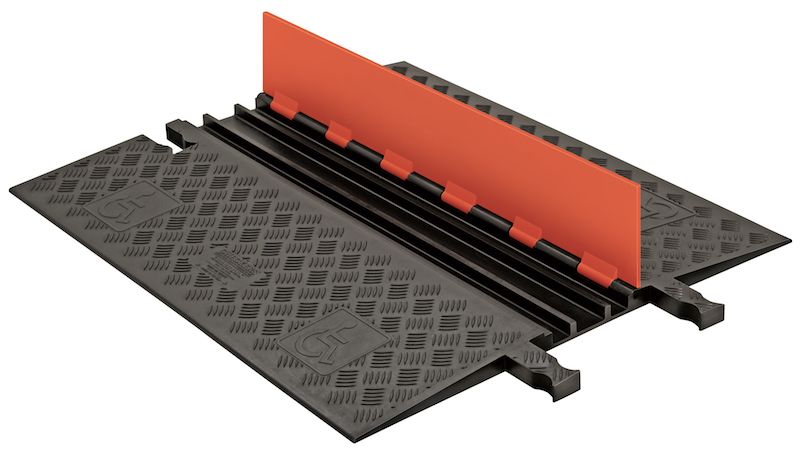

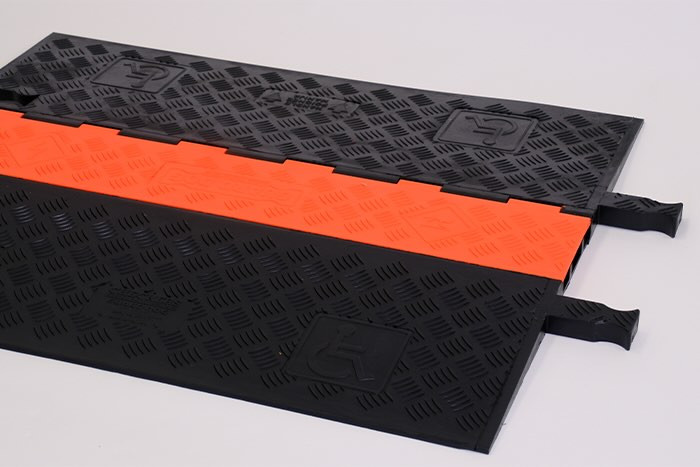

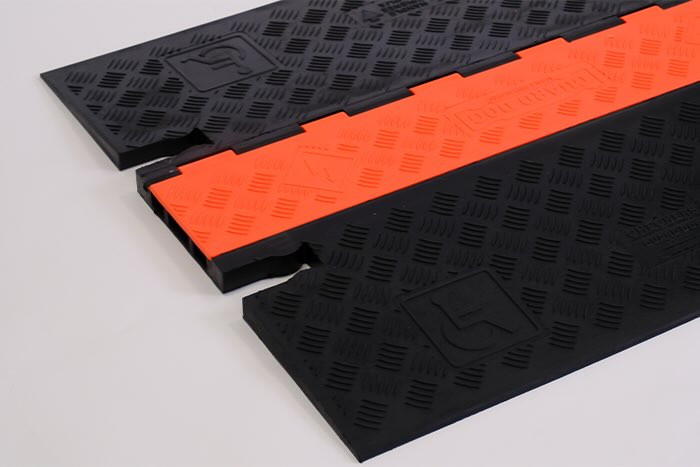

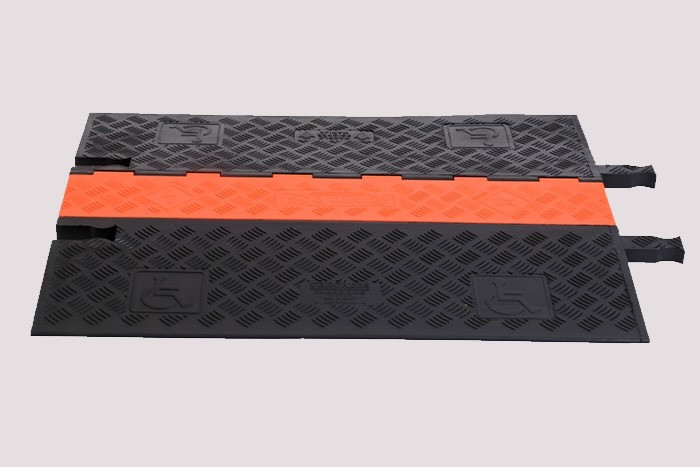

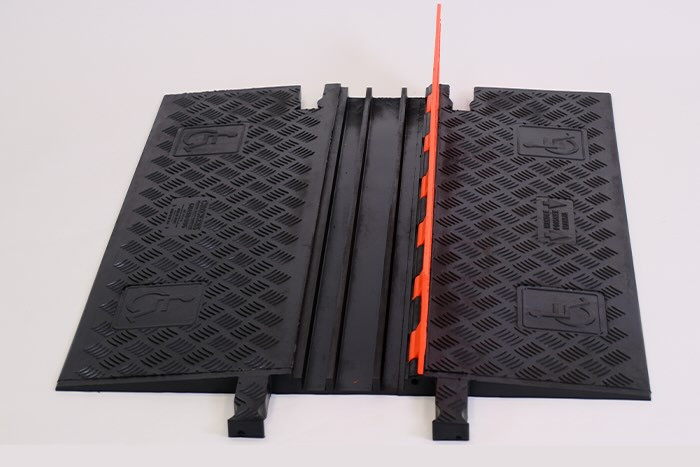

Checkers Guard Dog 3 Channel - Low Profile ADA Version

SKU
TRP-GD3X75-O/B
£360.00 £300.00
Built to Order

The Ramp Factorys Guard Dog 3-Channel Cable Protector with low profile in orange/black offers a hinged lid.

Capacity 24492
Channel Size (mm) w.32.5 x h.19
Height (mm) 31.8
Width (mm) 769.8
Length (mm) 914.4



Description
Cable Protectors Guard Dog

Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment for cables up to 0.75" tall and 1.25" wide. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.

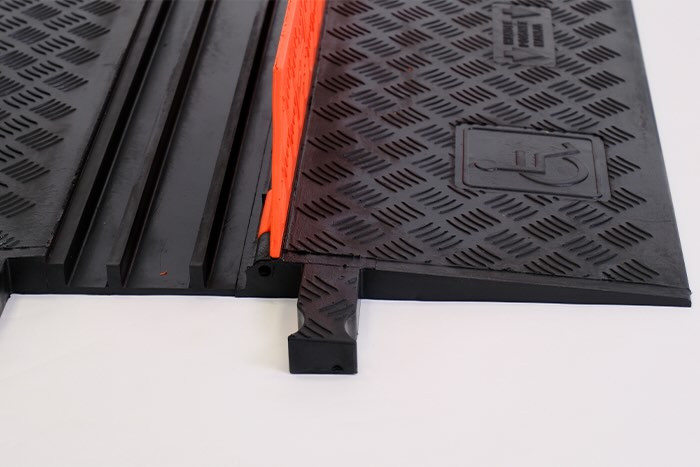

  • Dog-bone connector to extend to any desired length

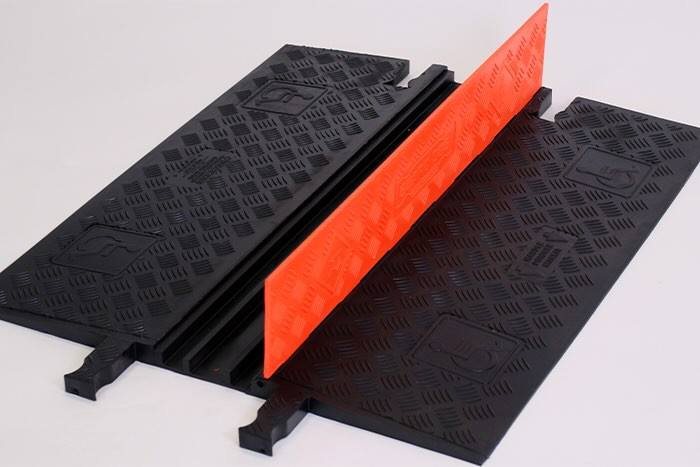

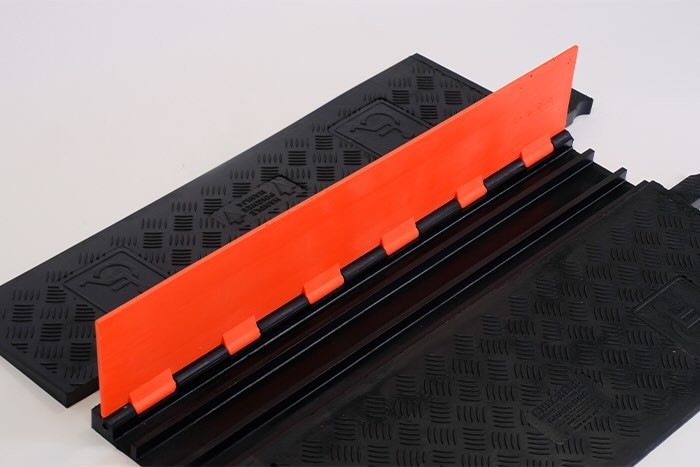

  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup
  • Ideal for use in amusement parks, entertainment venues, sporting events and most public, commercial, industrial, construction and utility applications
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Details
SKUTRP-GD3X75-O/B
Height (mm)31.8
Length (mm)914.4
Weight (kg)10.61
Width (mm)769.8
One Year WarrantyYes
Easy to FitYes
Leave OutsideYes
Cable Protector ColorOrange/Black
Channel Width (mm)32.5
Channel Size (mm)32.5 x 19
Channel Height (mm)19
No. Channels3
Capacity per Axle (kg)24,492
Capacity per Tyre (kg)12,246
Operating Temperature (deg. F)70
Speedlimit (mph)10
