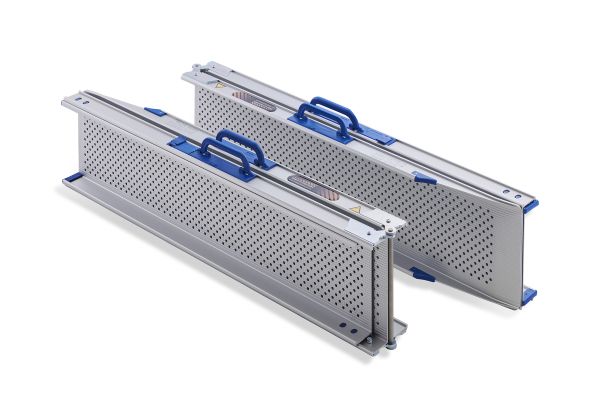

Folding Channel Ramps 1100mm - 2120mm
These folding channel ramps are ideal for those on the move. The hinge enables the ramp to fold in half for compact storage. Provided with ultimate grip, this ramp is perfect for manual wheelchairs. Available in two lengths: 1100mm (3.6ft) or 2120mm (7ft), the folding channel ramps are made in Europe and provided with a 3-year warranty.
Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.

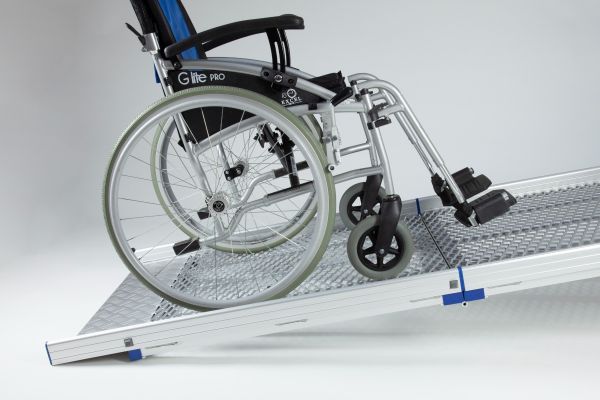

The Ramp Factory have a wide range of channel ramps for manual wheelchairs such as the economy channel ramps, telescopic channel ramps if you require a wheelchair ramp with a length up to 12ft or, the low profile channel ramp which is suitable for mobility scooters.
- Rest on connection - to fit just rest on and start loading
- Lightweight for easy handling
- Quick and easy to set up
- Unique design enables incredible grip
- Aerospace technology ensures incredible strength yet lightweight ramps

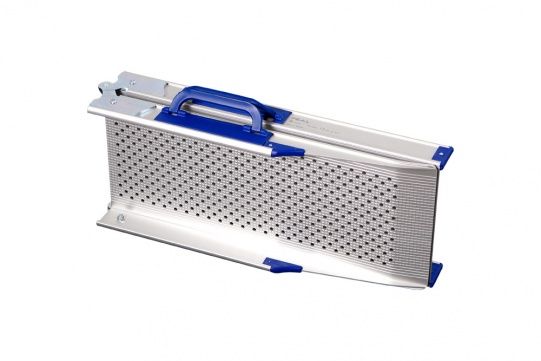

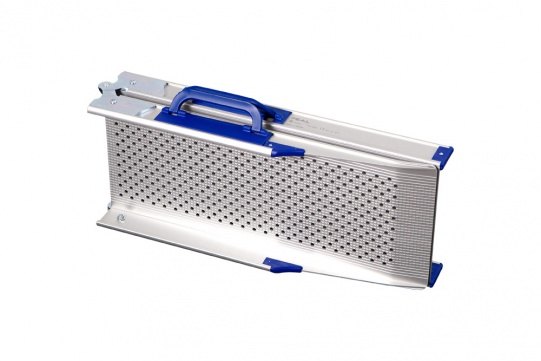

- Folds up for compact storage

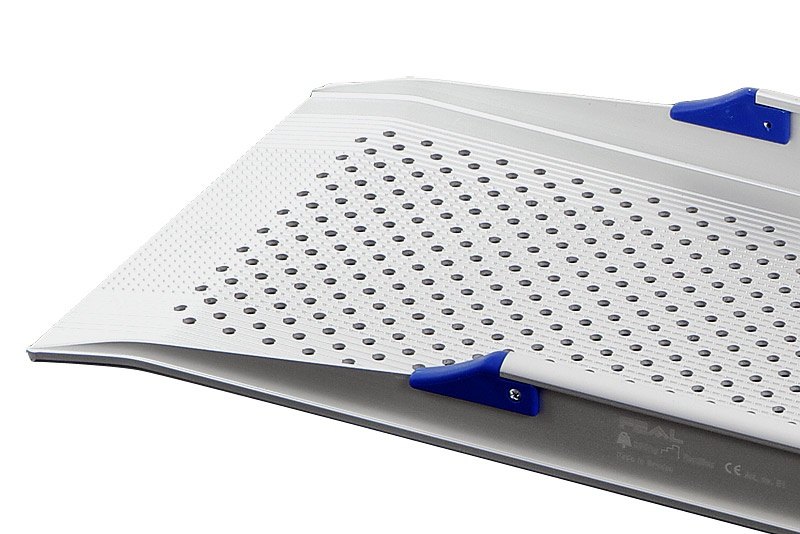

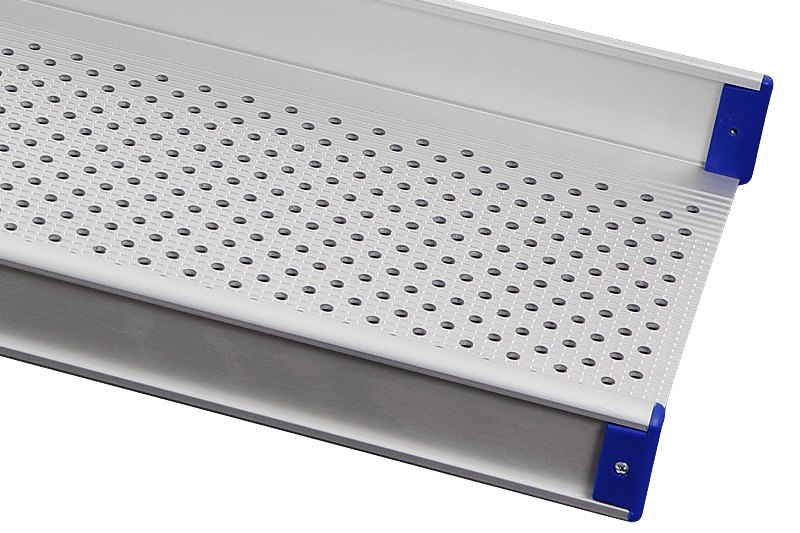

- Slip-resistant surface for ultimate grip

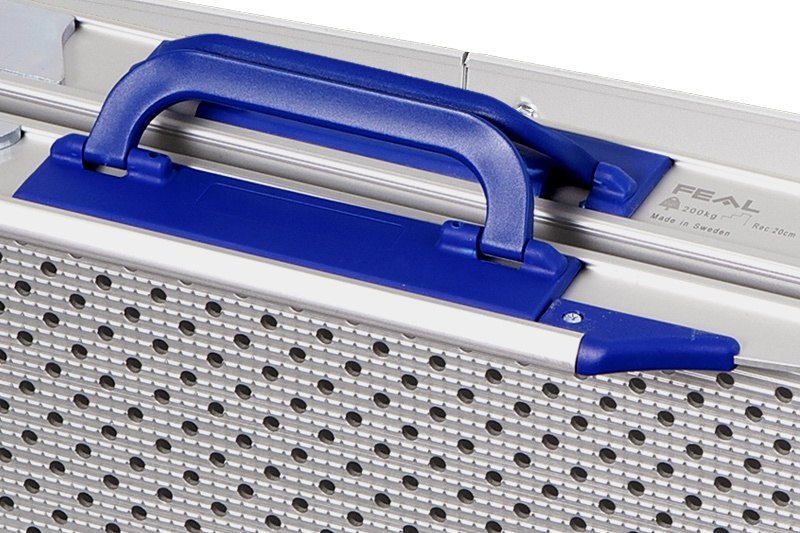

- Carry handles can be folded against the side of the ramp
- 3-year warranty
- Made in Sweden
- All pictures shown are for illustration purpose only. The actual product may vary due to product enhancement
- Please note that these channel ramps are not suitable for mobility scooters or electric wheelchairs
- These ramps are only suitable for use as mobility aids
Folding Wheelchair Channel Ramp Range
What ramp length is appropriate for me?
1100mm / 3.6ft TRP-F110
- Length: 1100mm / 3.6ft
- Width: 210mm
- Weight: 7.4kg
- Weight per ramp: 3.7kg
- Capacity 400kg
- Max. load height 180mm
- Folded length: 570mm
2120mm / 6.9ft TRP-FW200
- Length 2120mm / 6.9ft
- Width: 270mm
- Weight 16kg
- Weight per ramp: 8kg
- Capacity: 300kg
- Max. load height: 350mm
- Folded length: 1070mm
SKU | TRP-FFold |
---|---|
Capacity (kg) | 300 - 400 |
Edge Height (mm) | 50 |
Length (mm) | 1100 - 2120 |
Max Load Height (mm) | 180 - 350 |
Width (mm) | 210 |
Three Year Warranty | Yes |
Easy to Fit | Yes |
European Made | Yes |
Manual Wheelchair | Yes |
Not Mobility Scooter Friendly | Yes |
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Ramp Length & Load Height
It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.
Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.
Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.
Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.
Which wheelchair ramp length? Use our ramp length calculator! Learn more
-
