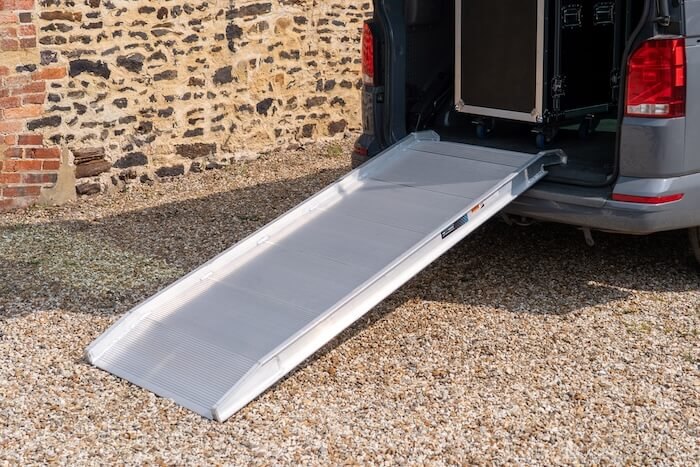

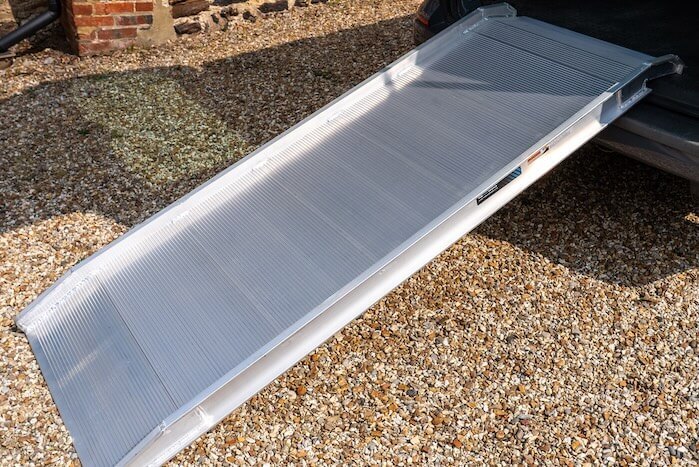

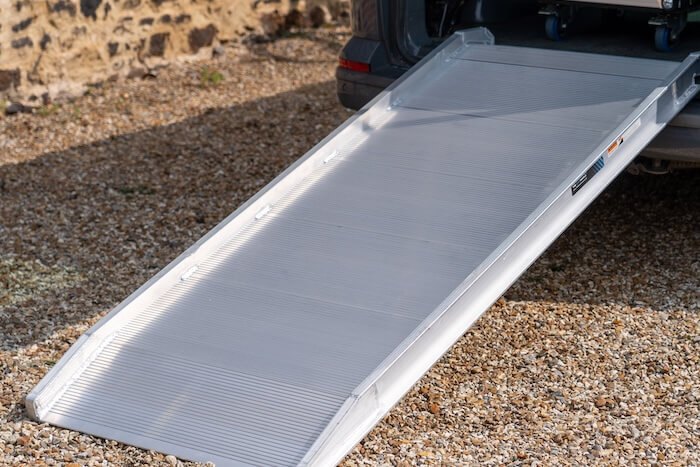

Viper van ramp resting on van
Viper ramp on the back of a van Viper van ramps logo Loading a flight case using a viper ramp Viper van ramp resting on van Base on the viper van ramp Viper van ramp rest on connection Viper Economy Van Ramp Van ramp in use van ramp resting on van Flightcase loading into van Base of the viper van ramp van ramp resting onto the van Viper van ramp in use Wide aluminium van ramp Flightcase going up van ramp Viper Economy Van Ramp Safety edges on van ramp Portable aluminium van ramp Wide van ramp in use Metal van ramp Edges of the van ramp aluminium van ramp Van ramp resting onto van
  • Easy to Fit
  • One Year Warranty

Viper Economy Van Ramp

SKU
TRP-Viper700E
As low as £420.00 £350.00
87 In stock at our warehouse

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

The Ramp Factory Economy Heavy Duty Van Ramp is a single aluminium ramp available in widths of 750mm or 975mm. It is available in lengths ranging from 1800mm to 2700mm and has a capacity of up to 900kg. The ramp features a non-slip tread pattern, is lightweight and easy to install. It is also corrosion-resistant, making it suitable for a variety of applications. The Ramp Factory Economy Heavy Duty Van Ramp is an affordable and reliable solution for loading and unloading vans.

The Ramp Factory have the answer to all your loading needs. Look no further than the industrial channel ramps or foldable van ramps with a capacity of up to 1000kg.

Truck and Van Ramps FAQ's

Description

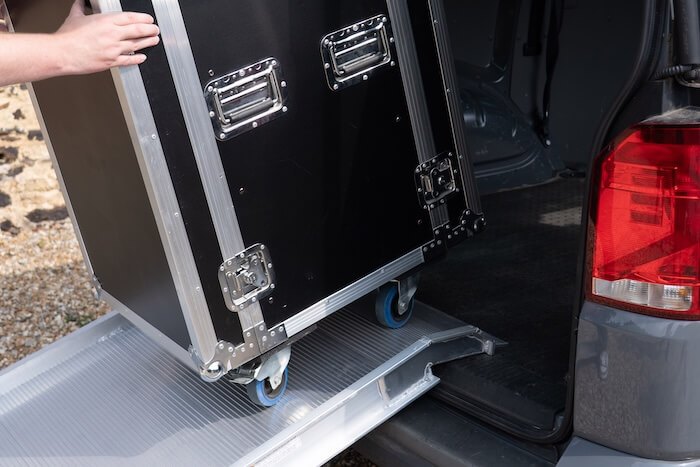

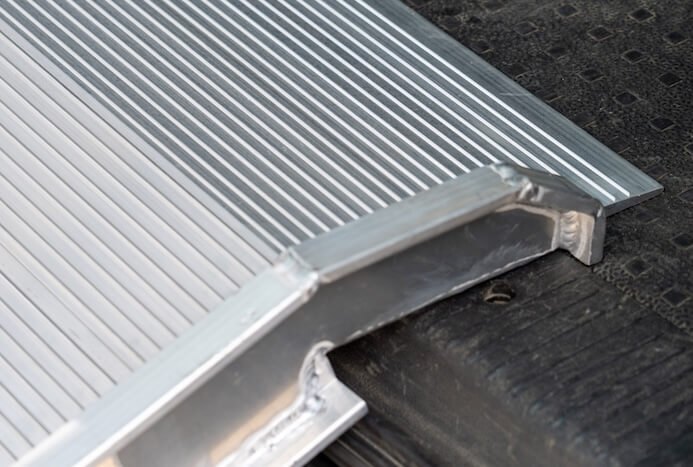

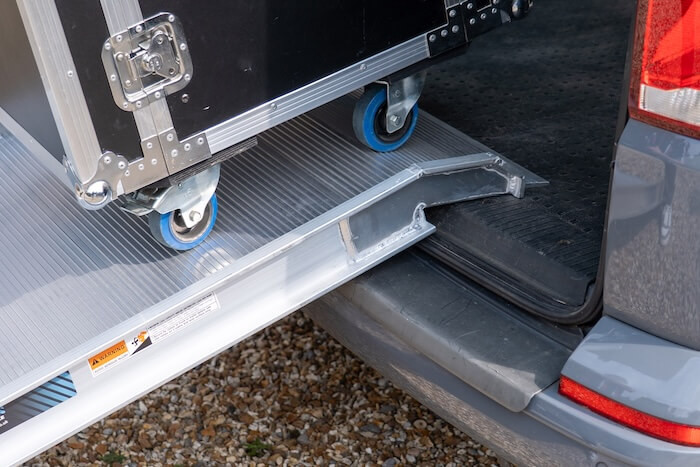

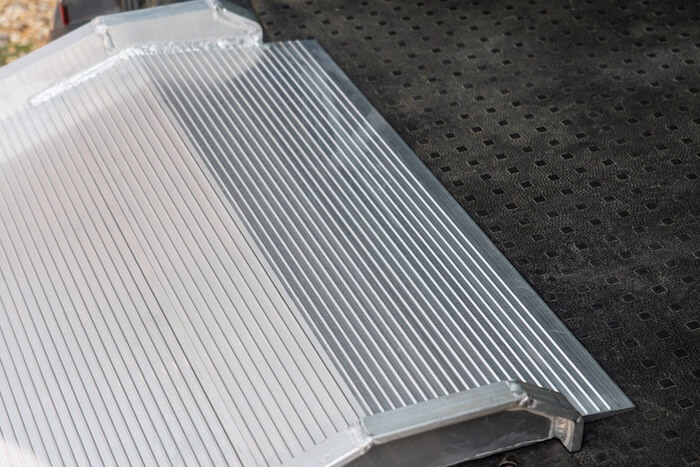

  • Rest on connection: to fit just rest on and start loading

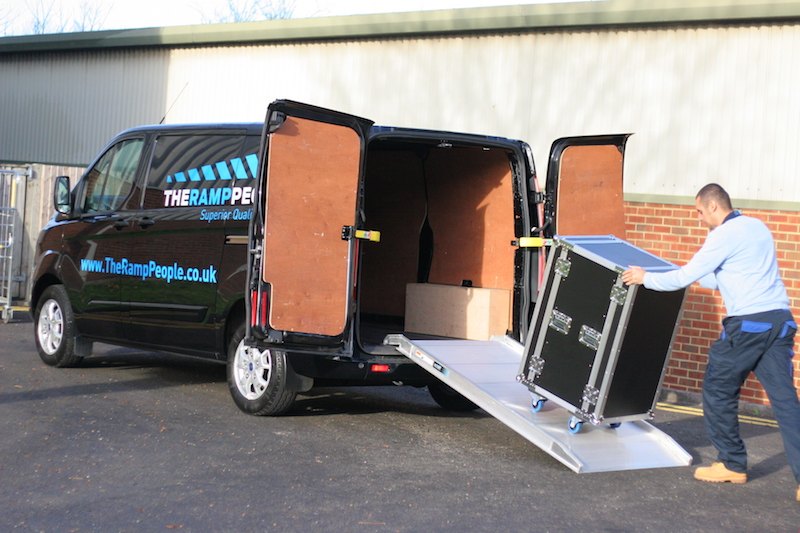

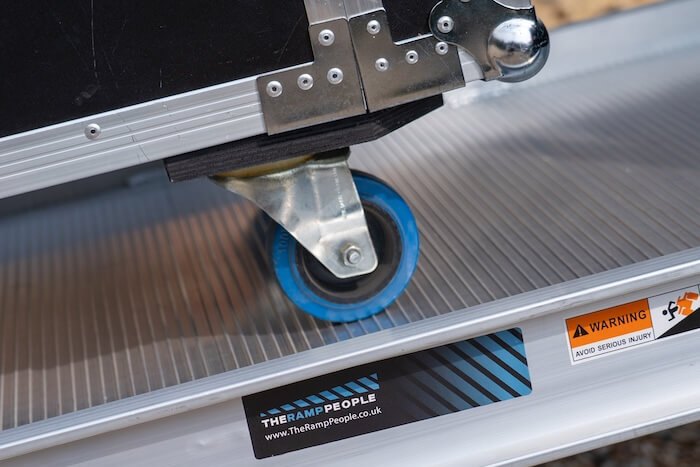

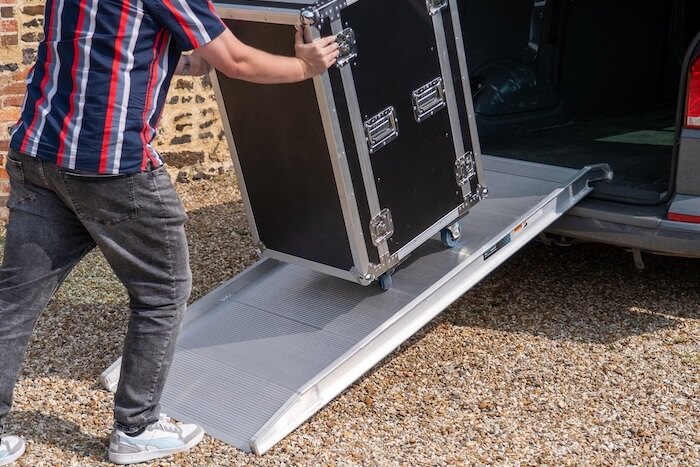

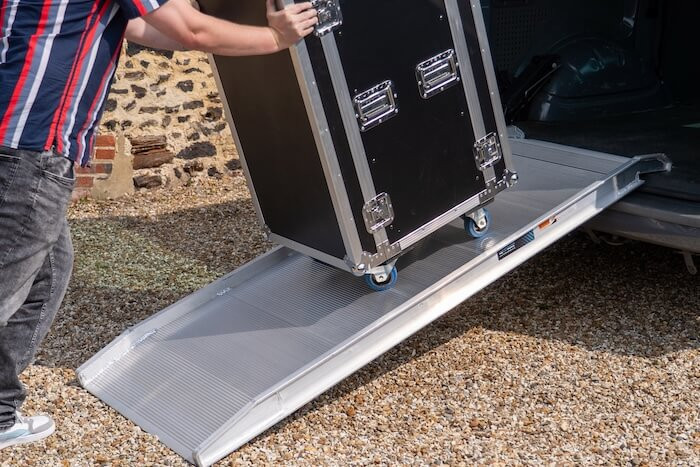

  • Perfect for flight cases
  • Manufactured from lightweight aluminium (type 6005A)
  • Optimised ramp weight ensures the ramp stays connected to the van
  • Entry onto ramp slightly steeper than our premium version
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Viper Heavy Duty Van Ramp 750mm Wide

1800mm/6ft TRP1800/700E

  • Length (mm): 1800
  • Height of Raised Edges (mm): 40
  • Max Load Height (mm): 540
  • External Width (mm): 750
  • Internal Width (mm): 700
  • Weight per ramp (kg): 28
  • Capacity (kg): 900

2100mm/7ft TRP2100/700E

  • Length (mm): 2100
  • Height of Raised Edges (mm): 40
  • Max Load Height (mm): 630
  • External Width (mm): 750
  • Internal Width (mm): 700
  • Weight per ramp (kg): 32
  • Capacity (kg): 800

Viper Heavy Duty Van Ramp 975mm Wide

1800mm⁄6ft TRP1800/920E

  • Length (mm): 1800
  • Height of Raised Edges (mm): 38
  • Max Load Height (mm): 540
  • External Width (mm): 975
  • Internal Width (mm): 920
  • Weight per ramp (kg): 35
  • Capacity (kg): 900

2100mm⁄7ft TRP2100/920E

  • Length (mm): 2100
  • Height of Raised Edges (mm): 38
  • Max Load Height (mm): 630
  • External Width (mm): 975
  • Internal Width (mm): 920
  • Weight per ramp (kg): 40.5
  • Capacity (kg): 800

2400mm⁄8ft TRP2400/920E

  • Length (mm): 2400
  • Height of Raised Edges (mm): 38
  • Max Load Height (mm): 720
  • External Width (mm): 975
  • Internal Width (mm): 920
  • Weight per ramp (kg): 45
  • Capacity (kg): 770

2700mm⁄9ft TRP2700/920E

  • Length (mm): 2700
  • Height of Raised Edges (mm): 38
  • Max Load Height (mm): 815
  • External Width (mm): 975
  • Internal Width (mm): 920
  • Weight per ramp (kg): 49
  • Capacity (kg): 680
Product Questions
What is the difference between the Viper Economy Van Ramp and Viper Heavy Duty Van Ramp?
The Viper Heavy Duty Van Ramp is a premium ramp solution available in a wider range of lengths and offering a higher capacity at 1000kg. The ramp has a pre-drilled hole to secure the ramp during loading and also offers smoother entry onto the ramp, perfect for those loading flight cases and cages. The TUV-certified premium ramp can be customised and is made in Italy.
Do The Ramp Factory offer folding van ramps?

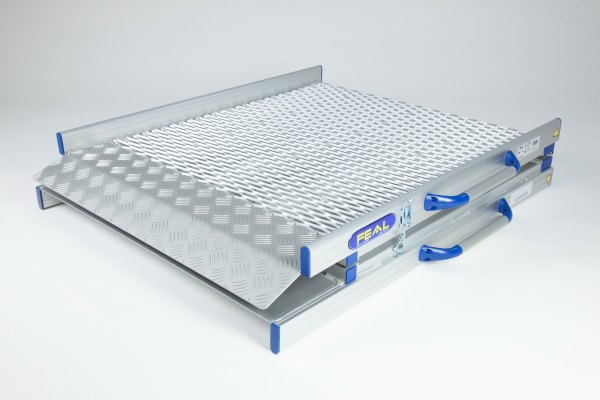

Yes we have a range of fixed and portable folding van ramps available. Within our Van Ramps category, please view our Folding Van Ramps. Please note due to the hinge folding van ramps generally have a lower capacity.
I am interested in The Ramp Factory's Viper Economy Van Ramp, how do I identify which ramp length to purchase?
You will need to measure the vertical height from the ground to where the ramp will rest on your van, this is your 'load height'. Within the product description, the maximum load height of all ramps lengths is noted. It is important not to exceed the recommended load height to ensure a smooth gradient for ease of loading.
How does The Ramp Factory's Viper Economy Van Ramp stay in place during loading?

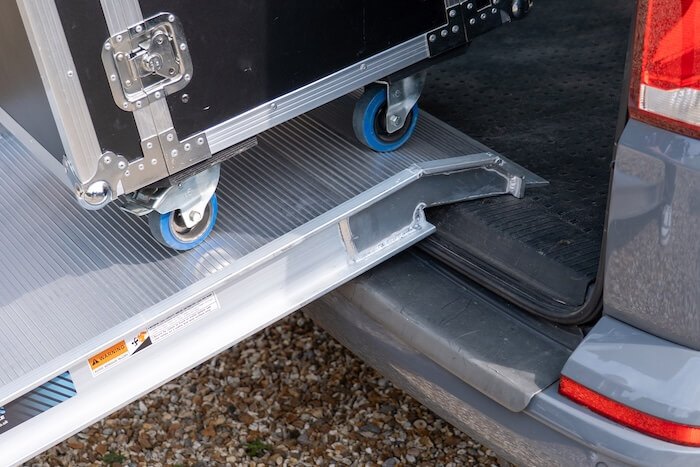

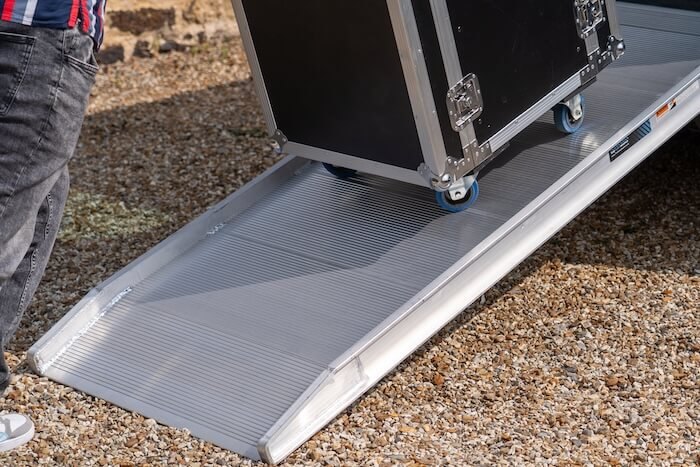

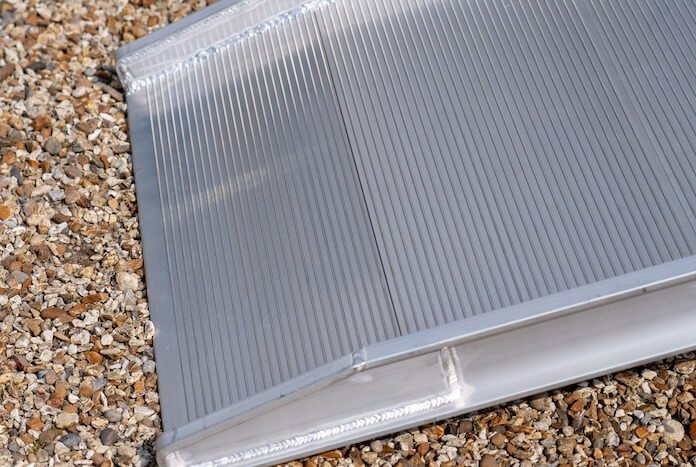

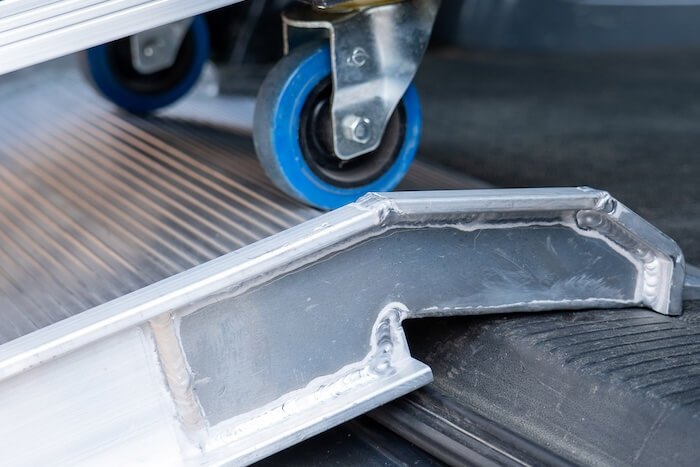

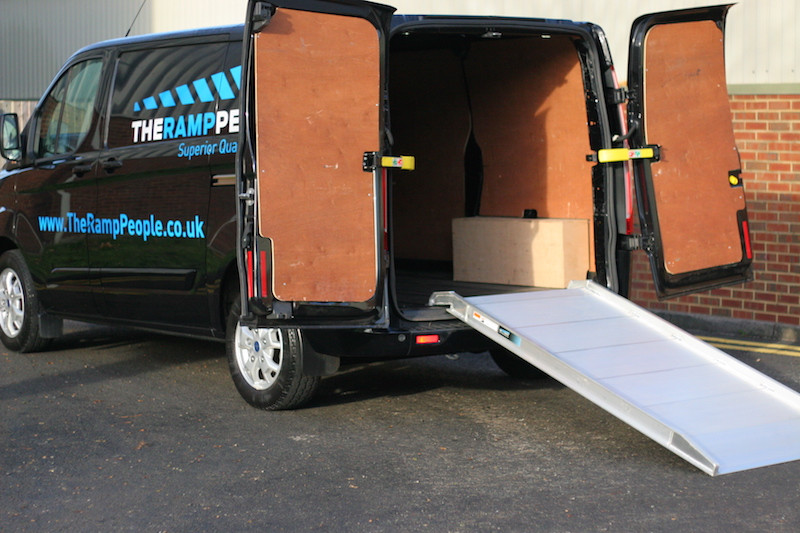

As a portable van ramp, the ramp simply rests onto the vehicle. The ramp stays in place due to the curved rest on connection and angled foot which is designed to sit securely on the ground. The ramp weight and angle also assists to ensure it remains in place.
Video
Specifications
SKUTRP-Viper700E
Default ConnectionRest On Connection
Capacity (kg)680 - 900
Height of Raised Side (mm)38 - 40
Height of Ramps Profile (mm)95
Length (mm)1800 - 2700
Max Load Height (mm)540 - 815
Total Width (mm)750 - 975
Weight per Ramp (kg)22.1 - 37.8
One Year WarrantyYes
Easy to FitYes
Usable Width (mm)700
