Loading Ramp with Double Support Bar and Support Legs (2200mmx285mm)

SKU
TRP700-L Conf
From £102.00 £85.00
68 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

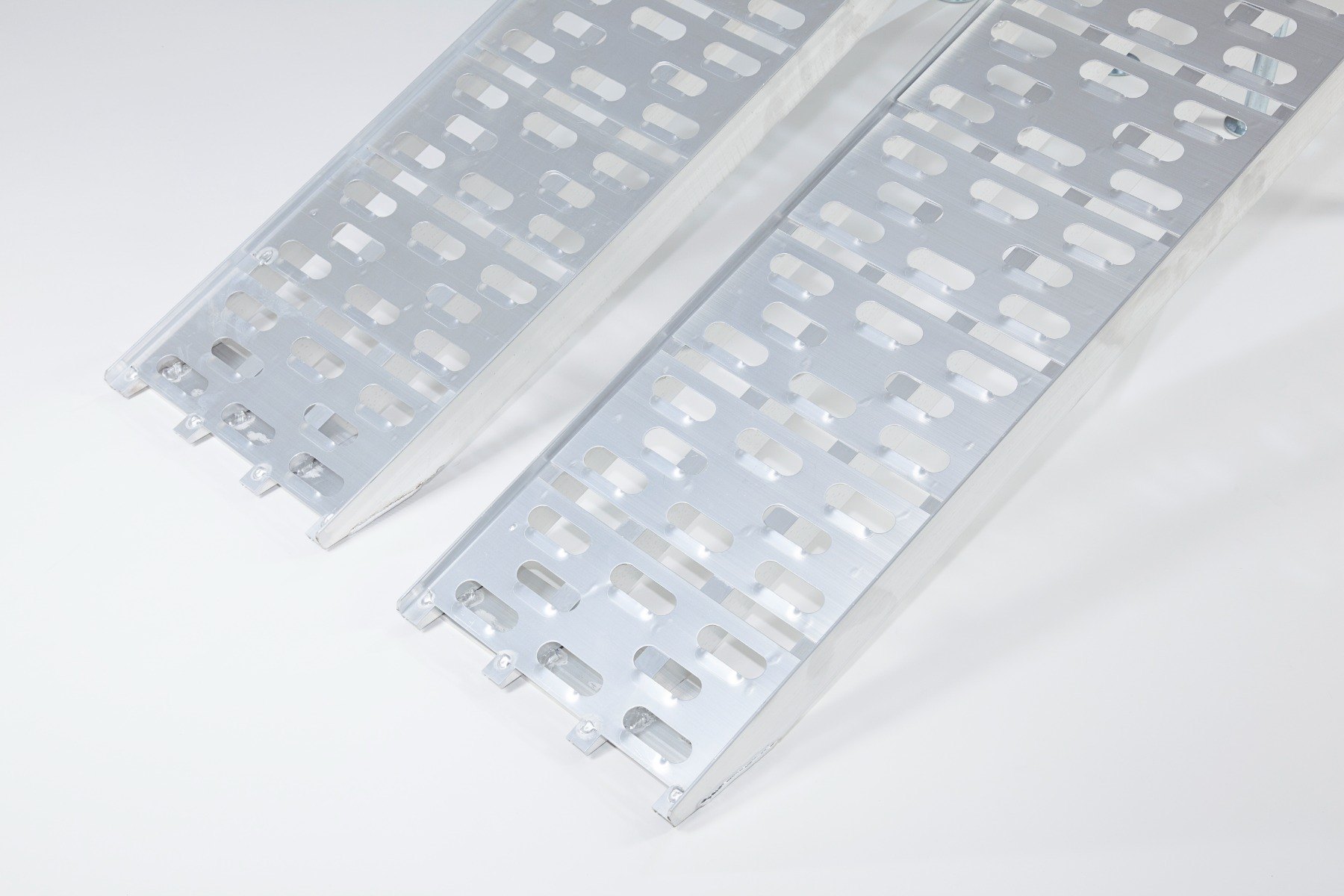

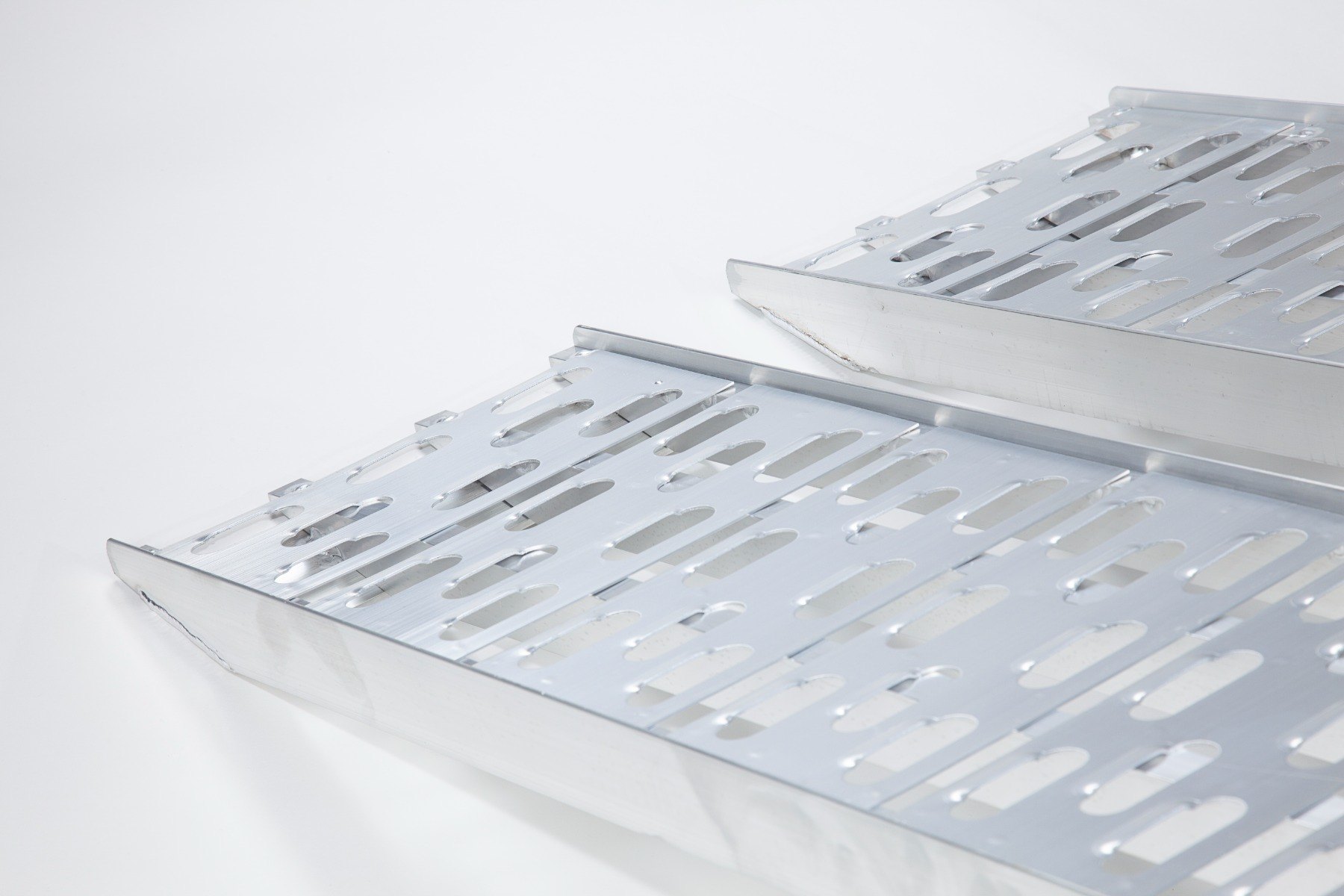

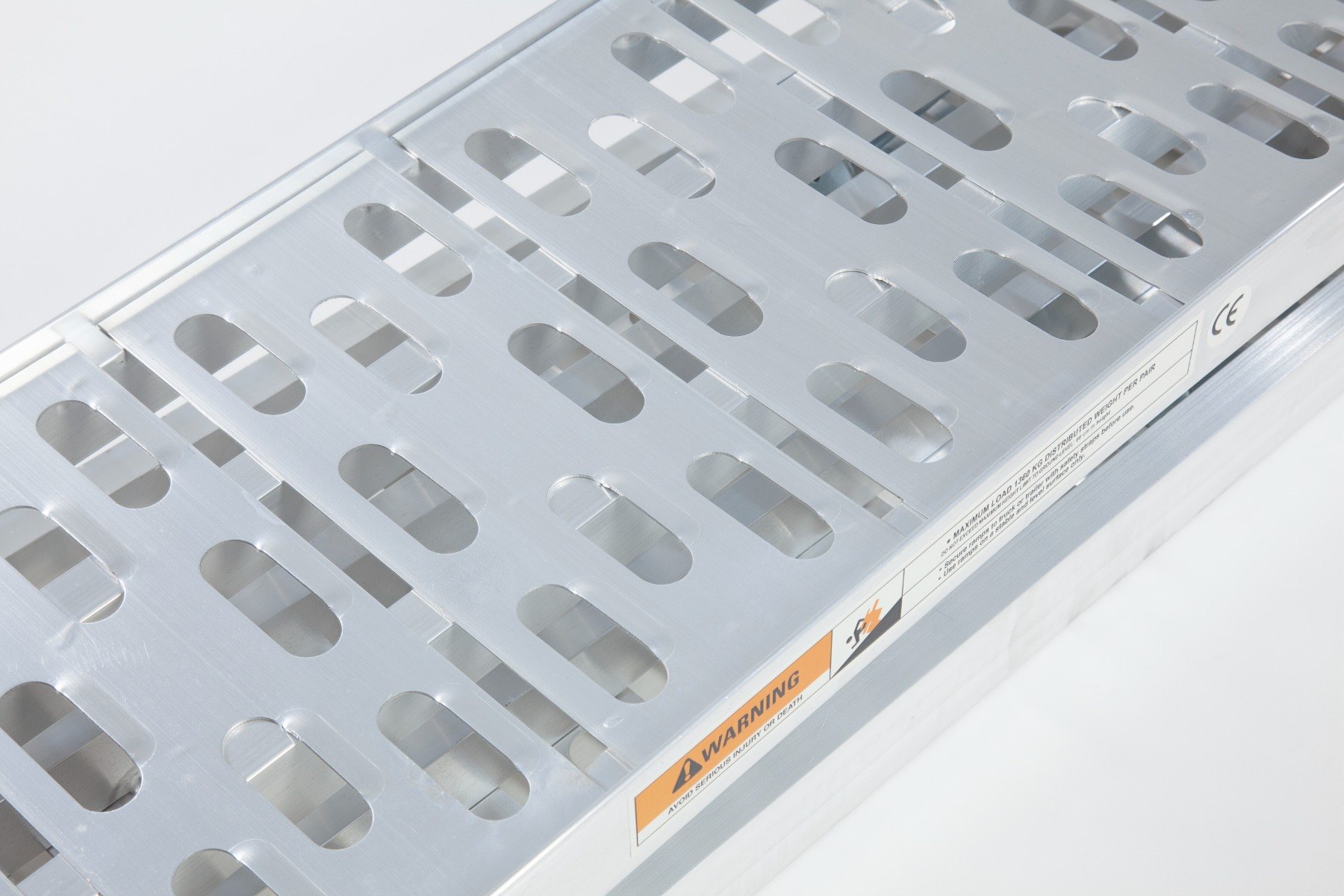

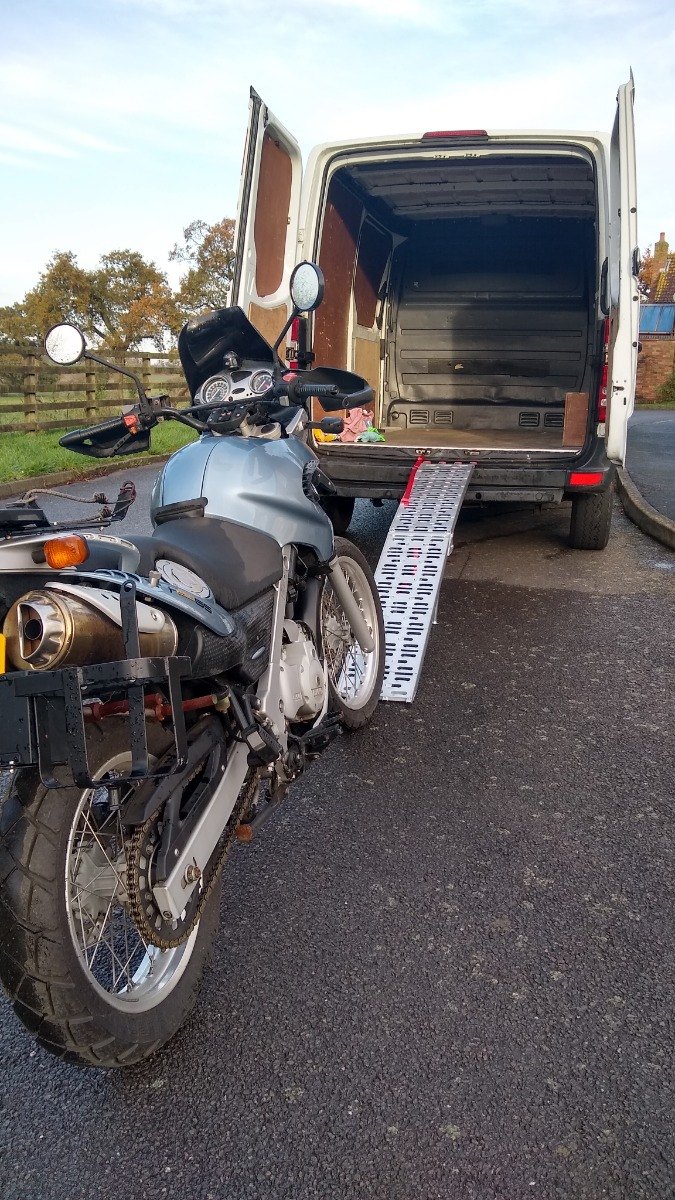

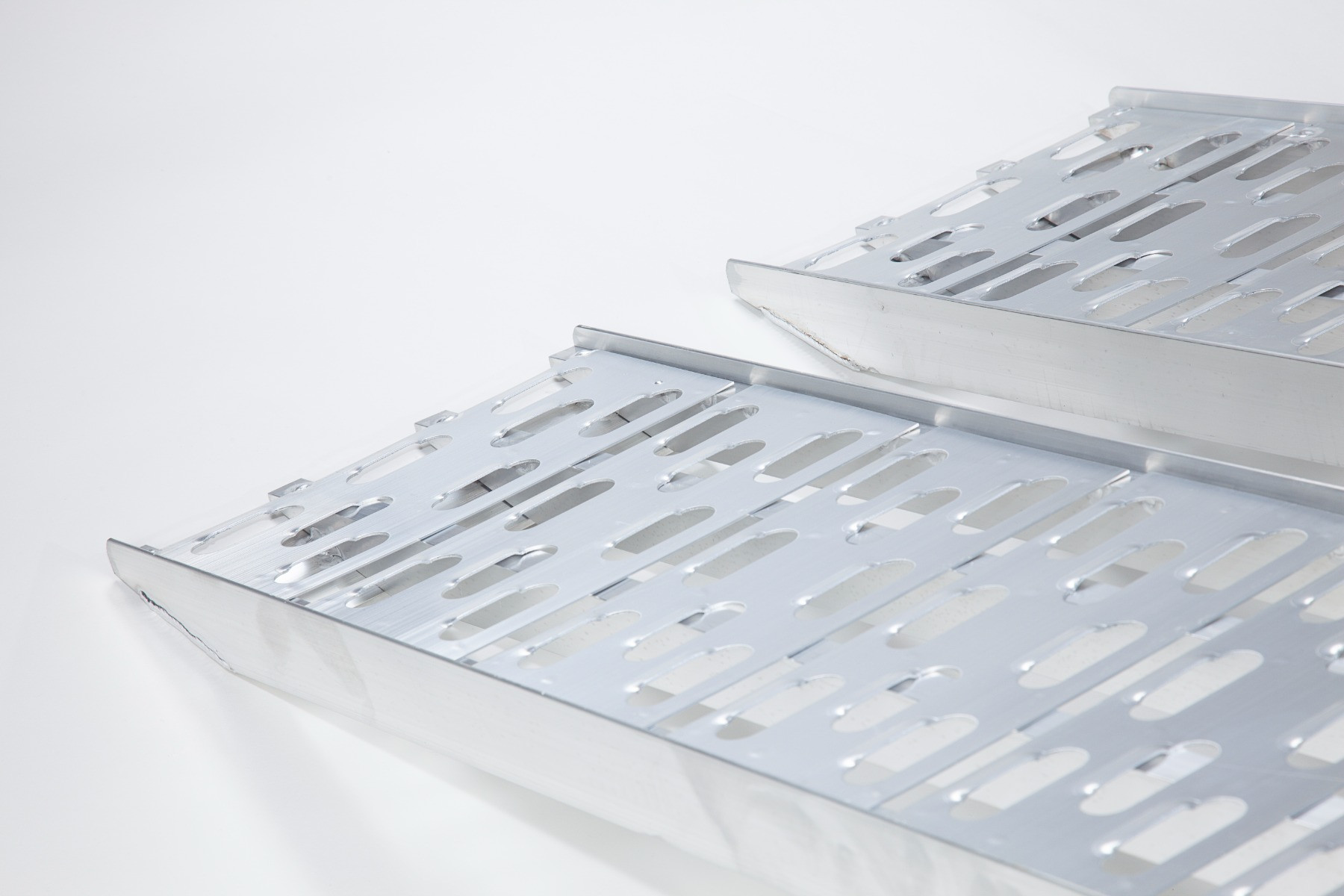

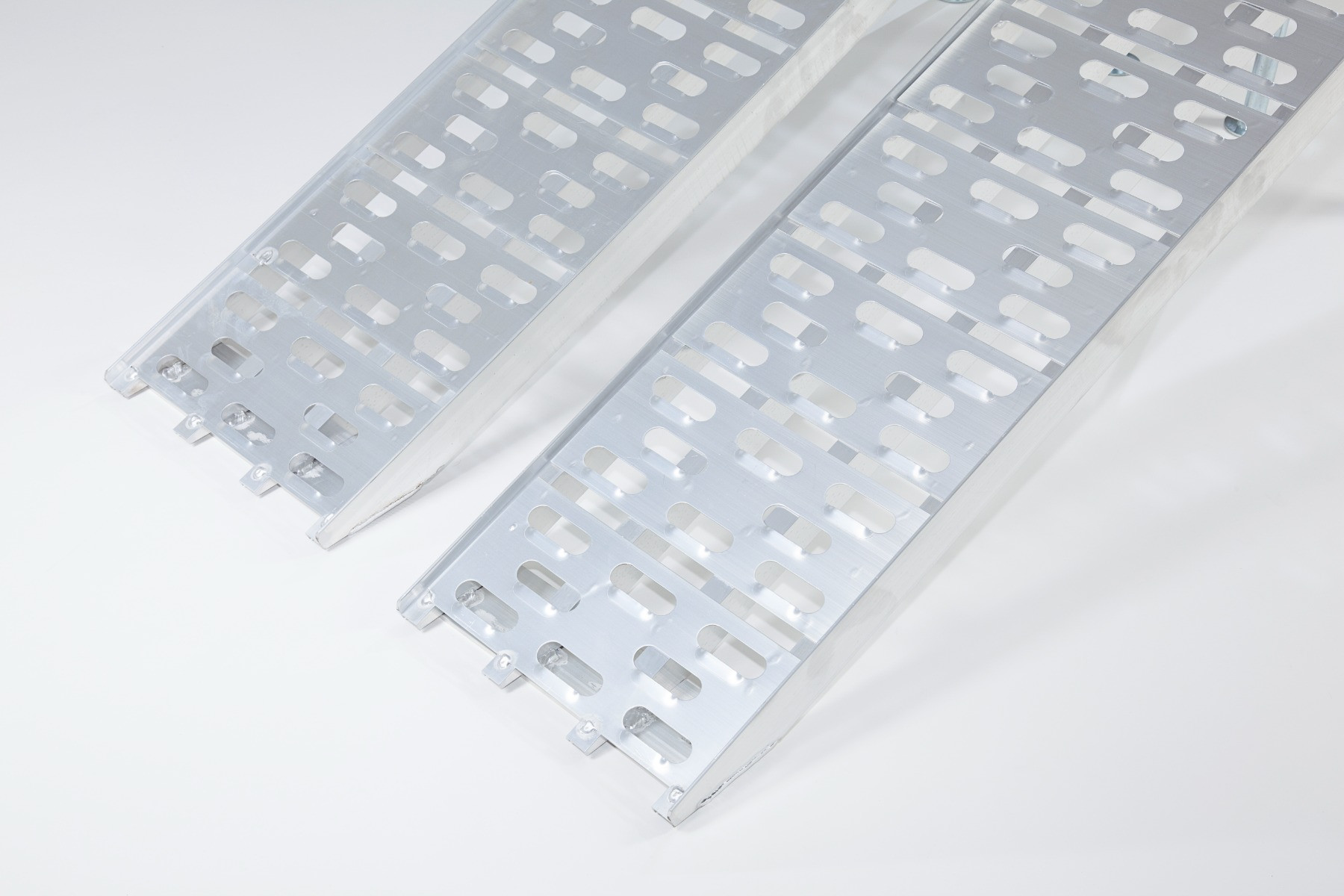

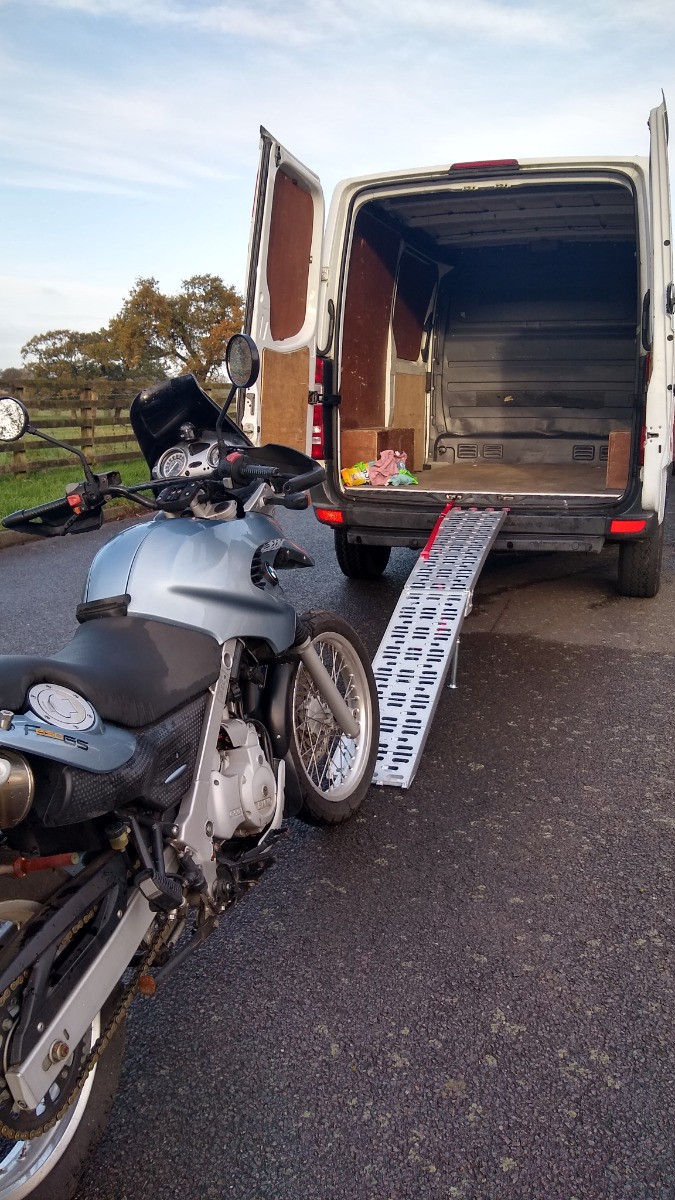

Lightweight aluminium heavy-duty folding loading ramps with cut-out gripping system. These folding loading ramps include a double support bar and adjustable support legs to increase durability. Suitable for motorbikes, lawnmowers, ATVs/quad bikes and other wheeled garden machinery. Slightly curved for better ground clearance. Each ramp has a capacity of 680 kg (1360kg for the pair).

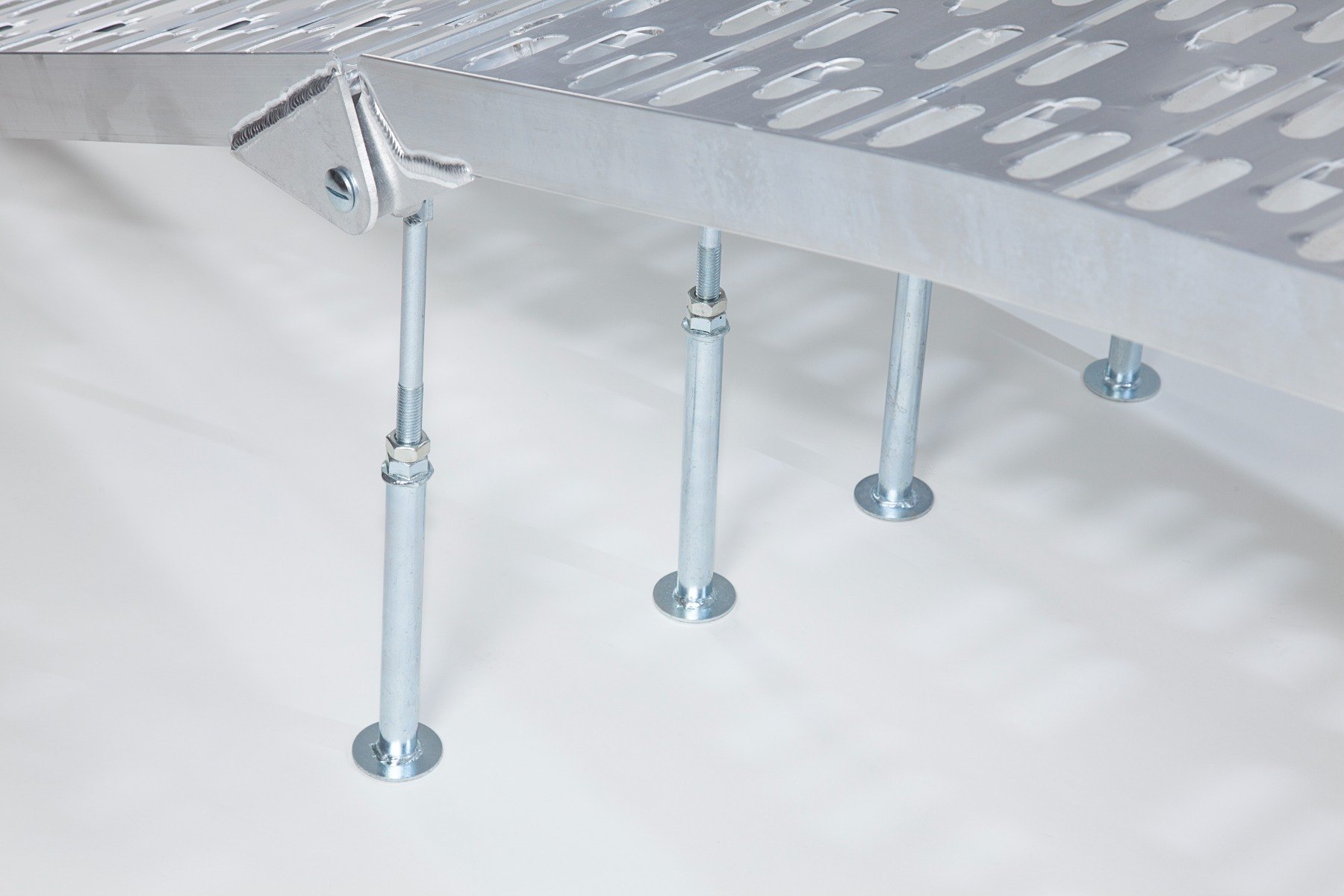

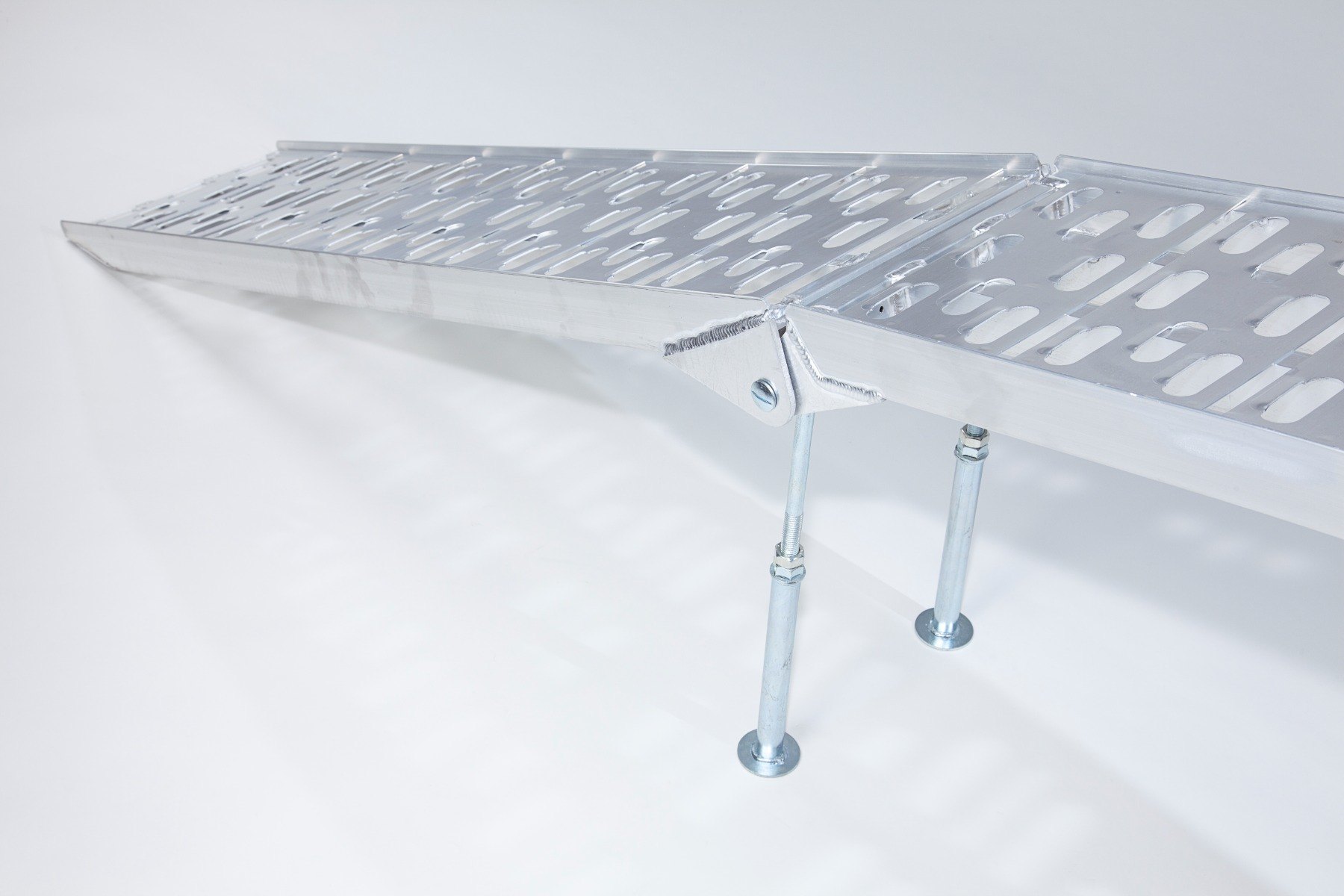

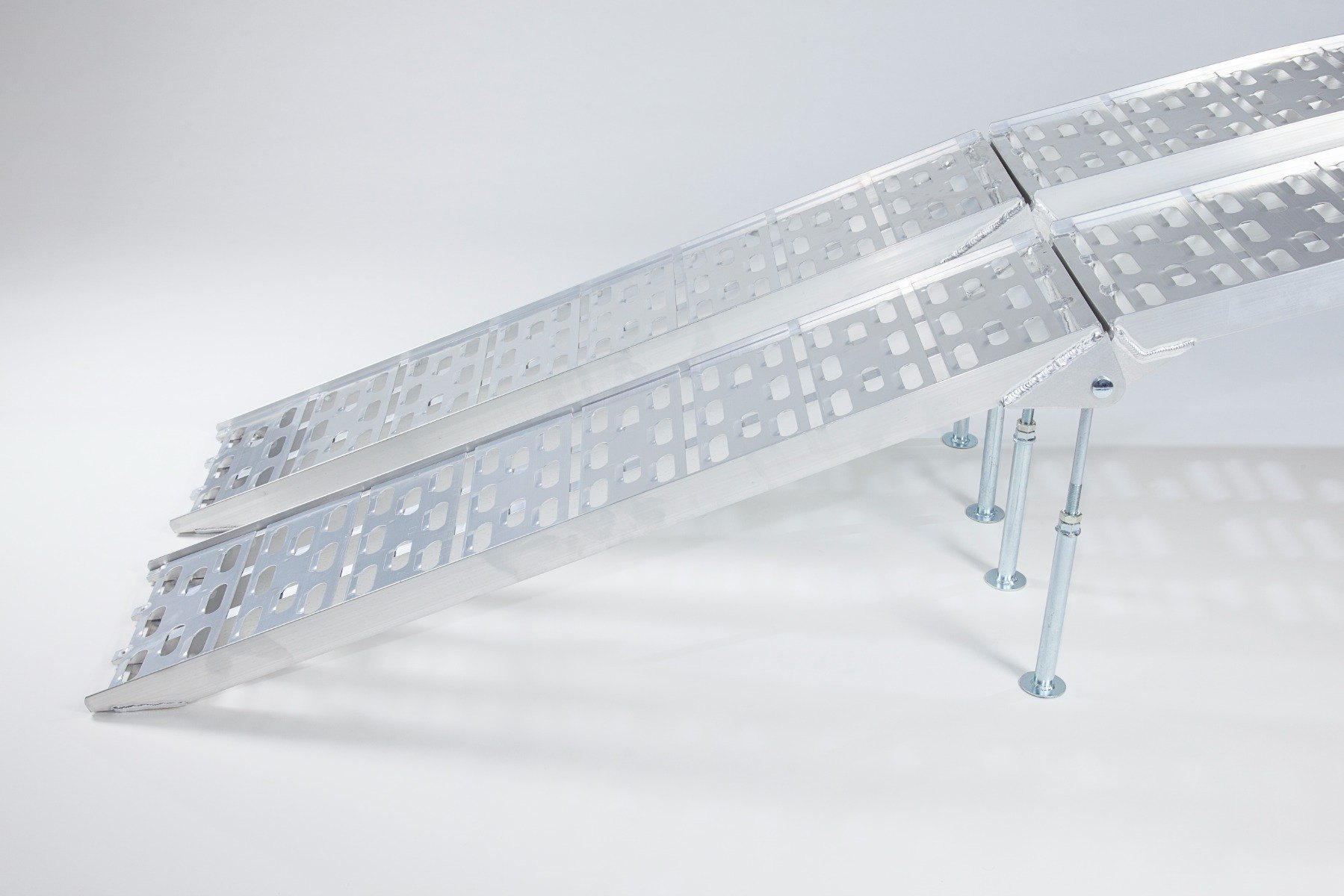

The support bar legs can be adjusted from 340mm up to 425mm.

Please note that these ramps are not suitable for single axle or tracked machines or vehicles, nor are they suitable for casters or solid wheels

Motorcycle and Folding Loading Ramps FAQ's

Description

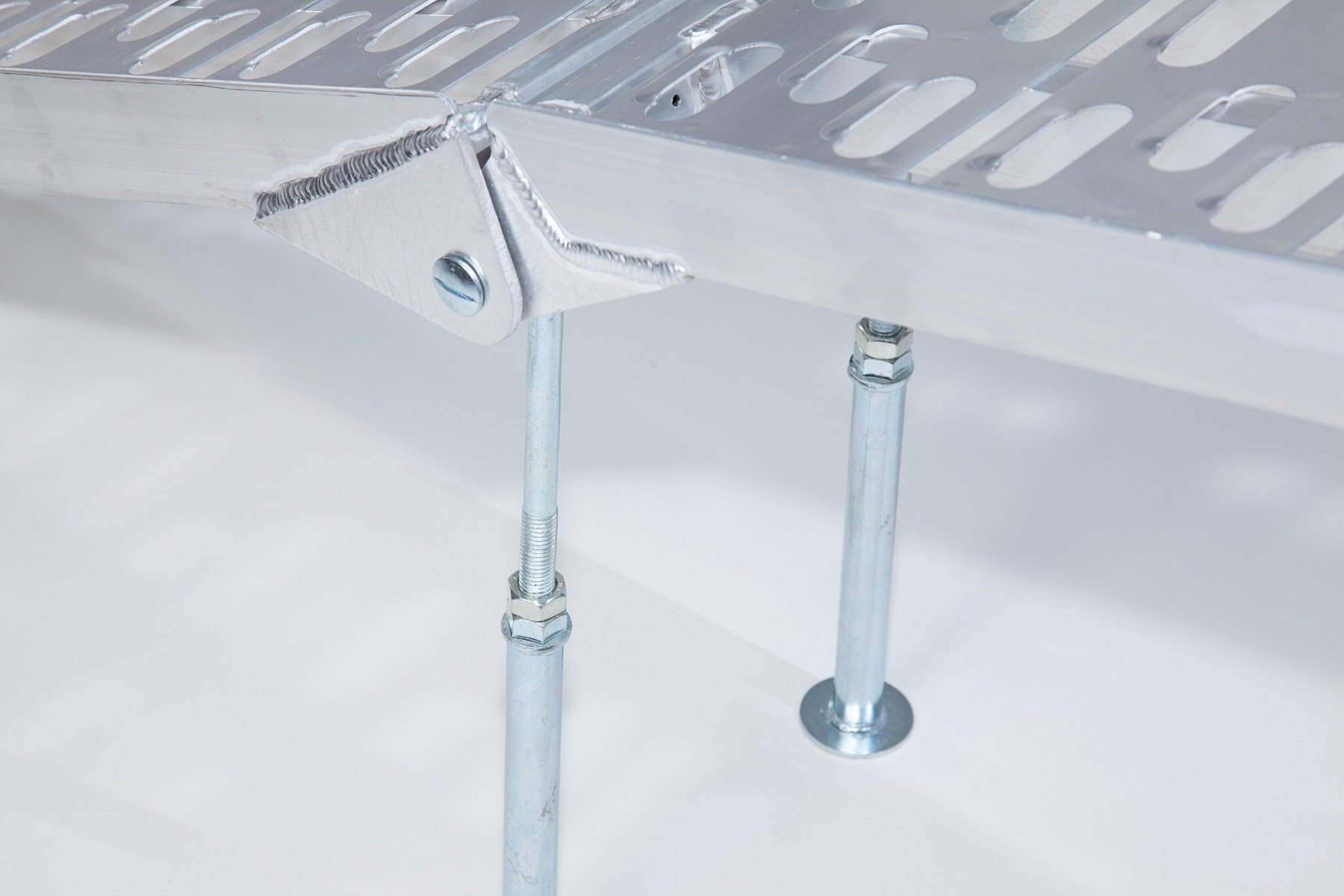

  • Comes with a double support bar which adds extra strength and durability

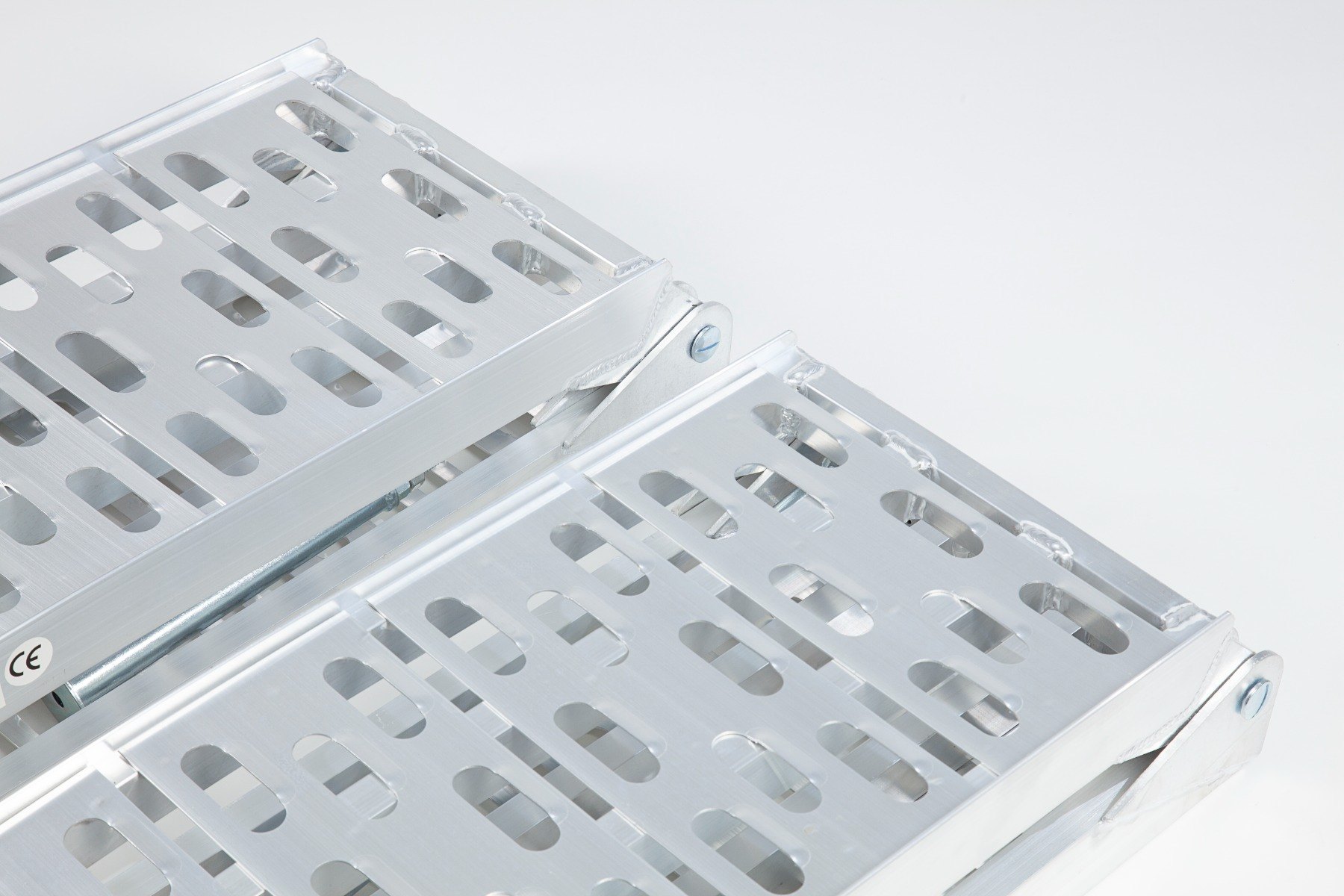

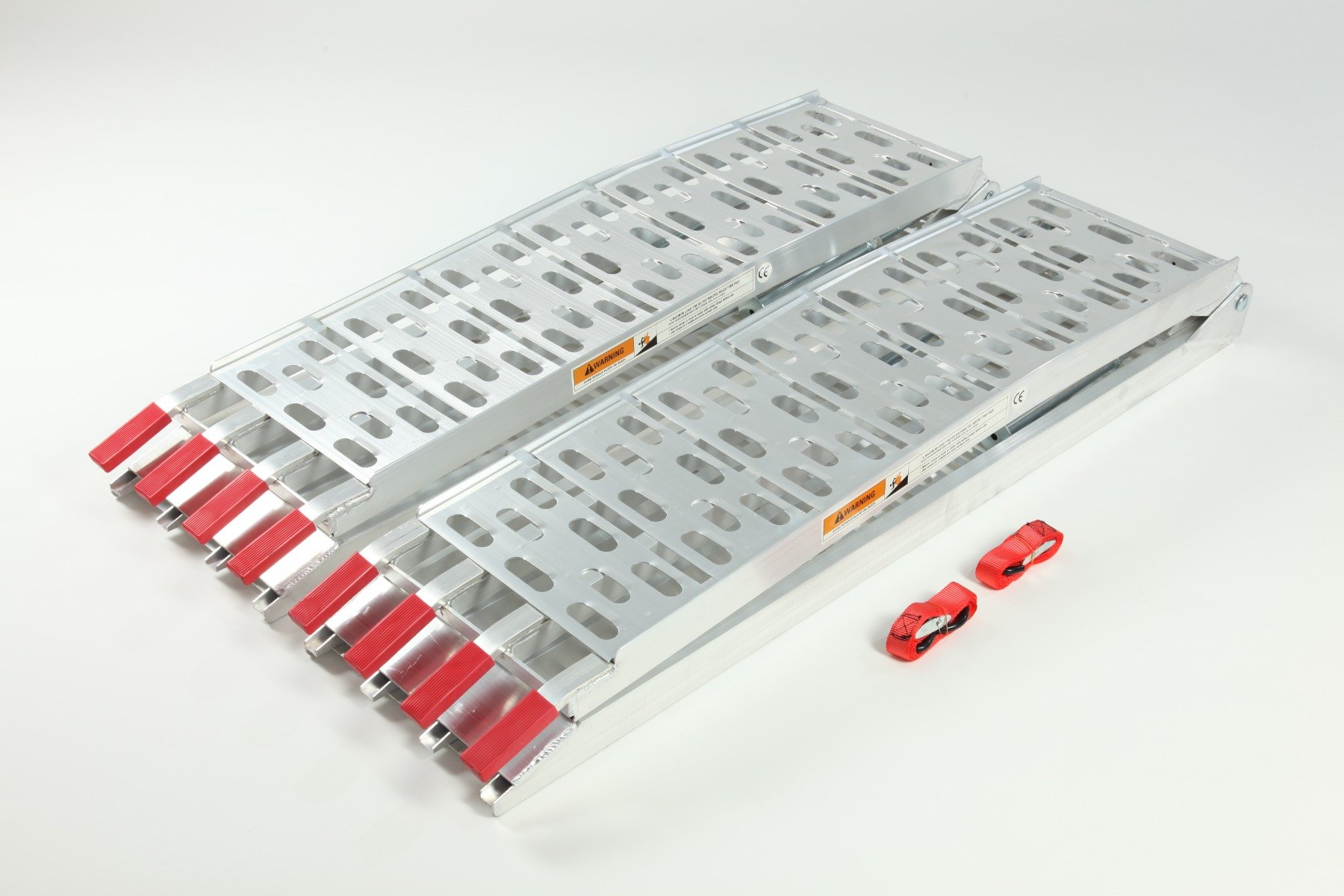

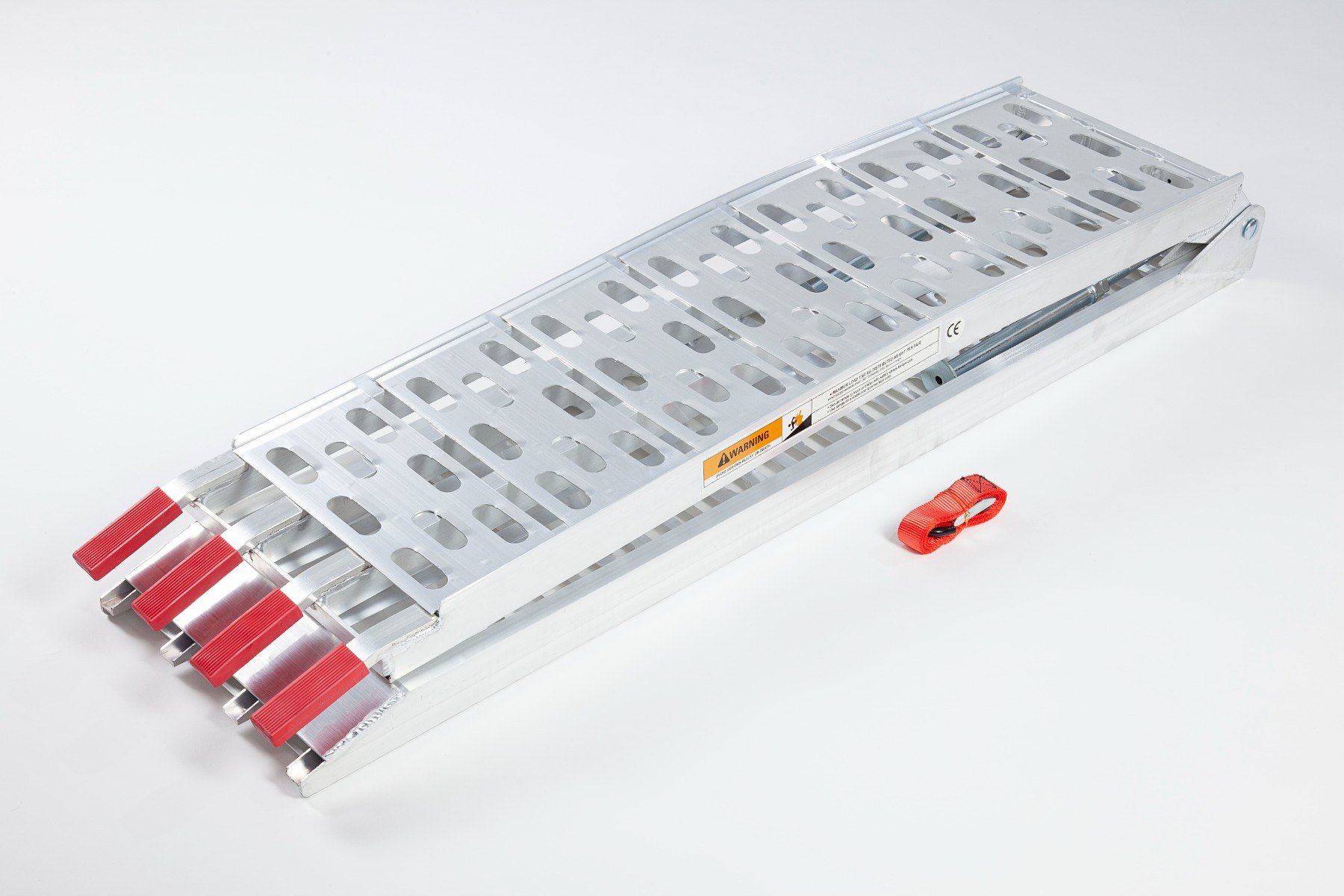

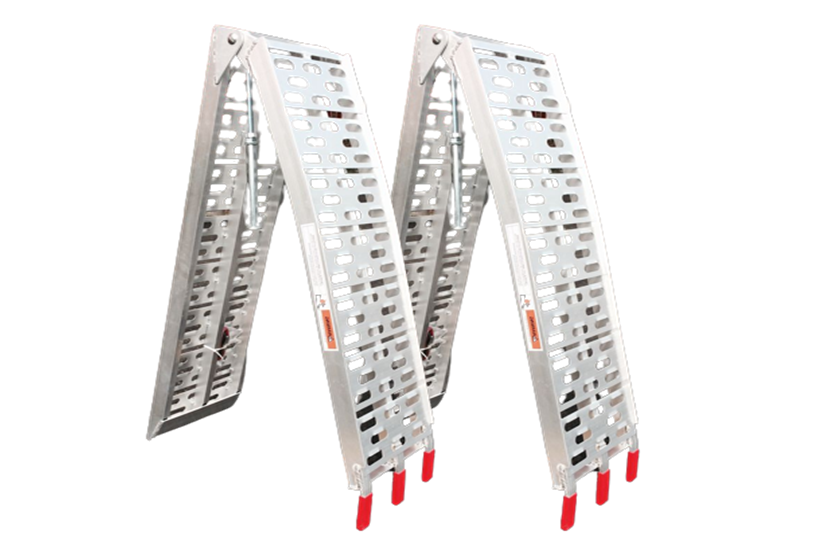

  • Folding ramp design for easy storage and transportation
  • Slightly curved for better ground clearance
  • Minimum tire width 10cm
  • Made of lightweight aircraft-grade aluminum (type 6005A)
  • Robot welded for strong and durable construction
  • Lightweight for easy handling

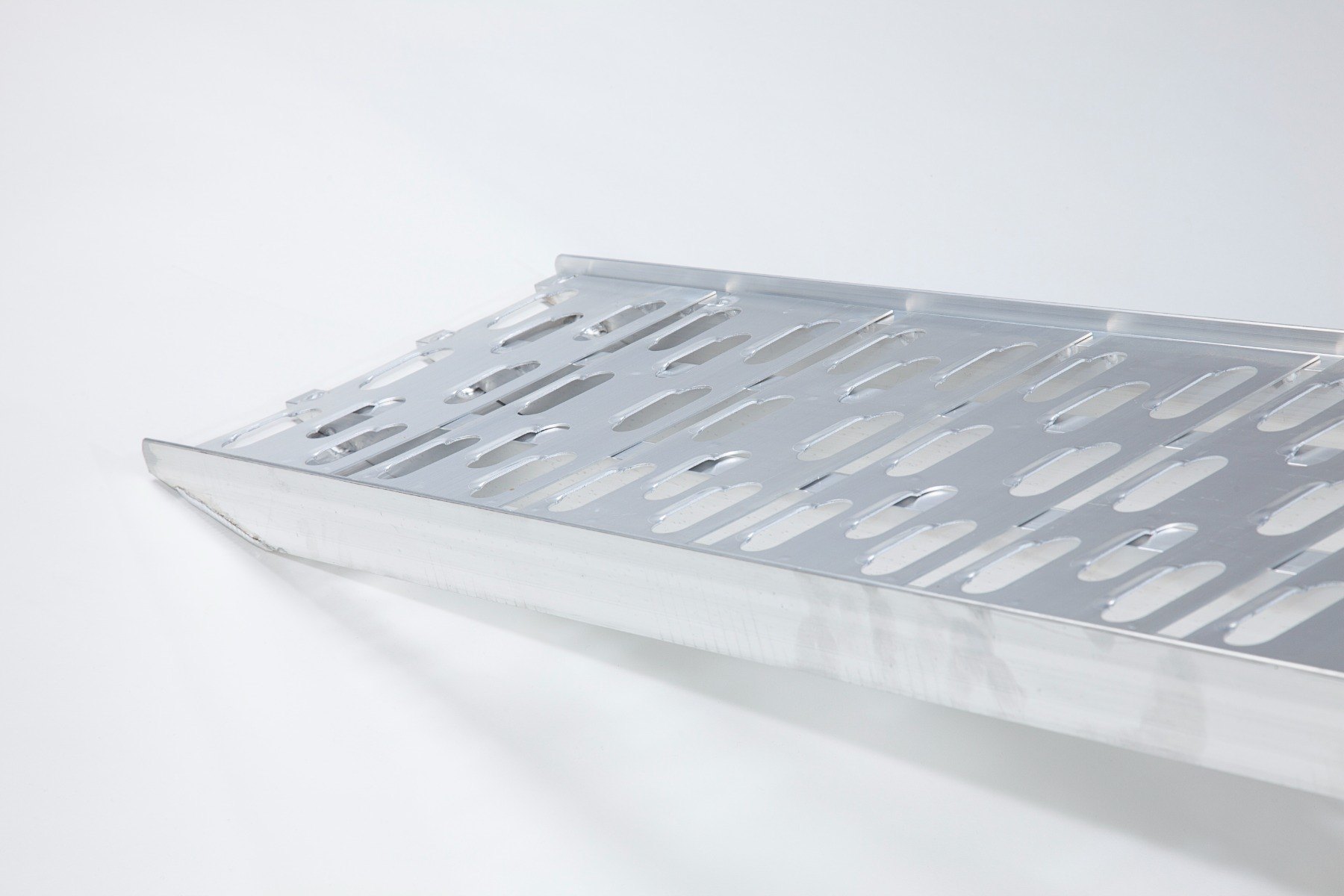

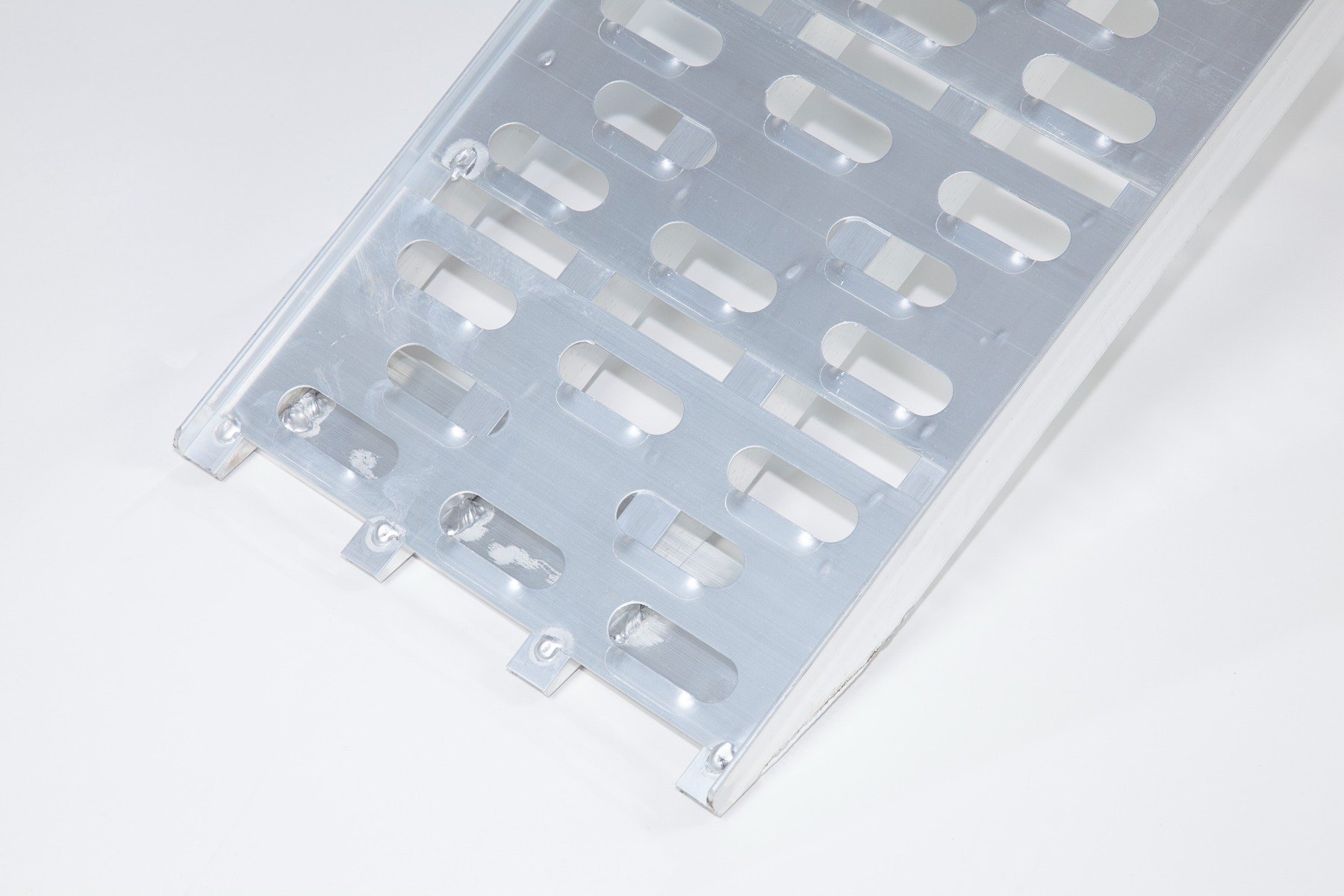

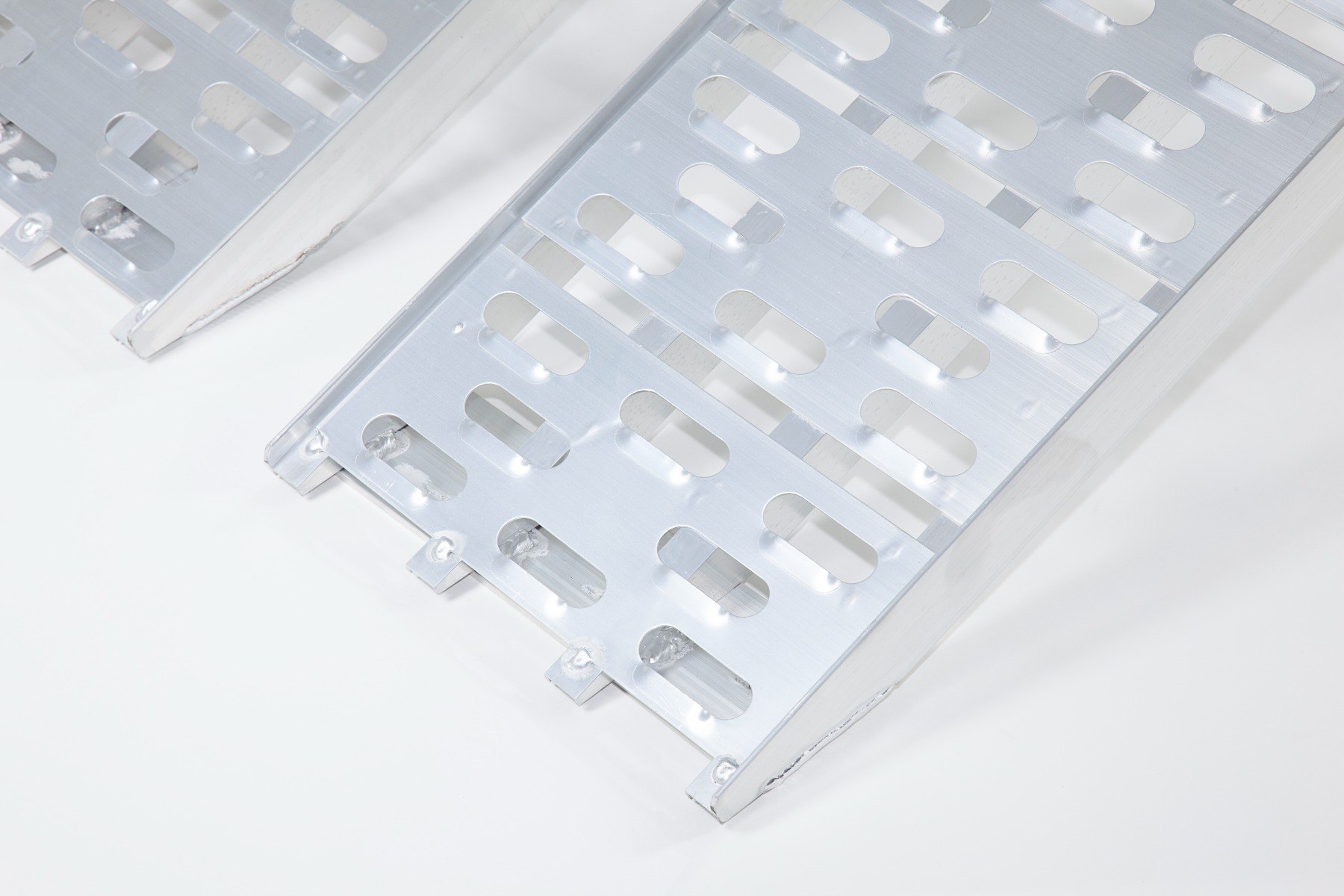

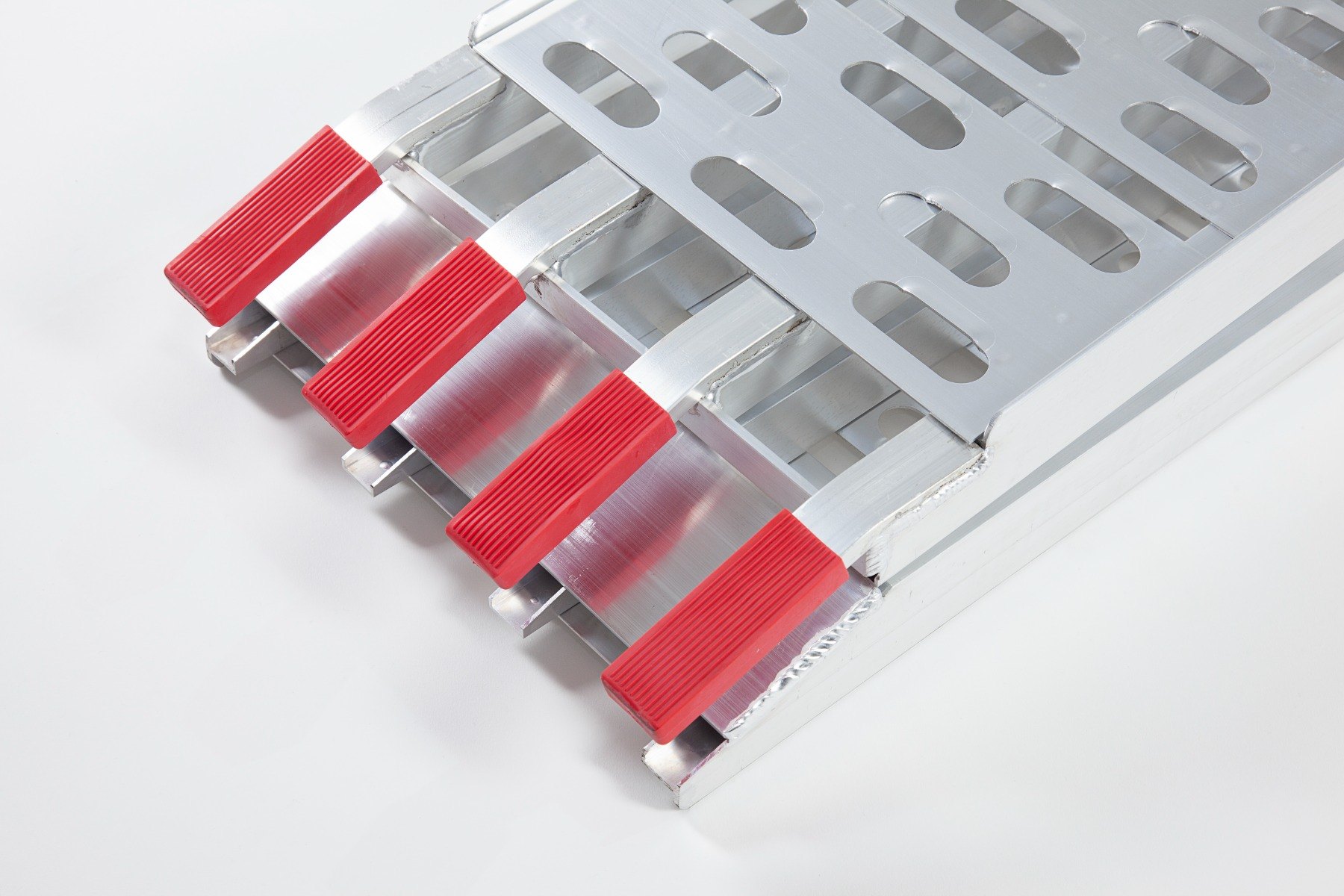

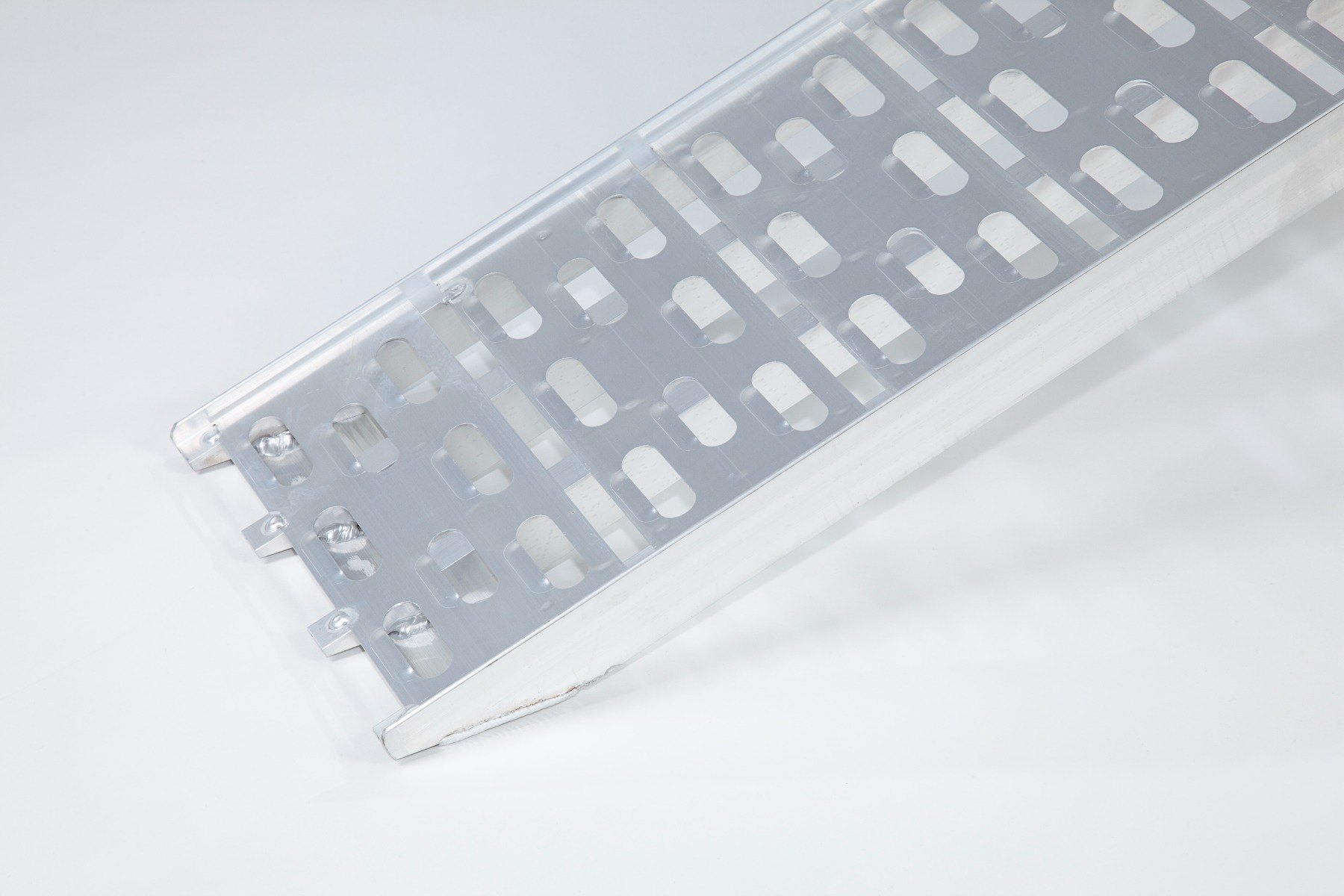

  • Angled foot, this allows easy access to the ramp
  • Each ramp has a capacity of 680 kg, the capacity of the pair is 1360 kg
  • Each ramp is 2200mm long x 285mm wide
  • Folded length 1100mm
  • Suitable for a load height of 520mm - 666mm

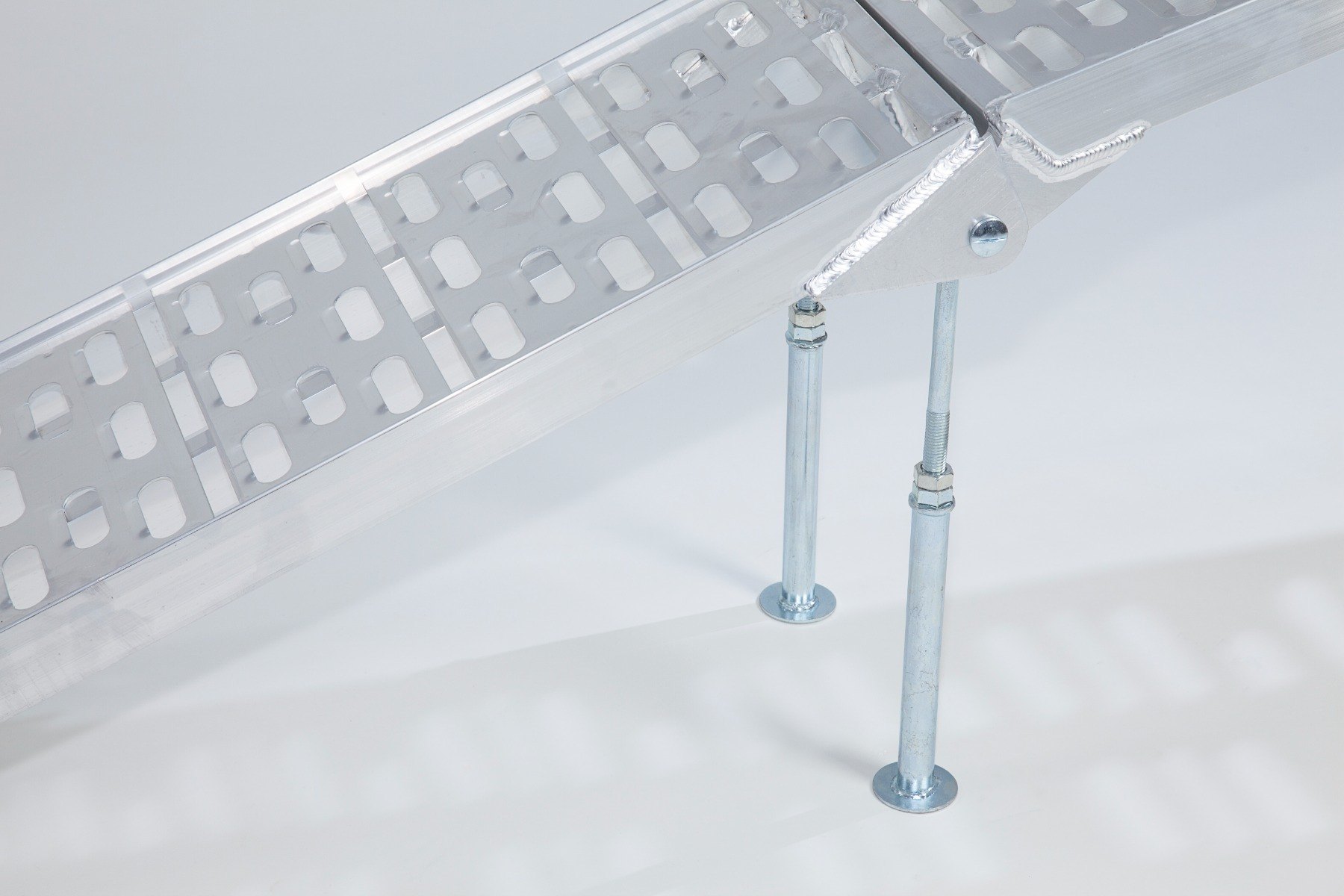

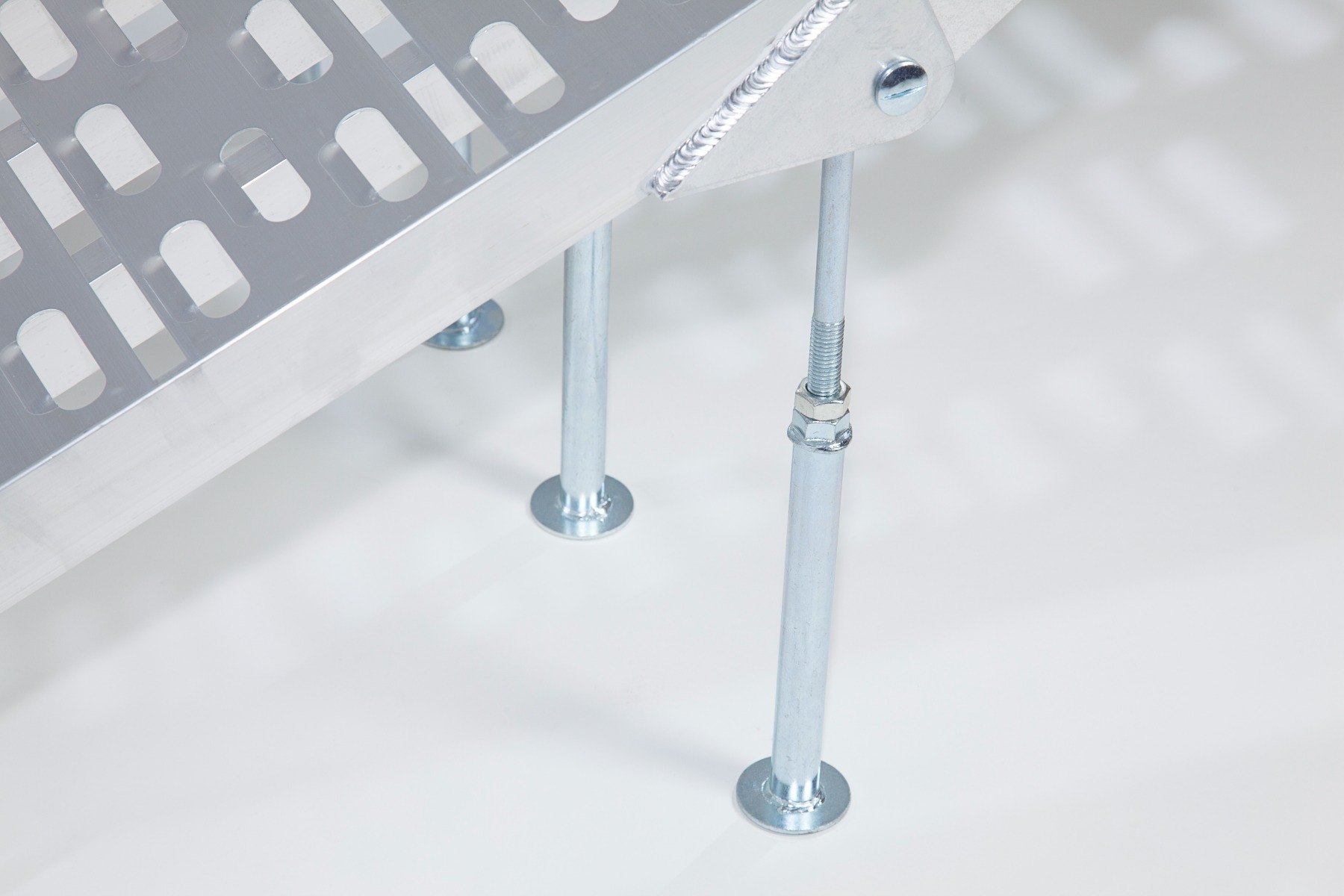

  • The support bar legs can be adjusted from 340mm up to 425mm.

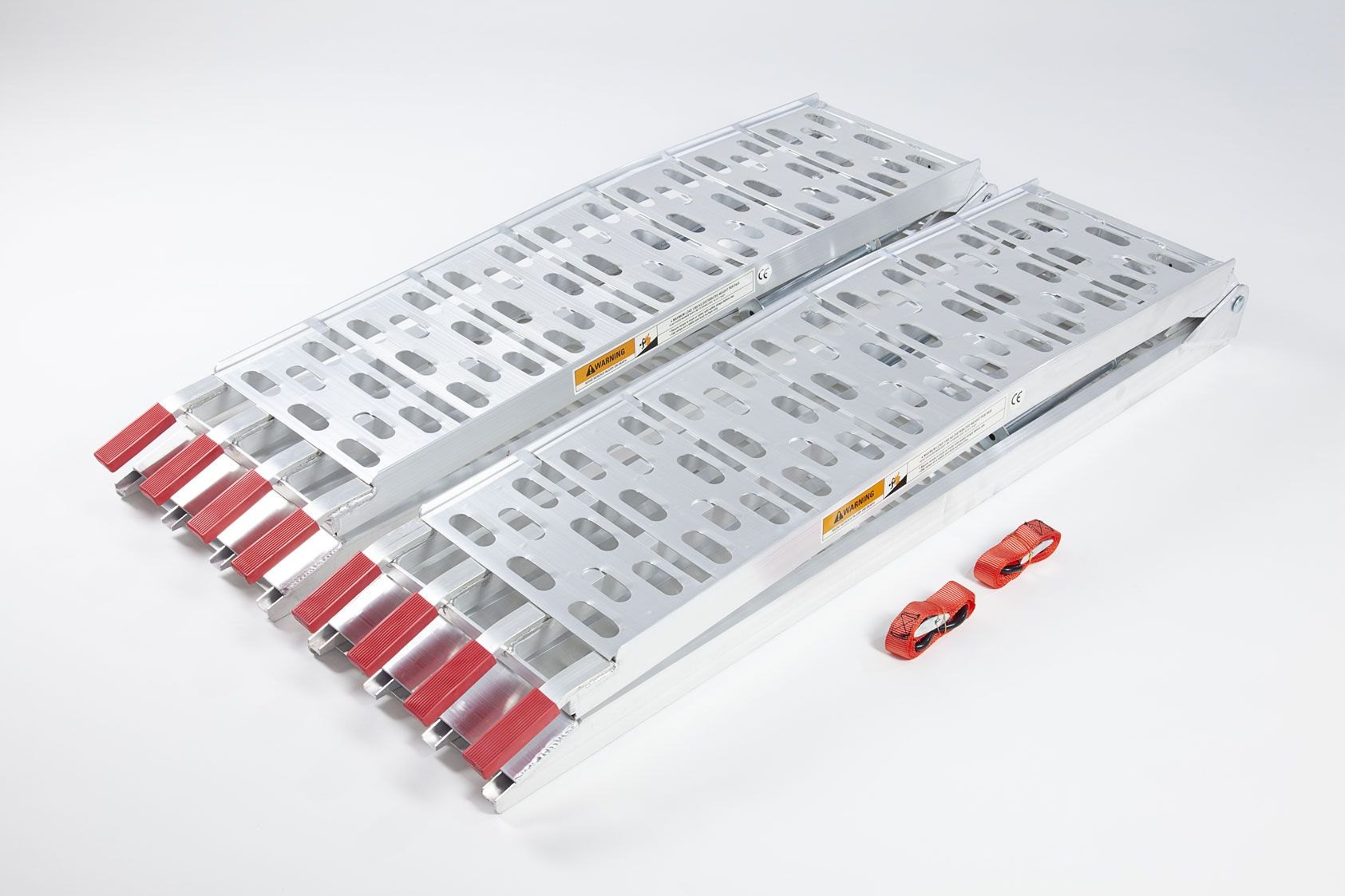

  • Straps are supplied with the ramps
  • Use of support legs is required to achieve the stated capacity
  • All images shown are for illustrative purposes only. Actual product may vary due to product improvement
  • These ramps must be used with the support legs
  • All images shown are for illustrative purposes only. Actual product may vary due to product improvement

Please note that these ramps are not suitable for single axle or tracked machines or vehicles, nor are they suitable for casters or solid wheels

Please note these ramps are designed for domestic use only, these are not suitable for industrial use.

Product Questions
I am interested in the folding loading ramps. Are safety straps provided with these ramps?
Yes, each ramp is provided with a safety strap to allow you to secure the ramp to your van or trailer during loading.
How do The Ramp Factory's folding loading ramps stay securely in place during loading?

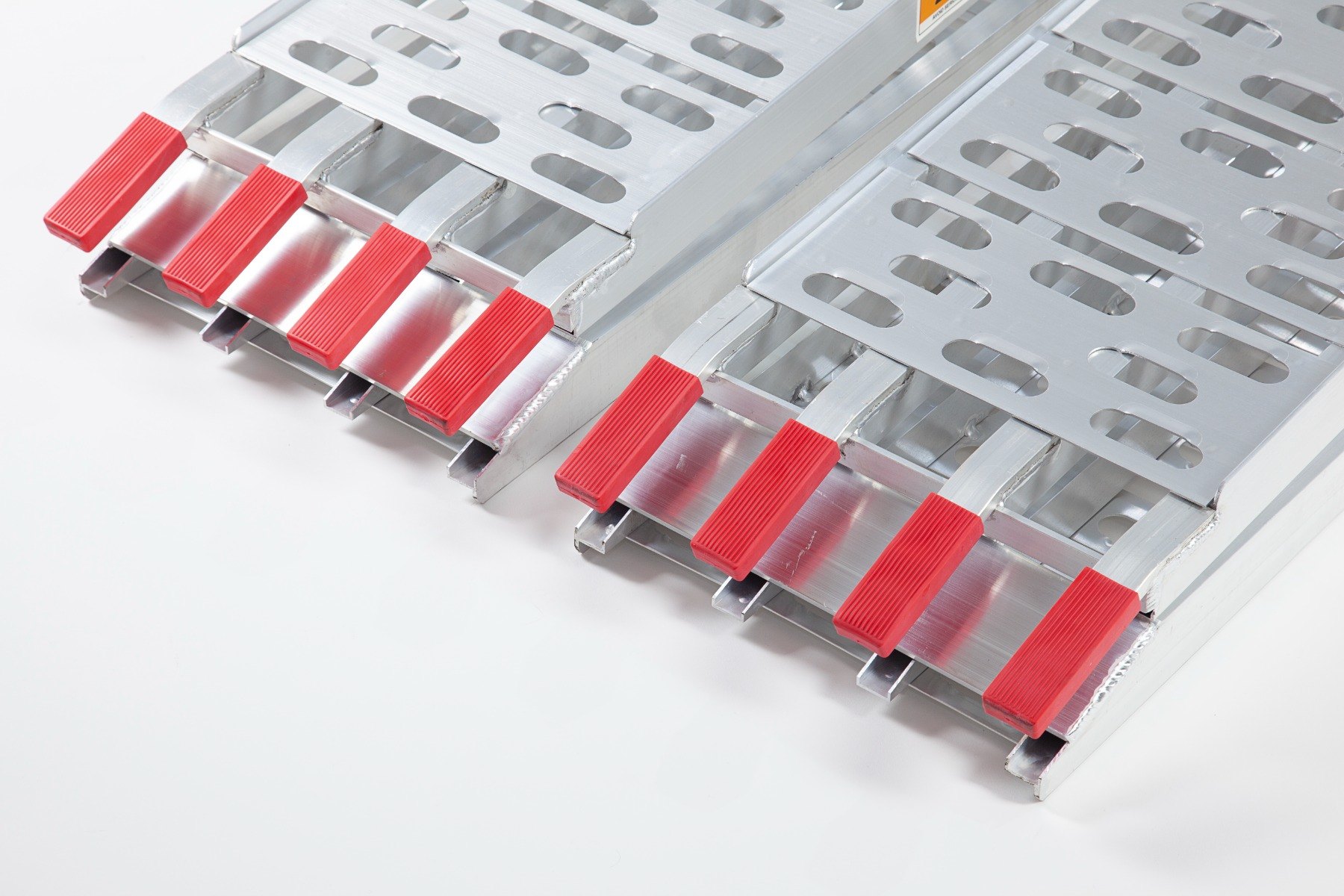

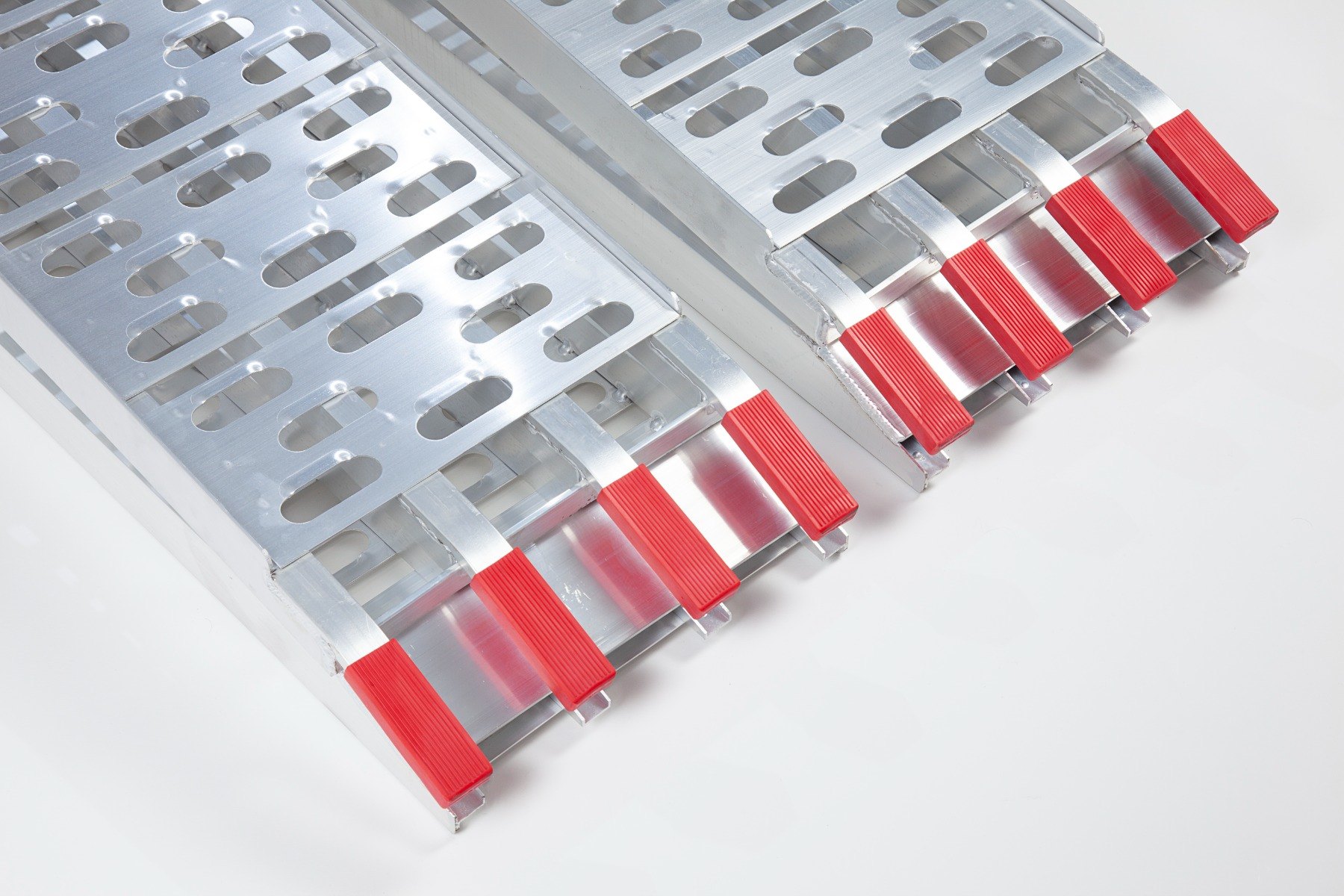

The ramps have a curved rest on connection which rests onto the vehicle. The foot of the ramp is cut at an angle to ensure the ramp stays securely on the ground. The ramps are provided with safety straps to secure the ramp to the vehicle. The ramp weight and angle also assists the ramp to stay in place.
I require a motorcycle loading ramp. How do I identify which motorcycle ramp length is most suitable for my requirements?
You will need to check your load height (vertical height from the ground to where the ramp will rest) as this identifies which ramp length you need. All of our ramps state the minimum and maximum height they are designed for.
Details
SKUTRP700-L Conf
Capacity (kg)680-1360
Folded Length (mm)1100
Height (mm)50
Length (mm)2200
Max Load Height (mm)666
Min. Load Height (mm)520
Weight (kg)17.6
Weight per Ramp (kg)8.8
Width (mm)285
One Year WarrantyYes
Easy to FitYes
