Loading Ramp with Double support Bar (2200mmx285mm)

SKU
TRP699Conf
As low as £90.00 £75.00
94 In stock at our warehouse

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

The Ramp Factory's lightweight aluminium folding loading ramps with double support bar, increases durability and are available with and without legs. The support bar legs can be adjusted from 340mm up to 425mm.

Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps.

Motorcycle and Folding Loading Ramps FAQ's

Description
  • Provided with double support bar which adds greater strength and durability

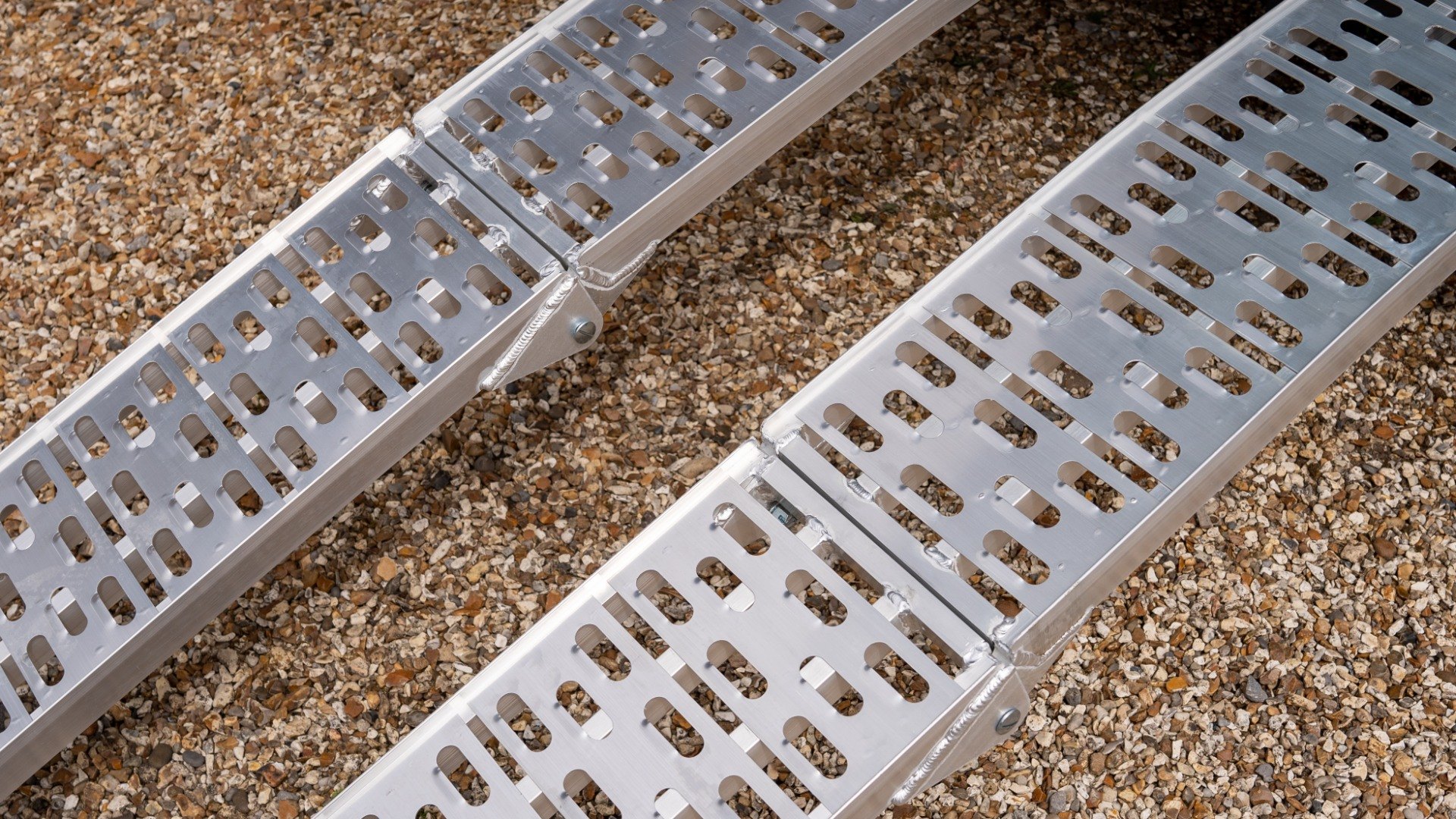

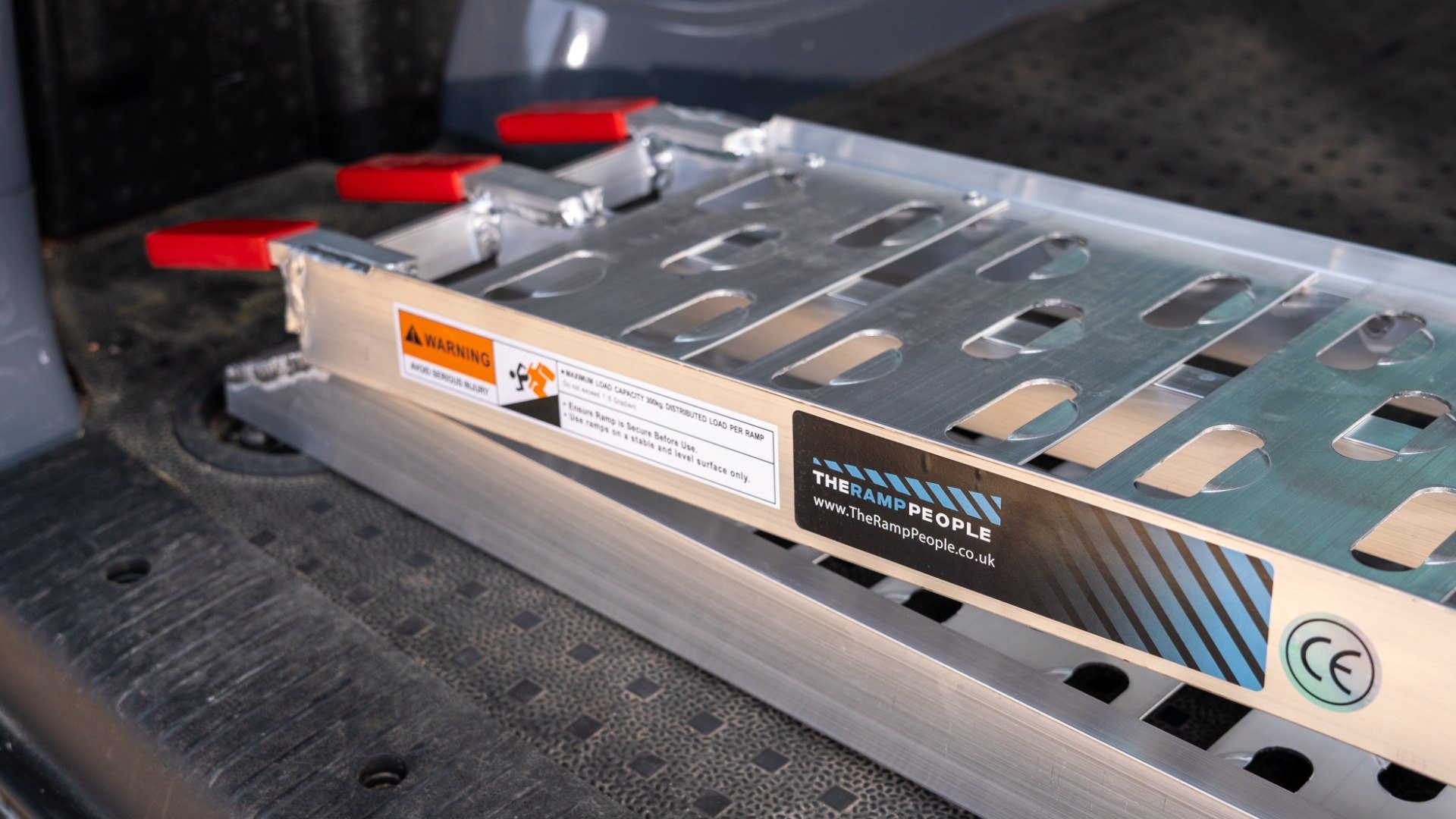

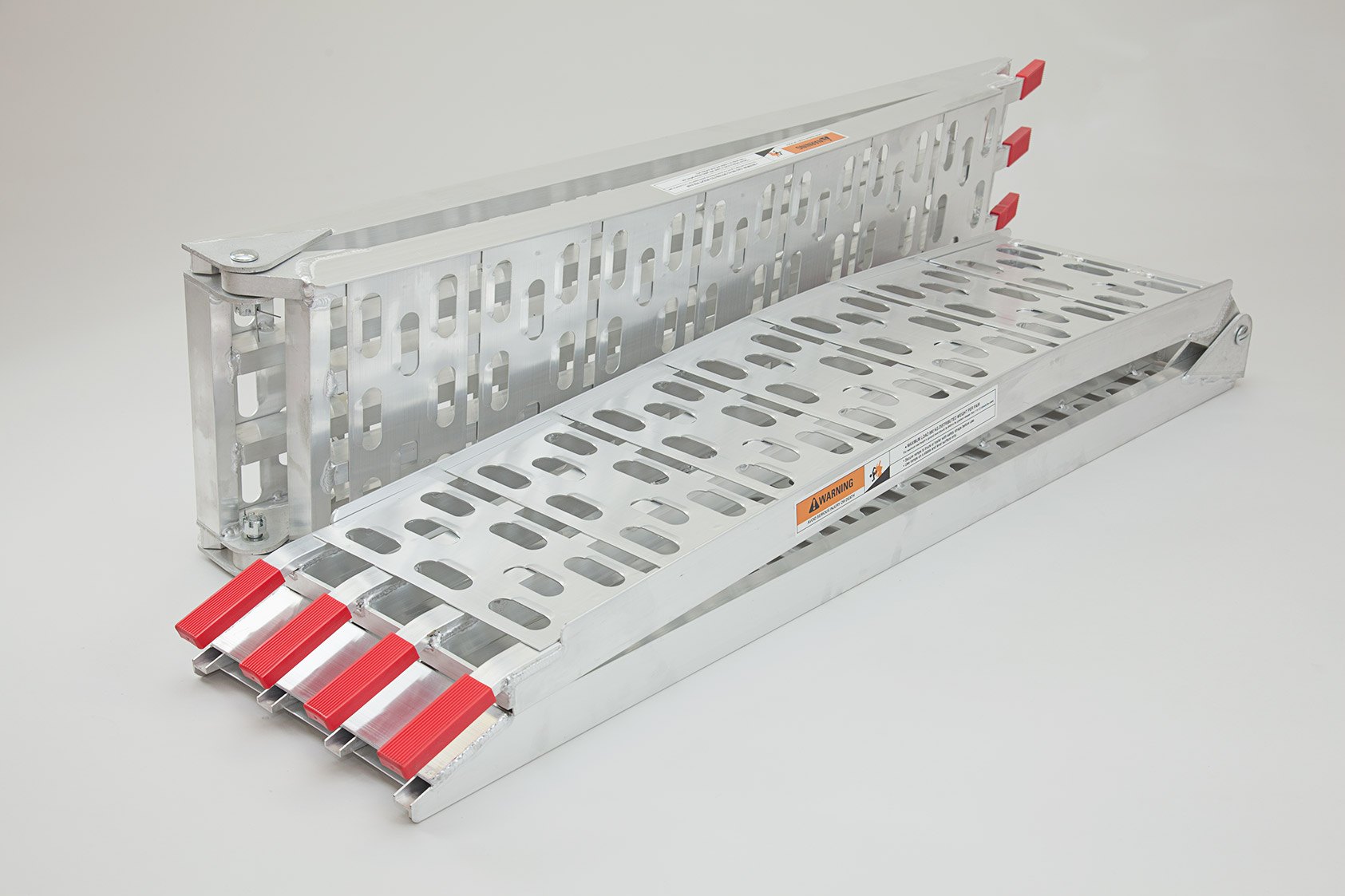

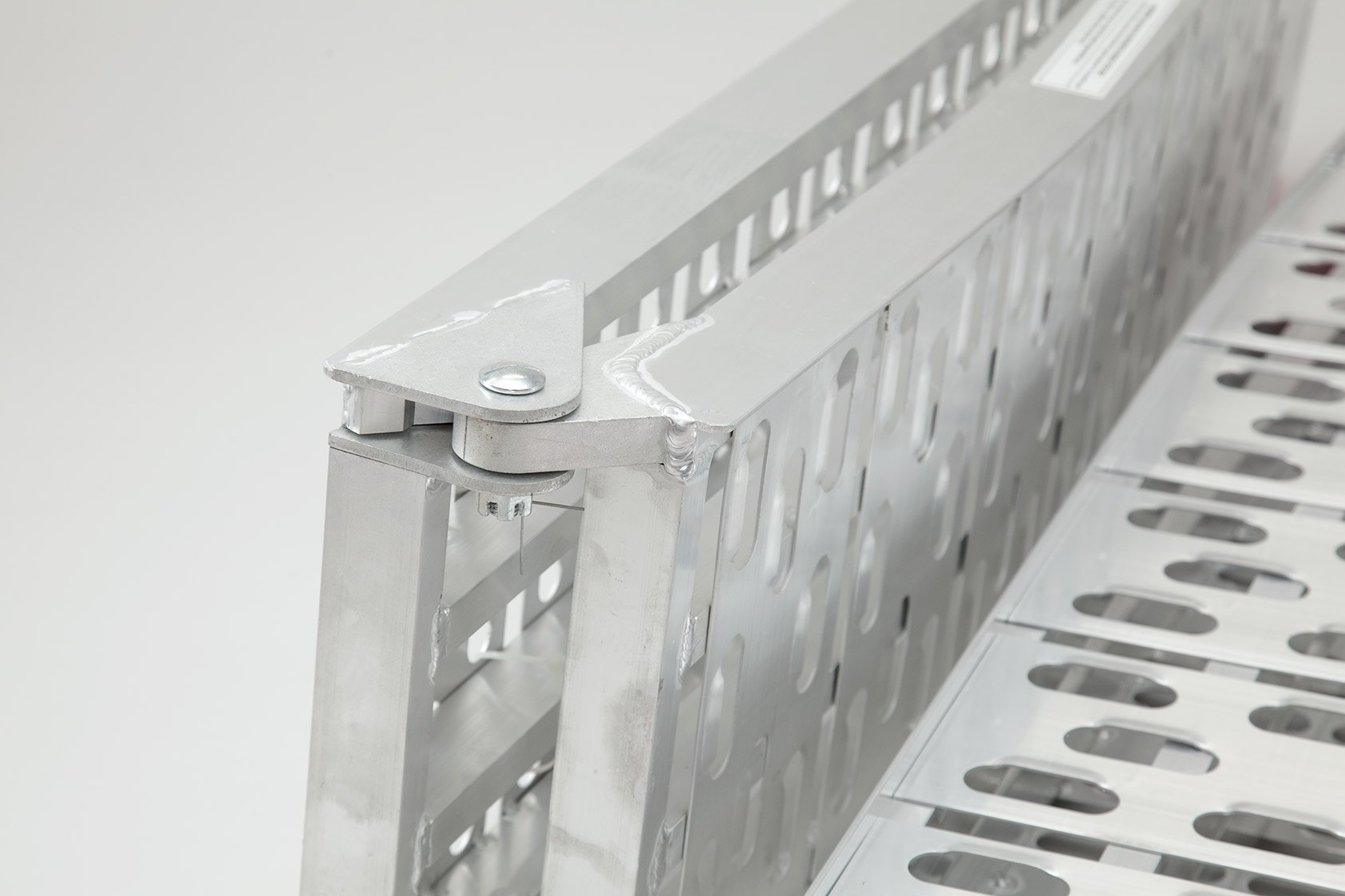

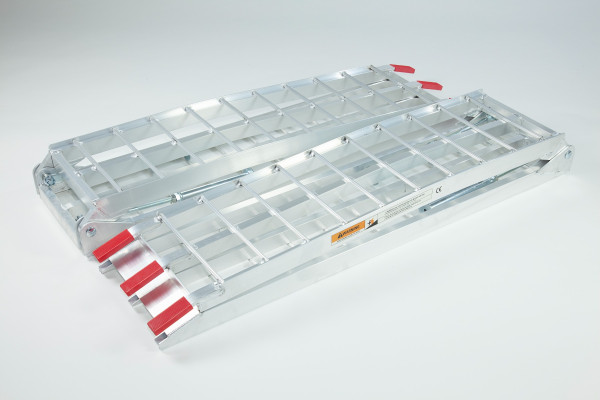

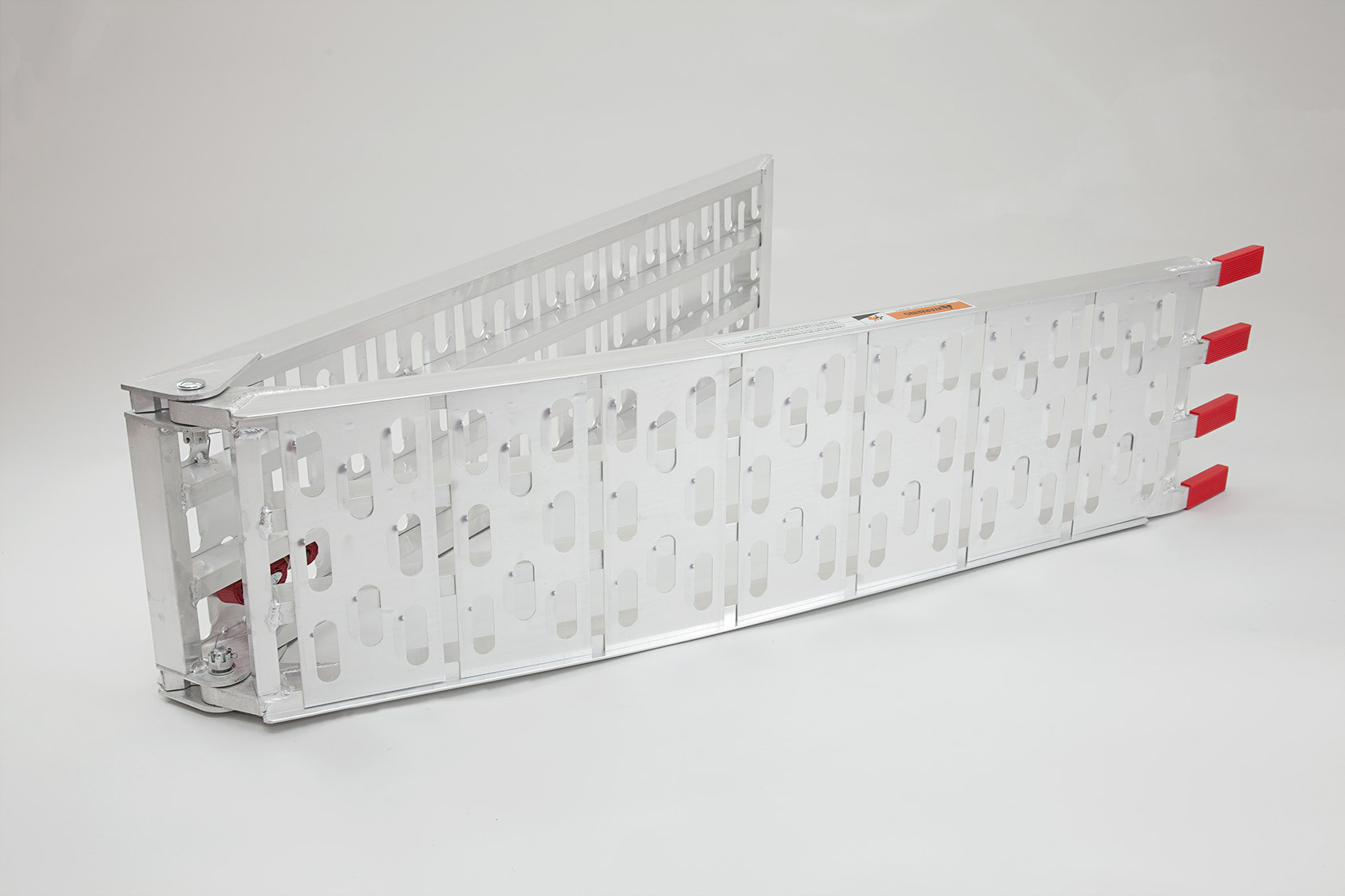

  • Folding ramp design for easy storage and transport

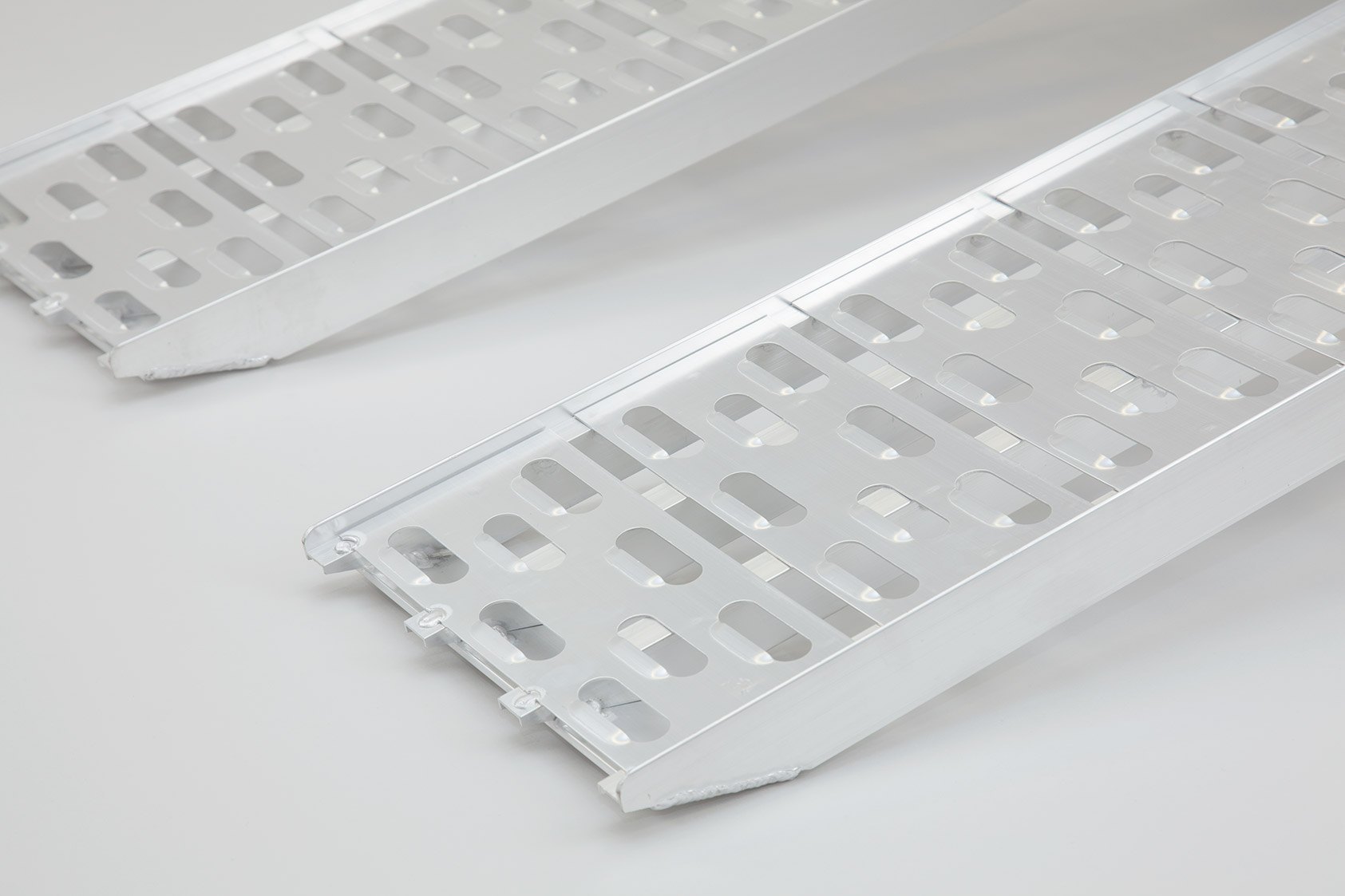

  • Slightly arched for improved ground clearance and to provide a smoother angle during loading
  • Minimum tyre width 10cm
  • Manufactured from lightweight aircraft grade aluminium (type 6005A)
  • Robot welded for solid, strong and durable construction
  • Lightweight for easy handling

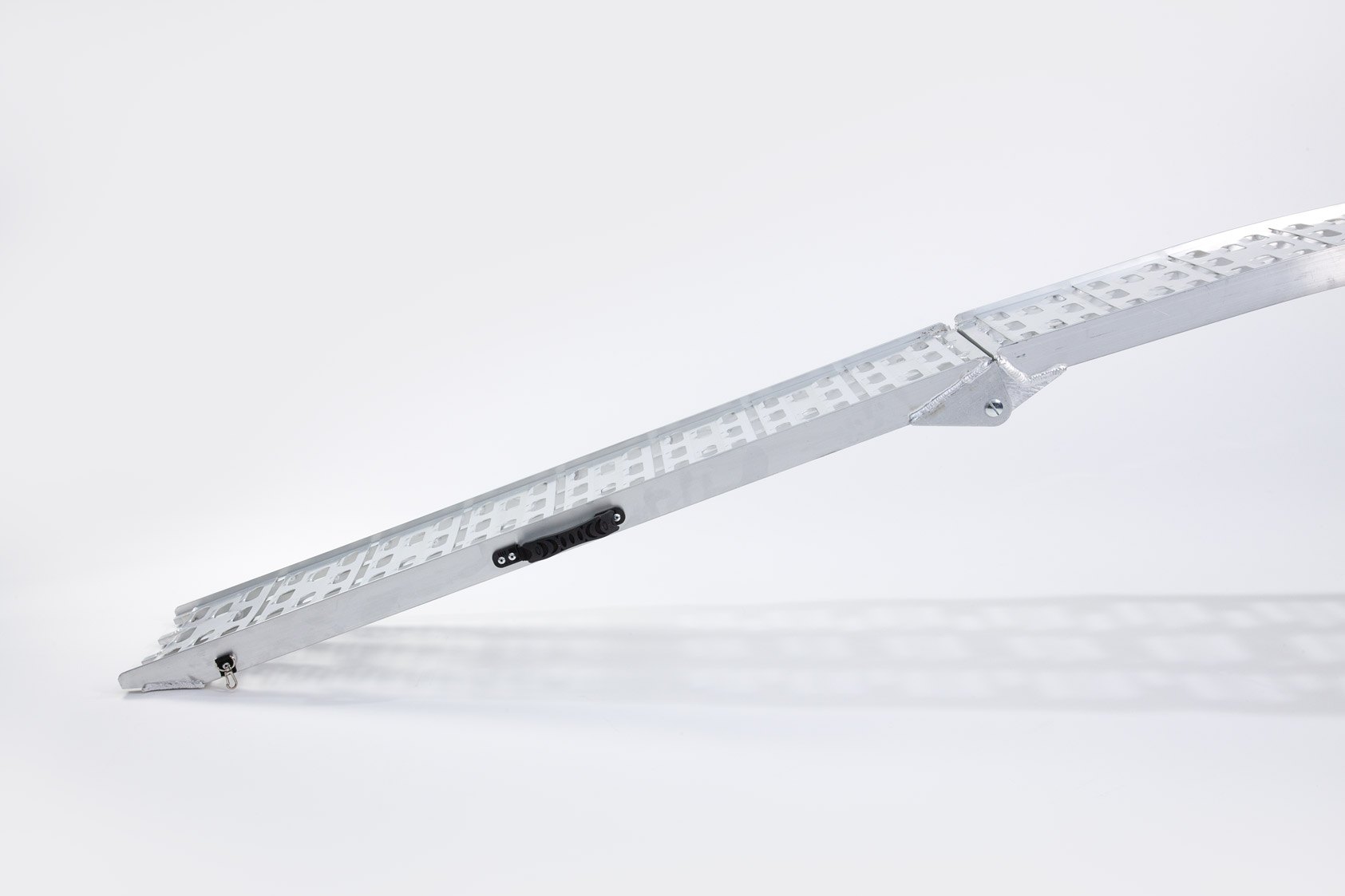

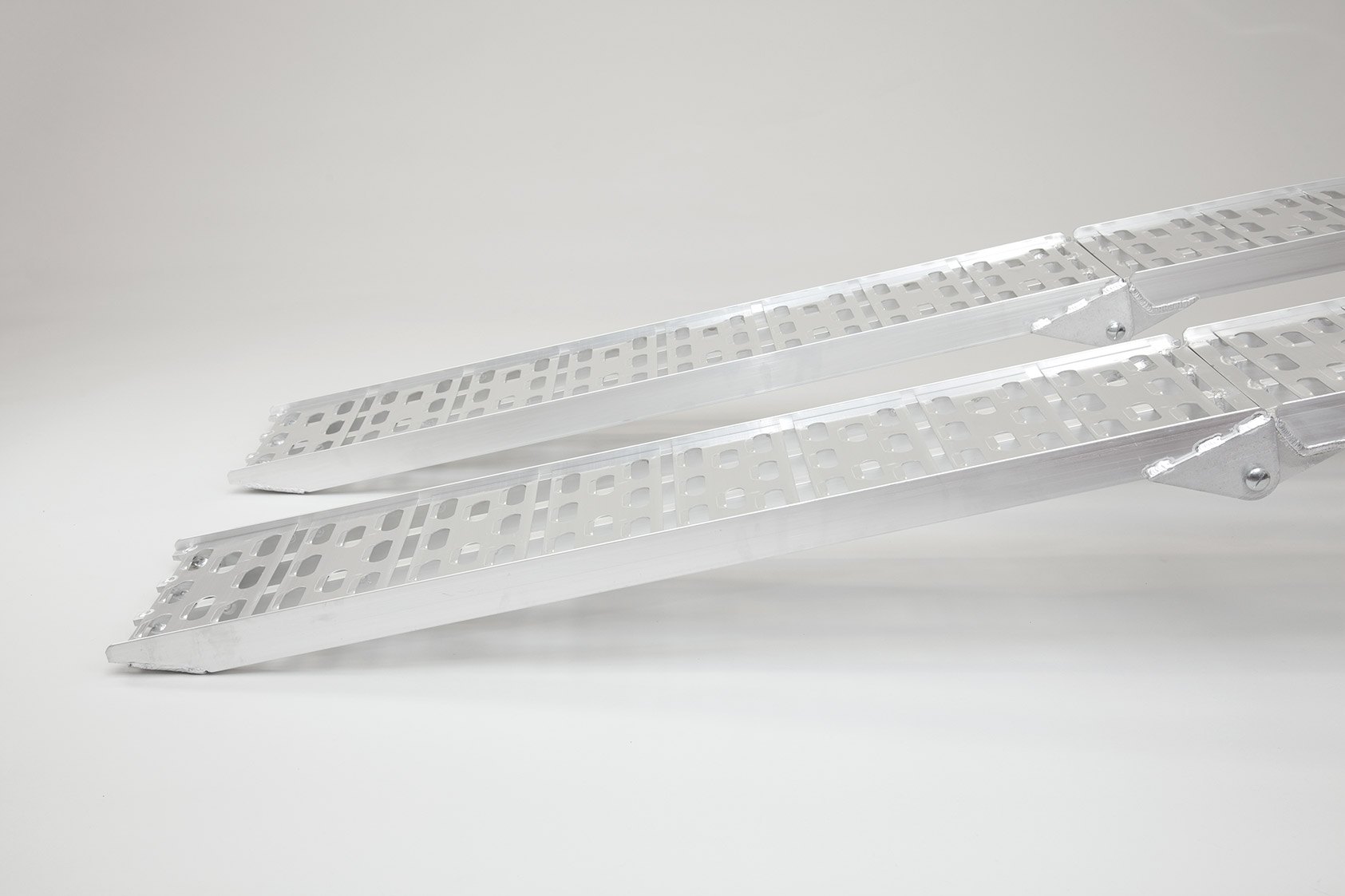

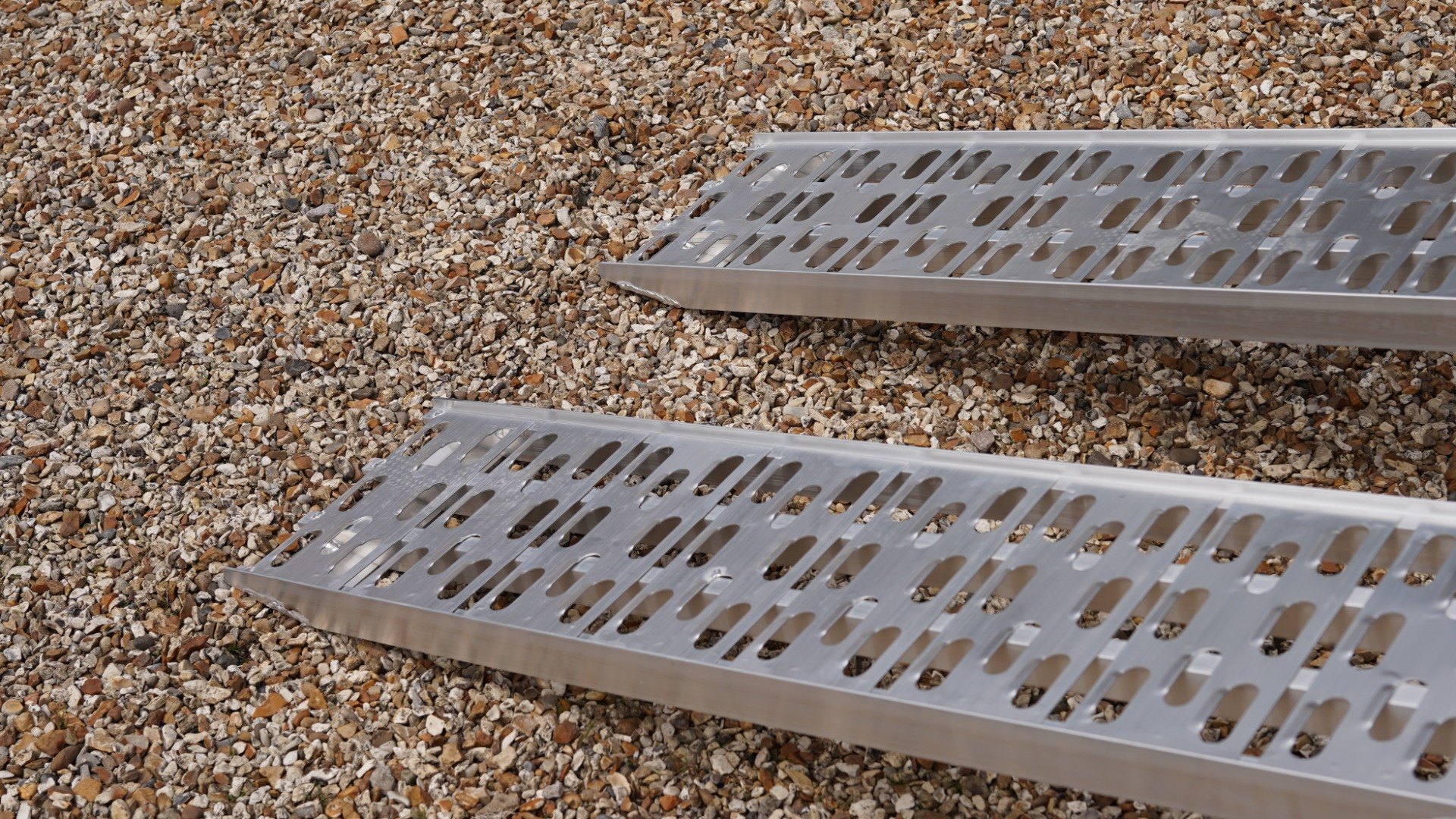

  • Angled foot, this allows for smooth access onto the ramp
  • Each ramp without legs has a capacity of 340kg, capacity of across the pair is 680kg
  • Each ramp with legs has a capacity of 680kg, capacity of across the pair is 1360kg
  • Each ramp is 2200mm long x 285mm wide

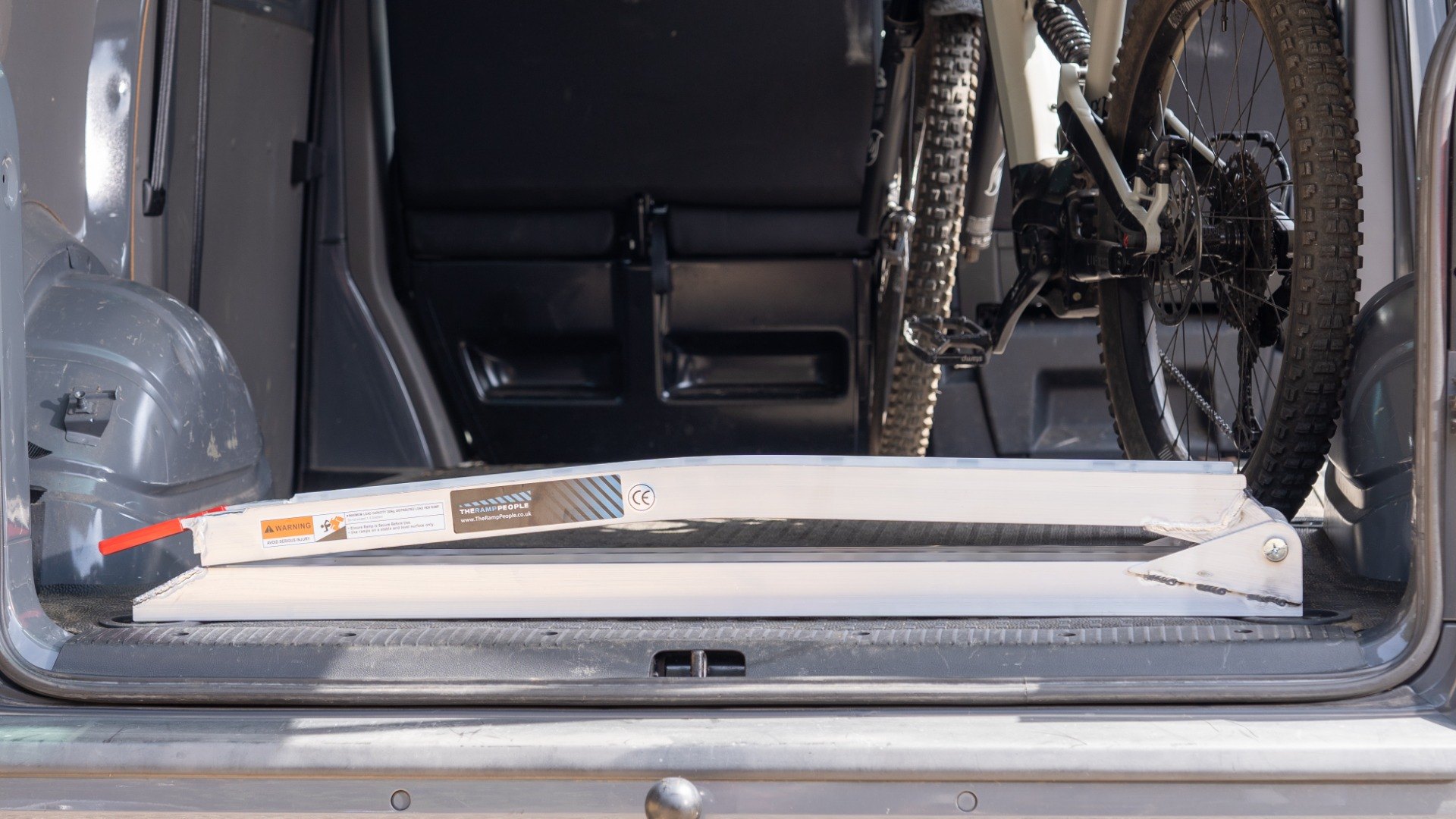

  • Folded Length 1100mm
  • Designed for load heights of 520mm - 666mm

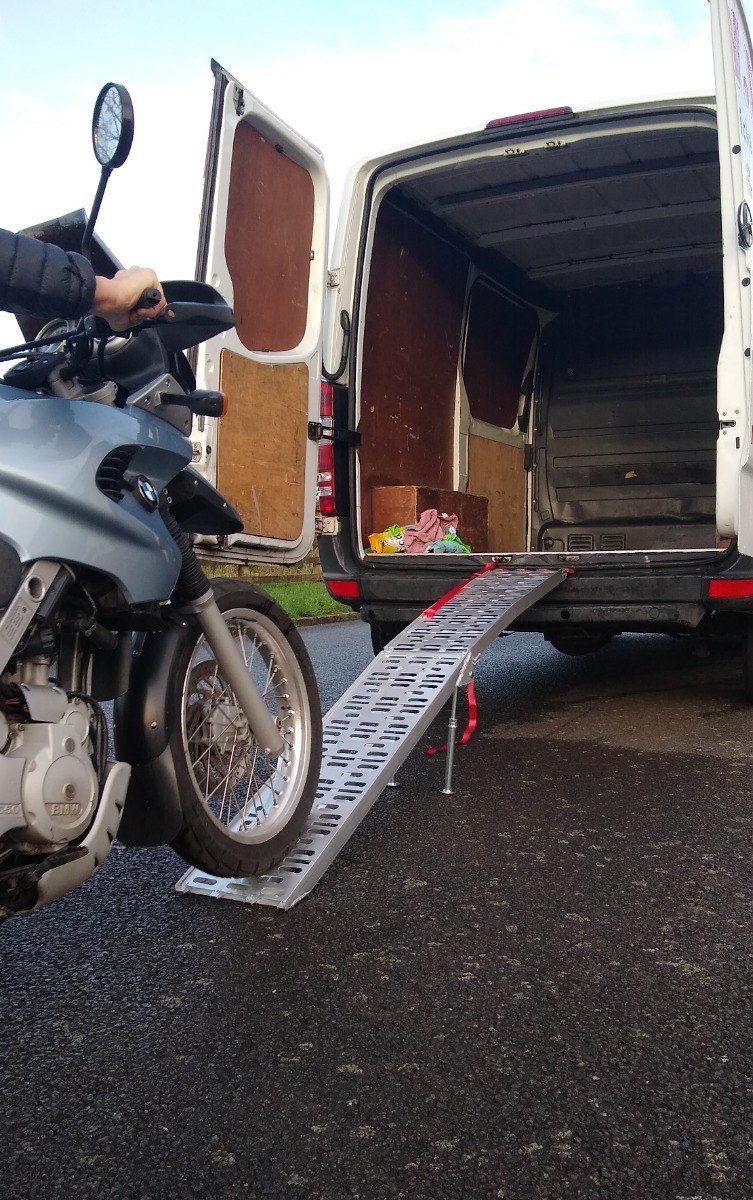

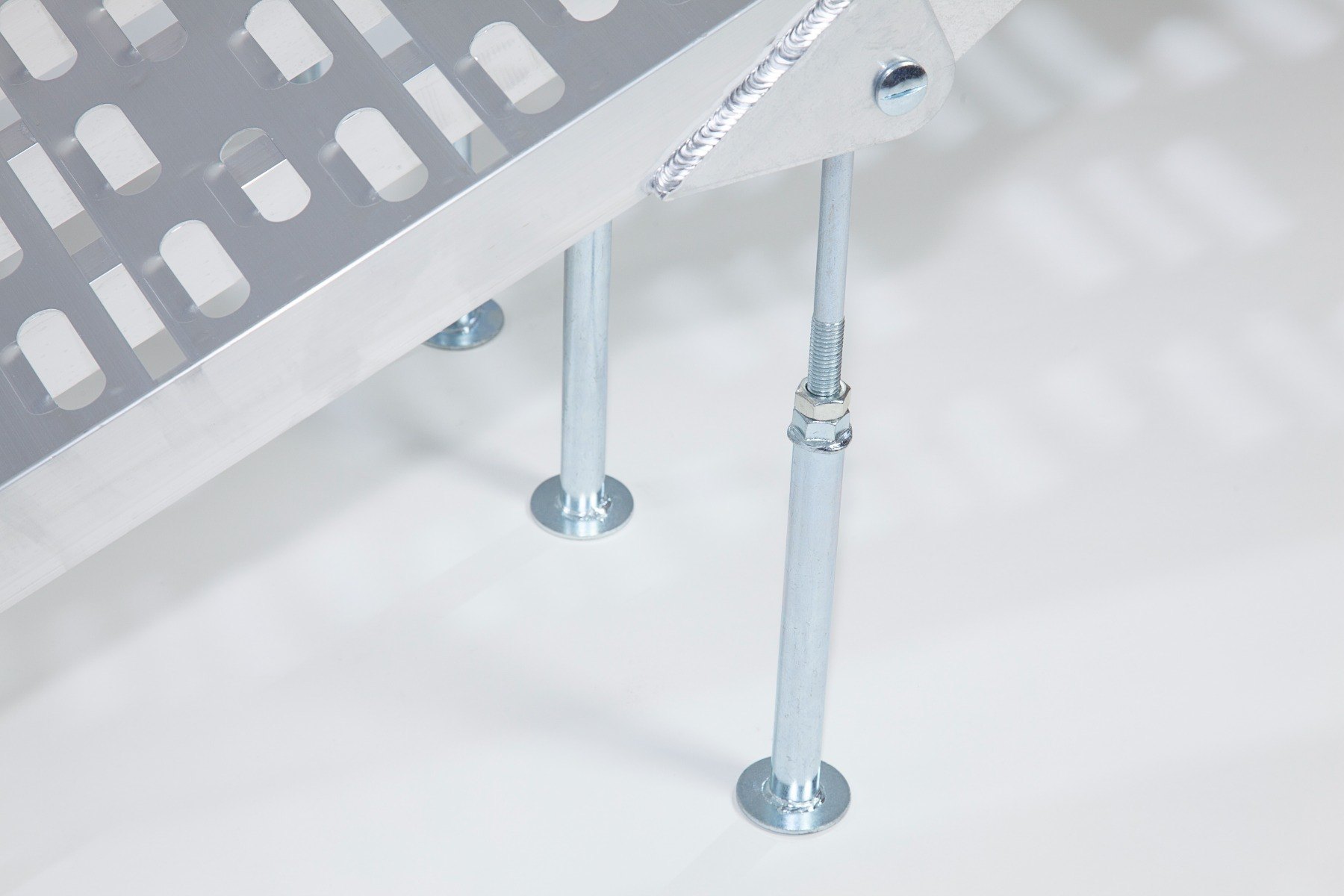

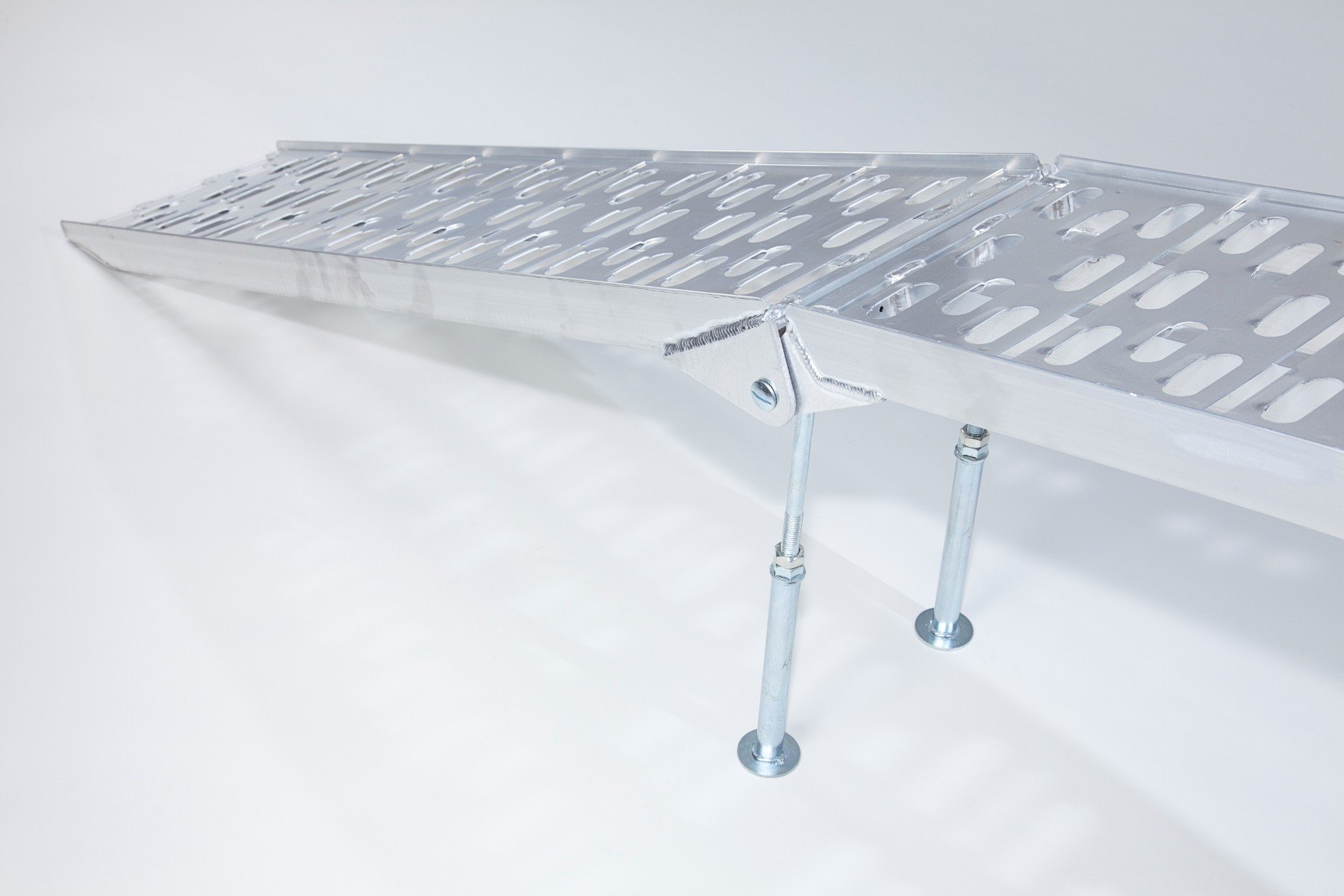

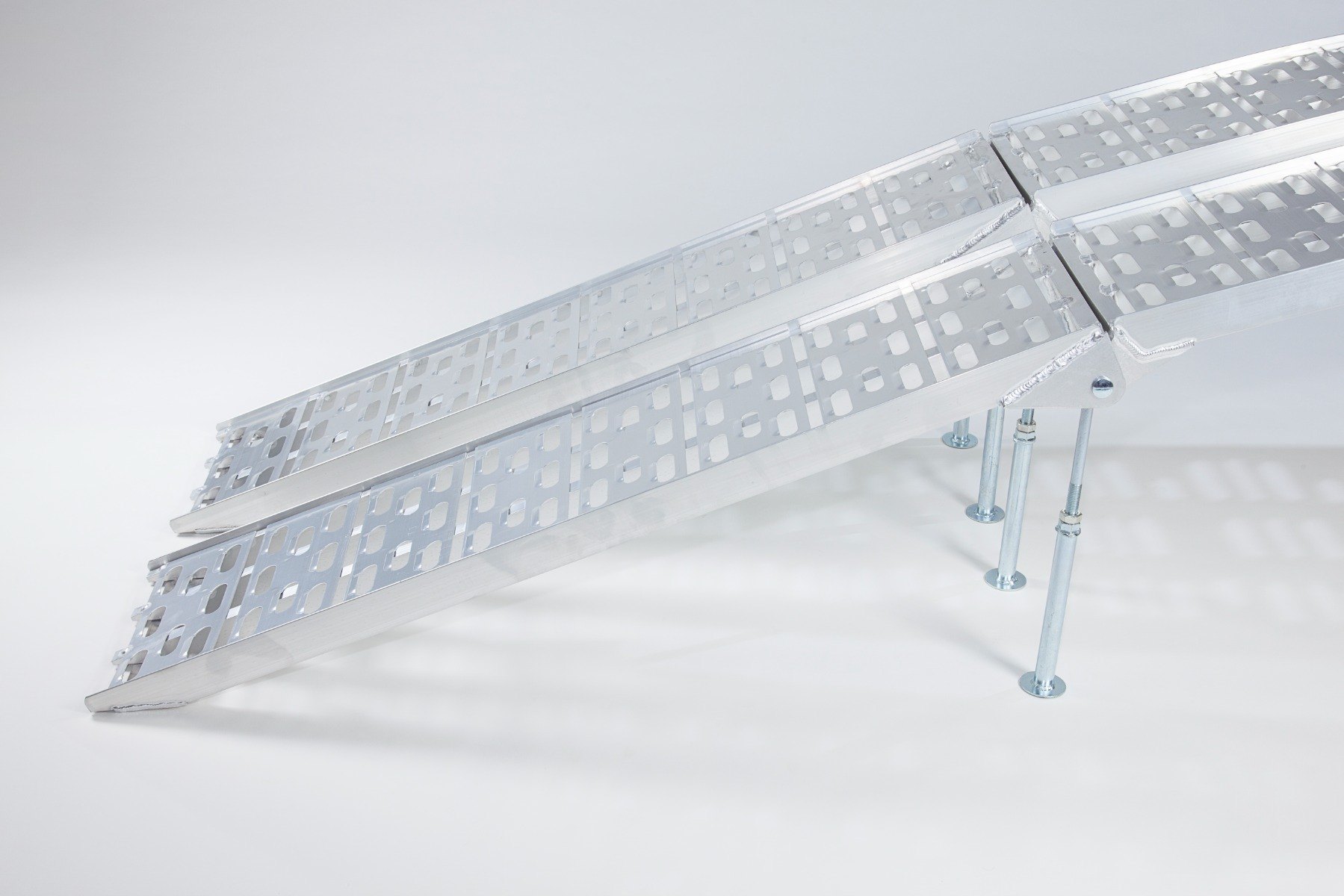

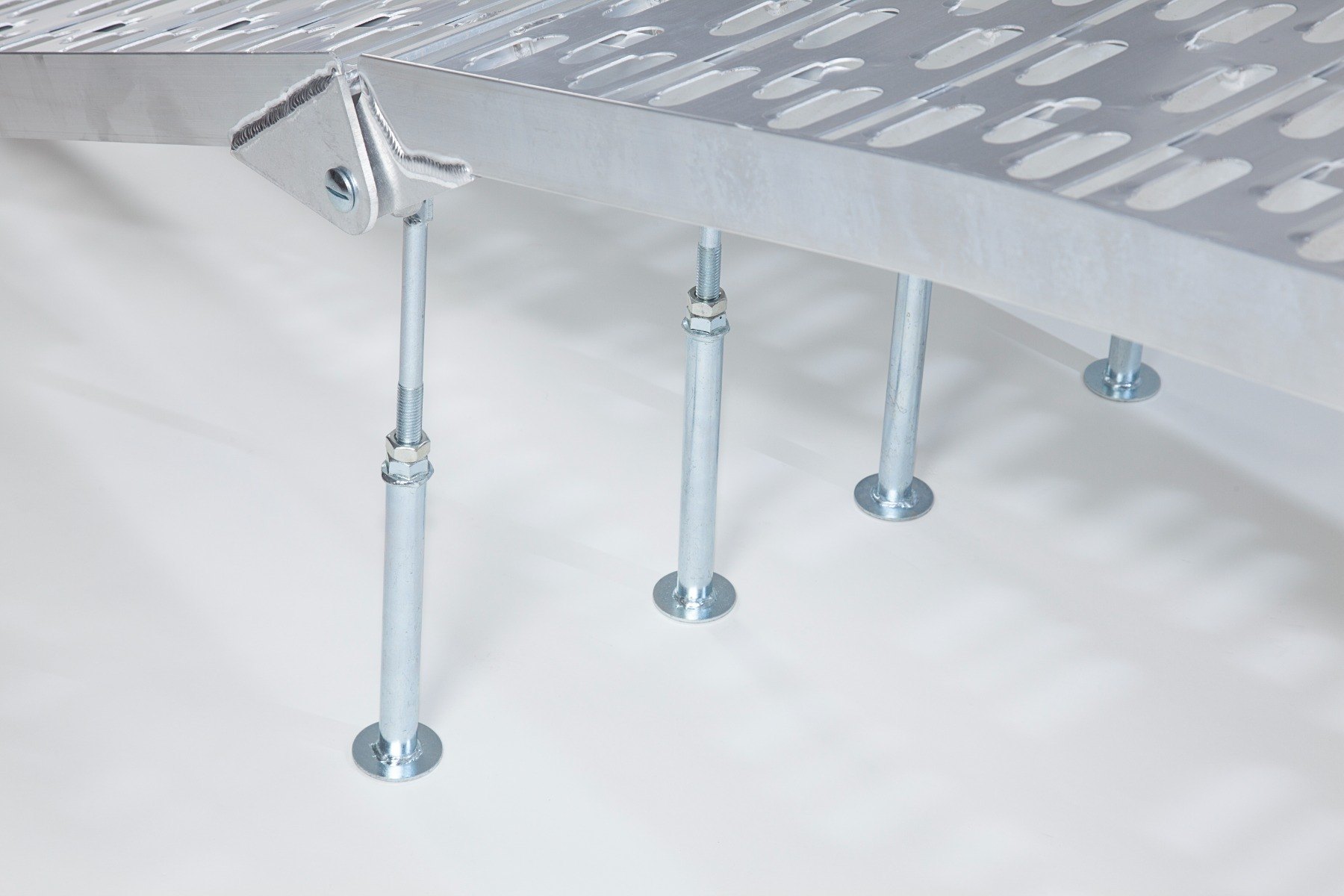

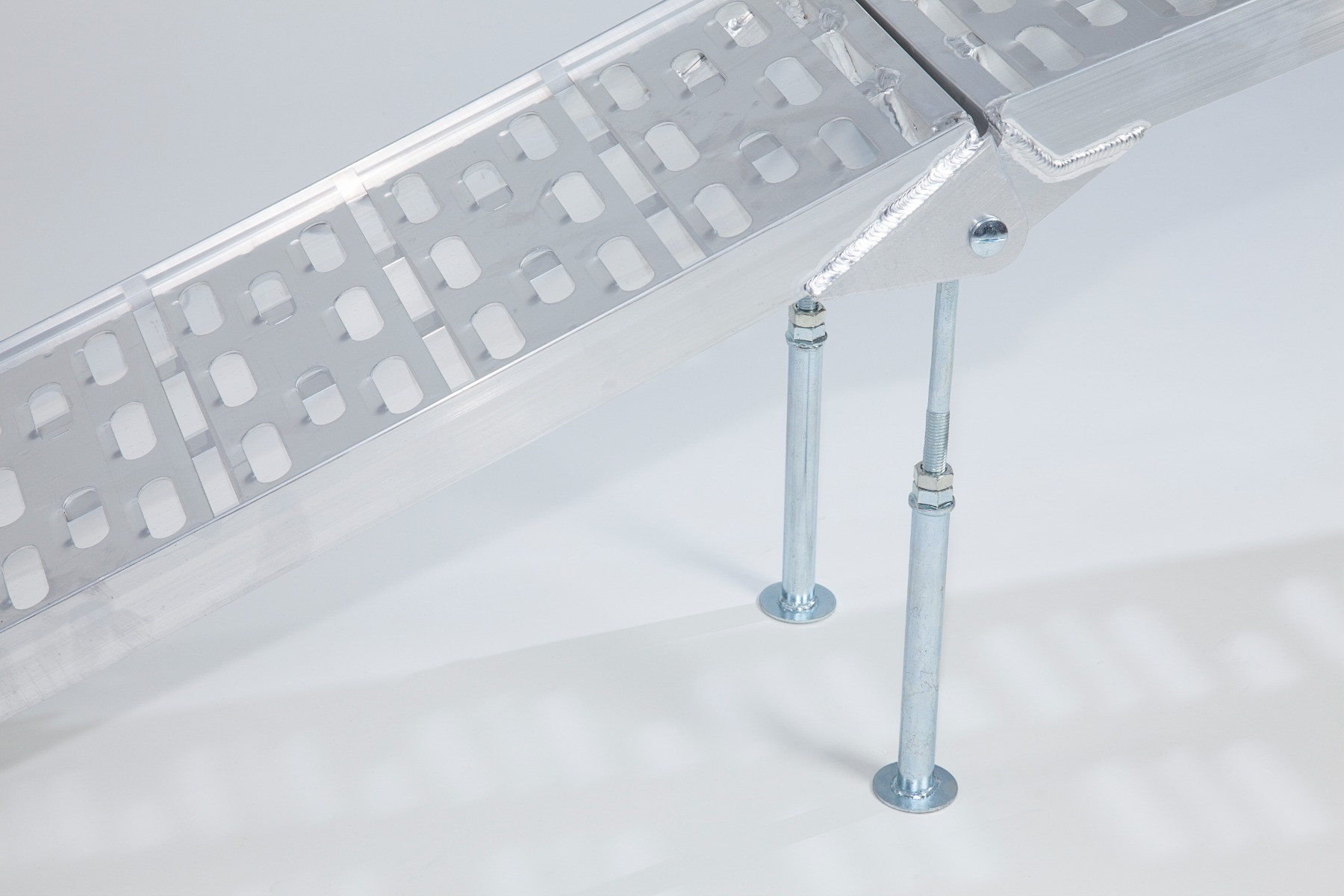

  • The adjustable support bar legs can be adjusted from 340mm up to 425mm

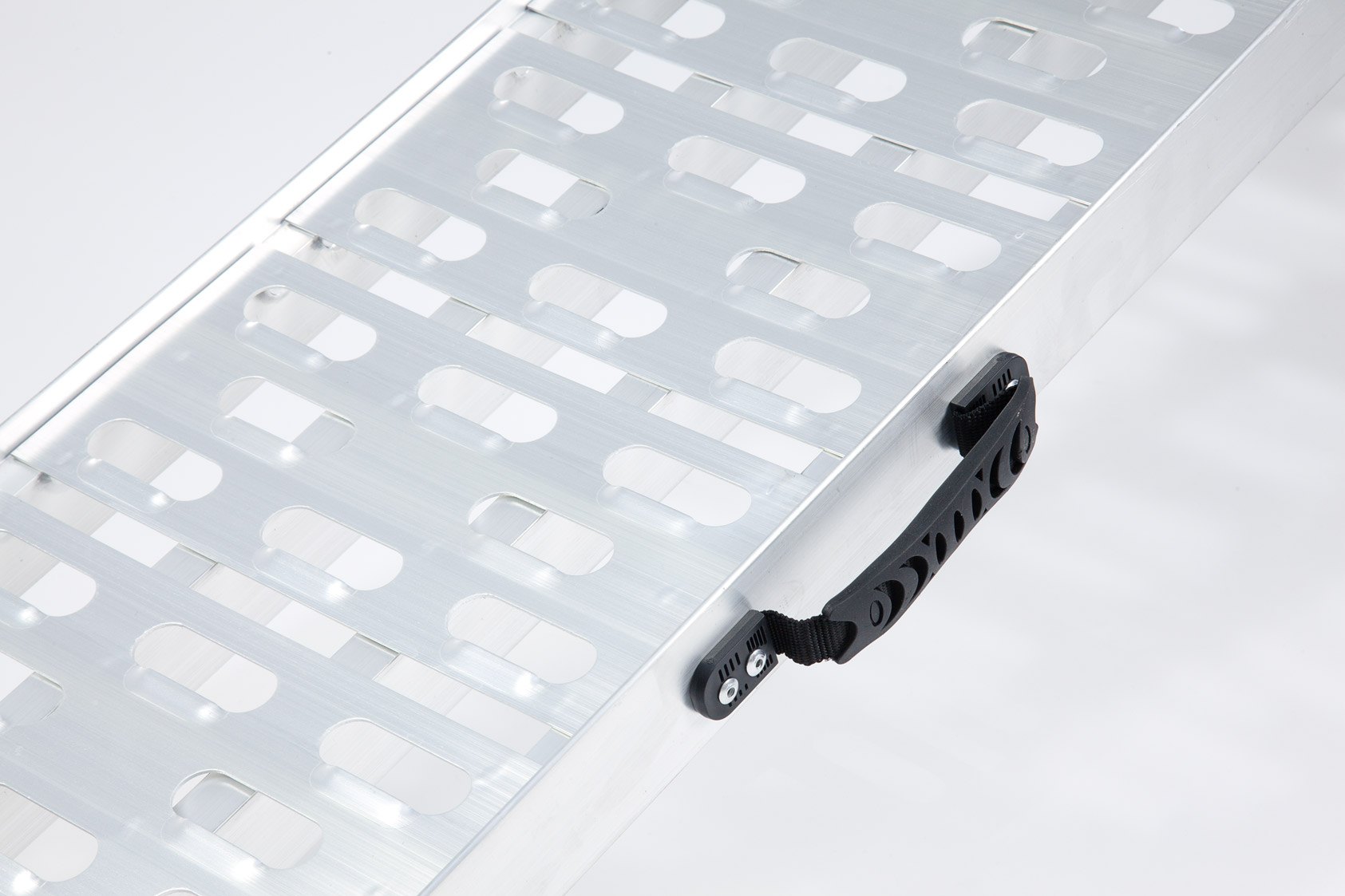

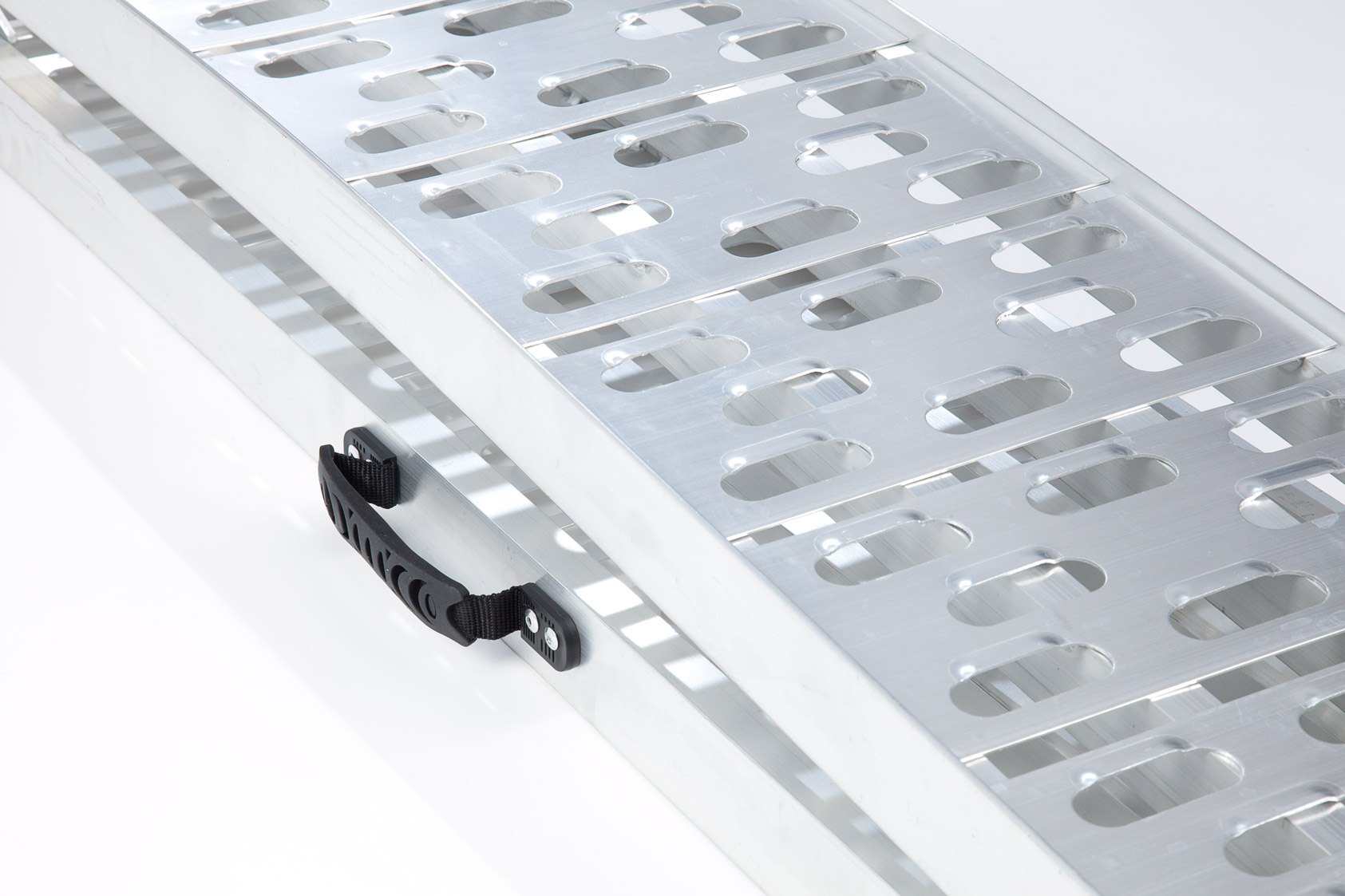

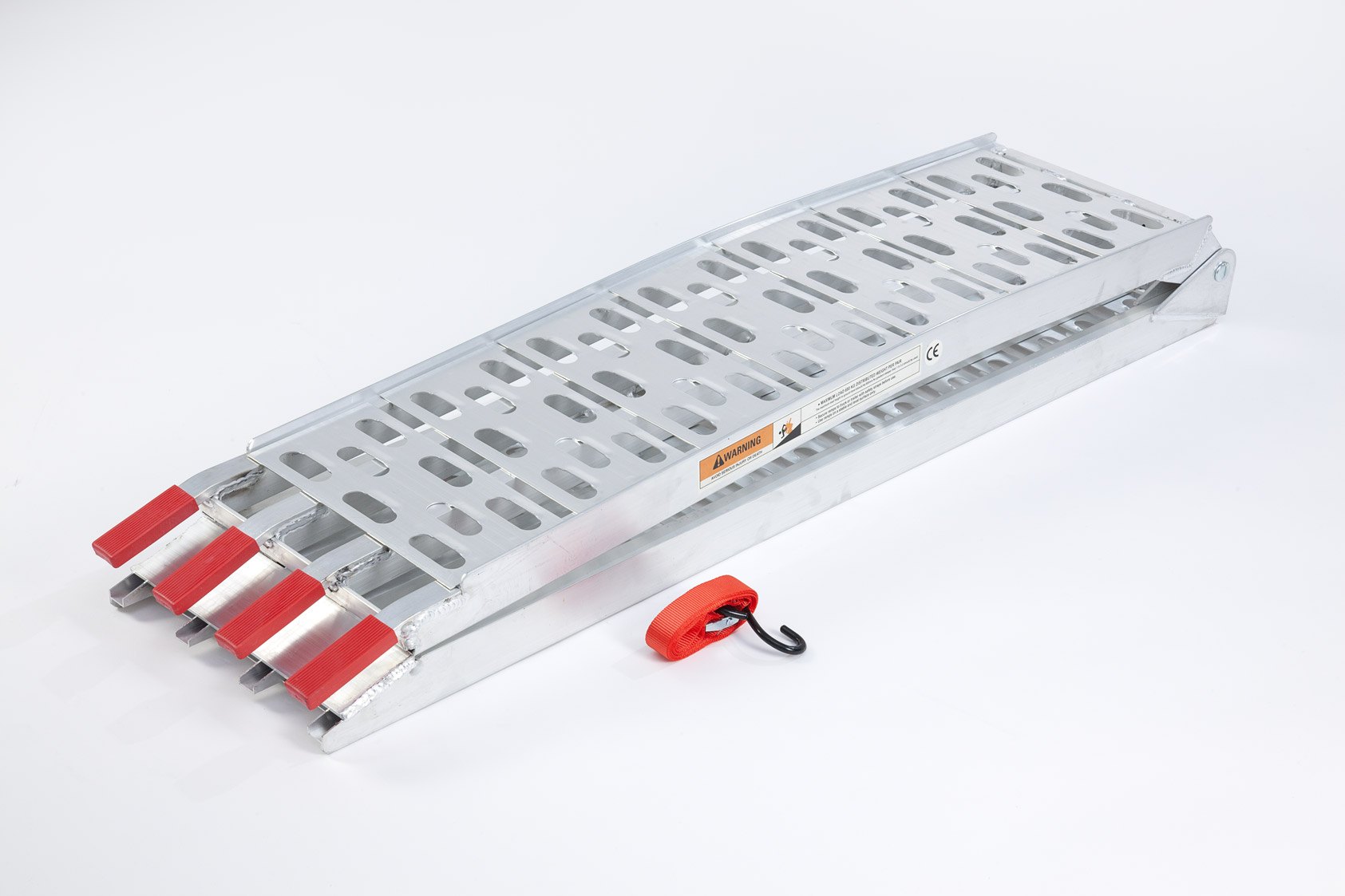

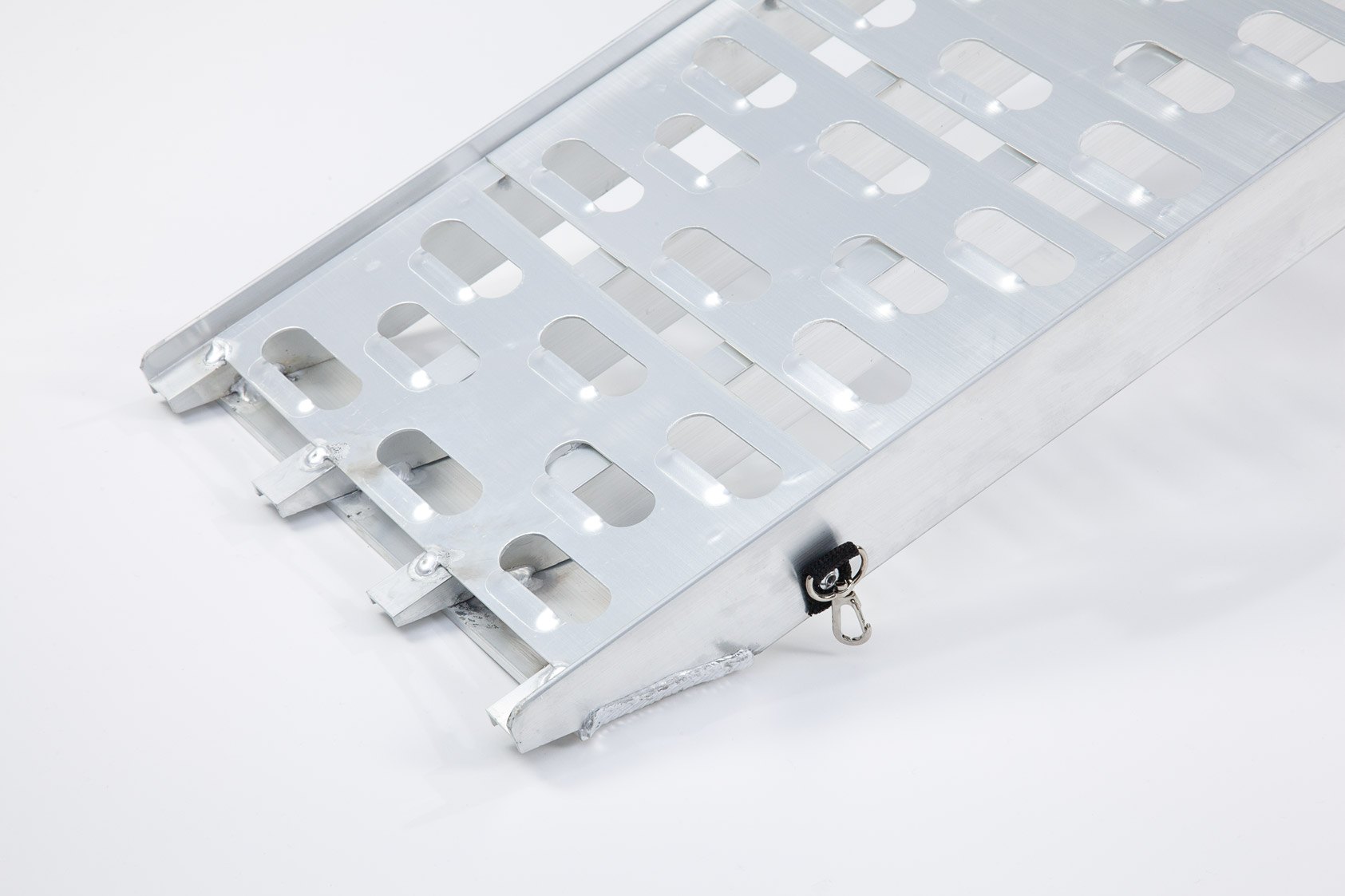

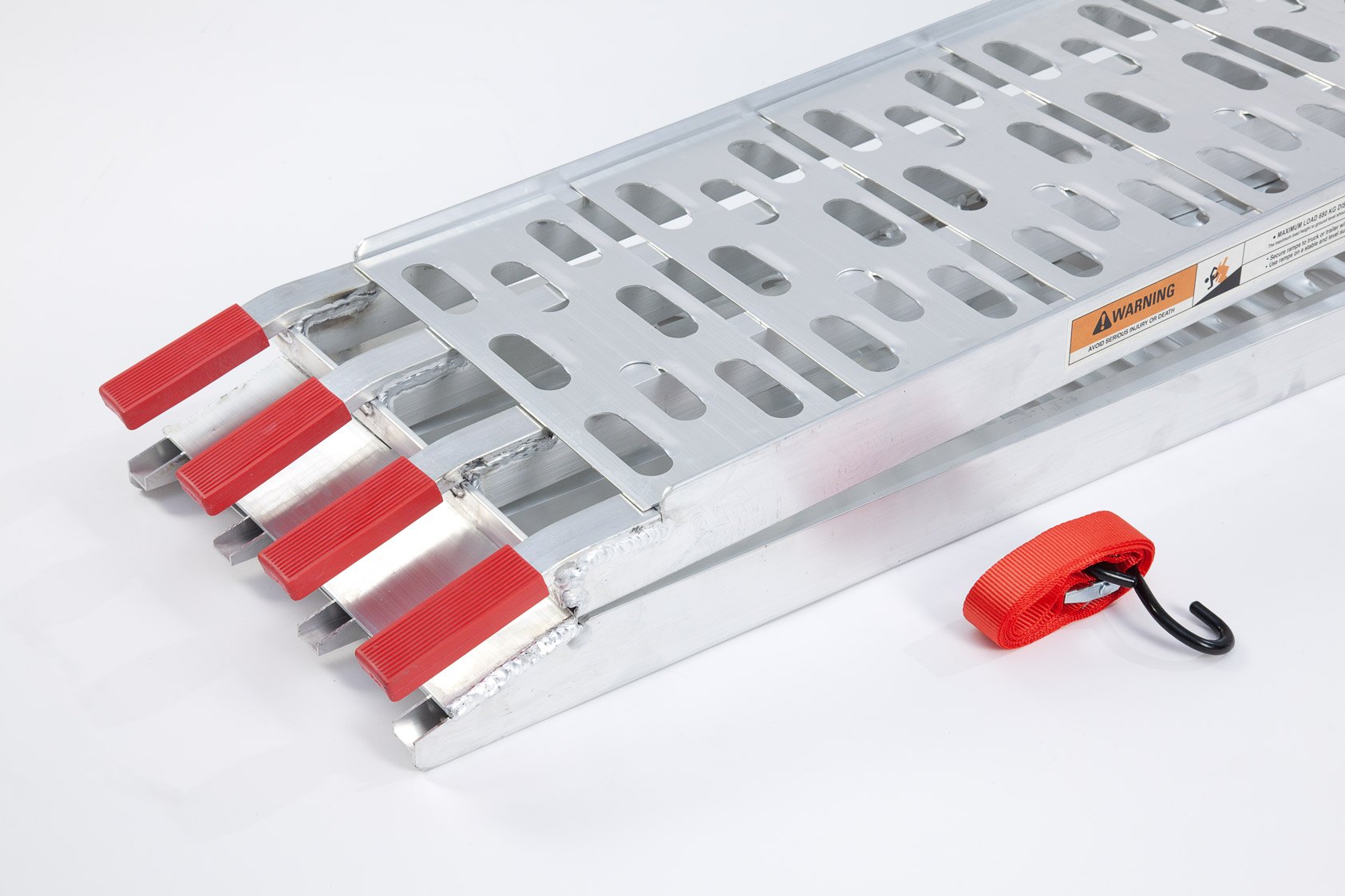

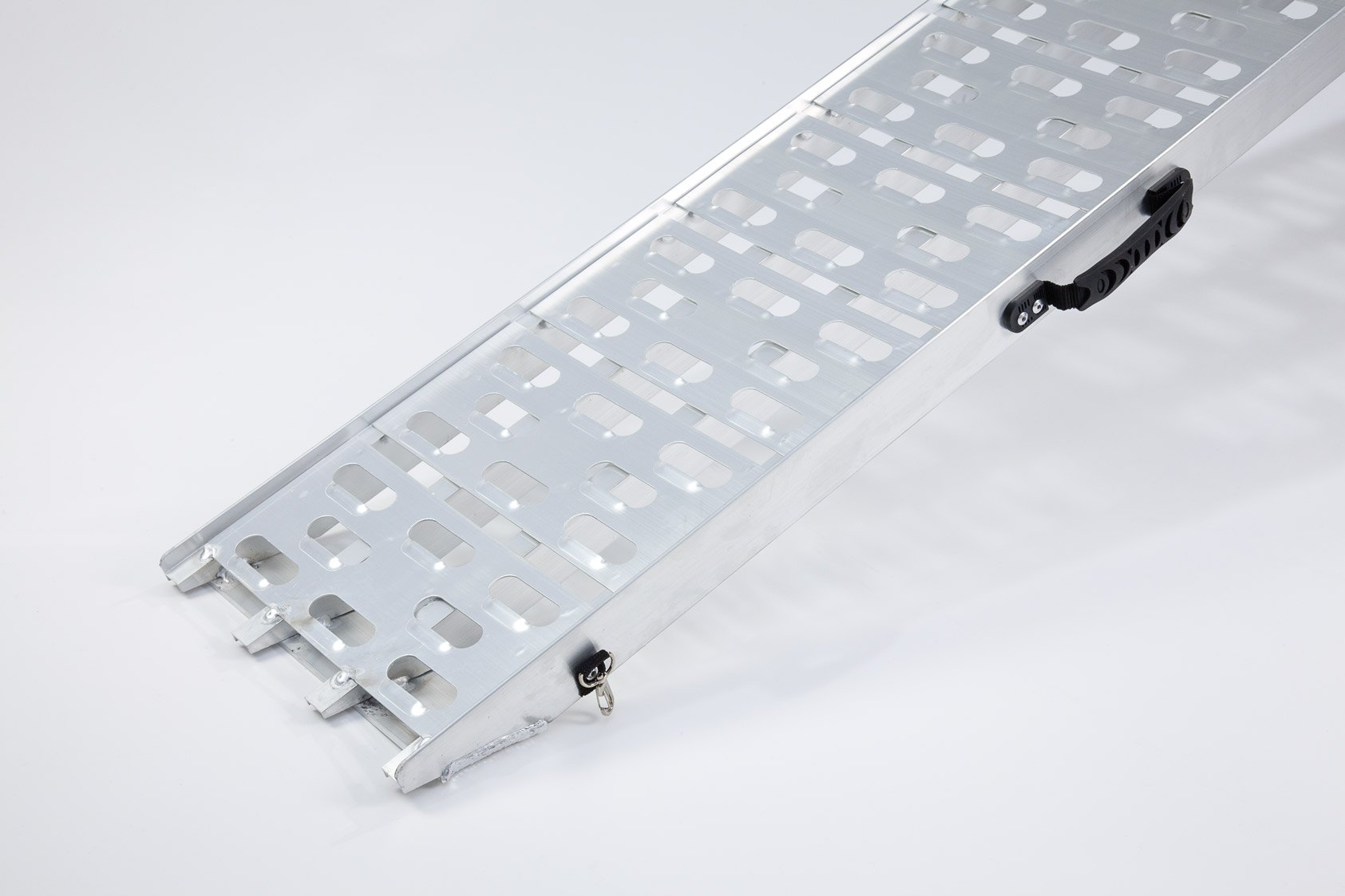

  • The bike ramp also offers a carry handle and clips shut when stored

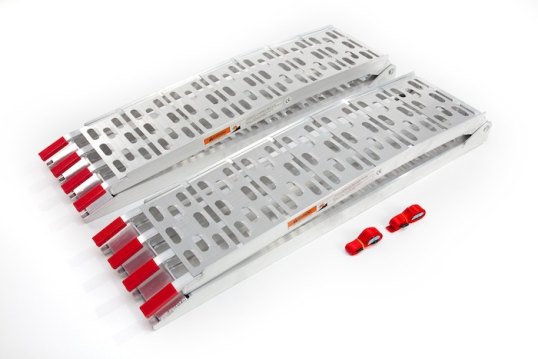

  • Straps are provided with the ramps
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

A handy user guide for these ramps can be found here.

Loading Ramps with Double Support Bar

Single Ramp with Legs

  • Length (mm): 2200
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 520
  • Max. load height (mm): 666
  • Weight per Ramp (kg): 8.8
  • Capacity per Ramp (kg): 680

Single Ramp Without Legs

  • Length (mm): 2200
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 520
  • Max. load height (mm): 666
  • Weight per Ramp (kg): 8.5
  • Capacity per Ramp (kg): 340

Pair of Ramps with Legs

  • Length (mm): 2200
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 520
  • Max. load height (mm): 666
  • Weight per Pair (kg): 17.6
  • Capacity per Pair (kg): 1360

Pair of Ramps Without Legs

  • Length (mm): 2200
  • Width (mm): 285
  • Height (mm): 100
  • Min. Load Height (mm): 520
  • Max. load height (mm): 666
  • Weight per Pair (kg): 17
  • Capacity per Pair (kg): 680
Product Questions
How do The Ramp Factory's folding loading ramps stay securely in place during loading?

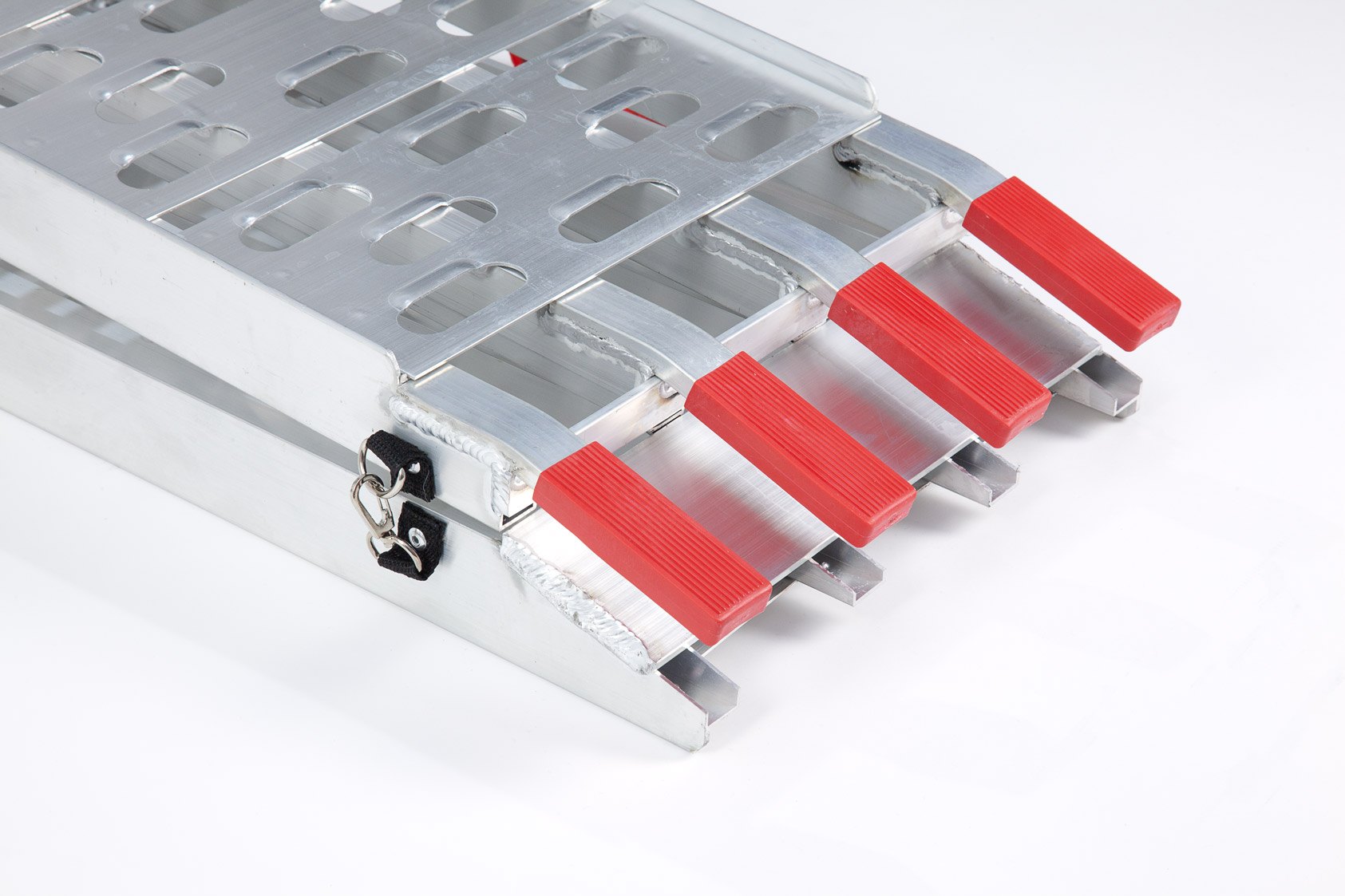

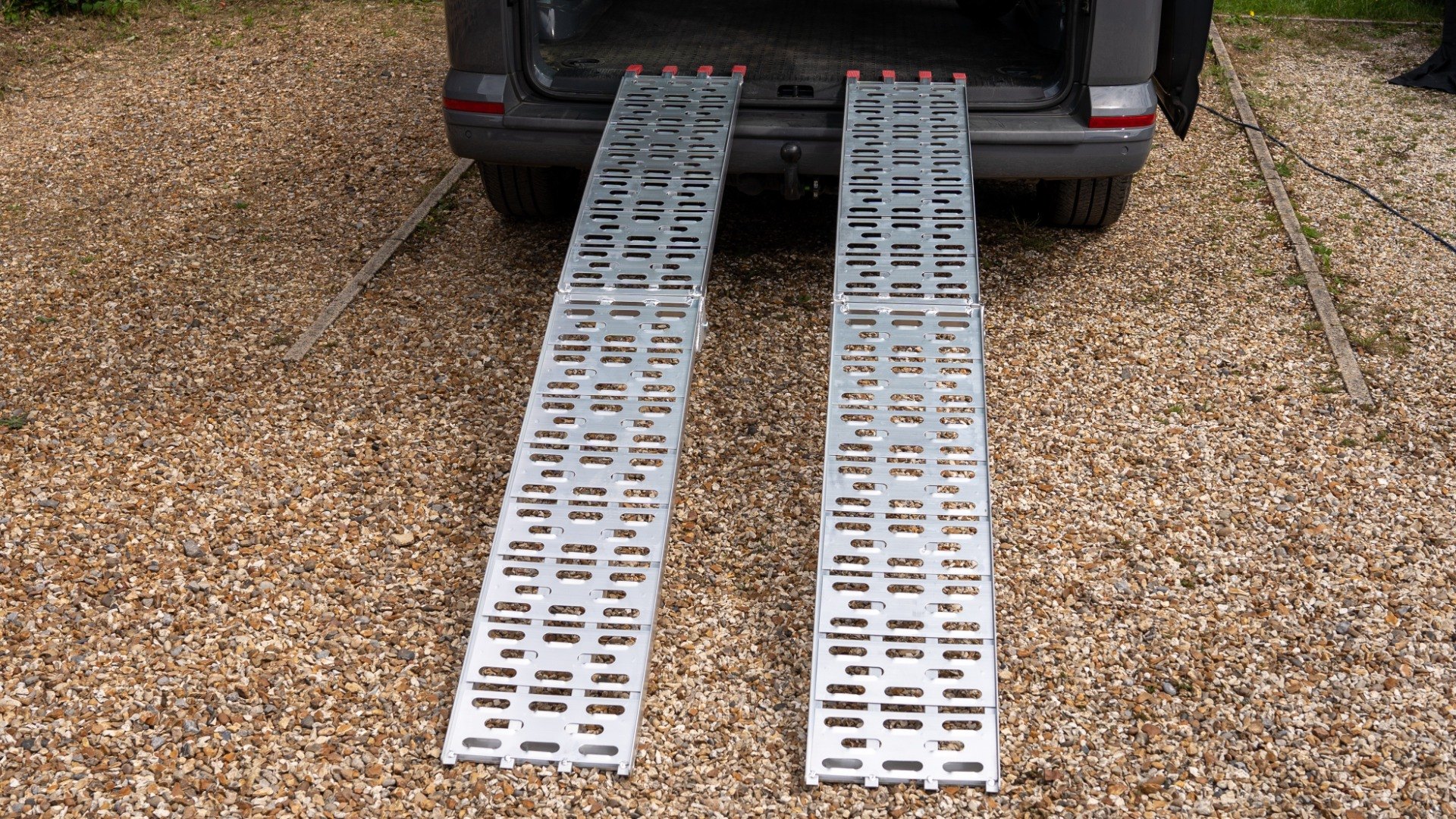

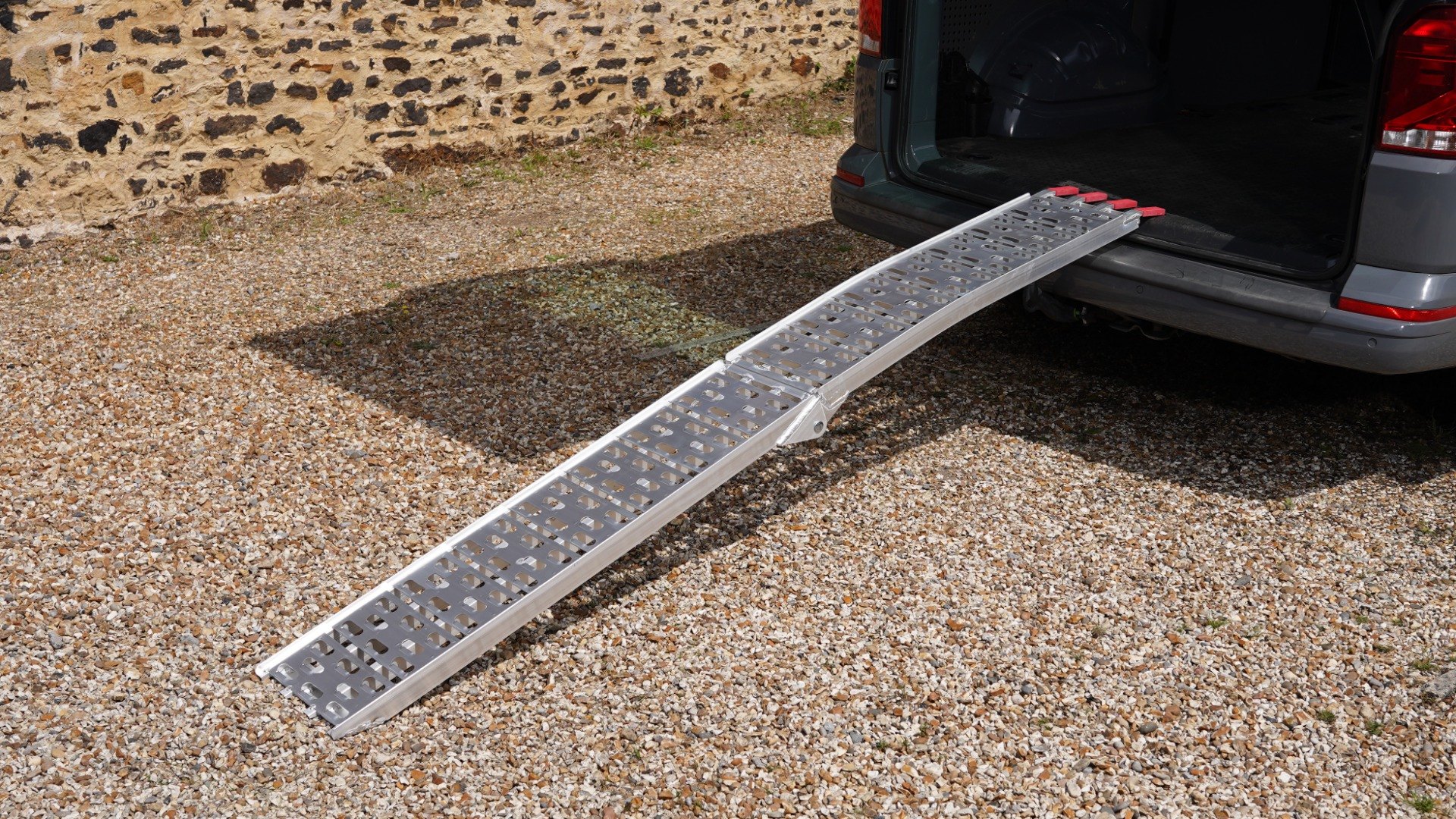

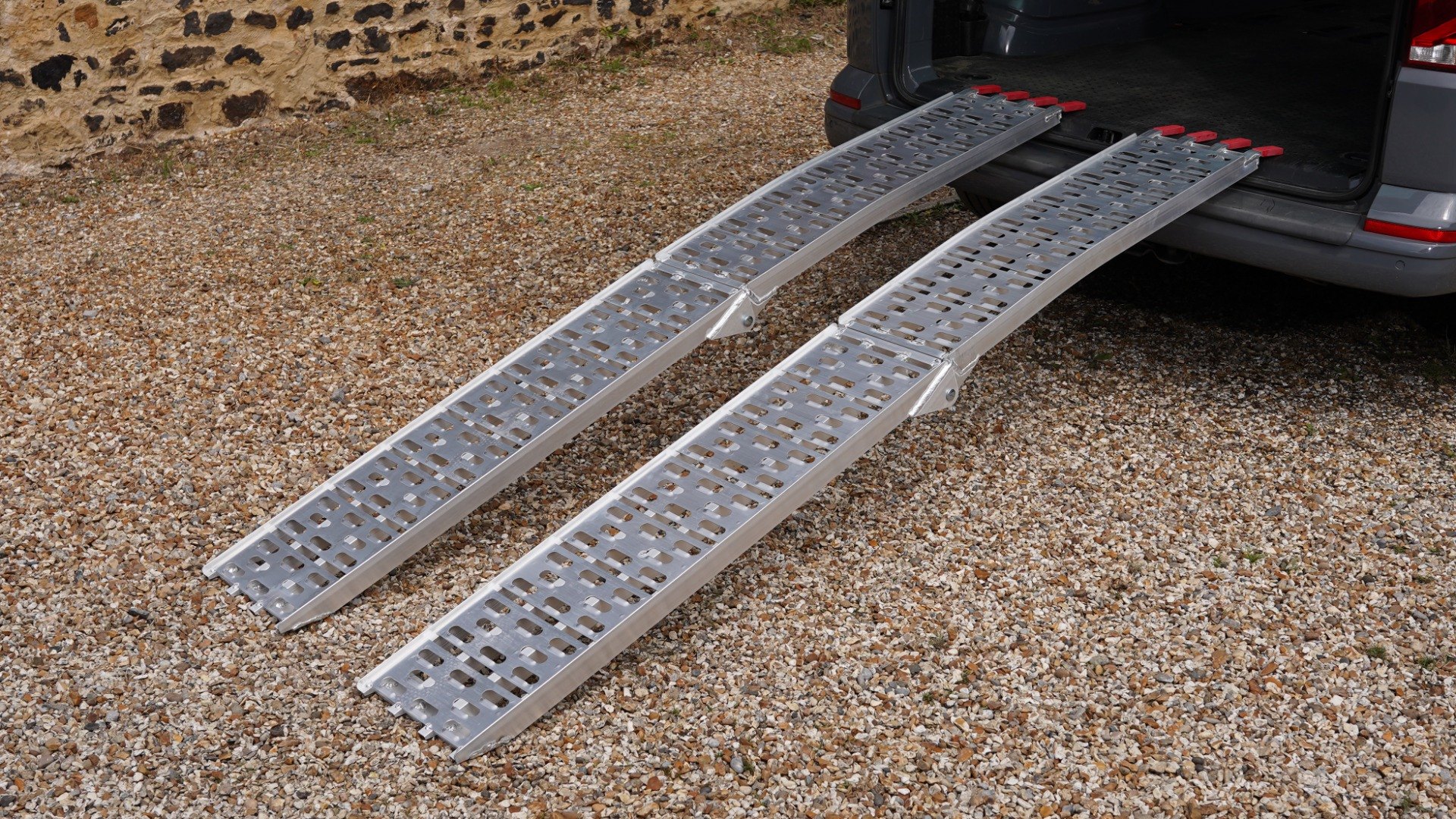

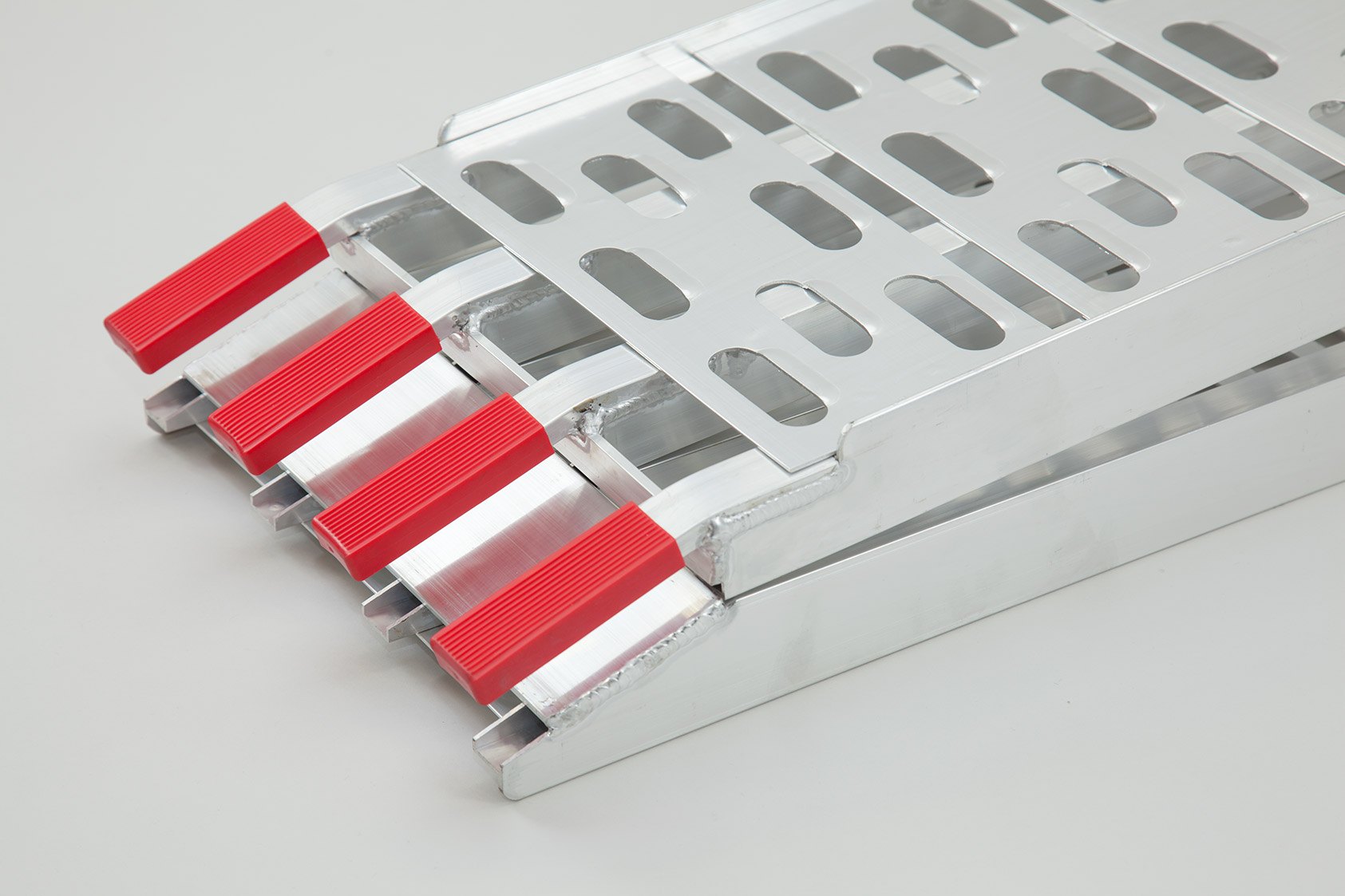

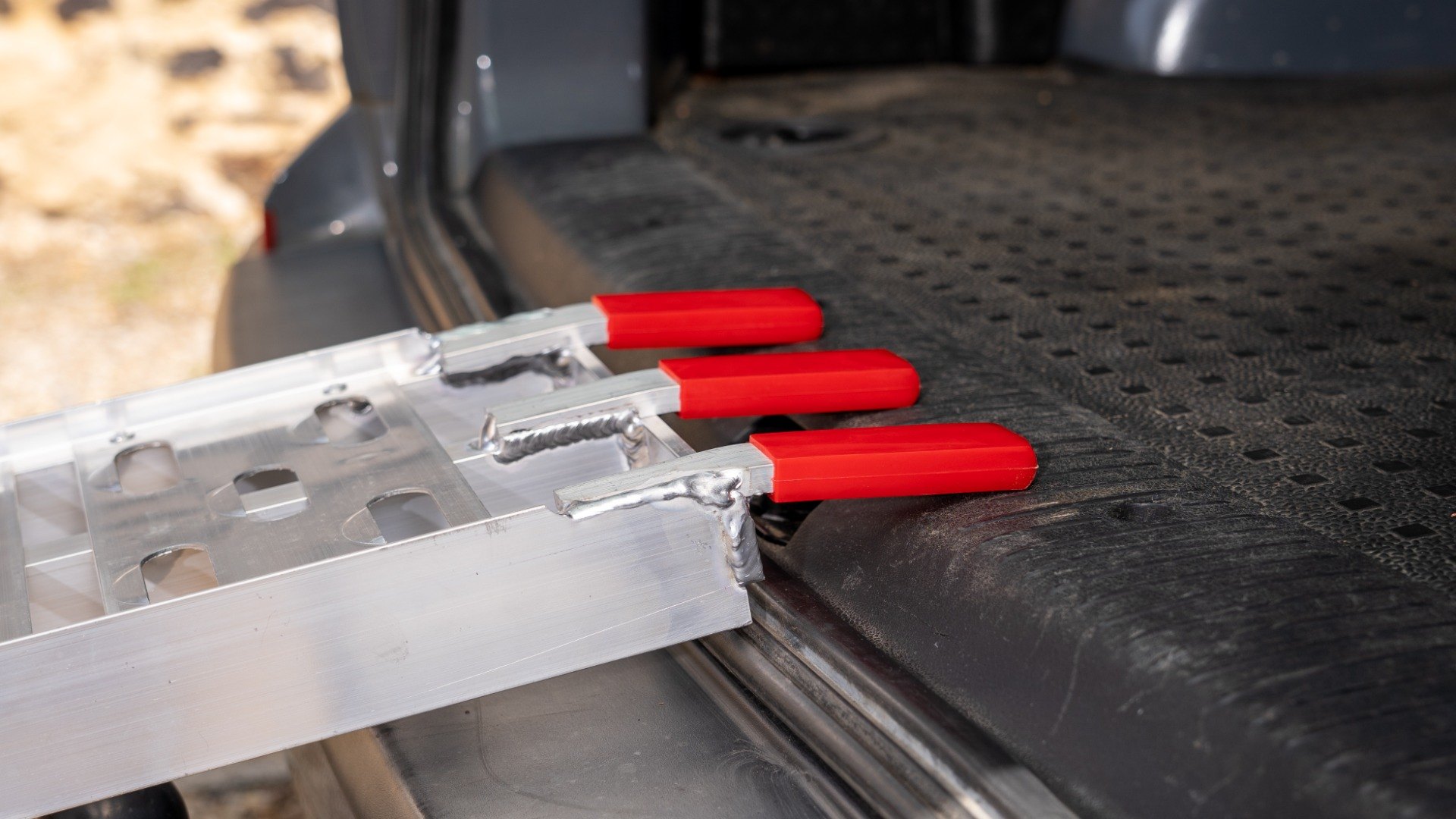

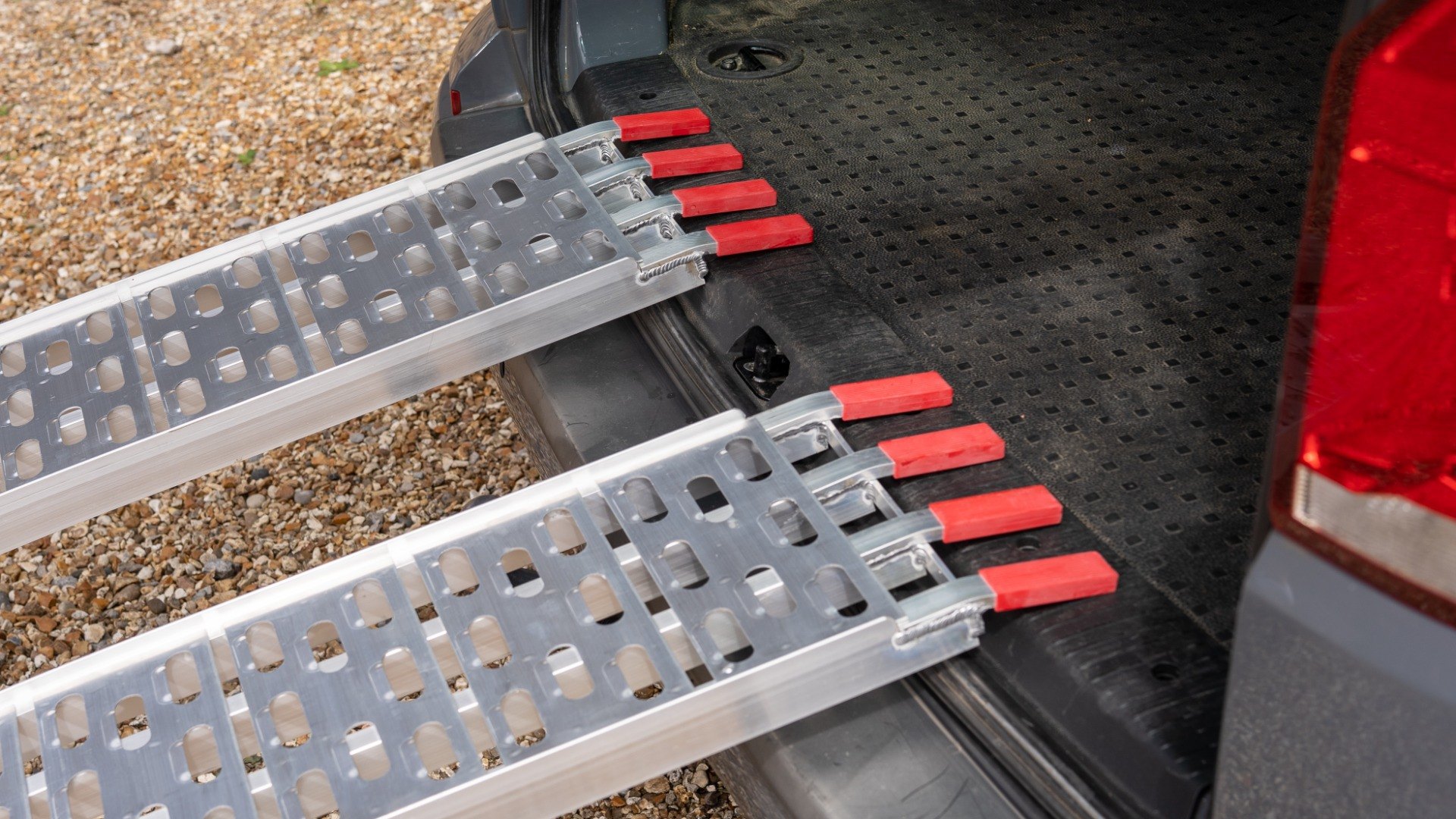

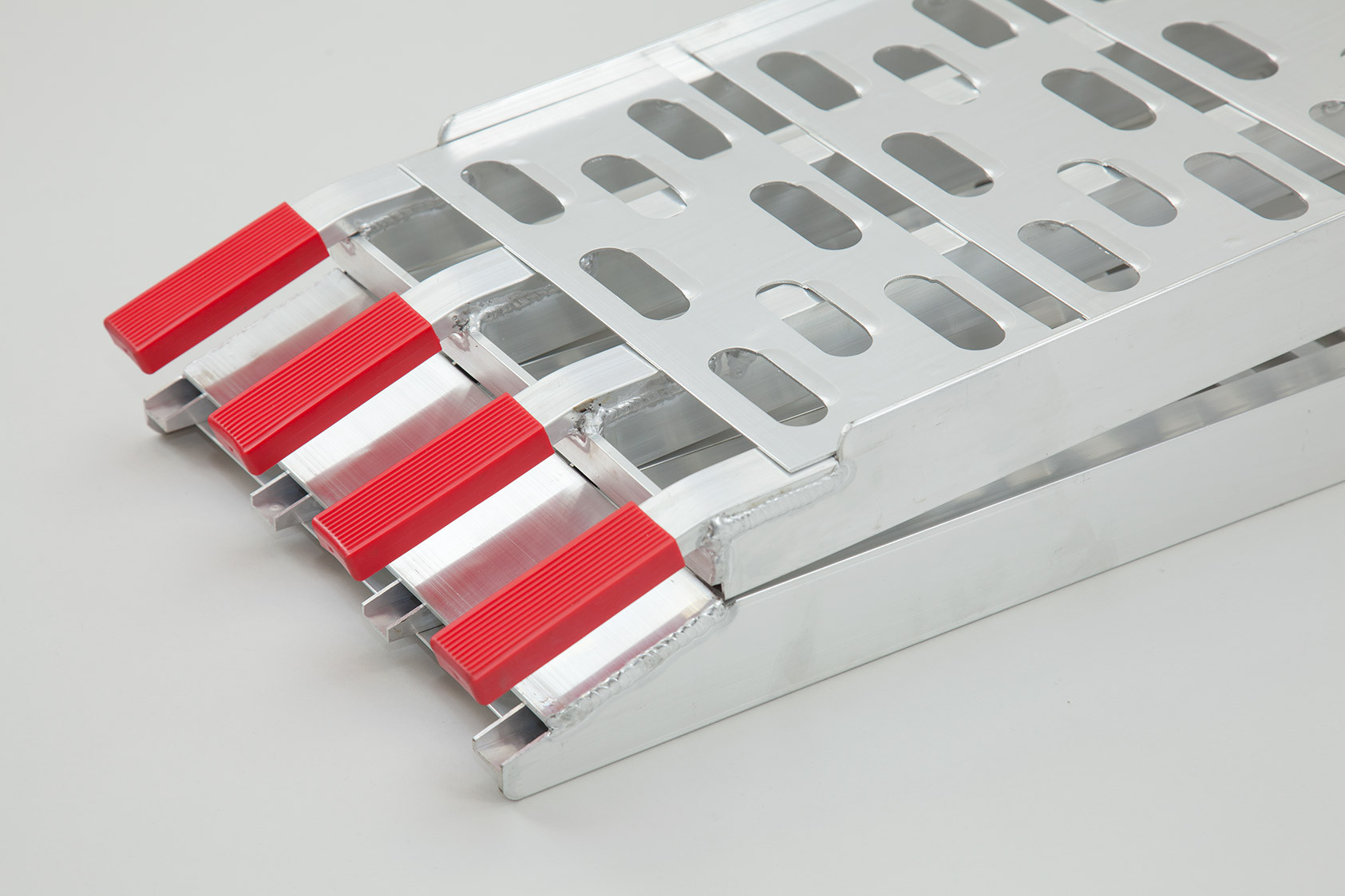

The ramps have a curved rest on connection which rests onto the vehicle. The foot of the ramp is cut at an angle to ensure the ramp stays securely on the ground. The ramps are provided with safety straps to secure the ramp to the vehicle. The ramp weight and angle also assists the ramp to stay in place.
I require a motorcycle loading ramp. How do I identify which motorcycle ramp length is most suitable for my requirements?
You will need to check your load height (vertical height from the ground to where the ramp will rest) as this identifies which ramp length you need. All of our ramps state the minimum and maximum height they are designed for.
I am interested in the folding loading ramps. Are safety straps provided with these ramps?
Yes, each ramp is provided with a safety strap to allow you to secure the ramp to your van or trailer during loading.
I am interested in the Loading Ramps with Double support Bar. Should I purchase the ramps with or without legs?
This depends on the capacity you wish to load. The single ramps without legs offers a 340kg capacity. The ramps with support legs offer a higher capacity at 680kg per ramp. When purchasing the ramp with support legs, the support legs should always be used.
Video
Specifications
SKUTRP699Conf
Capacity (kg)340-1360
Folded Length (mm)1100
Height (mm)50
Length (mm)2200
Max Load Height (mm)666
Min. Load Height (mm)520
Weight (kg)17
Weight per Ramp (kg)8.5
Width (mm)285
Minimum Tyre Width (mm)100
One Year WarrantyYes
Easy to FitYes
Not Solid WheelsYes
Leave OutsideYes
