Heavy Duty Truck Ramp 1000mm wide x 1000kg Capacity

SKU

TRP-Truck1000

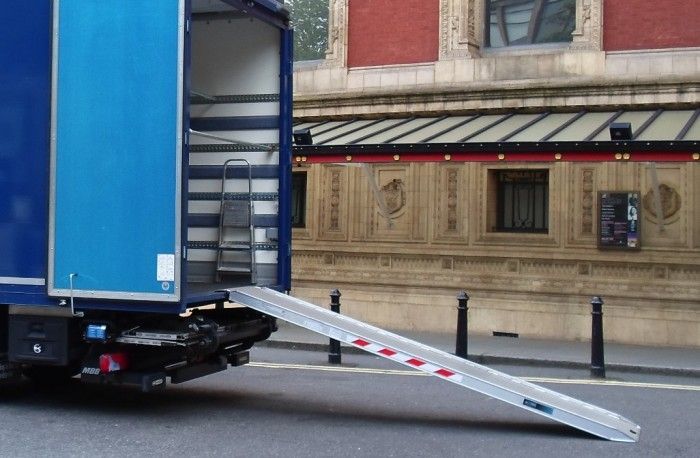

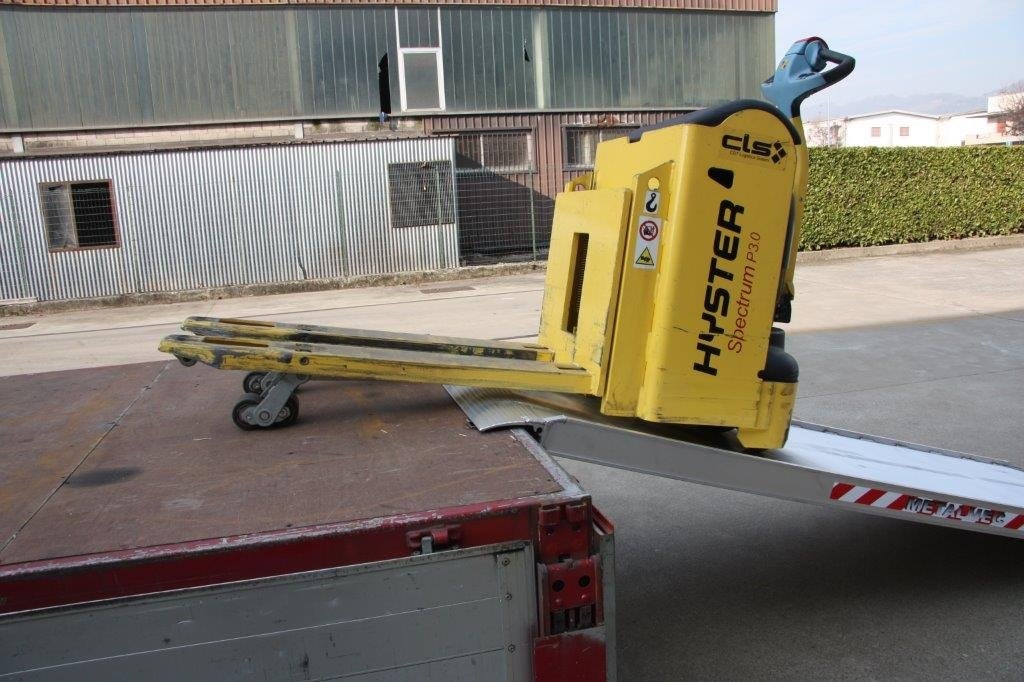

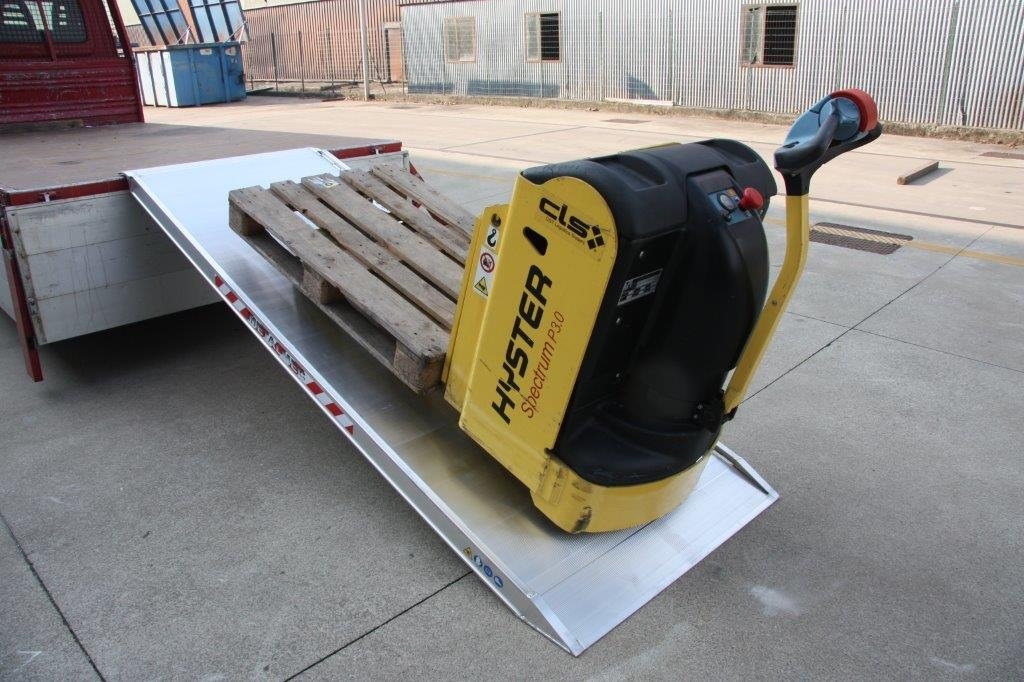

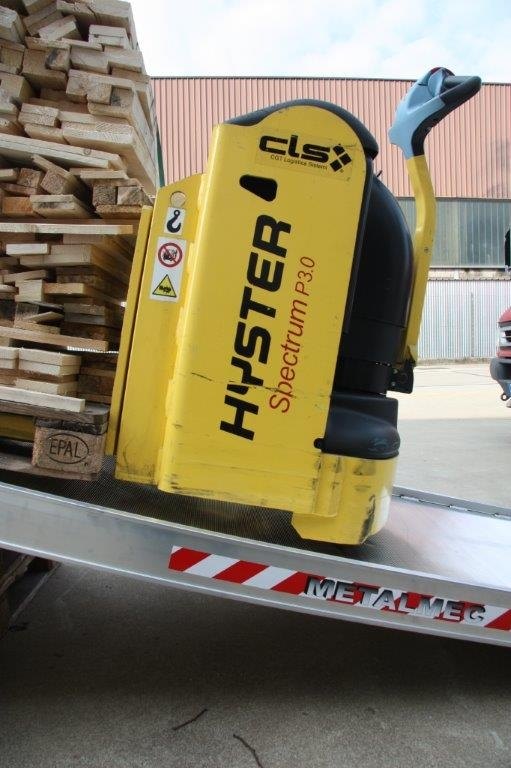

The Ramp Factory's Heavy Duty Truck Ramp is a single aluminium ramp 1000mm wide with a usable width of 940mm. This ramp is available in lengths ranging from 2600mm - 5000mm and is capable of supporting up to 2000kg. This ramp is ideal for loading, unloading, and transporting heavy goods and materials. The ramp is made of a high-strength aluminium alloy, making it lightweight yet durable.

Looking for a narrower option? Check out the 750mm wide truck ramp, or for heavier loads, the 2000kg truck ramp.

From £972.00 £810.00

In Stock

Only %1 left

Truck and Van Ramps FAQ's

Description

TRP Truck Ramp Features include:

Rest on connection: to fit just rest on your truck and start loading (hook connection also available)
Extended connection terminal bridges most bumpers, crash bars and tow bars
Optimised ramp weight ensures the ramp stays connected to the truck
No vehicle or truck modification required
Robot welded for solid, strong and durable construction
Lightweight aluminium (type 6005A) for easy handling
Fully TUV Certified to 1000kg capacity or 2000kg capacity as standard

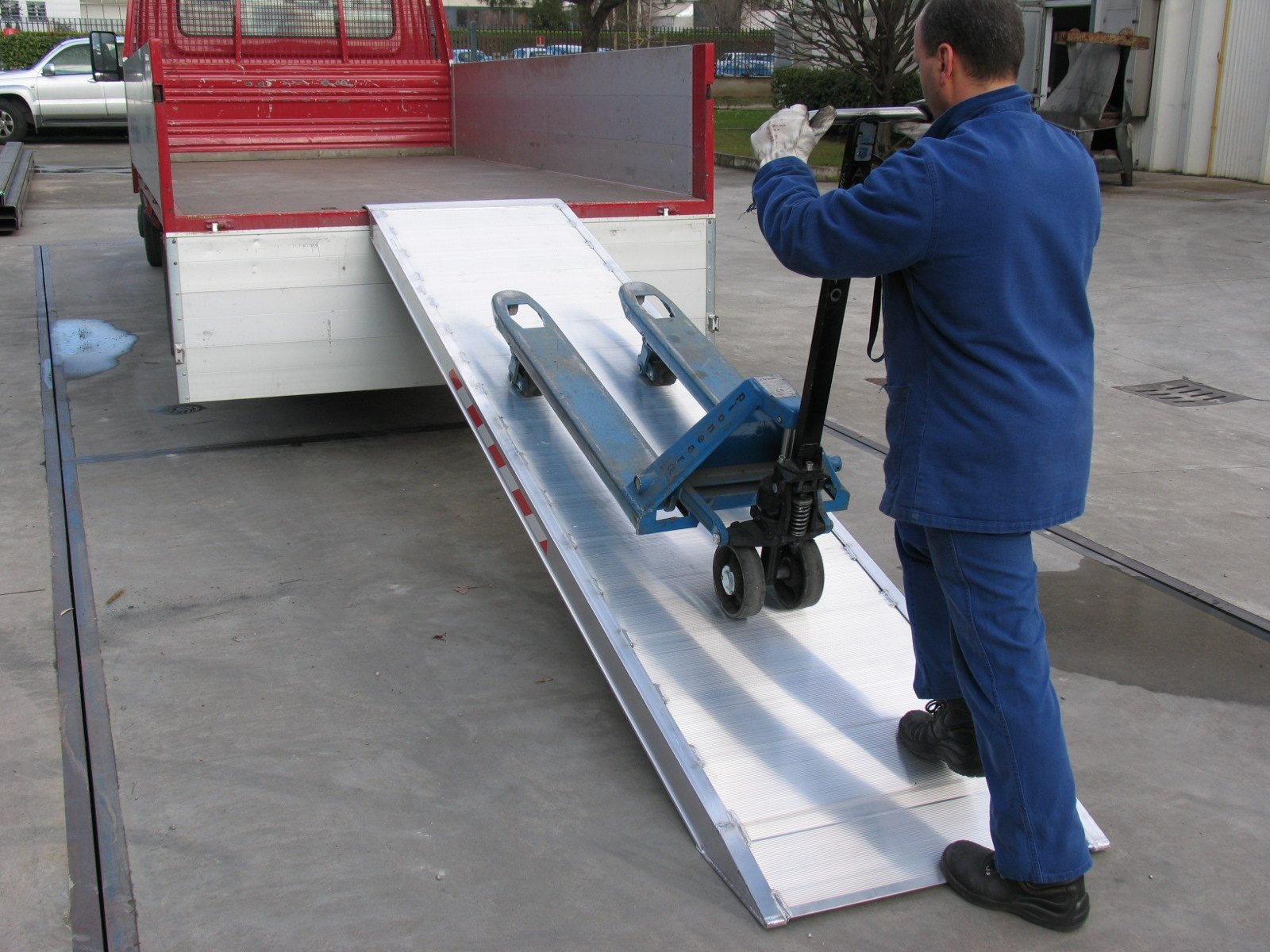

Angled foot which allows for smooth access onto the truck ramp when using casters or wheels
Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
Lengths from 2600mm to 5000mm available
Four different connection options available, however the default connection is the rest on connection
Bespoke truck ramps built to any length or width
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty Truck Ramp 1000mm wide x 1000kg Capacity

2600mm

Length (mm): 2600
Height of Raised Edges (mm): 29
Max Load Height (mm): 780
Min Load Height (mm): 630
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 40
Capacity (kg): 1000
Ramp Profile Height (mm):85

3000mm

Length (mm): 3000
Height of Raised Edges (mm): 29
Max Load Height (mm): 900
Min Load Height (mm): 750
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 46
Capacity (kg): 1000
Ramp Profile Height (mm): 100

3600mm

Length (mm): 3600
Height of Raised Edges (mm): 29
Max Load Height (mm): 1050
Min Load Height (mm): 900
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 56
Capacity (kg): 1000
Ramp Profile Height (mm):115

4000mm

Length (mm): 4000
Height of Raised Edges (mm): 30
Max Load Height (mm): 1200
Min Load Height (mm): 1050
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 66
Capacity (kg): 1000
Ramp Profile Height (mm):125

4400mm

Length (mm): 4400
Height of Raised Edges (mm): 30
Max Load Height (mm): 1300
Min Load Height (mm): 1150
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 72
Capacity (kg): 1000
Ramp Profile Height (mm): 125

5000mm

Length (mm): 5000
Height of Raised Edges (mm): 30
Max Load Height (mm): 1500
Min Load Height (mm): 1350
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 85
Capacity (kg): 1000
Ramp Profile Height (mm):140

Heavy Duty Truck Ramp 1000mm wide x 2000kg Capacity

2600mm

Length (mm): 2600
Height of Raised Edges (mm): 30
Max Load Height (mm): 780
Min Load Height (mm): 630
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 51
Capacity (kg): 2000
Ramp Profile Height (mm): 125

3000mm

Length (mm): 3000
Height of Raised Edges (mm): 31
Max Load Height (mm): 900
Min Load Height (mm): 750
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 60
Capacity (kg): 2000
Ramp Profile Height (mm):140

3600mm

Length (mm): 3577
Height of Raised Edges (mm): 42
Max Load Height (mm): 1050
Min Load Height (mm): 900
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 74
Capacity (kg): 2000
Ramp Profile Height (mm):150

4000mm

Length (mm): 3977
Height of Raised Edges (mm): 43
Max Load Height (mm): 1200
Min Load Height (mm): 1050
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 86
Capacity (kg): 2000
Ramp Profile Height (mm):160

4400mm

Length (mm): 4377
Height of Raised Edges (mm): 43
Max Load Height (mm): 1300
Min Load Height (mm): 1150
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 97
Capacity (kg): 2000
Ramp Profile Height (mm):170

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP-Truck1000
Default Connection	Rest On Connection
Capacity (kg)	1000 - 2000
Length (mm)	2600 - 5000
Max Load Height (mm)	780 - 1500
Weight (kg)	40 - 97
Width (mm)	1000
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
