Heavy Duty Truck Ramp 750mm wide (1000kg Capacity)

SKU
TRP-Truck750
From £732.00 £610.00
In Stock
Only %1 left

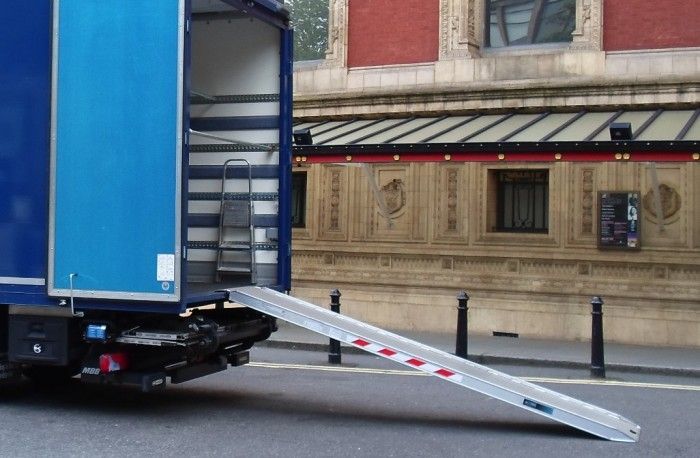

The Ramp Factory's Heavy Duty Truck Ramp is a single aluminium ramp 750mm wide with a usable width of 690mm. This ramp is available in lengths ranging from 2000mm to 3600mm and is capable of supporting up to 1000kg. This ramp is ideal for loading, unloading, and transporting heavy goods and materials. The ramp is made of a high-strength aluminium alloy, making it lightweight yet durable.

Looking for a wider option? Check out the 100mm wide truck ramp, or for heavier loads, the 2000kg truck ramp.

Truck and Van Ramps FAQ's

Description

TRP Truck Ramp Features include:

  • Rest on connection: to fit just rest on your truck and start loading (hook connection also available)
  • Extended connection terminal bridges most bumpers, crash bars and tow bars
  • Optimised ramp weight ensures the ramp stays connected to the truck
  • No vehicle or truck modification required
  • Robot welded for solid, strong and durable construction
  • Lightweight aluminium (type 6005A) for easy handling
  • Fully TUV Certified to 1000kg capacity as standard
  • Angled foot which allows for smooth access onto the truck ramp when using casters or wheels
  • Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
  • Four different connection options available, however the default connection is the rest on connection
  • Lengths from 2600mm to 3600mm available
  • Bespoke truck ramps built to any length or width
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty Truck Ramp 750mm wide

2000mm

  • Length (mm): 2000
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 600
  • Min Load Height (mm): 450
  • External Width (mm): 750
  • Internal Width (mm): 690
  • Weight per ramp (kg): 24
  • Capacity (kg): 1000
  • Height of ramp profile (mm): 65

2600mm

  • Length (mm): 2600
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 780
  • Min Load Height (mm): 630
  • External Width (mm): 750
  • Internal Width (mm): 690
  • Weight per ramp (kg): 32
  • Capacity (kg): 1000
  • Height of ramp profile (mm): 85

3000mm

  • Length (mm): 3000
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • External Width (mm): 750
  • Internal Width (mm): 690
  • Weight per ramp (kg): 37
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 100

3600mm

  • Length (mm): 3600
  • Height of Raised Edges (mm): 29
  • Max Load Height (mm): 1050
  • Min Load Height (mm): 900
  • External Width (mm): 750
  • Internal Width (mm): 690
  • Weight per ramp (kg): 45
  • Capacity (kg): 1000
  • Ramp Profile Height (mm): 115

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP-Truck750
Product Safety GPSRpopup_gpsr_importer
Default ConnectionRest On Connection
Capacity (kg)1000
Height of Raised Side (mm)29
Height of Ramps Profile (mm)65-115
Length (mm)2000 - 3600
Max Load Height (mm)780 - 1050
Weight (kg)24 - 45
Width (mm)750
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
