Professional Loading Ramps (1.5m Long)

SKU
TRP60/15
£594.00 £495.00
Built to Order

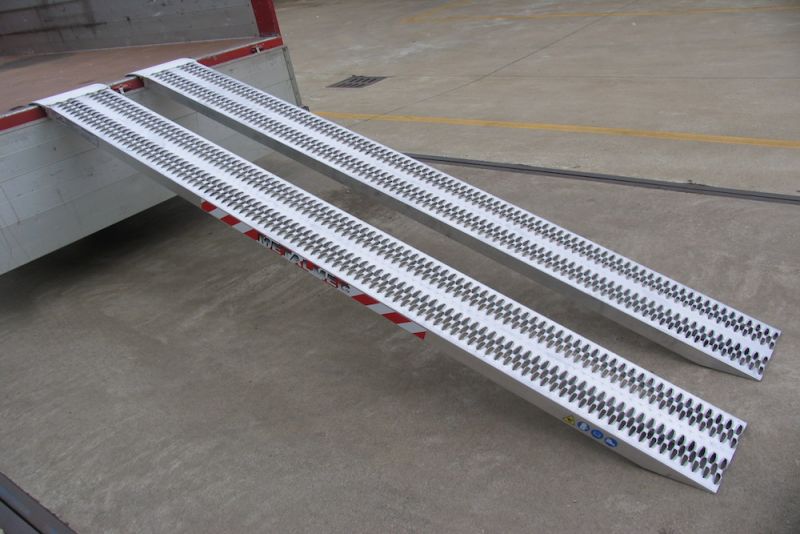

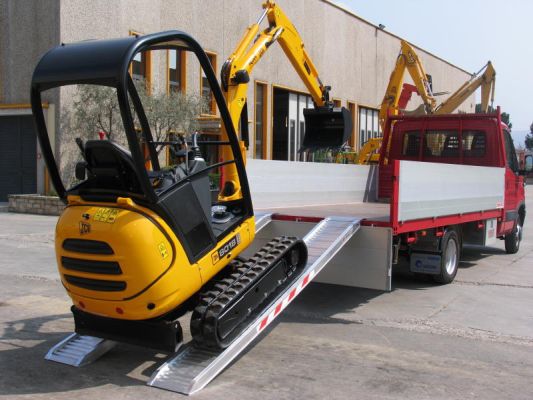

The Ramp factory's Pair of 1500mm long x 315mm wide, straight single piece aluminium ramps are desiged for professional or more frequent use than the domestic ramps. With a capacity of up to 4500kg these loading ramps are ideal for small plant machinery.

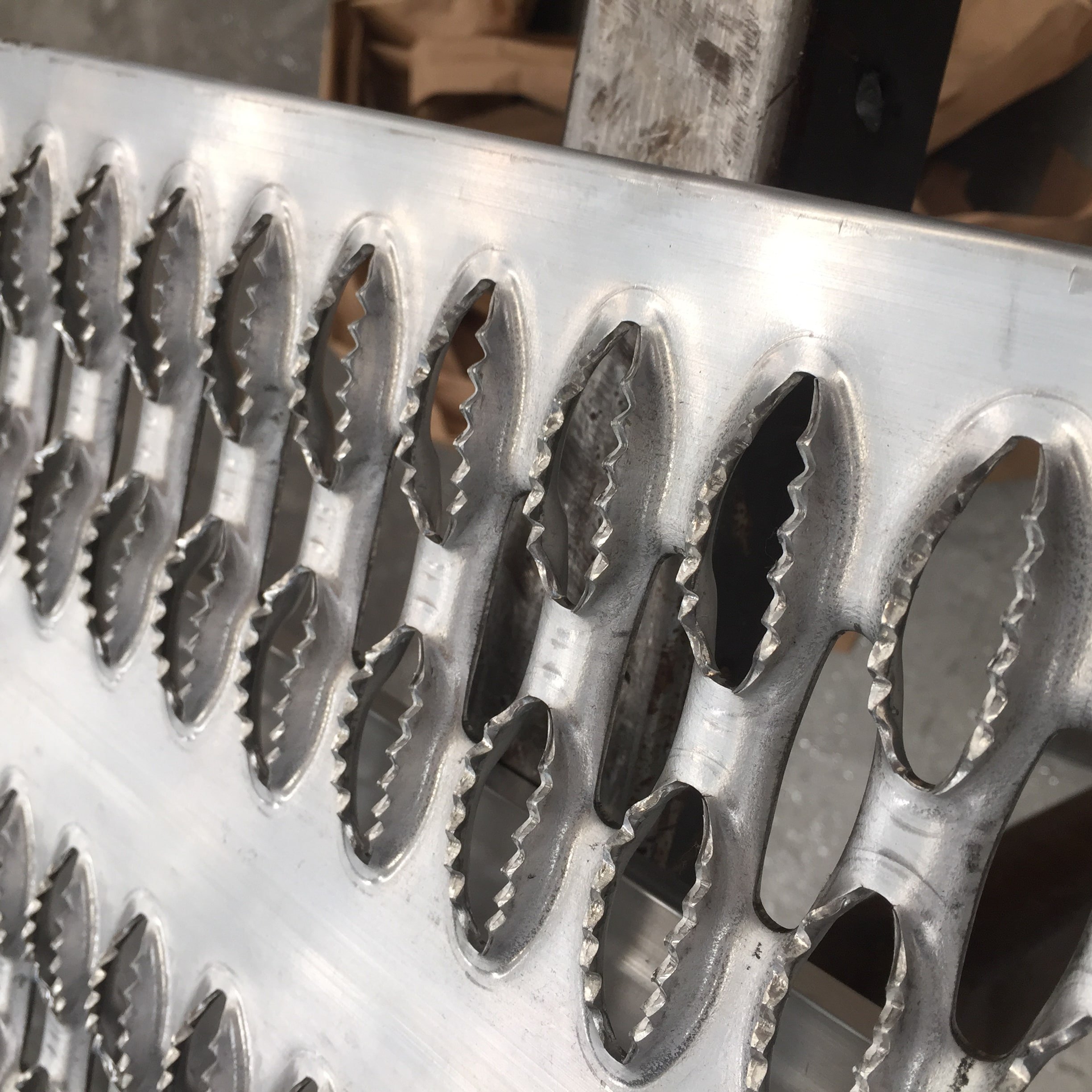

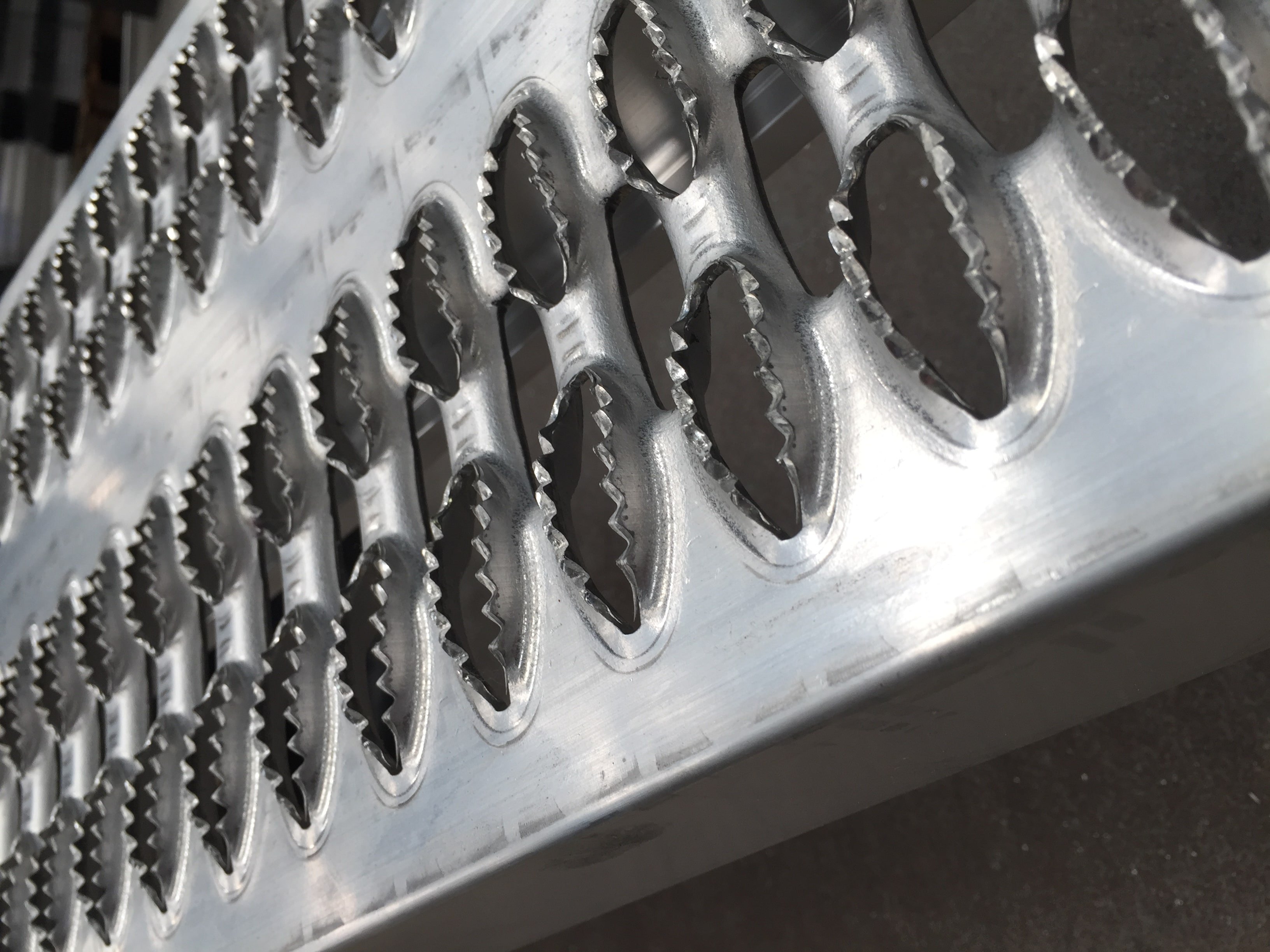

Grip surface provides incredible traction - please ensure your tyres have sufficient tread to avoid damage.

If you require a longer length, The Ramp Factory offer this range of loading ramps in 2000mm, 2500mm, 3000mm, 3500mm, and 4000mm.

Aluminium Ramps for Plant & Machinery FAQs

Description

Sabretooth Non Folding Ramps

  • Single piece ramp design featuring zero welding

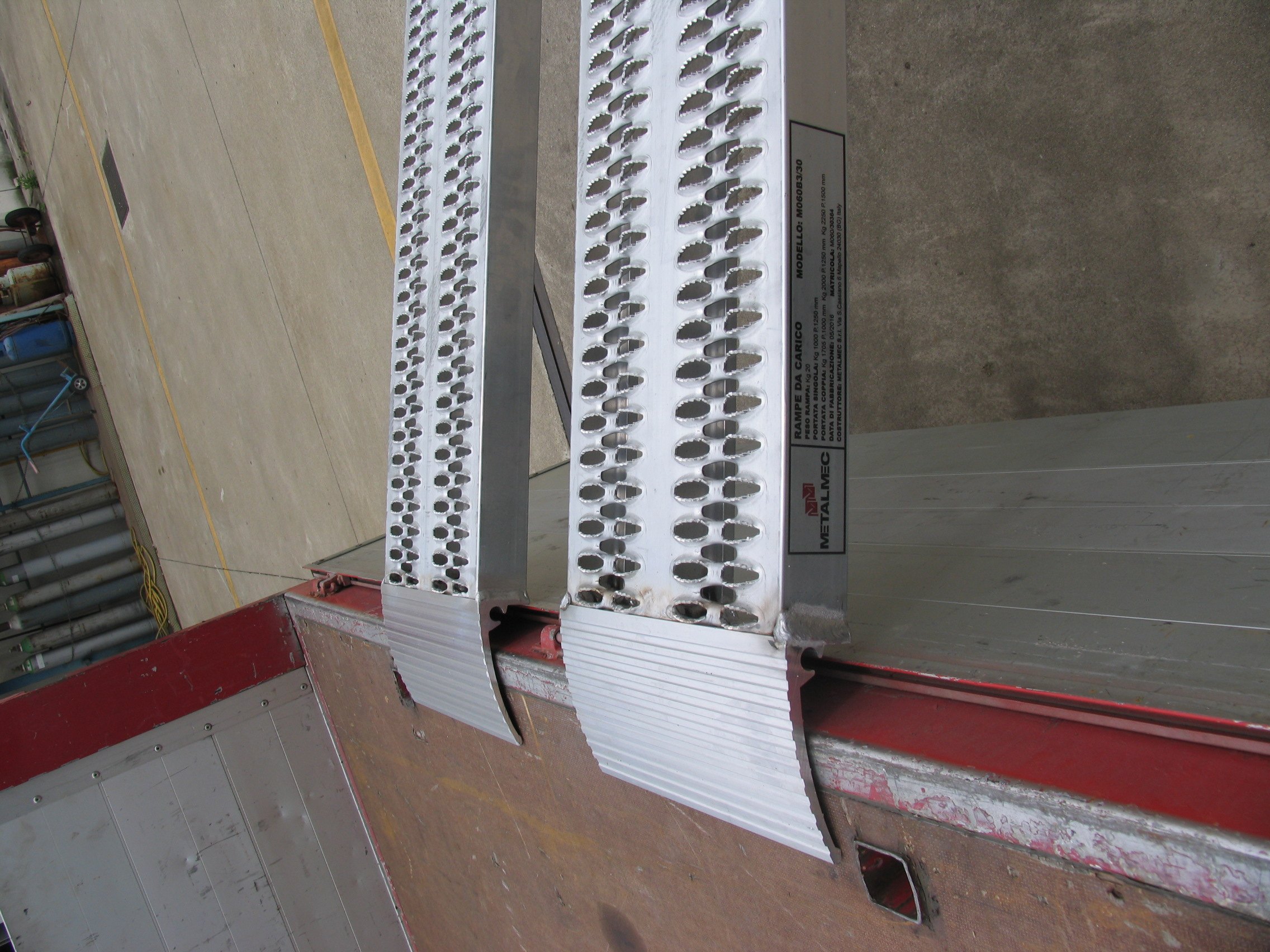

  • Four different connection options available, however the default connection is the rest on connection

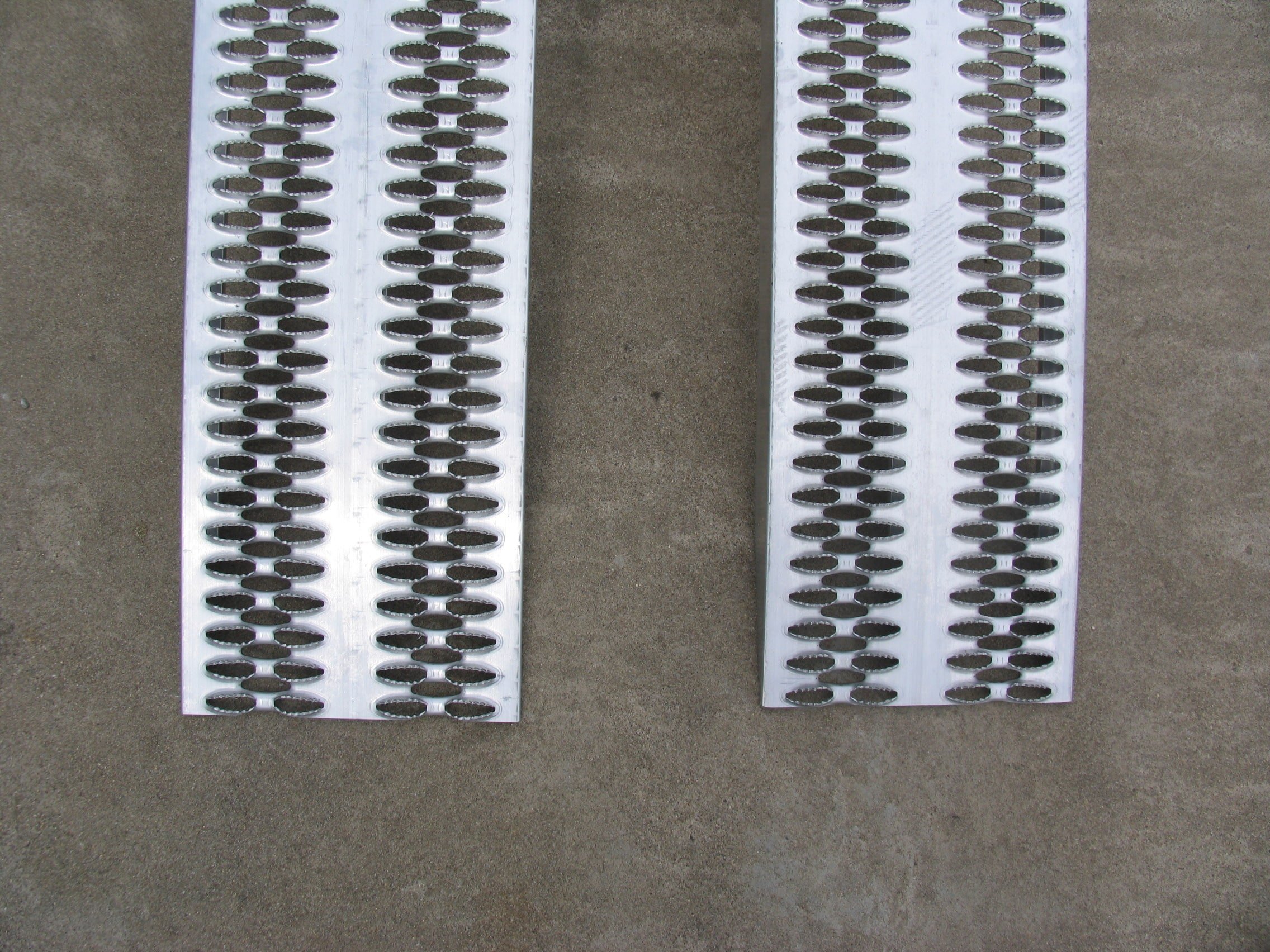

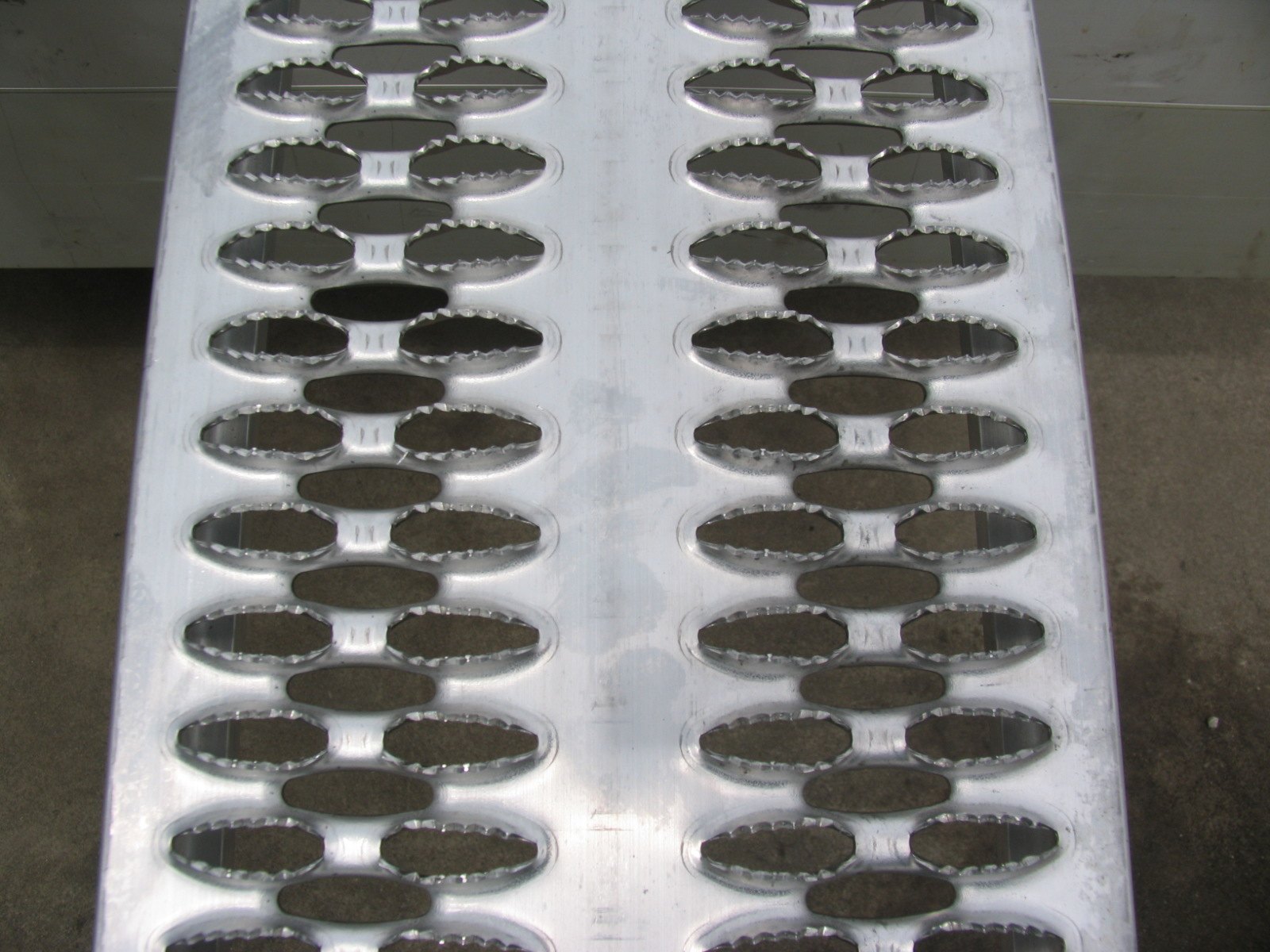

  • The large holes allow dirt to drop, ensuring an optimal grip
  • Height of the ramp Profile: 70mm
  • Strong whilst remaining relatively small
  • Ramps lie flat for easy storage when not being used
  • Capacity up to 4,500kg with a wheelbase of 1500mm
  • Width available: 315mm
  • Manufactured from lightweight aircraft grade aluminium (type 6005A)
  • Lightweight for easy handling
  • Tested to 200% loading capacity
  • R13 slip resistance, DGUV 108-003
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • European manufactured
  • Angled foot, this allows for smooth access onto the ramp when using wheeled vehicles
  • Flat-top/no edge design gives greater flexibility of use
  • Quotes for customised ramps are available
  • TUV Certified
  • Use gloves and take extra care when handling these ramps due to the ramp surface
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Price and capacity stated is for the PAIR

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Video

Details
SKUTRP60/15
Default ConnectionRest On Connection
Capacity (kg)4500
Height of Ramps Profile (mm)70
Length (mm)1500
Max Load Height (mm)450
Min. Load Height (mm)300
Weight per Ramp (kg)11
Weight Per Pair (kg) 22
Width (mm)315
Minimum Track Width (mm)150
Maximum Track Width (mm)295
One Year WarrantyYes
CustomisableYes
Easy to FitYes
European MadeYes
Capacity Wheelbase 1000mm (kg)4500
Capacity Wheelbase 1250mm (kg)4500
Capacity Wheelbase 1500mm (kg)4500
