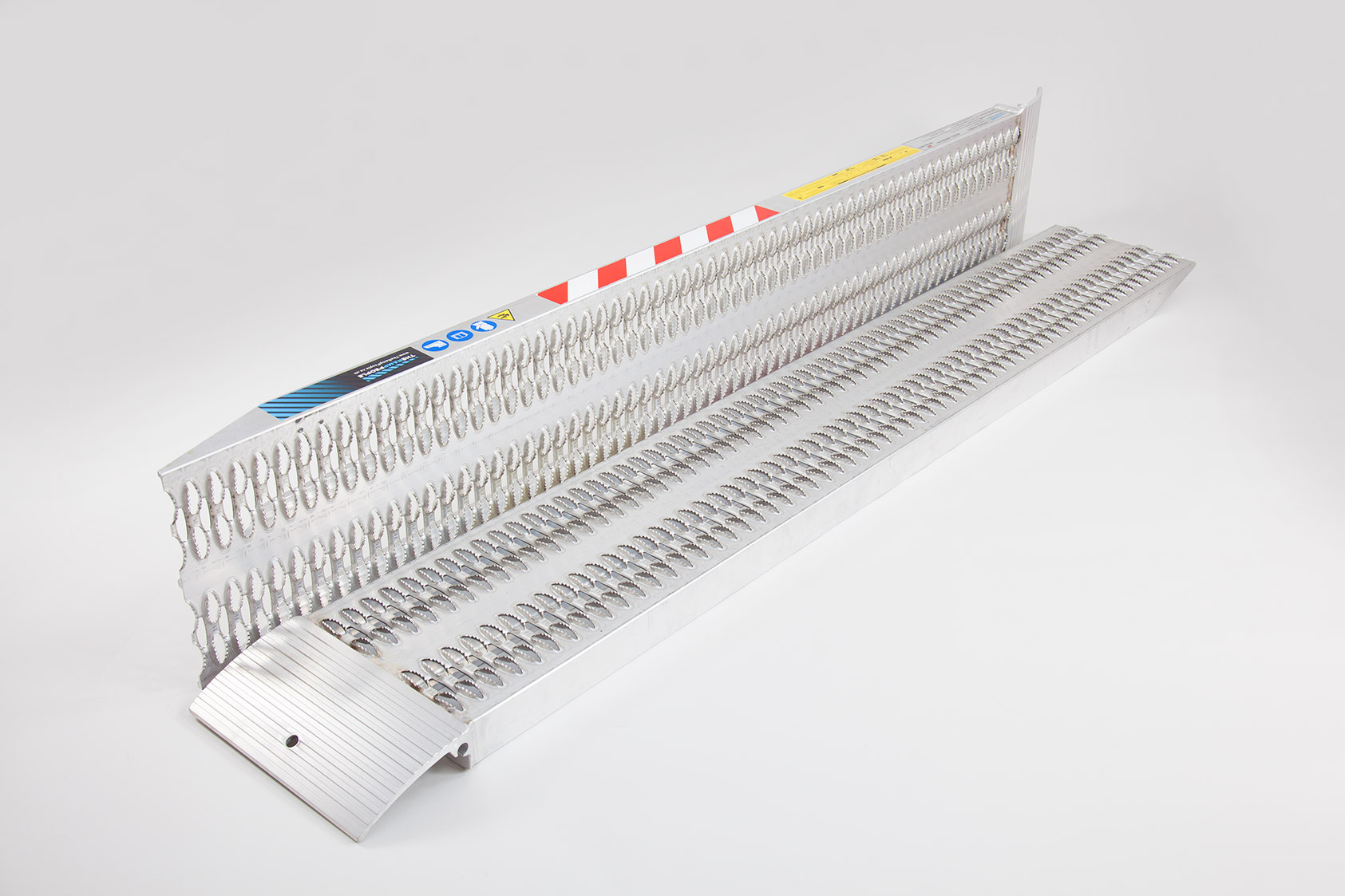

Professional Loading Ramps (3.5m long)
The Ramp factory's loading ramps are ideal for small plant machinery. If you require a longer length, The Ramp Factory offer this range of loading ramps in 4000mm. Alternatively, for shorter lengths, The Ramp Factory offer 1500mm, 2000mm, 2500mm and, 3000mm,
Grip surface provides incredible traction - please ensure your tyres have sufficient tread to avoid damage.
Length (mm) | 3500 |
Width (mm) | 315 |
Max. Load Height (mm) | 1050 |
Min. Load Height (mm) | 900 |
Weight Per Ramp (kg) | 23.5 |
Profile Height (mm) | 70 |
Capacity (kg) | 1500 |
Professional Non-Folding Loading Ramps feature:
- Single piece ramp design, featuring zero welding

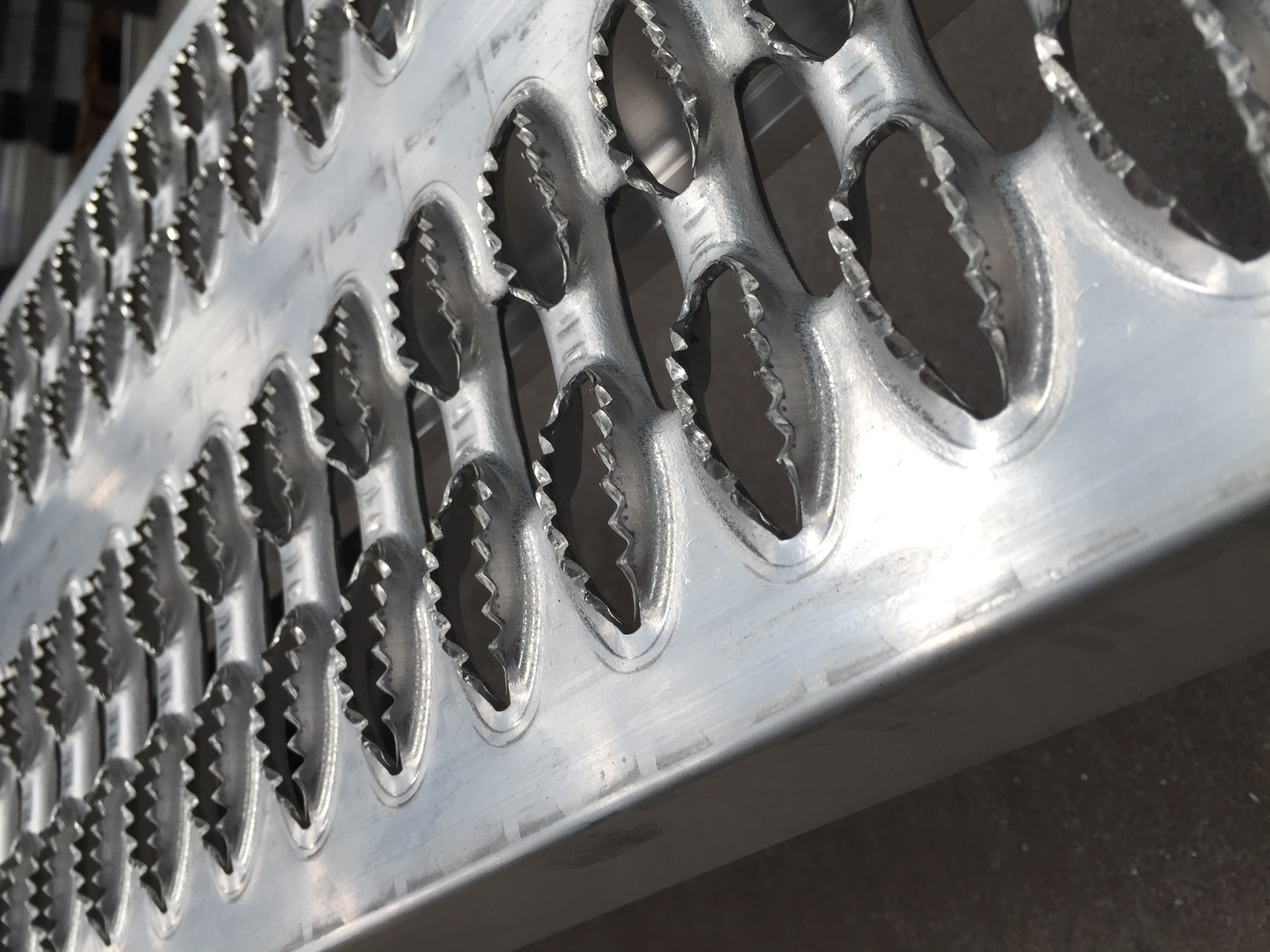

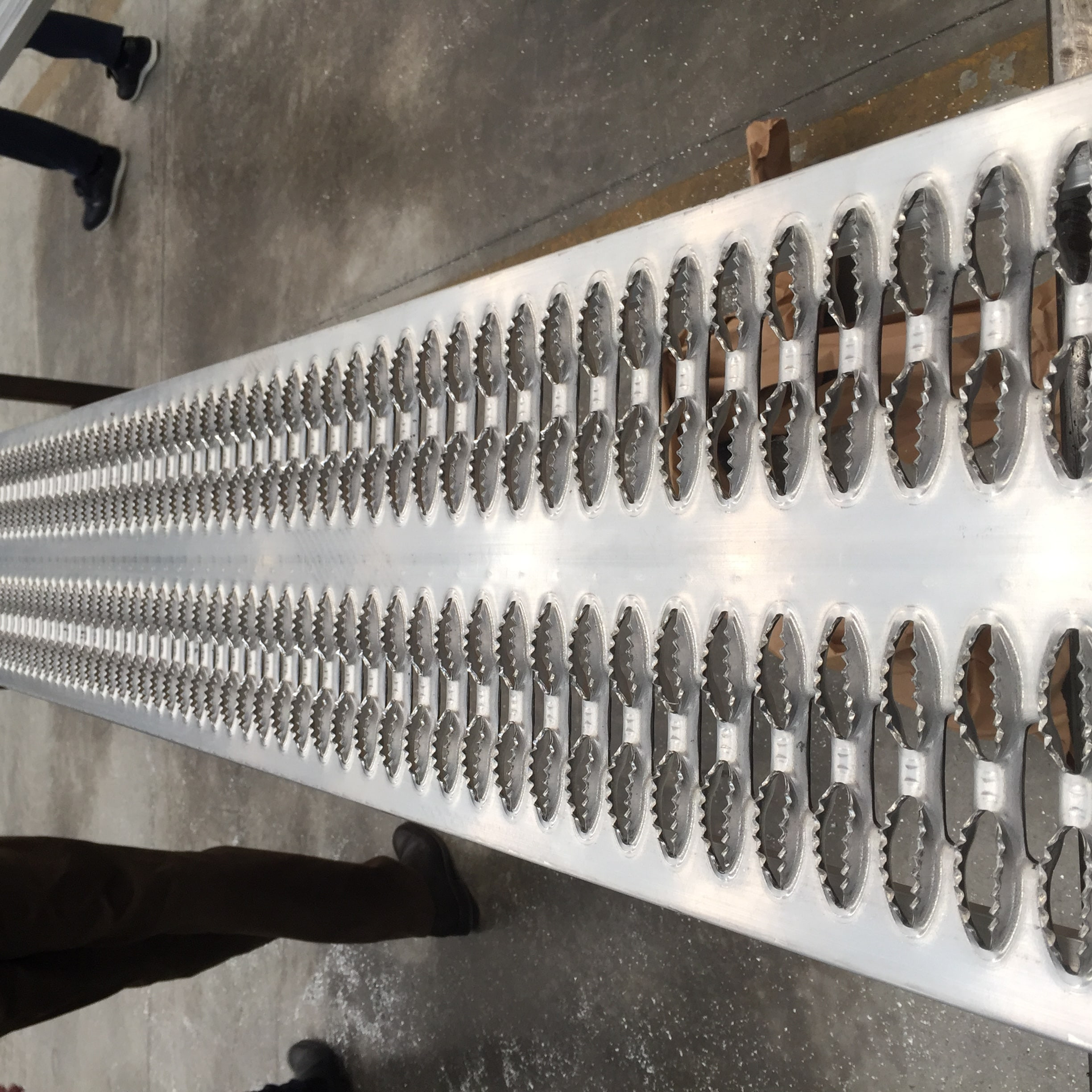

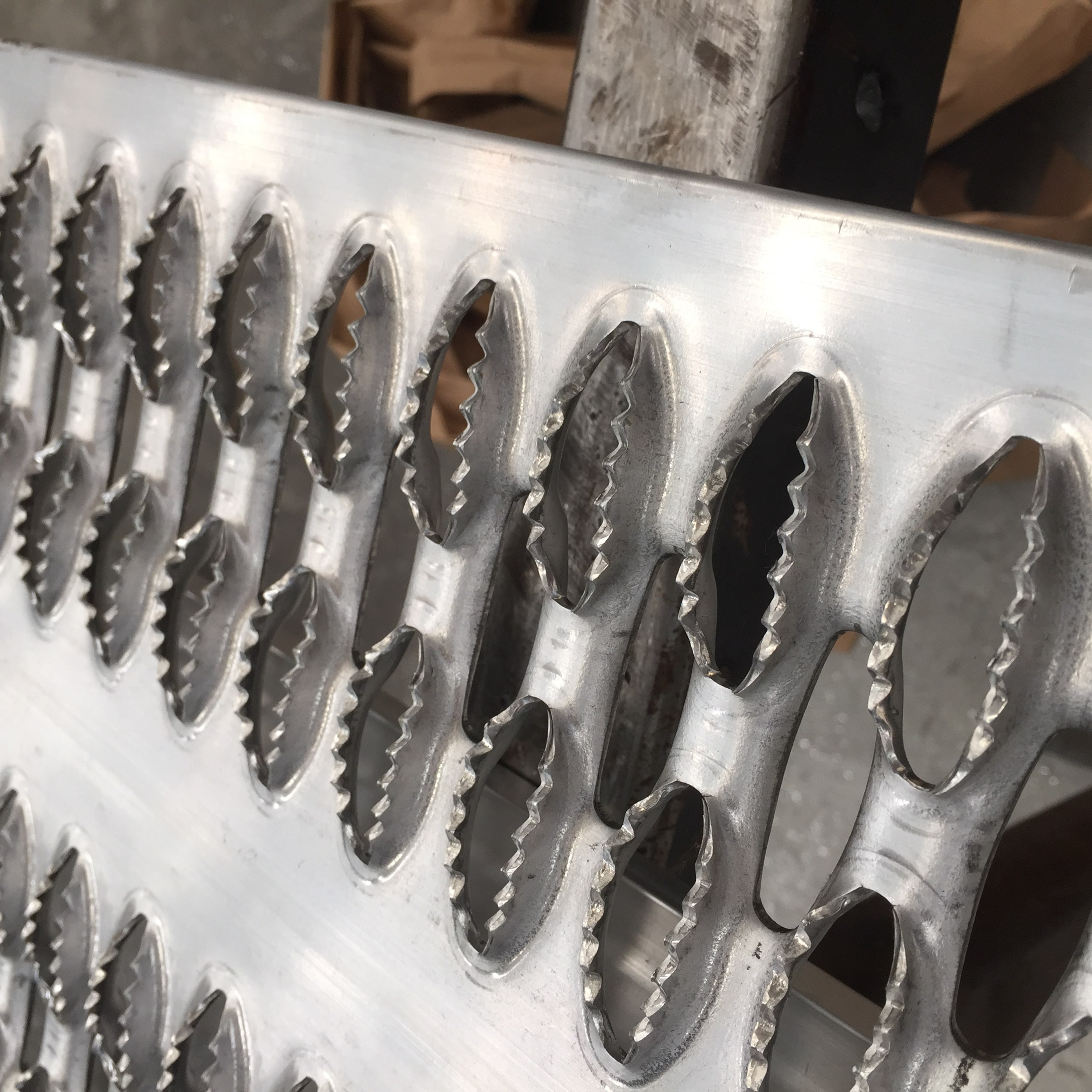

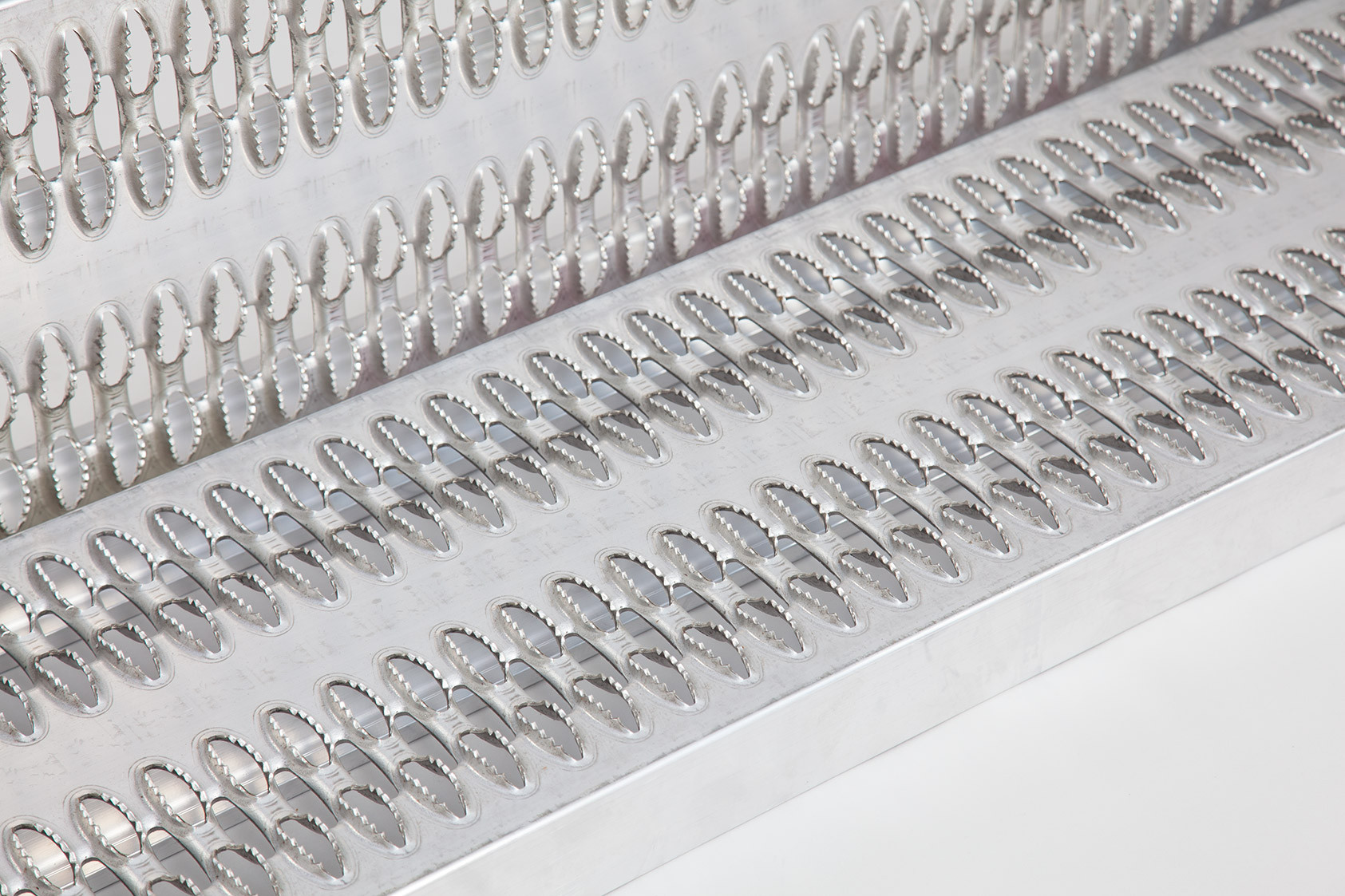

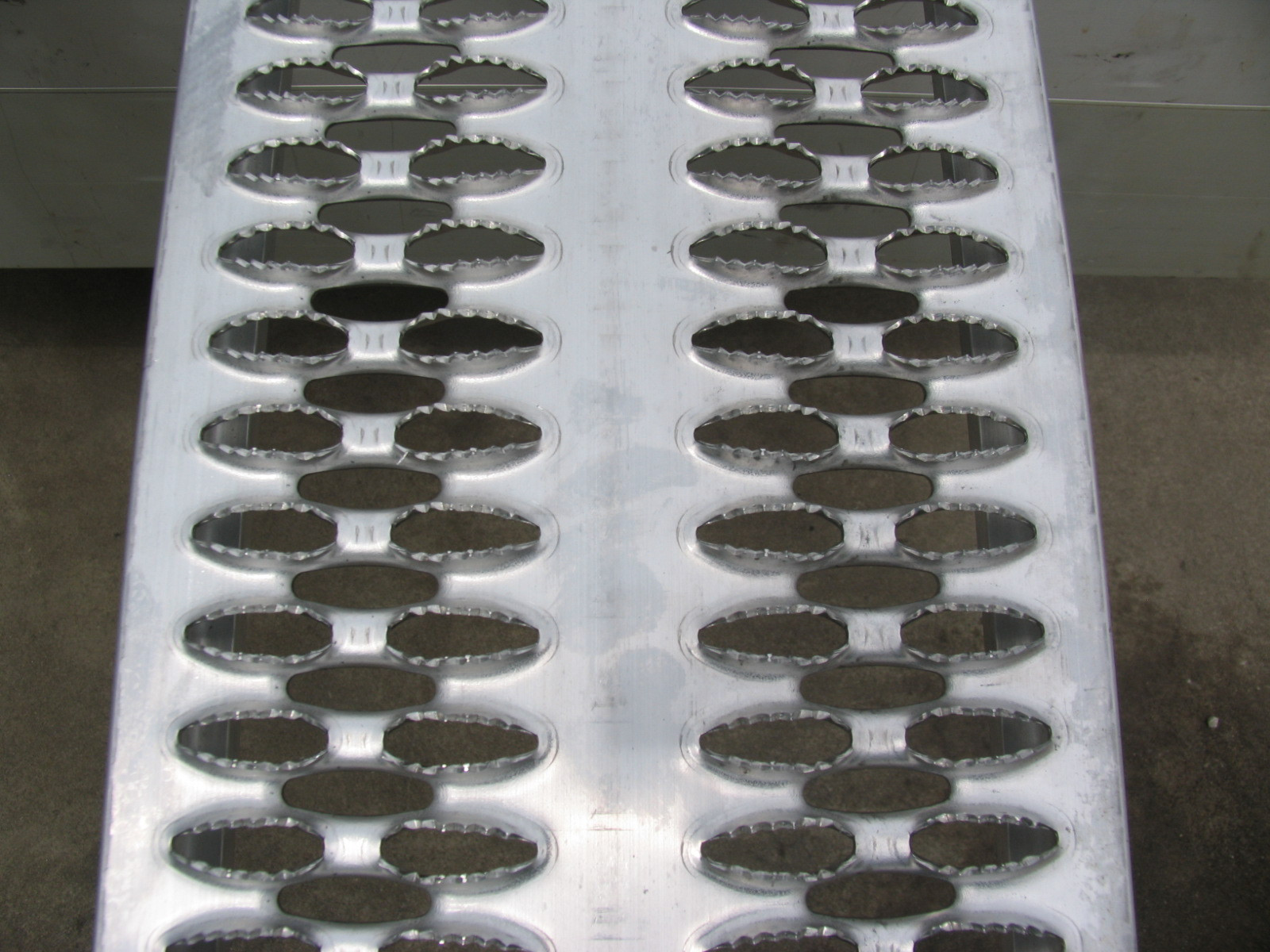

- The large holes allow dirt to drop, ensuring optimal grip
- Height of the ramp Profile: 70mm
- Strong whilst remaining relatively small
- Ramps lie flat for easy storage when not being used
- Capacity up to1500kg with a wheelbase of 1500mm
- Width available: 315mm
- Manufactured from lightweight aircraft grade aluminium (type 6005A)
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Lightweight for easy handling
- Tested to 200% loading capacity
- European manufactured

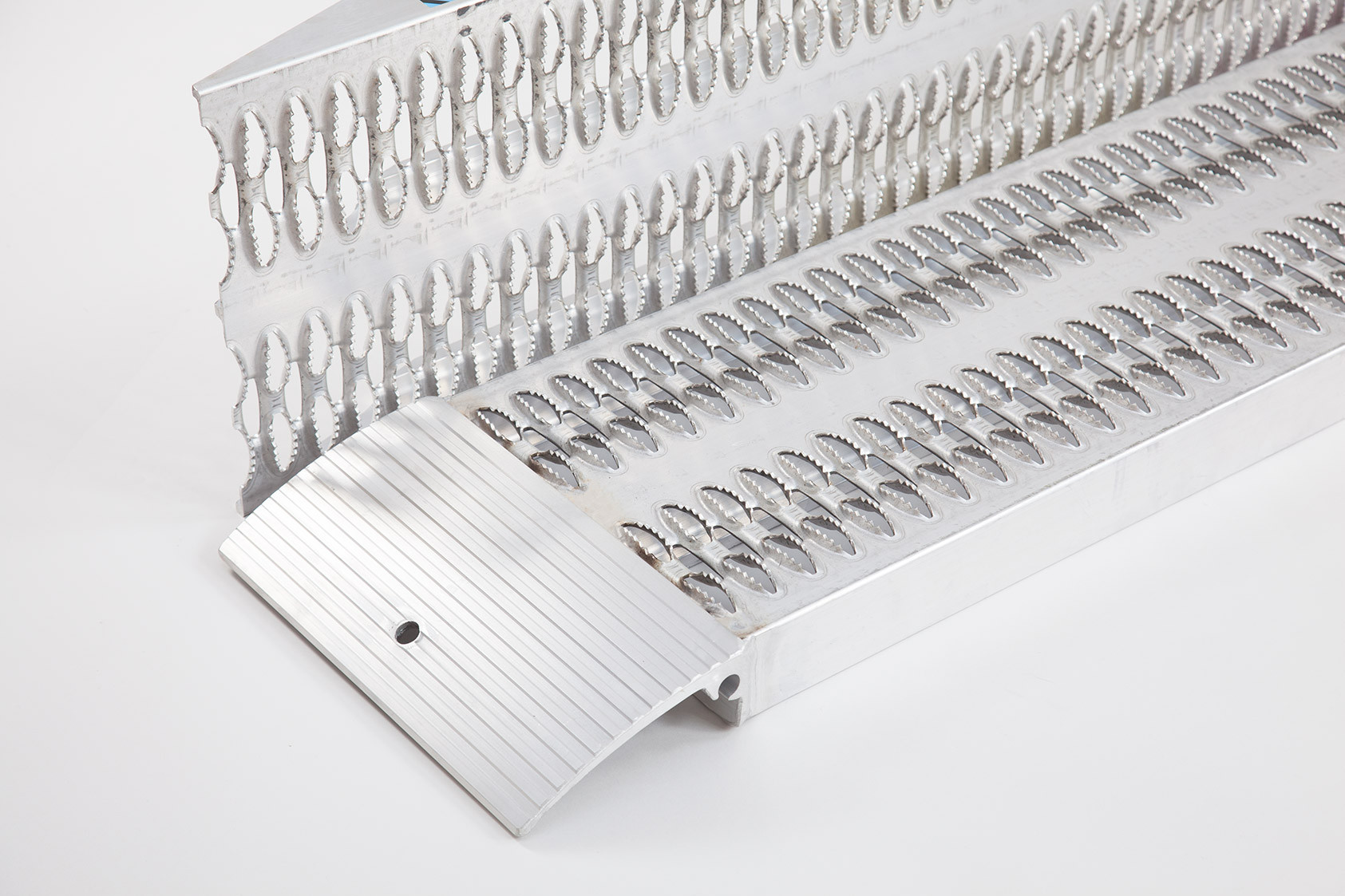

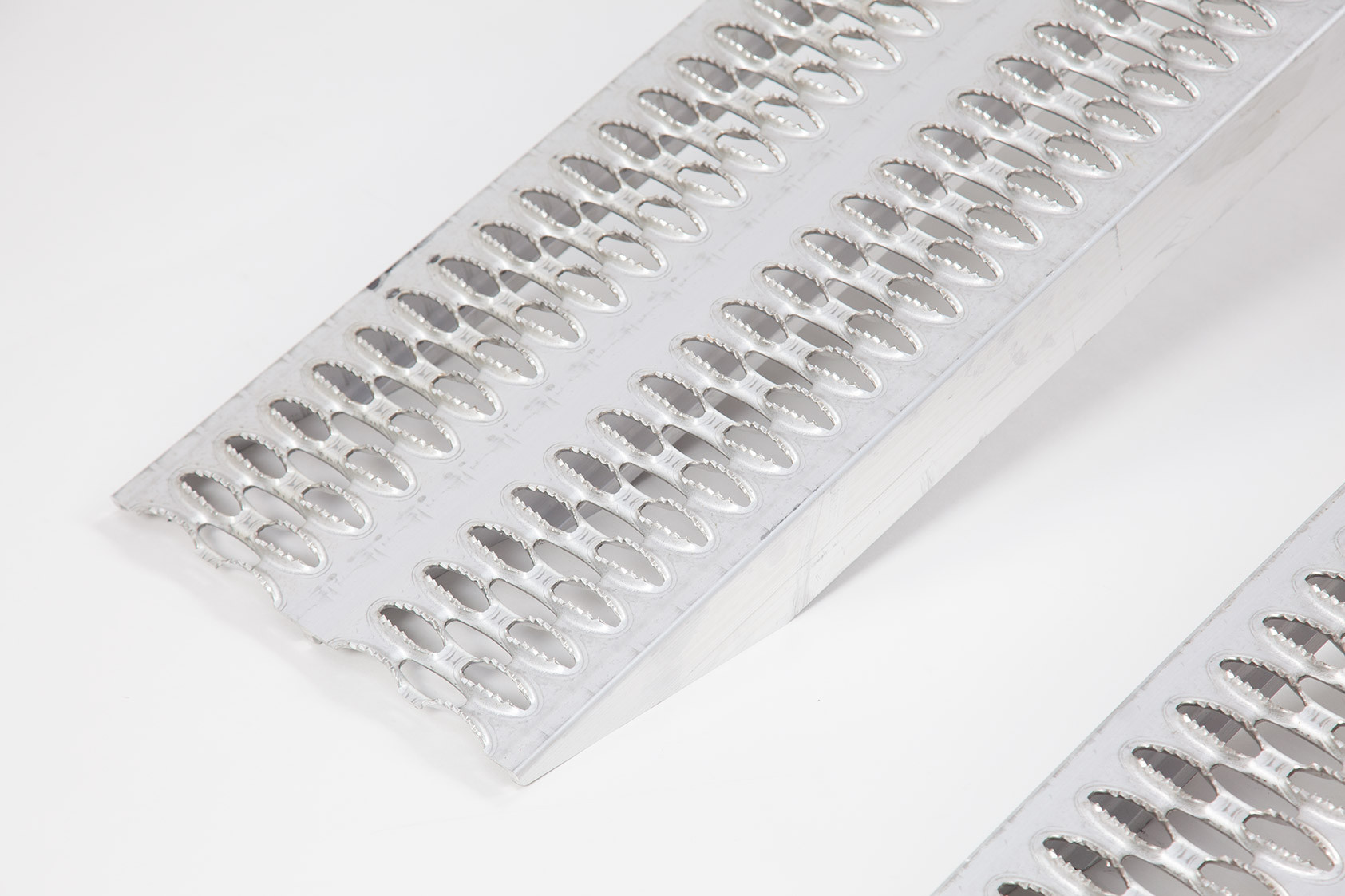

- Angled foot, this allows for smooth access onto the ramp when using wheeled vehicles
- Flat-top/no edge design gives greater flexibility of use
- Quotes for customised ramps are available
- TUV Certified
- Use gloves and take extra care when handling these ramps due to the ramp surface
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Price and capacity stated is for the PAIR.
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP60/35 |
---|---|
Capacity (kg) | 1500 |
Height of Ramps Profile (mm) | 70 |
Length (mm) | 3500 |
Max Load Height (mm) | 1050 |
Min. Load Height (mm) | 900 |
Weight per Ramp (kg) | 23.50 |
Weight Per Pair (kg) | 47 |
Width (mm) | 315 |
Minimum Track Width (mm) | 315 |
Maximum Track Width (mm) | 315 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Capacity Wheelbase 1000mm (kg) | 1200 |
Capacity Wheelbase 1250mm (kg) | 1350 |
Capacity Wheelbase 1500mm (kg) | 1500 |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

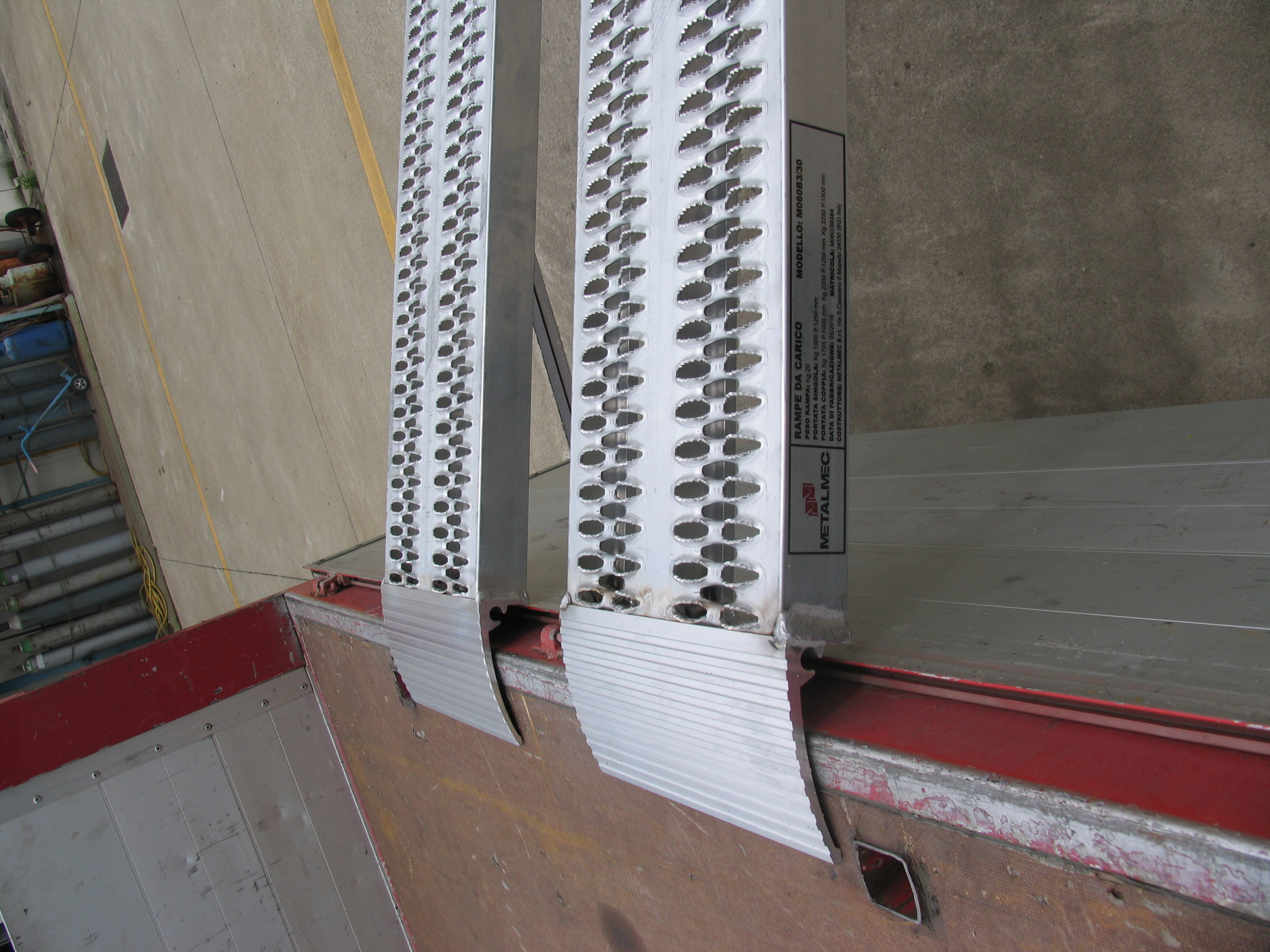

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
