RollAble Ramp, 785mm Wide

SKU
TRP-RollAble760
From £378.00 £315.00
Built to order / 2-3 working days
Only %1 left

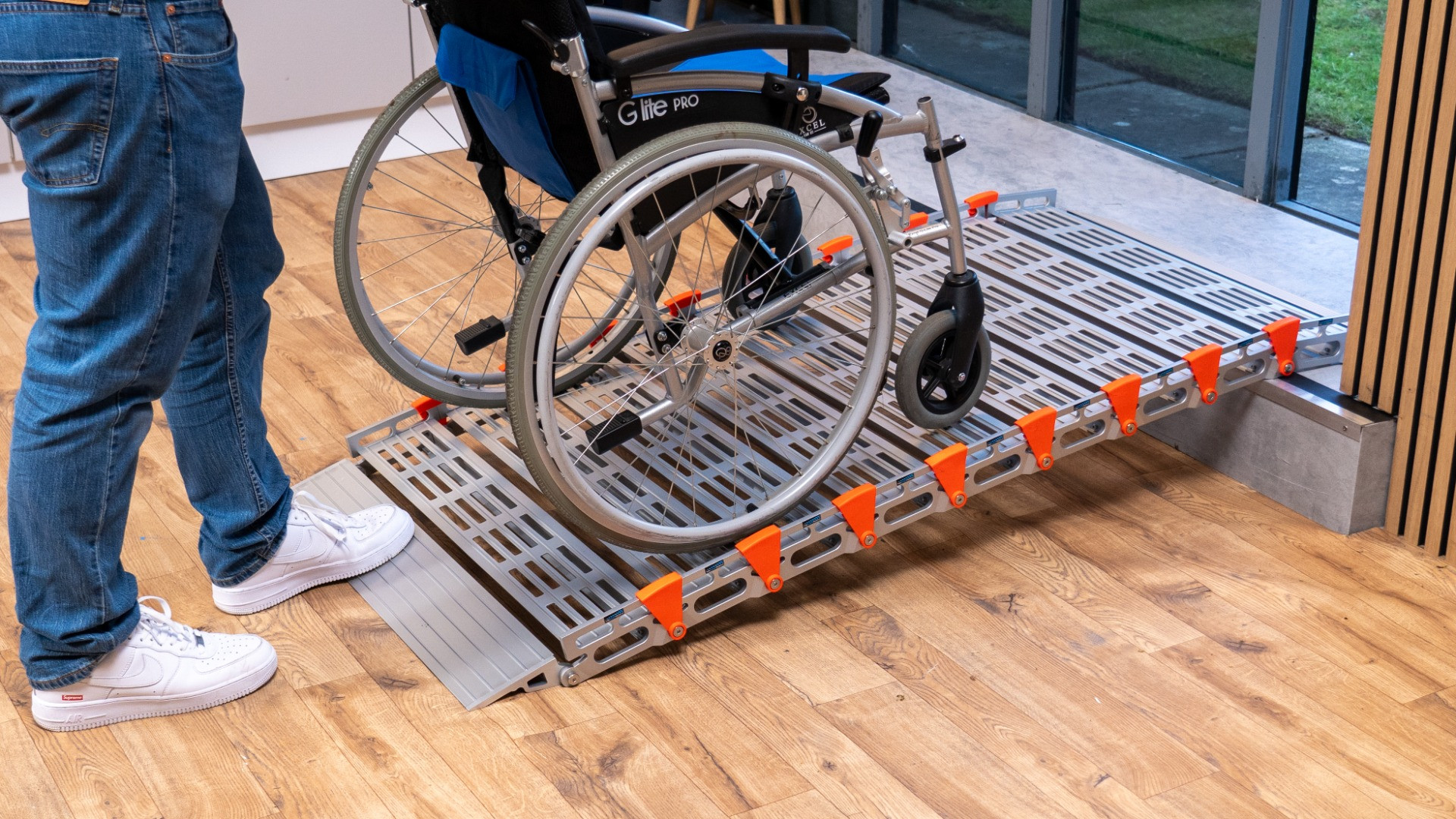

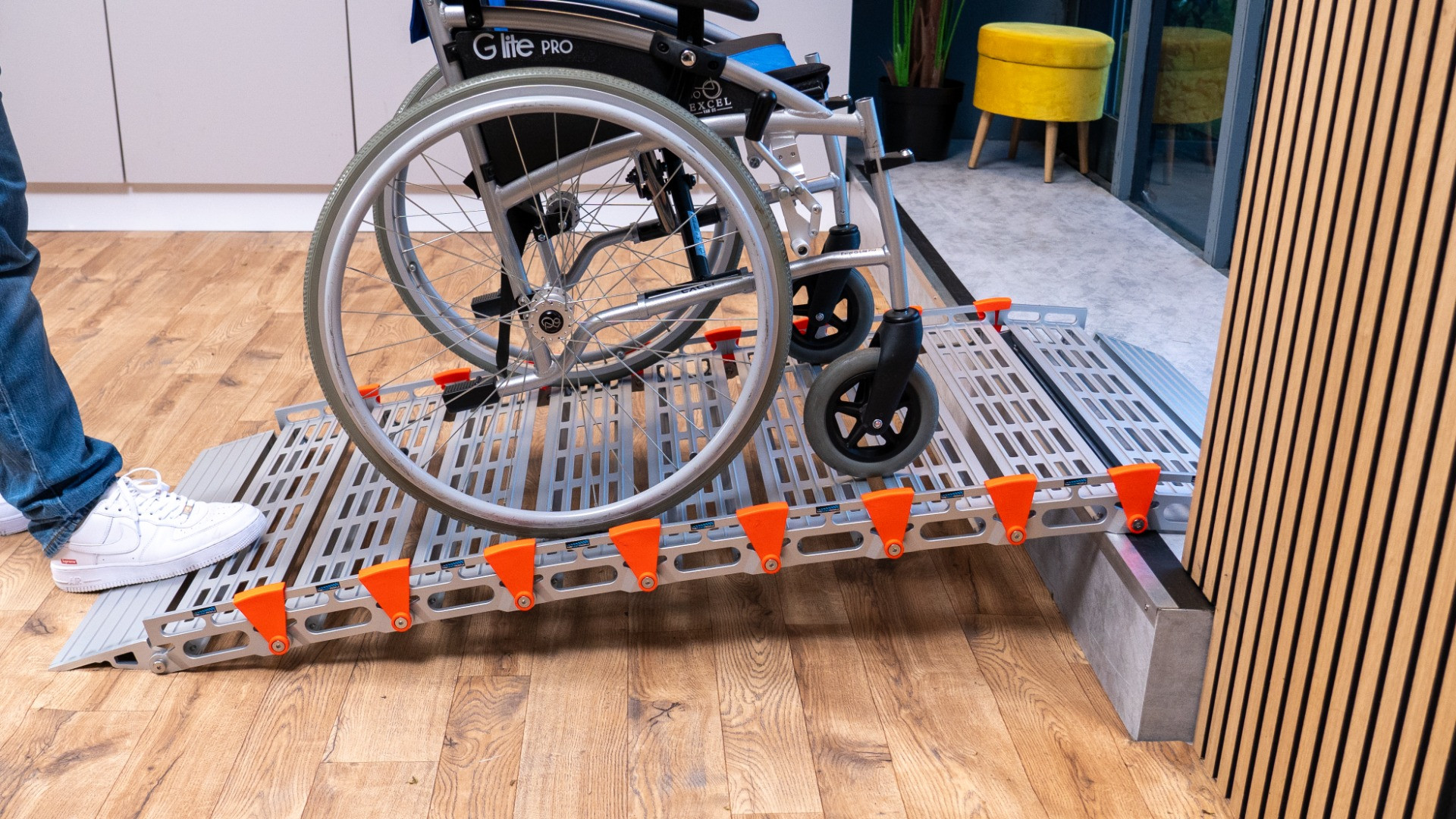

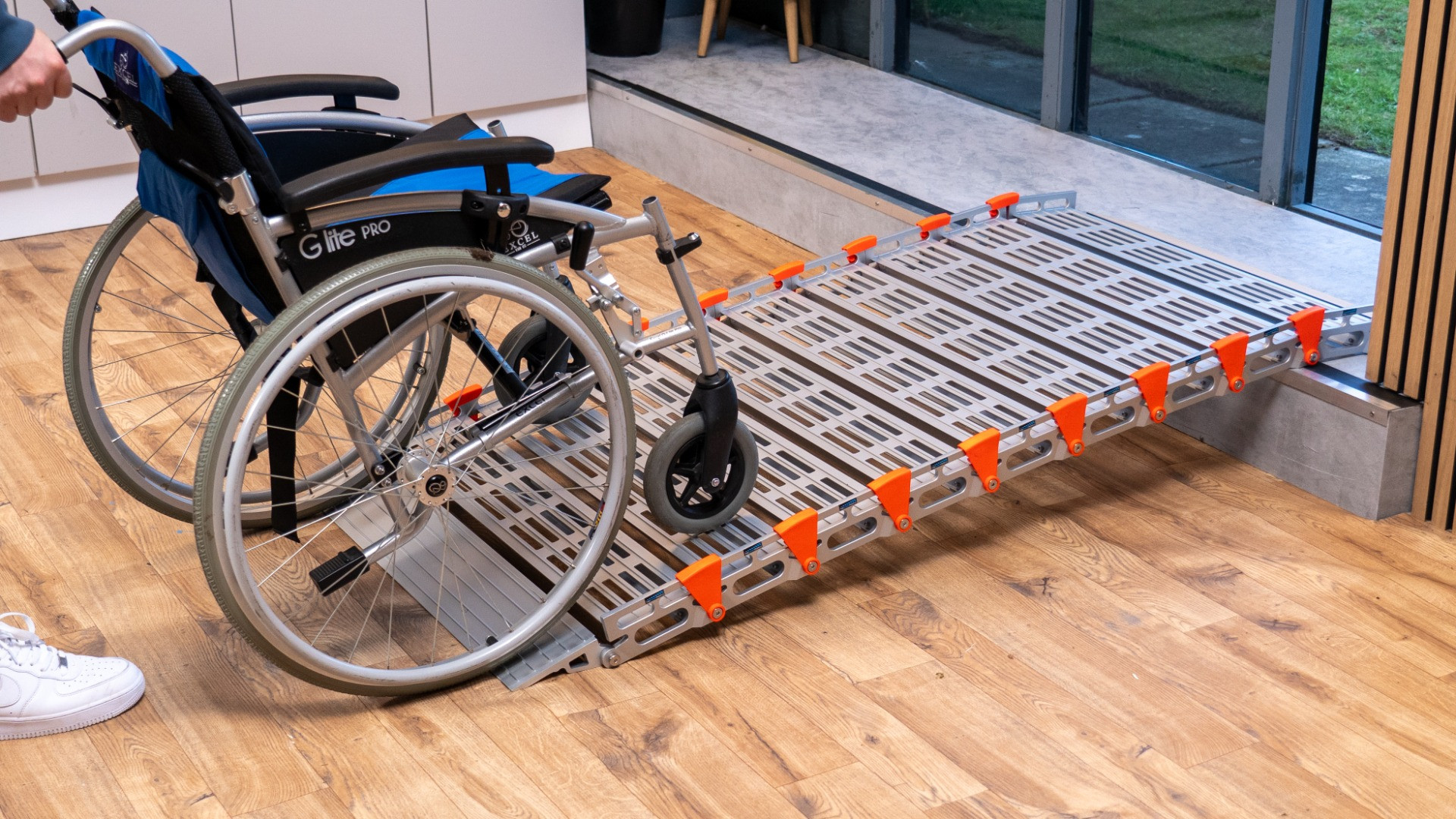

RollAble Ramps are ideal for commercial and private use. With a capacity of 453kg, this portable wheelchair ramp is ideal for overcoming steps, kerbs, doorways, and thresholds, such as trickly PVC doors. This design is suitable for scooters, wheelchairs, and electric wheelchairs.

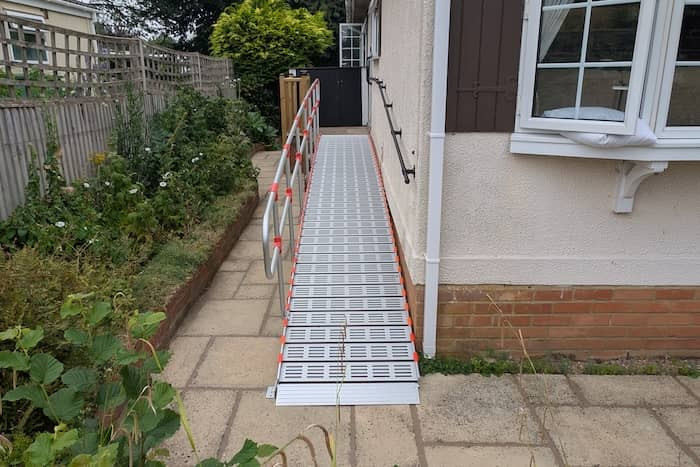

You can roll the ramp for storage and transport. Whenever necessary, sections can be removed or added. Additionally, RollAble ramps are lightweight and durable, making them ideal for indoor or outdoor use. RollAble handrails are also available to purchase here.

Please note support stands are included from 8ft onwards, legs are fitted by the customer upon arrival.

RollAble Ramps can be built at any length. Please contact us if you need ramps over 21ft.

Description

RollAble Ramp Logo

RollAble Ramp Features Include:

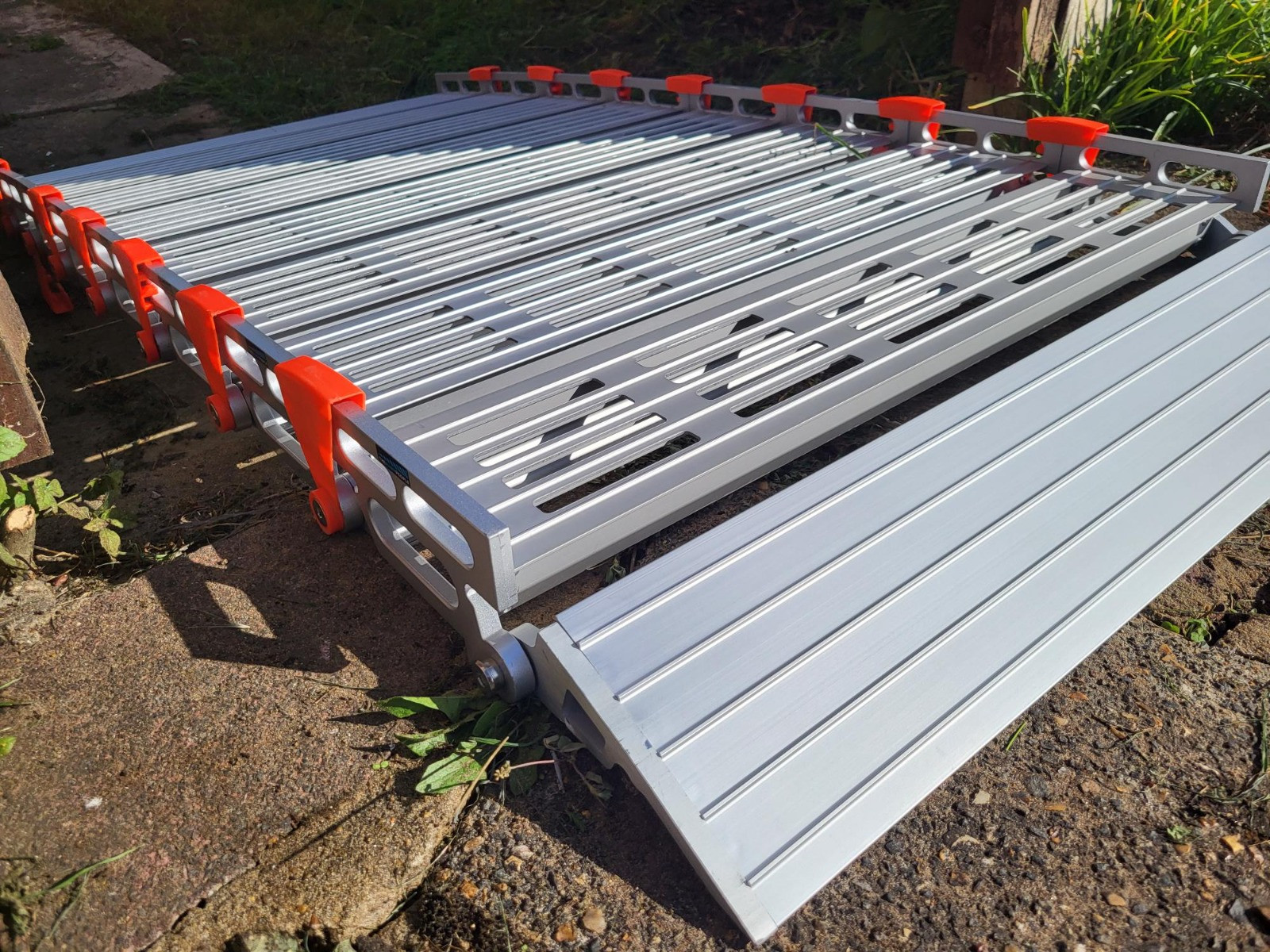

    • RollAble Ramp is flexible and portable

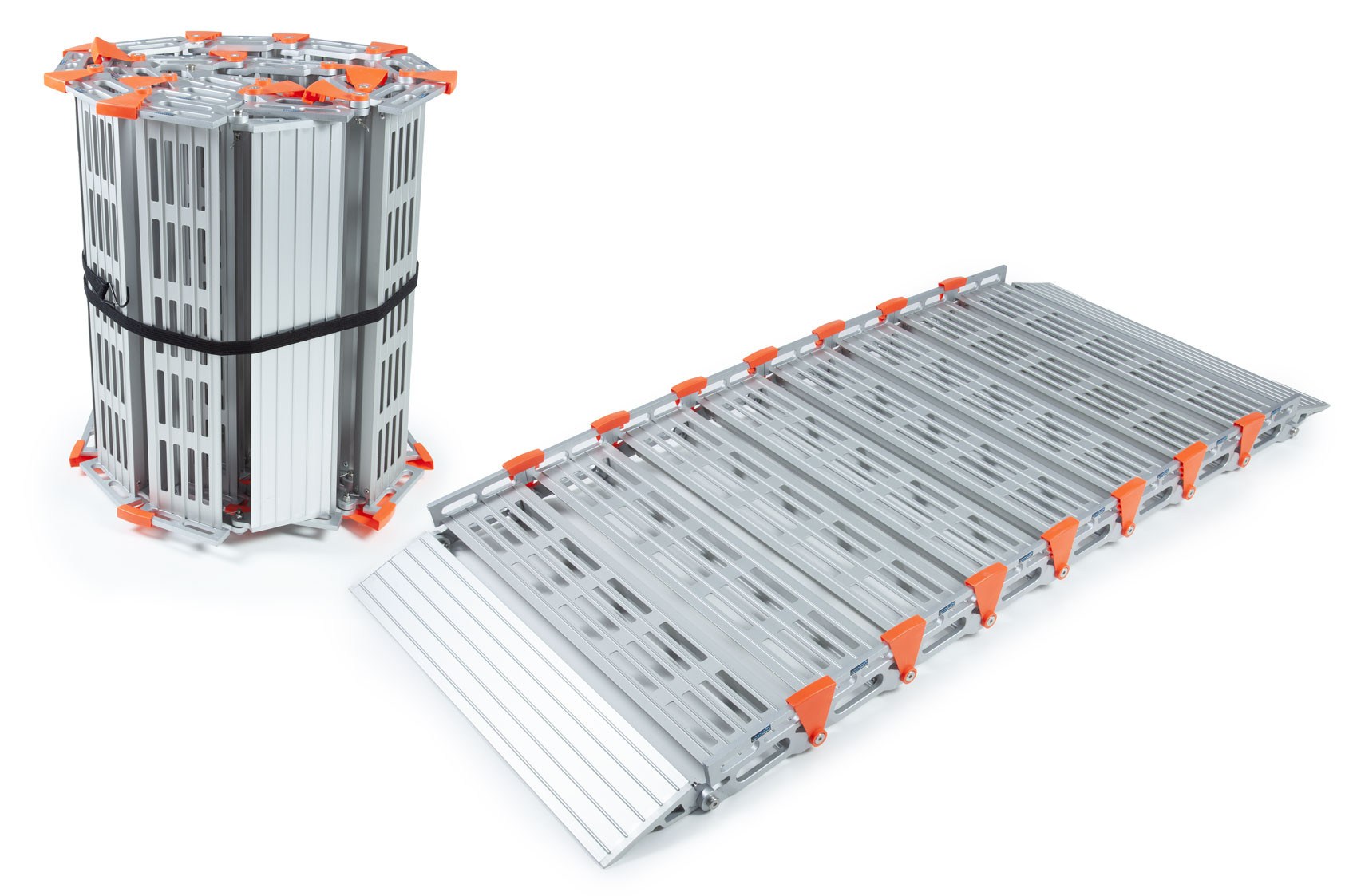

    • Roll up ramp is designed for easy storage and transportation. Provided with black safety strap to keep the ramp rolled during storage
    • Lengths from 3ft to any length available
    • 453kg capacity

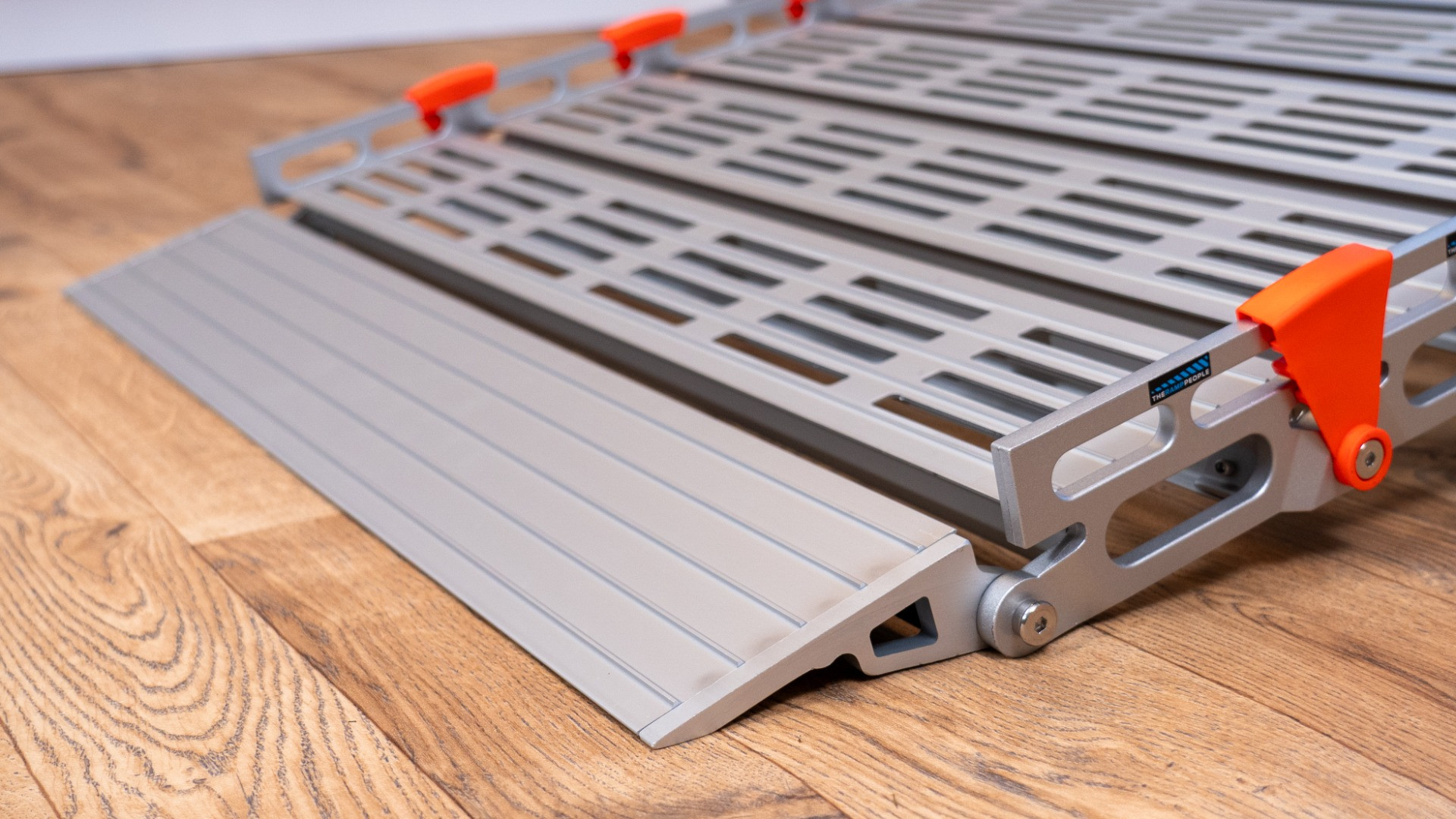

    • Smooth access onto and off of the wheelchair ramp
    • Constructed from aluminium

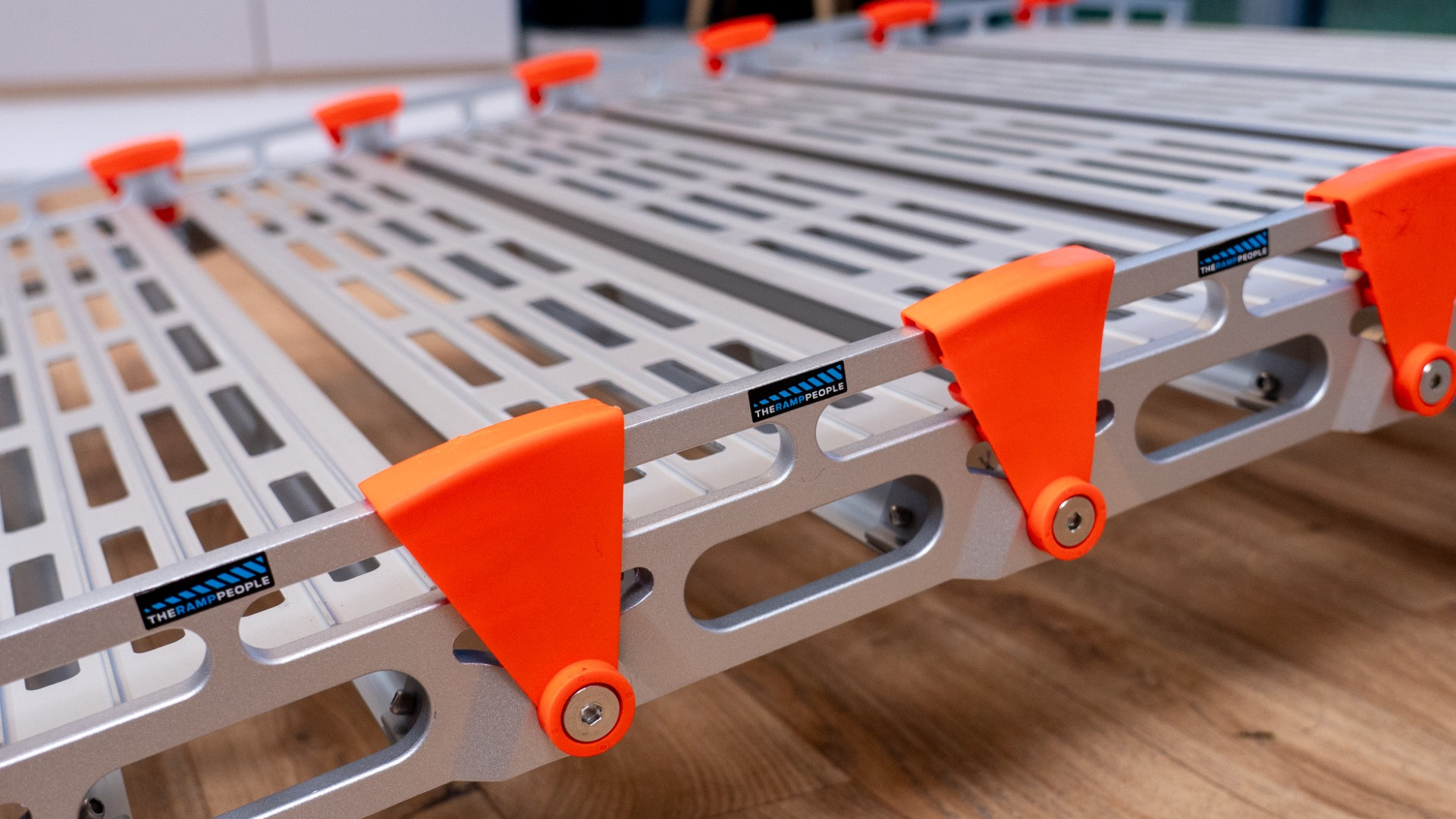

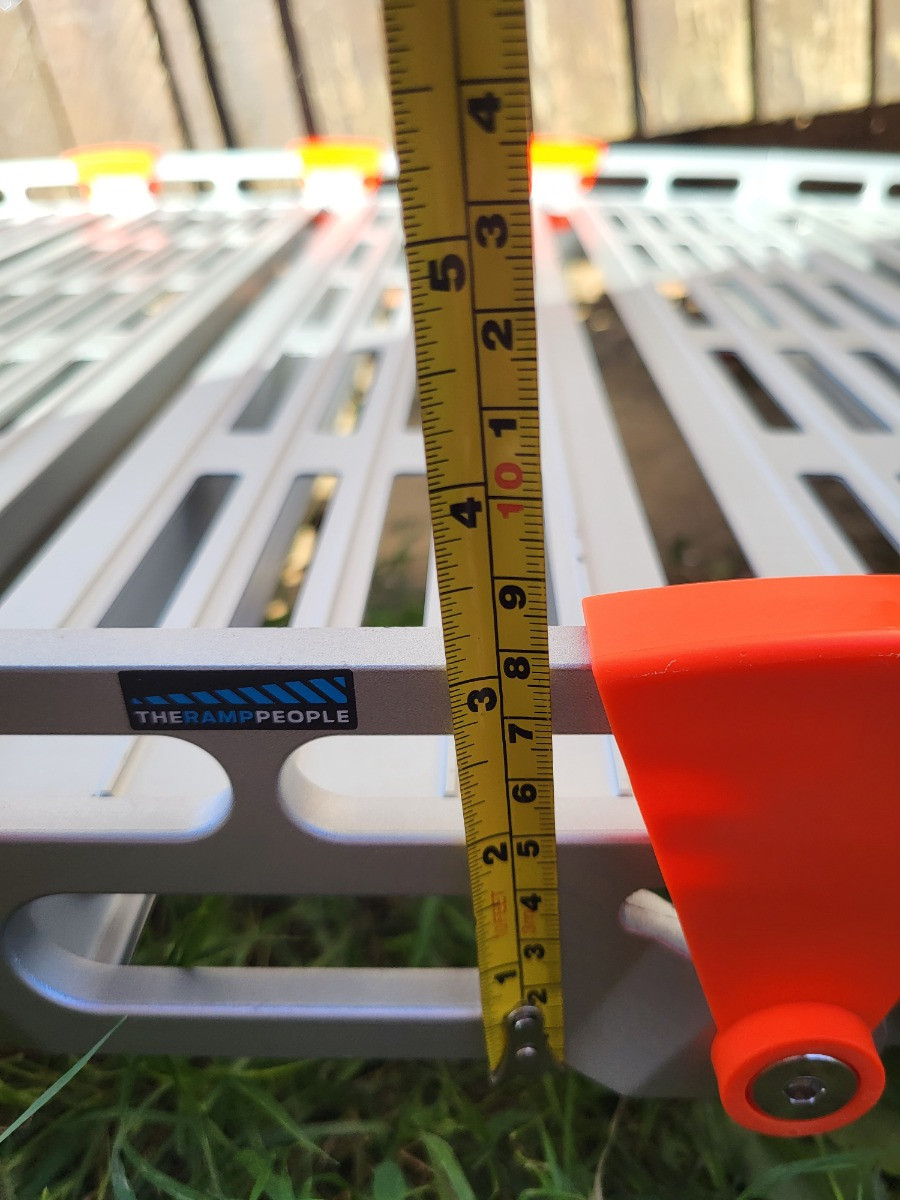

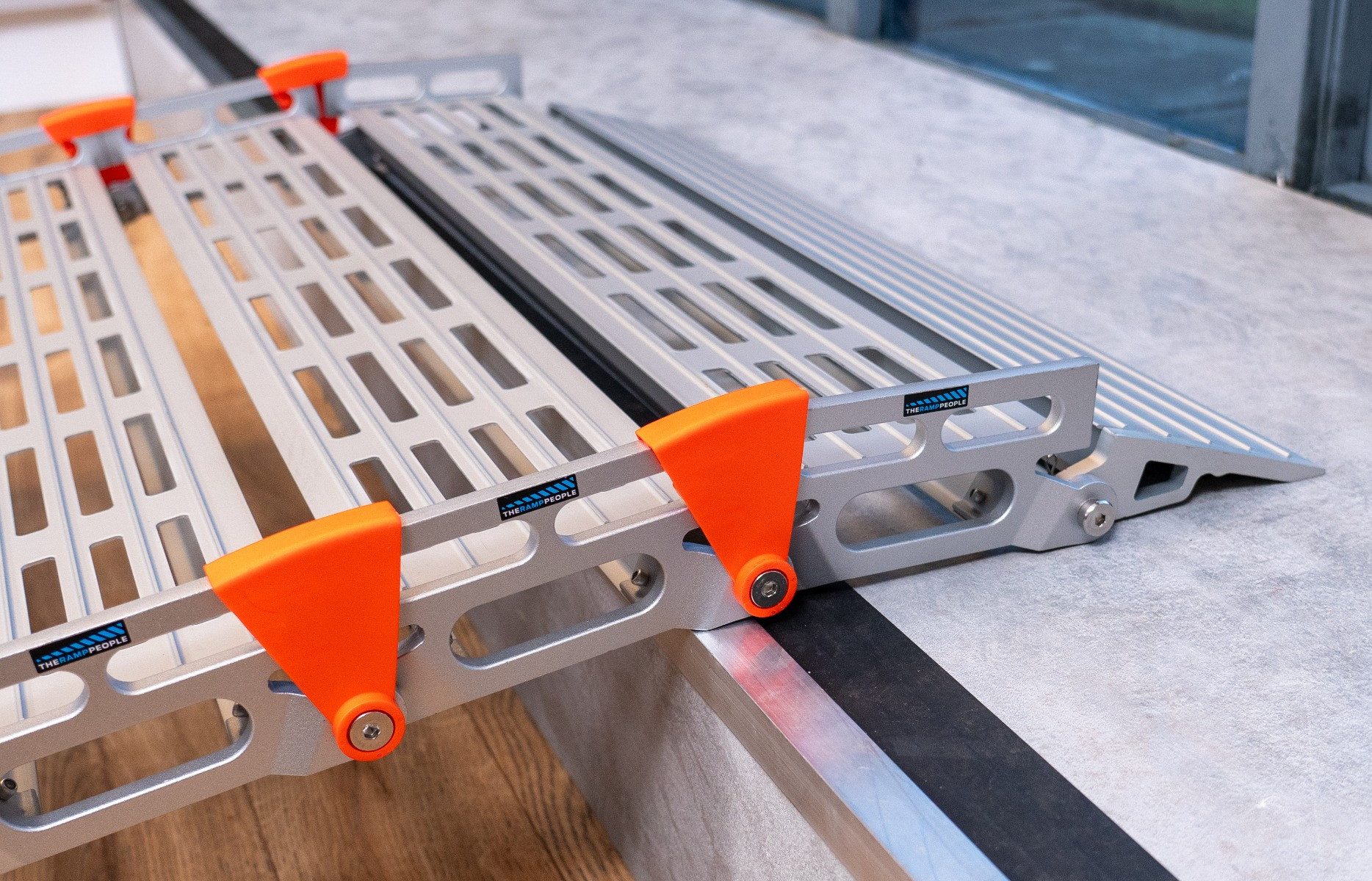

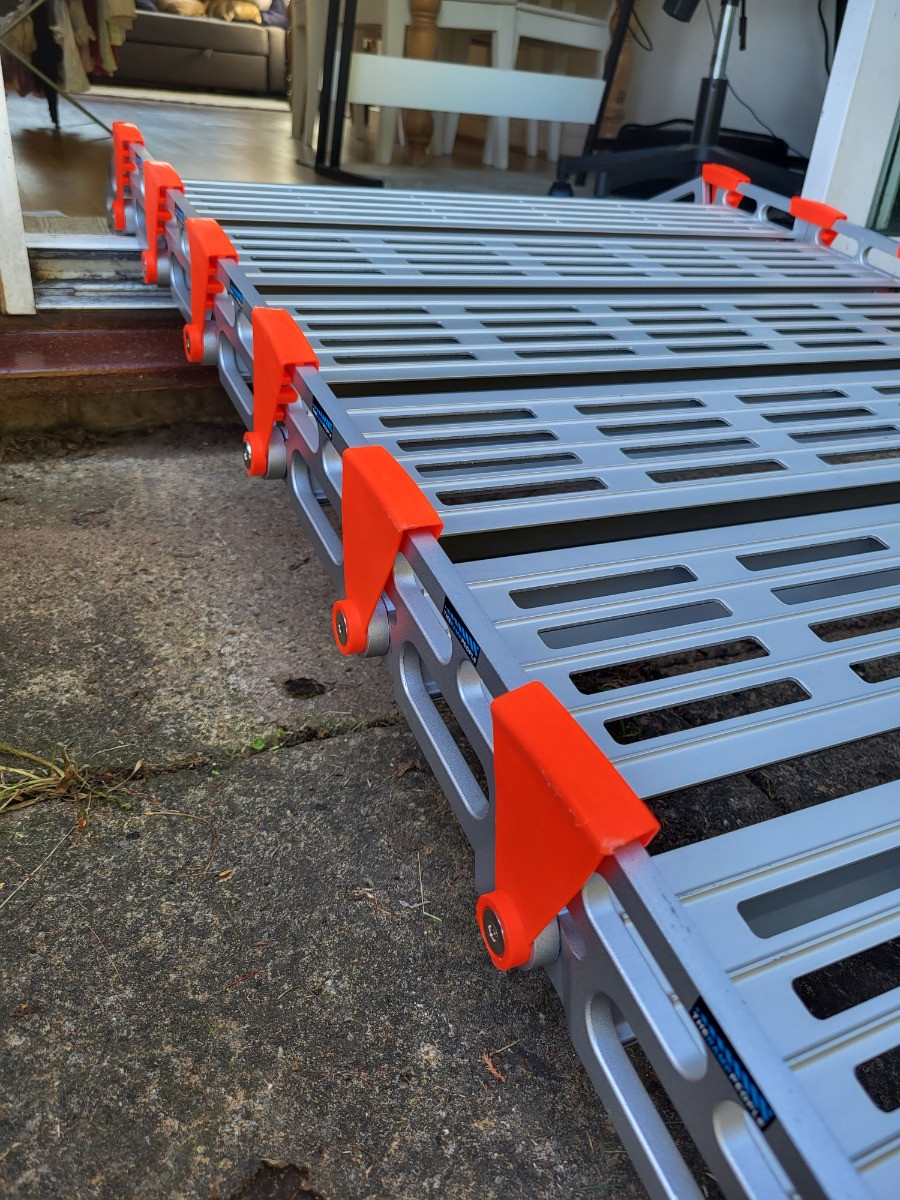

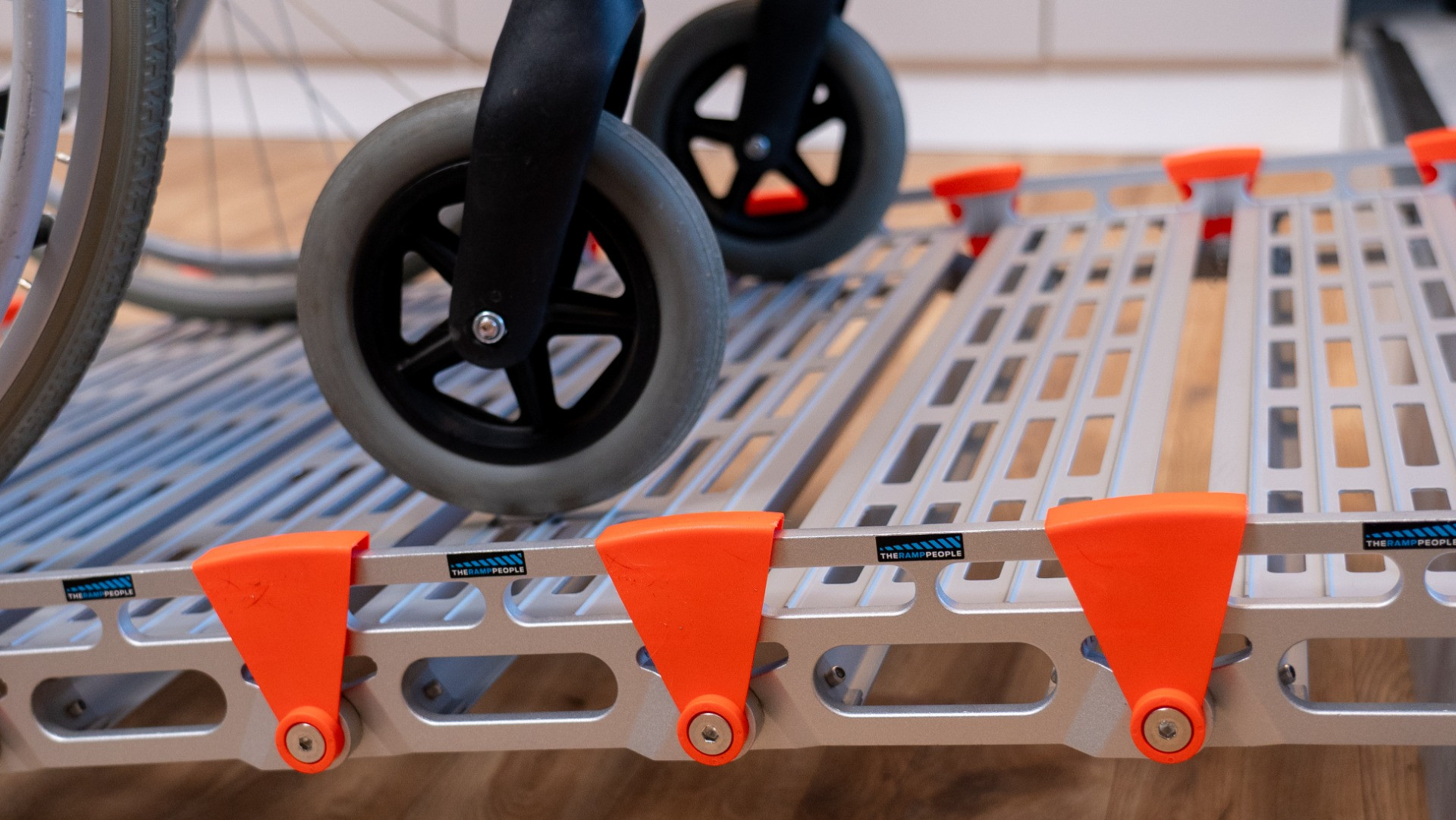

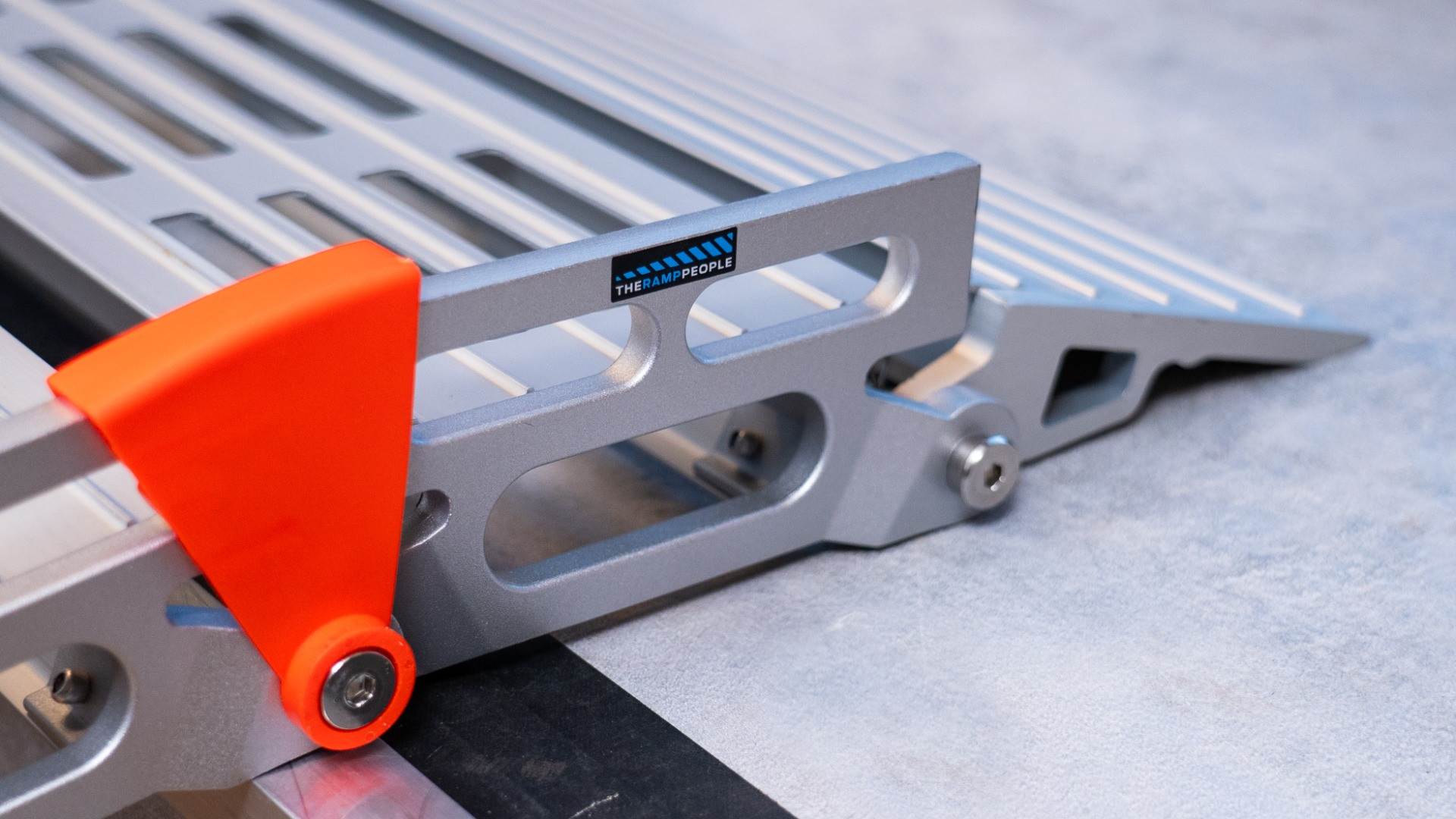

    • High visibility safety edges, 30mm high on each side of the ramp to prevent accidentally wheeling off

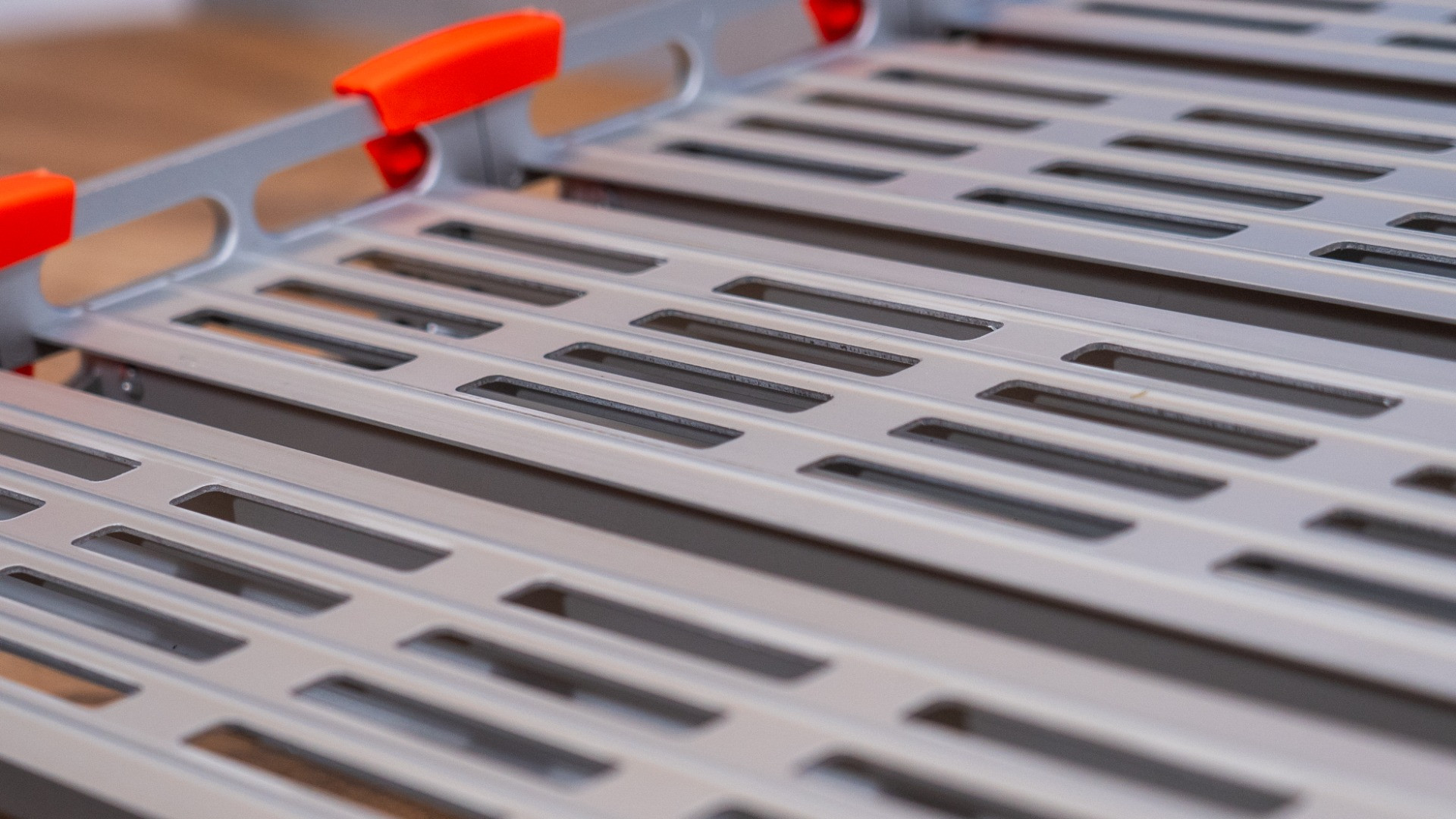

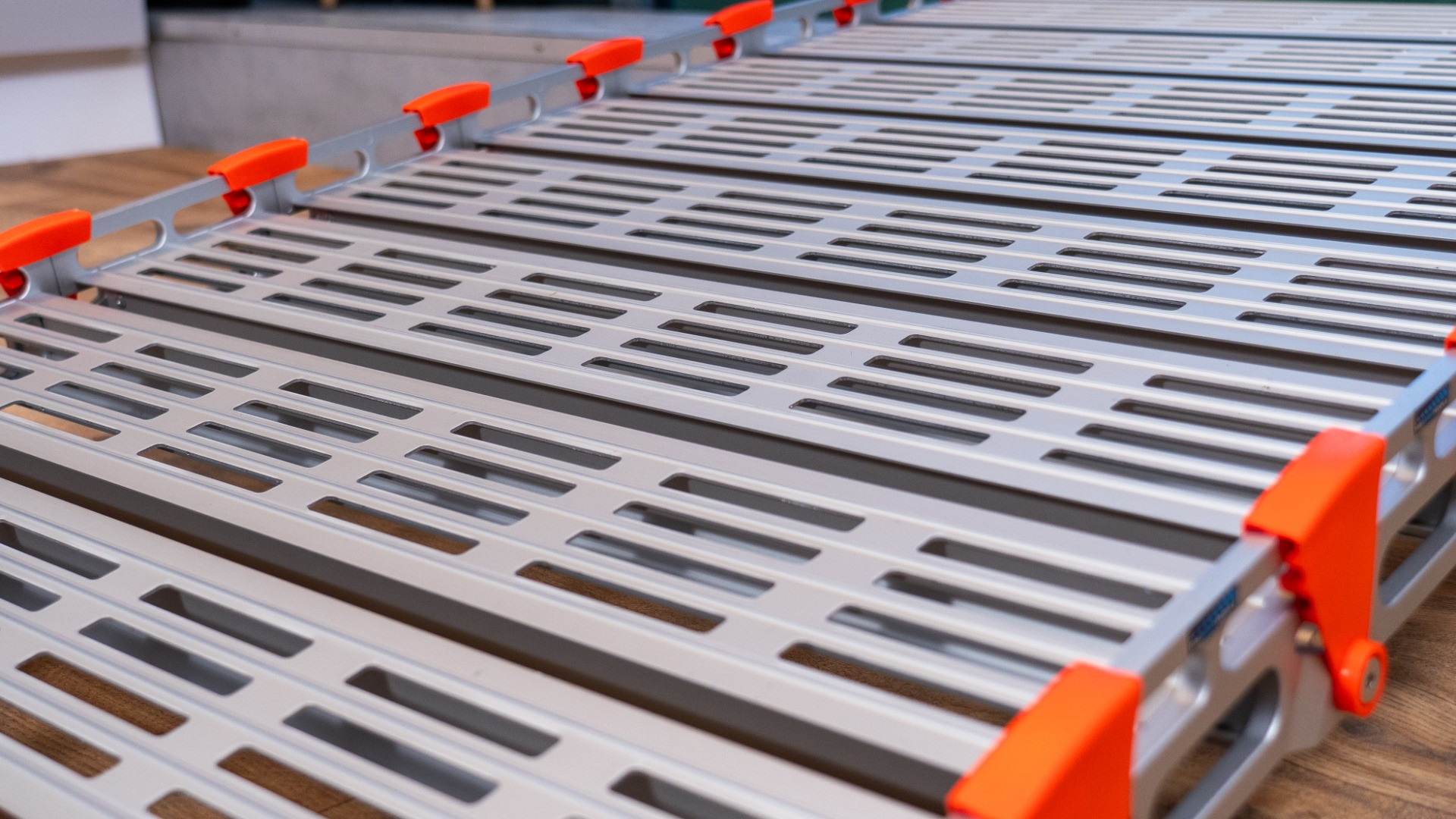

    • The gaps within each tread are 1.1cm and the gaps between the treads are 2.2cm
    • Lightweight for easy handling and compliance with health and safety guidelines

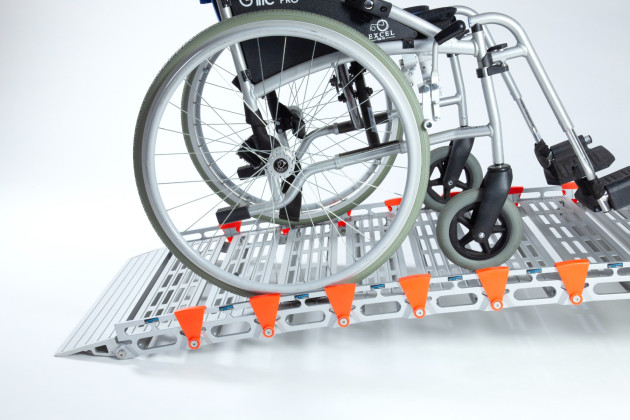

    • Suitable for manual wheelchairs, electric wheelchairs, scooters and walkers
    • Total ramp width including the orange edges is 785mm, the external width of the aluminium ramp is 760mm, the useable width is 740mm

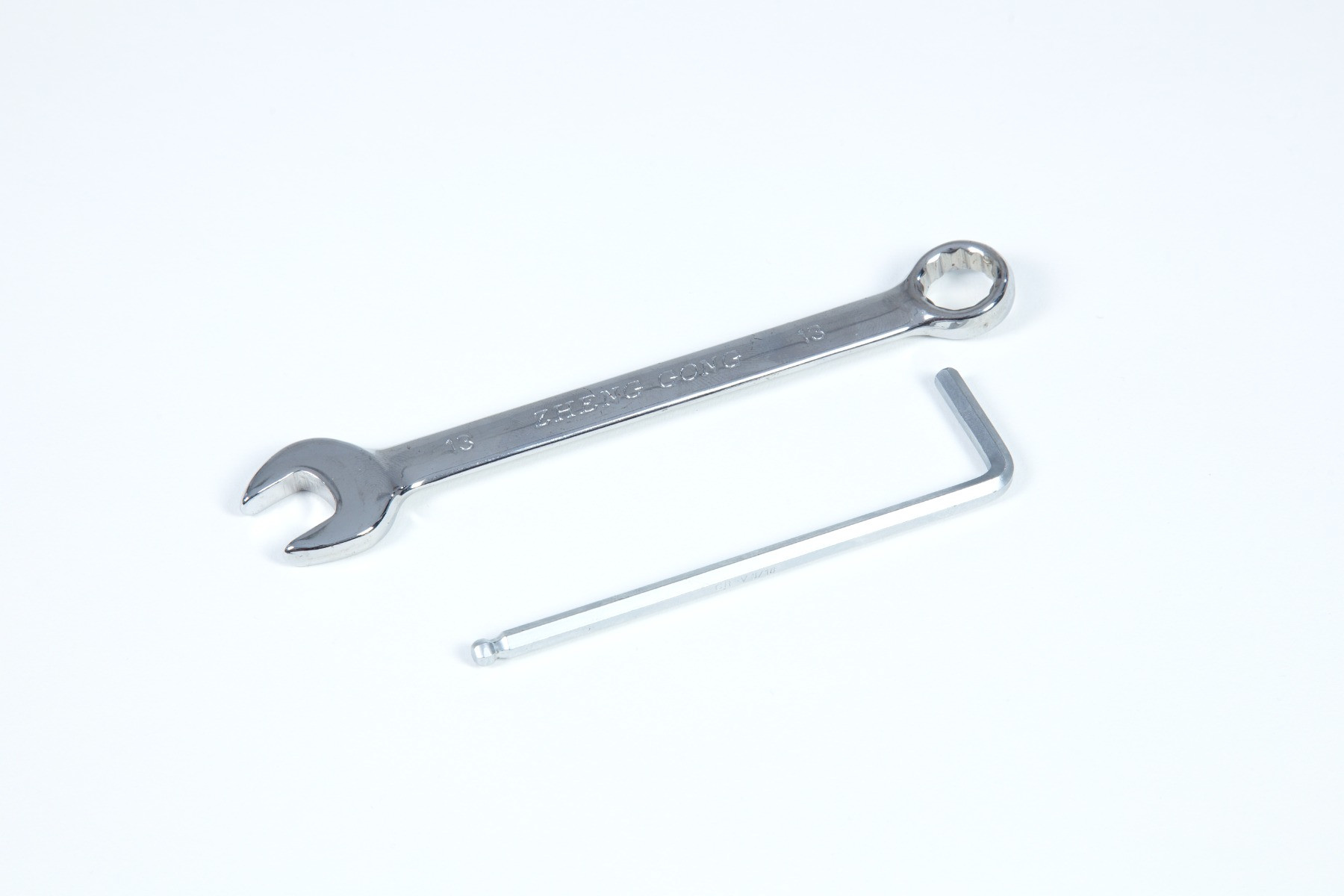

    • Add/remove sections to amend the ramp length as required, Allen key and spanner provided
    • The edges of the ramp offer a cut out design to be used as carry handles when moving the ramp
    • Anti-slip surface, R13 rating

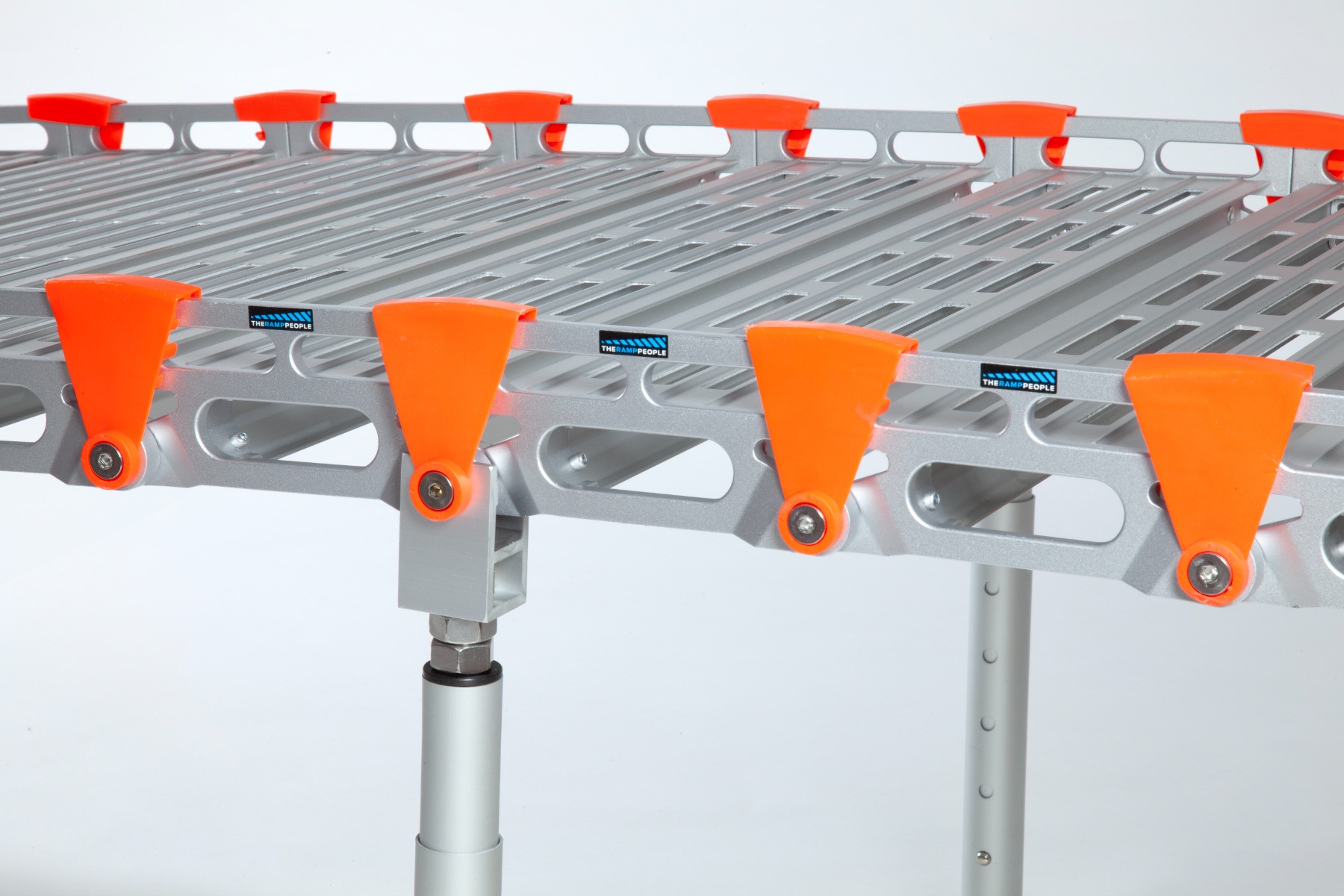

    • Support stands are provided with ramps which are 8ft and longer. Upon purchase, we will contact you to check your load height and provide the required adjustable support stands based on your height. Fitting is required to be done by the customer

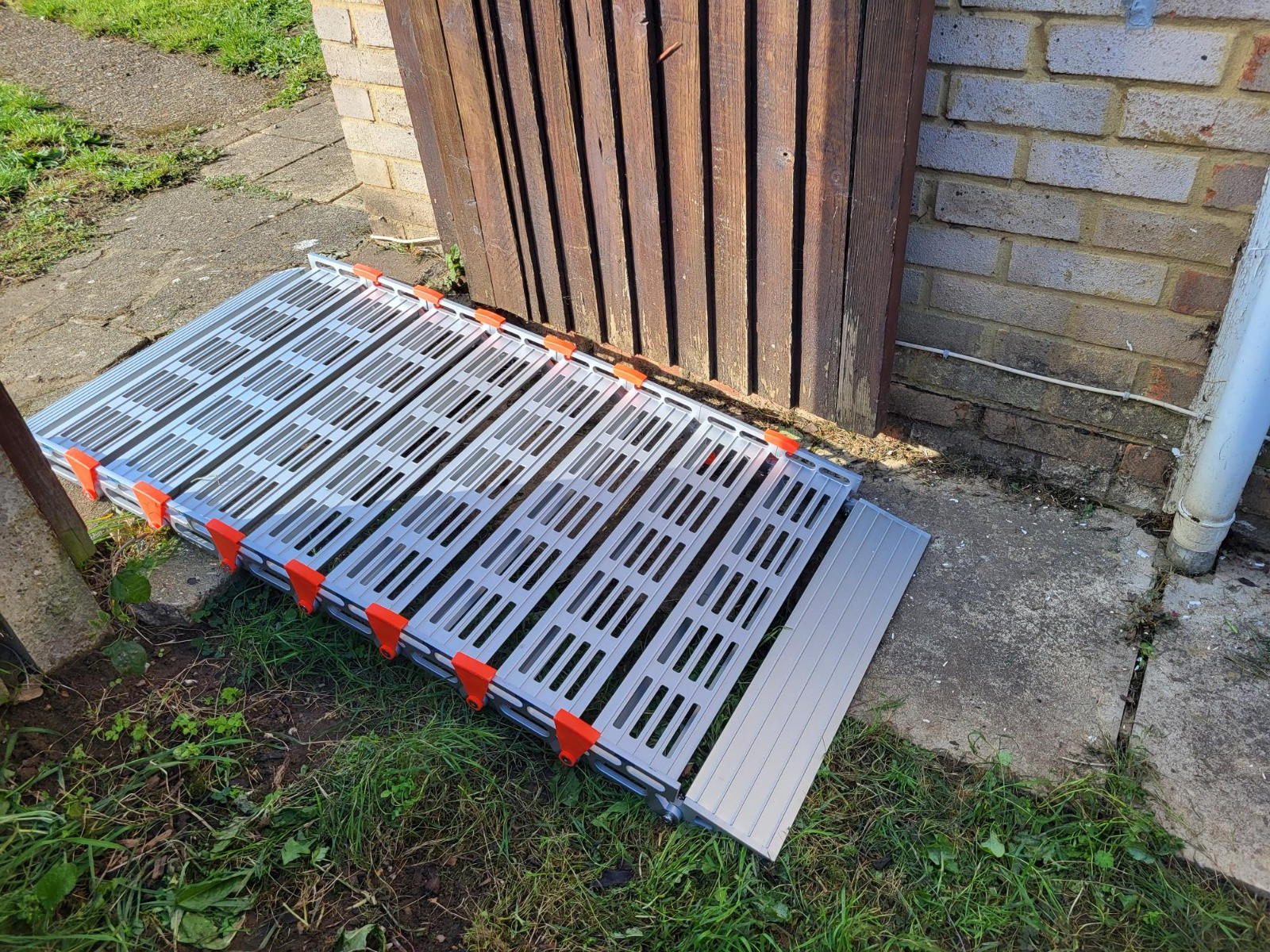

    • Suitable for indoor and outdoor use, can be left outside

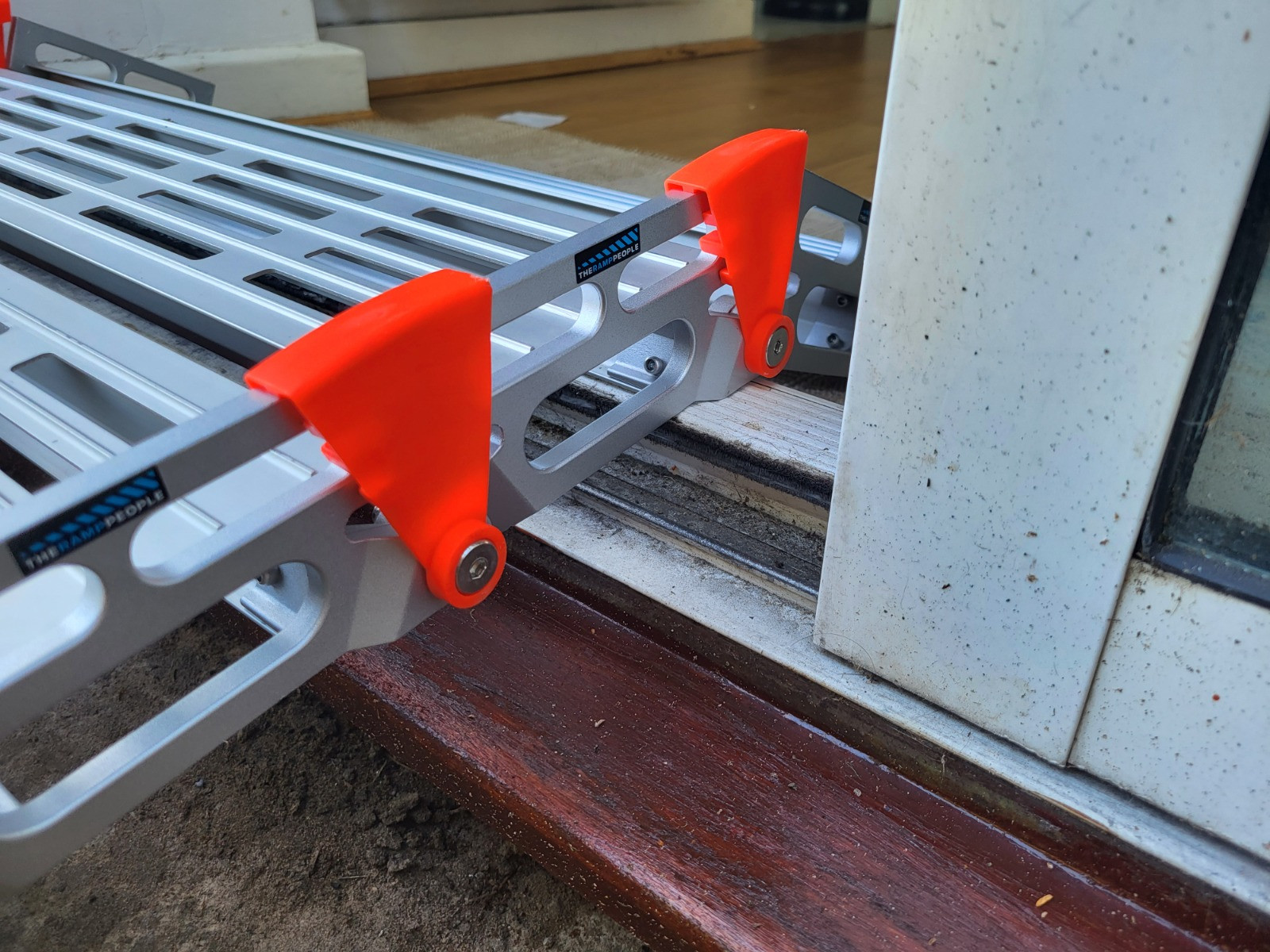

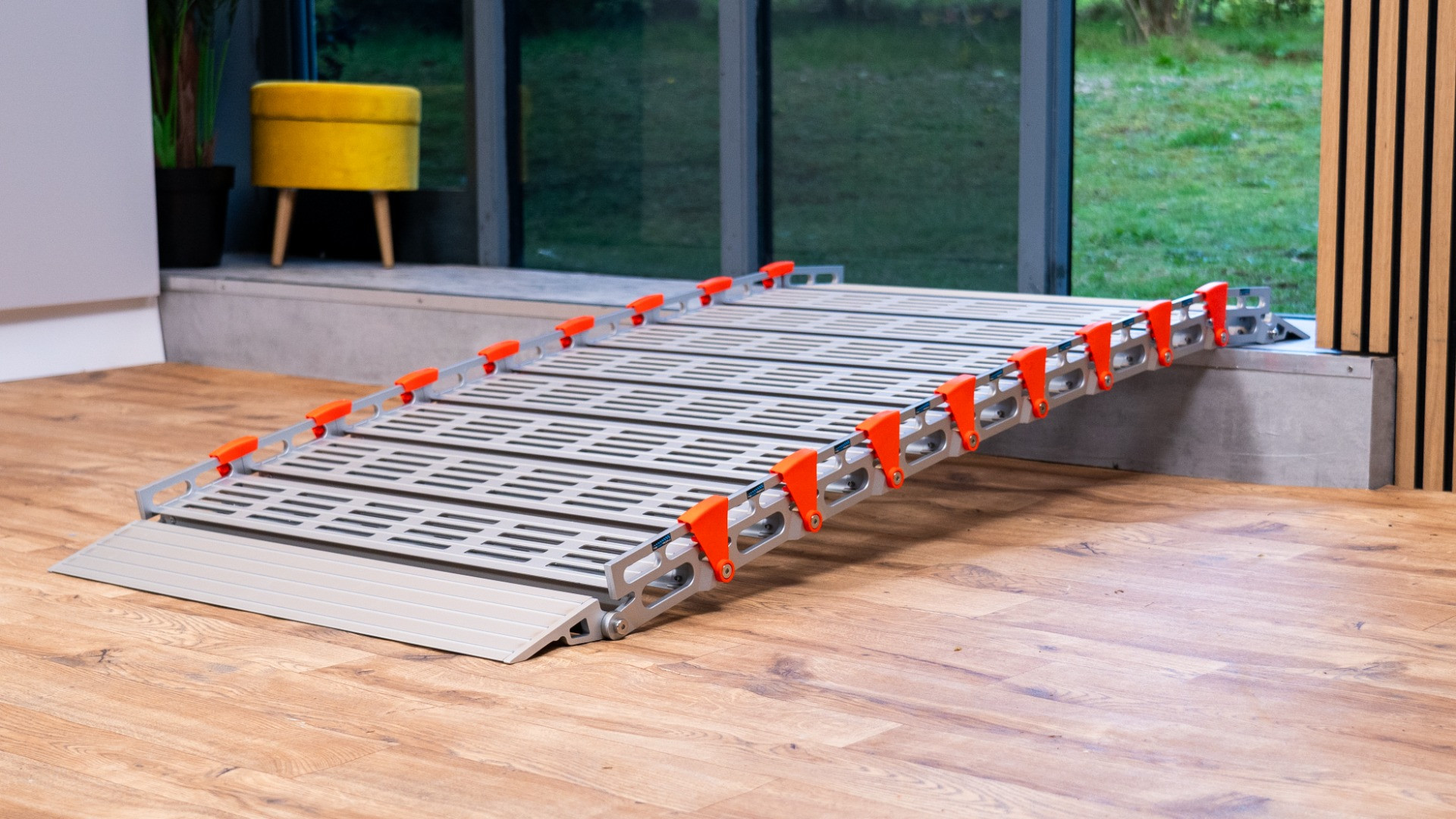

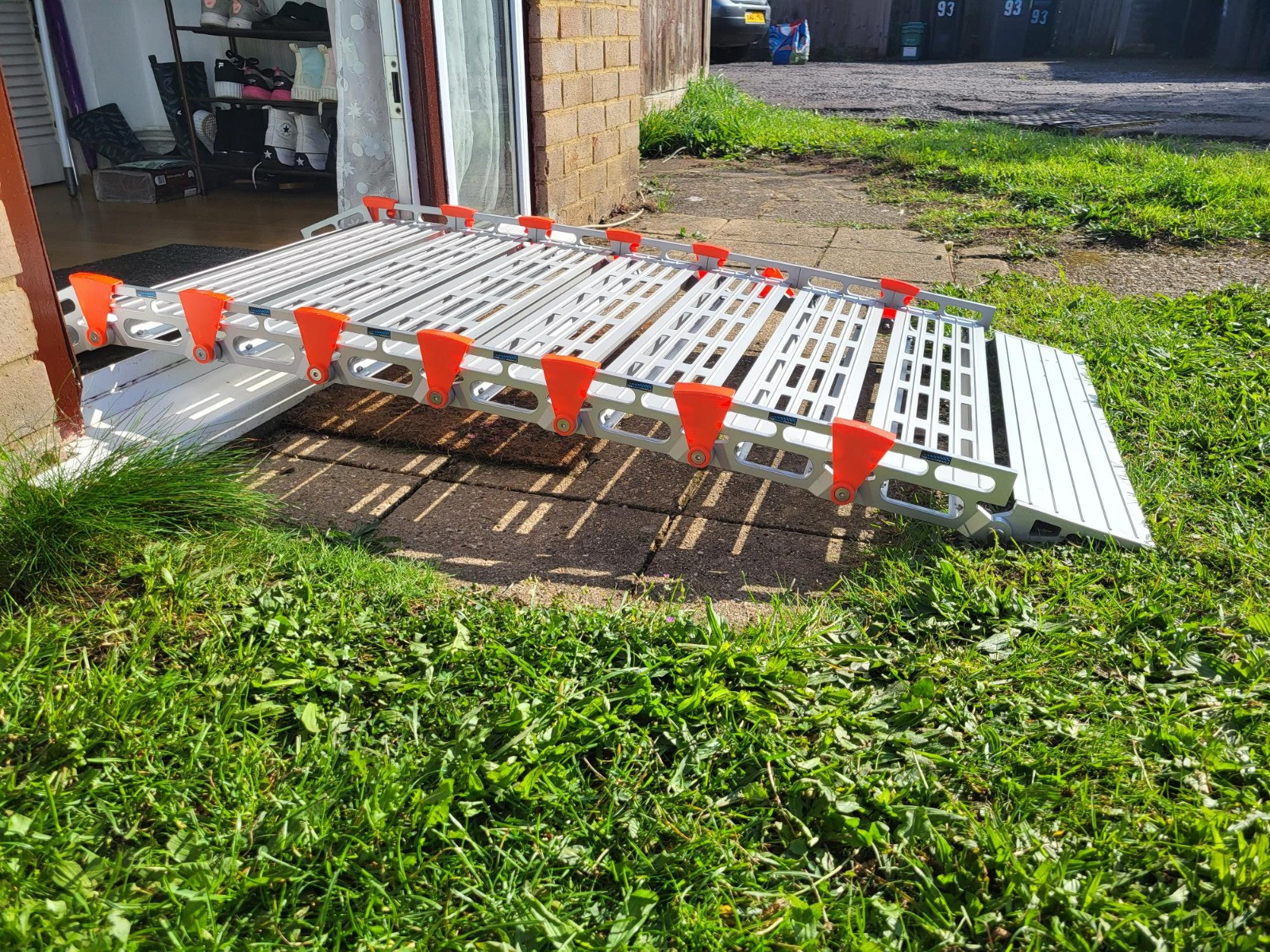

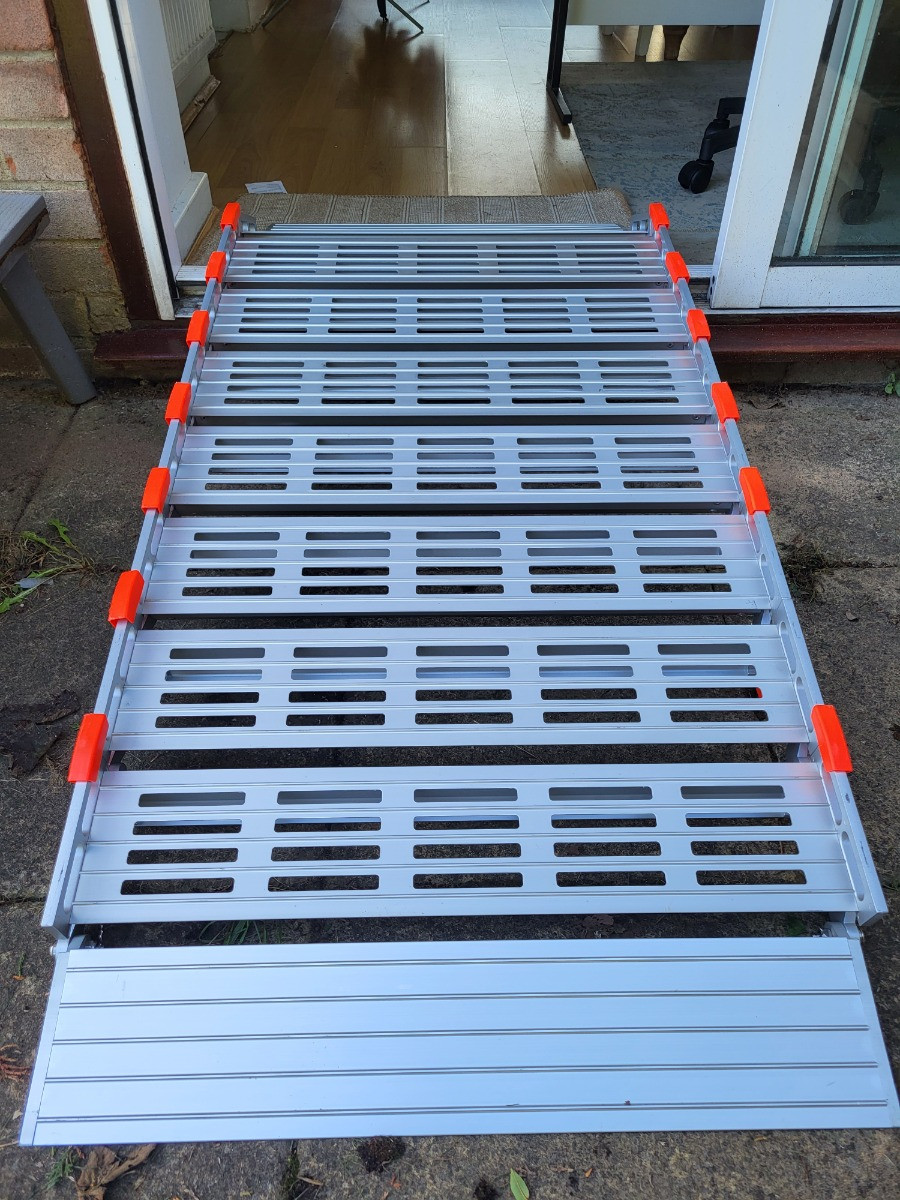

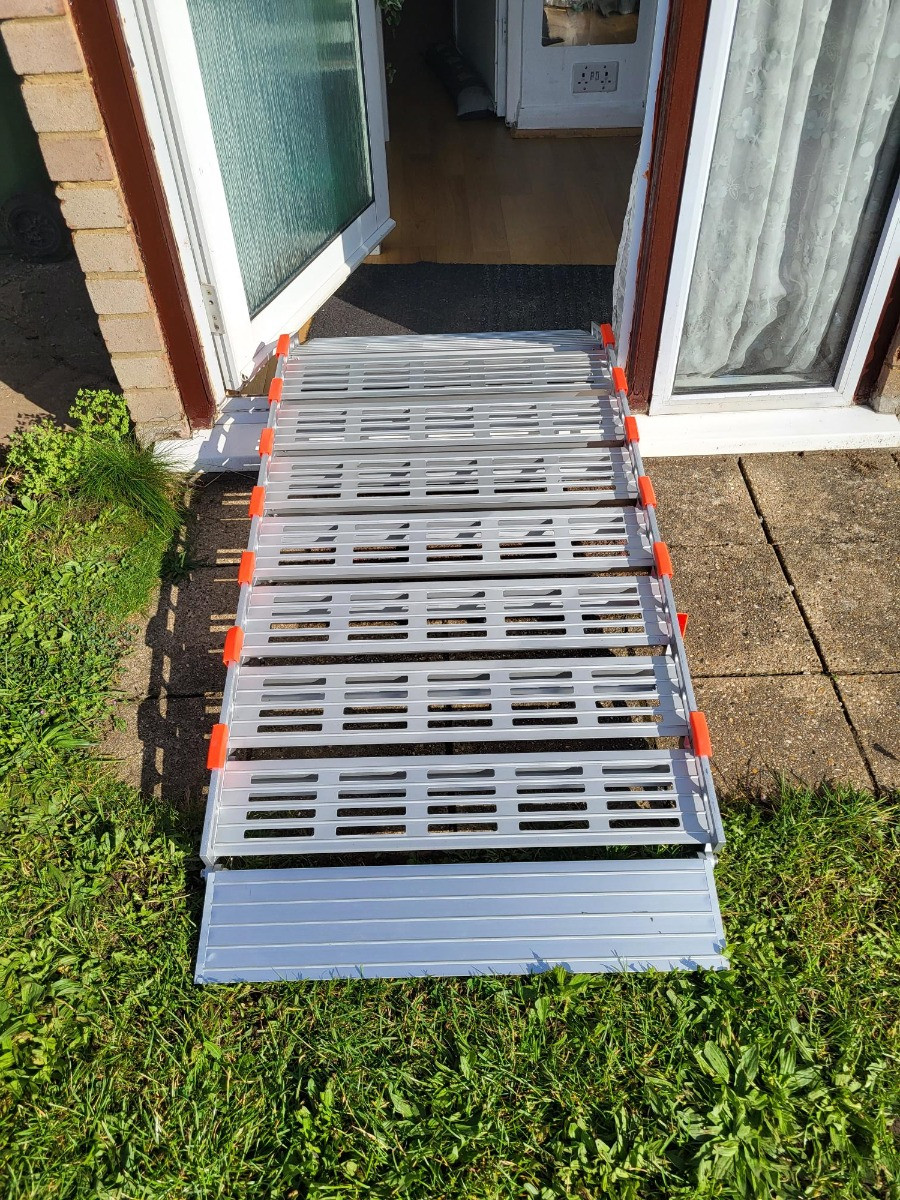

    • Use to overcome steps or use as a bridge to go up and over a threshold
    • CE marked
    • For advice on finding the right ramp length view our wheelchair ramp length calculator or contact or team for advice. Due to the length of the rest on connection we recommend you purchase a ramp length 1ft longer than required
    • Not suitable for solid wheels such as those on flight cases
    • Not suitable for rubber wheels with a diameter of under 20cm
    • Please note some lengths are sent on a pallet with delivery to the kerbside only, if this is not suitable for you please let us know when ordering
    • Please note, this product is built to order so non-returnable/refundable

The RollAble Ramp user guide can be found here.

CE MARKED

RollAble Ramp, 785mm wide

3ft / 91cm

  • Length 3ft (914mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 9kg
  • Capacity 453kg
  • Rolled Diameter 14 inches / 356mm
  • Max. load height 100mm

4ft / 121cm

  • Length 4ft (1219mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 12kg
  • Capacity 453kg
  • Rolled Diameter 16 inches / 406mm
  • Max. load height 150mm

5ft / 152cm

  • Length 5ft (1524mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 14.5kg
  • Capacity 453kg
  • Rolled Diameter 18 inches / 457mm
  • Max. load height 200mm

6ft / 182cm

  • Length 6ft (1828mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 17kg
  • Capacity 453kg
  • Rolled Diameter 20 inches / 508mm
  • Max. load height 255mm

7ft / 213cm

  • Length 7ft (2133mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 22kg
  • Capacity 453kg
  • Rolled Diameter 22 inches / 559mm
  • Max. load height 305mm
  • Support Stands: Included*

8ft / 243cm

  • Length 8ft (2438mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 24.5kg
  • Capacity 453kg
  • Rolled Diameter 24 inches / 610mm
  • Max. load height 355mm
  • Support Stands: Included*

9ft / 274cm

  • Length 9ft (2743mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 27kg
  • Capacity 453kg
  • Rolled Diameter 26 inches / 660mm
  • Max. load height 405mm
  • Support Stands: Included*

10ft / 304cm

  • Length 10ft (3048mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 30kg
  • Capacity 453kg
  • Rolled Diameter 28 inches / 711mm
  • Max. load height 455mm
  • Support Stands: Included*

11ft / 335cm

  • Length 11ft (3352mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 33kg
  • Capacity 453kg
  • Rolled Diameter 30 inches / 762mm
  • Max. load height 510mm
  • Support Stands: Included

12ft / 365cm

  • Length 12ft (3657mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 36kg
  • Capacity 453kg
  • Rolled Diameter 32 inches / 813mm
  • Max. load height 560mm
  • Support Stands: Included

13ft / 396cm

  • Length 13ft (3962mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 38.5kg
  • Capacity 453kg
  • Rolled Diameter 34 inches / 864mm
  • Max. load height 610mm
  • Support Stands: Included

14ft / 426cm

  • Length 14ft (4267mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 43kg
  • Capacity 453kg
  • Rolled Diameter 36 inches / 914mm
  • Max. load height 660mm
  • Support Stands: Included

15ft / 457cm

  • Length 15ft (4572mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 46kg
  • Capacity 453kg
  • Rolled Diameter 38 inches / 965mm
  • Max. load height 710mm
  • Support Stands: Included

16ft / 488cm

  • Length 16ft (4877mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 52kg
  • Capacity 453kg
  • Rolled Diameter 40 inches / 1016mm
  • Max. load height 760mm
  • Support Stands: Included*

17ft / 518cm

  • Length 17ft (5182mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 55kg
  • Capacity 453kg
  • Rolled Diameter 42 inches / 1067mm
  • Max. load height 810mm
  • Support Stands: Included*

18ft / 549cm

  • Length 18ft (5486mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 57.5kg
  • Capacity 453kg
  • Rolled Diameter 44 inches / 1118mm
  • Max. load height 860mm
  • Support Stands: Included*

19ft / 579cm

  • Length 19ft (5791mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 60kg
  • Capacity 453kg
  • Rolled Diameter 48 inches / 1219mm
  • Max. load height 910mm
  • Support Stands: Included*

20ft / 610cm

  • Length 20ft (6096mm)
  • Internal Width: 740mm
  • Outer Width: 785mm
  • Weight 63kg
  • Capacity 453kg
  • Rolled Diameter 50 inches / 1270mm
  • Max. load height 960mm
  • Support Stands: Included*

Video
Details
SKU TRP-RollAble760
Capacity (kg) 453
Edge Height (mm) 30
Height (mm) 75
Internal Width 740
Length (ft) 3 - 20
Outer Ramp Width (mm) 785
Weight (kg) 9 - 60
Width (mm) 760
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
Electric Wheelchair Yes
High Visability Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Leave Outside Yes
