'The Aussie' - ATV Loading Ramp (2290mmx330mm)

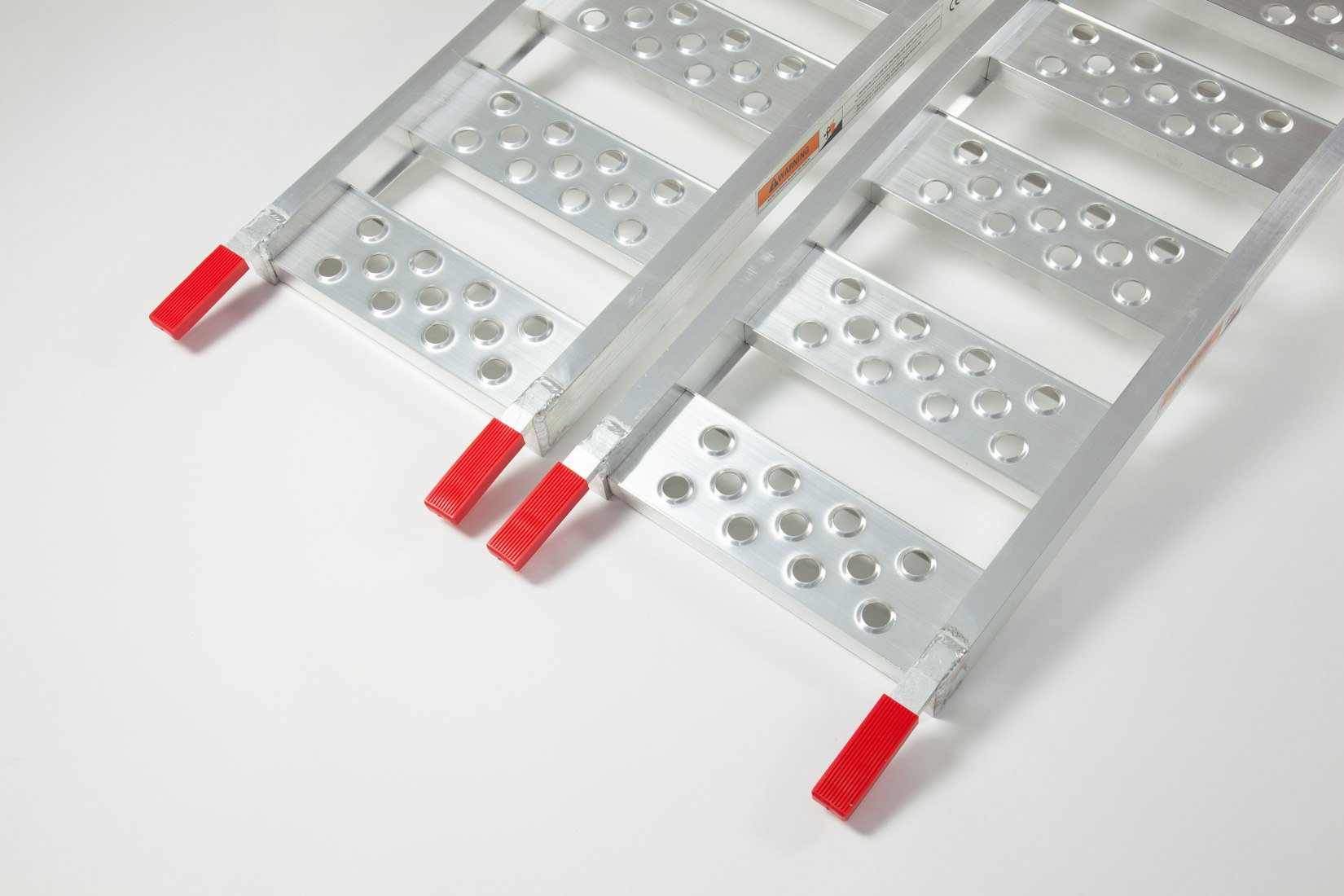

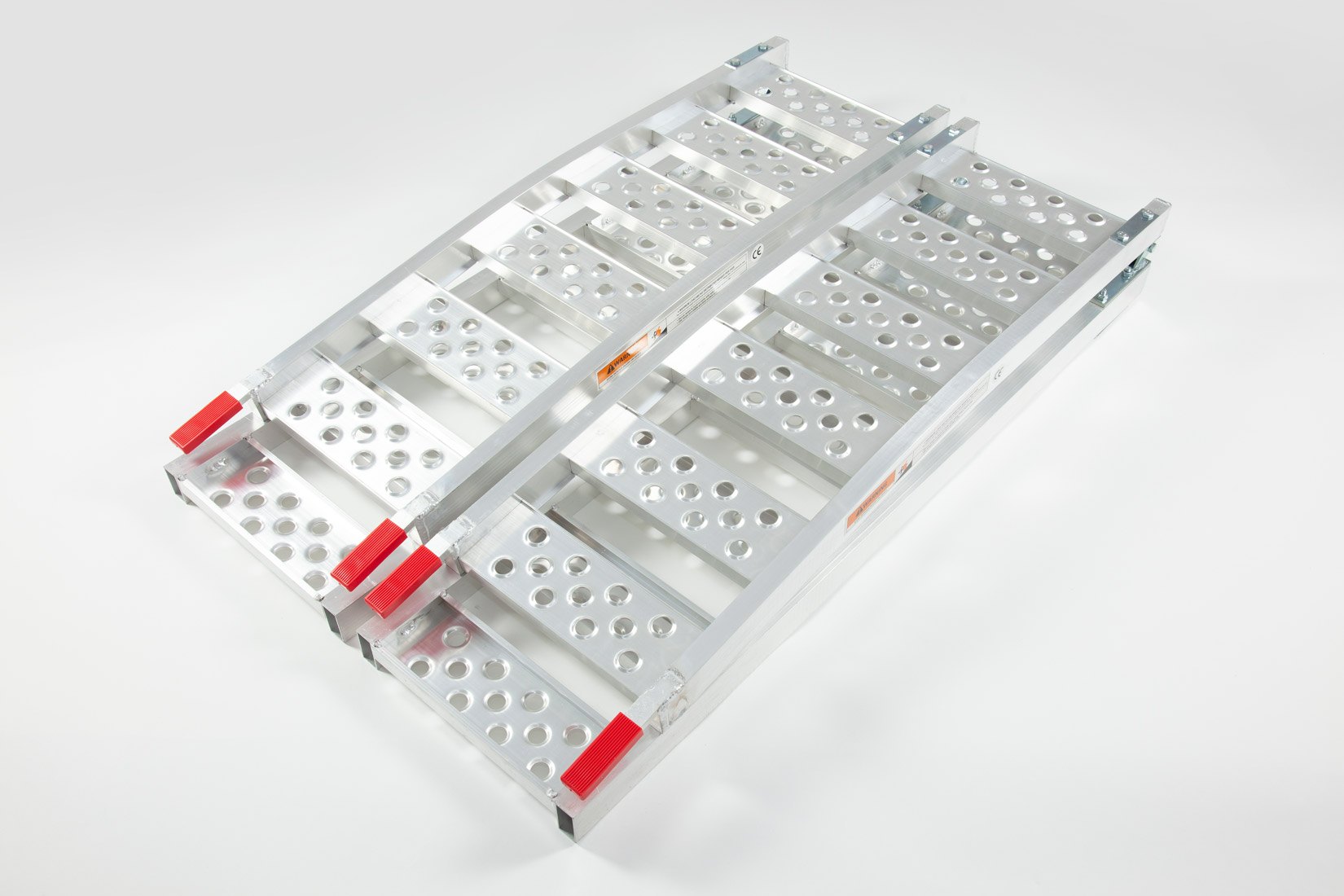

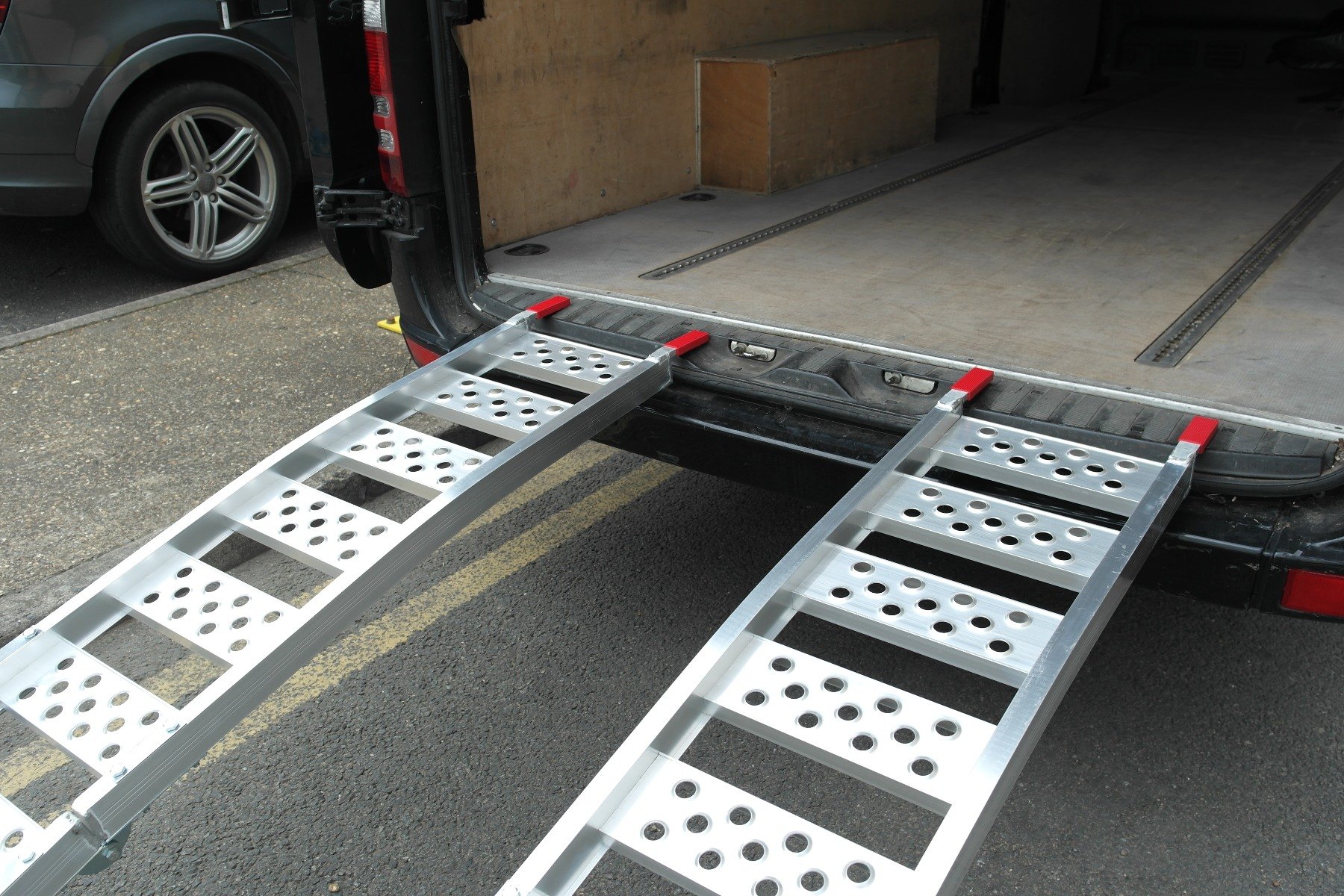

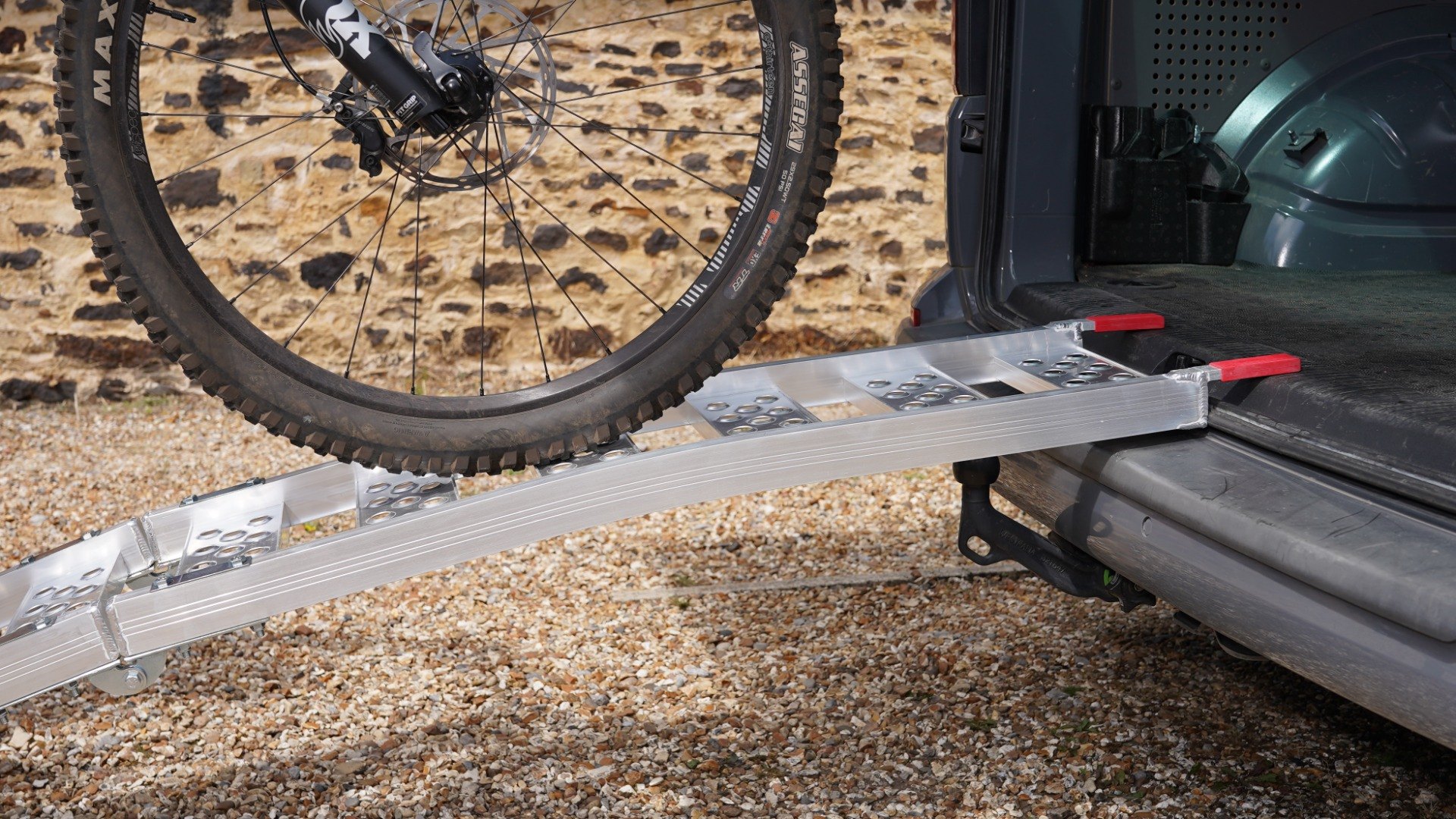

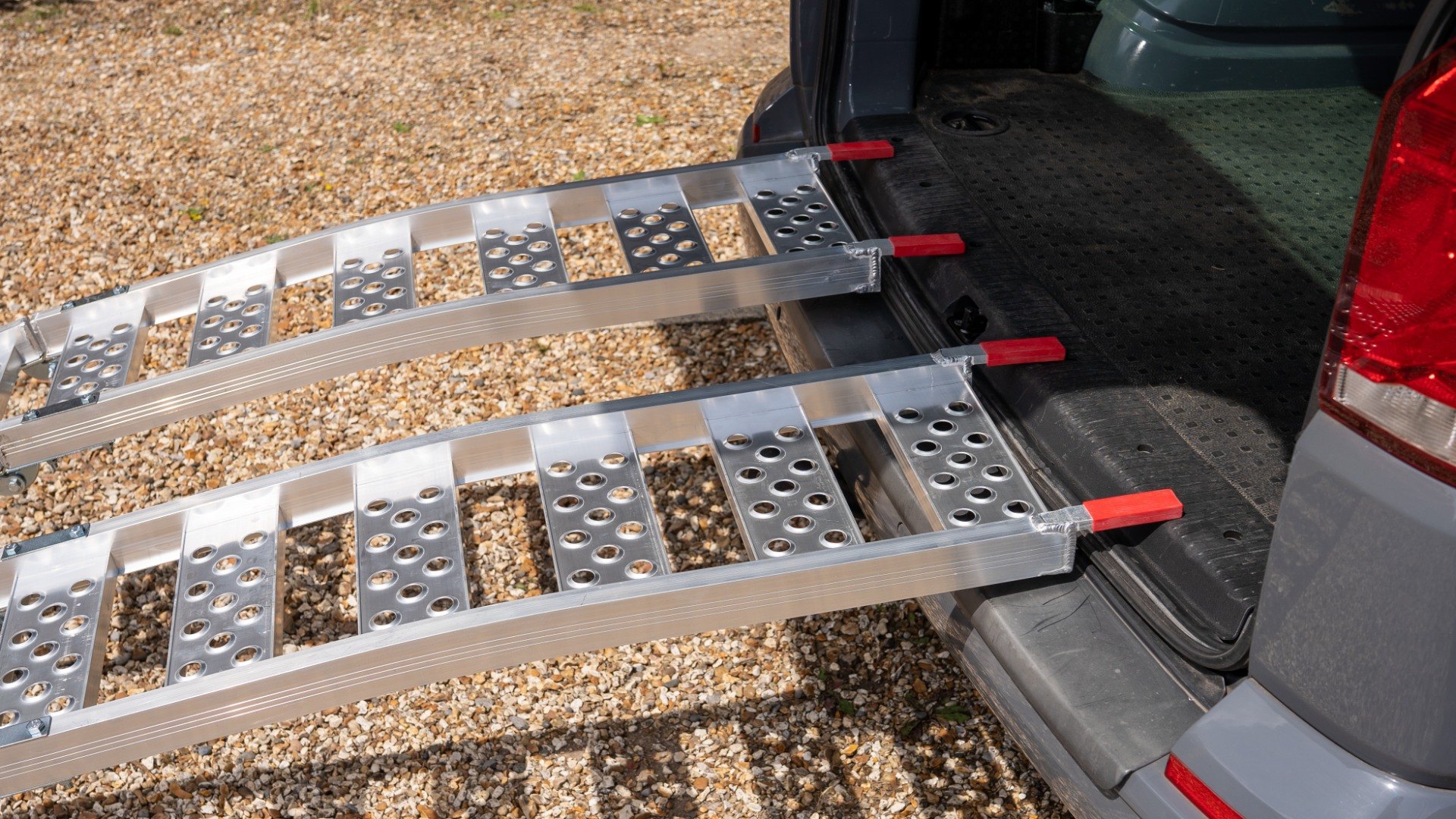

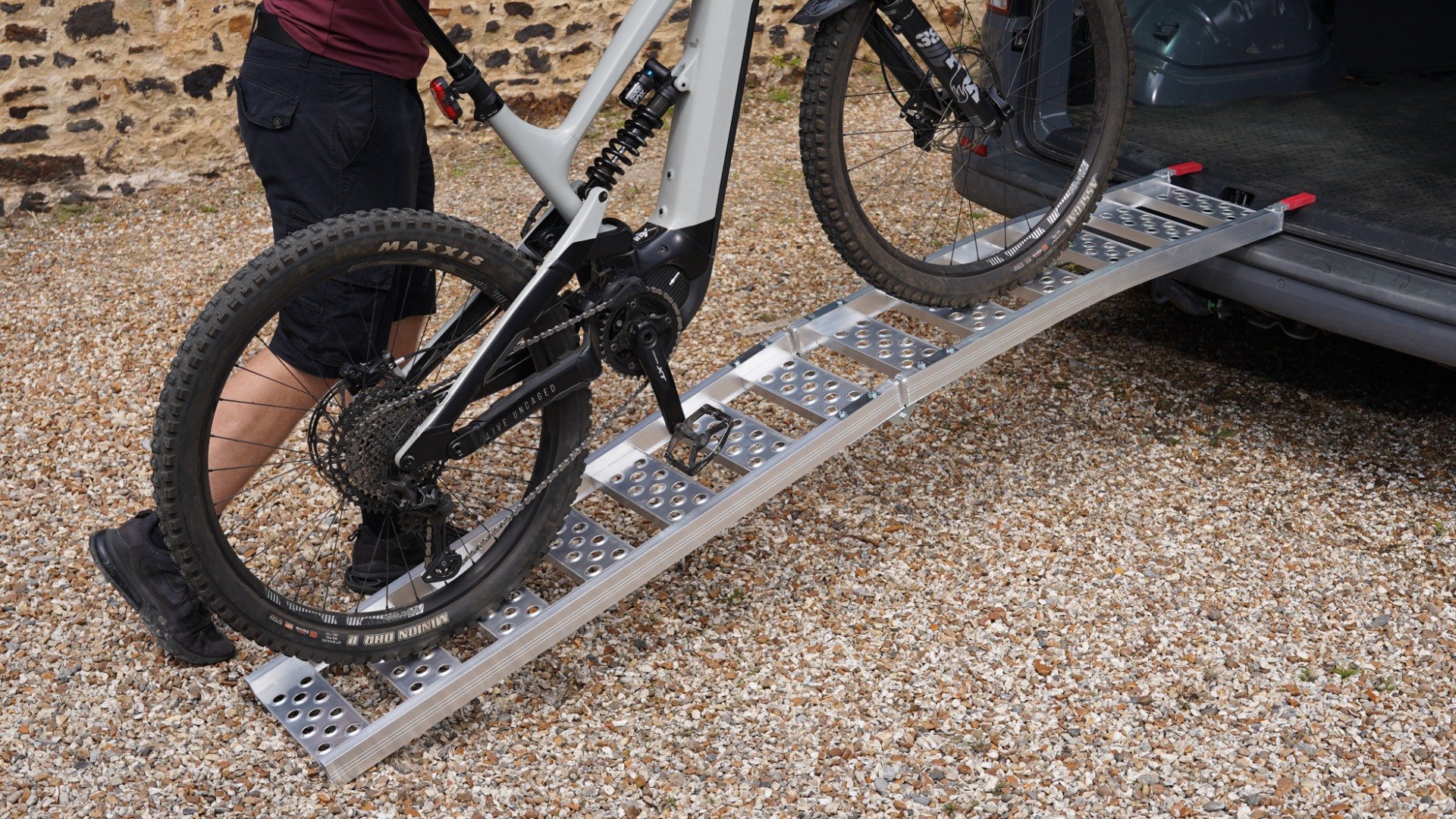

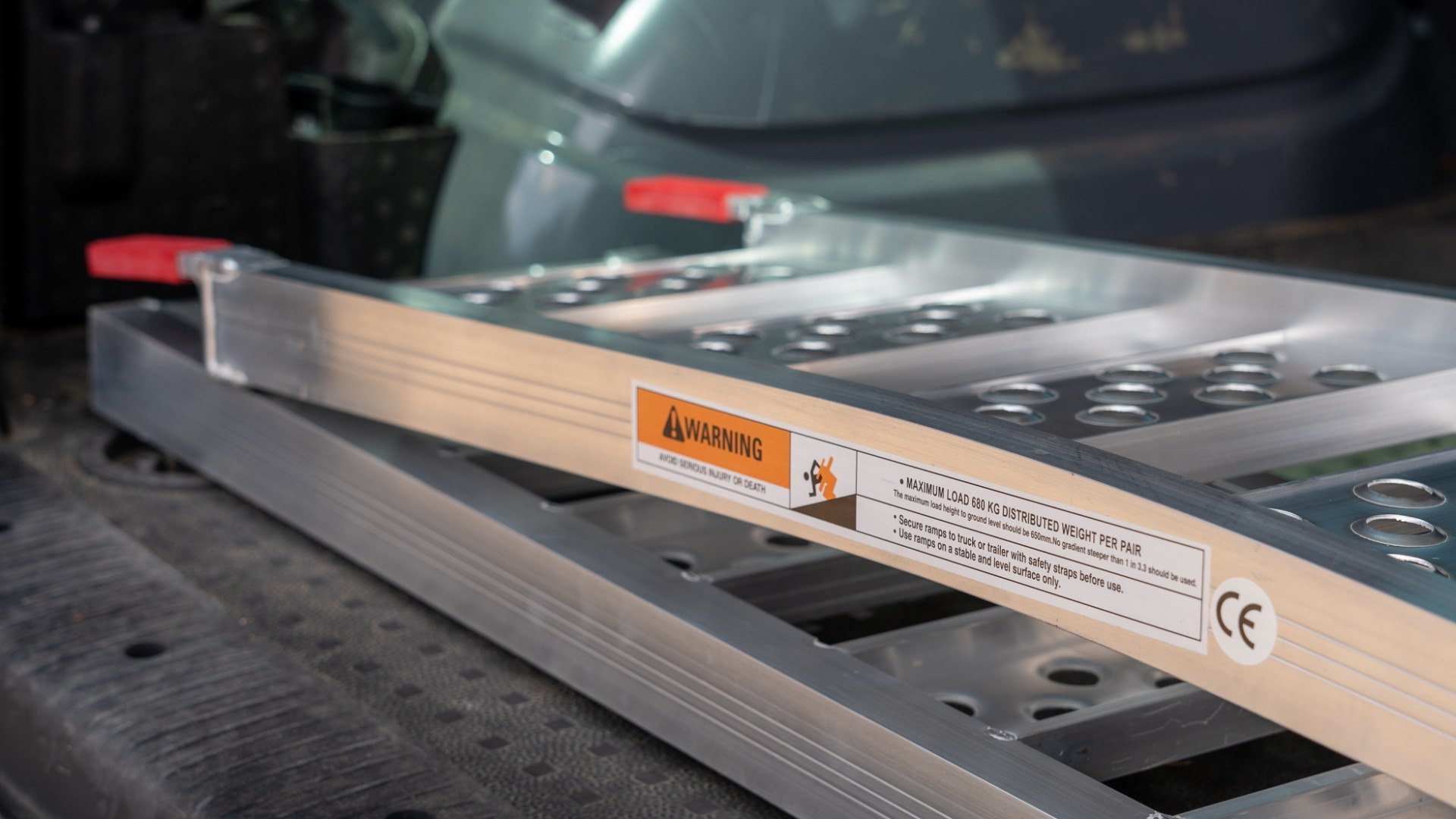

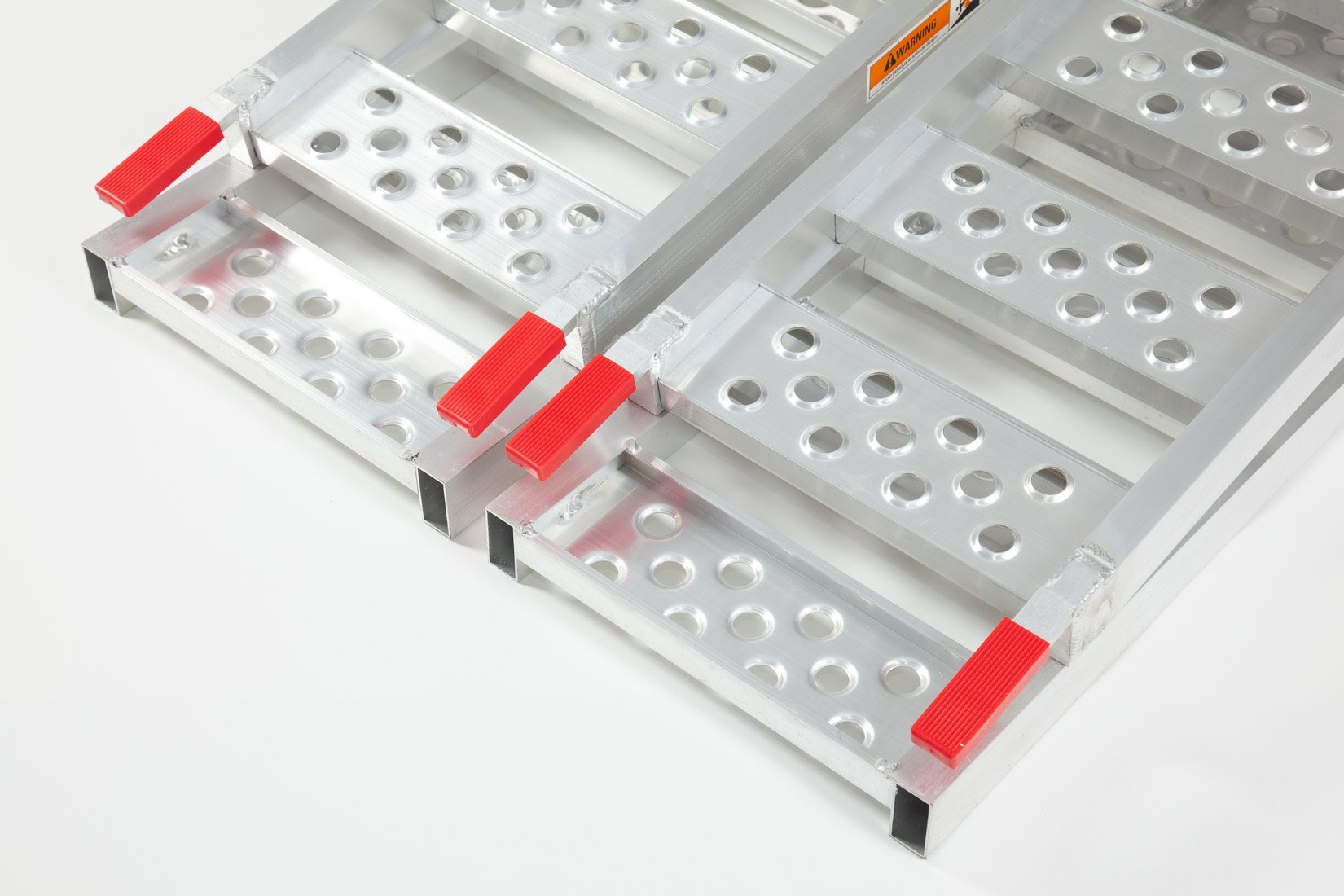

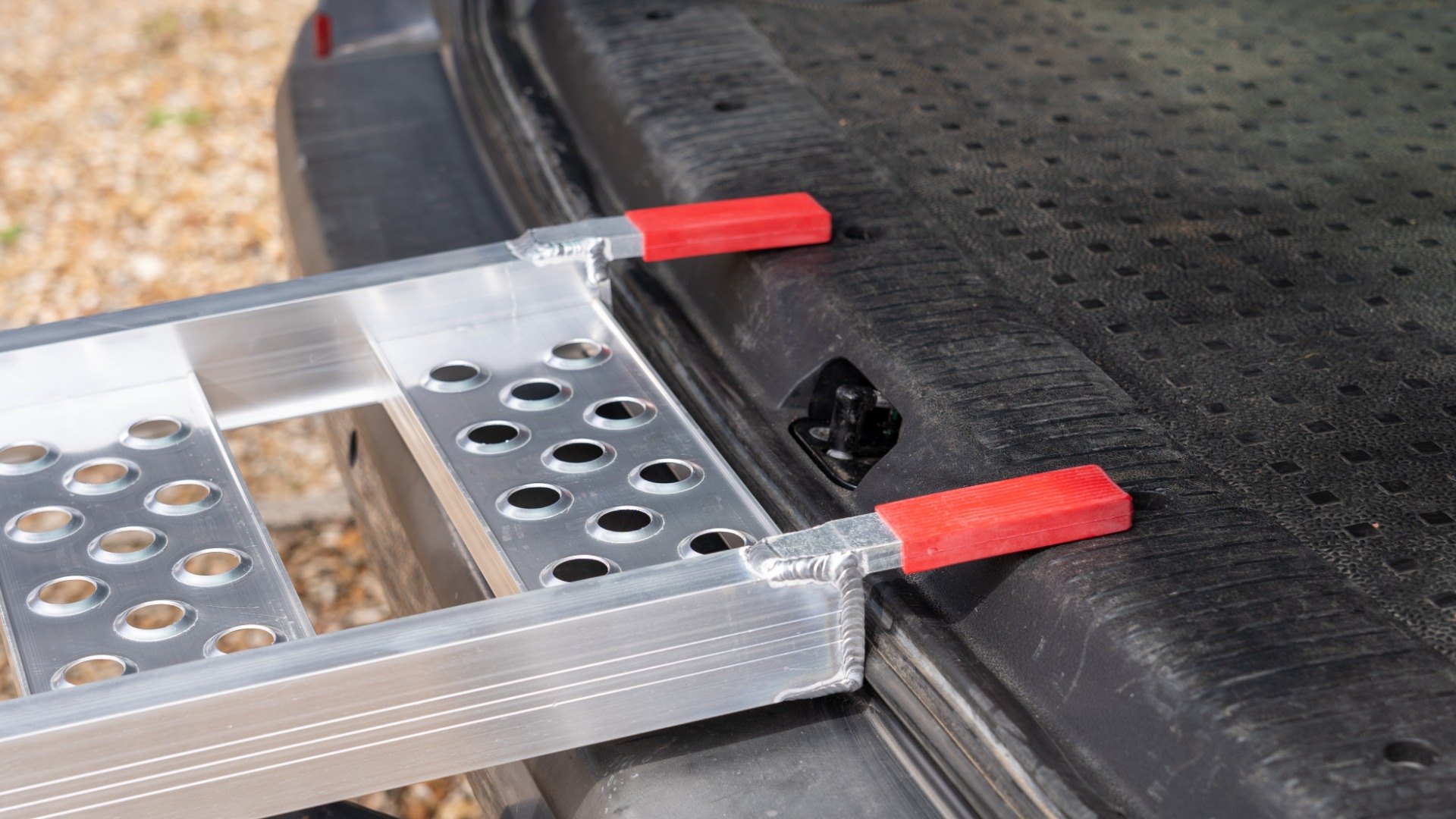

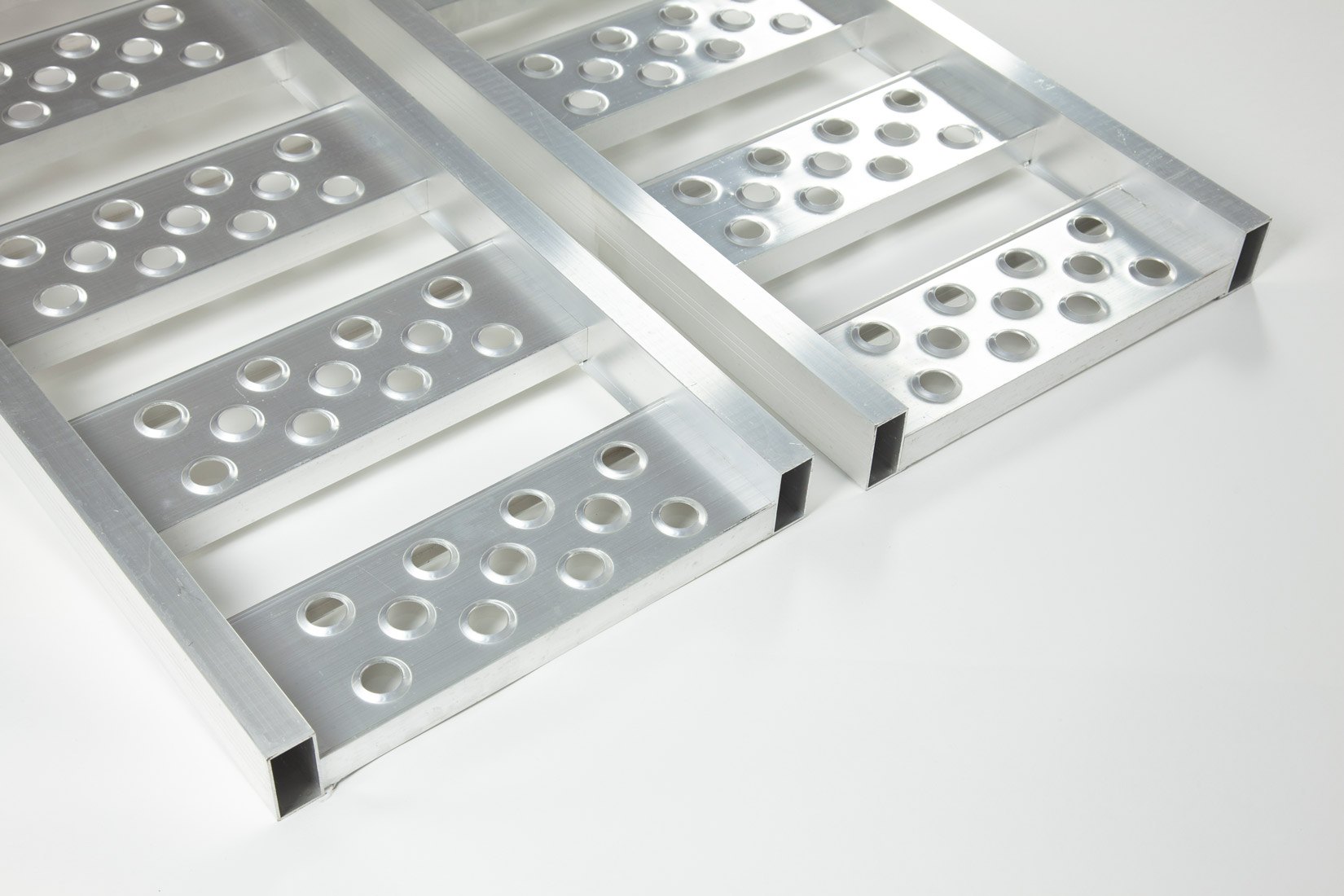

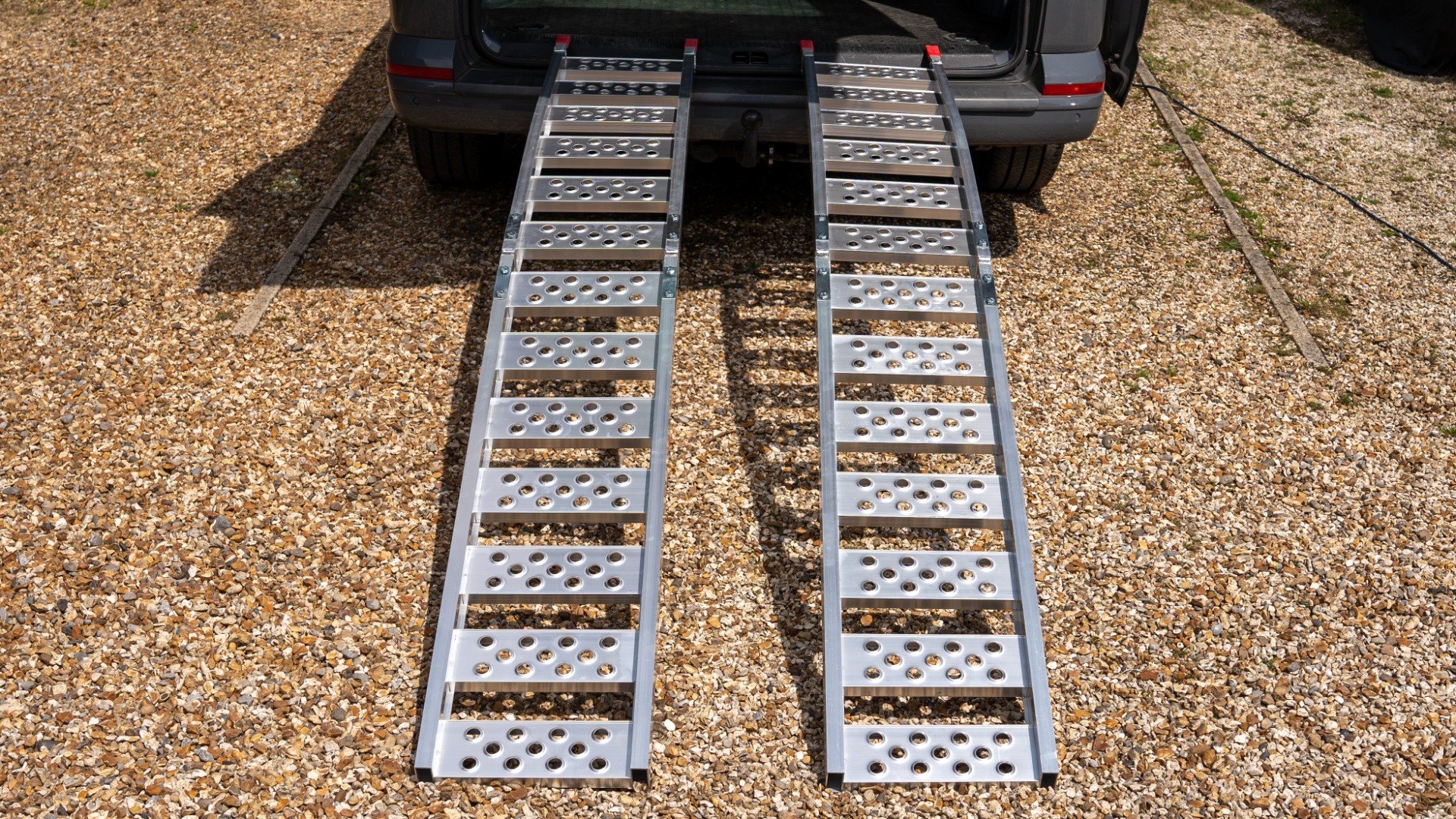

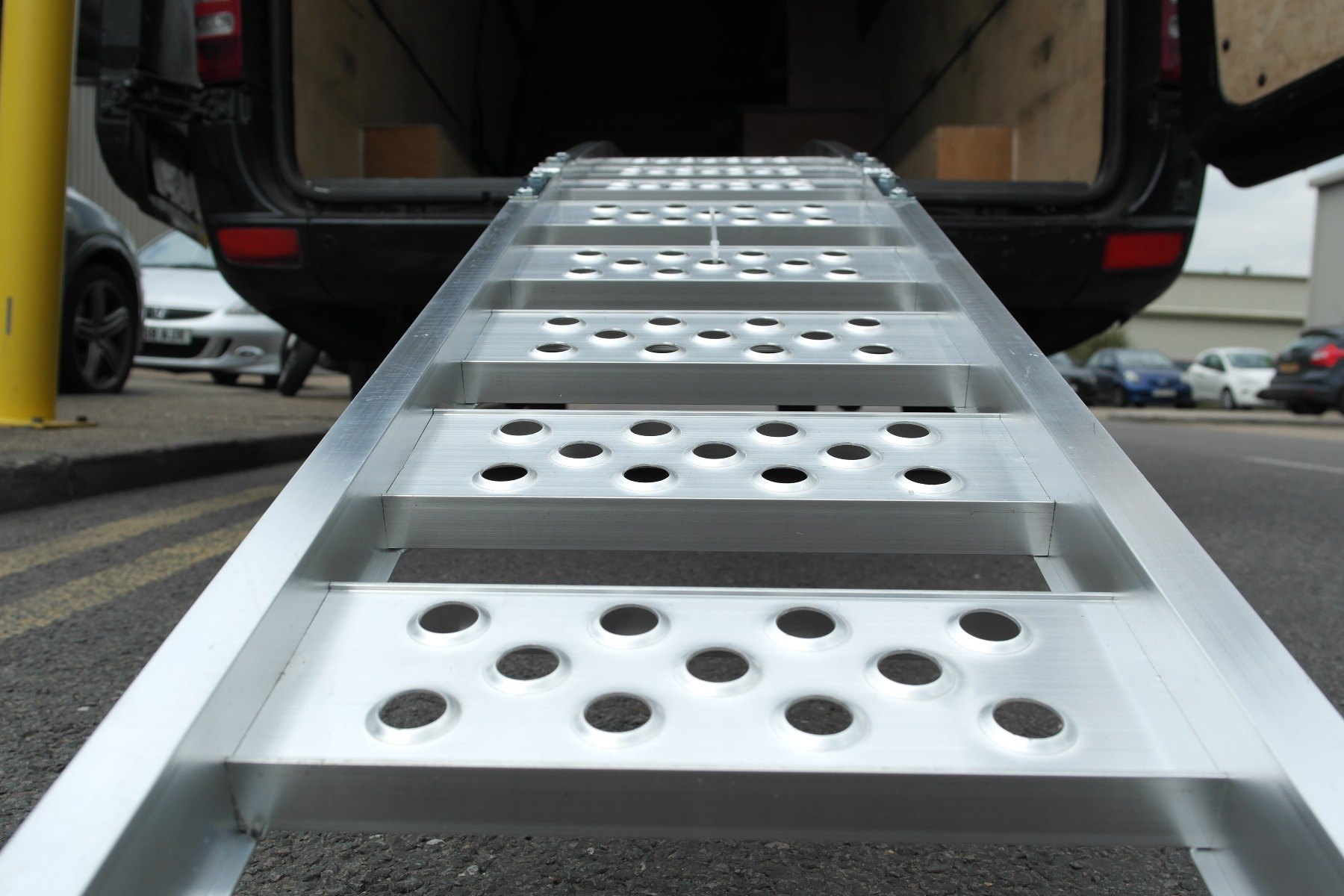

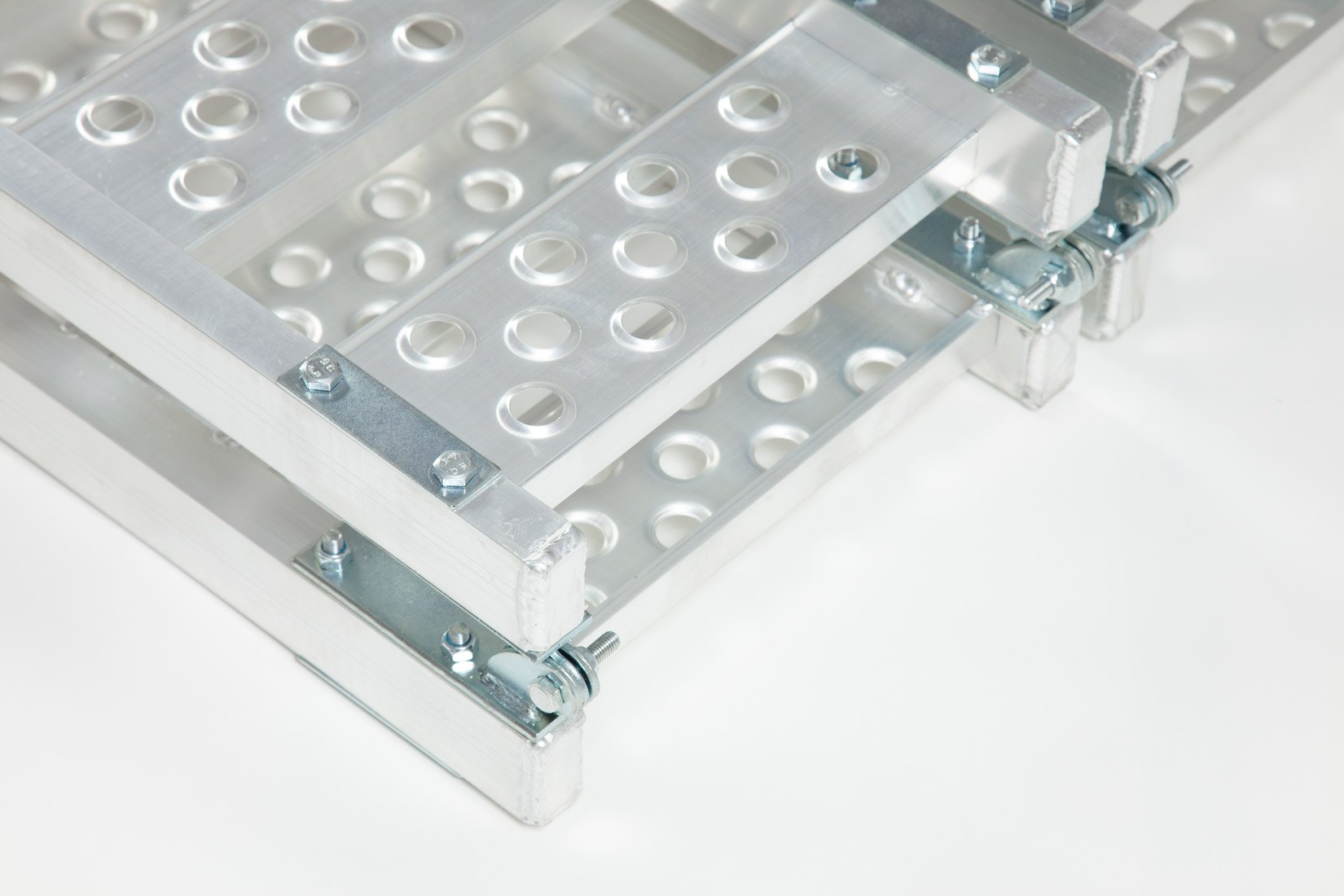

The Ramp Factory's "Aussie" is a lightweight aluminium folding loading ramp that includes a perforated surface for extra grip. The ramps are suitable for motorcycles, ATV/quad bikes, ride on lawn mowers and other garden machinery and are slightly curved for improved ground clearance. They have a capacity of 340kg per ramp and 680kg capacity across the pair.
Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps
The Ramp Factory offer many motorcycle ramps. If you are looking to load weights up to 1360kg check out the support leg ramps or double support bar ramps. For ATV's The Ramp Factory also offer the extra wide ramp kit.
"The Aussie" ATV loading Ramp

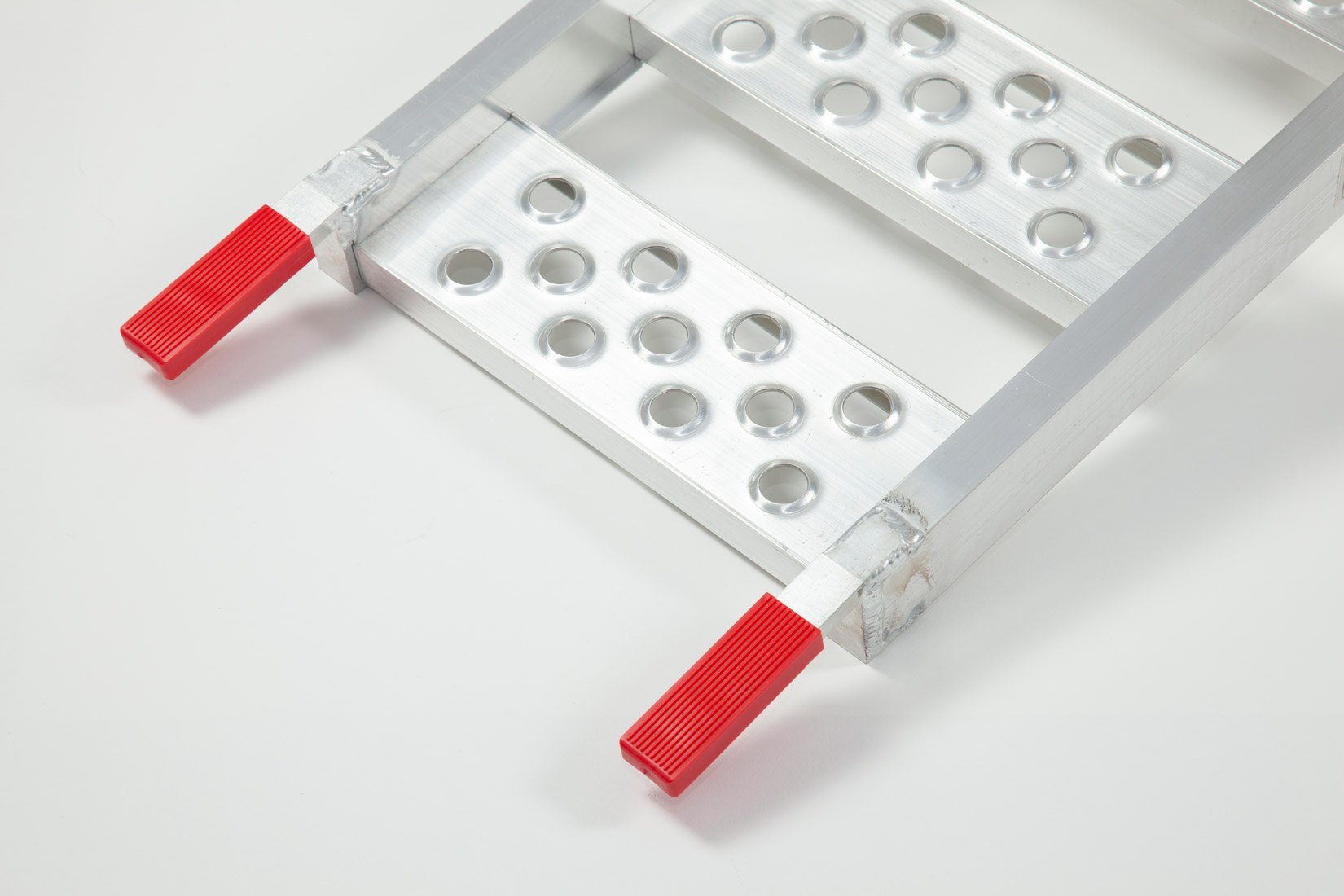

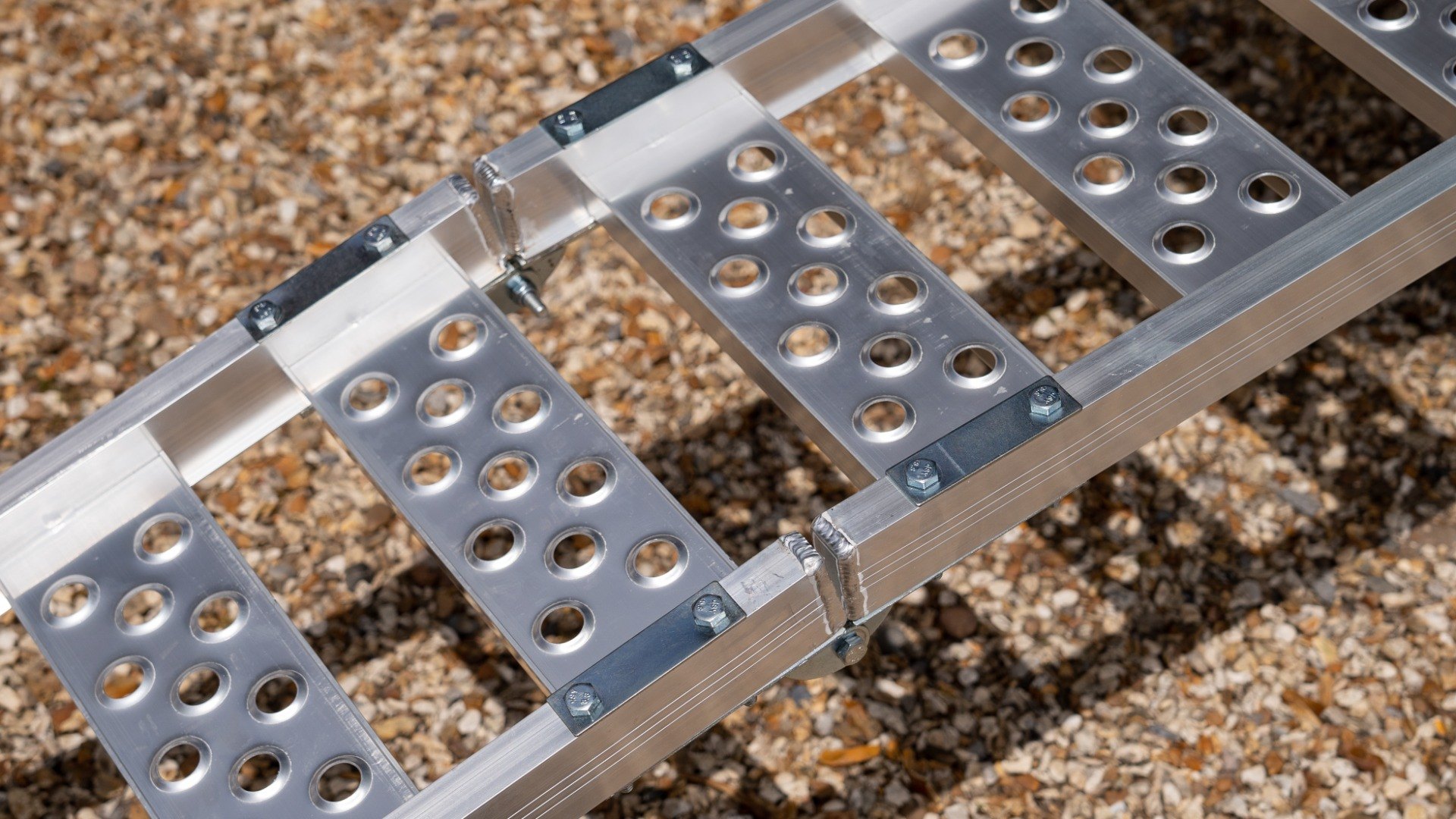

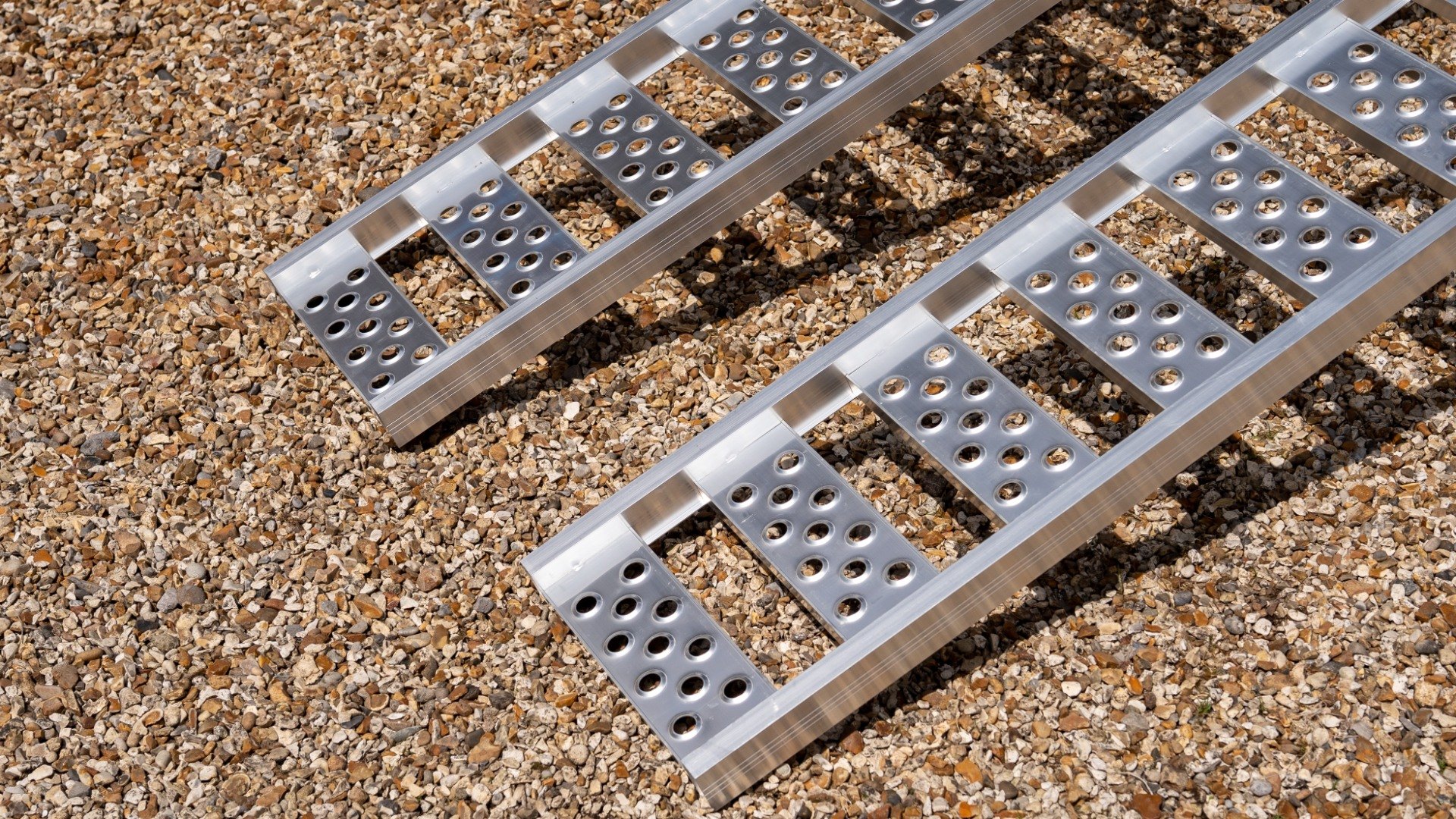

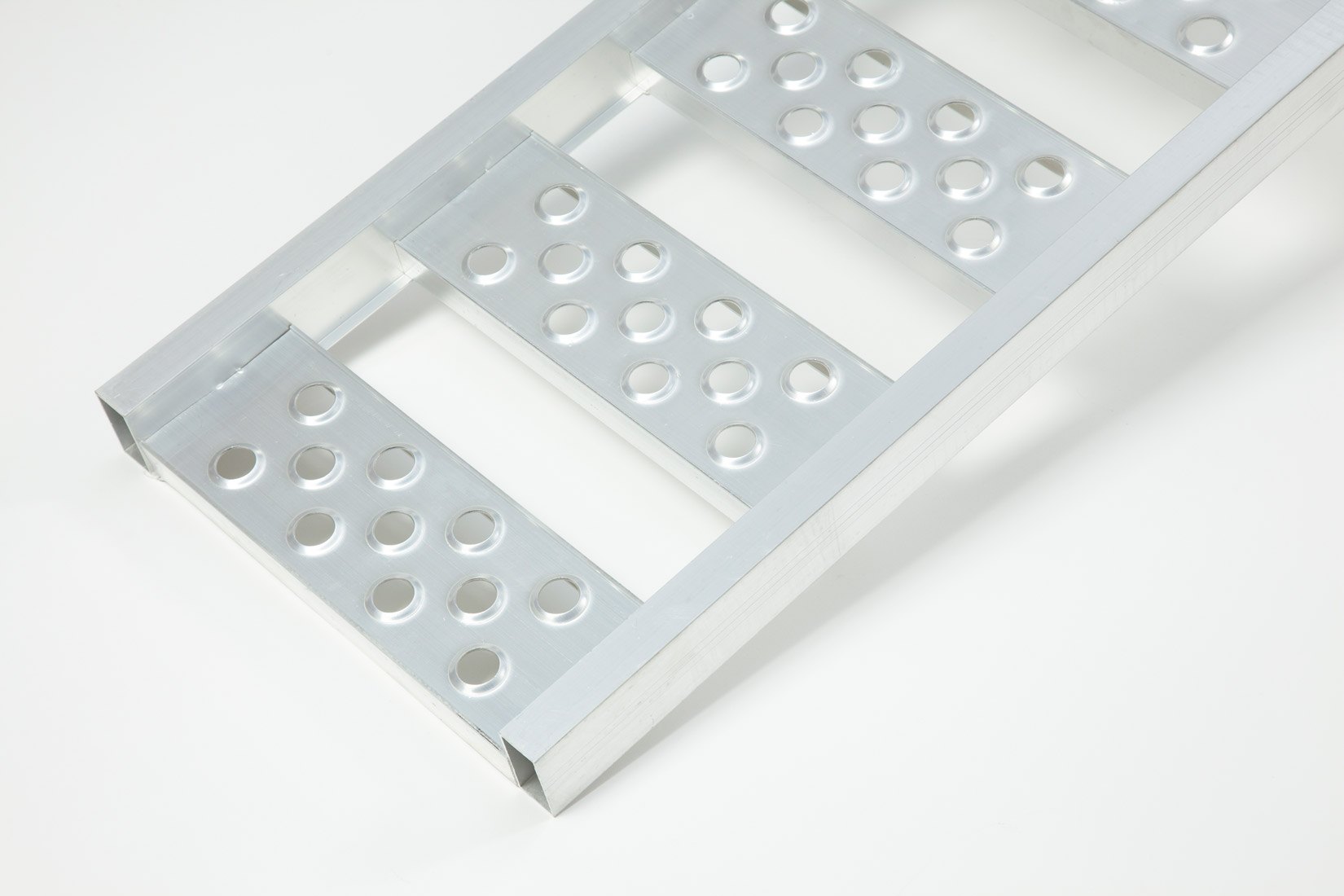

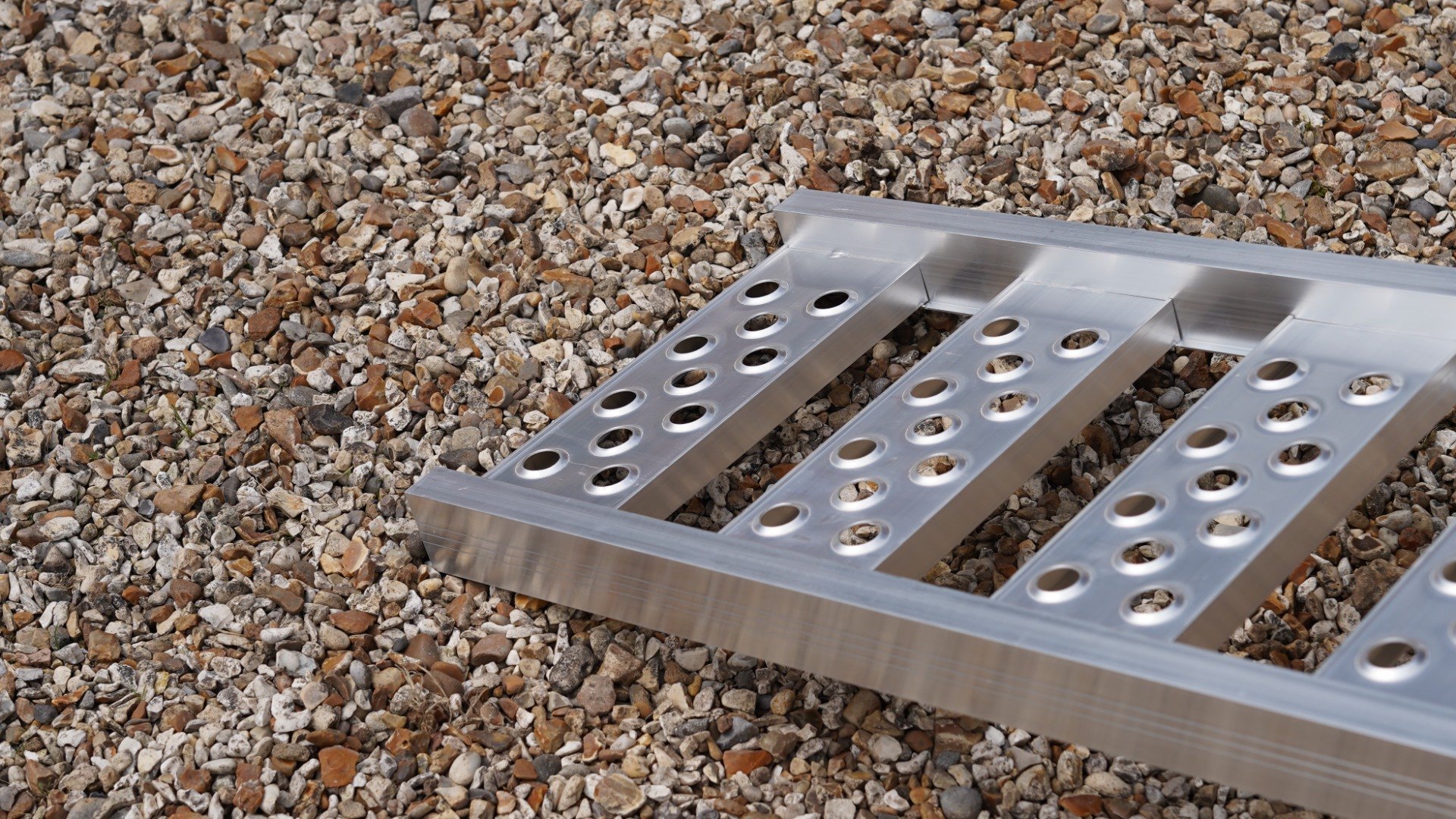

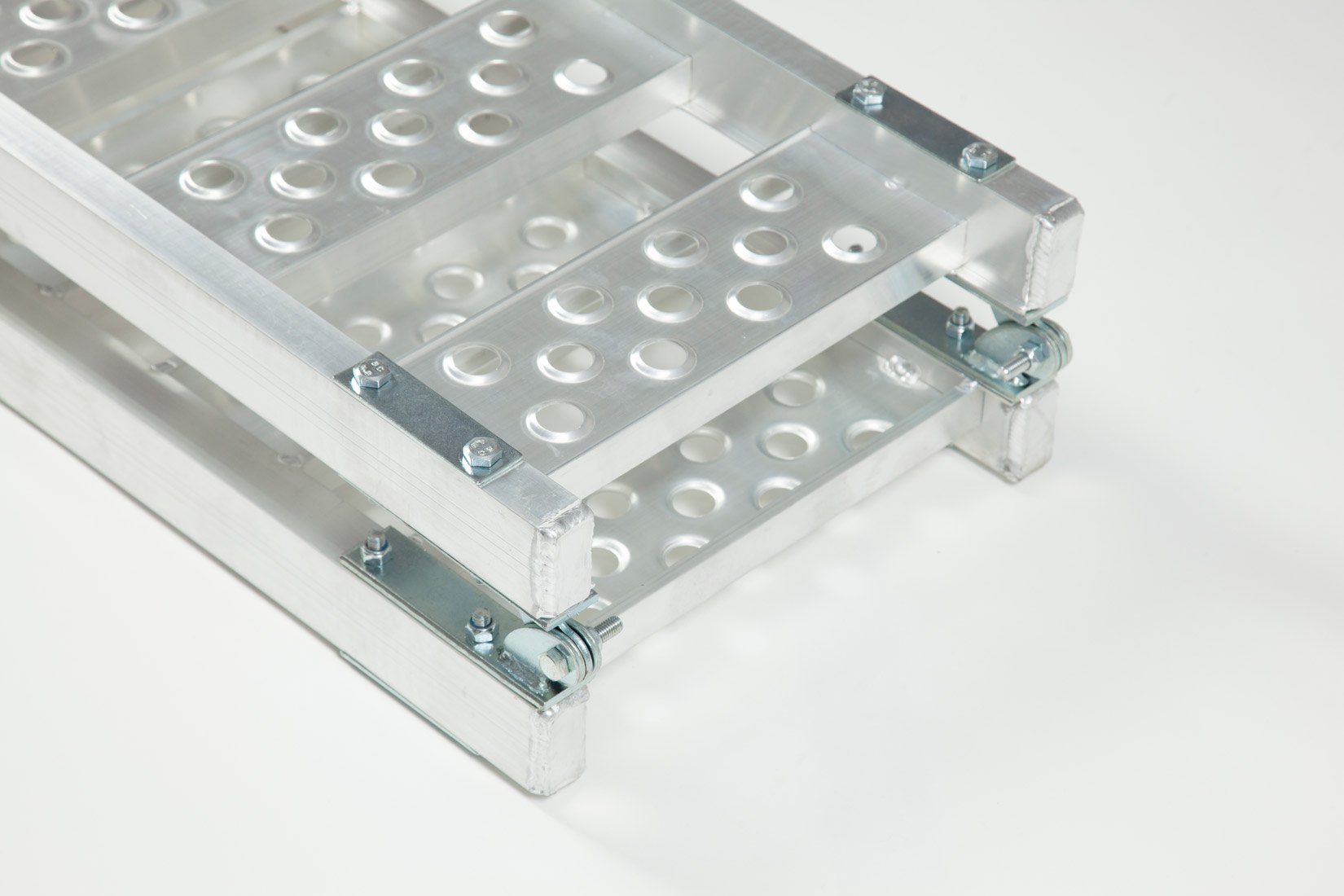

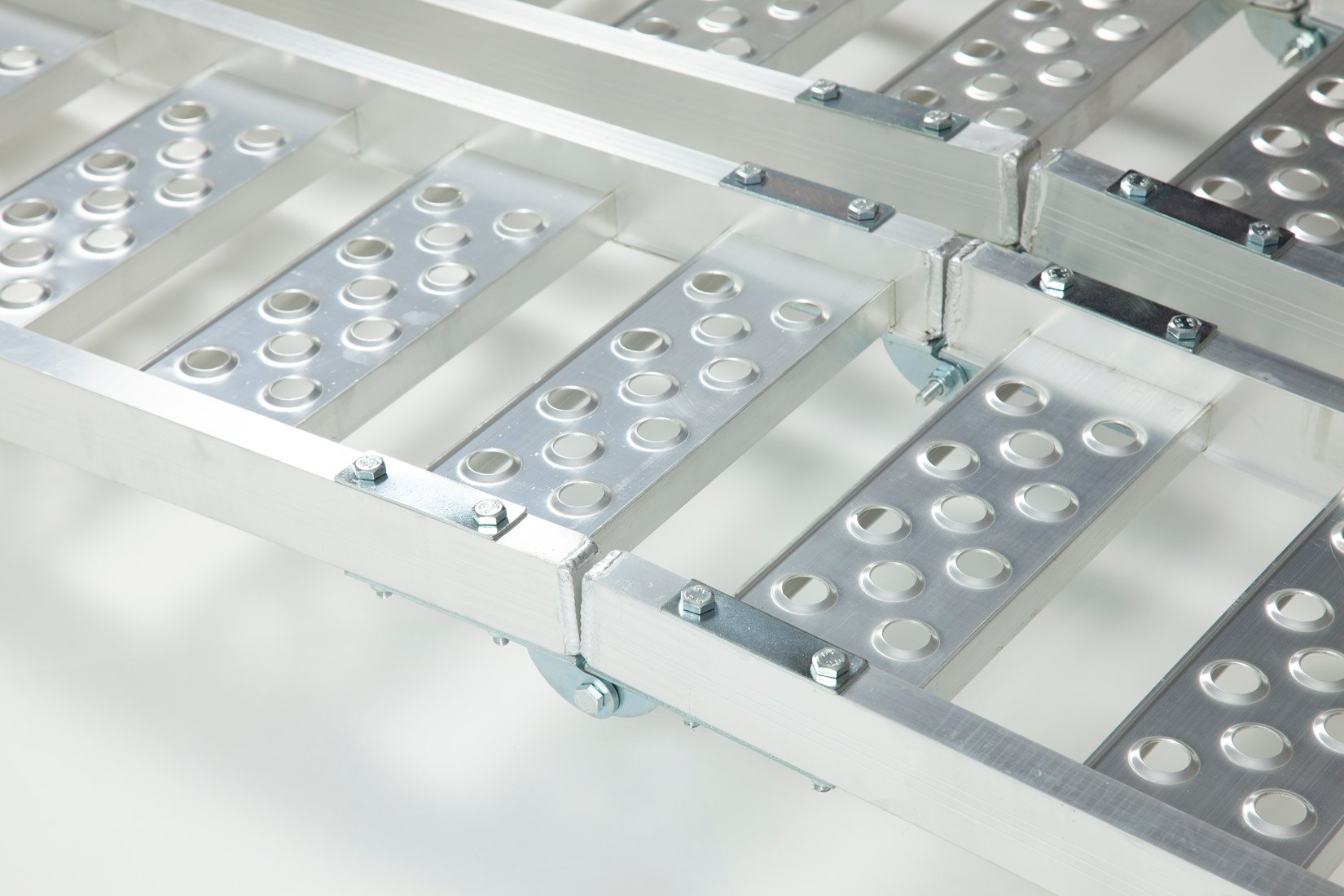

- Lightweight aluminium folding loading ramp with perforated grip system
- Perfect for motorcycles, quad bikes and ride-on lawn mowers

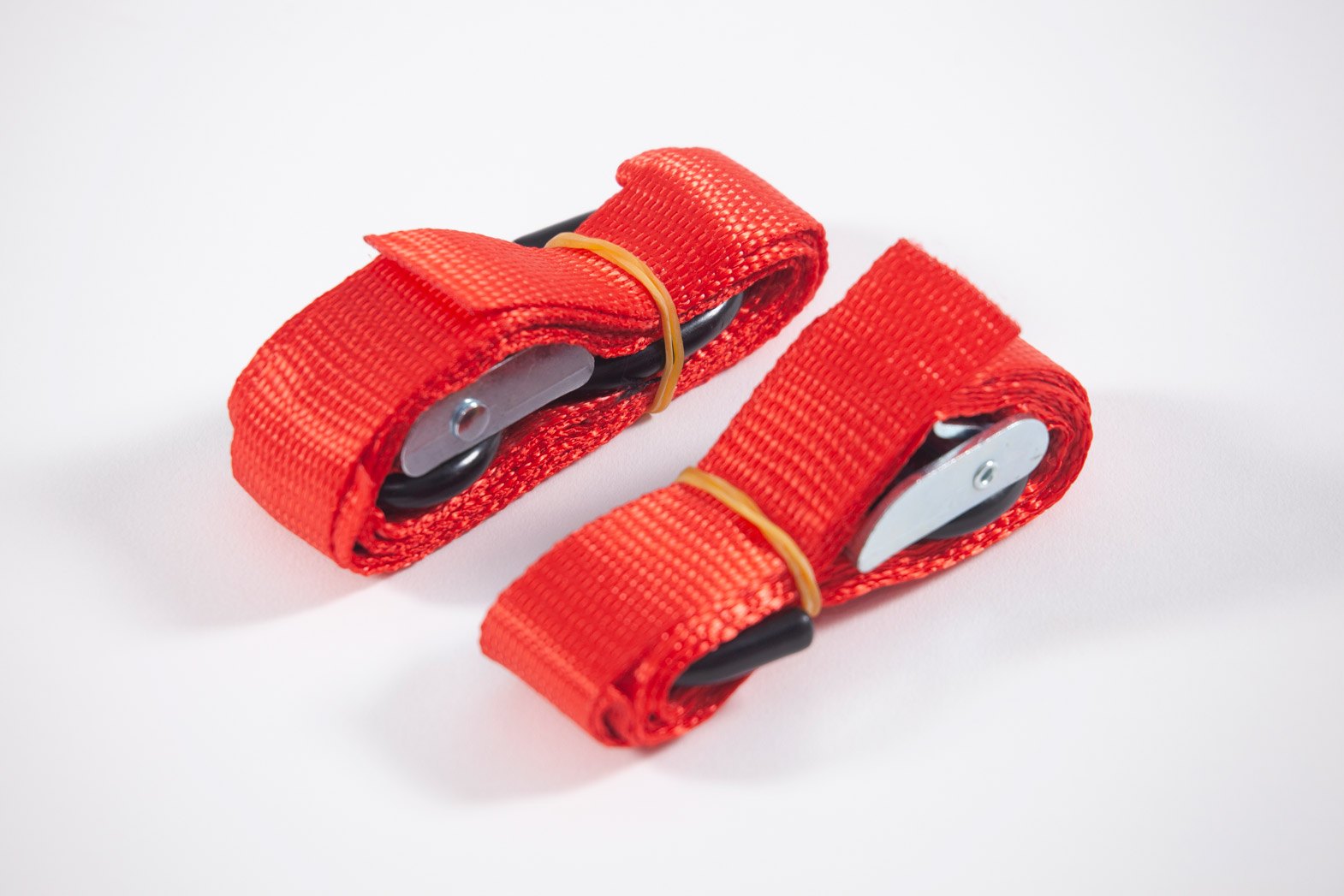

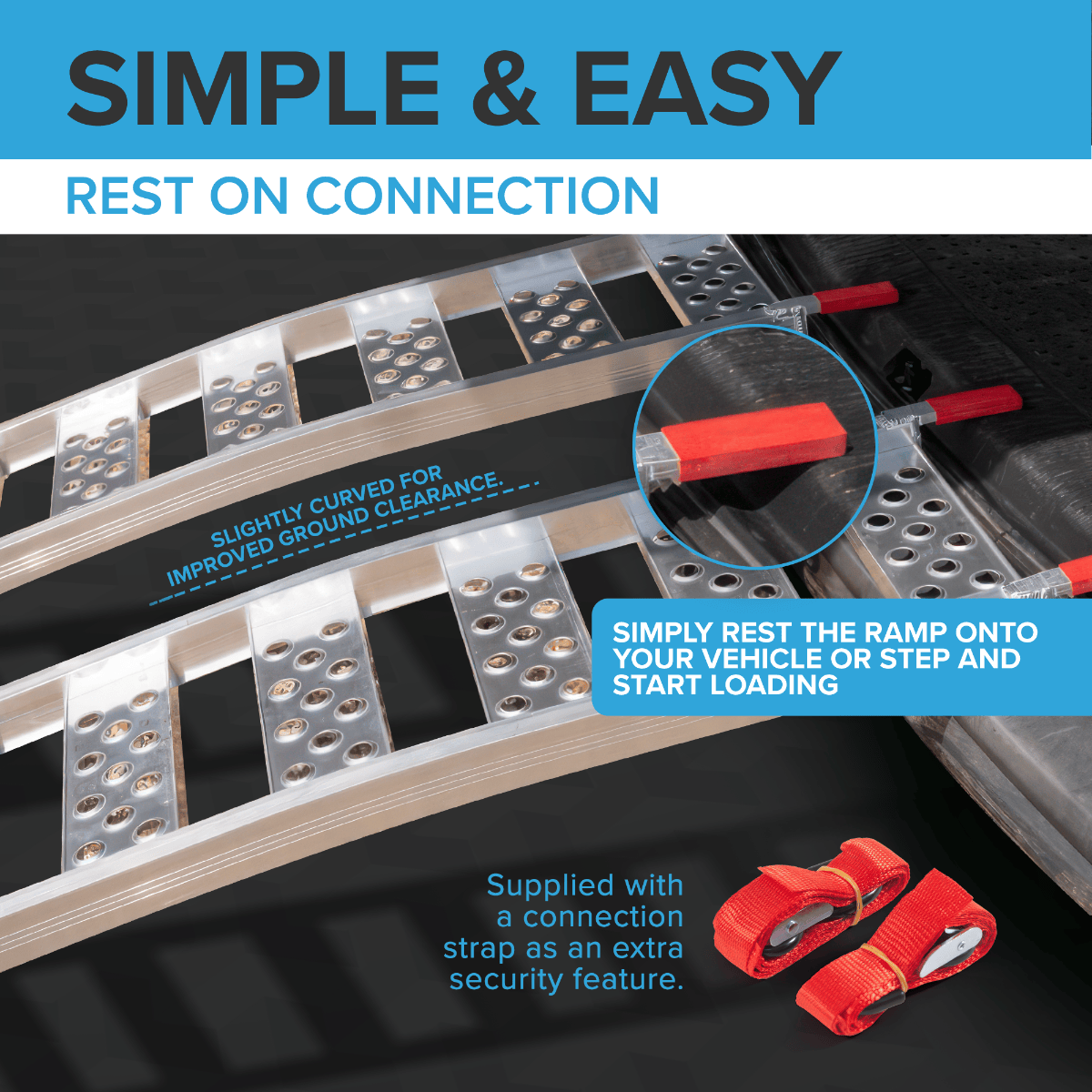

- Supplied with a connection strap as an extra security feature
- Capacity of 340kg per ramp, 680kg across the pair

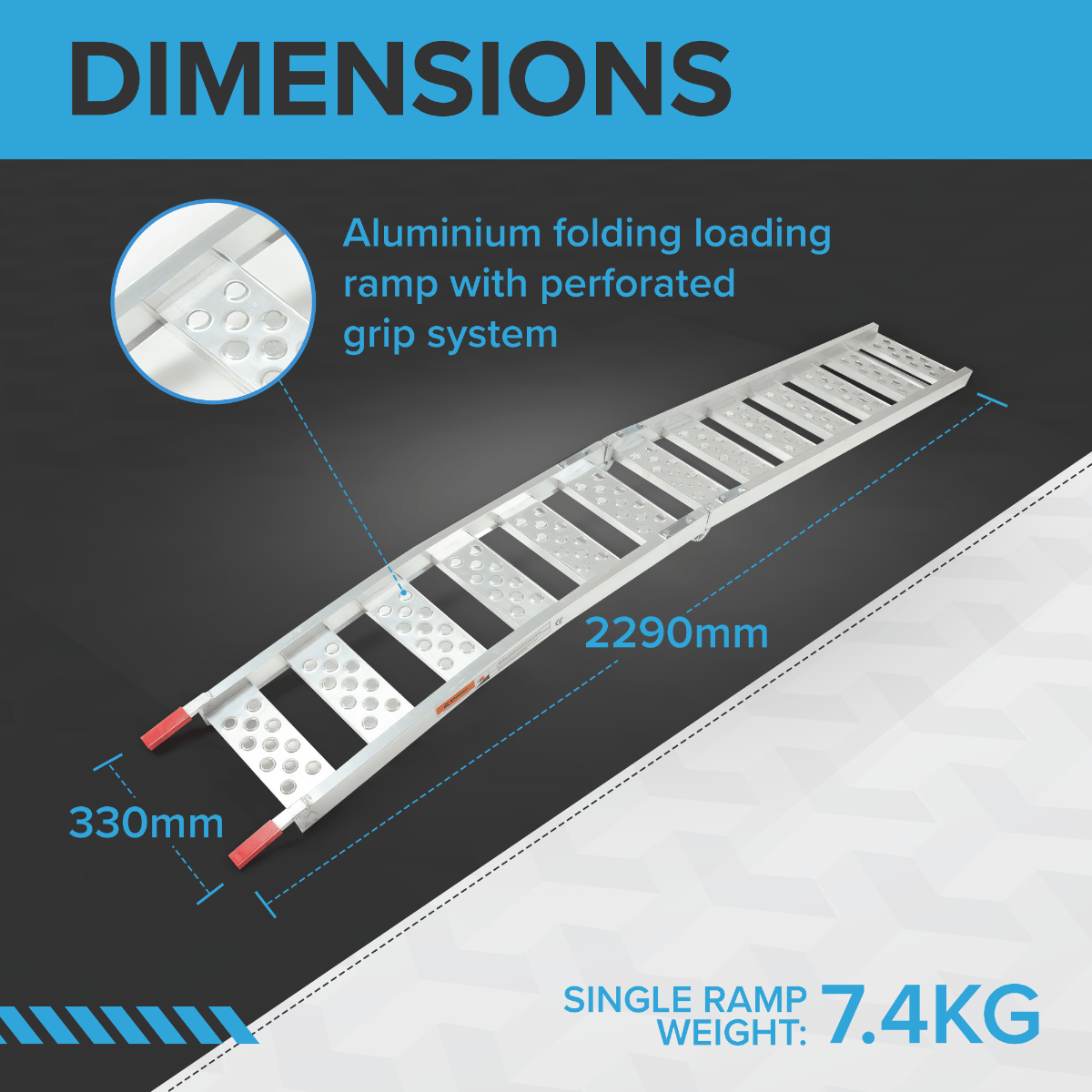

- Each single ramp is 2290mm x 330mm with a weight of 7.4kg

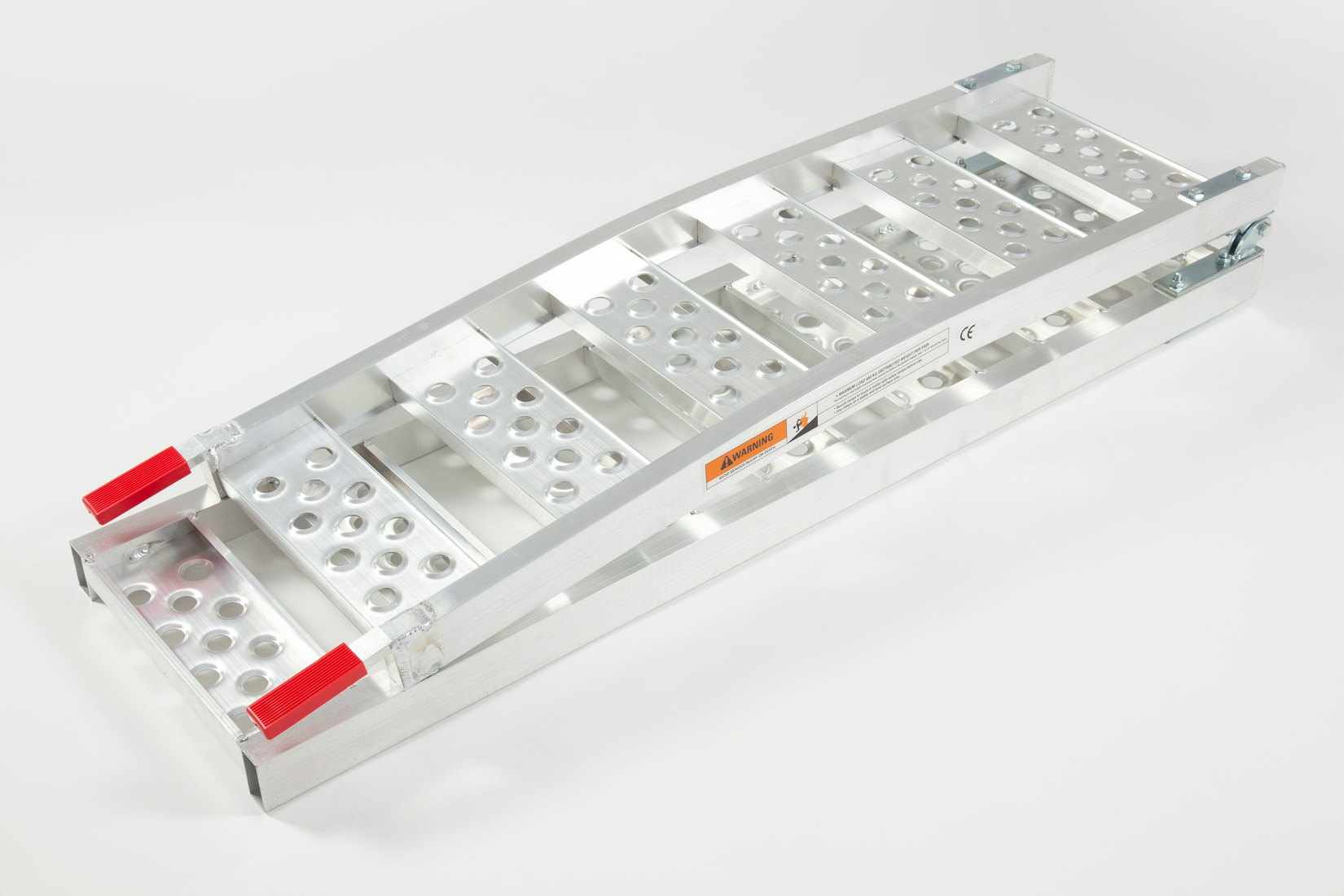

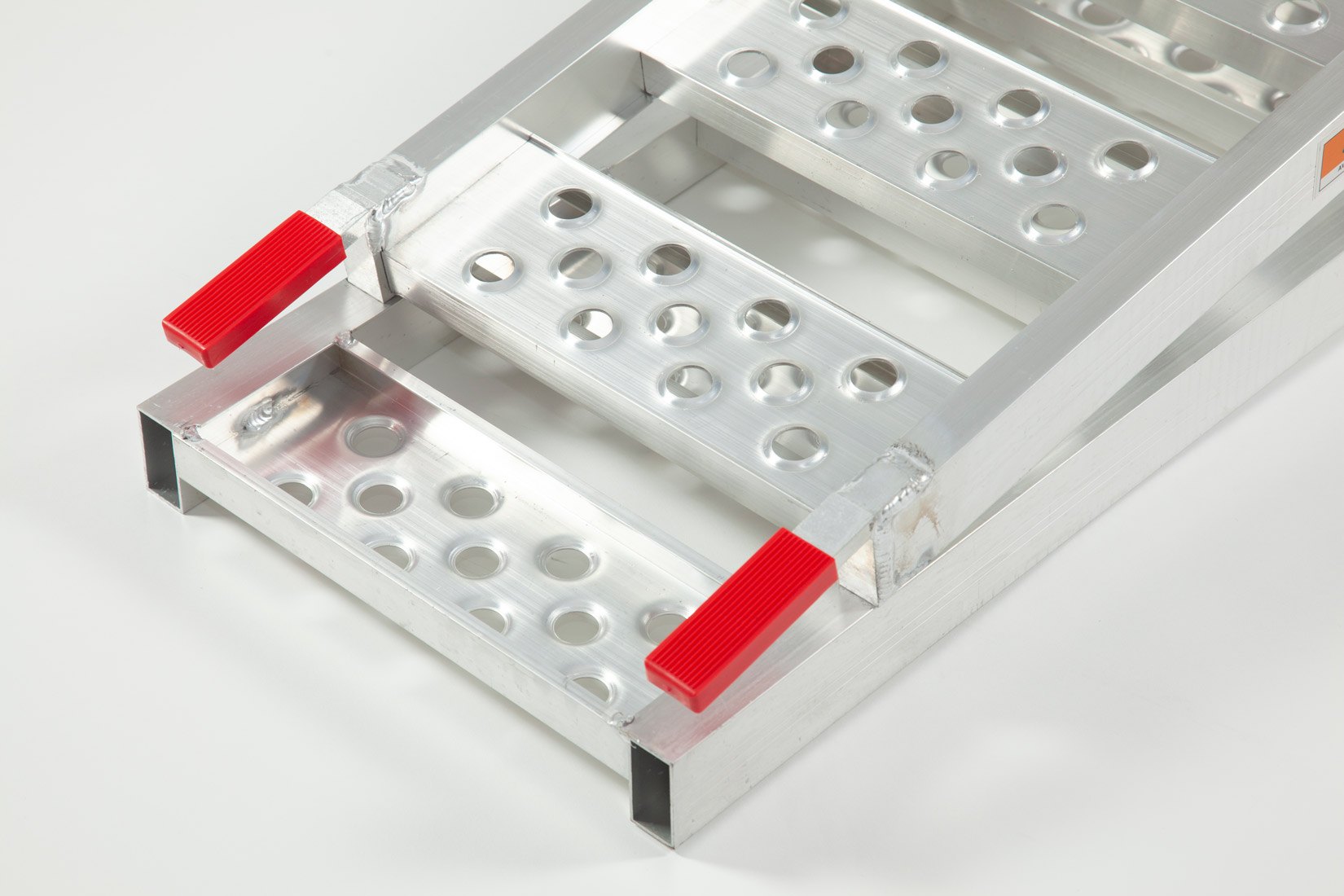

- Folded Length 1145mm

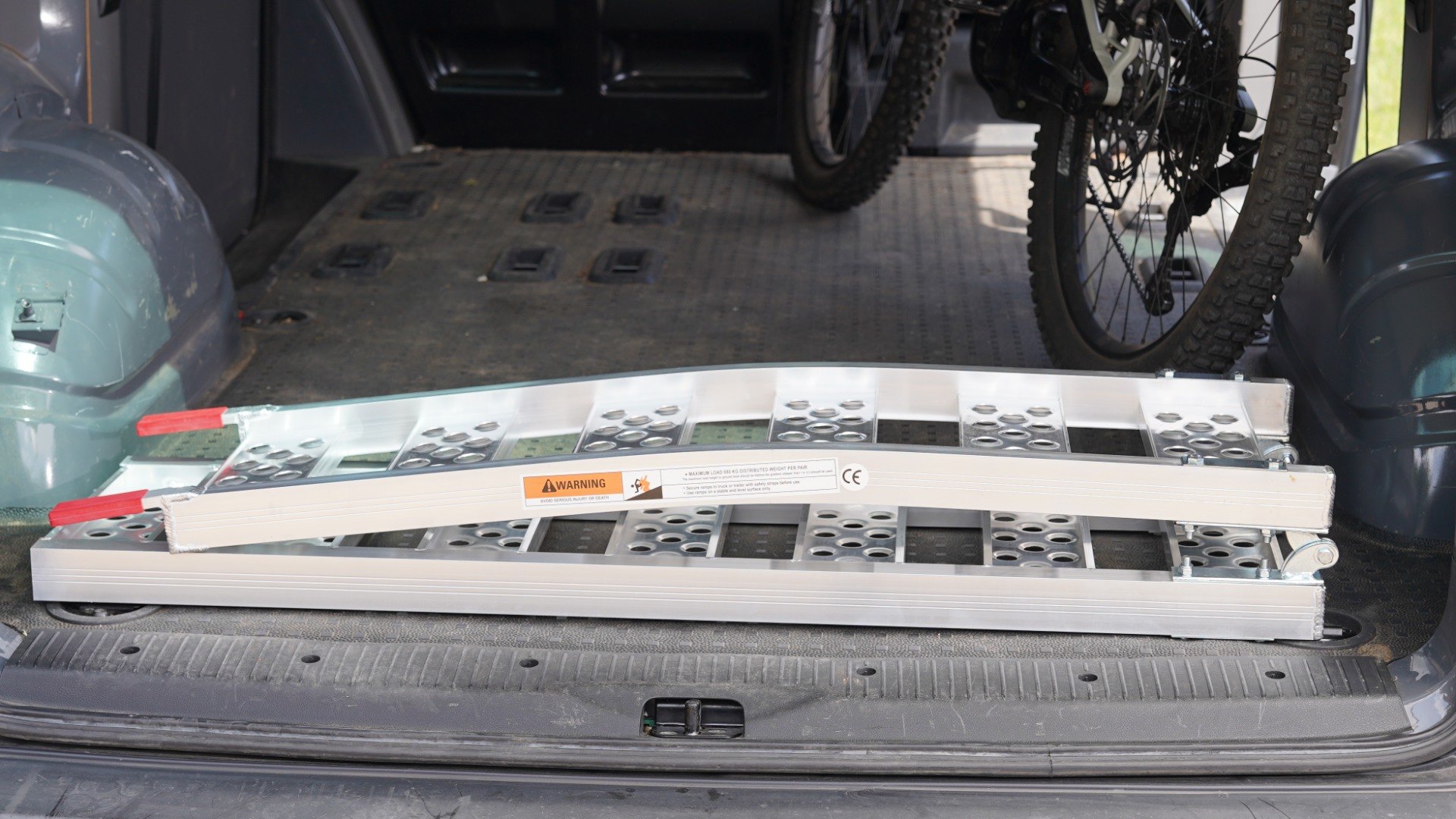

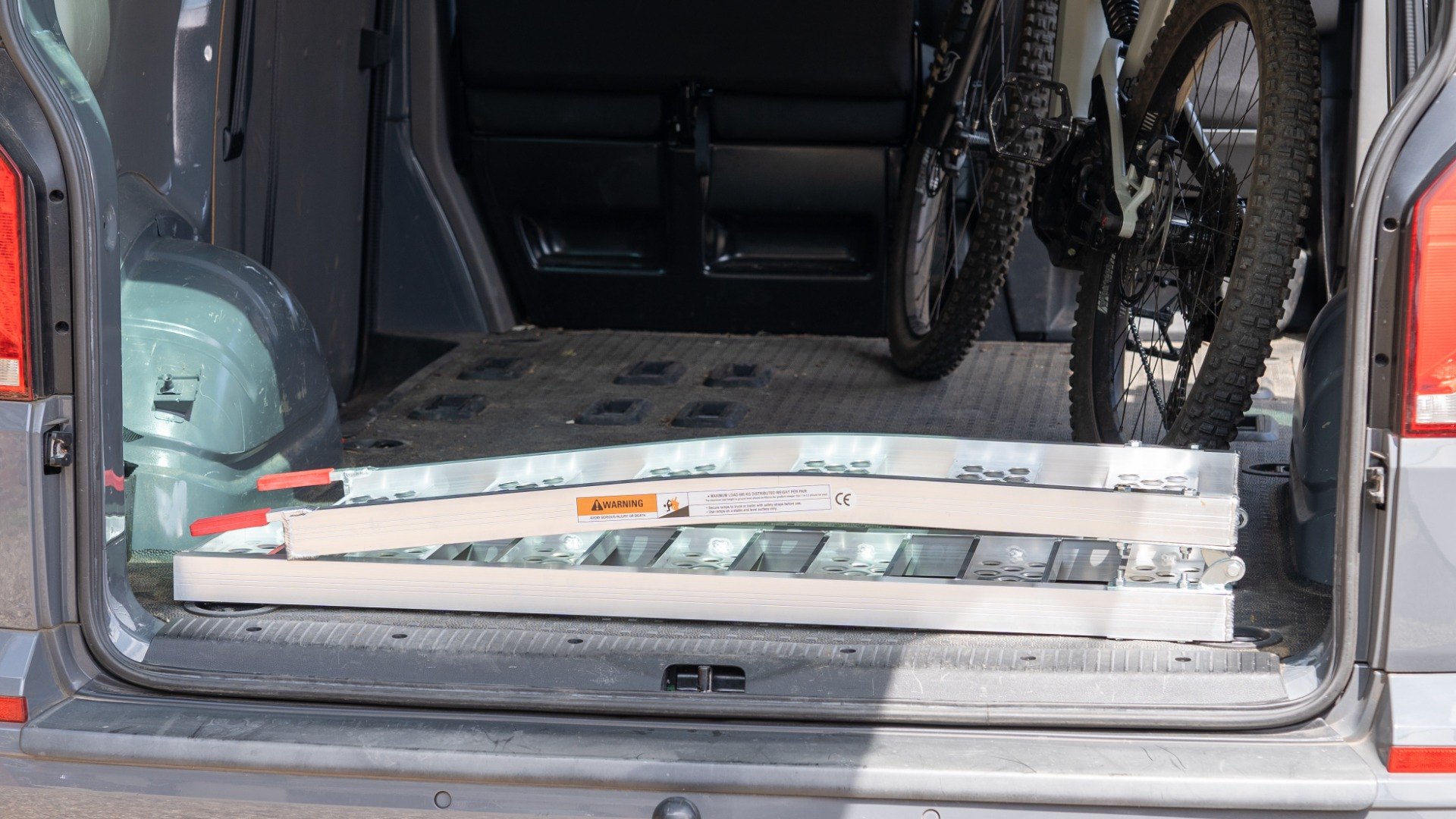

- Designed for easy storage and transport

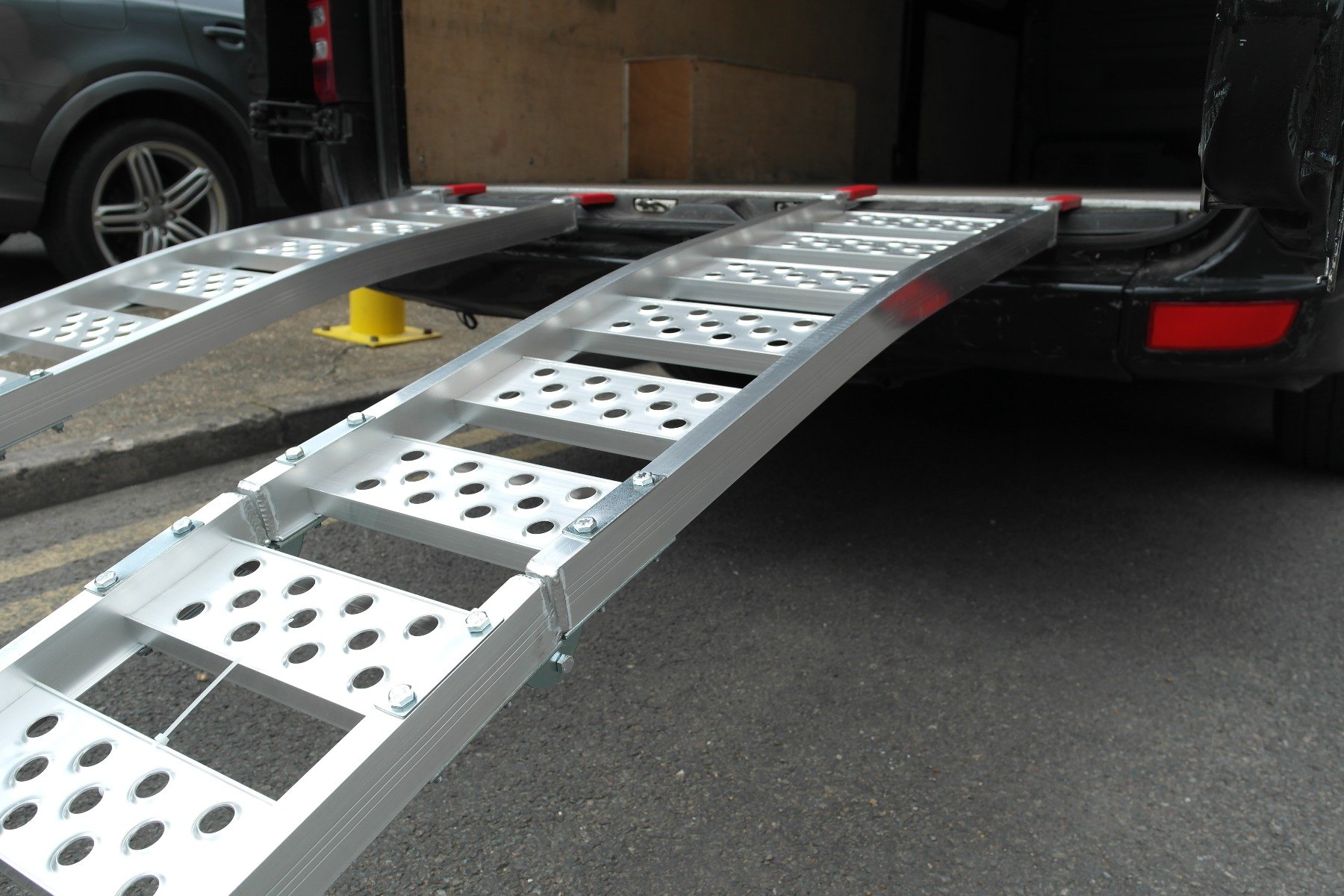

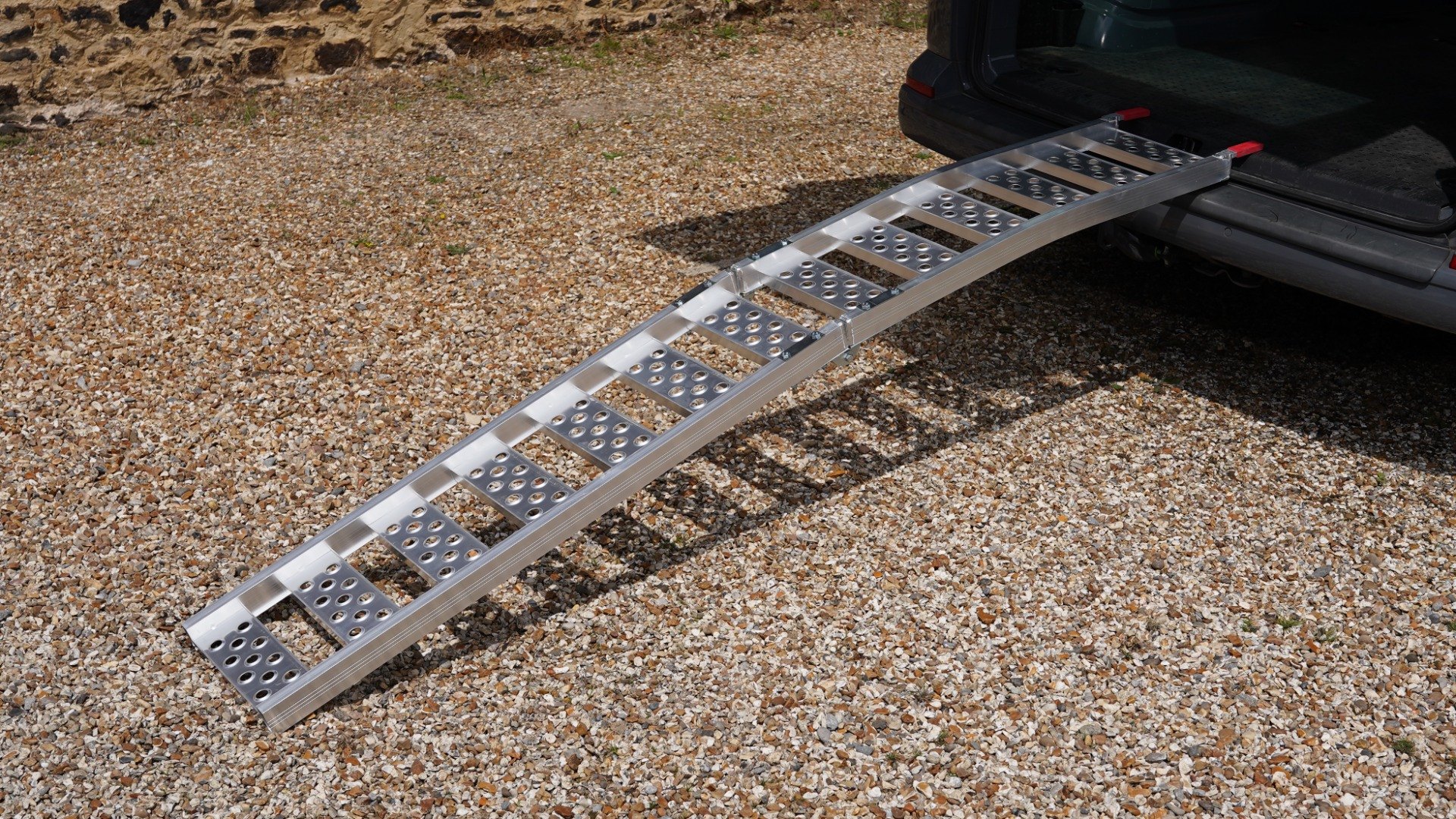

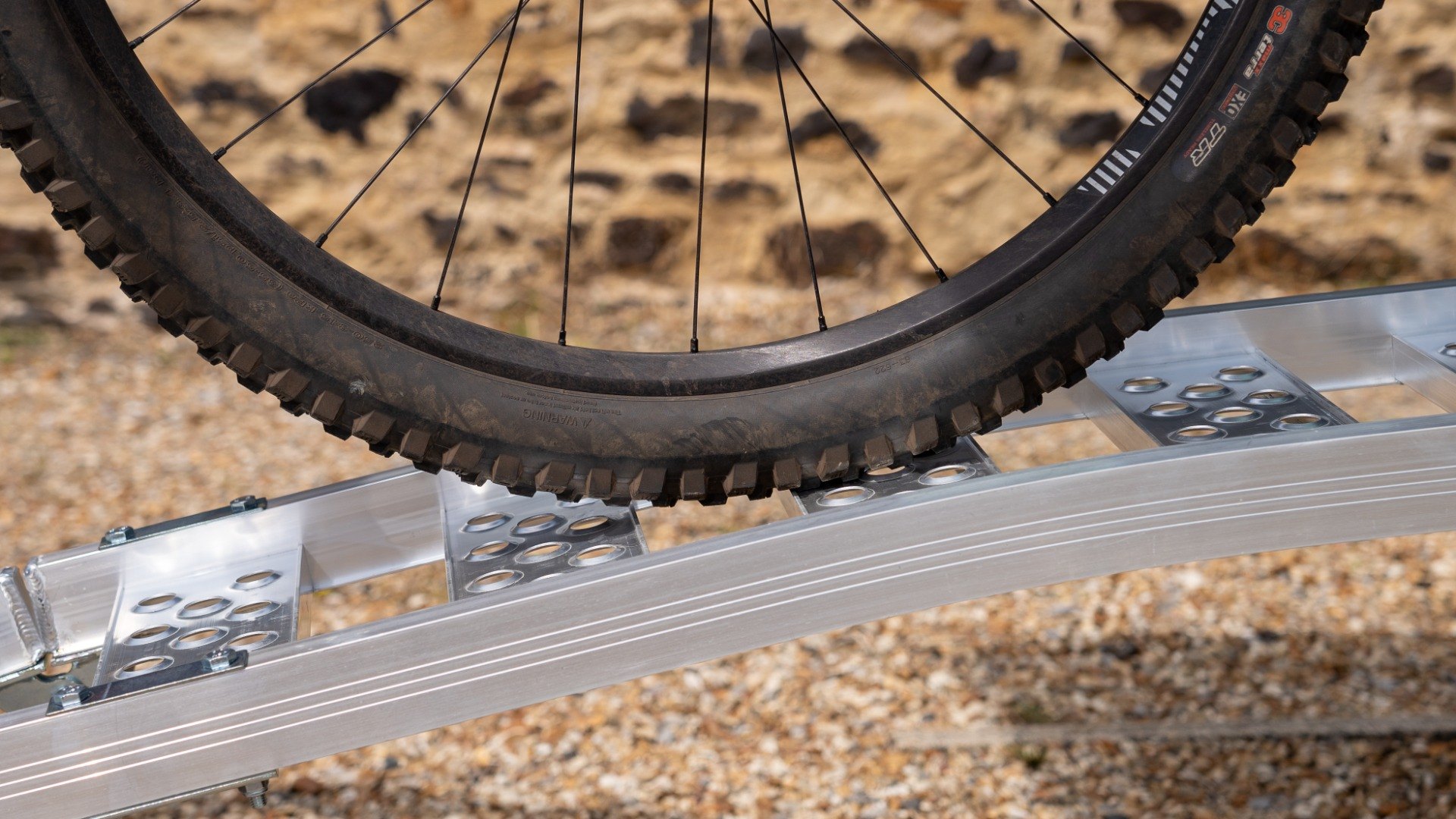

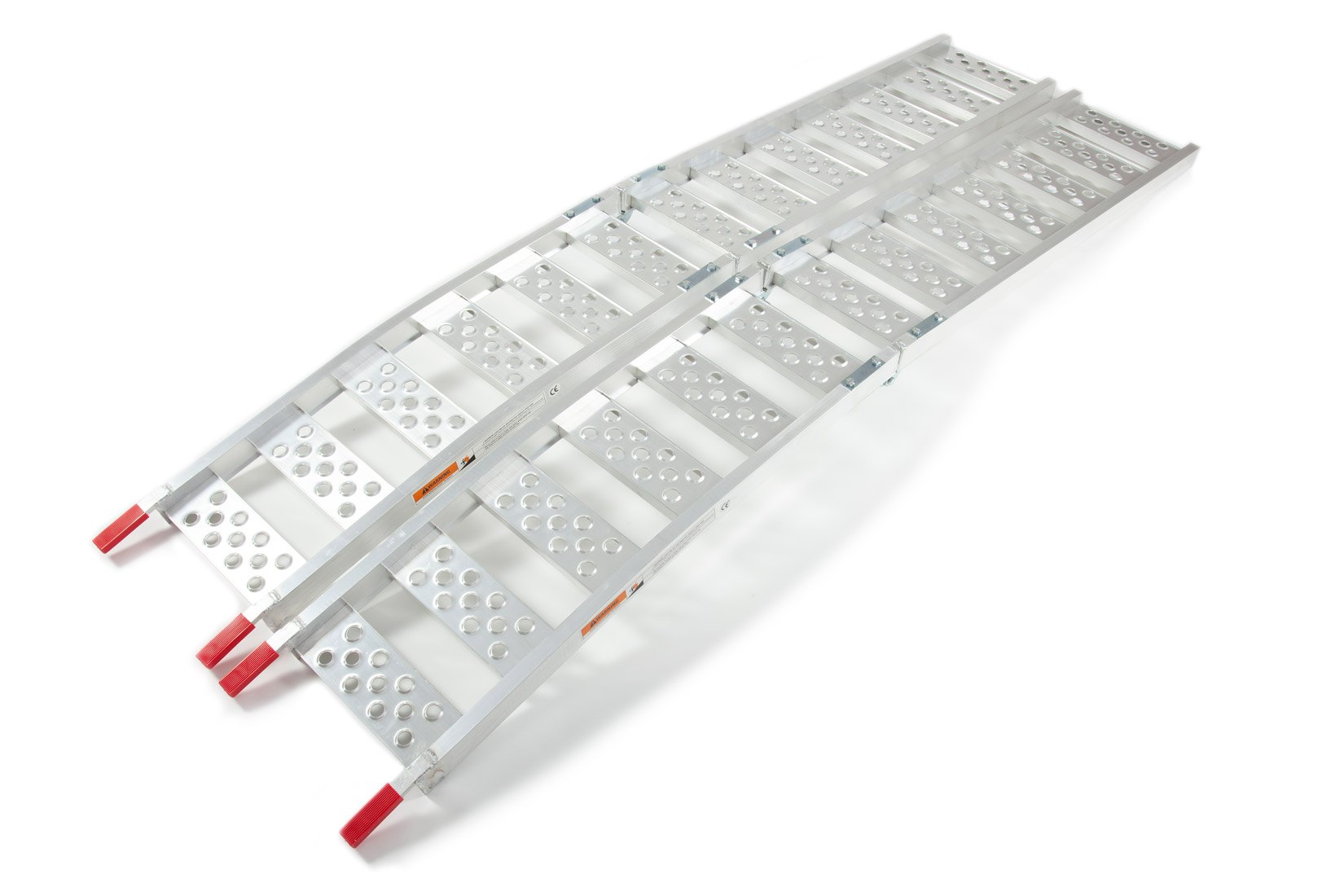

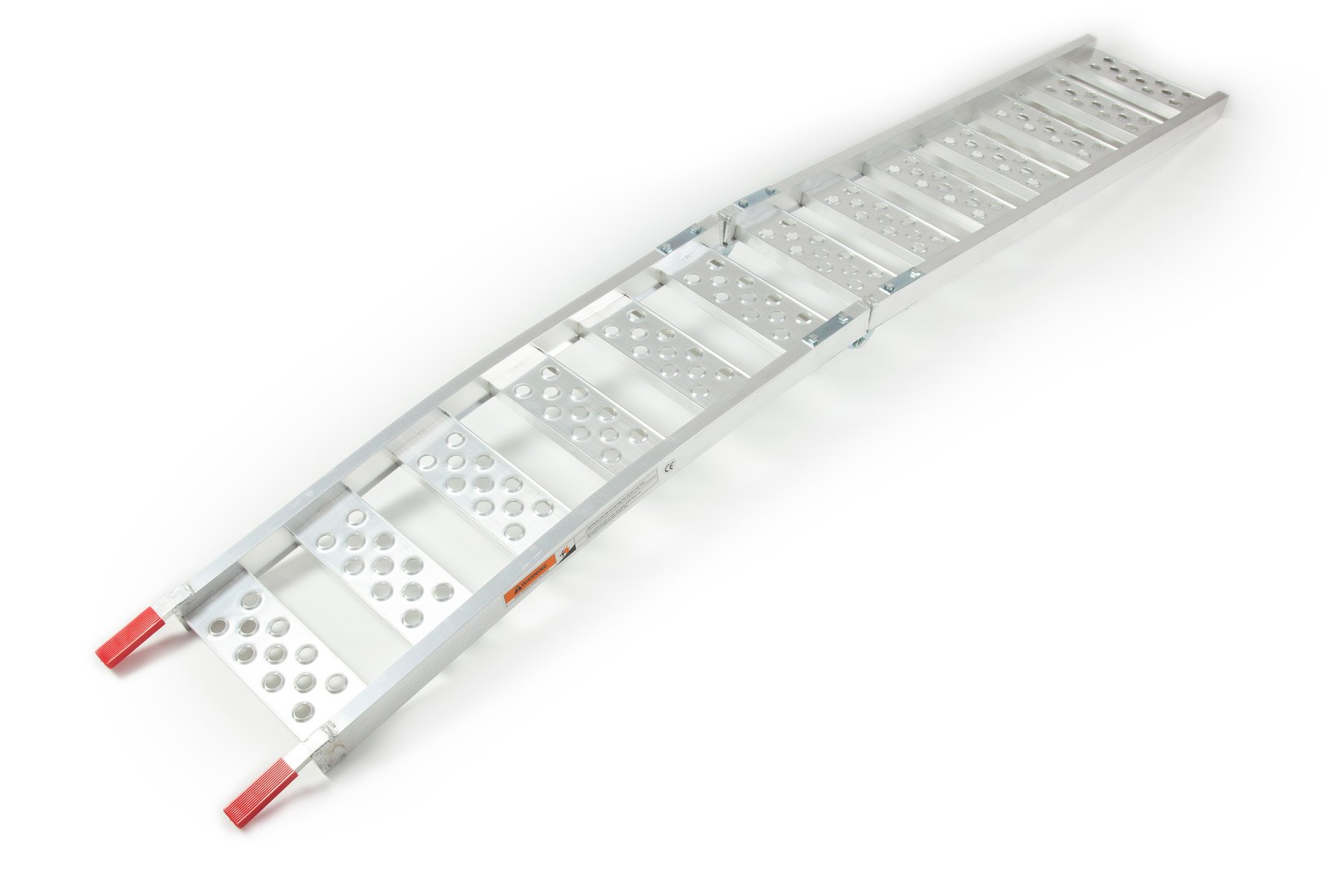

- Slightly curved for improved ground clearance

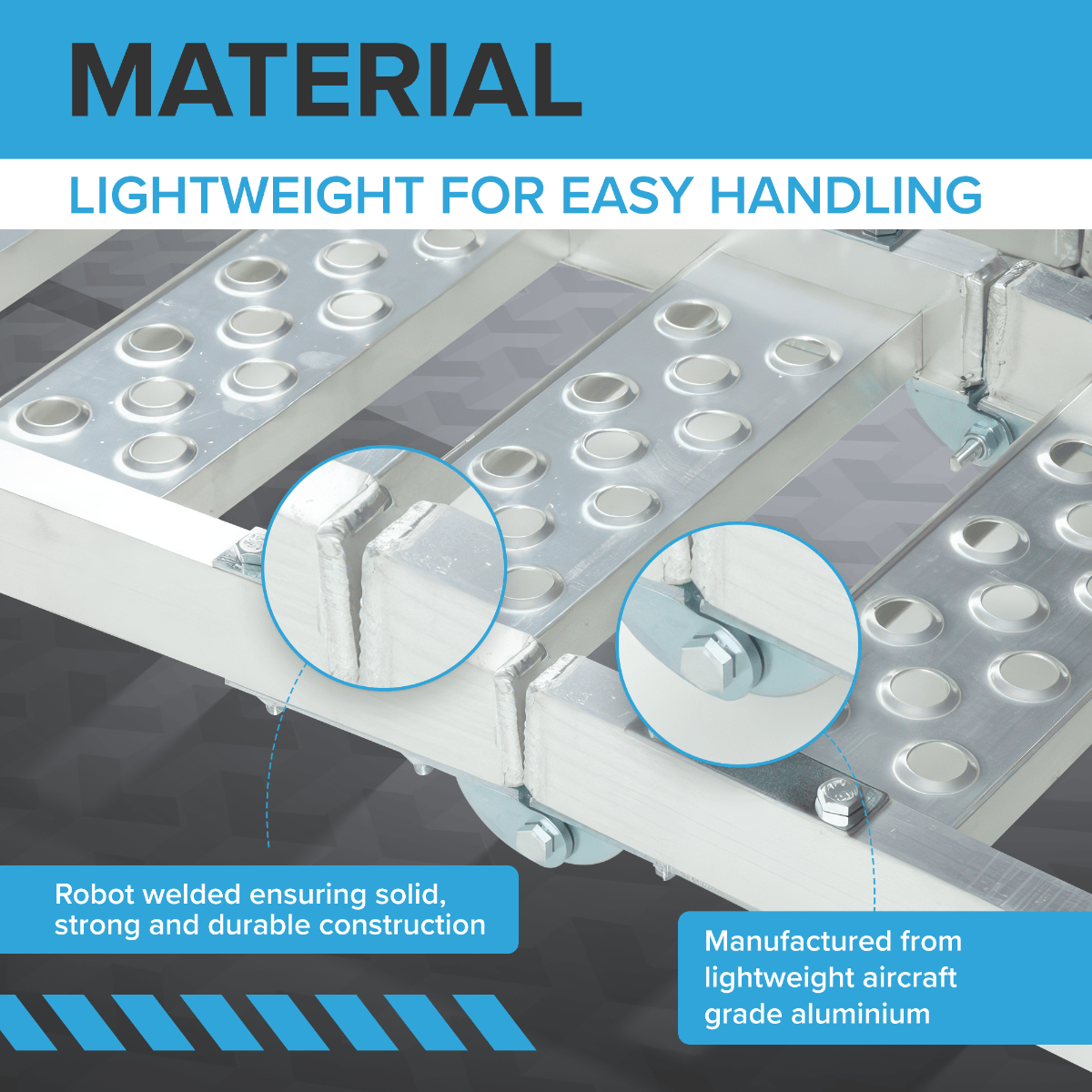

- Manufactured from lightweight aircraft grade aluminium (type 6005A)

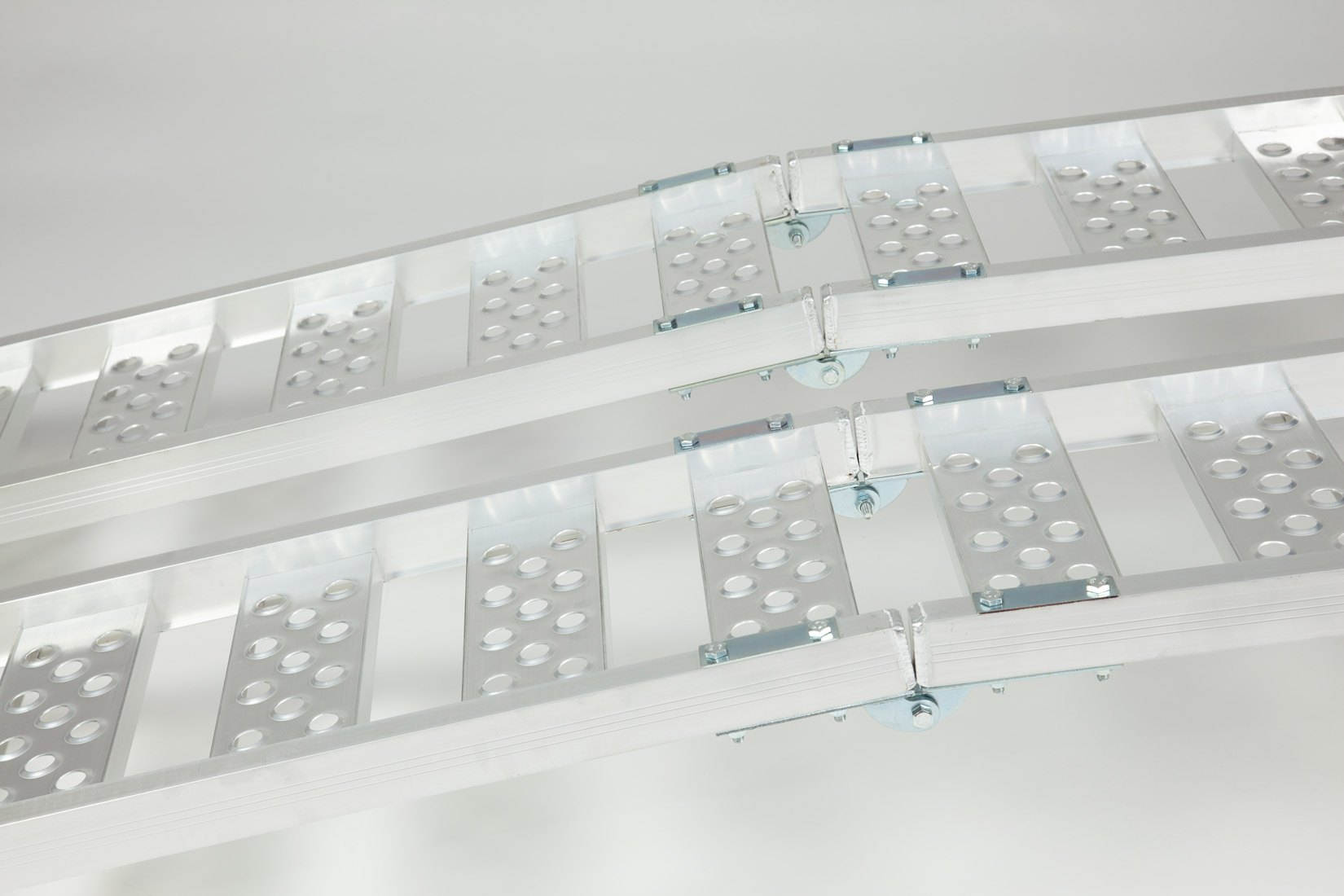

- Robot welded for solid, strong and durable construction
- Lightweight for easy handling
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Please note: These ramps are unsuitable for single axle machinery or vehicles. These ramps are not suitable for commercial/Industrial usage, for this use we would recommend a solution from our professional range.
| SKU | TRP799Conf |
|---|---|
| Capacity (kg) | 340 - 680 |
| Folded Length (mm) | 1145 |
| Length (mm) | 2290 |

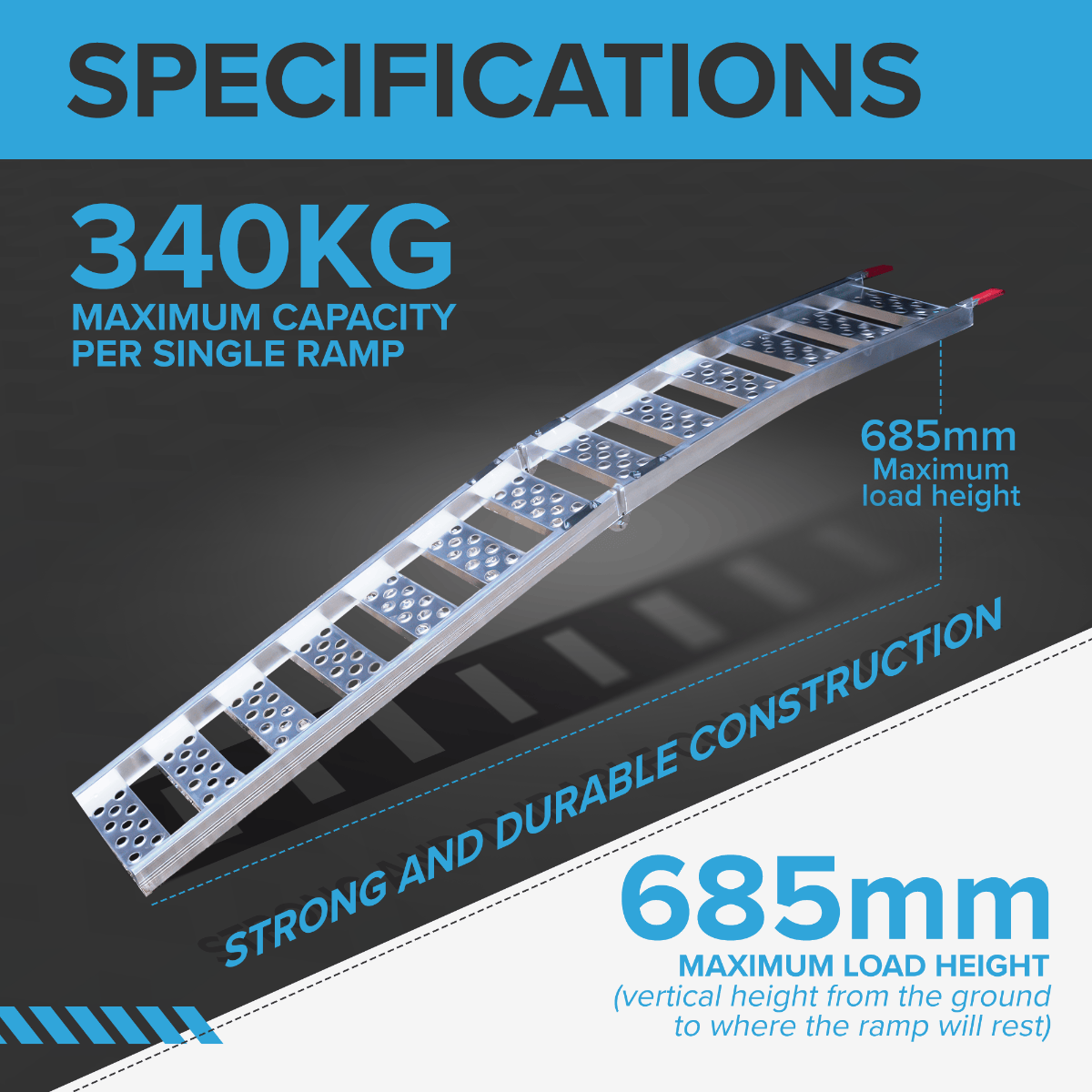

| Max Load Height (mm) | 685 |
| Weight per Ramp (kg) | 7.4 |
| Weight Per Pair (kg) | 14.8 |
| Width (mm) | 330 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

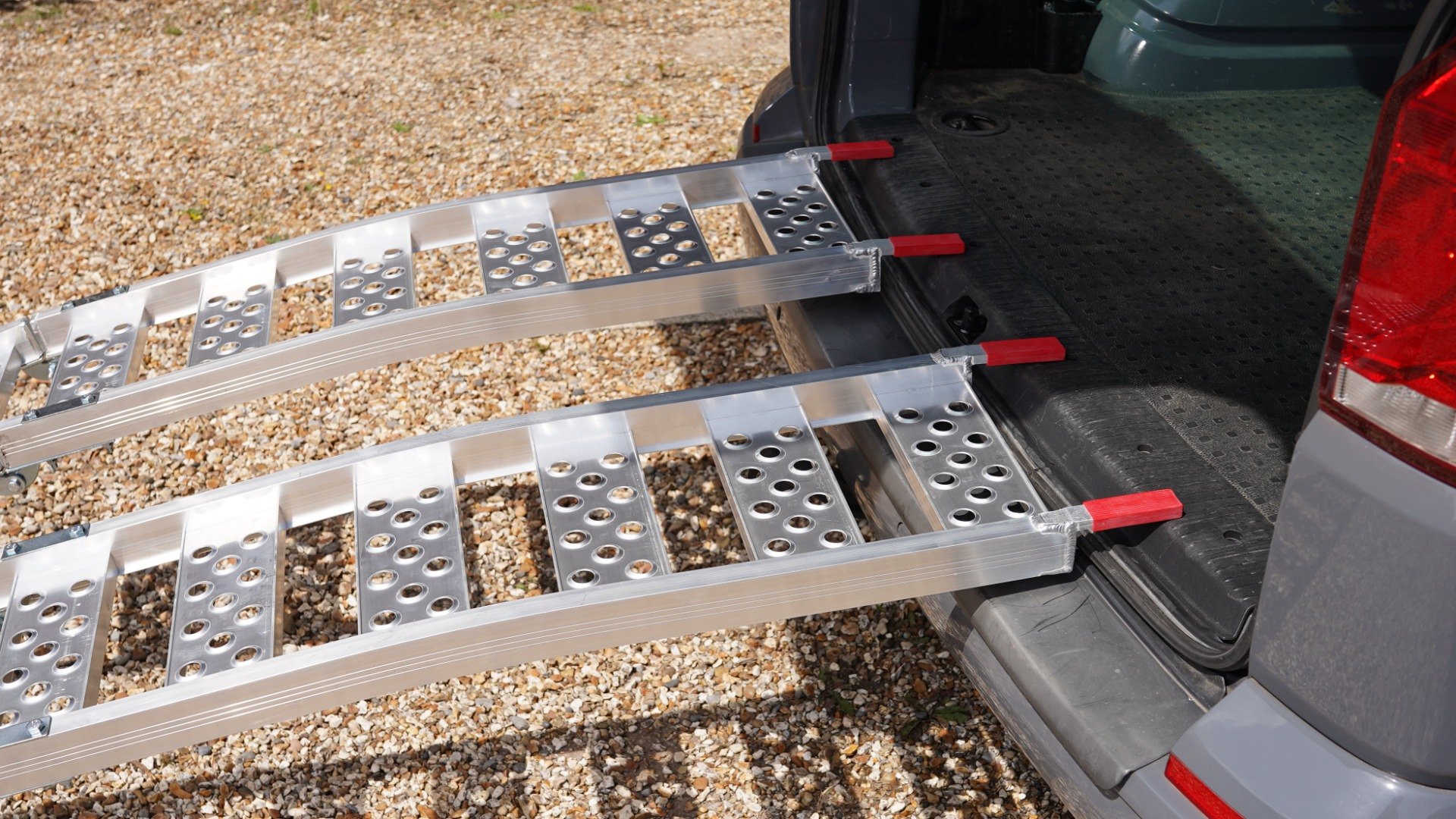

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Which wheelchair ramp length? Use our ramp length calculator! Learn more
