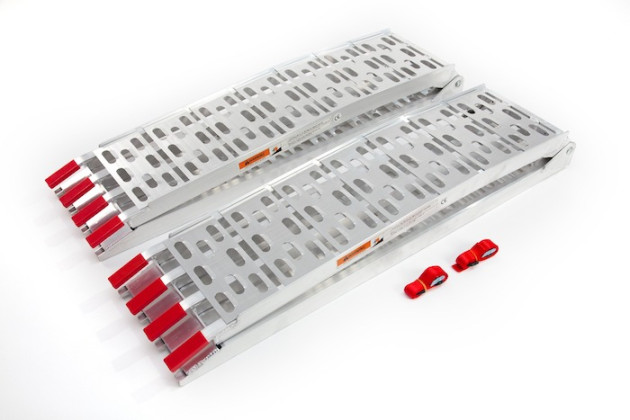

Loading Ramp with Double support Bar (2200mmx285mm)

SKU
TRP699Conf

The Ramp Factory's lightweight aluminium folding loading ramps with double support bar, increases durability and are available with and without legs. The support bar legs can be adjusted from 340mm up to 425mm.

Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps

The Ramp Factory offer many motorcycle ramps. If you are looking to load weights up to 1360kg check out the support leg ramps. For ATV's The Ramp Factory offer the aussie or the extra wide ramp kit.

From £84.00 £70.00
In Stock
Only %1 left

Motorcycle and Folding Loading Ramps FAQ's

Description
    • Provided with double support bar which adds greater strength and durability
    • Folding ramp design for easy storage and transport
    • Slightly arched for improved ground clearance and to provide a smoother angle during loading
    • Minimum tyre width 10cm
    • Manufactured from lightweight aircraft grade aluminium (type 6005A)
    • Robot welded for solid, strong and durable construction
    • Lightweight for easy handling
    • Angled foot, this allows for smooth access onto the ramp
    • Each ramp without legs has a capacity of 340kg, capacity of across the pair is 680kg
    • Each ramp with legs has a capacity of 680kg, capacity of across the pair is 1360kg
    • Each ramp is 2200mm long x 285mm wide
    • Folded Length 1100mm
    • Designed for load heights of 520mm - 666mm
    • The adjustable support bar legs can be adjusted from 340mm up to 425mm
    • The bike ramp without support legs also offers a carry handle and clips shut when stored
    • Straps are provided with the ramps
    • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

A handy user guide for these ramps can be found here.

Please note, these ramps are unsuitable for single axle or tracked machinery or vehicles, also Not suitable for caster wheels or solid wheels. These ramps are not designed for professional or commercial use. For professional use please view our vehicle ramps.

Loading Ramps with Double Support Bar

Single Ramp with Legs

  • Length 2200mm
  • Weight 8.8kg
  • Capacity 680kg
  • Width 285mm
  • Max. load height 666mm

Single Ramp Without Legs

  • Length 2200mm
  • Weight 8.5kg
  • Capacity 340kg
  • Width 285mm
  • Max. load height 666mm

Pair of Ramps with Legs

  • Length 2200mm
  • Weight per ramp 8.8kg
  • Weight per pair 17.6kg
  • Capacity across the pair 1360kg
  • Width per ramp 285mm
  • Max. load height 666mm

Pair of Ramps Without Legs

  • Length 2200mm
  • Weight 8.5kg
  • Weight per pair 17kg
  • Capacity across the pair 680kg
  • Width per ramp 285mm
  • Max. load height 666mm

Video
Details
SKU TRP699Conf
Capacity (kg) 340-1360
Folded Length (mm) 1100
Height (mm) 50
Length (mm) 2200
Max Load Height (mm) 666
Min. Load Height (mm) 200 - 520
Weight (kg) 17
Weight per Ramp (kg) 8.5
Width (mm) 285
One Year Warranty Yes
Easy to Fit Yes
