Mini Ramp Platform and Accessories

SKU
TRP-Miniramp - platforms accessories
From £120.00 £100.00
Built to order / 2-4 weeks
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

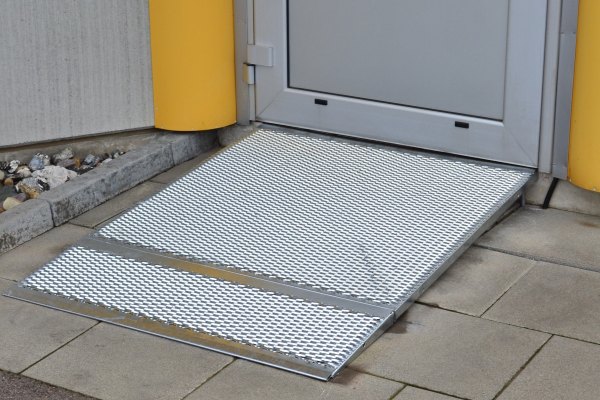

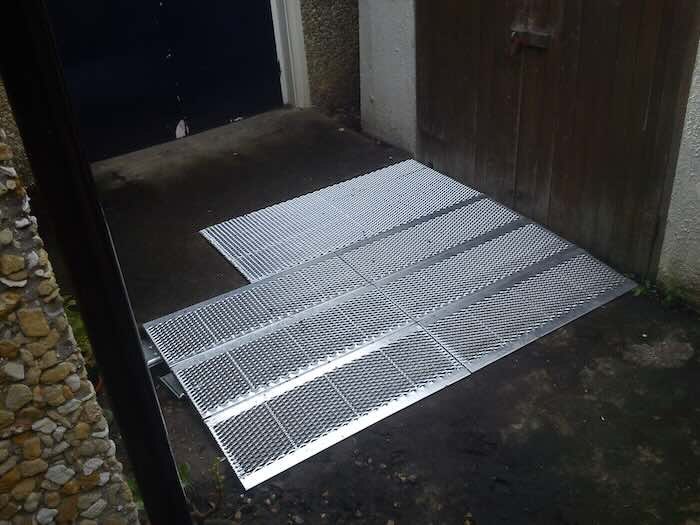

Mini ramp Kit platform and accessories are additional modules

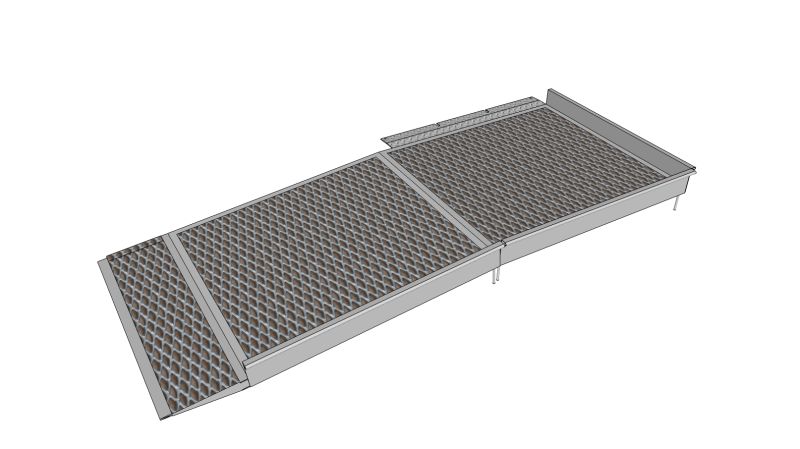

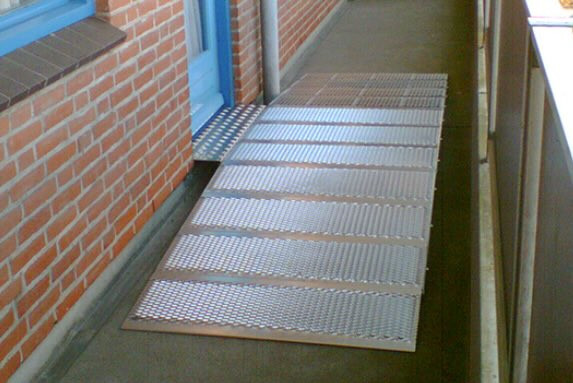

The platform 960mm x 960mm or the ramp extension 960mm x 320mm sections can be added to the existing ramp section of your choice and extend the ramp length or give the possibility to turn on a 90º angle , create the perfect ramp combination for limited spaces or for doors and thresholds with small gap in height differences.

The kick plate 960mm x 100mm can be added on the side of the ramps and/or platform creating a safety edge to avoid the wheelchair slipping over the ramp.

Connection plate 960mm x 130mm can be added on platform or ramp for a smoother transition into the step or door threshold

Description
  • Perfect for limited spaces and small height differences
  • Made of galvanised steel
  • Easy handling and fast assembling
  • Optional modules parts available to extend ramp length, add a level platform are or add safety edges ramp kit to prevent accidentally wheeling off
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Mini Ramp - Platform and Accessories

Platform Section

  • Length 960mm
  • Width 960mm
  • Weight 19.2 kg
  • Capacity 300kg
  • Min. load height 90mm
  • Max. load height 160mm

Ramp extension module

  • Length 320mm
  • Width 960mm
  • Weight 7.4 kg
  • Capacity 300 kg
  • Max. load height 160mm* if added with a ramp section

Kick plate/Safety edge

  • Length 960mm
  • Width 100mm
  • Weight 2.8 kg

Connection plate

  • Length 130mm
  • Width 960mm
  • Weight 1.9 kg

Details
SKUTRP-Miniramp - platforms accessories
One Year WarrantyYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Leave OutsideYes
