Mini Ramp - Straight Ramp kit

SKU
TRP-Miniramp single ramp kit
From £564.00 £470.00
Built to order / 2-4 weeks
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

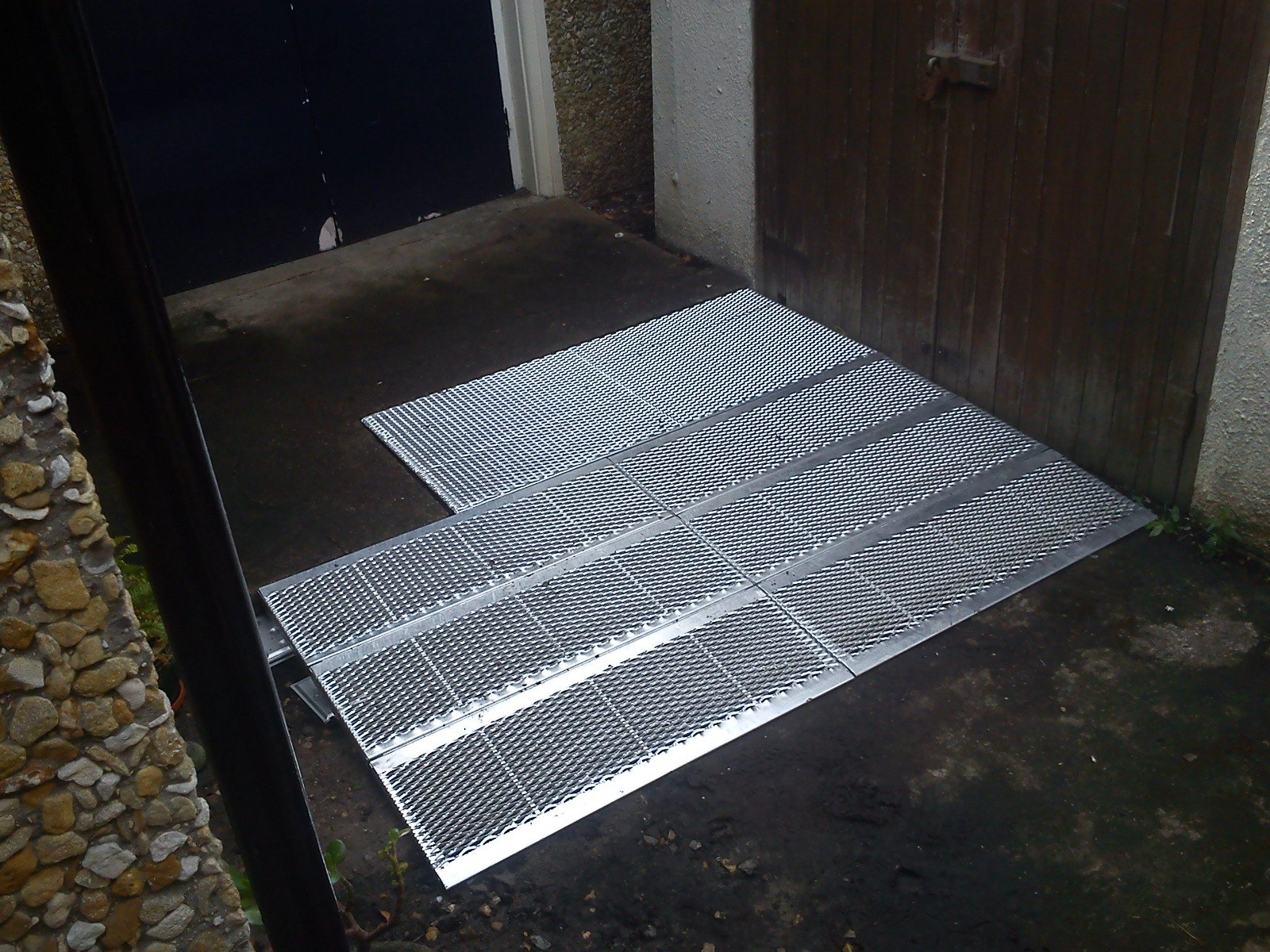

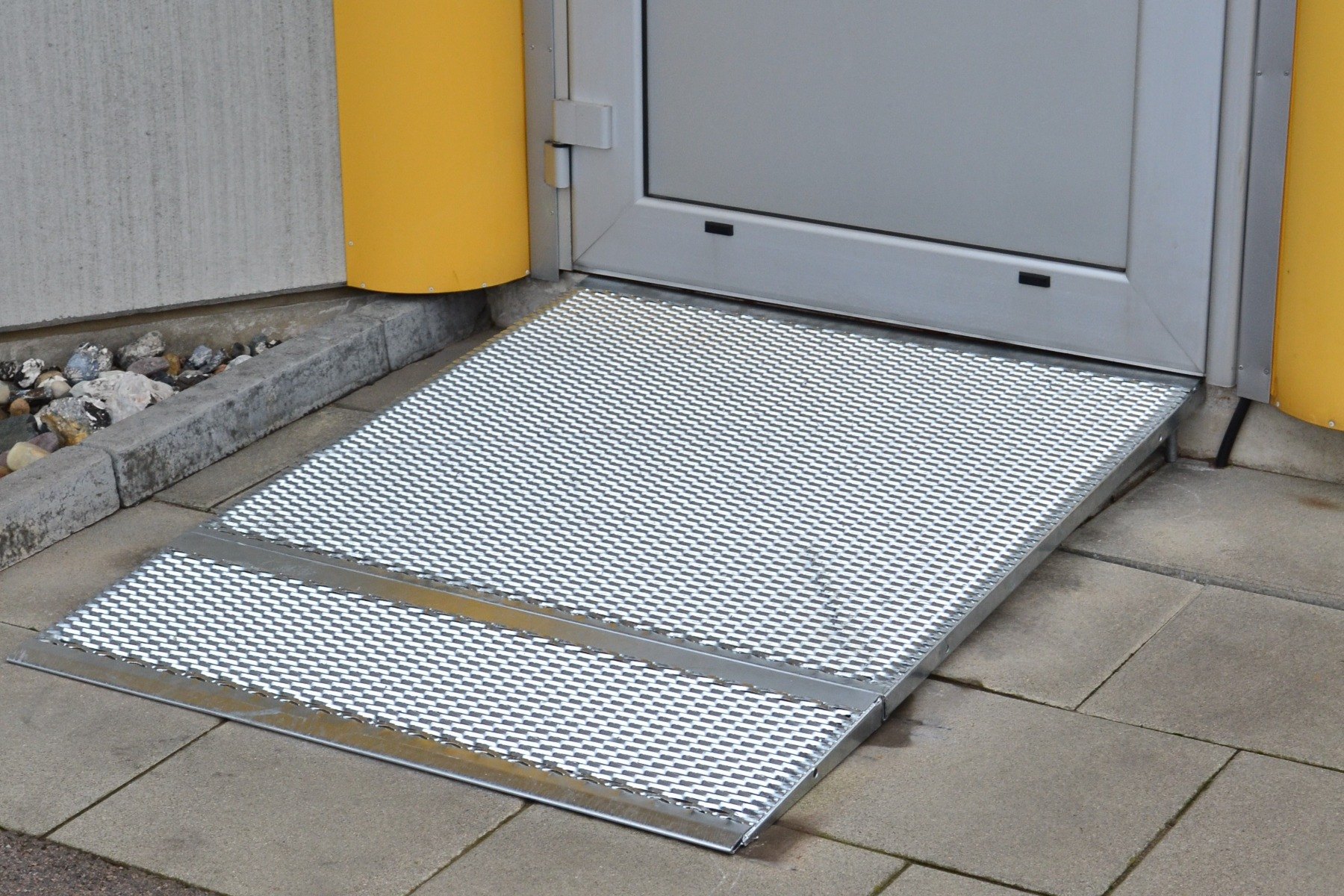

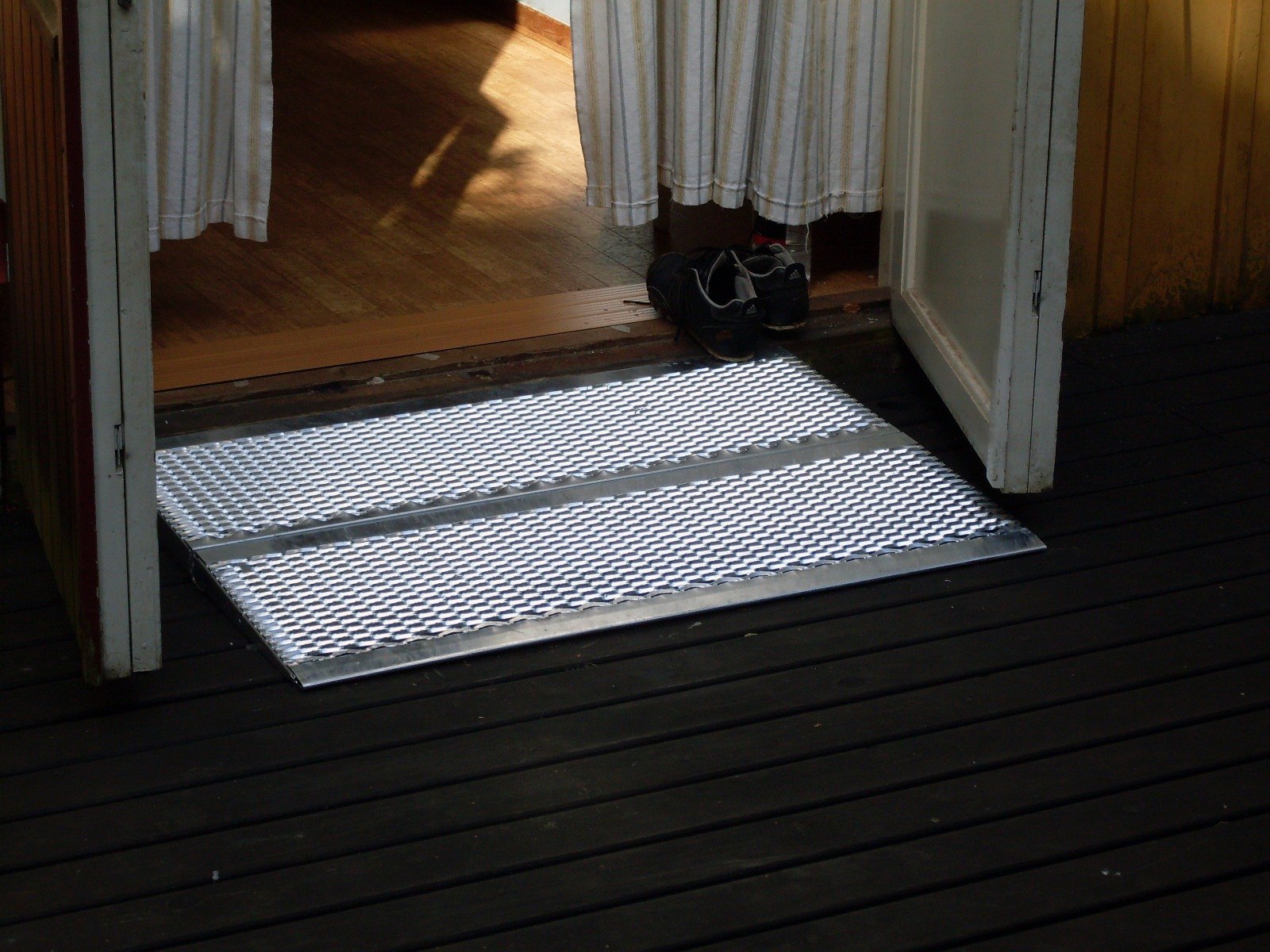

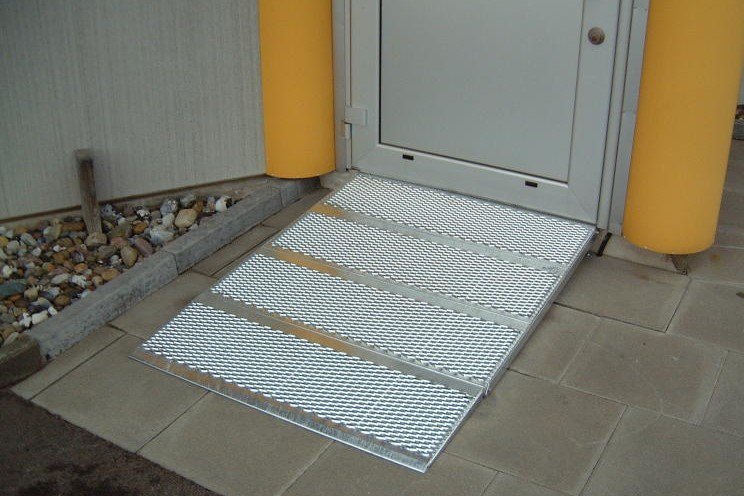

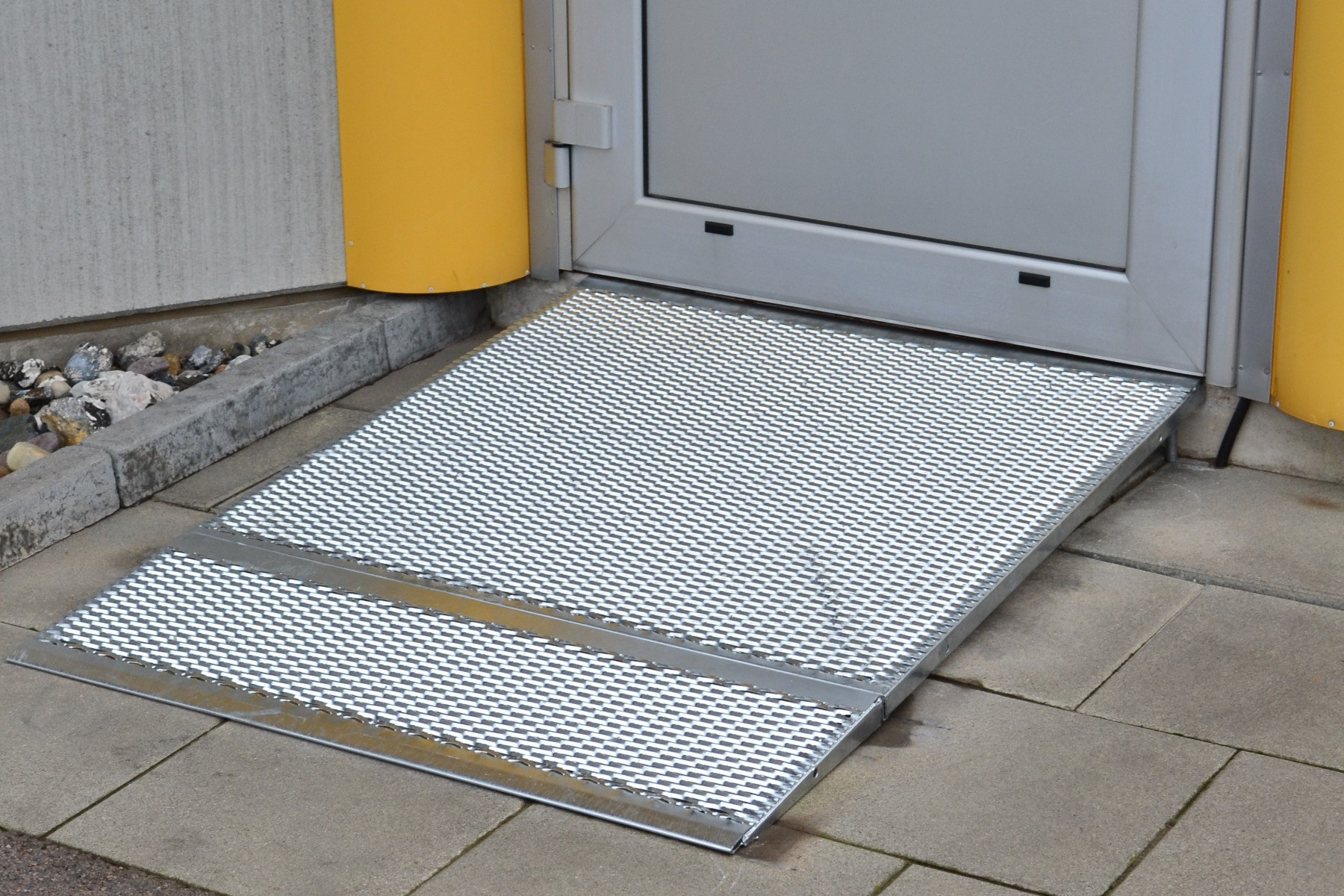

The Ramp Factory's Mini ramp is perfect for limited spaces or for doors and thresholds with small gap in height differences

Minimum height for these threshold ramp kits will be 38mm with a max adjustment of 160mm on the longest ramp kit

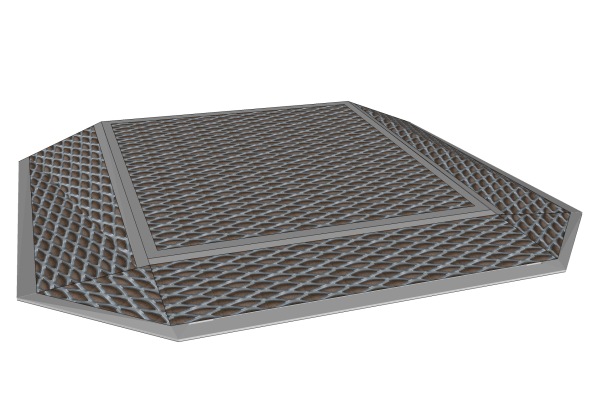

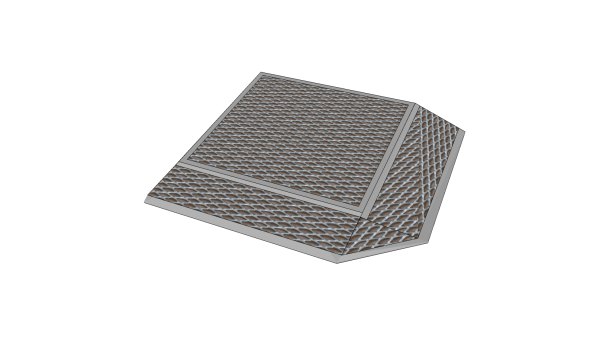

The mini wheelchair ramp kits are composed of modules that can be built together to a length of your choice and it is also possible to angle the ramp at 90º, please contact us for more information.

Description
  • Perfect for limited spaces and small height differences
  • Made of galvanised steel
  • Easy handling and fast assembling
  • Optional modules parts available to extend ramp length, add a level platform are or add safety edges ramp kit to prevent accidentally wheeling off
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Mini Ramp - Straight Ramp kit

340mm Ramp

  • Length 340mm
  • Width 960mm
  • Weight 8.3 kg
  • Capacity 300kg
  • Max. load height 50mm

660mm ramp

  • Length 660mm
  • Width 960mm
  • Weight 15.7 kg
  • Capacity 300 kg
  • Max. load height 90mm

980mm ramp

  • Length 980mm
  • Width 960mm
  • Weight 23.1 kg
  • Capacity 300kg
  • Max. load height 130mm

1300mm ramp

  • Length 1300mm
  • Width 960mm
  • Weight 25.6 kg
  • Capacity 300kg
  • Max. load height 160mm

Details
SKUTRP-Miniramp single ramp kit
Length (mm)340-1300
Weight per Ramp (kg)8.3 - 25.6
Width (mm)960
One Year WarrantyYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Leave OutsideYes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
