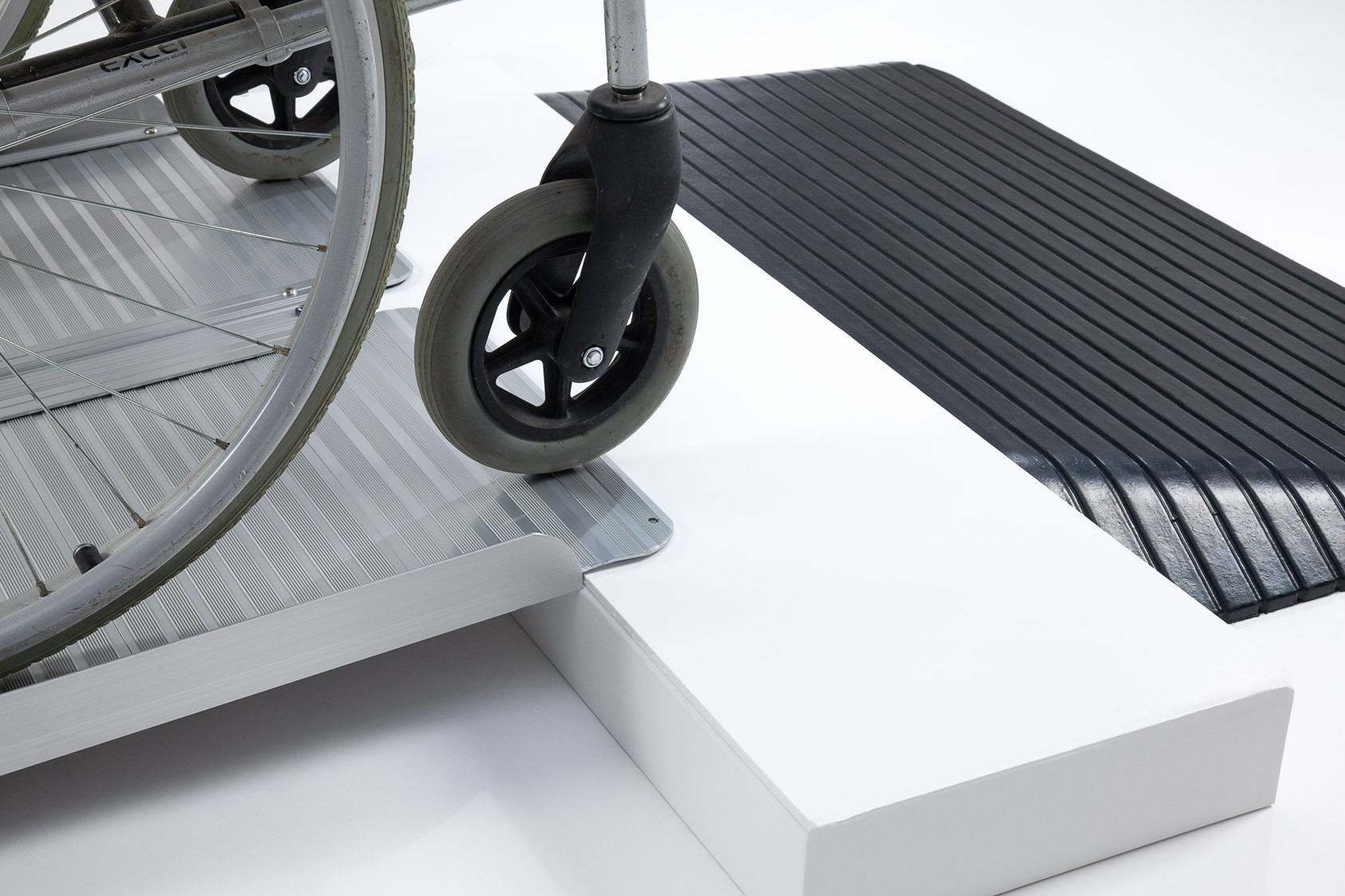

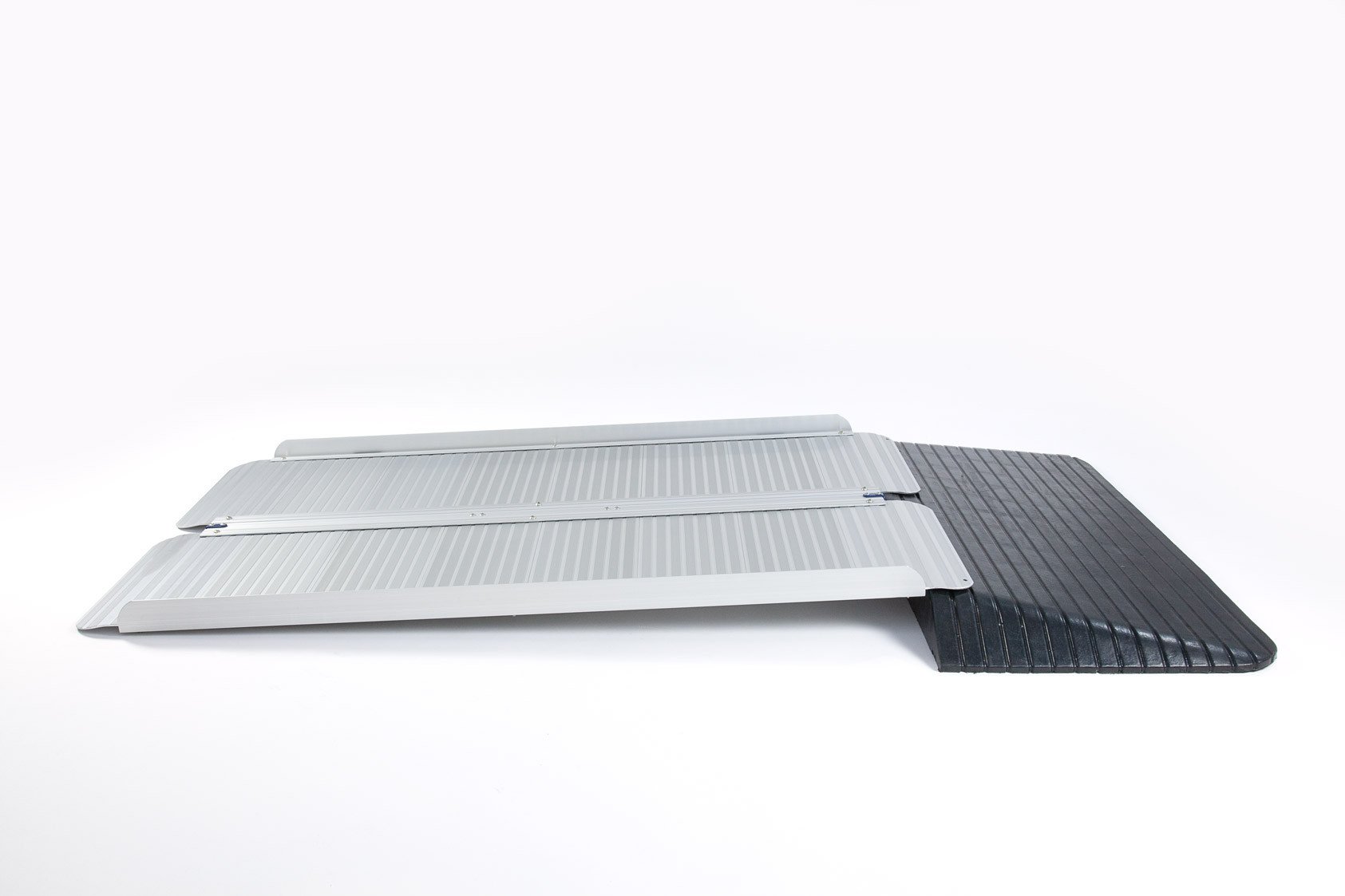

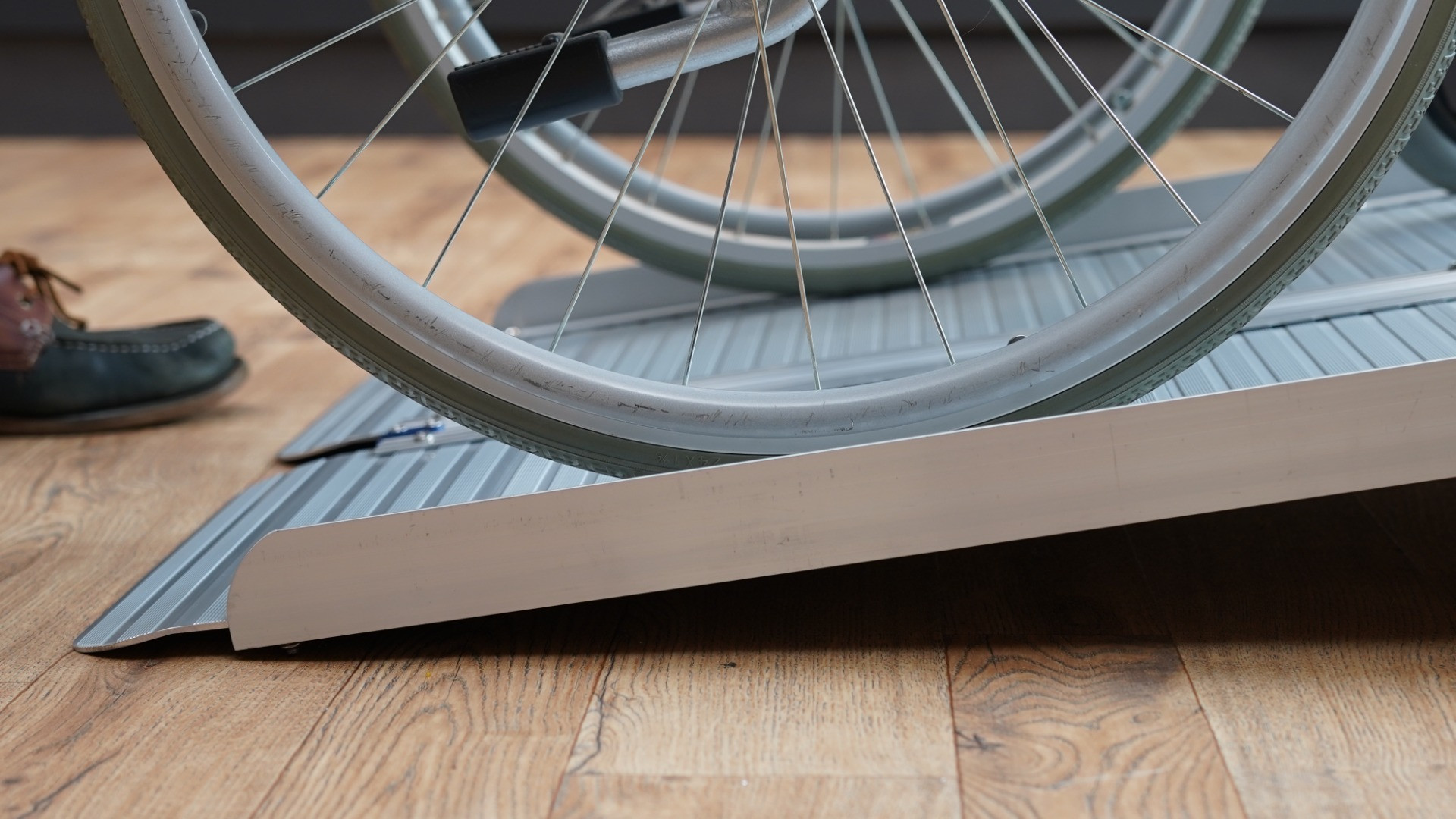

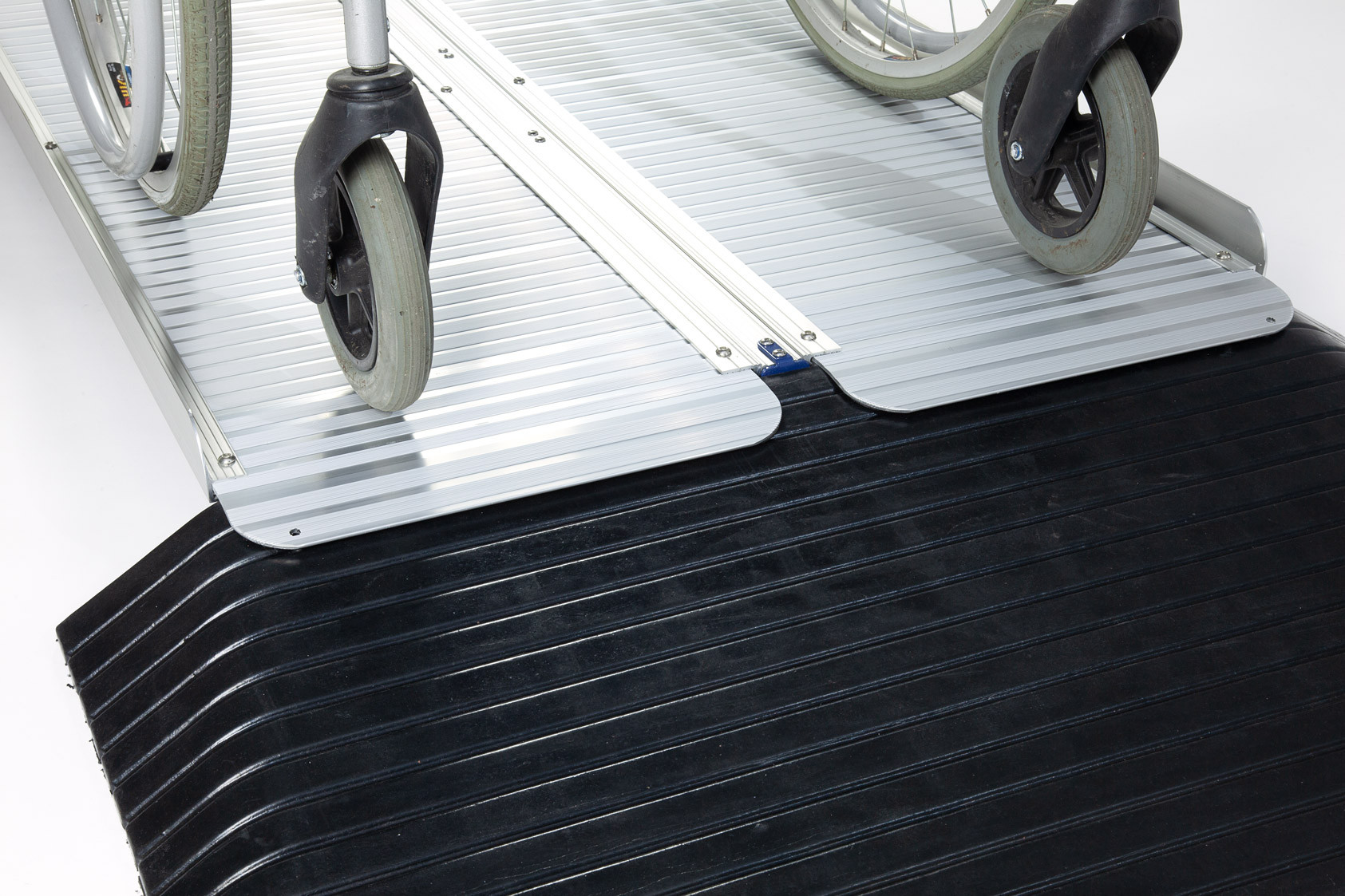

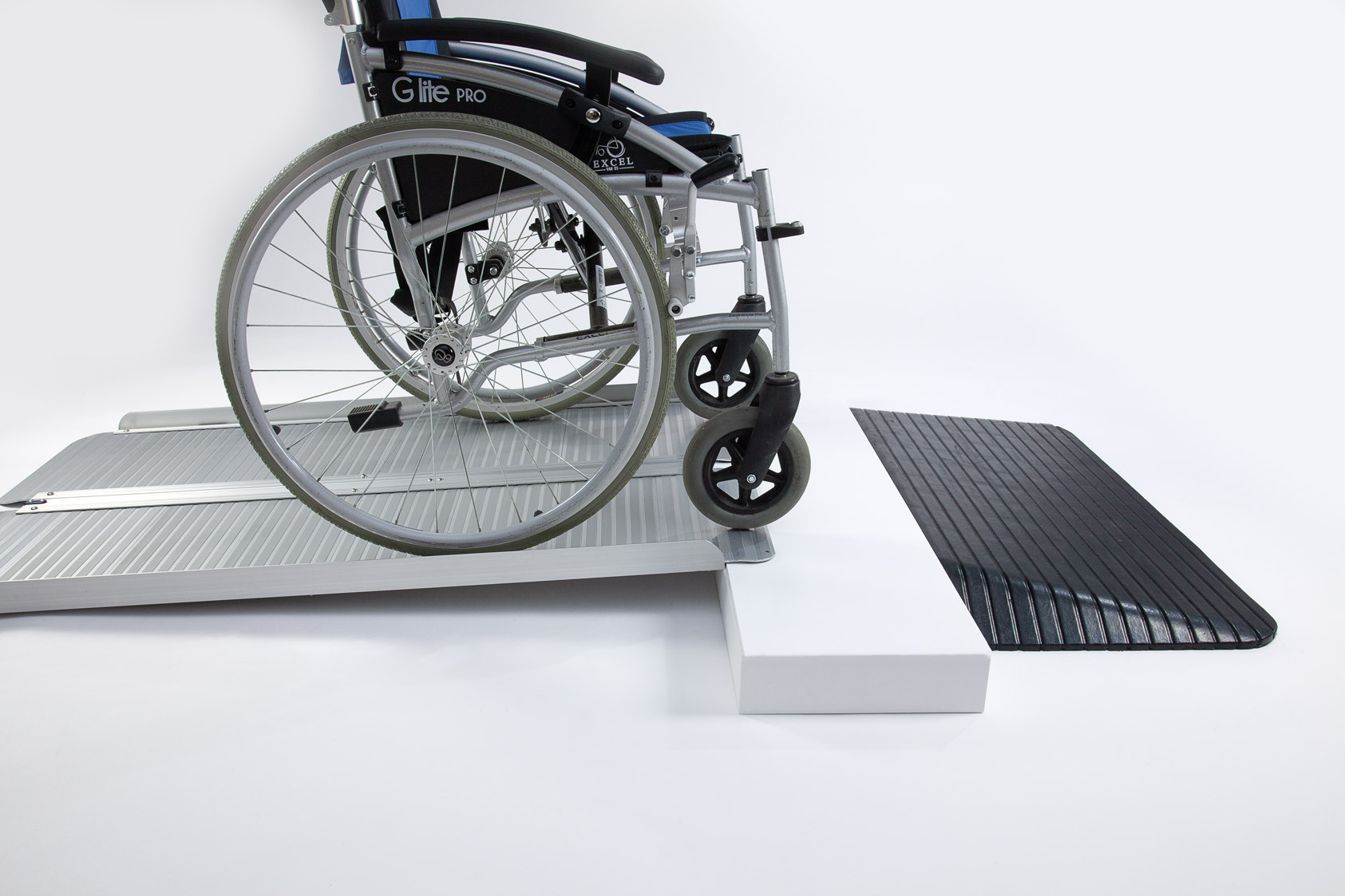

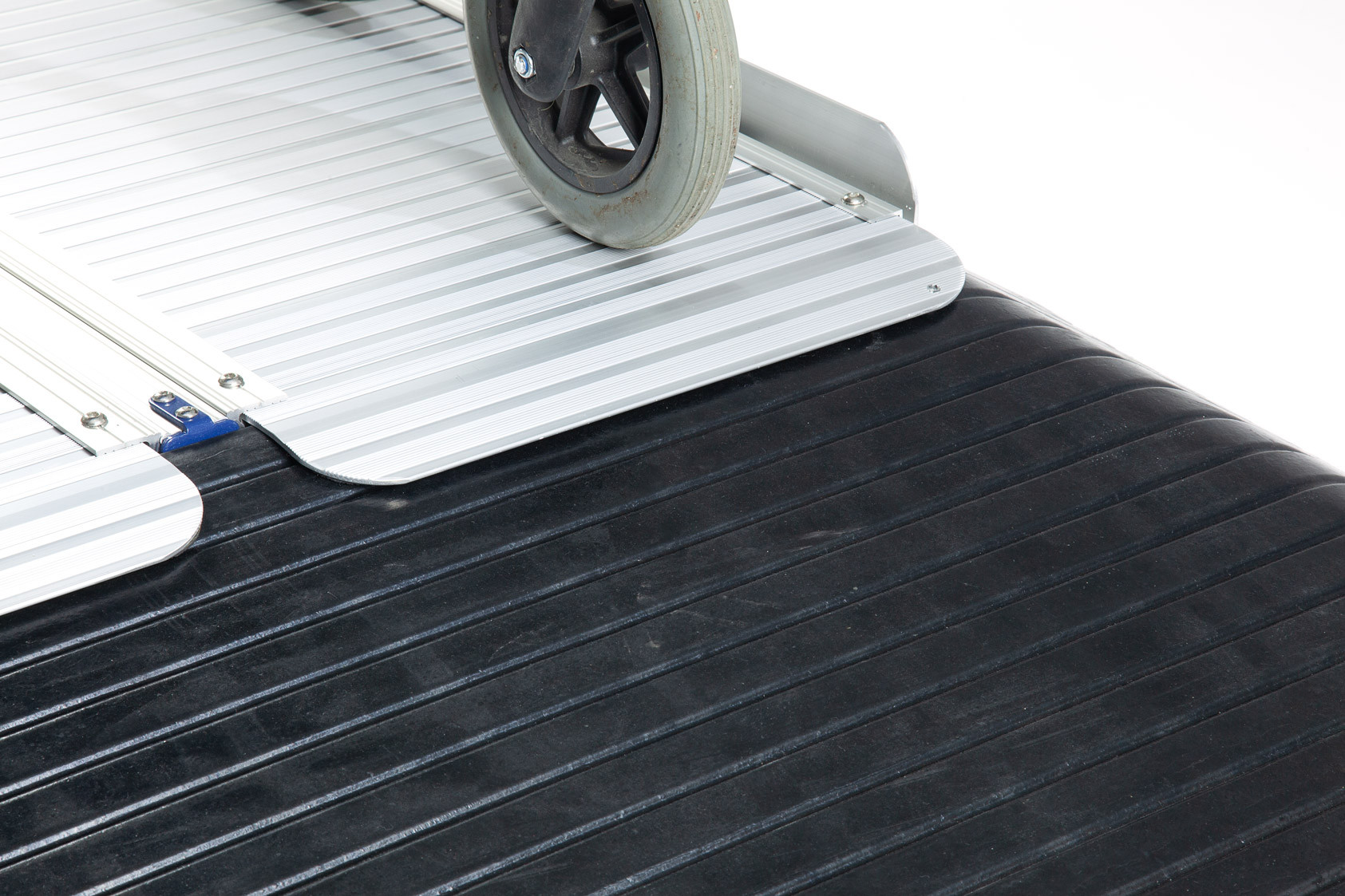

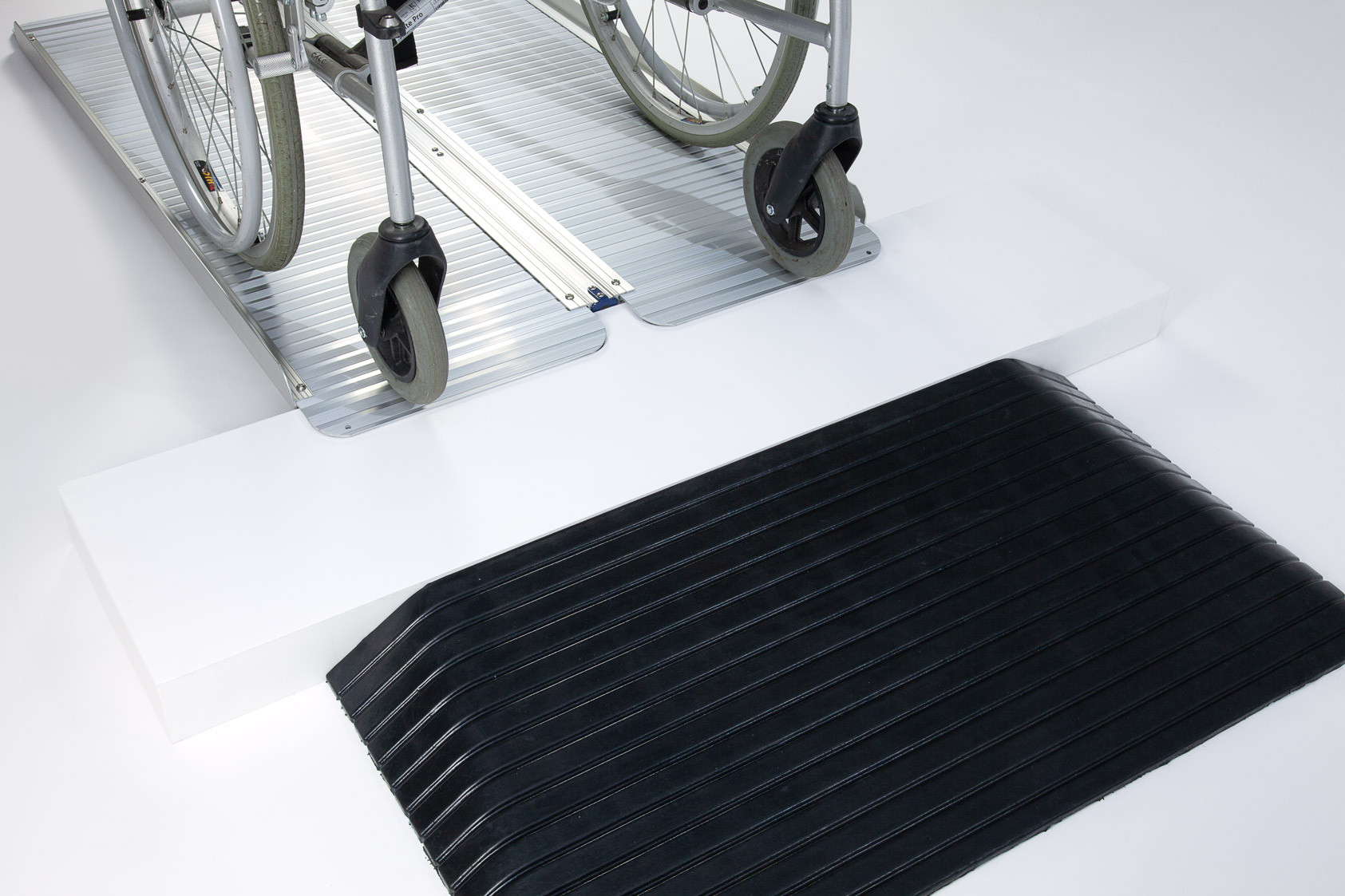

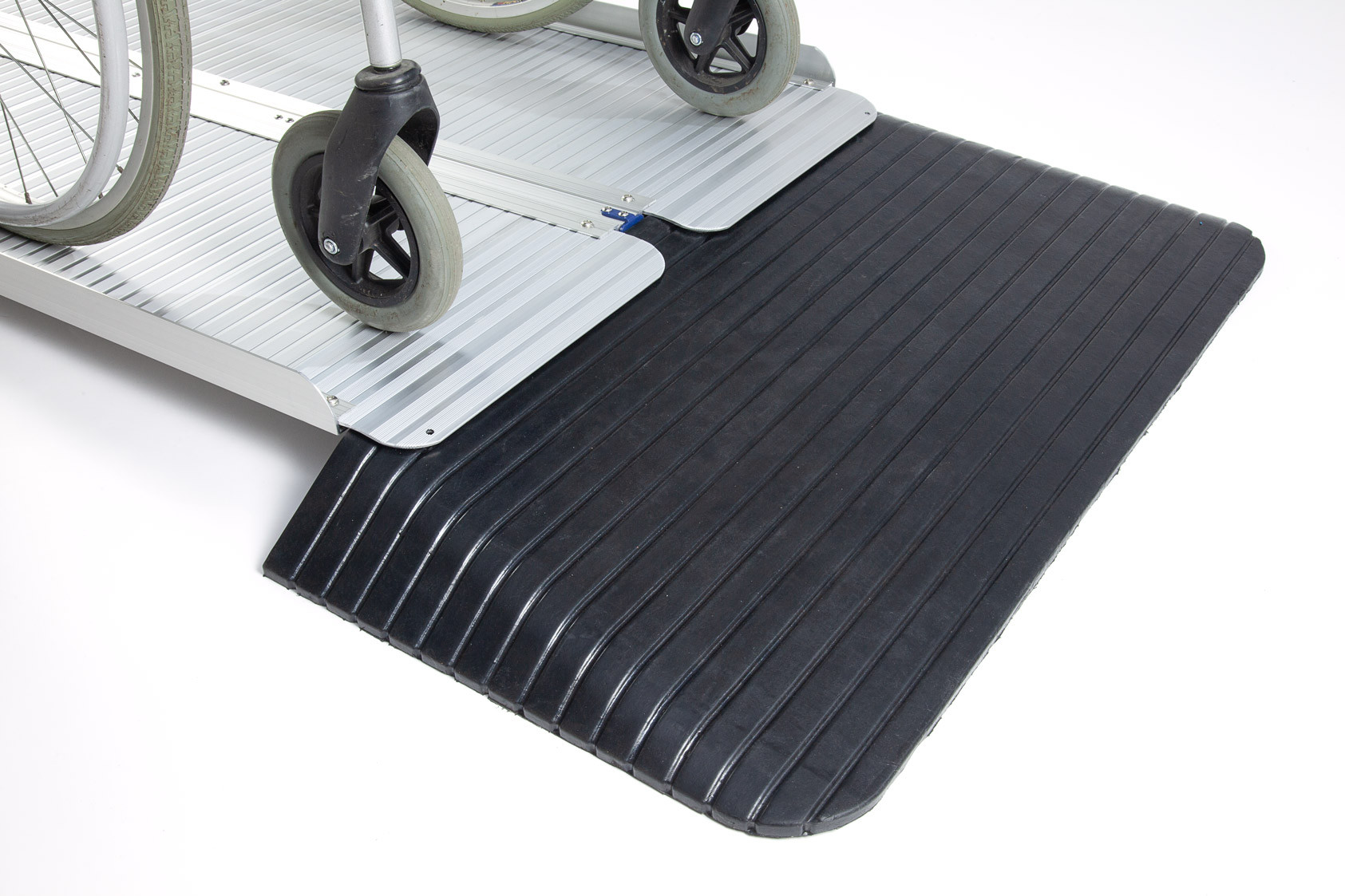

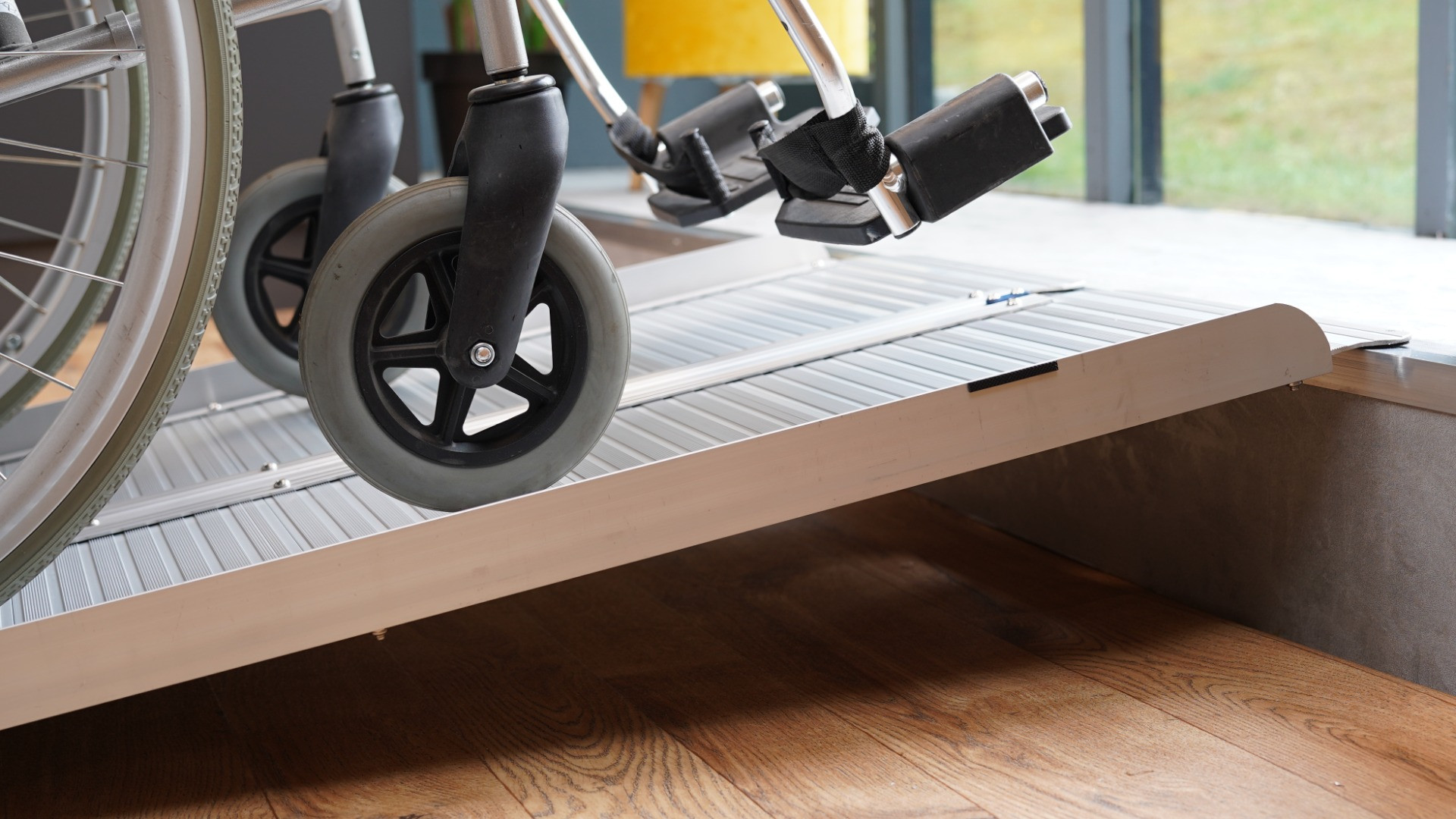

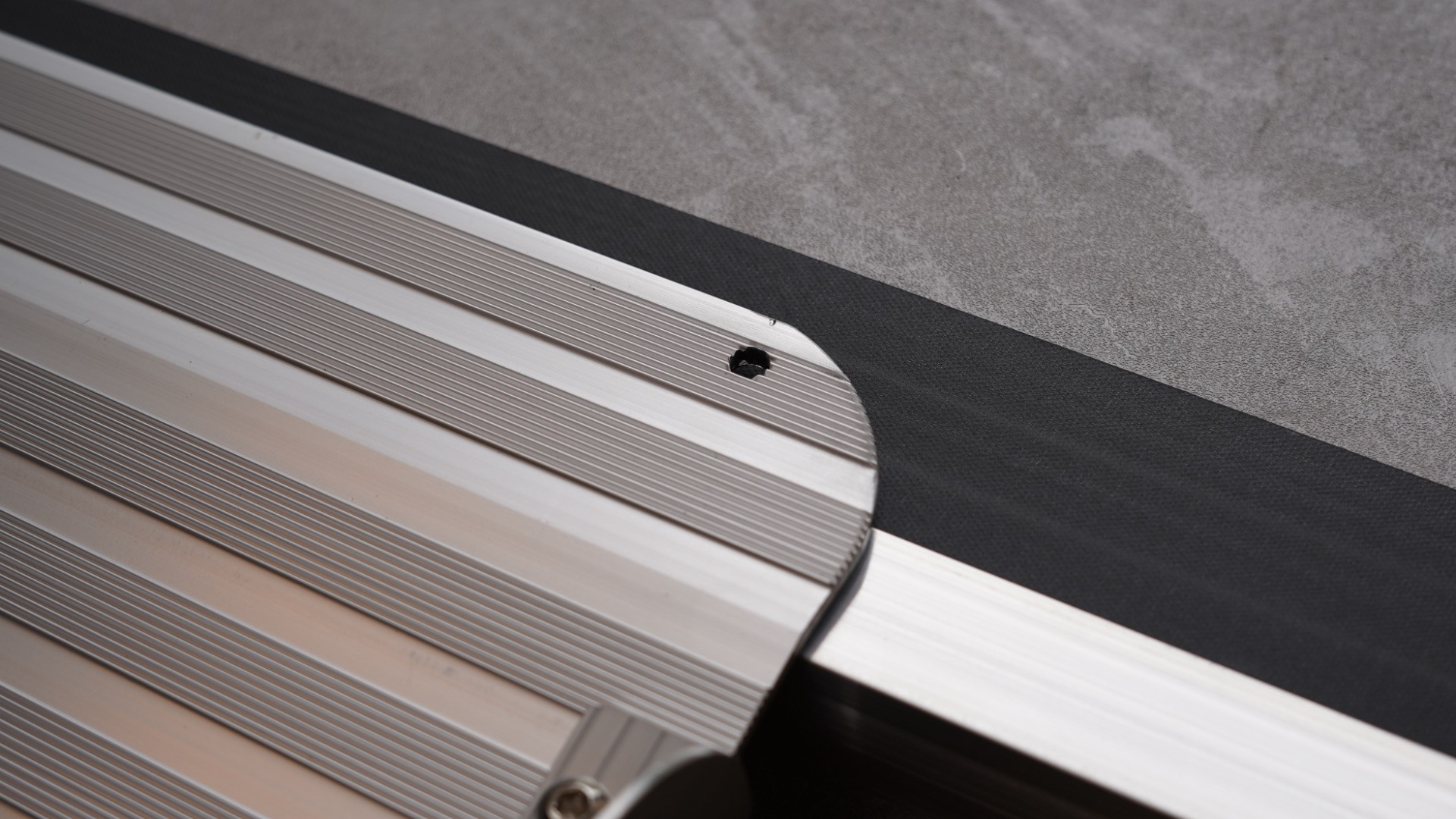

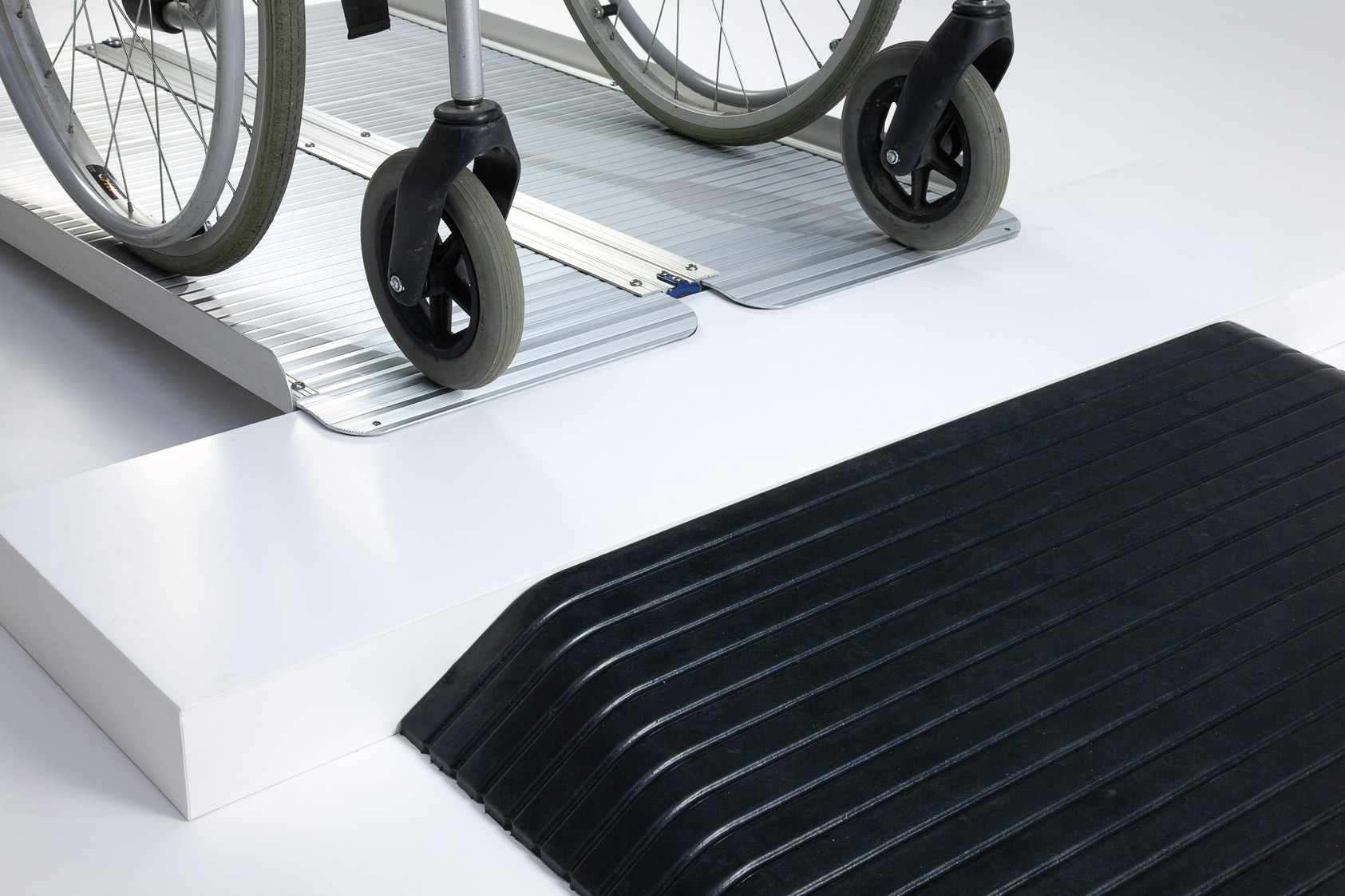

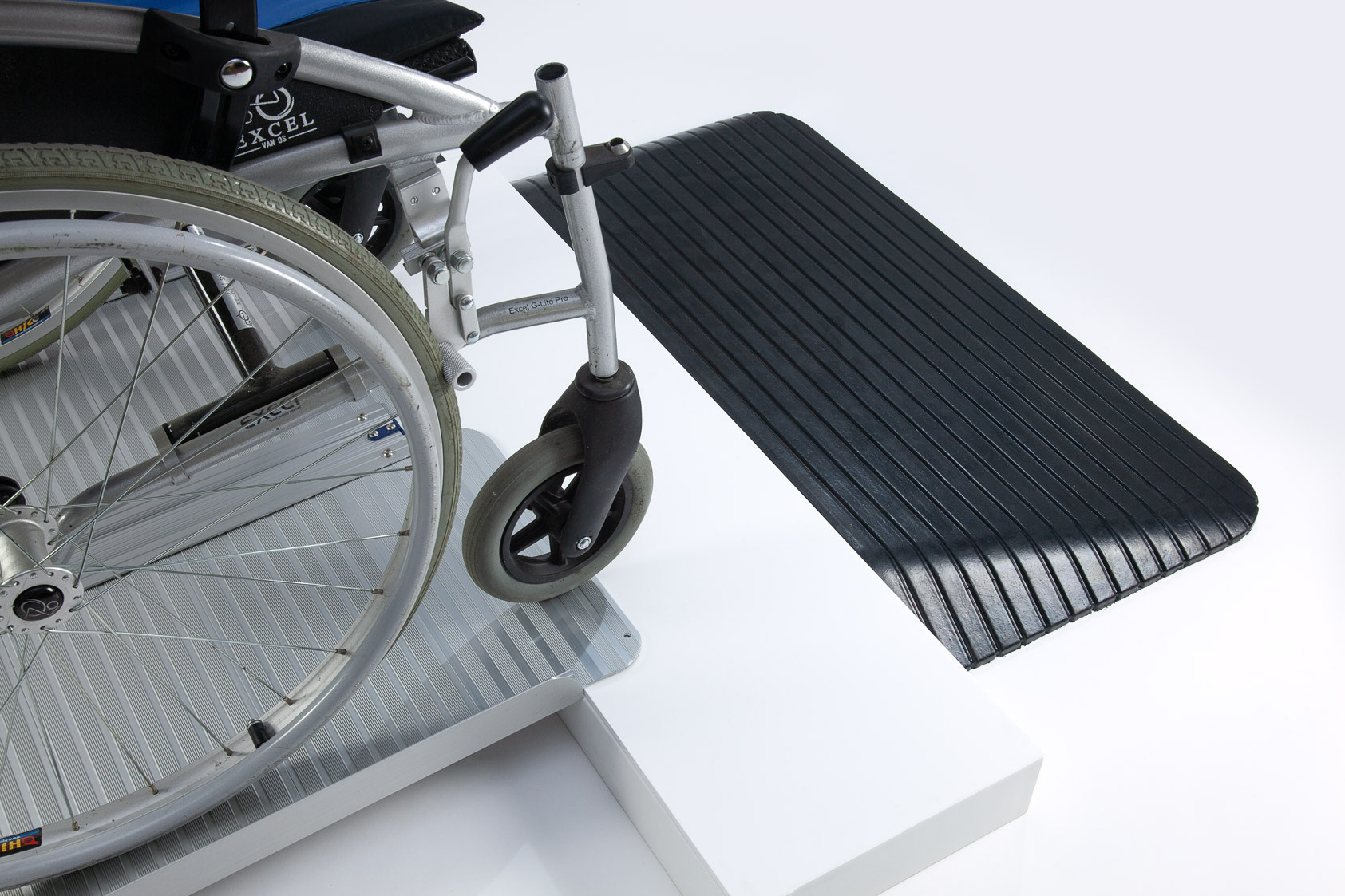

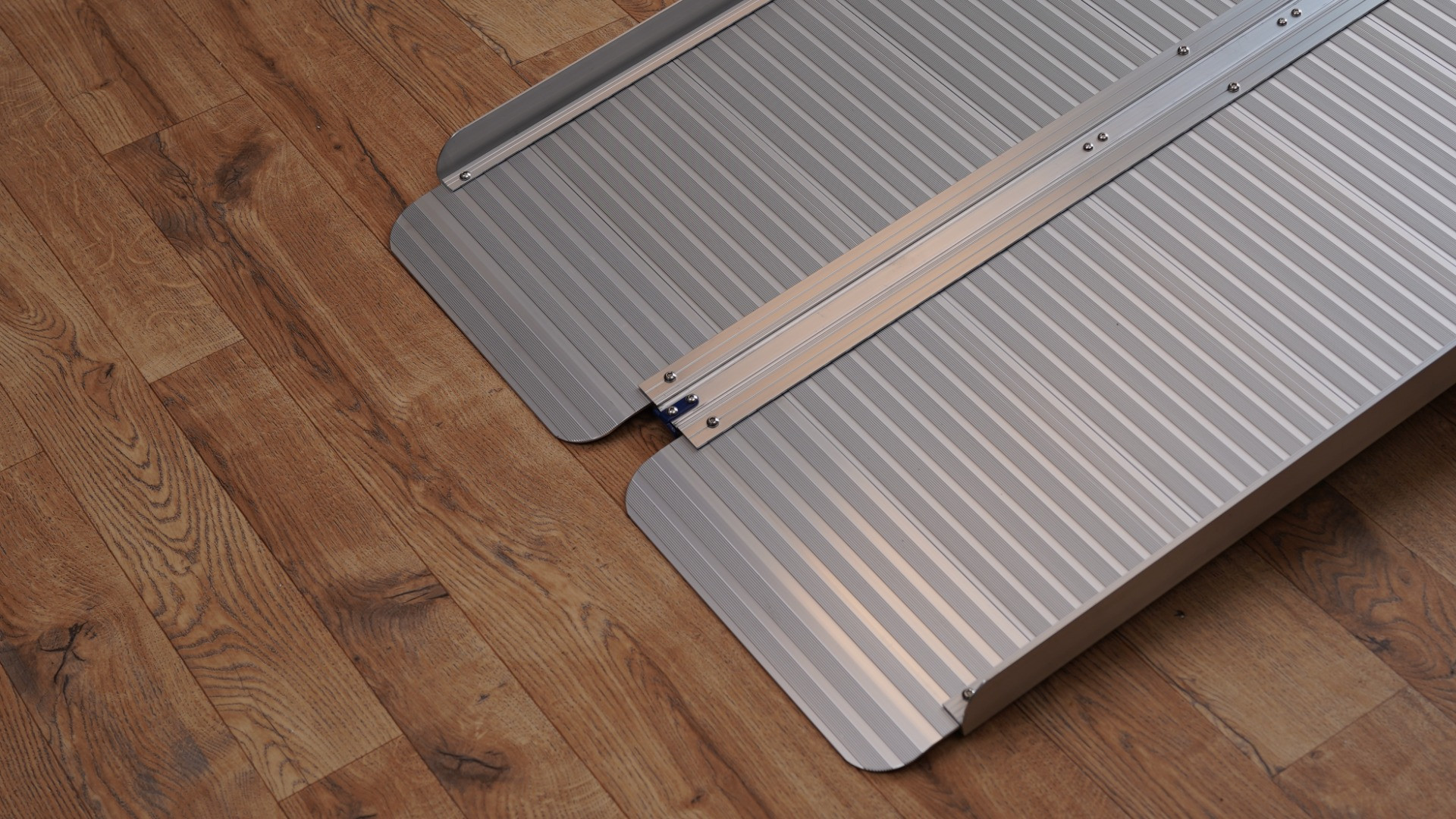

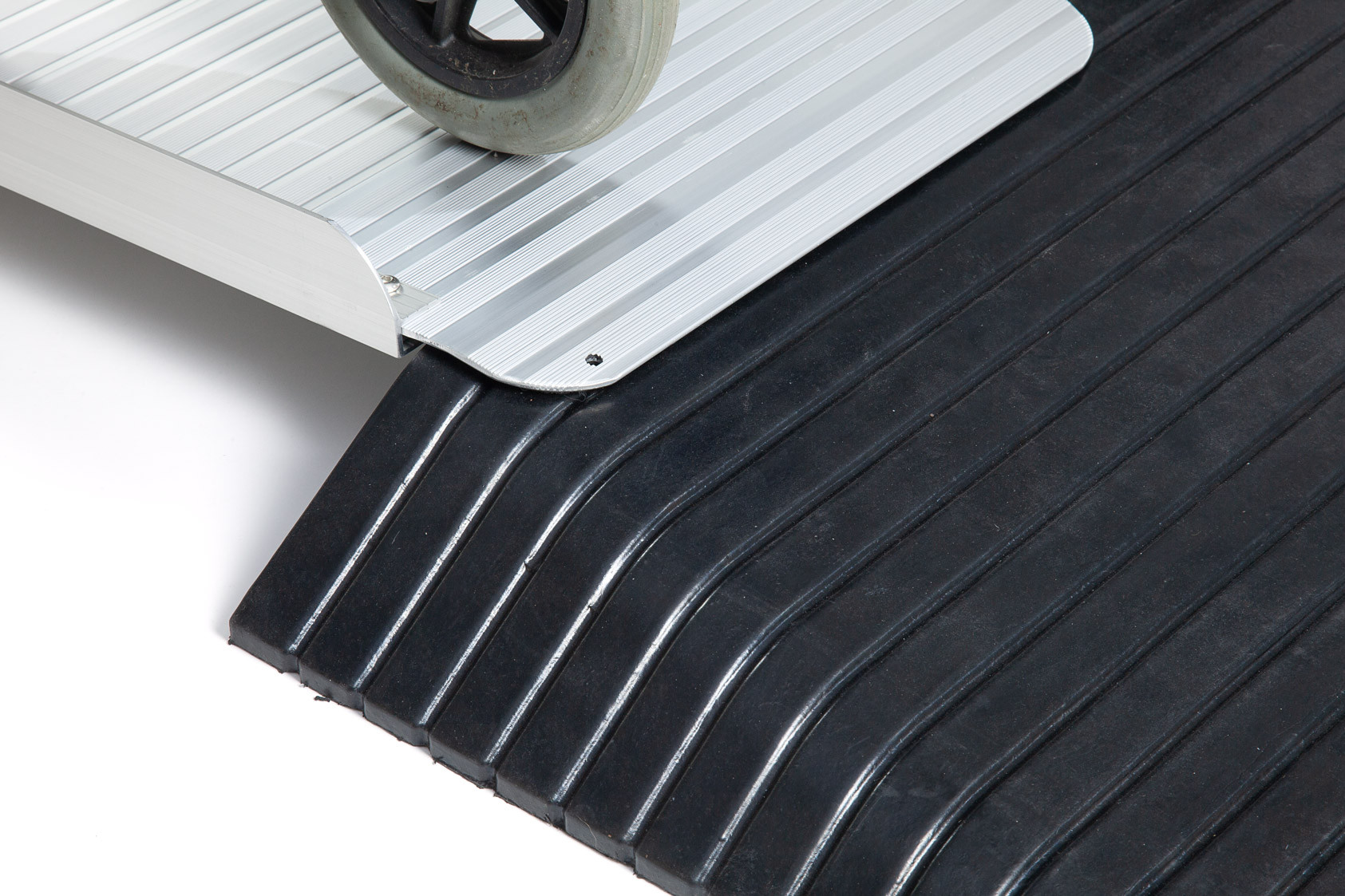

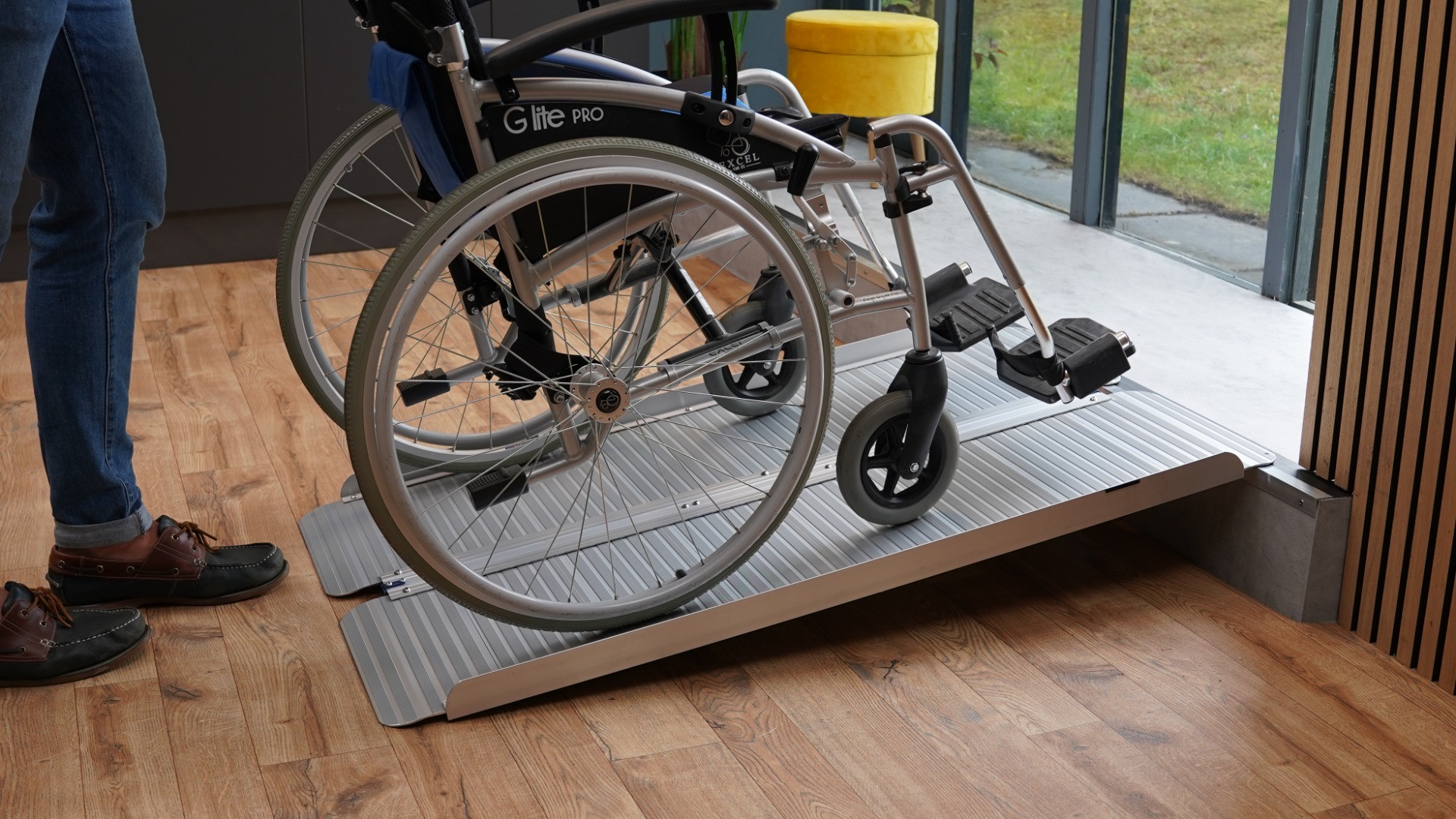

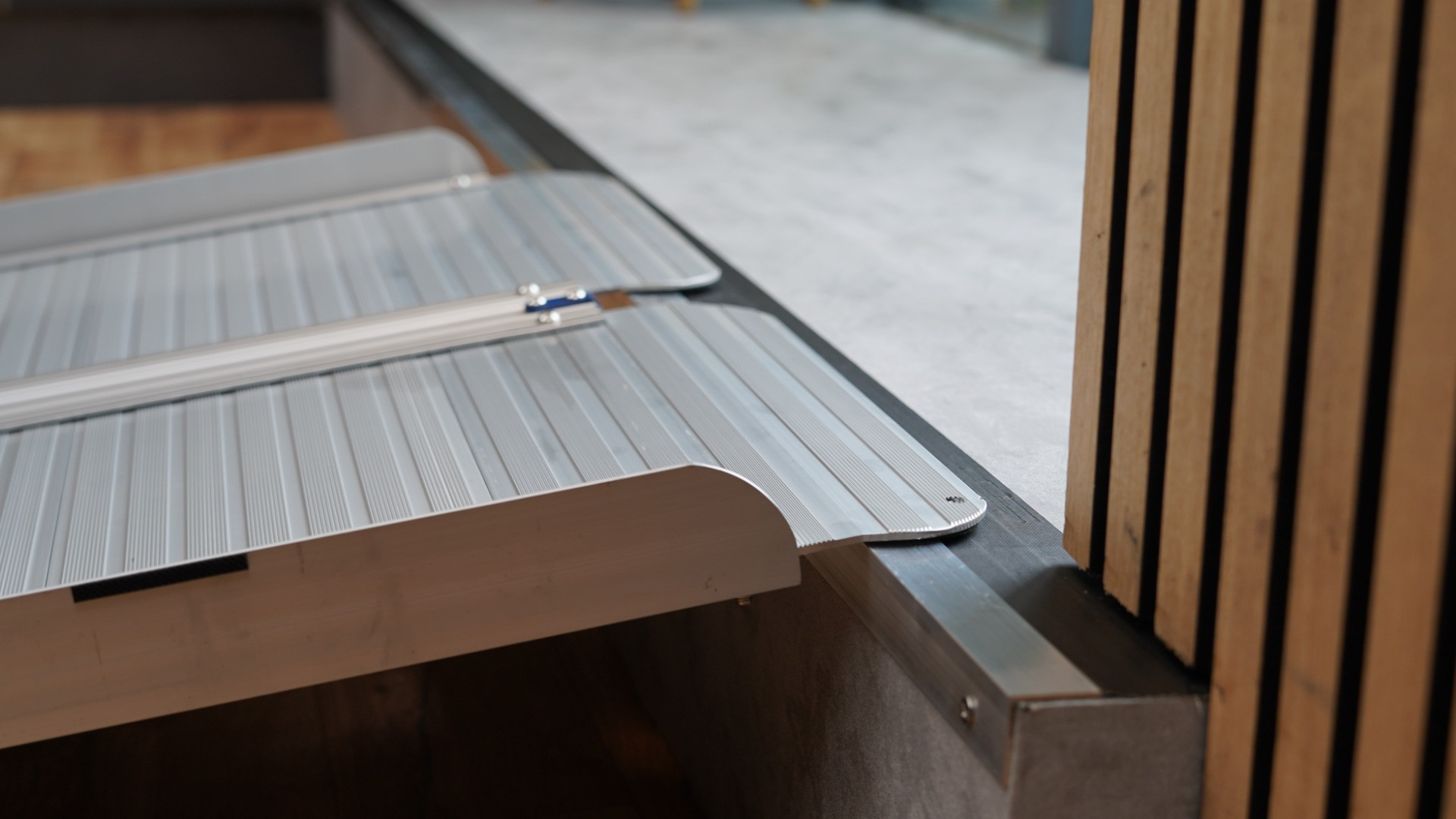

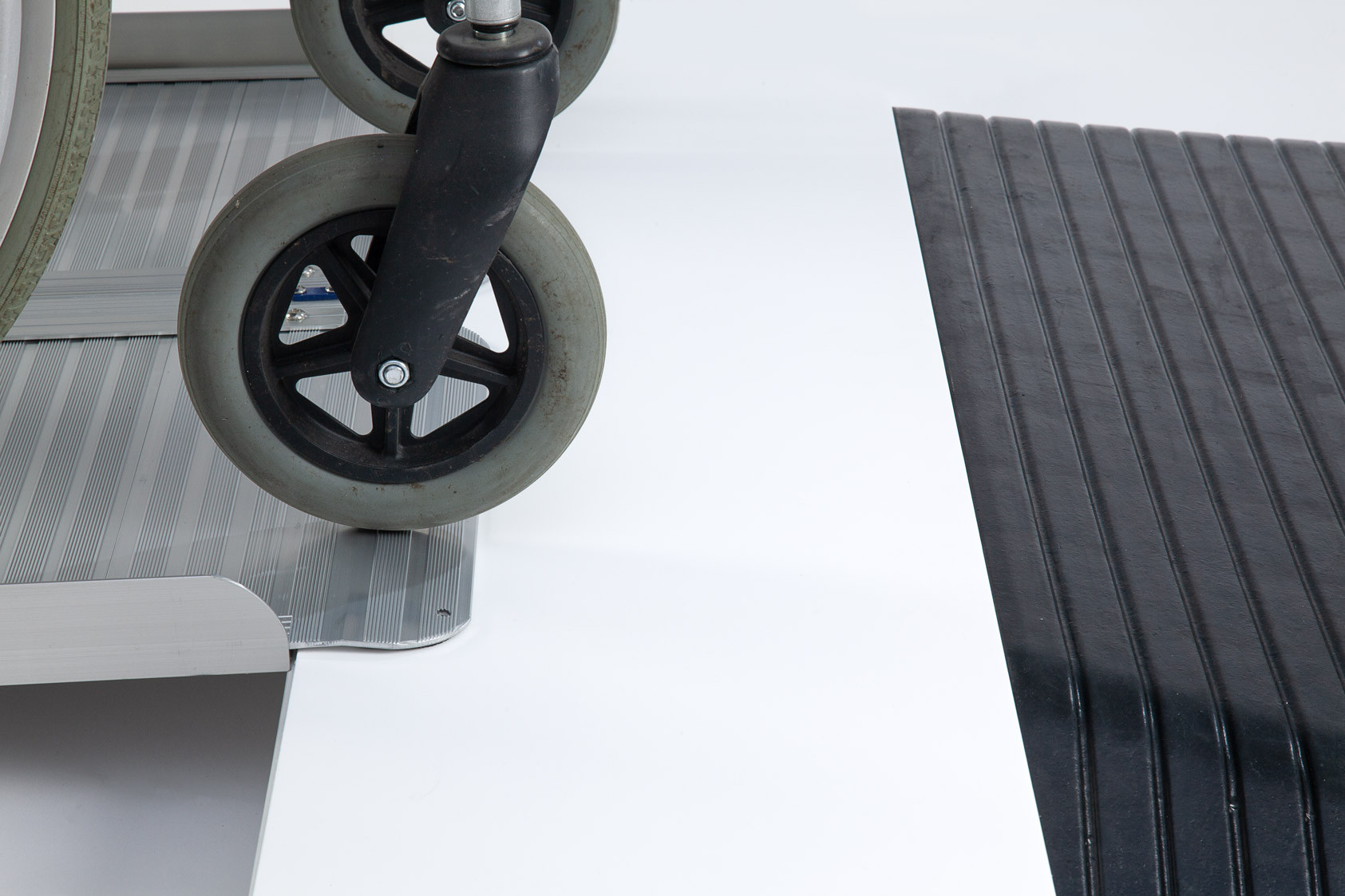

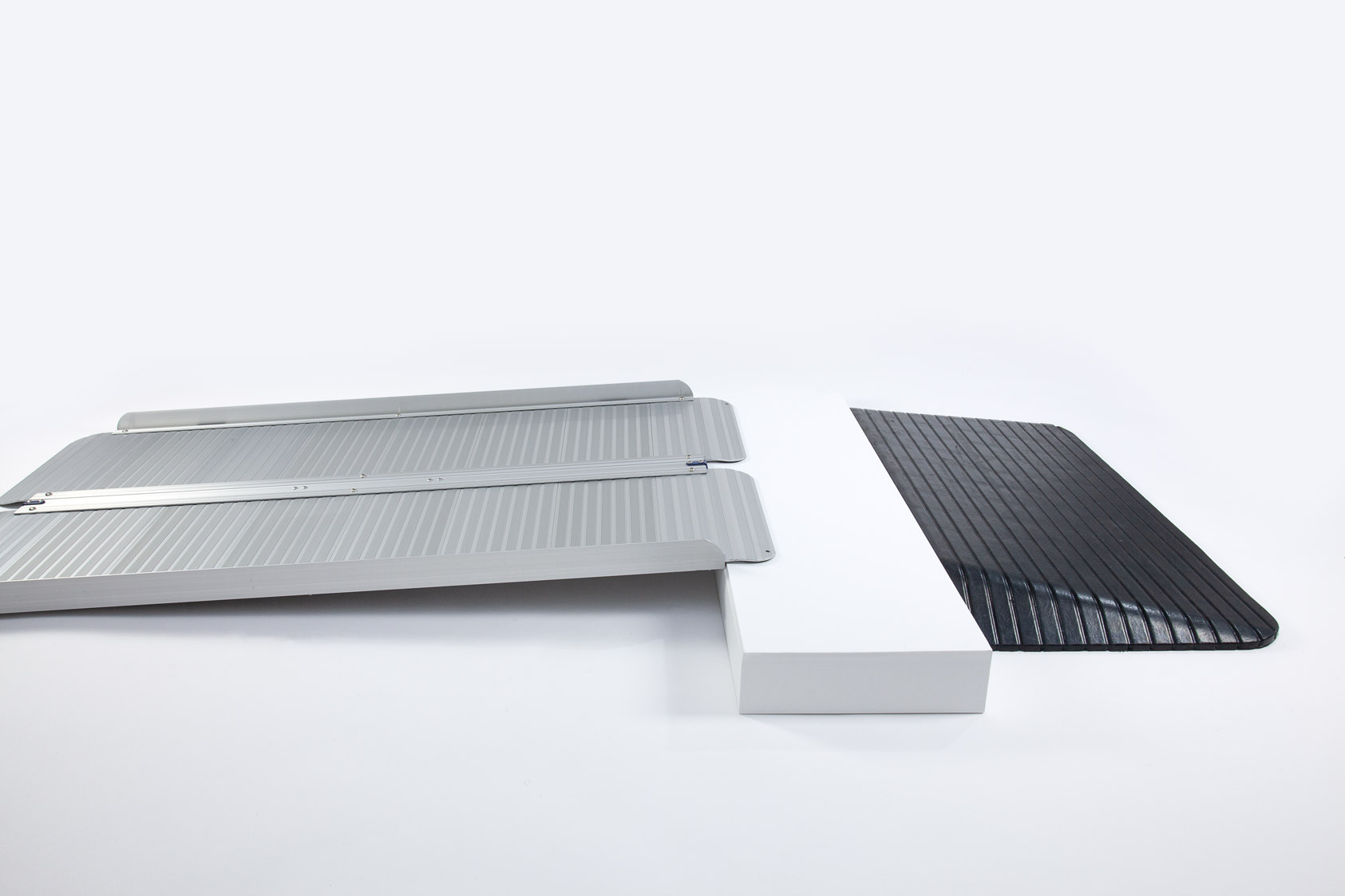

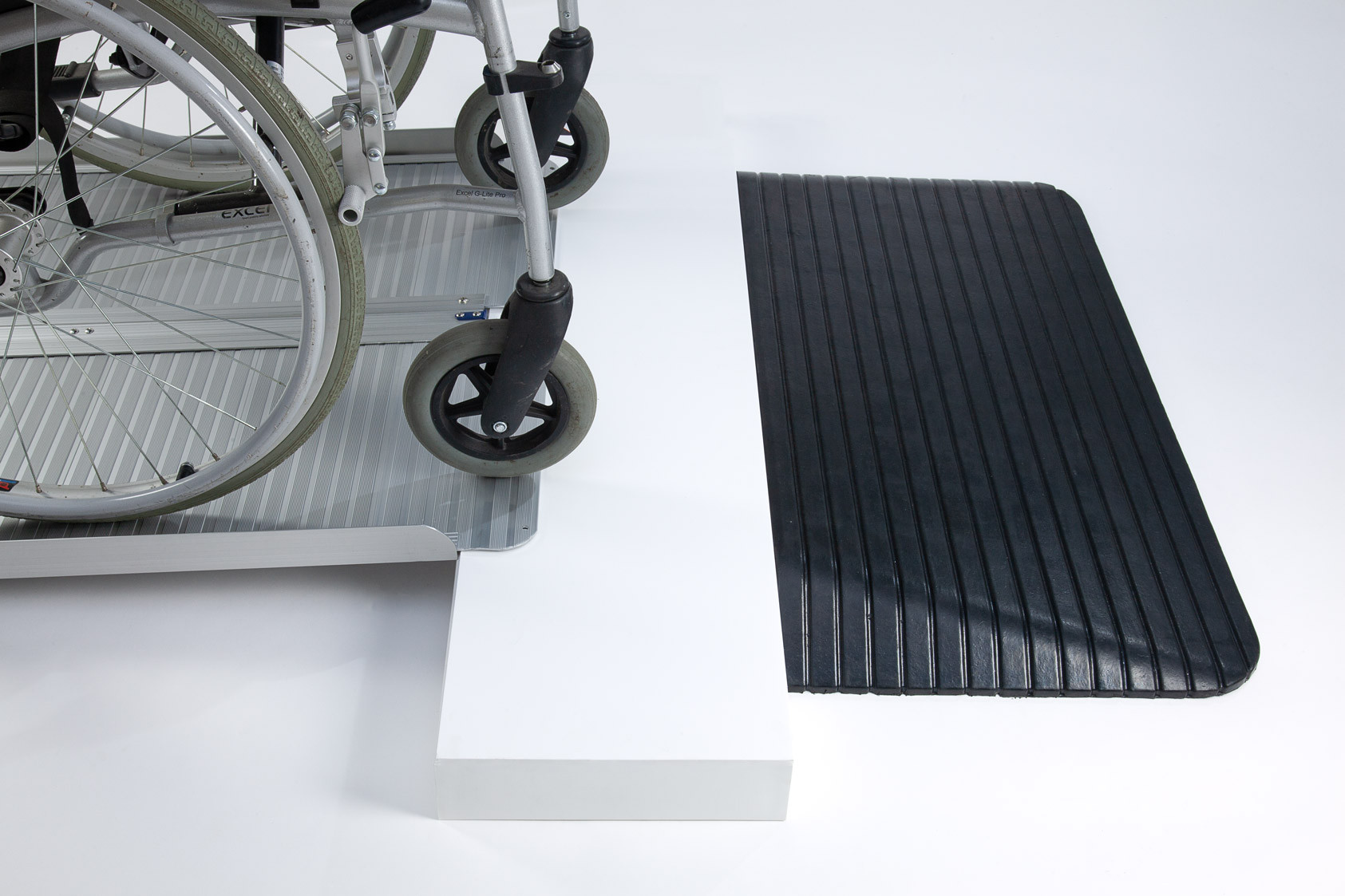

Portable folding wheelchair ramp paired with a rubber ramp inside a door to create a bridge over a door threshold folding aluminium ramp and rubber threshold ramp combined to make a drive in ramp single fold wheelchair portable ramp resting on sill Aluminium folding wheelchair ramp paired with a wedge rubber ramp to create a bridge over a door threshold rear view of rest on connection close up of side view of single fold wheelchair ramp rest on connection vertical view of the rest on connection side profile of single fold wheelchair ramp close up of side profile of folding wheelchair ramp single fold wheelchair ramp in use with manual wheelchair rest on connection close up of folding wheelchair ramp Folding Aluminium & Rubber Threshold Drive-In System (2ft - 8ft & 1" - 4") side view of rubber threshold ramp in use with manual wheelchair side view of unoccupied rubber threshold ramp close up of front side profile of rubber threshold ramp close up of side rear profile of the rubber threshold ramp front view of rubber threshold ramp rear view of rubber threshold ramp Portable wheelchair ramp paired with a rubber ramp to create a bridge over a door threshold Folding wheelchair ramp on rubber threshold ramp Folding wheelchair ramp with rubber threshold ramp Combination wheelchair ramps Folding Aluminium & Rubber Threshold Drive-In System (2ft - 8ft & 1" - 4") Manual wheelchair going over combination ramps Wheelchair ramp combi to overcome thresholds Ramp resting on rubber ramp Wheelchair ramps overcoming step Manual wheelchair overcoming steps with wheelchairs Combination ramps Manual wheelchair using ramp to overcome steps Manual wheelchair on steps wheelchair ramp on step Manual wheelchair overcoming step with two ramps manual wheelchair ramps for steps Wheelchair step ramp Wheelchair ramp for threshold
  • Easy to Fit
  • Electric Wheelchair
  • Manual Wheelchair
  • Mobility Scooter
  • One Year Warranty

Folding Aluminium & Rubber Threshold Drive-In System (2ft - 8ft & 1" - 4")

SKU
TRP-Combi
From £162.00 £135.00
Over 300 In stock at our warehouse
Only %1 left

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

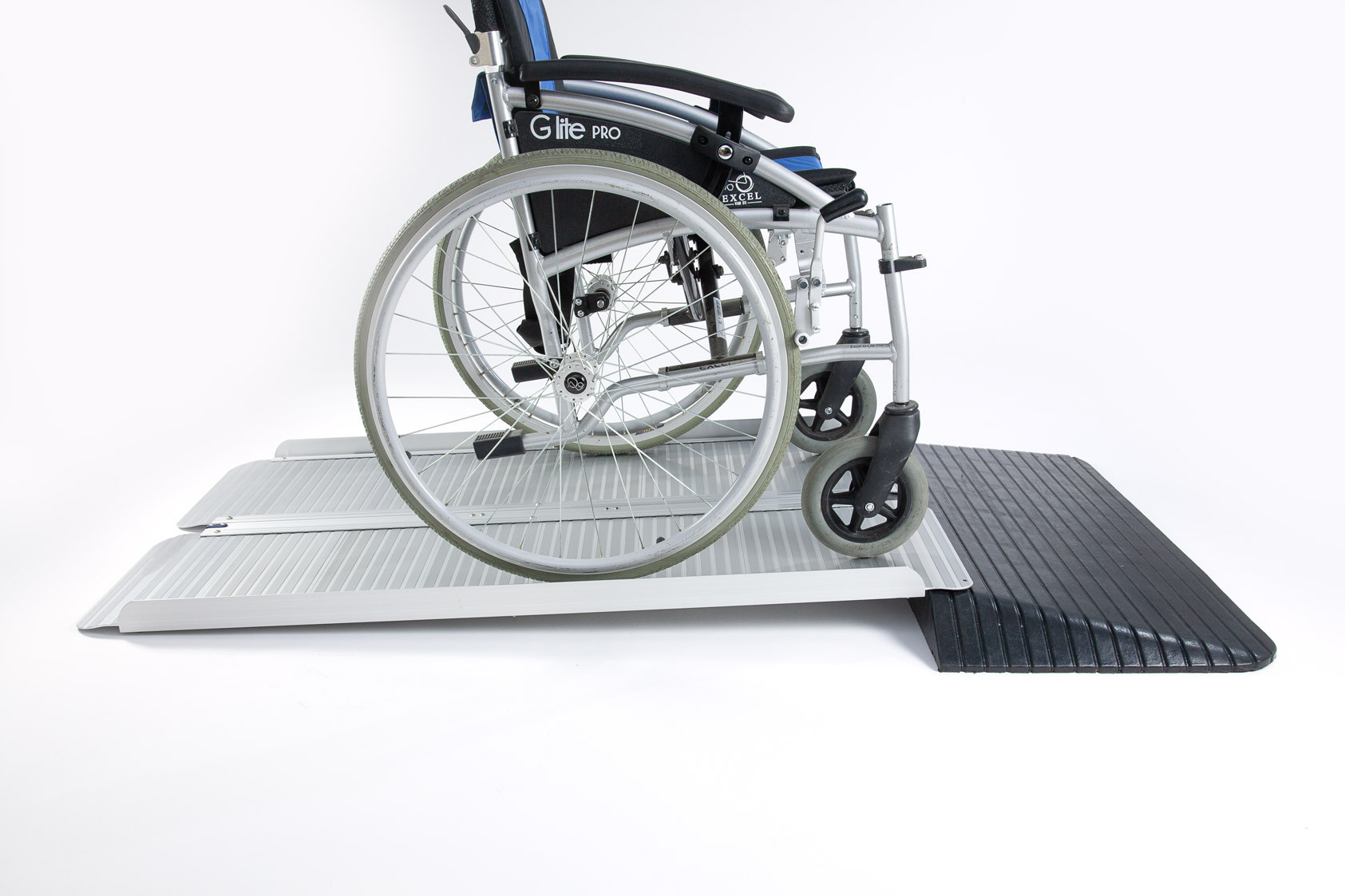

The Ramp Factory's portable Drive-In system combines some of our most popular products in one convenient package. You may choose from our portable single folding aluminium ramps with a length of 2 - 8ft or our rubber threshold ramps with a height of 1 - 4". By combining these products, you are able to drive over obstacles or tricky doorways, such as UPVC.

Please note, the widths of the aluminium ramp and rubber ramp differ. Check the description to see the widths of each product selected.

Please also note, the folding ramps 7ft and 8ft do not have a flat hinge.

Wheelchair ramp bags for the aluminium ramps are available for ramps up to 5ft long.

Folding Wheelchair Ramps FAQ's

Description

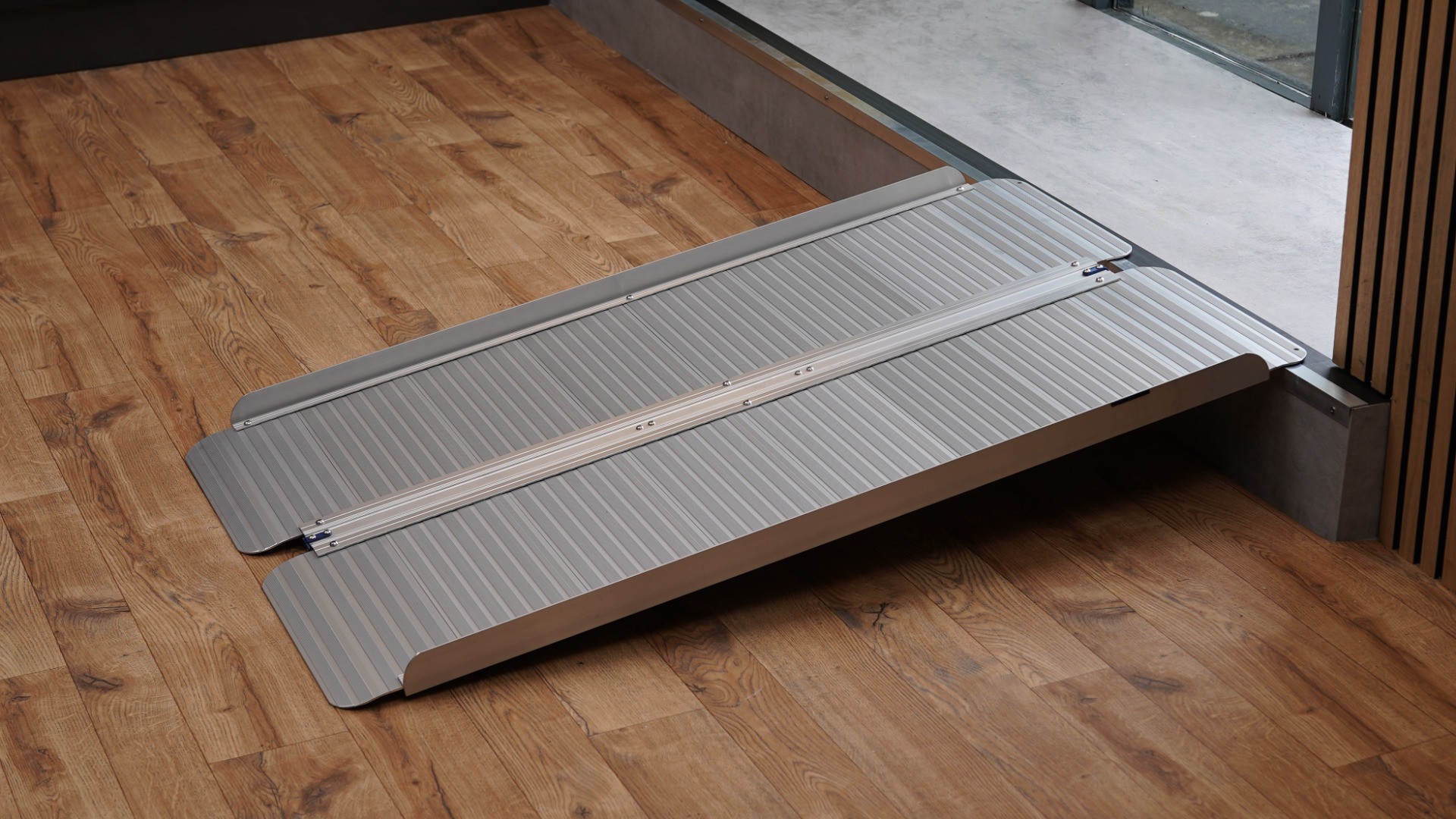

Folding Wheelchair Ramp Range

  • Folding ramp design for easy storage and transport

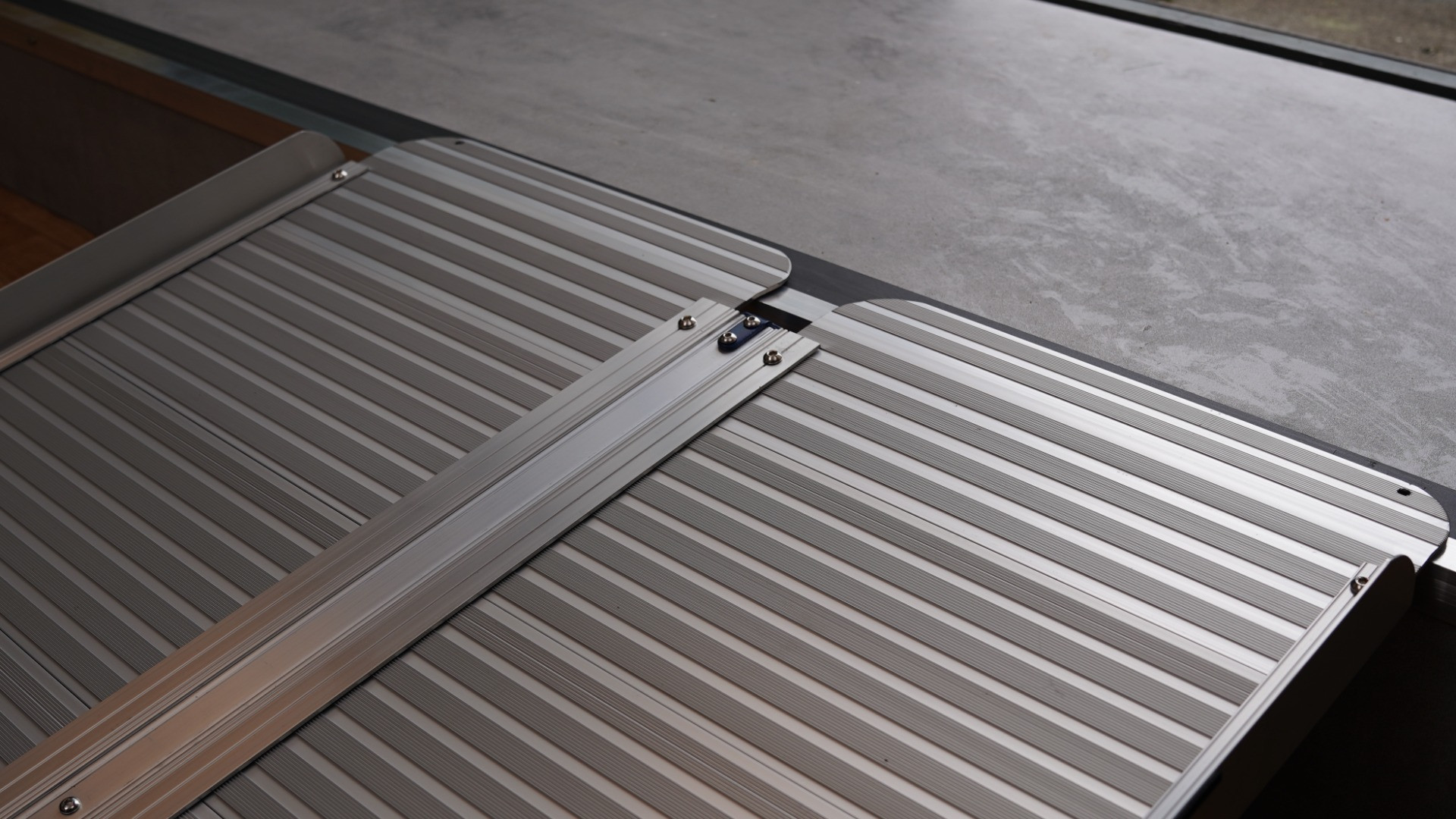

  • Rest on connection - to fit just rest on and start loading
  • Maximum gradient = 1 in 6 although 1 in 8 is recommended
  • Lightweight for easy handling
  • Edges on each side of the suitcase ramp to prevent accidentally wheeling off
  • Edges are 30mm high
  • Not suitable for flight cases.

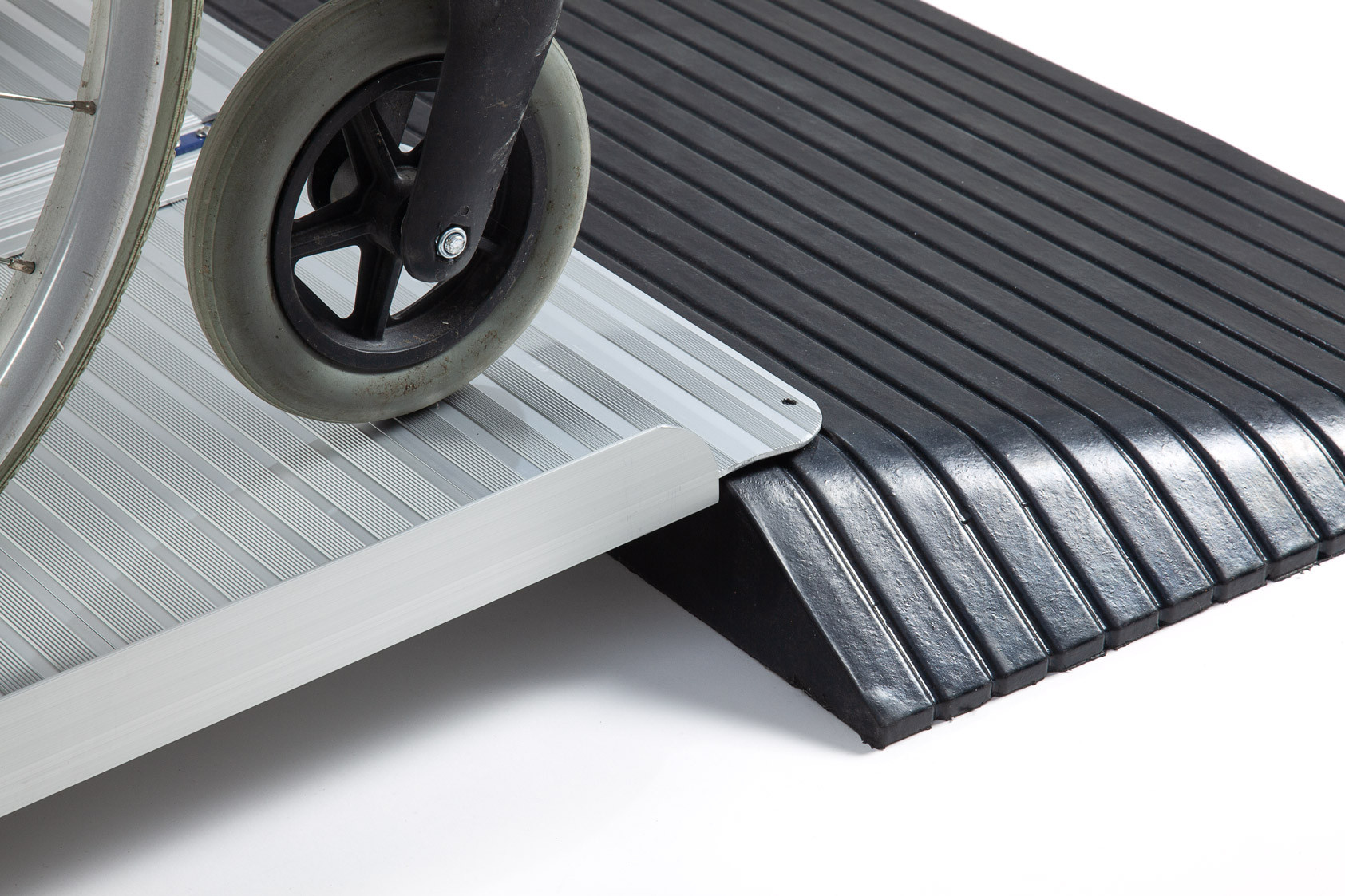

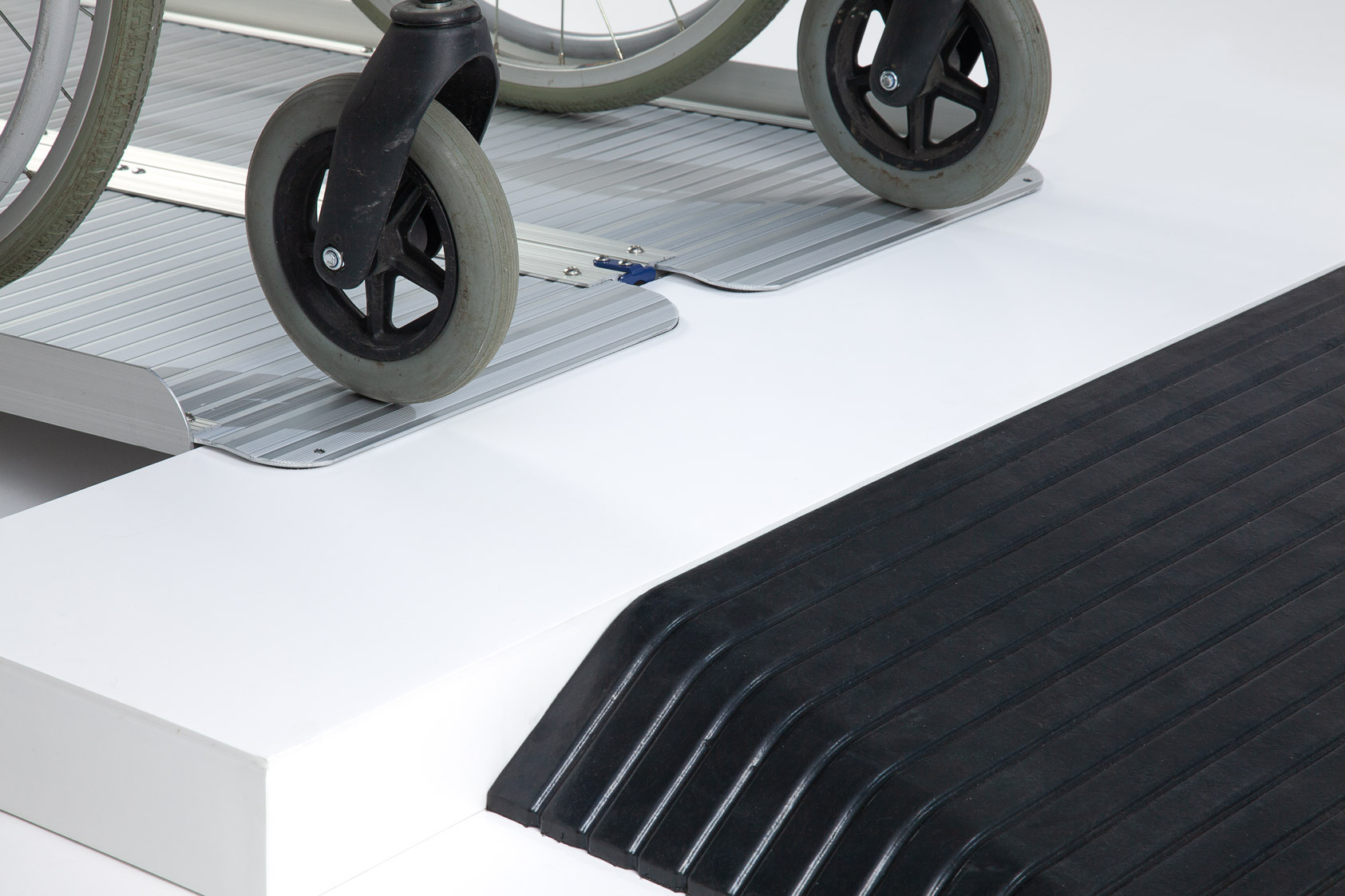

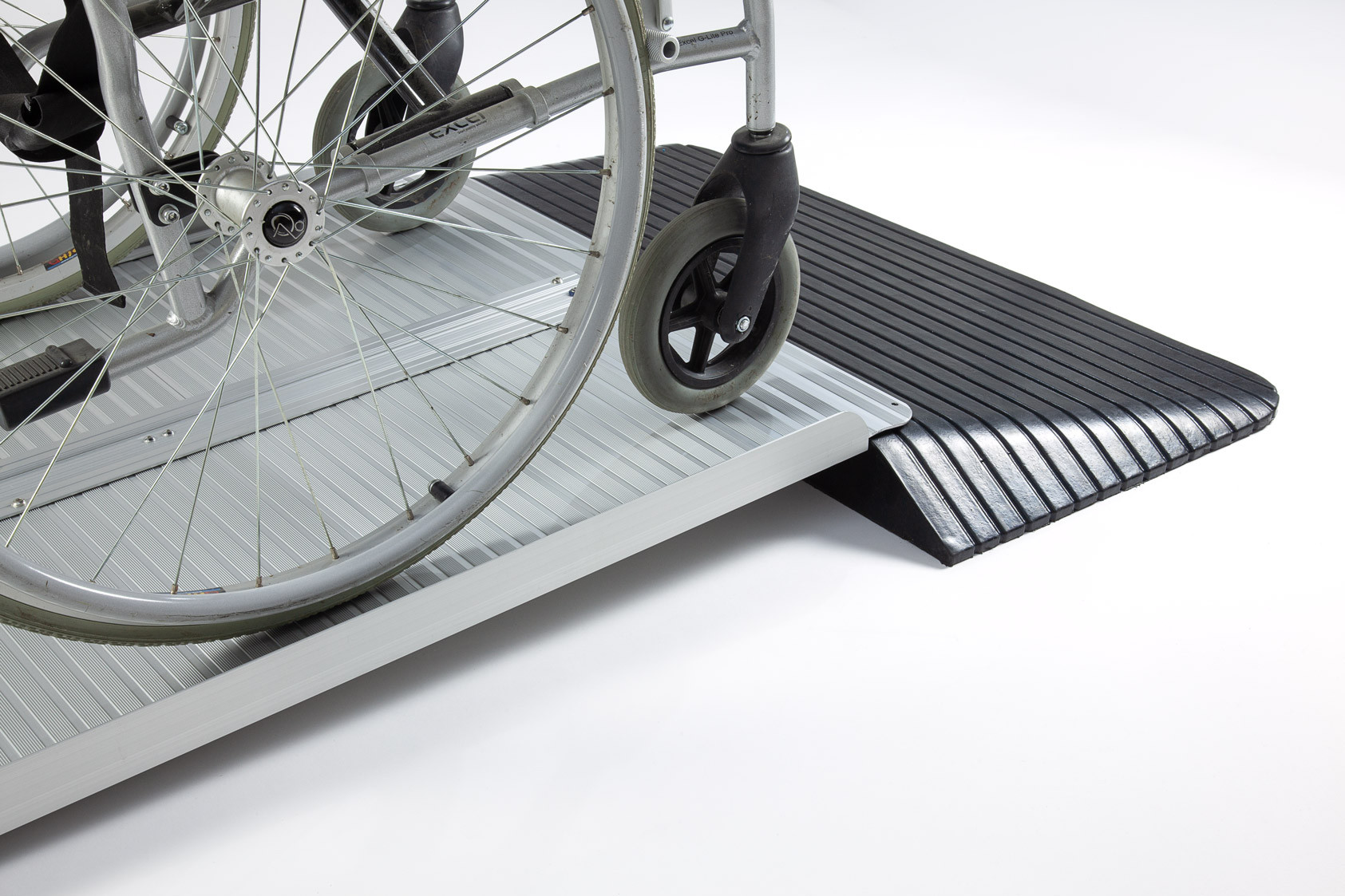

  • Can be used with our rubber ramps to form a bridge over door thresholds
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

2ft

  • The 2ft with the new improved flat hinge
  • Length 2ft (610mm)
  • Weight 5.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 100mm

3ft

  • The 3ft with the new improved flat hinge
  • Length 3ft (915mm)
  • Weight 8.0kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 150mm

4ft

  • The 4ft with the new improved flat hinge
  • Length 4ft (1219mm)
  • Weight 10.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 200mm

5ft

  • The 5ft with the new improved flat hinge
  • Length 5ft (1524mm)
  • Weight 13.2kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 250mm

6ft

  • The 6ft with the new improved flat hinge
  • Length 6ft (1829mm)
  • Weight 15.8kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 300mm

7ft

  • The 7ft with Barrel Hinge, NOT flat hinge
  • Length 7ft (2130mm)
  • Weight 19kg
  • Capacity 275kg
  • Internal width 715mm
  • Max. load height 355mm

8ft

  • The 8ft with Barrel Hinge, NOT flat hinge
  • Length 8ft (2440mm)
  • Weight 24.1kg
  • Capacity 275kg
  • Width 715mm
  • Max. load height 405mm

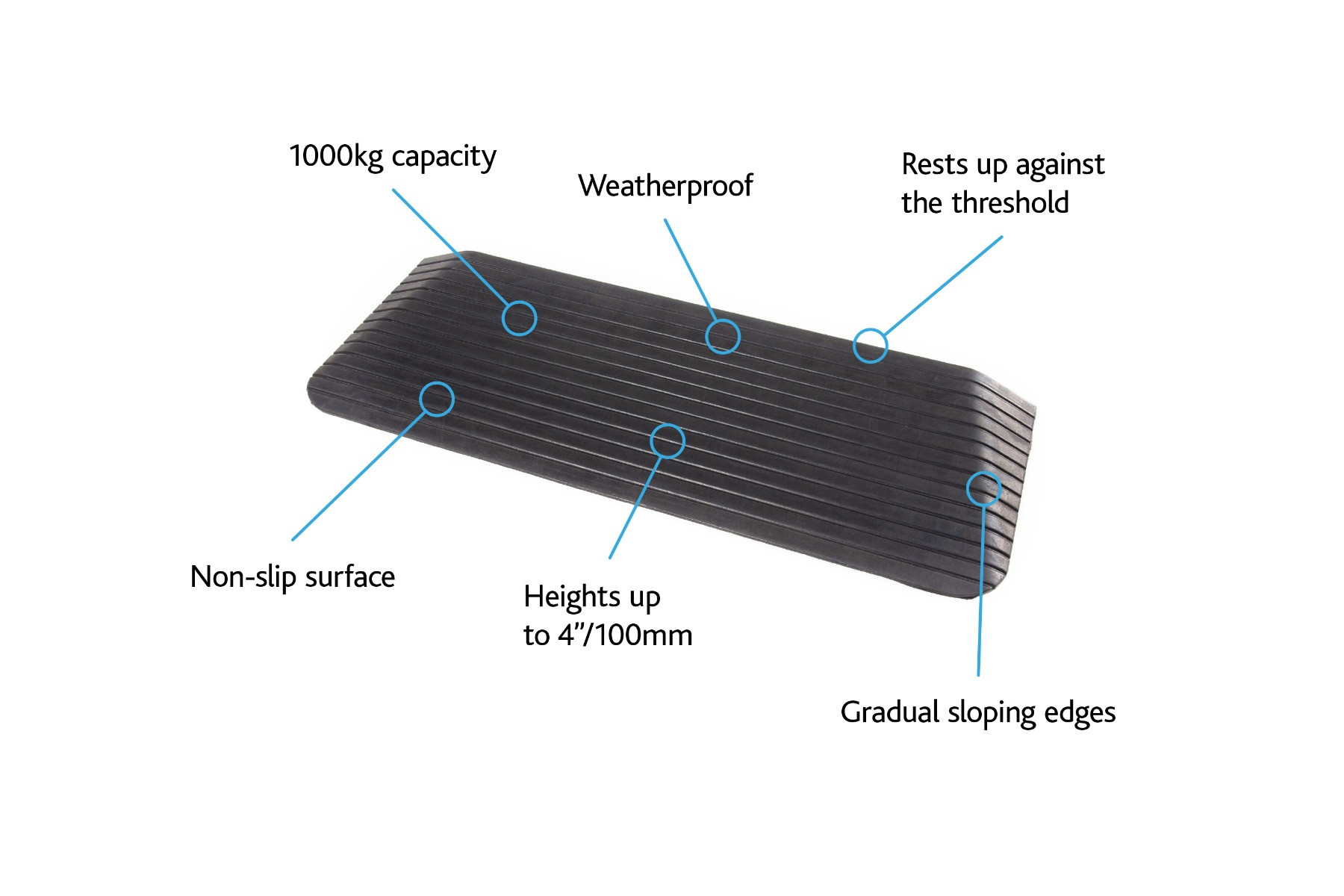

Rubber Threshold Ramps up to 4"/100mm

  • Sold as singles in 1105m or 900mm wide pieces
  • Can support a load of up to 1000kg
  • Manufactured from 100% recycled rubber compound
  • Rest & go - to fit just slide up to the kerb and start loading
  • Can be cut to size to fit space available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • These ramps are only suitable for use as mobility aids

1"/25mm

  • Length (mm): 210
  • Width (mm): 1105
  • Usable Width (mm): 900
  • Weight (kg): 4.2
  • Capacity (kg): 1000

1.5"/38mm

  • Length (mm): 320
  • Width (mm): 1105
  • Usable Width (mm): 900
  • Weight (kg): 8.6
  • Capacity (kg): 1000

2"/50mm

  • Length (mm): 410
  • Width (mm): 1105
  • Usable Width (mm): 900
  • Weight (kg): 12.3
  • Capacity (kg): 1000

2.5"/65mm

  • Length (mm): 420
  • Width (mm): 1105
  • Usable Width (mm): 900
  • Weight (kg): 13.20
  • Capacity (kg): 1000

3"/76mm

  •  Length (mm): 460
  • Width (mm): 900
  • Weight (kg): 14.10
  • Capacity (kg): 1000

3.5"/90mm

  • Length (mm): 540
  • Width (mm): 900
  • Weight (kg): 17.3
  • Capacity (kg): 1000

4"/100mm

  • Length (mm): 635
  • Width (mm): 900
  • Weight (kg): 23.6
  • Capacity (kg): 1000
Product Questions
Do The Ramp Factory customise rubber threshold ramps?
We do not customise the rubber threshold ramps however, as they are rubber, if they are too wide for your doorway, you can simply cut them with a knife or saw. We do not advise amending the length of the ramps as this will affect the gradient.
Do The Ramp Factory sell the folding aluminium ramp and rubber ramps separately?
Yes, the folding ramp can be seen in the Folding Wheelchair Ramps category. The rubber ramps are available to purchase in the Rubber Threshold Ramps category.
I am interested in the Drive-In System, what height rubber ramp should I purchase?
The folding ramp can either rest on the doorway or rest on the rubber ramp. If you wish for the folding ramp to rest on the rubber ramp we suggest purchasing a rubber ramp which is slightly higher than the door threshold. Please consider that if your door opens over the rubber ramp, if you purchase a higher height you will need to move the ramp each time to close the door.
Can The Ramp Factory's Drive-In System be left in place?
The folding ramp will need to be moved each time to allow you to close the door. Often the rubber ramp is left in place however, if your door opens over the rubber ramp you may need to move the rubber ramp to close the door. For a solution which can be left in place we suggest viewing the Adjustable Threshold Bridge Ramp.
Specifications
SKUTRP-Combi
Capacity (kg)275 - 1000
Length (ft)2 - 8
Max Load Height (mm)405
Weight (kg)4.2 - 23.6
One Year WarrantyYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Colour OptionBlack
