Folding Aluminium & Rubber Threshold Drive-In System (2ft - 8ft & 12mm - 100mm)

SKU
TRP-CombiLow
From £144.00 £120.00
Over 300 In stock at our warehouse
Only %1 left

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

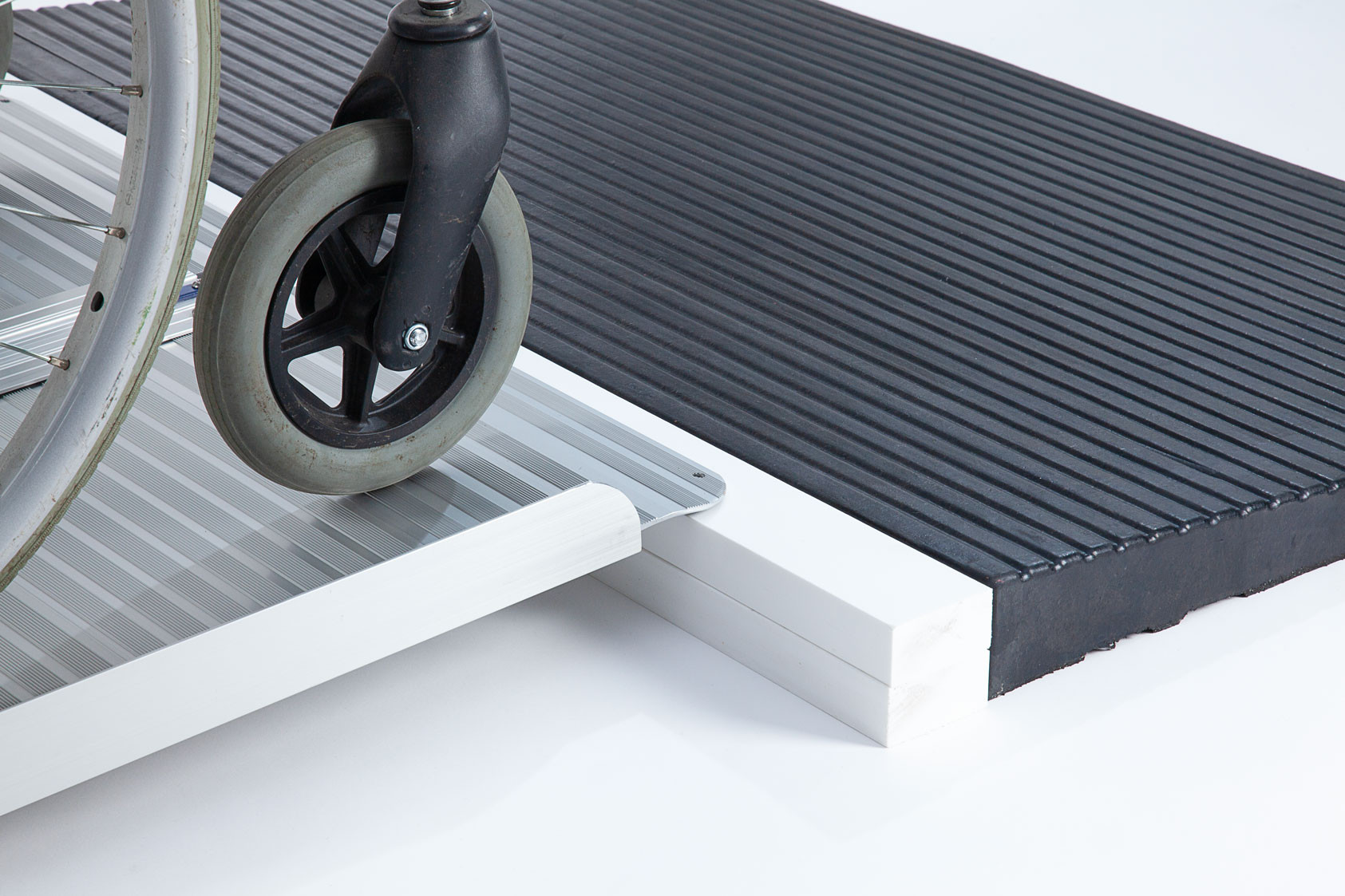

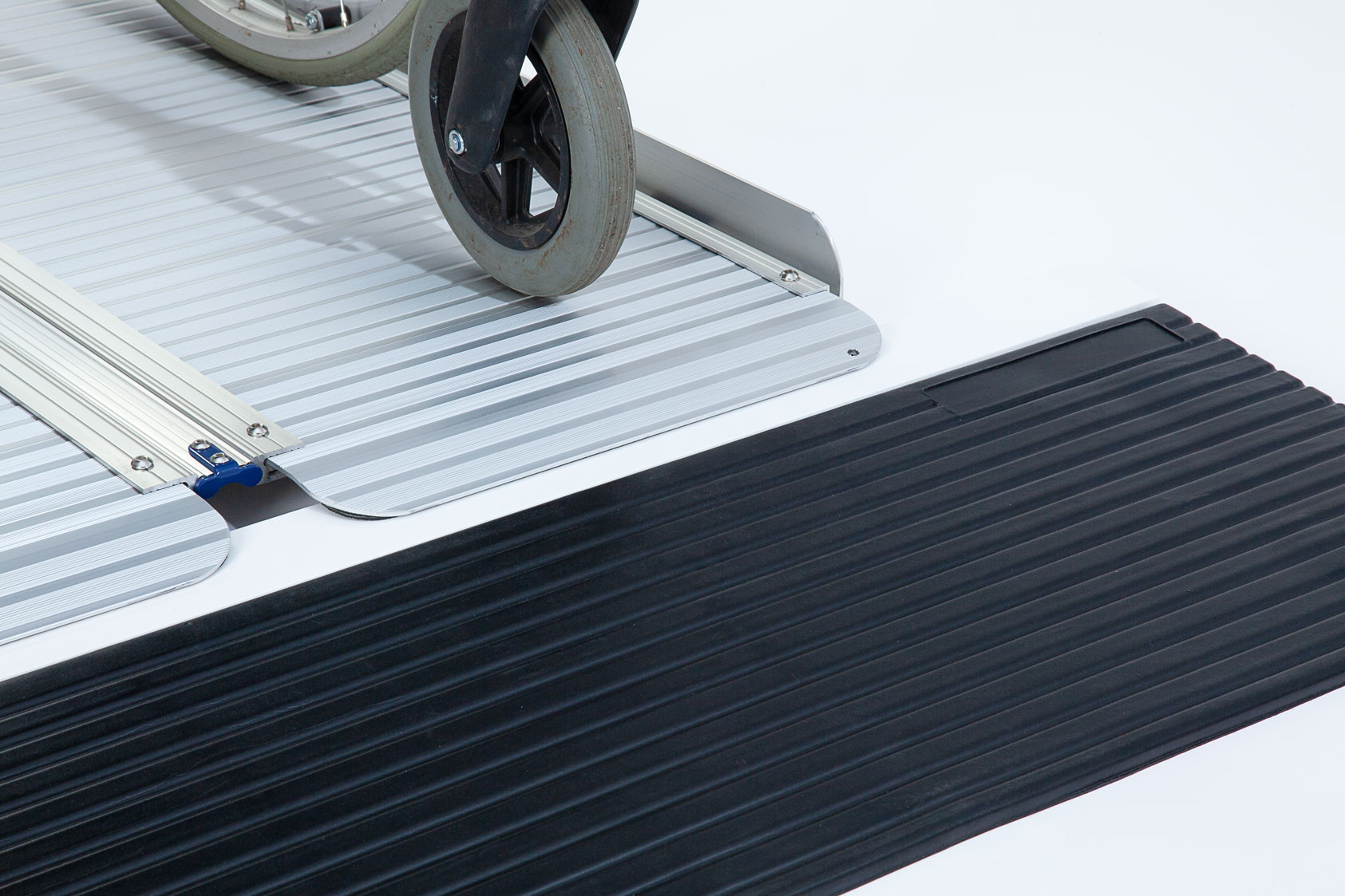

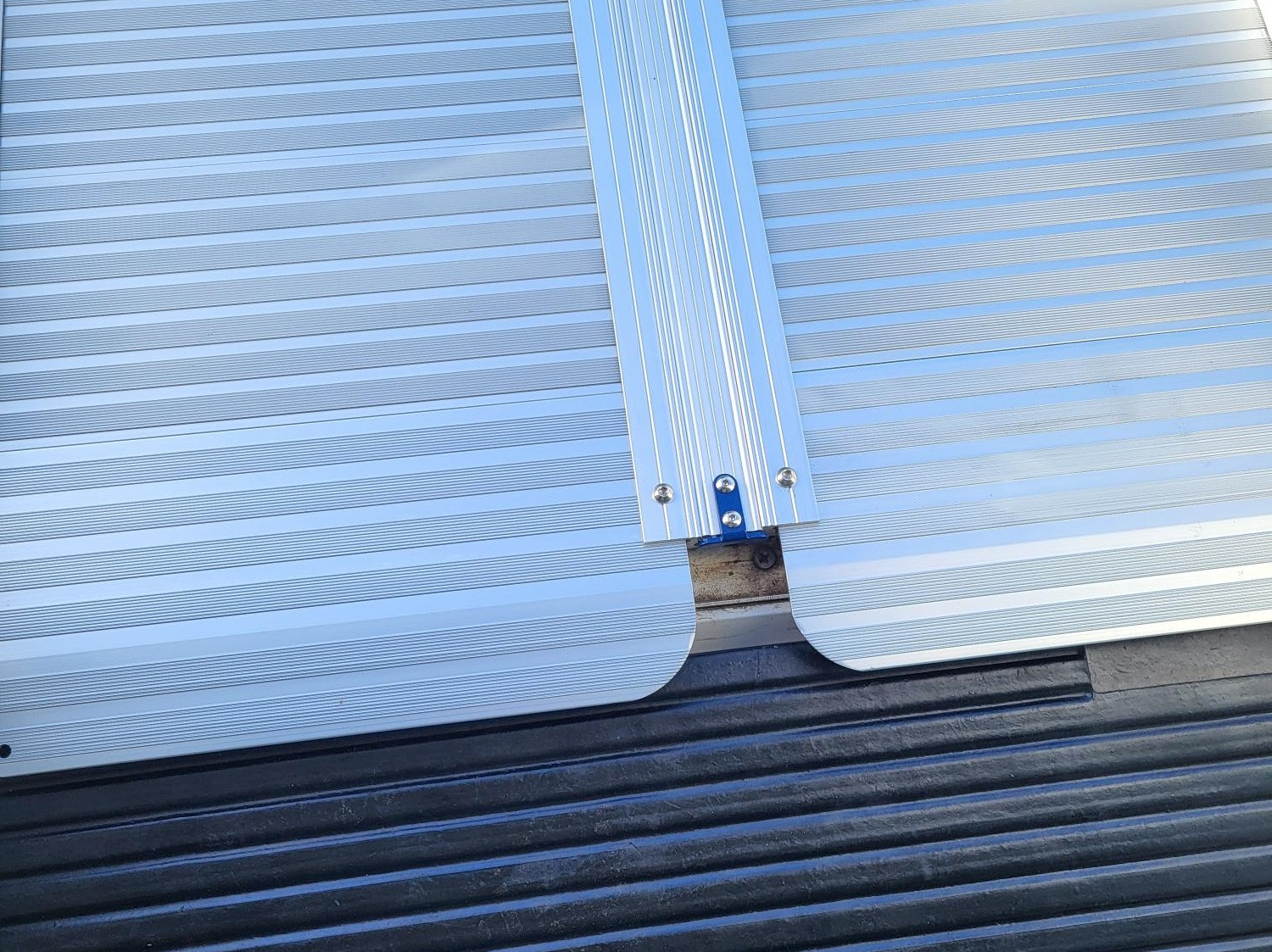

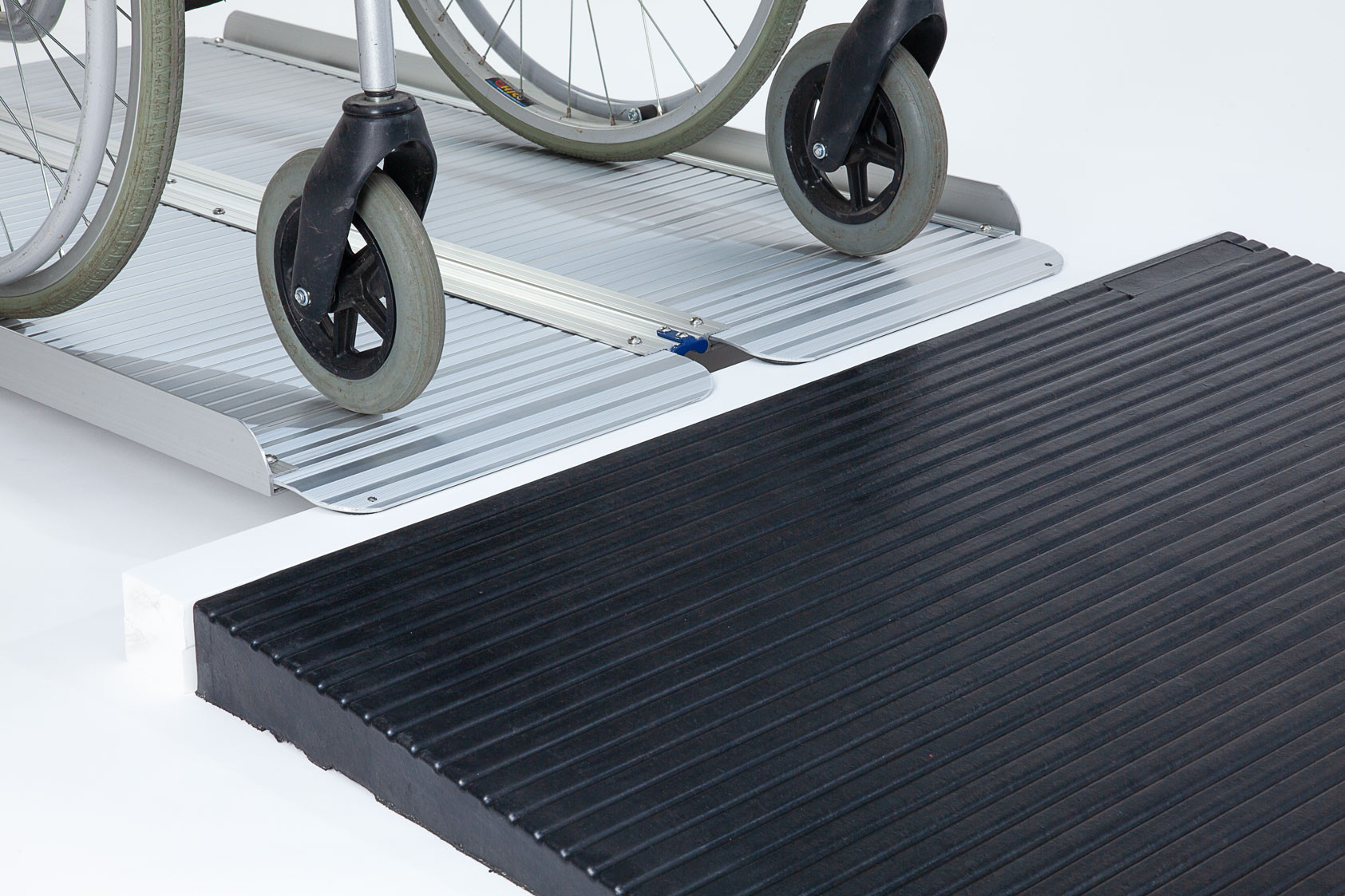

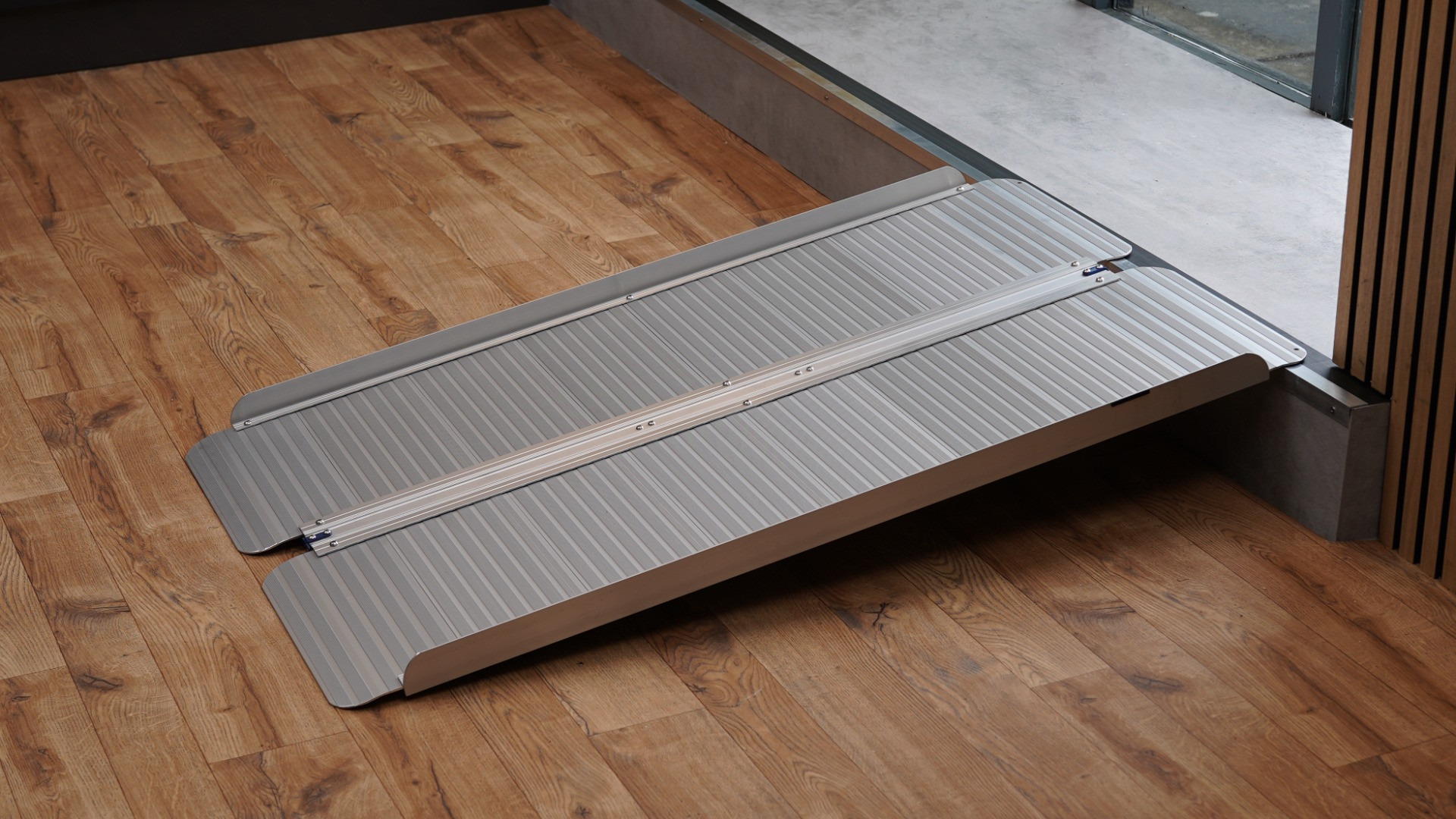

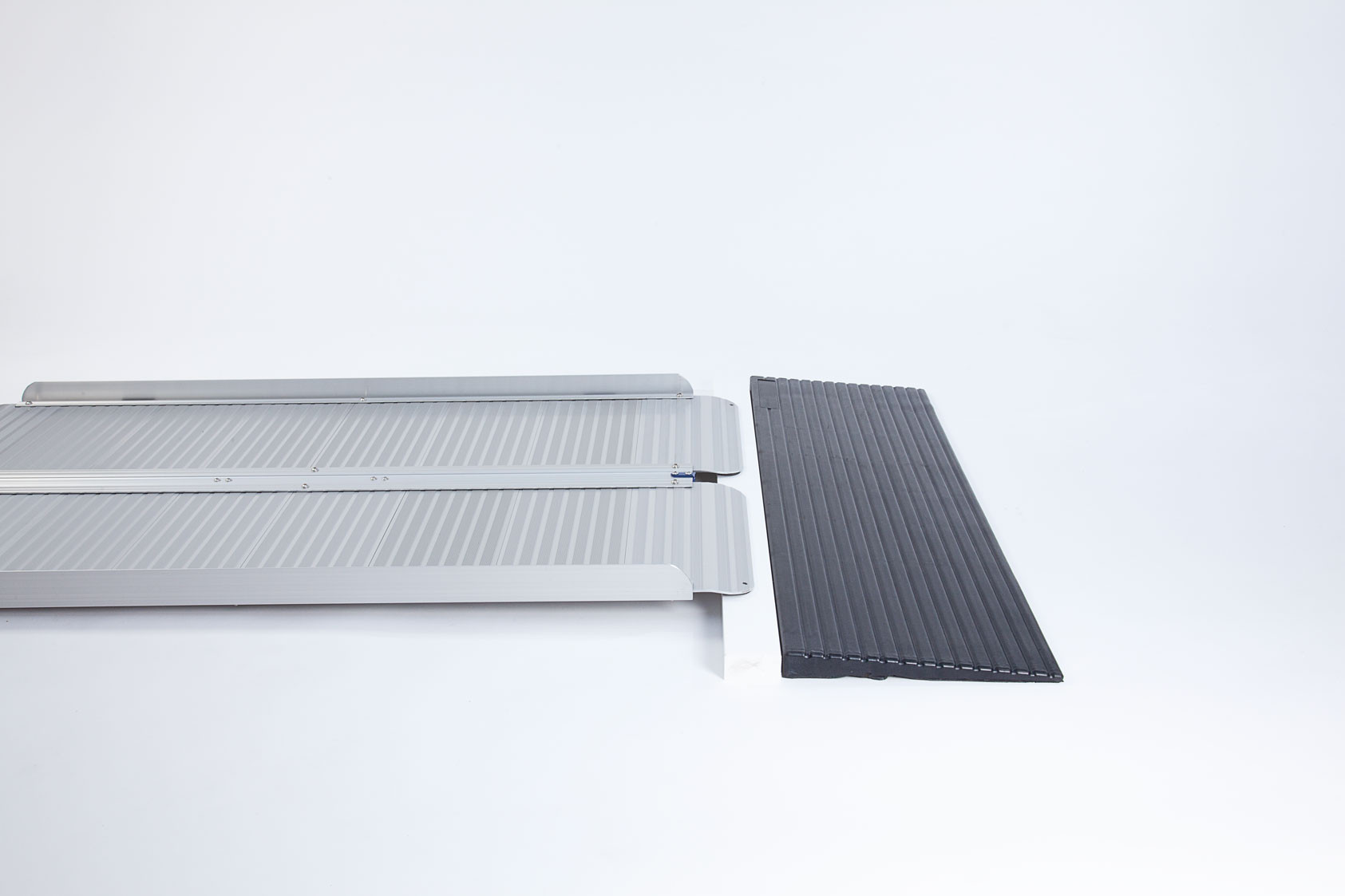

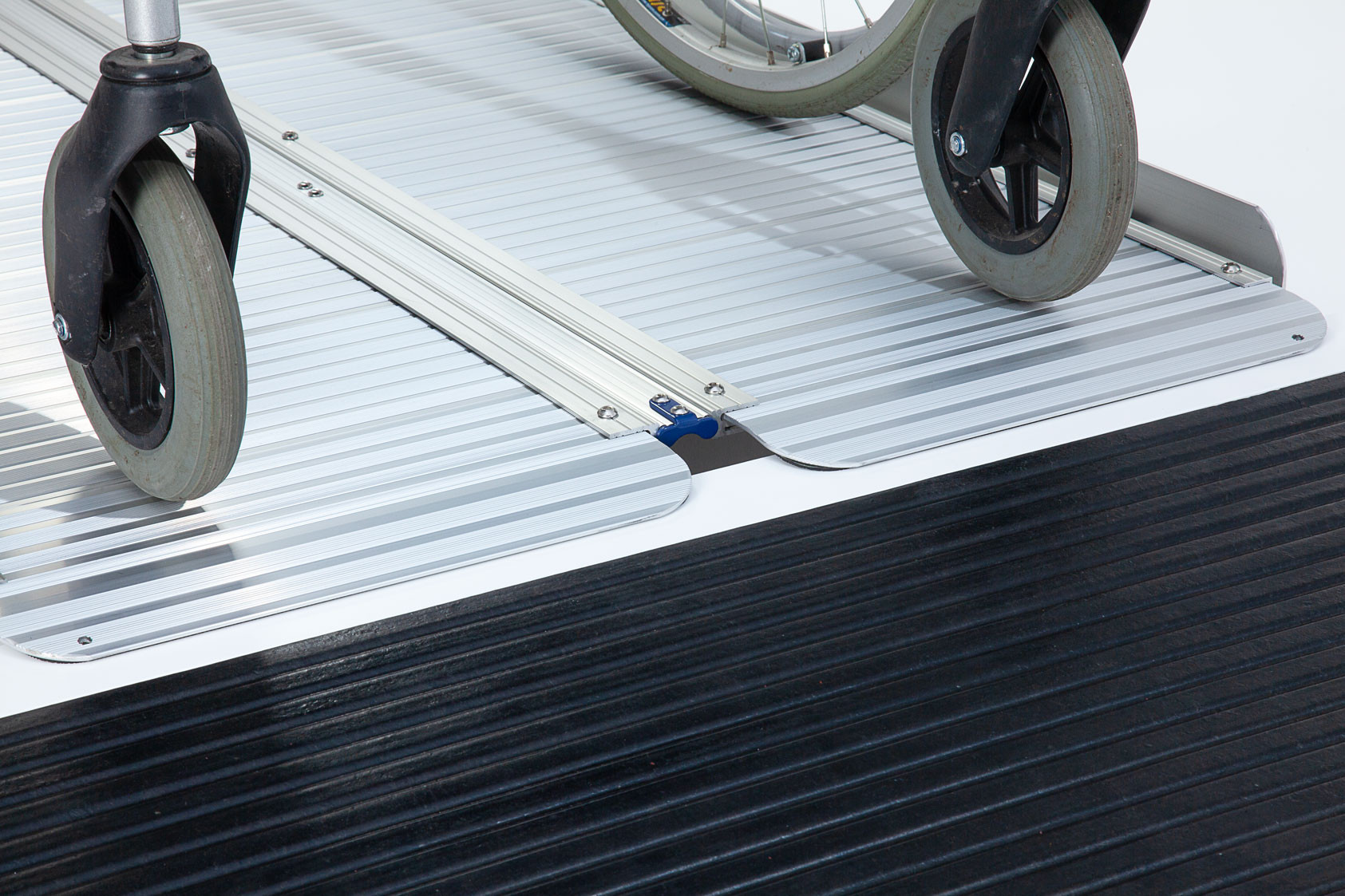

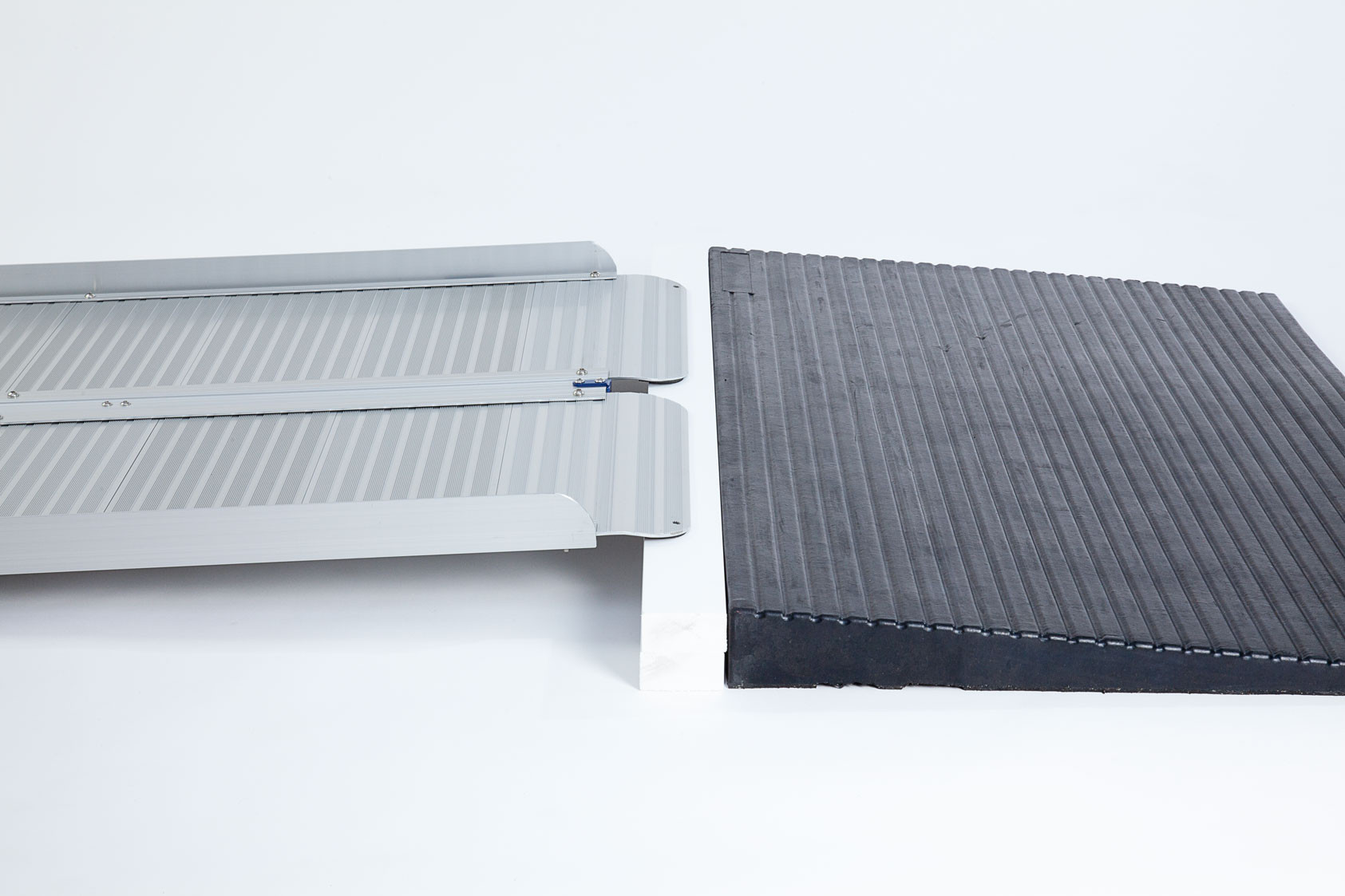

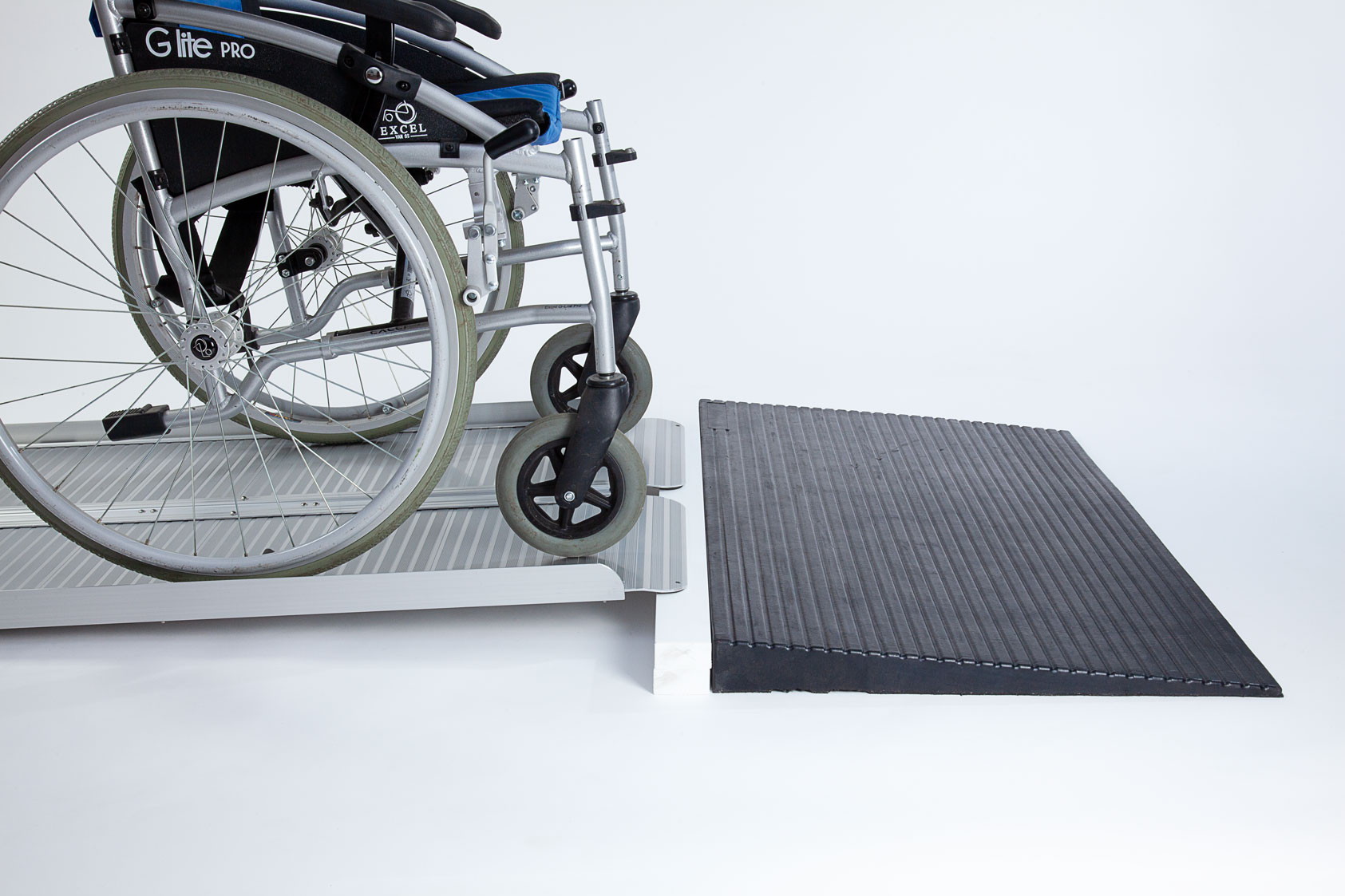

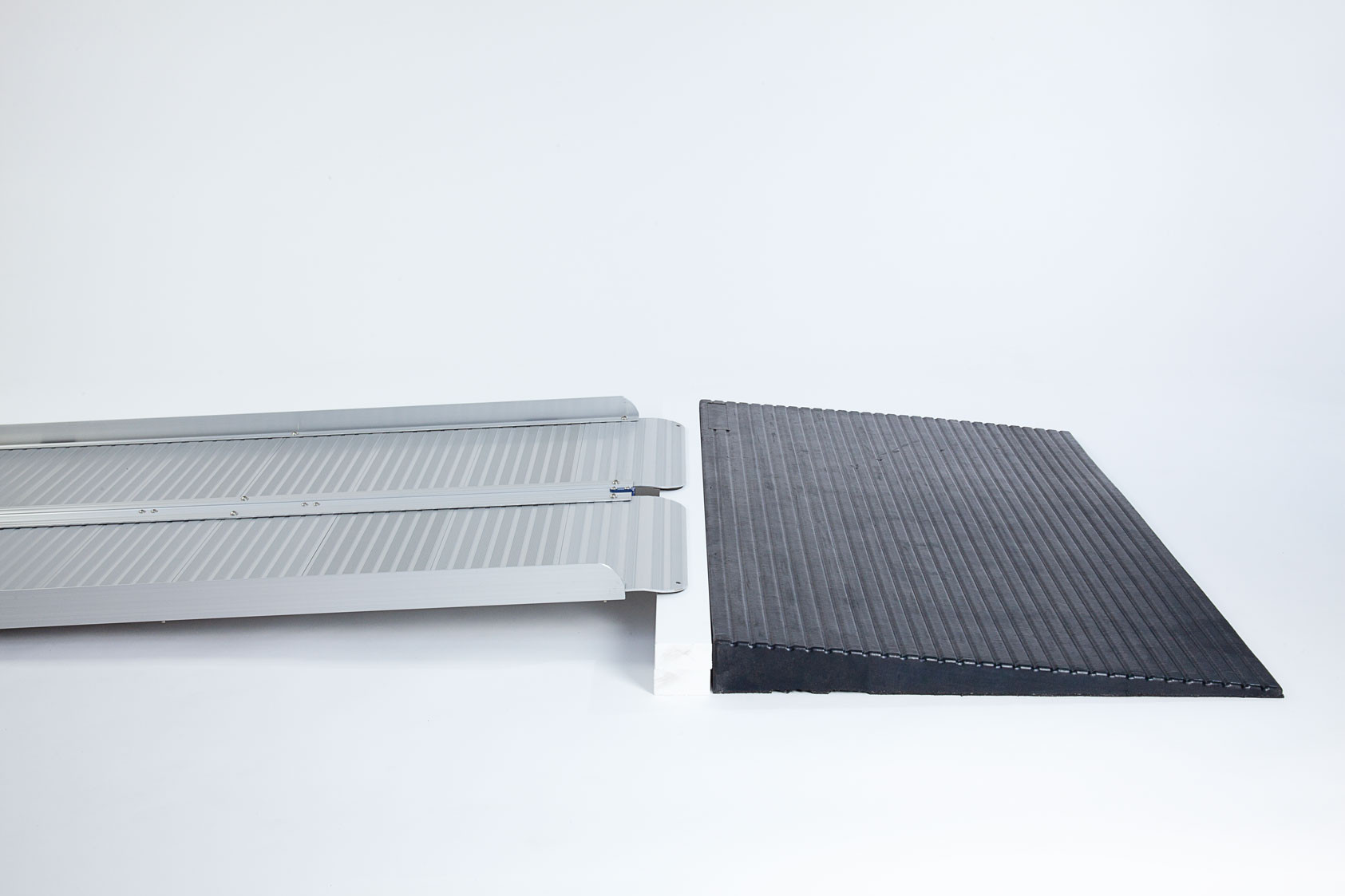

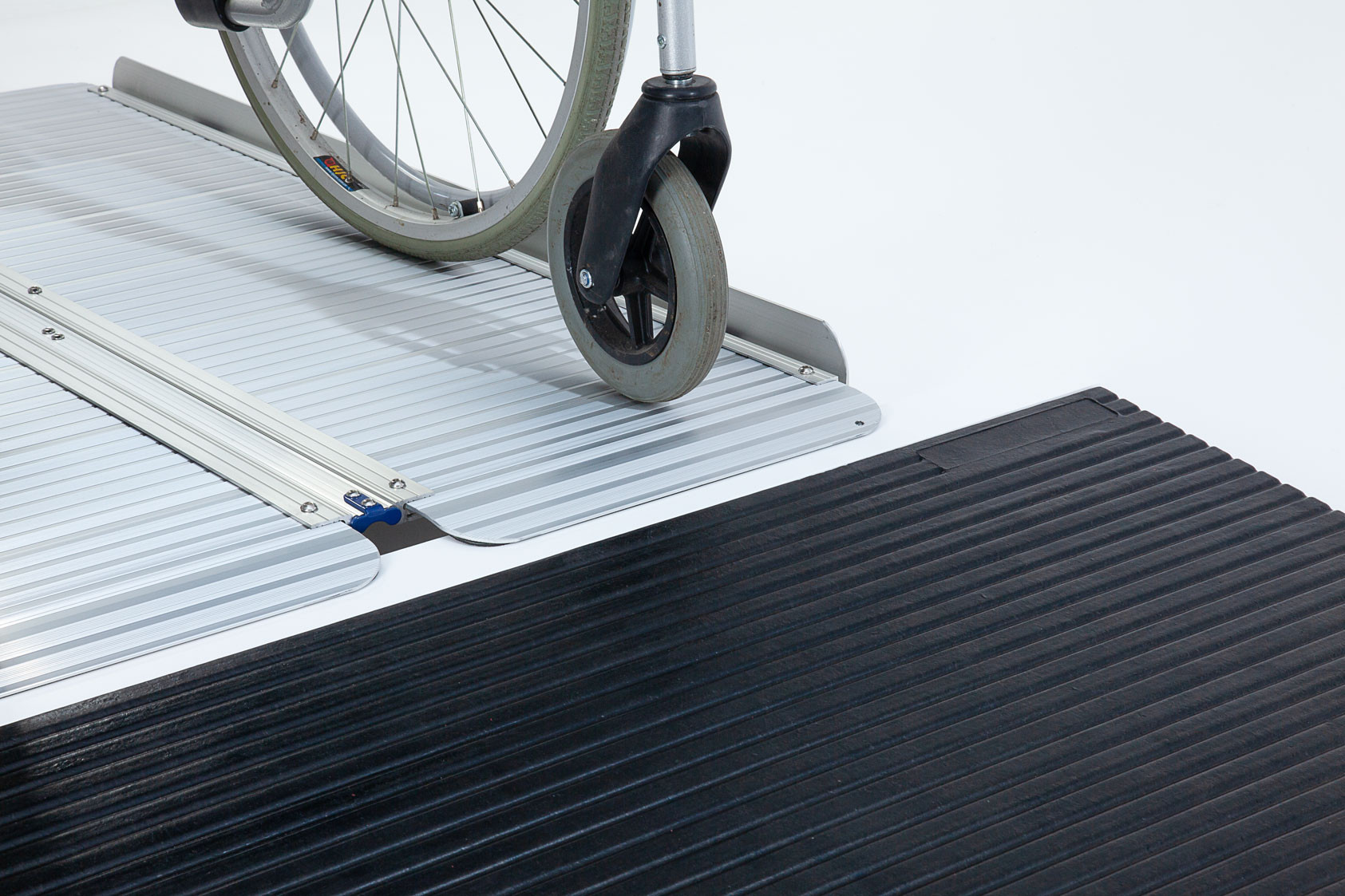

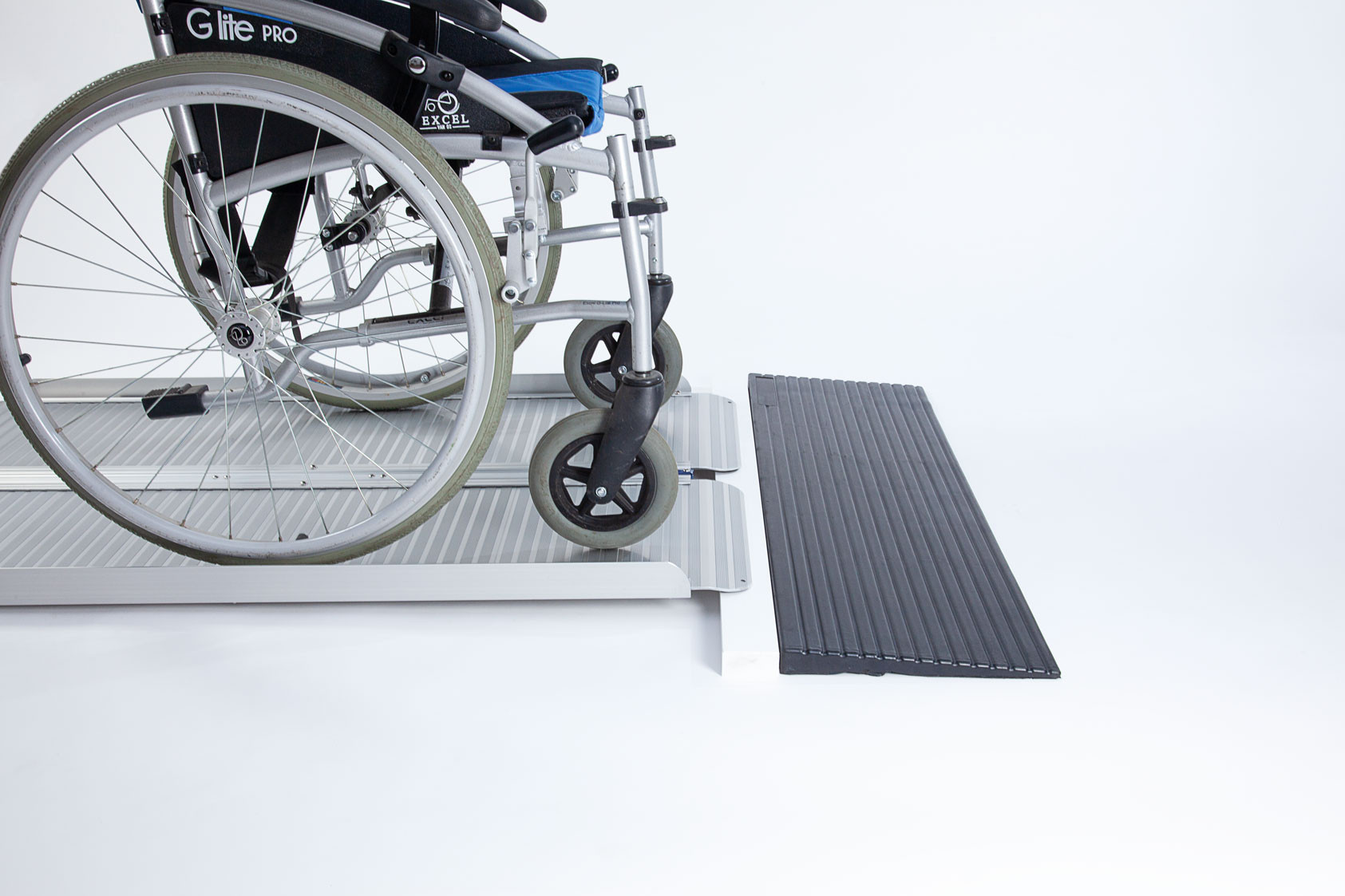

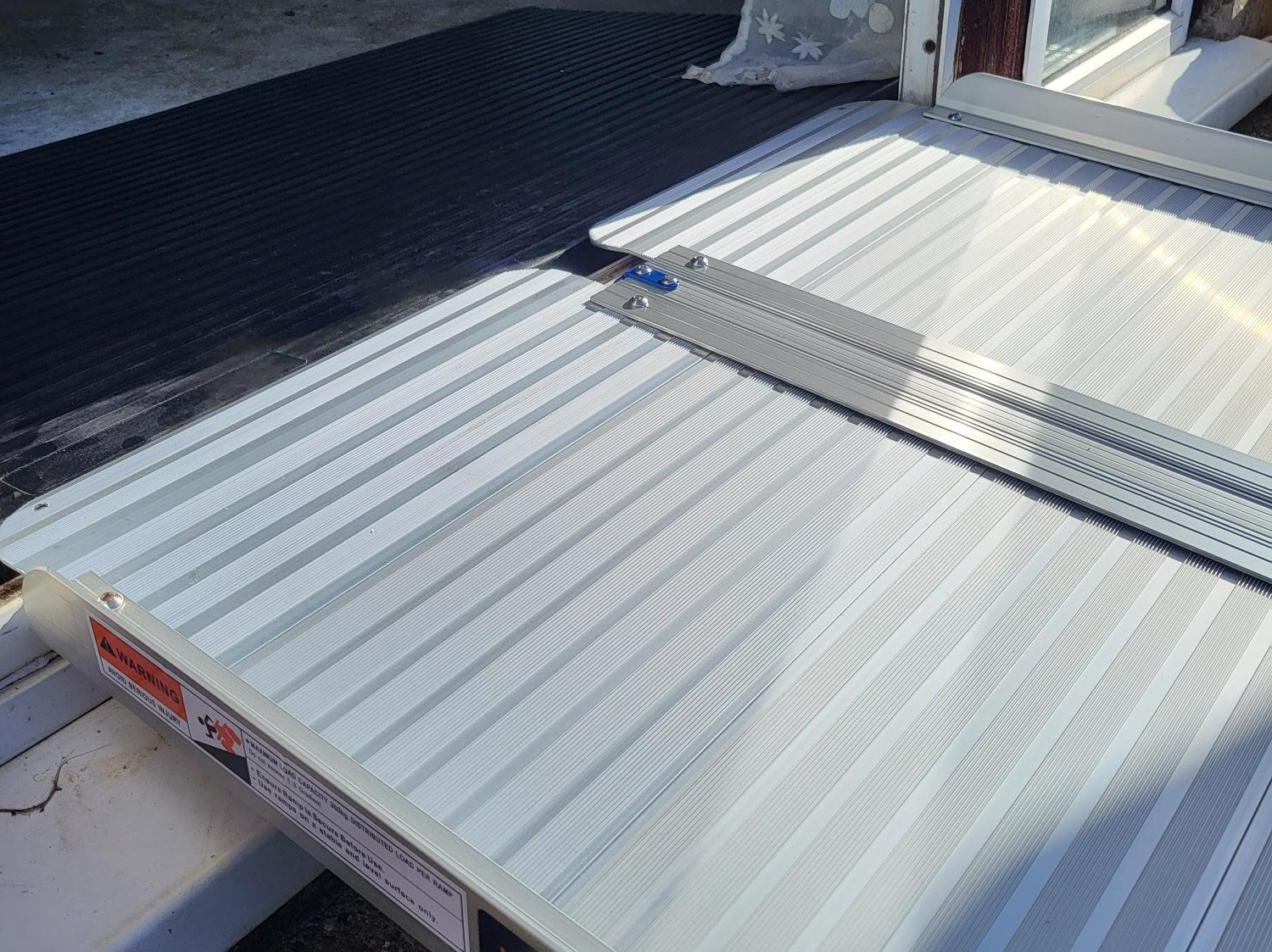

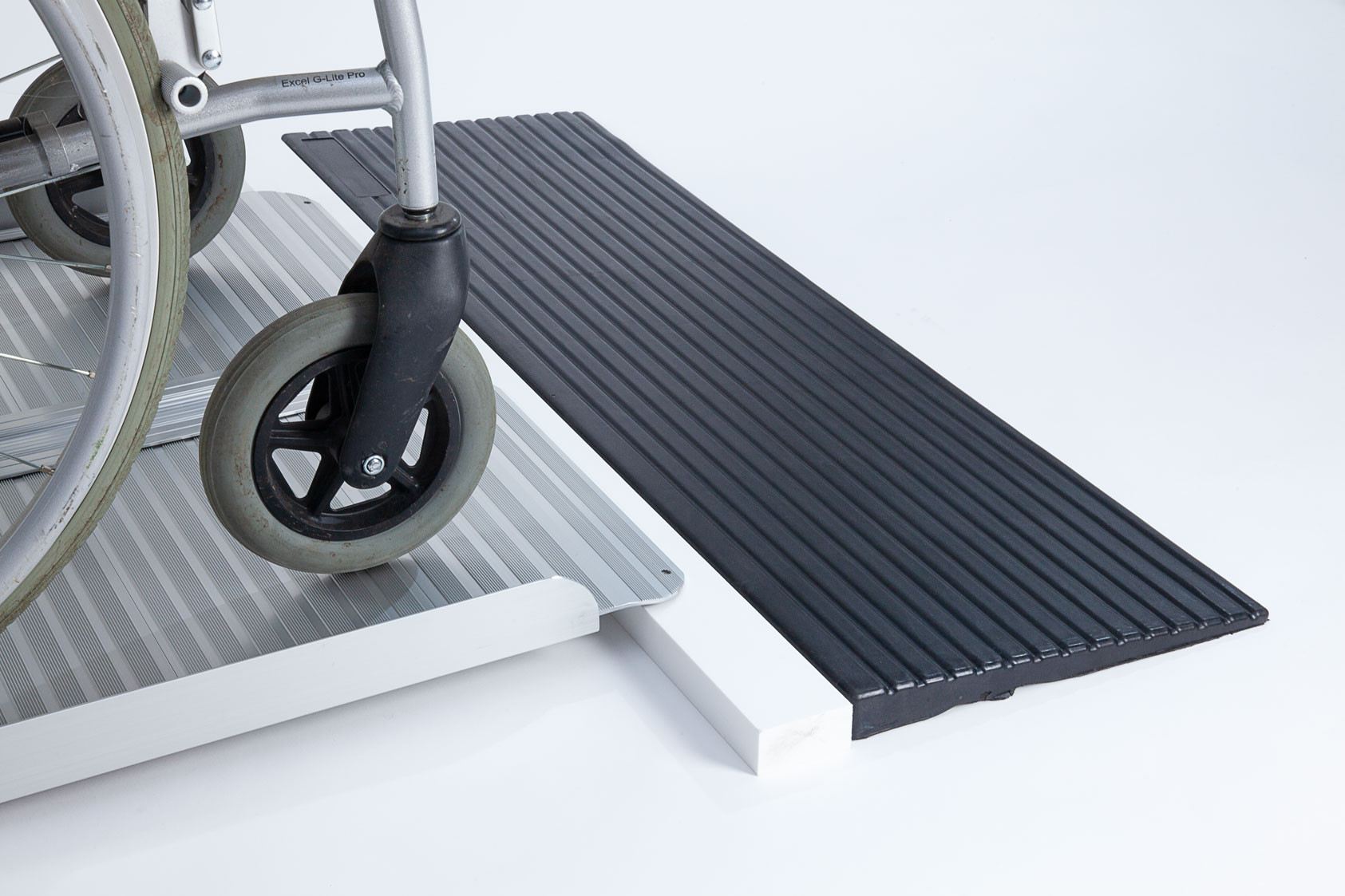

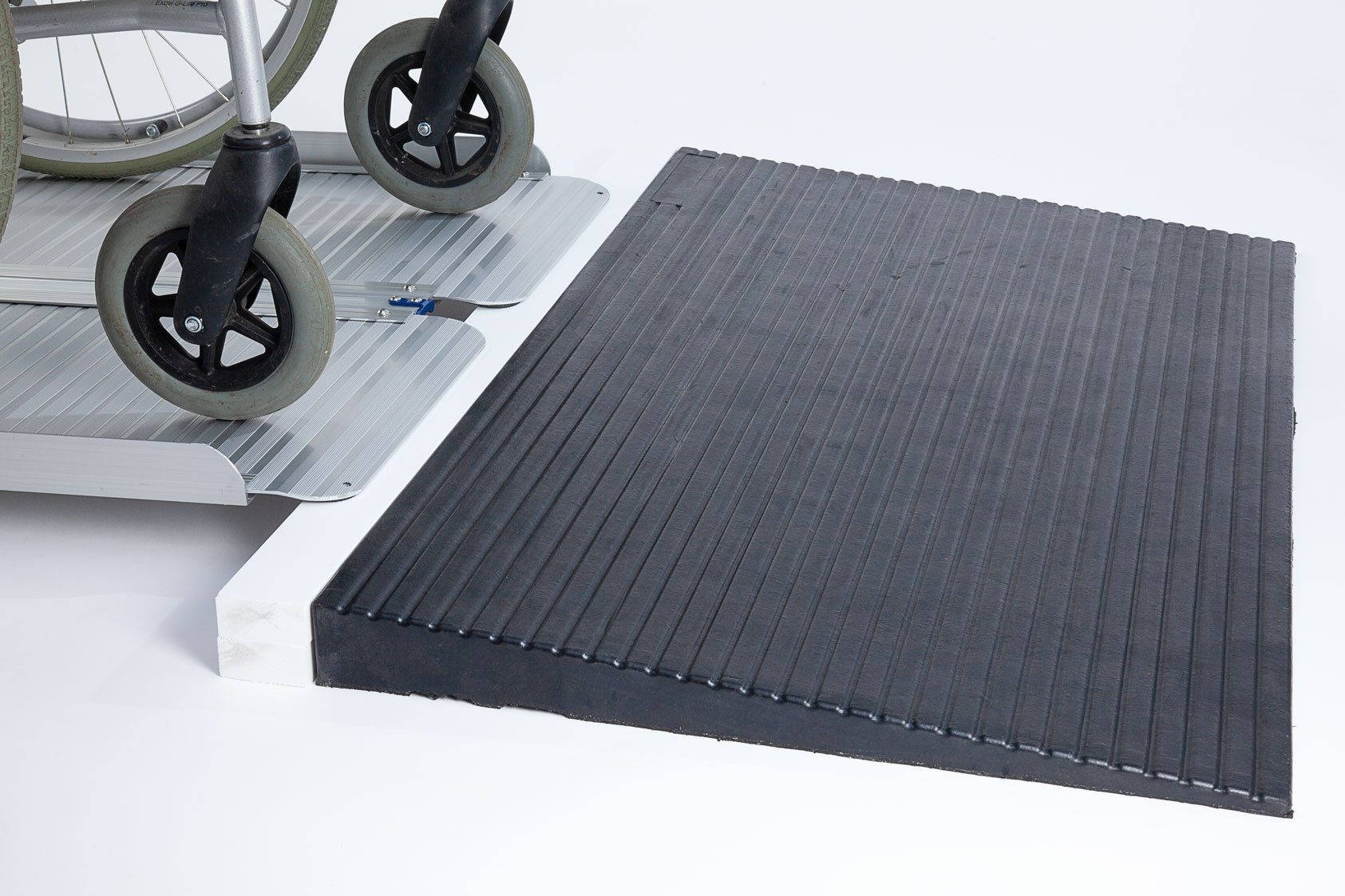

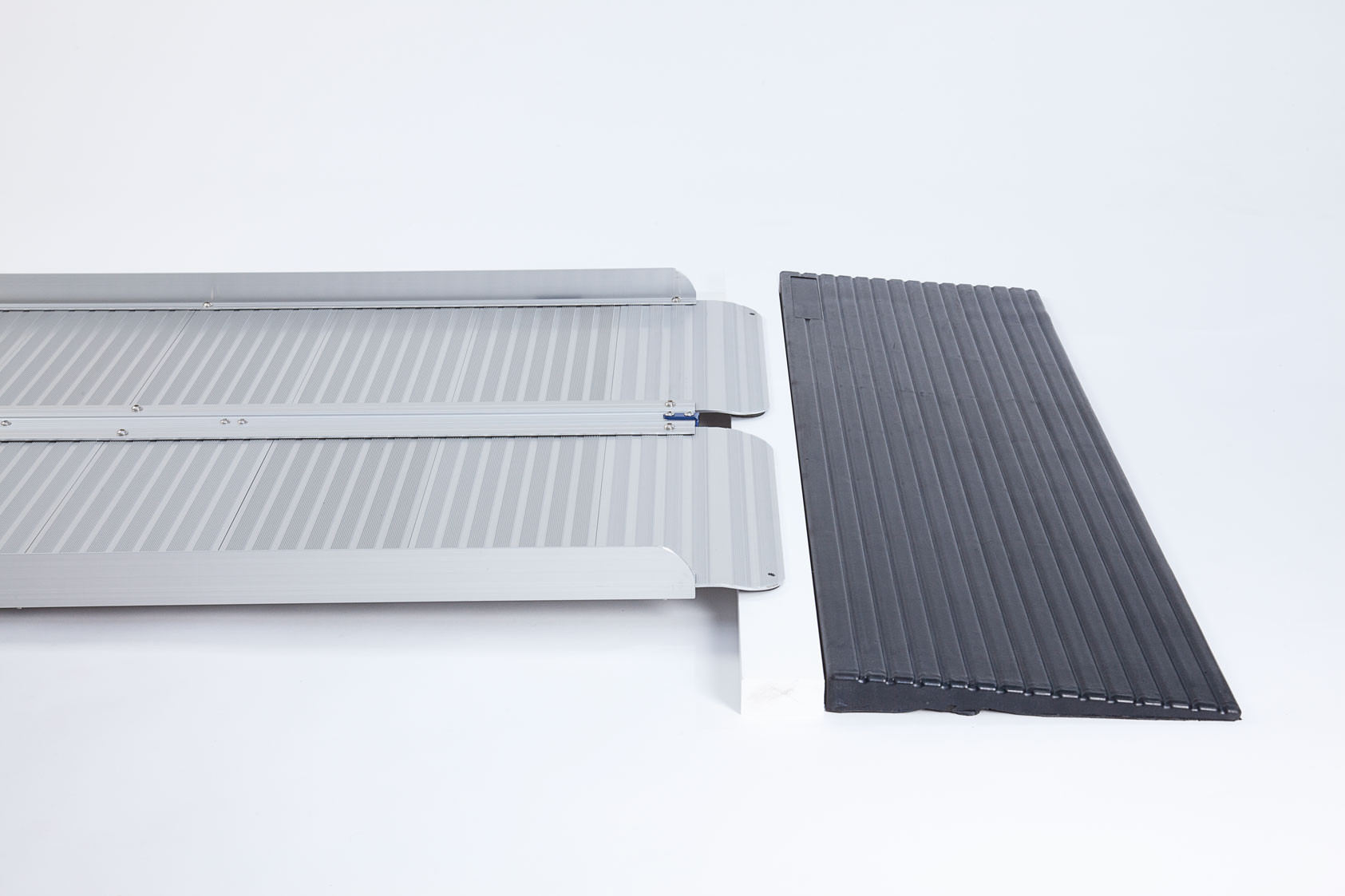

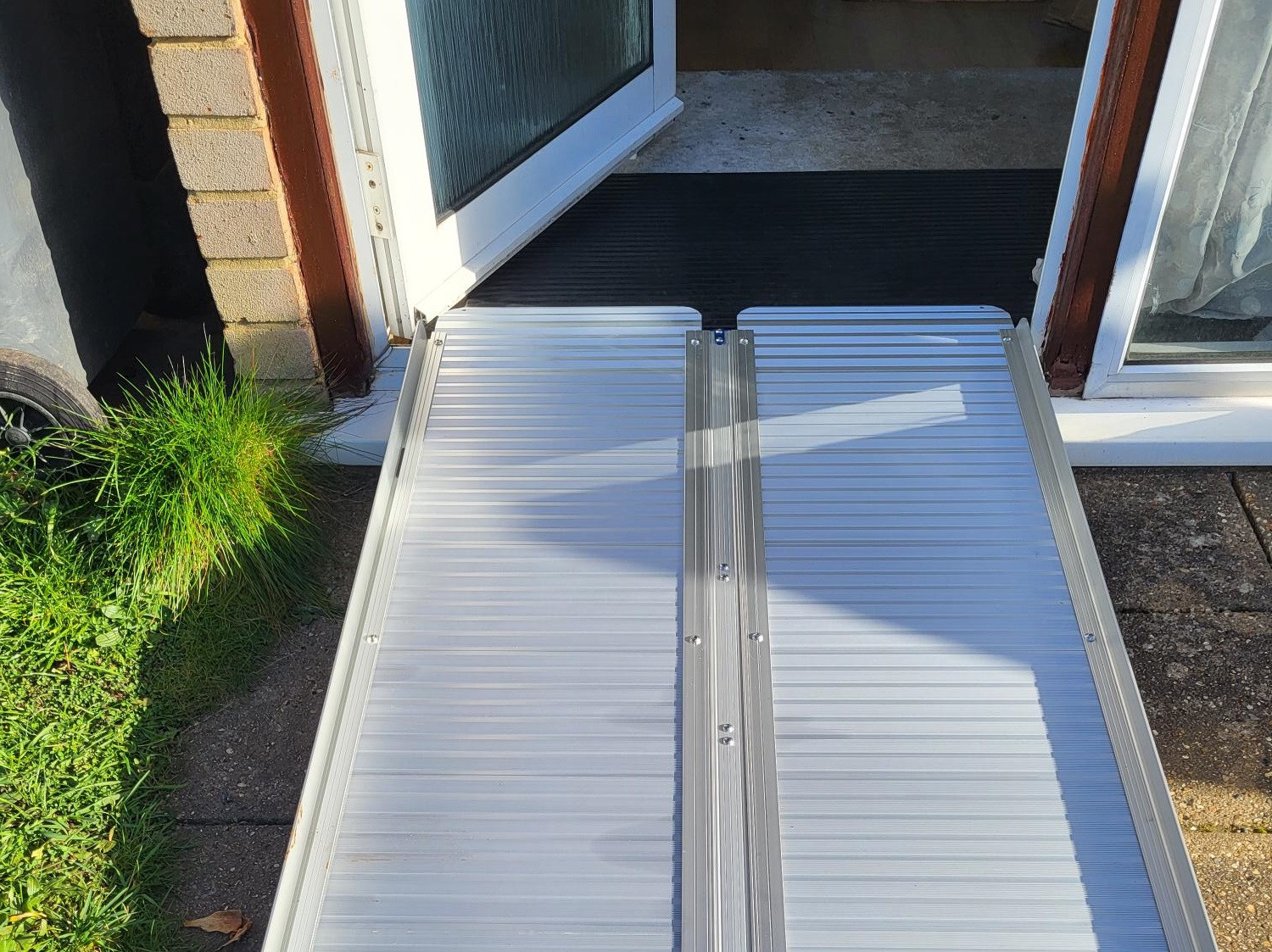

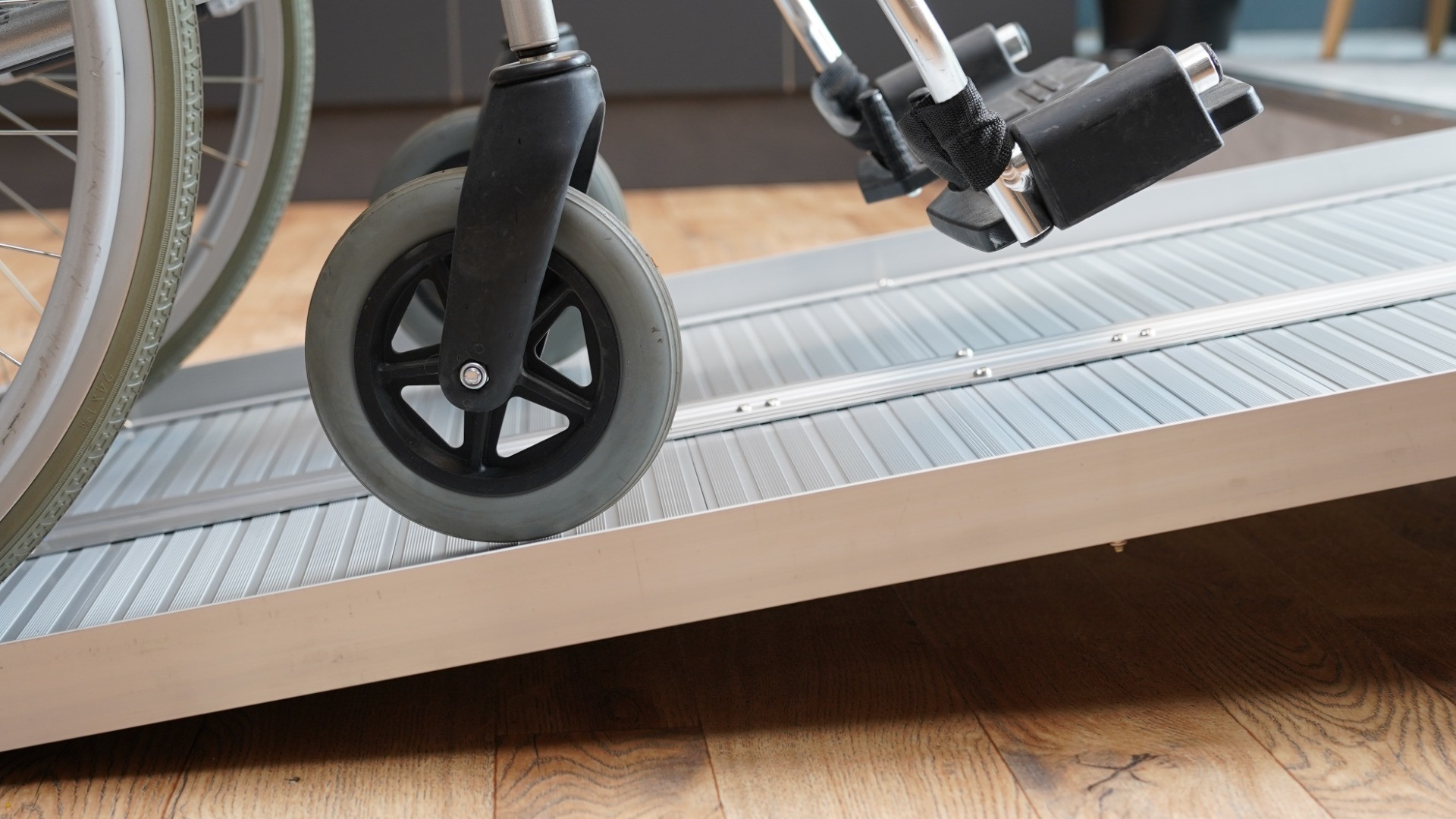

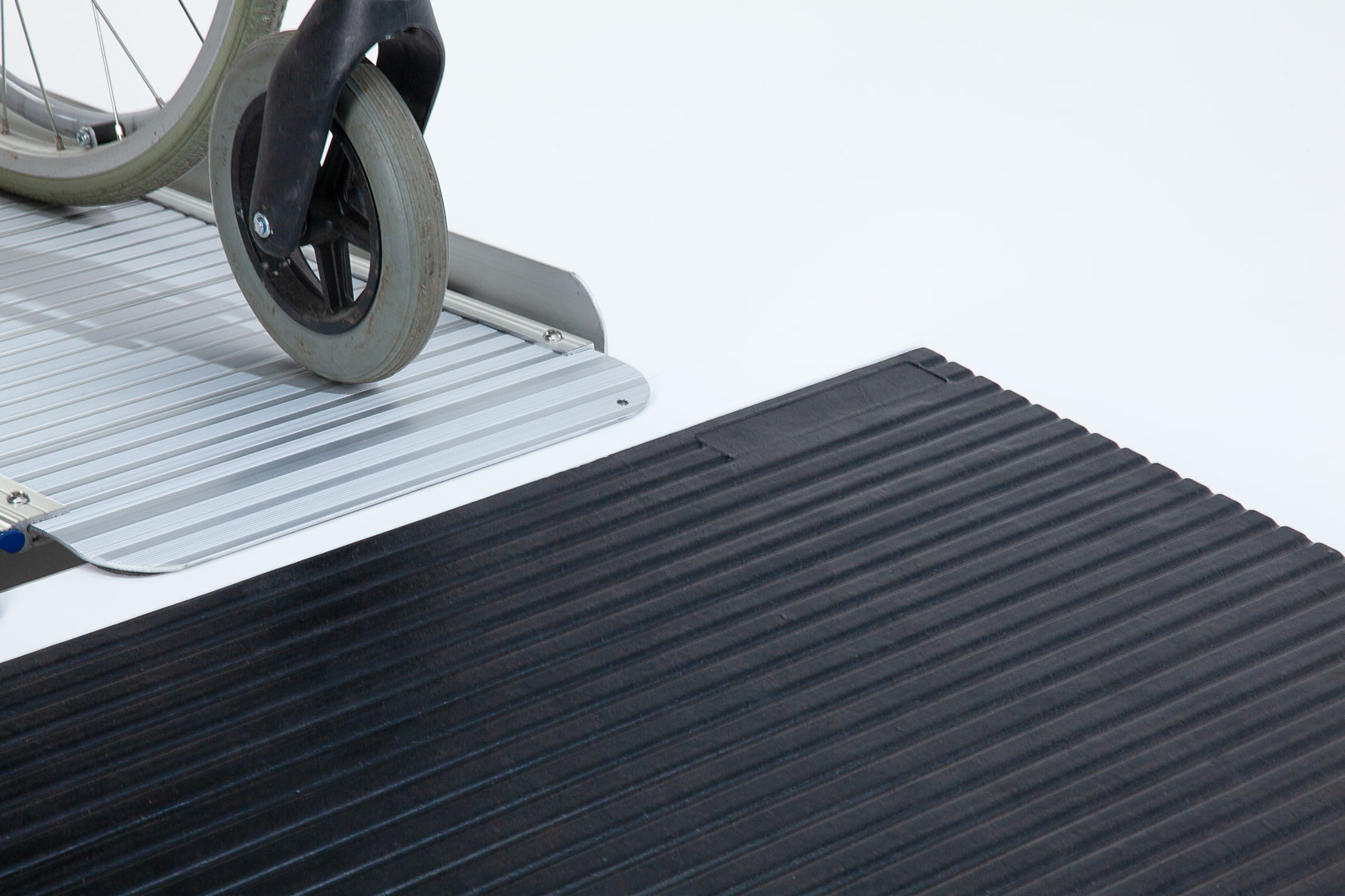

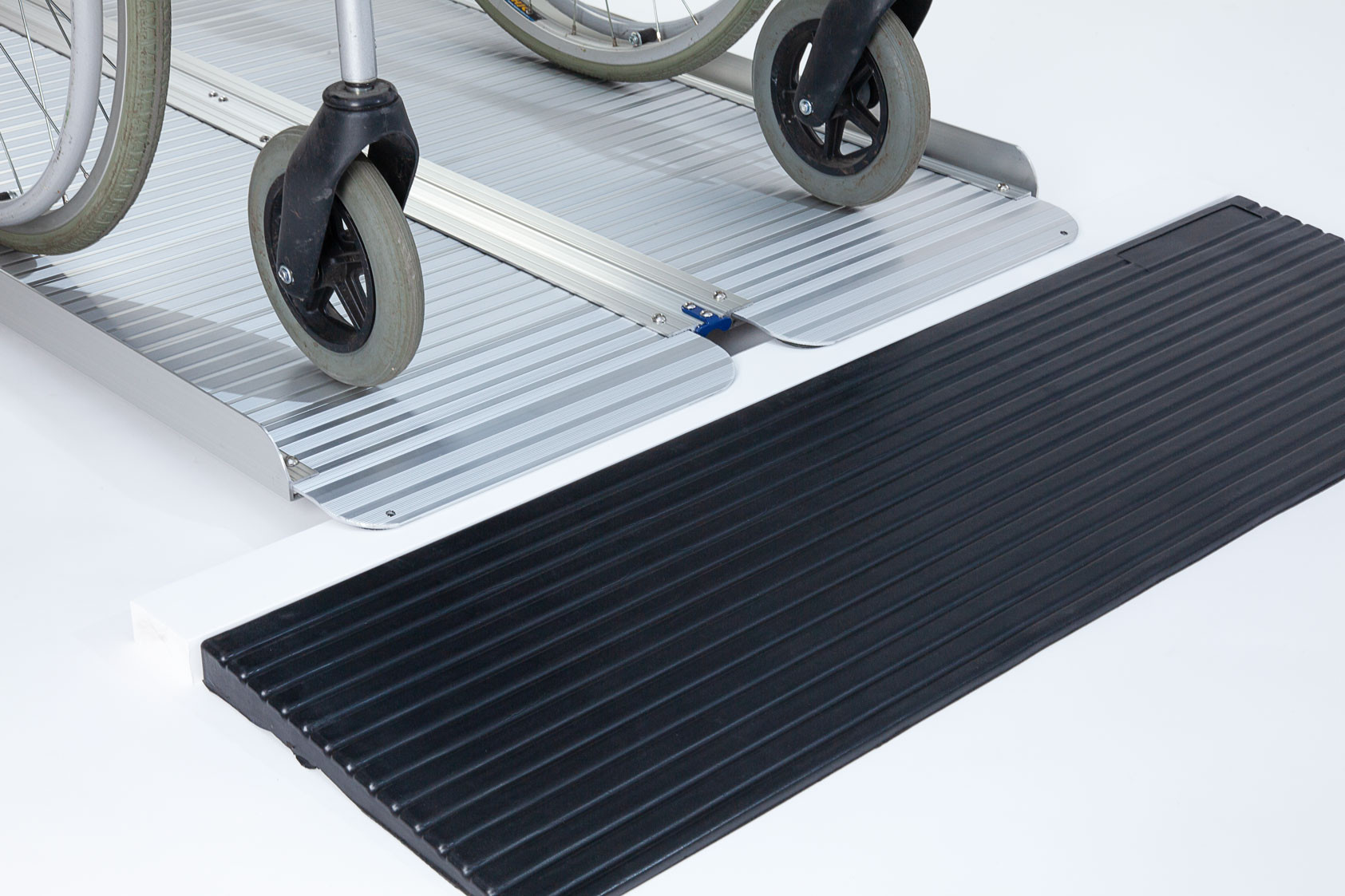

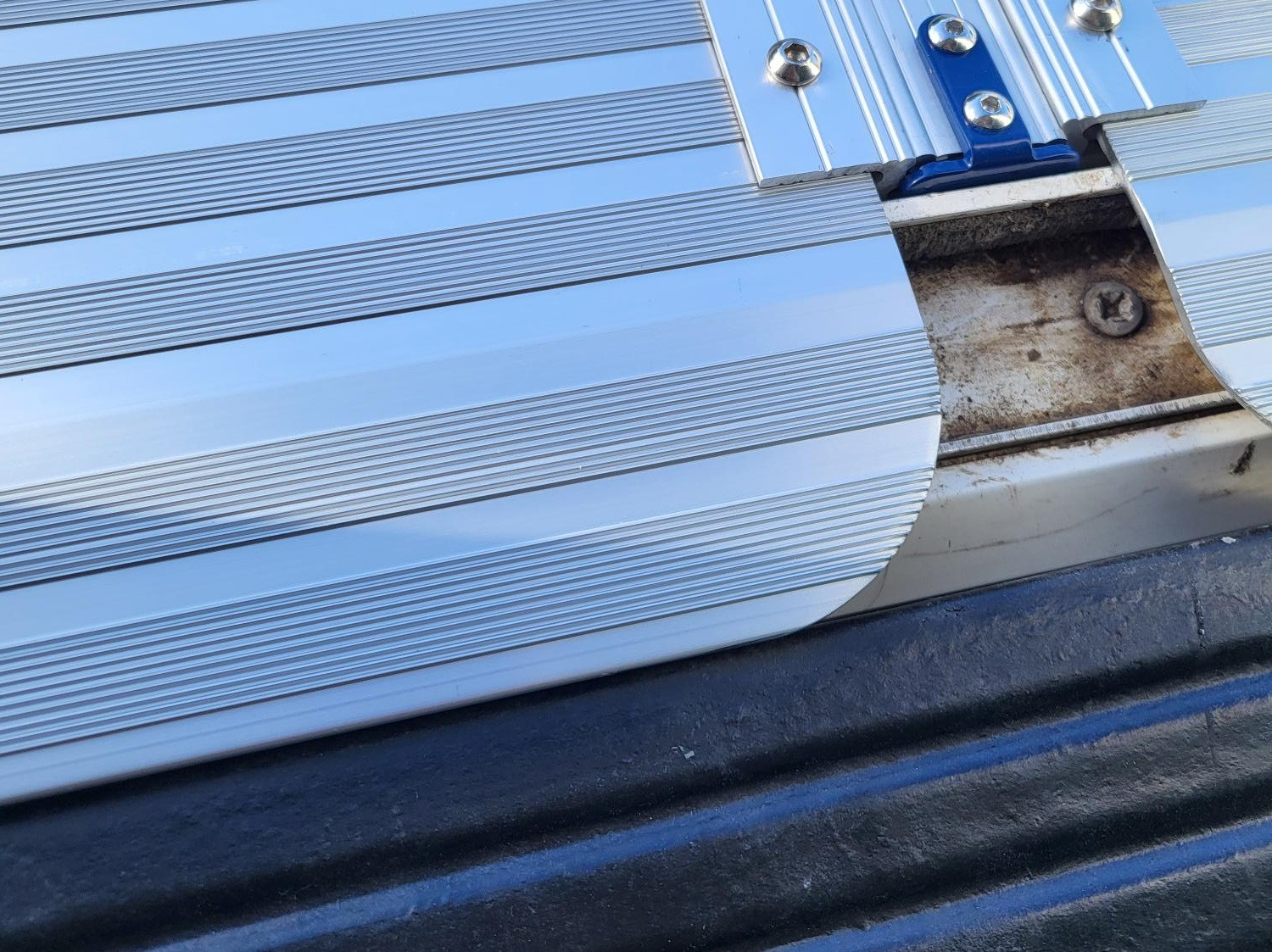

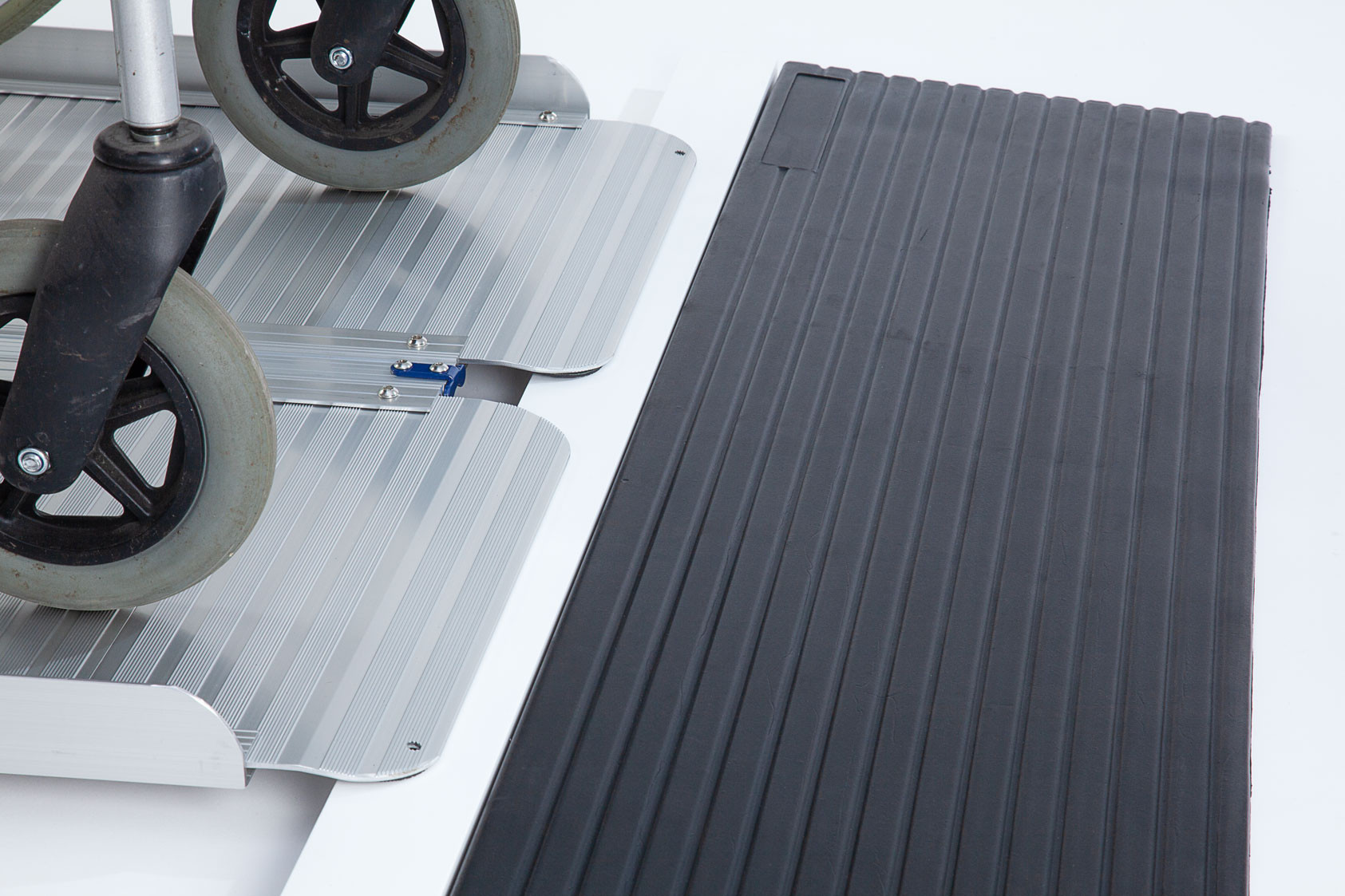

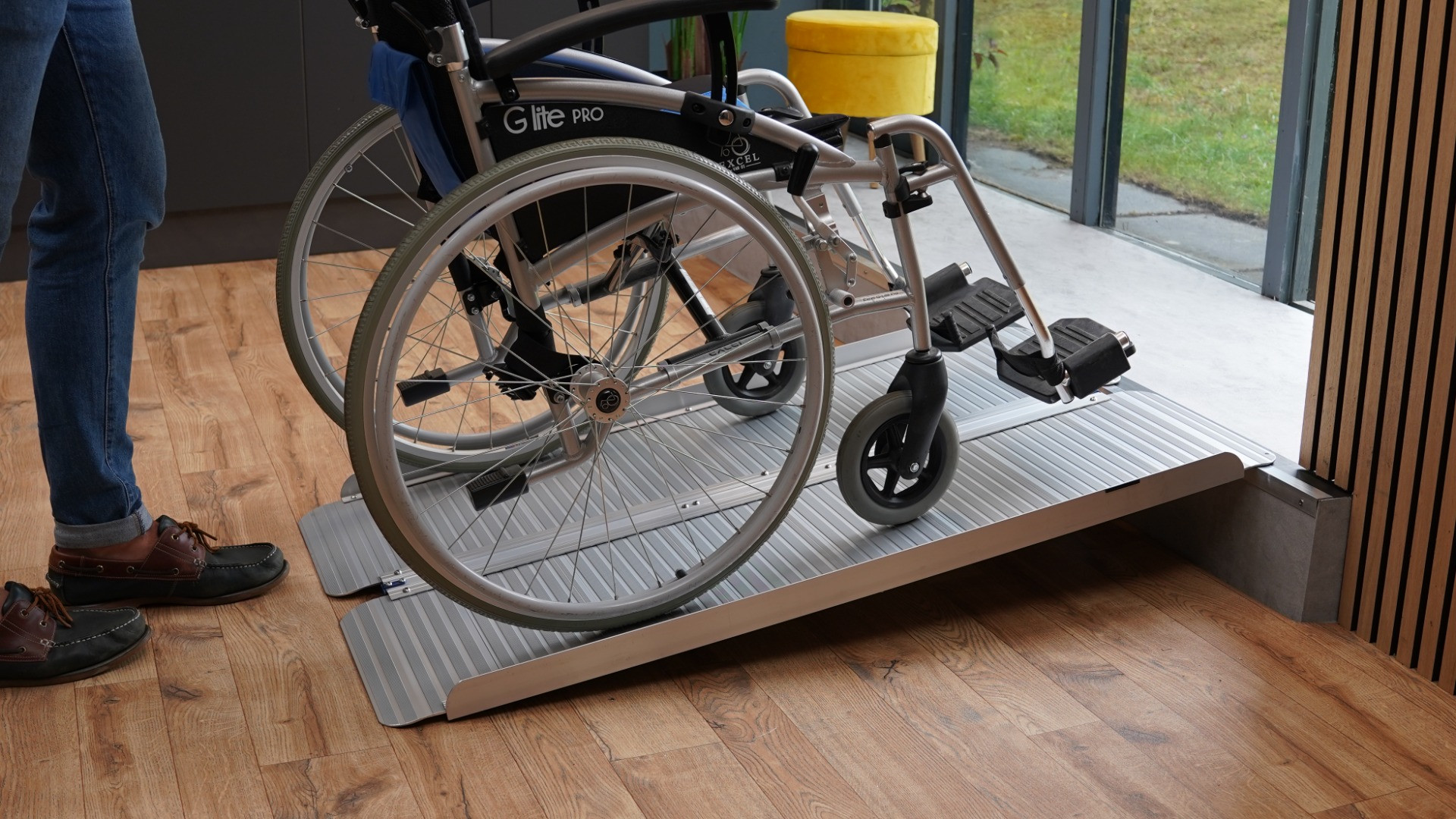

The Ramp Factory's economy folding wheelchair ramp combined with rubber threshold ramps creates the perfect portable up and over system for doors such as UPVC. Using a portable ramp system offers numerous advantages. It allows individuals with mobility challenges to easily access different areas, such as doorways and thresholds, without the need for permanent modifications. This not only promotes independence and inclusivity, but it also provides a convenient solution for those who frequently move or travel.

Folding Wheelchair Ramps FAQ's

Description

Folding Wheelchair Ramp Specifications

2ft

  • The 2ft with the new improved flat hinge
  • Length 2ft (610mm)
  • Weight 5.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 100mm

3ft

  • The 3ft with the new improved flat hinge
  • Length 3ft (915mm)
  • Weight 8.0kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 150mm

4ft

  • The 4ft with the new improved flat hinge
  • Length 4ft (1219mm)
  • Weight 10.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 200mm

5ft

  • The 5ft with the new improved flat hinge
  • Length 5ft (1524mm)
  • Weight 13.2kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 250mm

6ft

  • The 6ft with the new improved flat hinge
  • Length 6ft (1829mm)
  • Weight 15.8kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 300mm

7ft

  • The 7ft with Barrel Hinge, NOT flat hinge
  • Length 7ft (2130mm)
  • Weight 19kg
  • Capacity 275kg
  • Internal width 715mm
  • Max. load height 355mm

8ft

  • The 8ft with Barrel Hinge, NOT flat hinge
  • Length 8ft (2440mm)
  • Weight 24.1kg
  • Capacity 275kg
  • Width 715mm
  • Max. load height 405mm

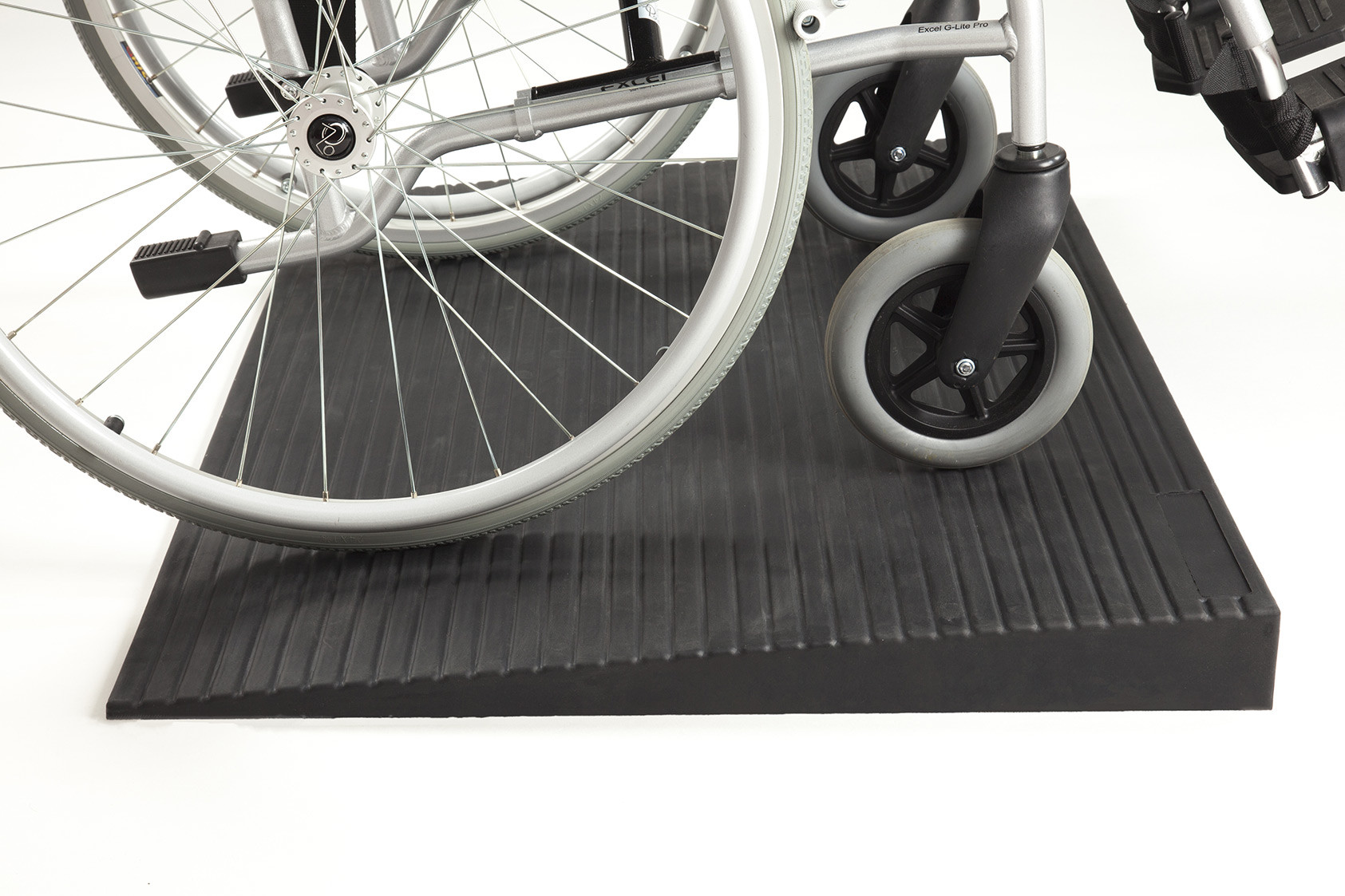

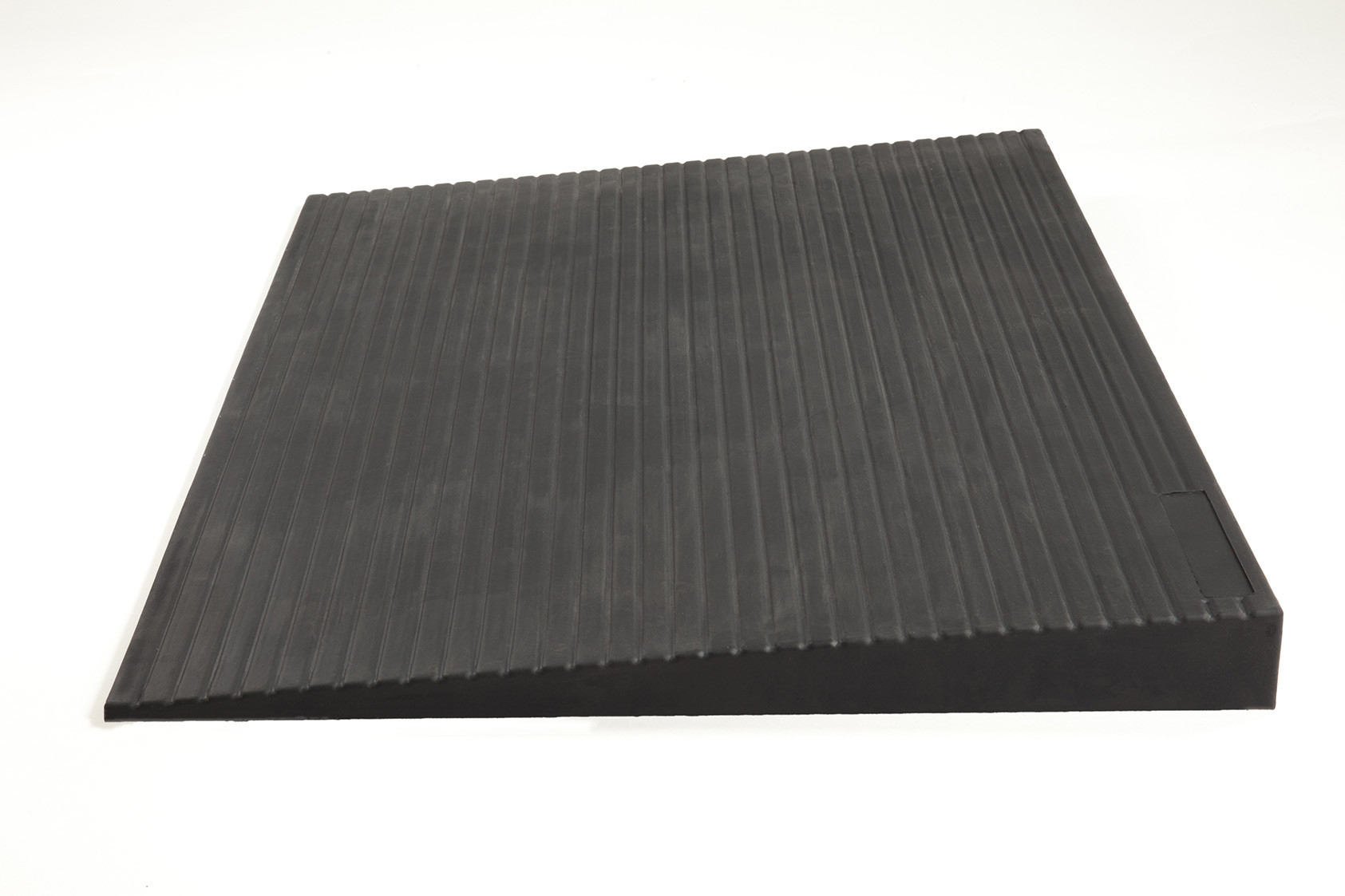

Rubber Threshold Ramp Speicifcations

  • Smooth gradient for disabled access, the threshold ramps offer a 1 in 10 gradient
  • Durable rubber ramp with a 1000kg capacity, suitable for manual wheelchairs, electric wheelchairs scooters and walkers
  • Weatherproof access ramp which can be used indoors and outdoors and can be left outside
  • No installation required simply rest the rubber ramp next to the step or kerb and start using
  • Anti-slip surface provides optimal traction during use
  • Reduce the width of the ramp where required with a Stanley knife, saw or similar
  • Create a wider width - the flat edge design means multiple ramps can be placed side by side to create your desired width
  • 100% recycled rubber compound

Please note that the natural smell of rubber is fades after a couple of days in fresh air. To speed the process wipe the surface with a damp cloth with washing up liquid on.

12mm/0.47"

  • Length (mm): 120
  • Width (mm): 1000
  • Weight (kg): 1.60
  • Capacity (kg): 1000

16mm/0.62"

  • Length (mm): 146
  • Width (mm): 995
  • Weight (kg): 2.3
  • Capacity (kg): 1000

20mm/0.78"

  • Length (mm): 160
  • Width (mm): 1000
  • Weight (kg): 2.6
  • Capacity (kg): 1000

24mm/0.94"

  • Length (mm): 240
  • Width (mm): 990
  • Weight (kg): 3.9
  • Capacity (kg): 1000

28mm/1.1"

  • Length (mm): 280
  • Width (mm): 990
  • Weight (kg): 4.8
  • Capacity (kg): 1000

30mm/1.18"

  • Length (mm): 300
  • Width (mm): 1000
  • Weight (kg): 6.2
  • Capacity (kg): 1000

32mm/1.25"

  • Length (mm): 320
  • Width (mm): 995
  • Weight (kg): 6
  • Capacity (kg): 1000

36mm/1.42"

  • Length (mm): 360
  • Width (mm): 990
  • Weight (kg): 8.2
  • Capacity (kg): 1000

40mm/1.57"

  • Length (mm): 400
  • Width (mm): 1000
  • Weight (kg): 9.1
  • Capacity (kg): 1000

44mm/1.73"

  • Length (mm): 440
  • Width (mm): 1000
  • Weight (kg): 9.7
  • Capacity (kg): 1000

48mm/1.88"

  • Length (mm): 480
  • Width (mm): 1000
  • Weight (kg): 10.9
  • Capacity (kg): 1000

50mm/1.97"

  • Length (mm): 500
  • Width (mm): 1000
  • Weight (kg): 11.8
  • Capacity (kg): 1000

52mm/2.04"

  • Length (mm): 520
  • Width (mm): 1000
  • Weight (kg): 13.1
  • Capacity (kg): 1000

56mm/2.20"

  • Length (mm): 560
  • Width (mm): 1000
  • Weight (kg): 13.6
  • Capacity (kg): 1000

60mm/2.36"

  • Length (mm): 600
  • Width (mm): 1000
  • Weight (kg): 16.3
  • Capacity (kg): 1000

65mm/2.55"

  • Length (mm): 650
  • Width (mm): 1000
  • Weight (kg): 19.2
  • Capacity (kg): 1000

70mm/2.76"

  • Length (mm): 700
  • Width (mm): 1000
  • Weight (kg): 19.9
  • Capacity (kg): 1000
Details
SKUTRP-CombiLow
One Year WarrantyYes
Easy to FitYes
Electric Wheelchair Yes
Manual WheelchairYes
Mobility Scooter FriendlyYes
