Folding Aluminium & Rubber Threshold Drive-In System (2ft-8ft & 4.5"-7")

SKU
TRP-CombiHigh
From £234.00 £195.00
In Stock
Only %1 left

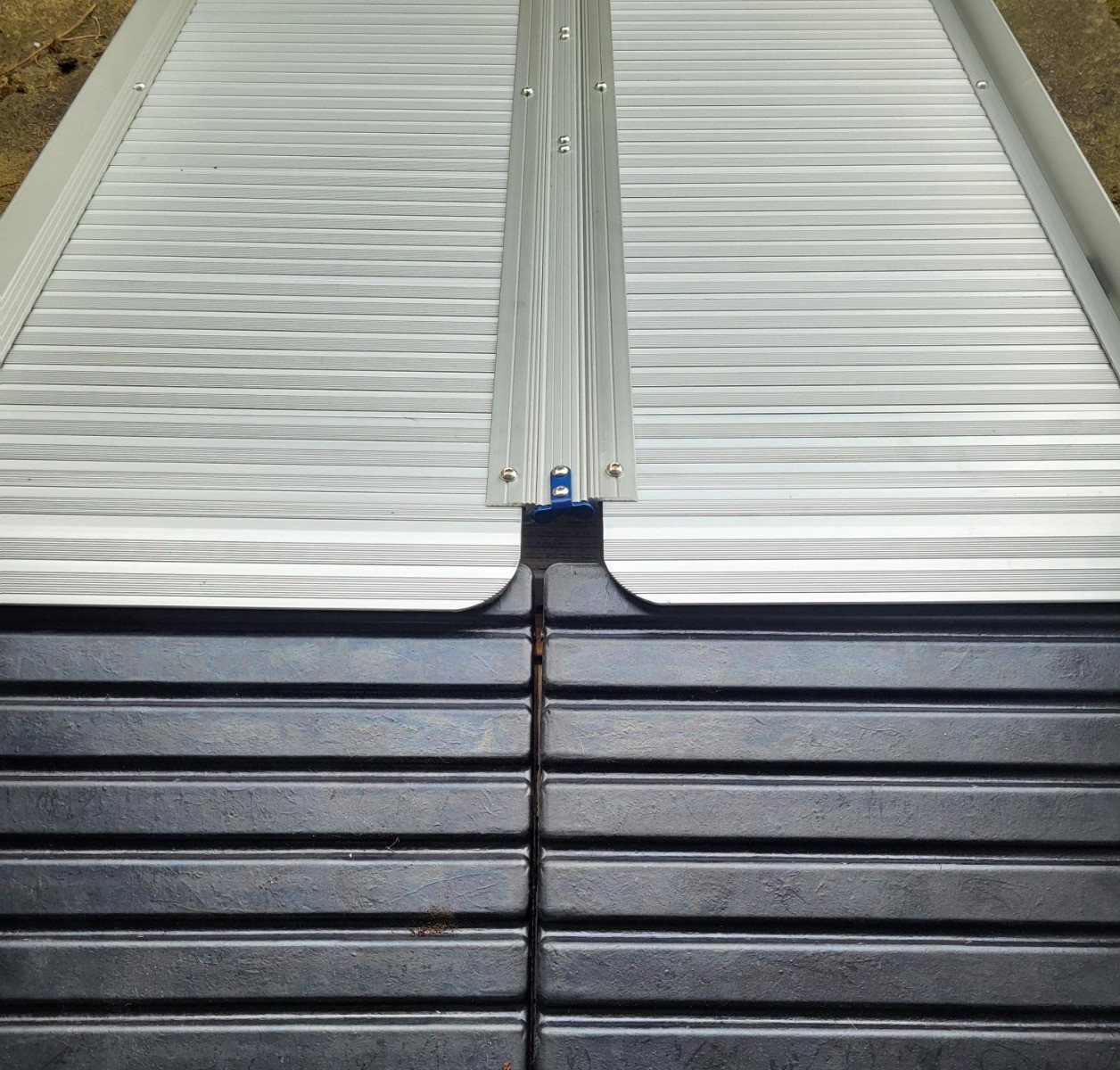

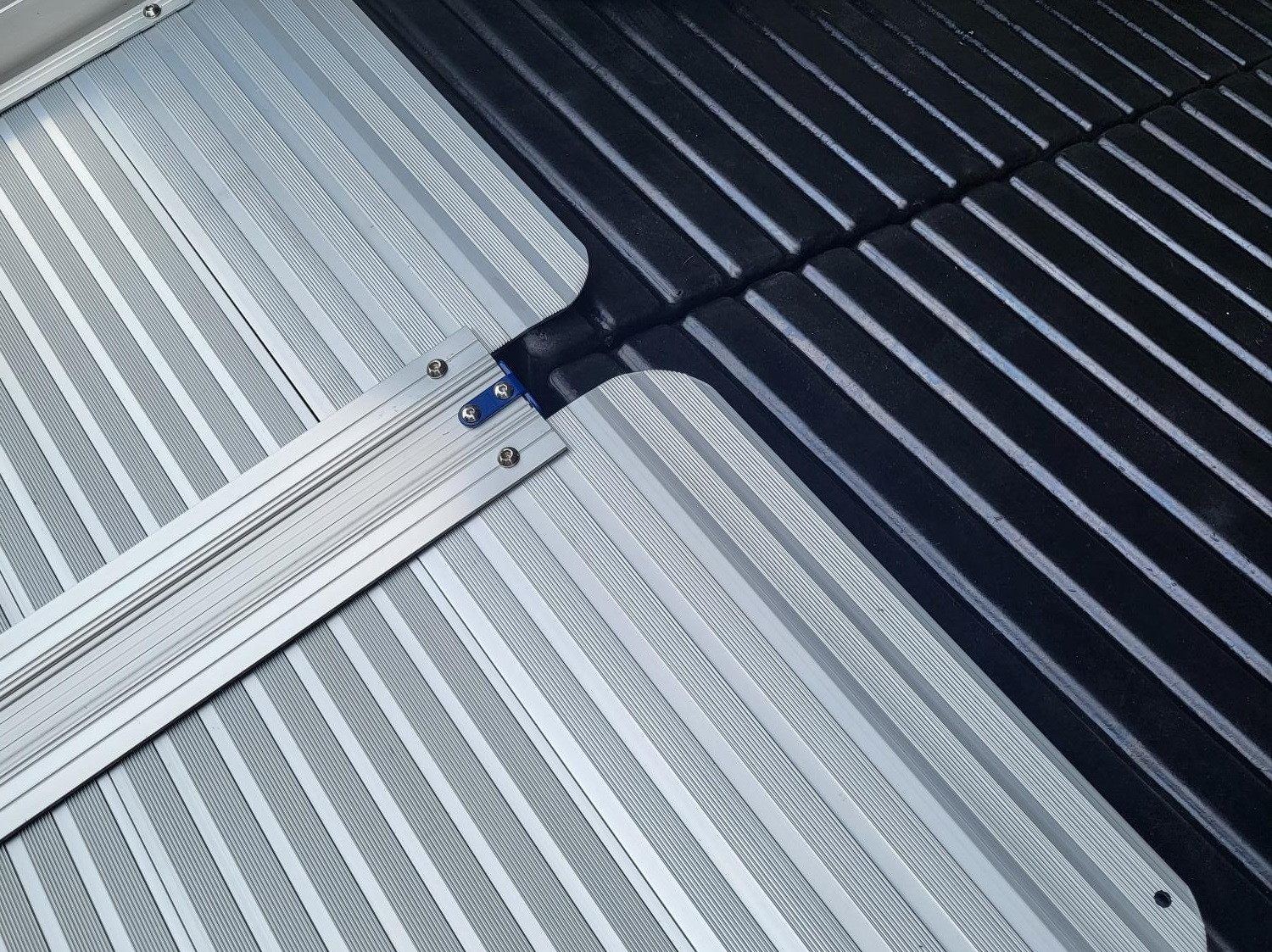

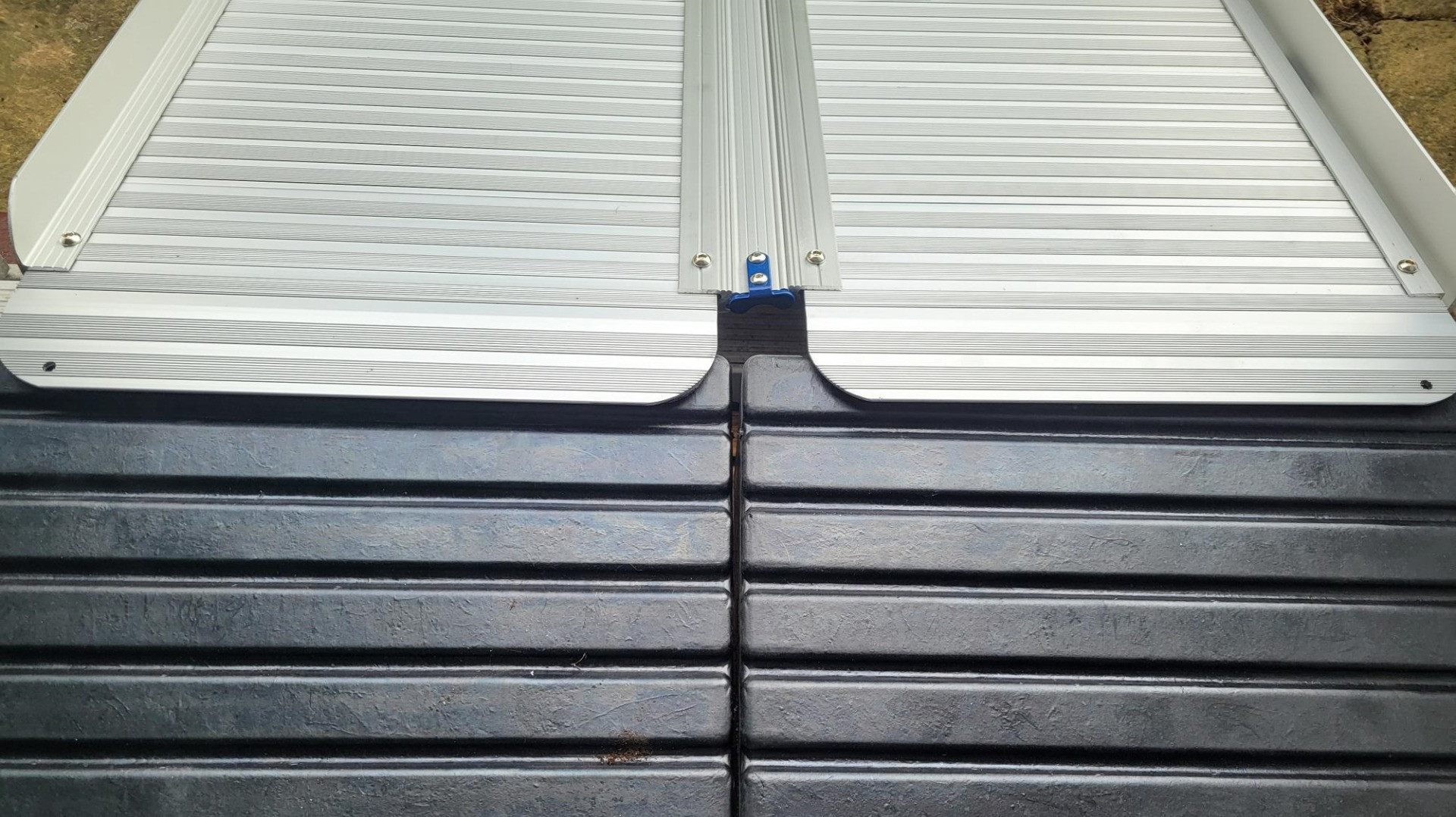

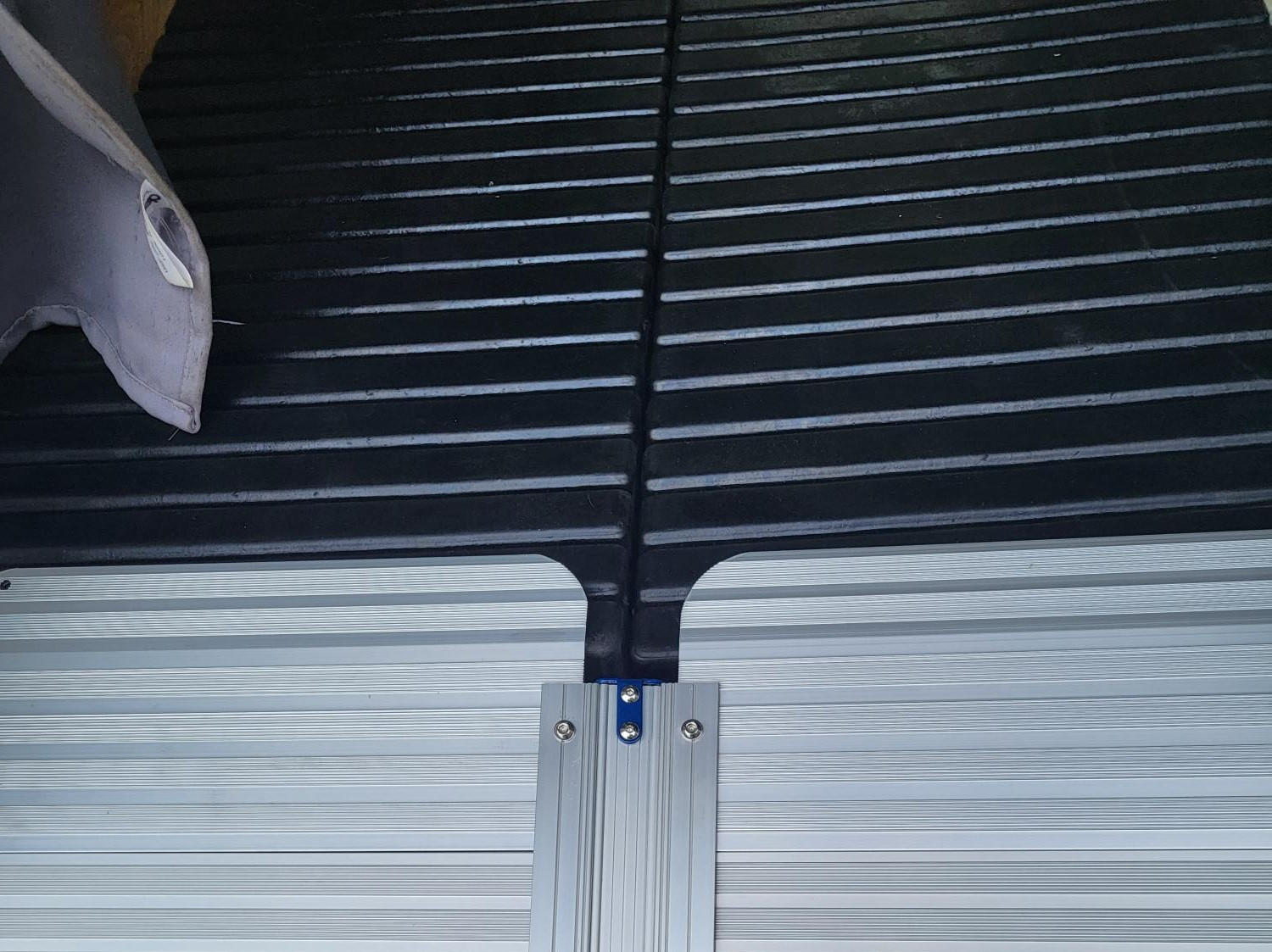

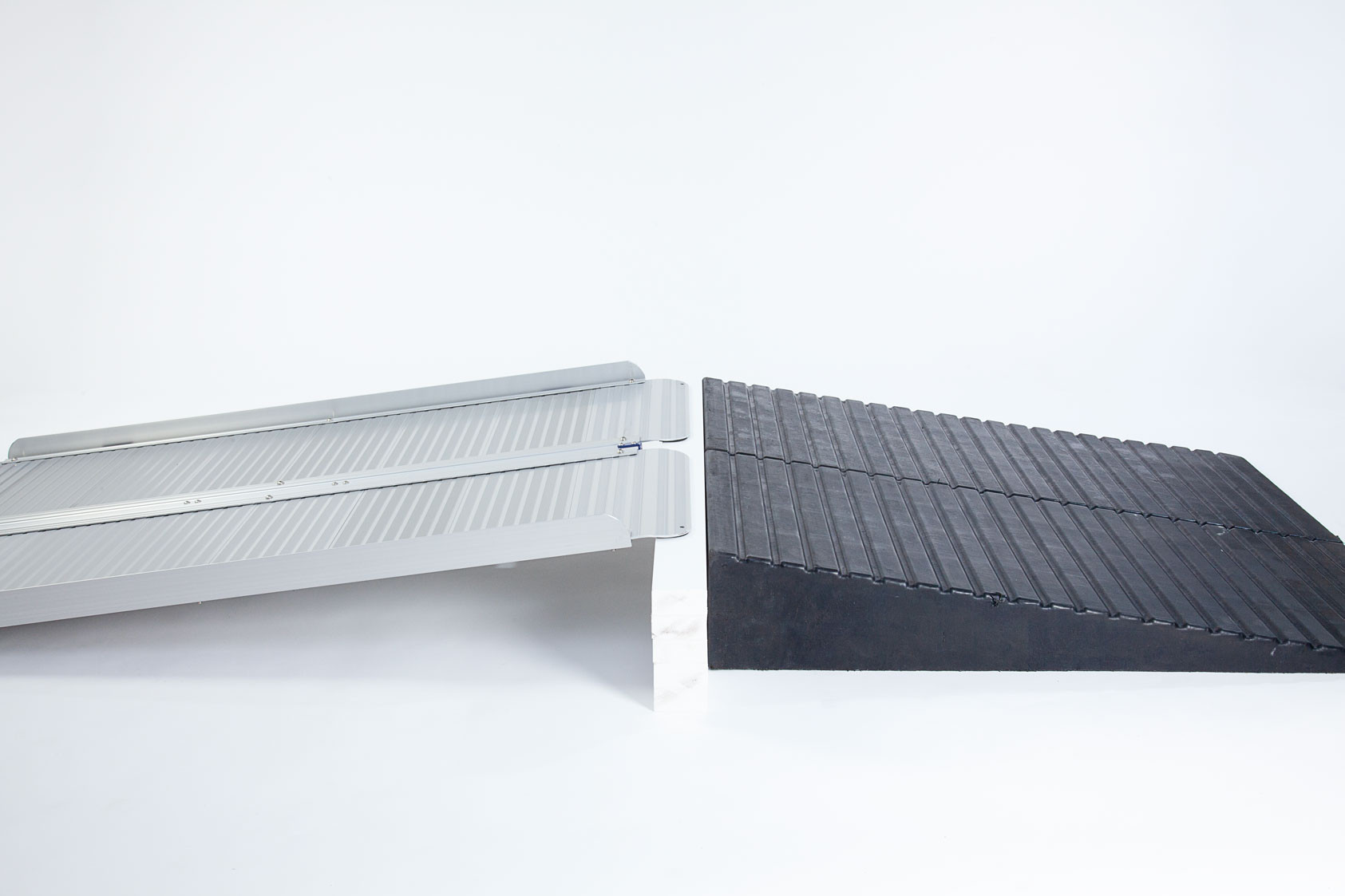

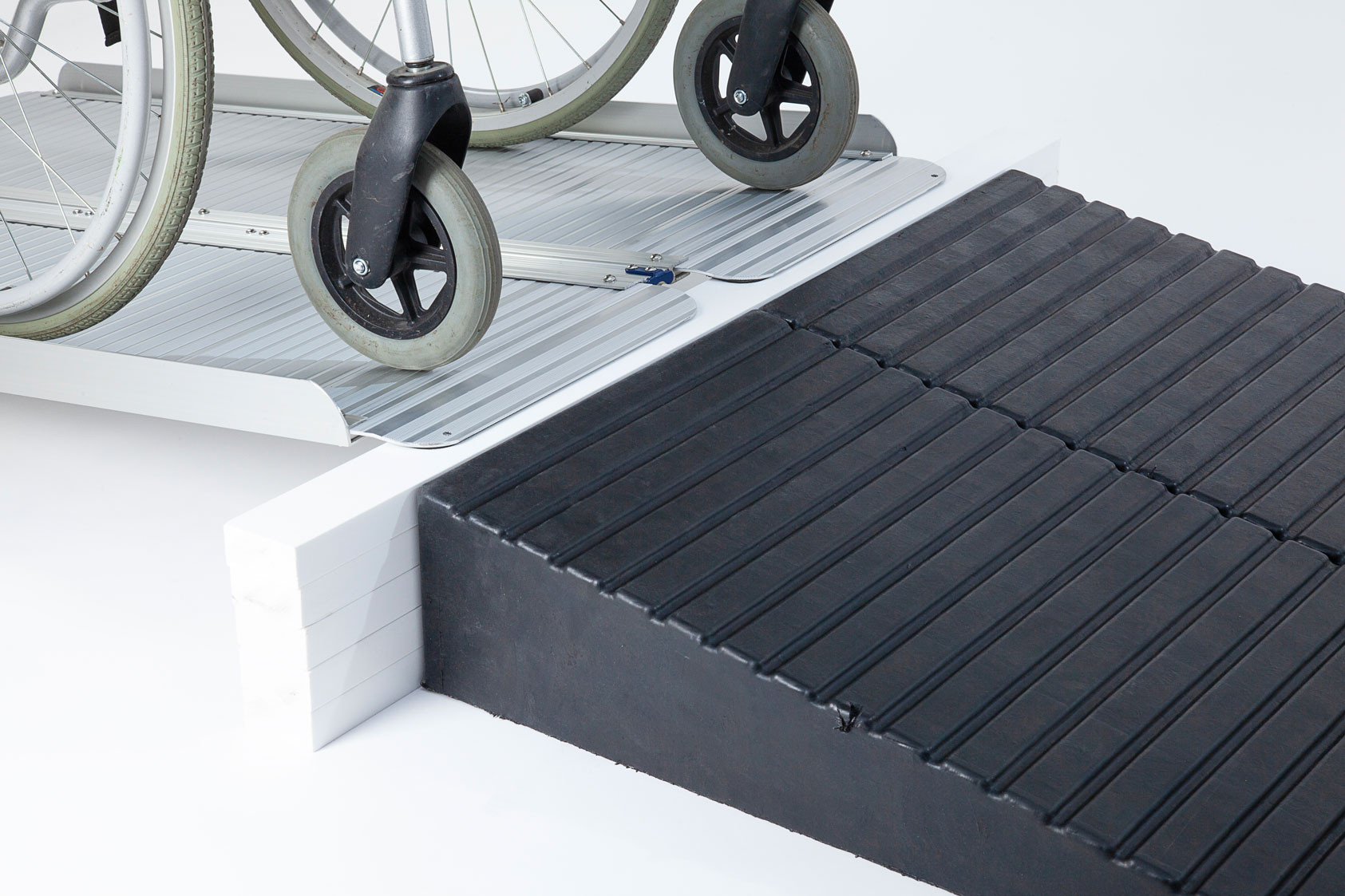

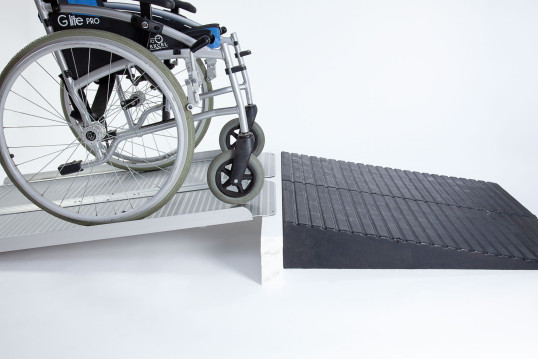

The Ramp Factory's economy folding wheelchair ramp combined with rubber threshold ramps creates the perfect portable up and over system for doors such as UPVC. Using a portable ramp system offers numerous advantages. It allows individuals with mobility challenges to easily access different areas, such as doorways and thresholds, without the need for permanent modifications. This not only promotes independence and inclusivity, but it also provides a convenient solution for those who frequently move or travel.

Folding Wheelchair Ramps FAQ's

Description

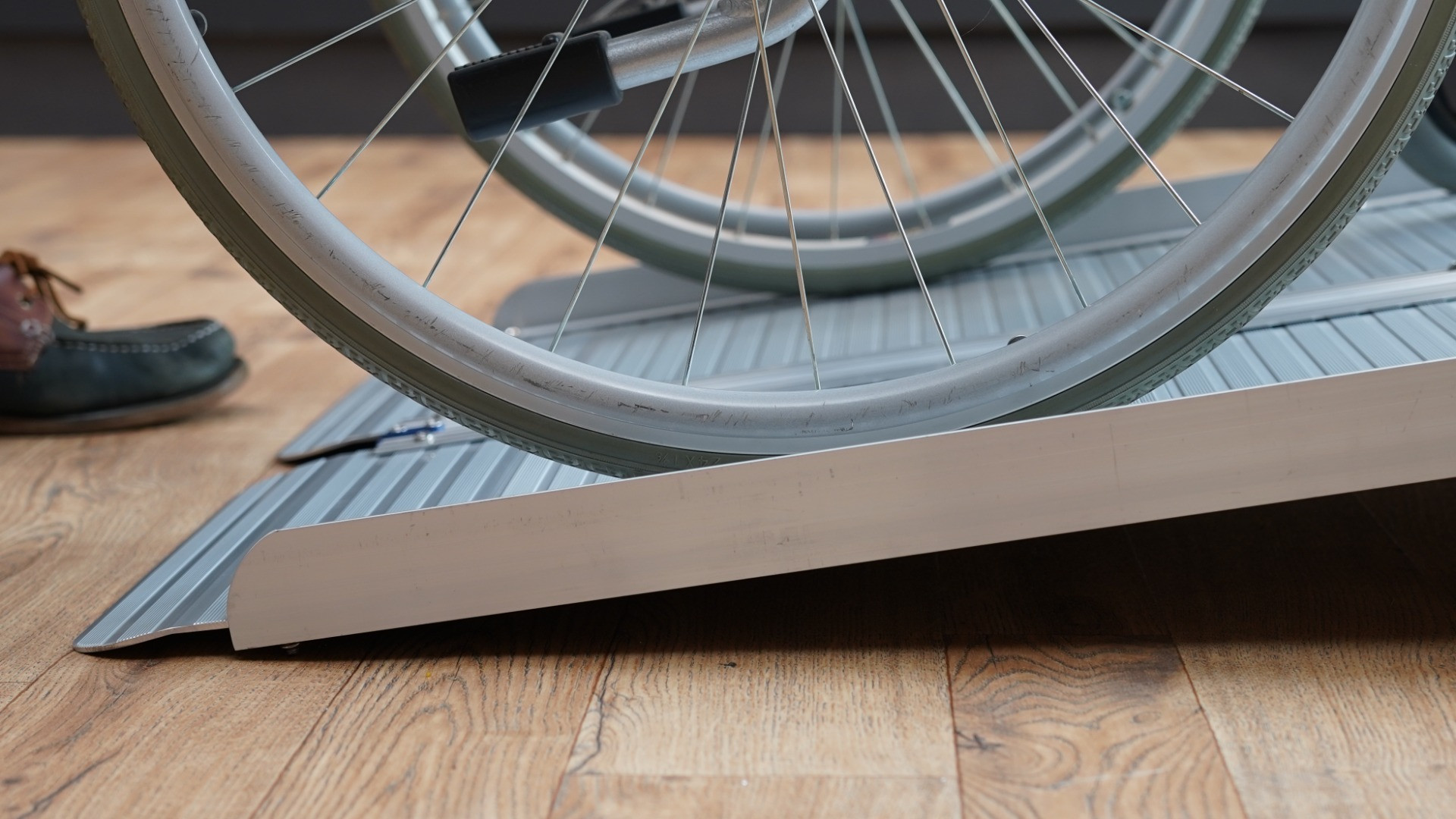

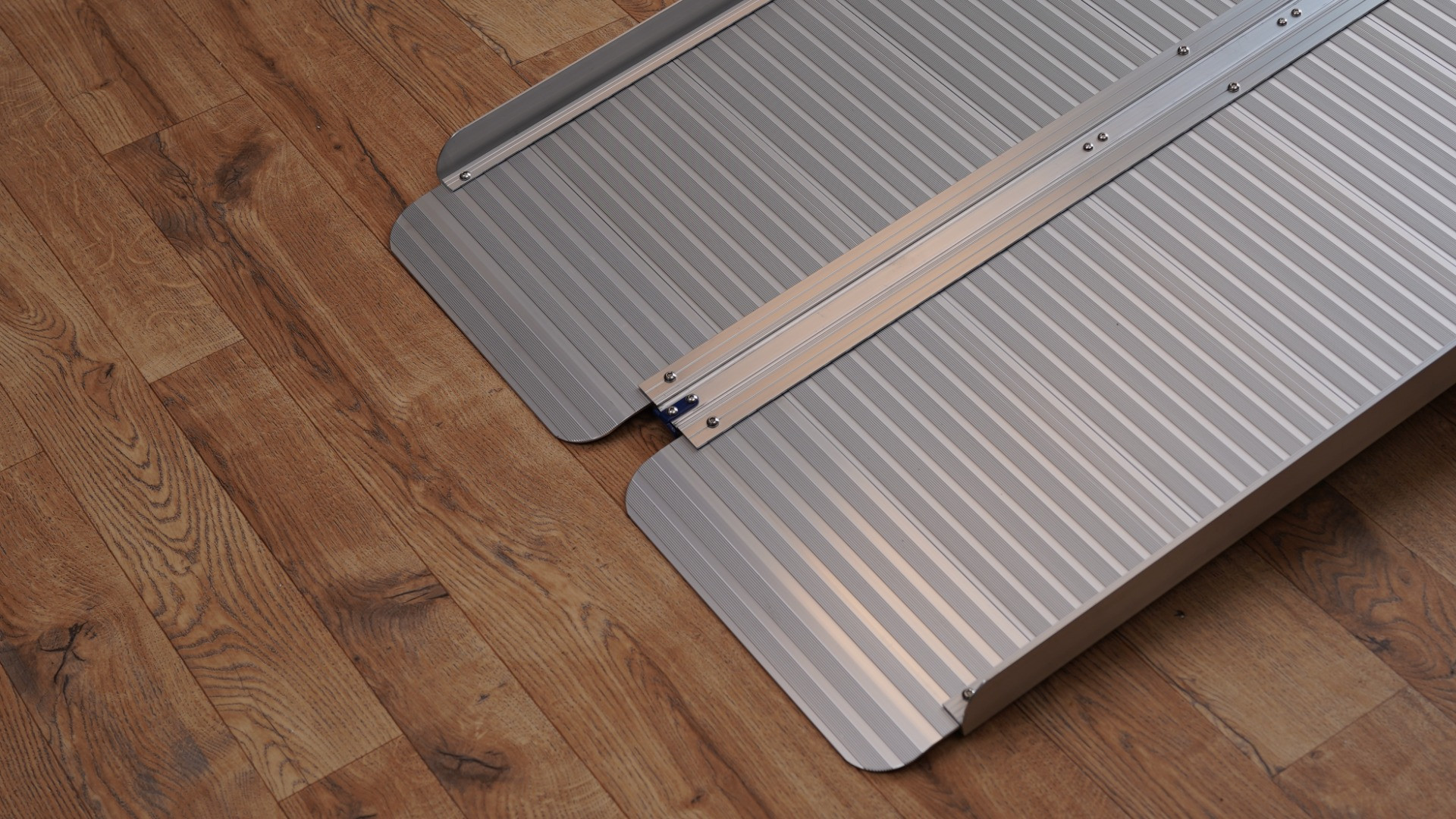

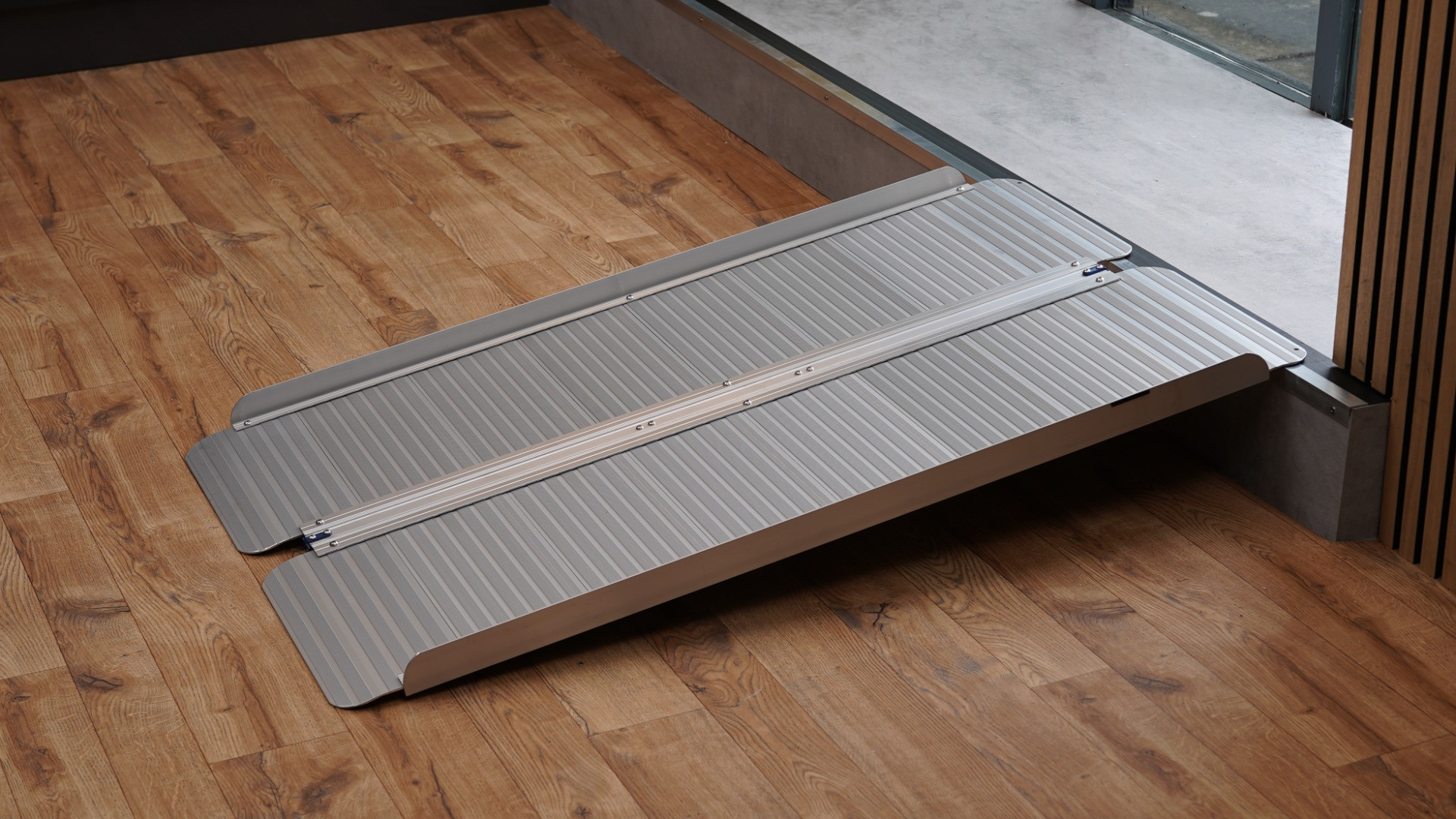

Folding Wheelchair Ramp Specifications

2ft

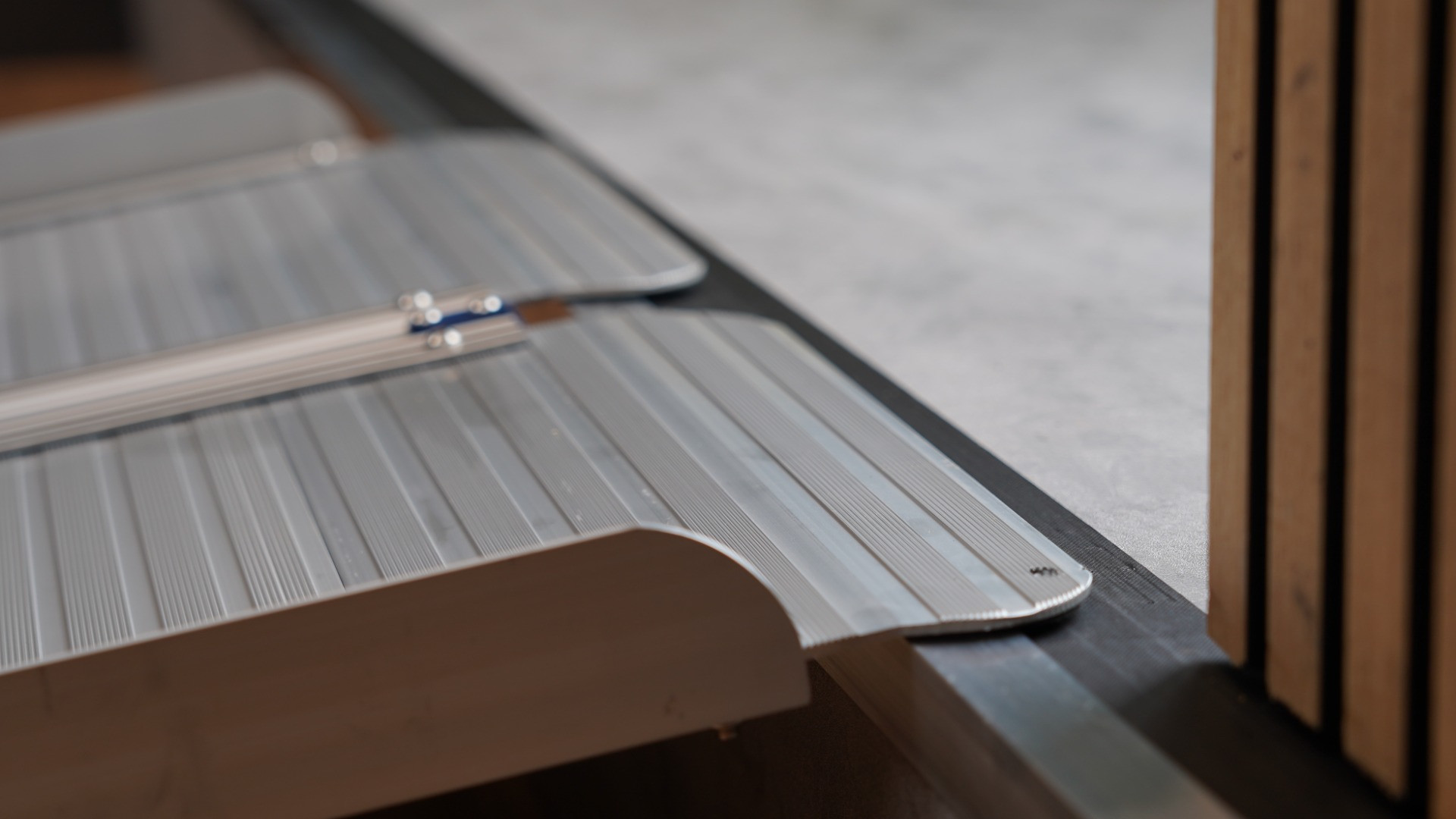

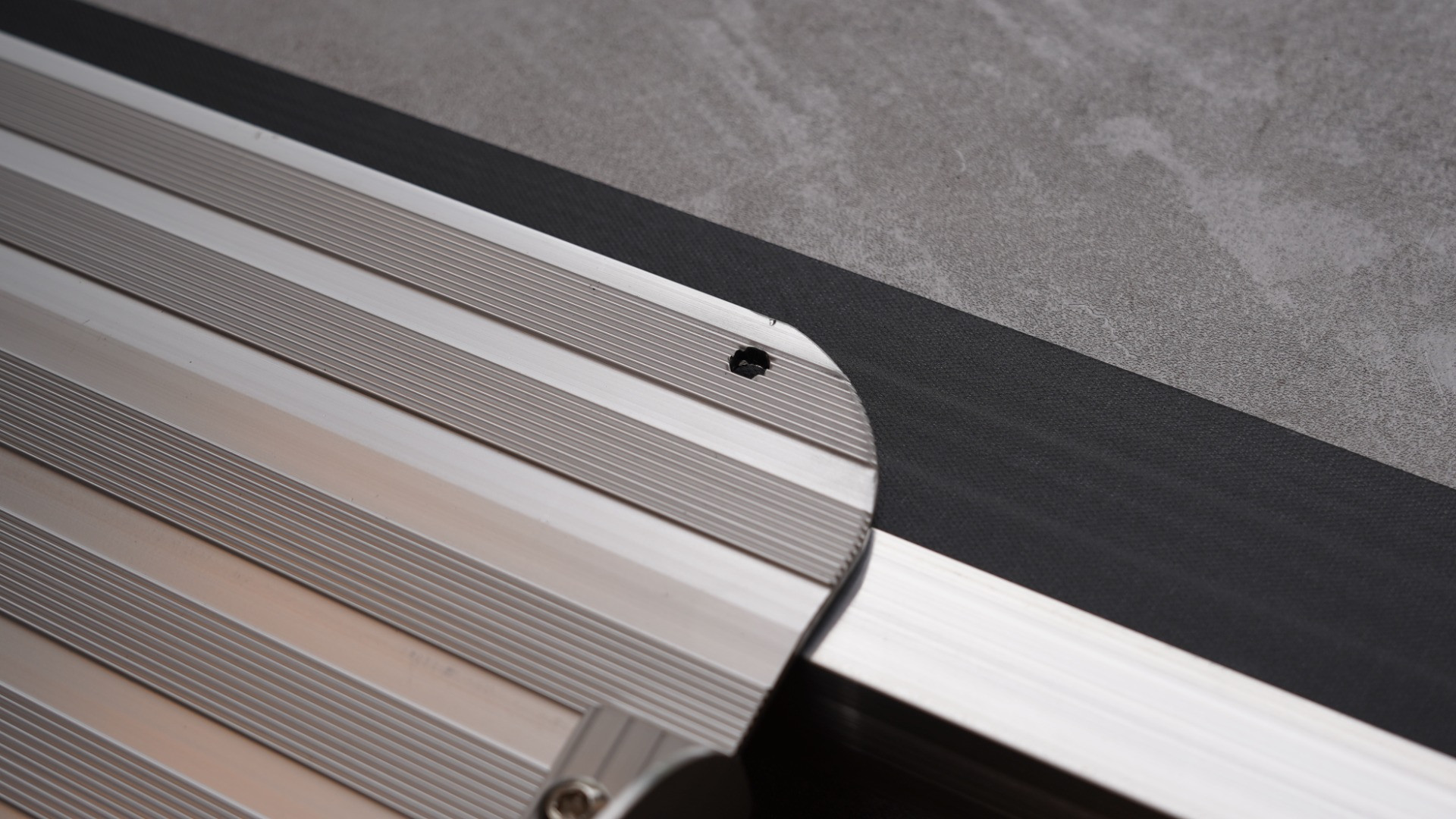

  • The 2ft with the new improved flat hinge
  • Length 2ft (610mm)
  • Weight 5.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 100mm

3ft

  • The 3ft with the new improved flat hinge
  • Length 3ft (915mm)
  • Weight 8.0kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 150mm

4ft

  • The 4ft with the new improved flat hinge
  • Length 4ft (1219mm)
  • Weight 10.4kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 200mm

5ft

  • The 5ft with the new improved flat hinge
  • Length 5ft (1524mm)
  • Weight 13.2kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 250mm

6ft

  • The 6ft with the new improved flat hinge
  • Length 6ft (1829mm)
  • Weight 15.8kg
  • Capacity 300kg
  • Internal width 715mm
  • Max. load height 300mm

7ft

  • The 7ft with Barrel Hinge, NOT flat hinge
  • Length 7ft (2130mm)
  • Weight 19kg
  • Capacity 275kg
  • Internal width 715mm
  • Max. load height 355mm

8ft

  • The 8ft with Barrel Hinge, NOT flat hinge
  • Length 8ft (2440mm)
  • Weight 24.1kg
  • Capacity 275kg
  • Width 715mm
  • Max. load height 405mm

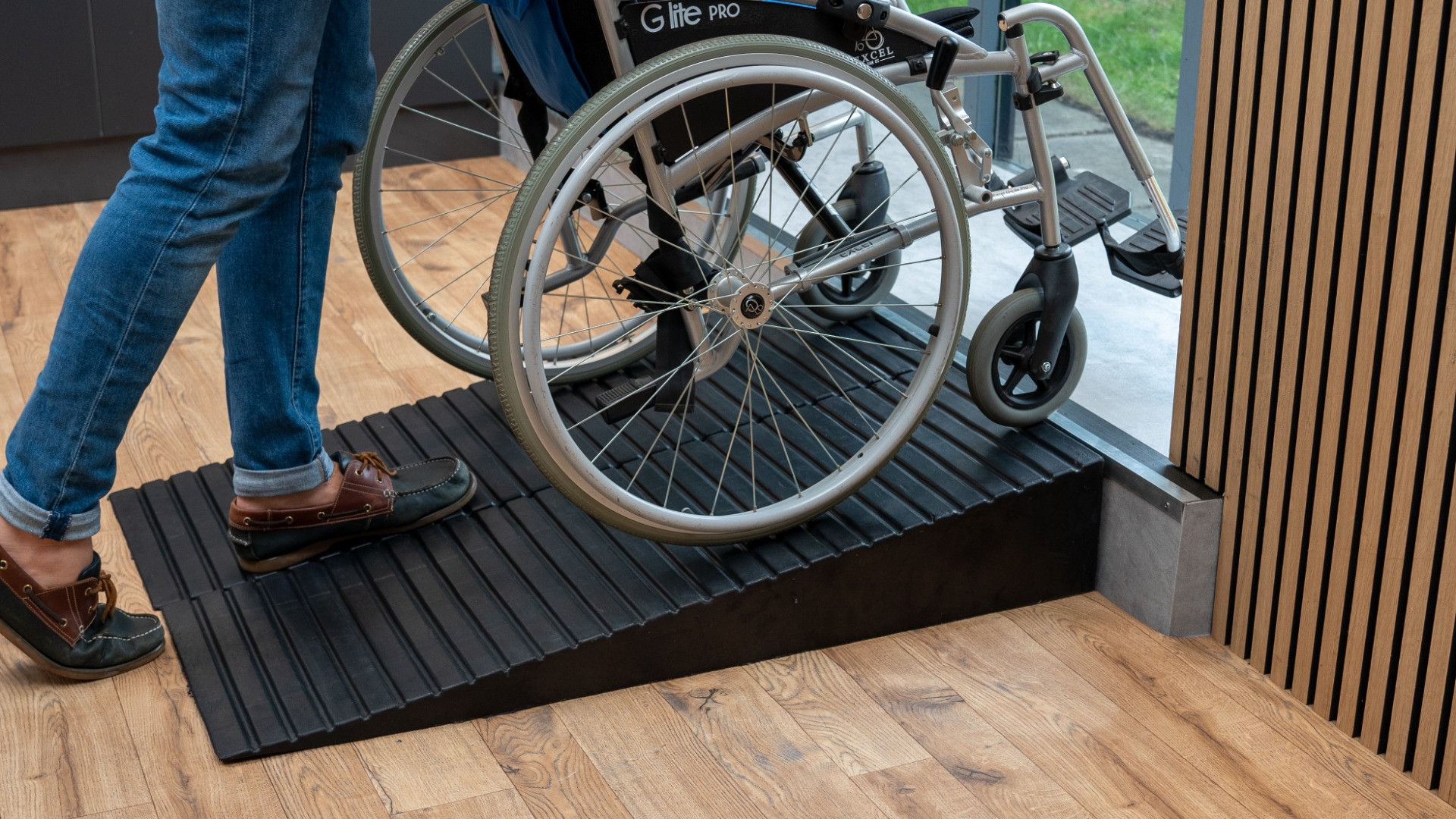

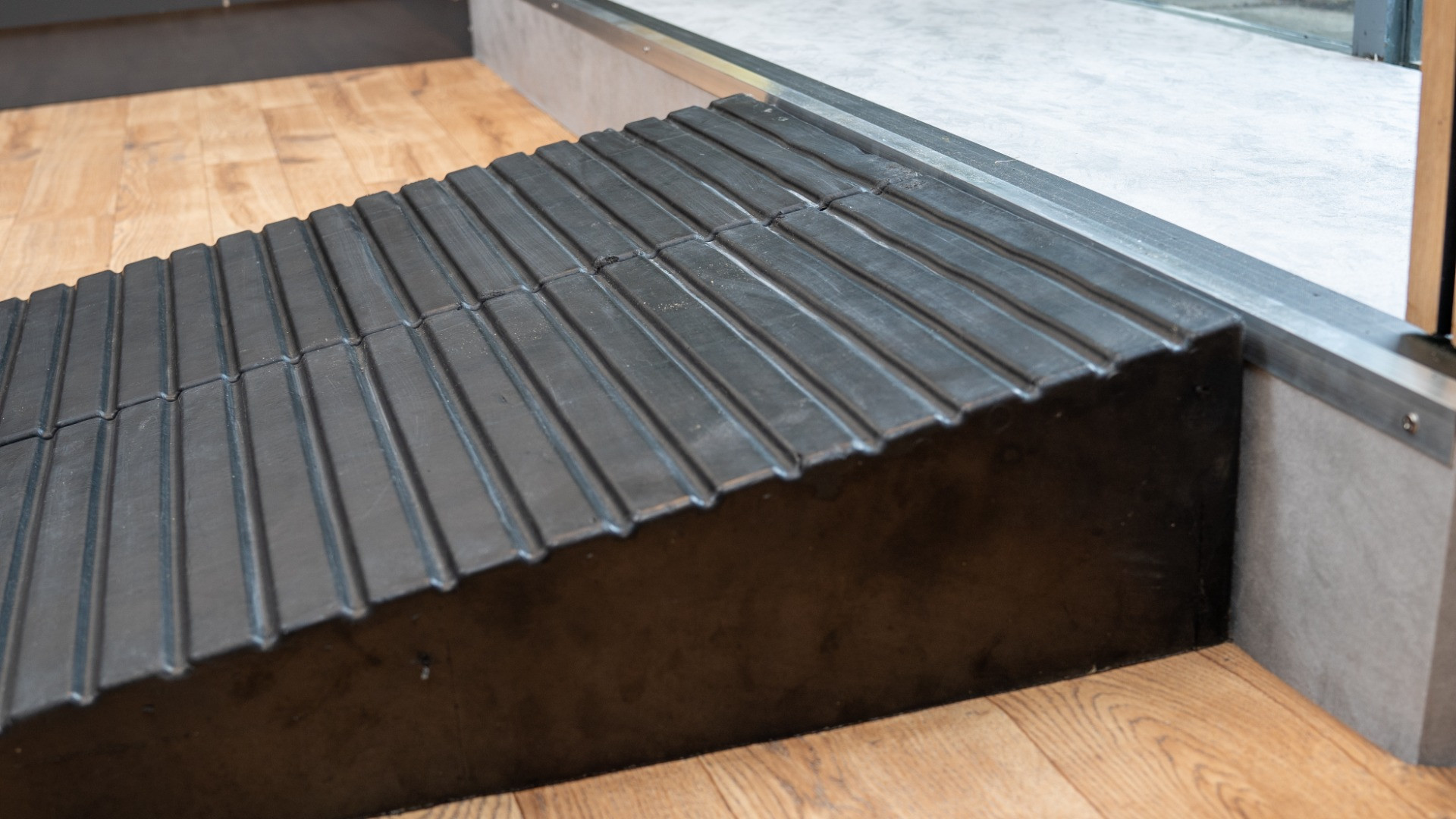

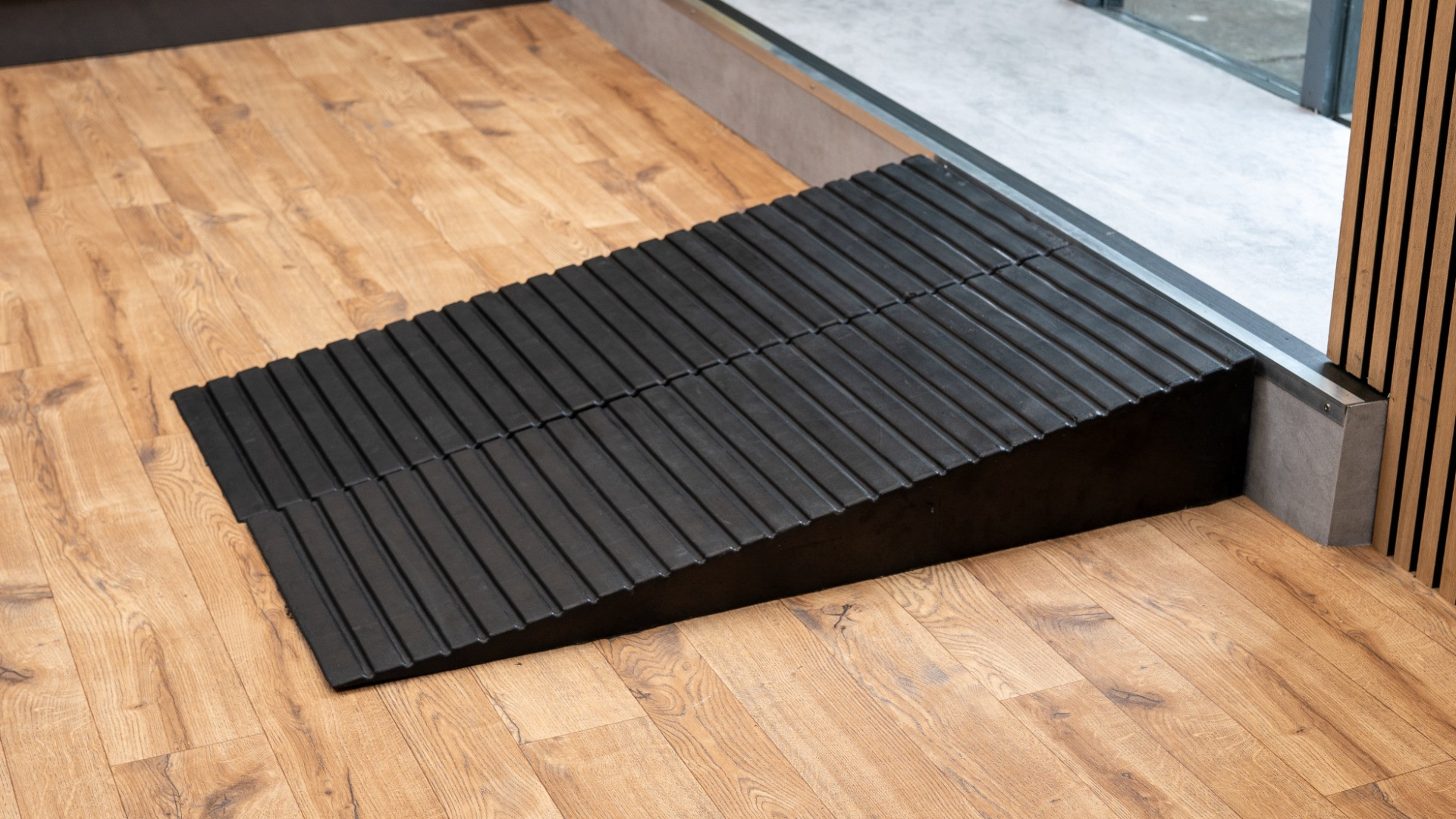

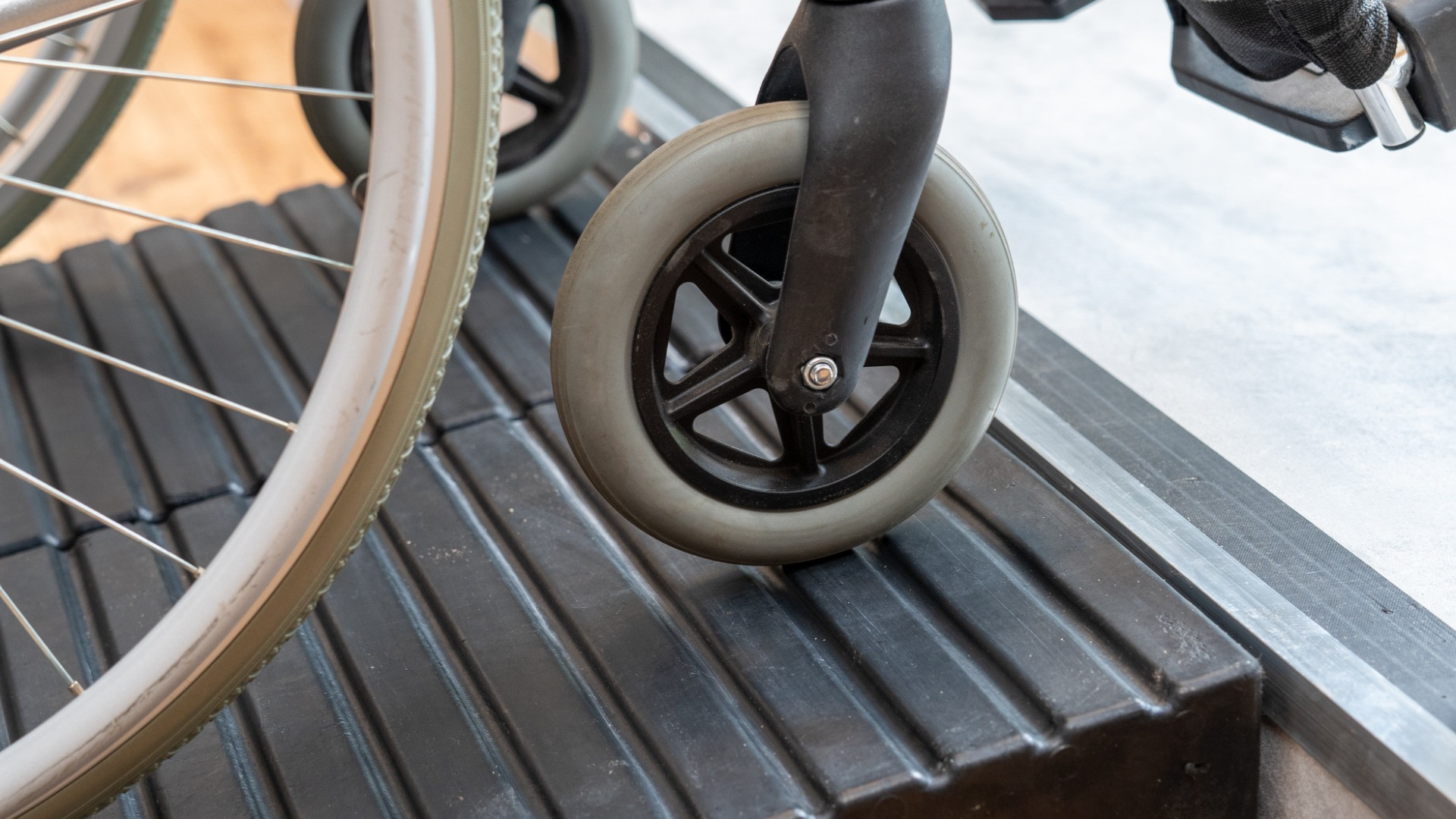

Rubber Threshold Ramp Specifications

  • Sold as singles or in pairs, with each ramp being 400mm wide.
  • Can support a load of up to 1000kg
  • Manufactured from 100% recycled rubber compound
  • Rest & go - to fit just slide up to the kerb and start loading
  • Can be extended to any length required
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

4.5"/114.3mm

  • Length (mm): 685.8
  • Width (mm): 400
  • Weight per ramp (kg): 10.5
  • Capacity (kg): 1000

5"/127mm

  • Length (mm): 762
  • Width (mm): 400
  • Weight per ramp (kg): 12.6
  • Capacity (kg): 1000

5.5"/139.7mm

  • Length (mm): 838.2
  • Width (mm): 400
  • Weight (kg): 14.8
  • Capacity (kg): 1000

6"/152.4mm

  • Length (mm): 914.4
  • Width (mm): 400
  • Weight (kg): 17.20
  • Capacity (kg): 1000

6.5"/165.1mm

  •  Length (mm): 990.6
  • Width (mm): 400
  • Weight (kg): 19.80
  • Capacity (kg): 1000

7"/177.8mm

  • Length (mm): 1066.8
  • Width (mm): 400
  • Weight (kg): 24.5
  • Capacity (kg): 1000

Details
SKU TRP-CombiHigh
One Year Warranty Yes
Easy to Fit Yes
Electric Wheelchair Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
